Kohler K-97260X Assembly instructions

Installation and Care Guide
Dual System Bath


1241693-X2-A ©2018 Kohler Co.
K-97260X

Thank You for Choosing Kohler Company
Building materials and wiring should be routed away from the pump body and other heat-producing components
of the unit.
A pressure wire connector marked “Earth/Ground” is provided within the wiring compartment. To reduce
the risk of electric shock, connect this connector to the grounding terminal of your electric service or supply
panel with copper wire equivalent in size to the circuit conductor supplying this equipment.
Grounding is required. The unit should be installed by a qualied service representative, and grounded.
NOTE: Install to permit access for servicing.
NOTICE : Follow all local plumbing and electrical codes.
B. Factory-Assembled Features
Your bath has been manufactured to the highest possible standard, it has been factory tested and approved.
WARNING : Unauthorized modication may cause unsafe operation or aect performance of the bath
with airjets. Do not relocate the blower motor, or make other modications to the system in the absence of
kit instructions, as this could adversely aect the performance and safe operation of the bath with airjets.
Kohler Thailand shall not be liable under its warranty or otherwise for personal injury or damage caused
by any such unauthorized modication.
We appreciate your commitment to Kohler quality. Please take a few minutes to review this manual before
you start installation. If you encounter any installation or performance problems, please call 0-2204-6222 for
Call Center (Thailand). Thank you again for choosing Kohler Company.
Important Information
IMPORTANT SAFETY INSTRUCTION
□ Please read these instructions carefully to familiarize yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all operating and safety instructions.
□ All information is based on the latest product information available at the time of publication. Kohler Co.
reserves the right to make changes in product characteristics, packaging, or availability at any time without notice.
□ These instructions contain important care, cleaning, and warranty information, please leave these instructions
for the consumer.
A. InstallationHazardNotication
DANGER : Risk of re, electric shock, or injury to persons. Read important safety instructions included
in these instructions.
WARNING : Risk of electrical shock. A licensed electrician should make all electrical connections.
WARNING : Risk of electrical shock. Disconnect power before servicing.
WARNING : Risk of injury or property damage. Please read all instructions thoroughly before beginning
installation, including the following product requirements.
DANGER : Risk of electric shock. Connect only to circuits protected by a Ground-Fault Circuit-Interrupter
(GFCI) or Earth-Leakage Circuit-Breaker (ELCB).
1241693-X2-B 2 Kohler Co.

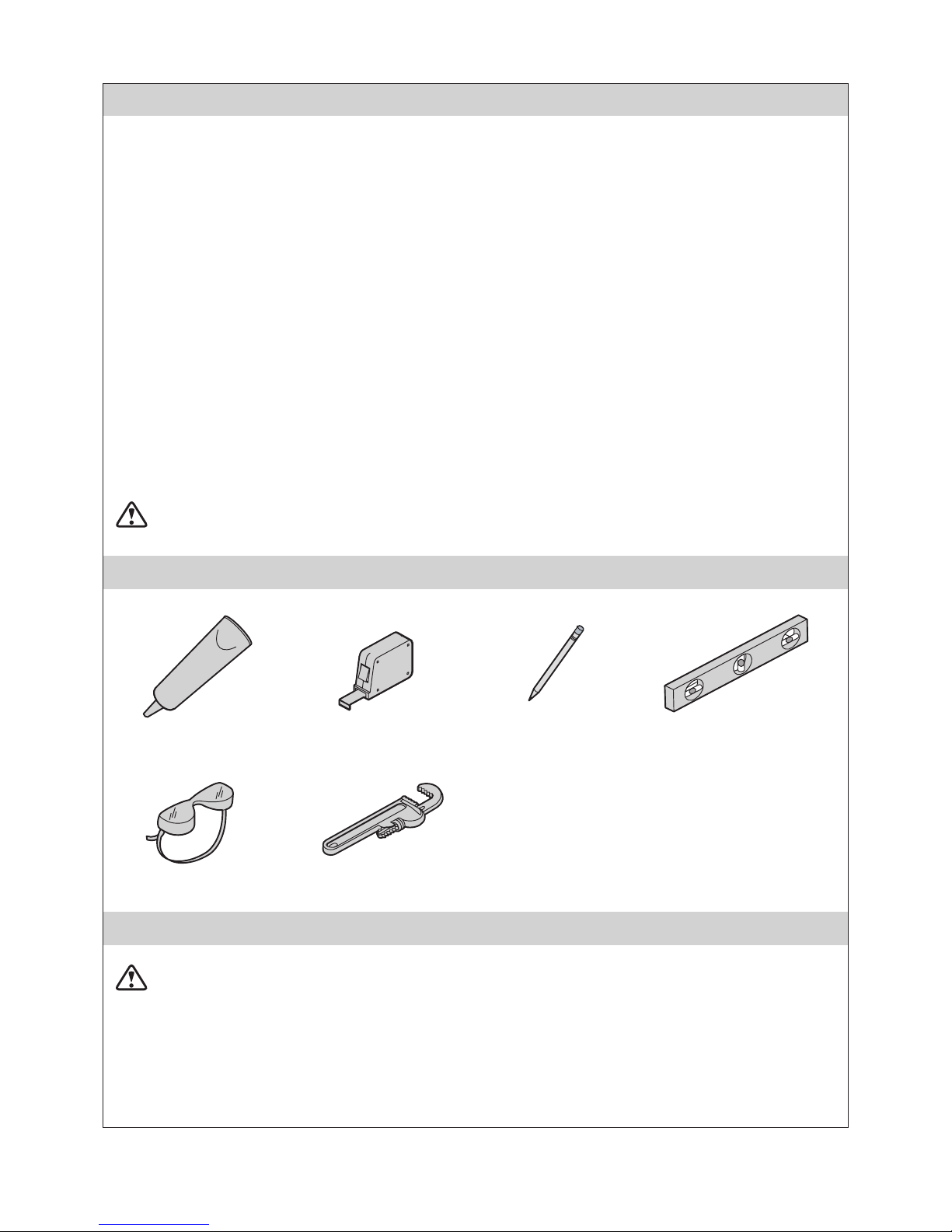

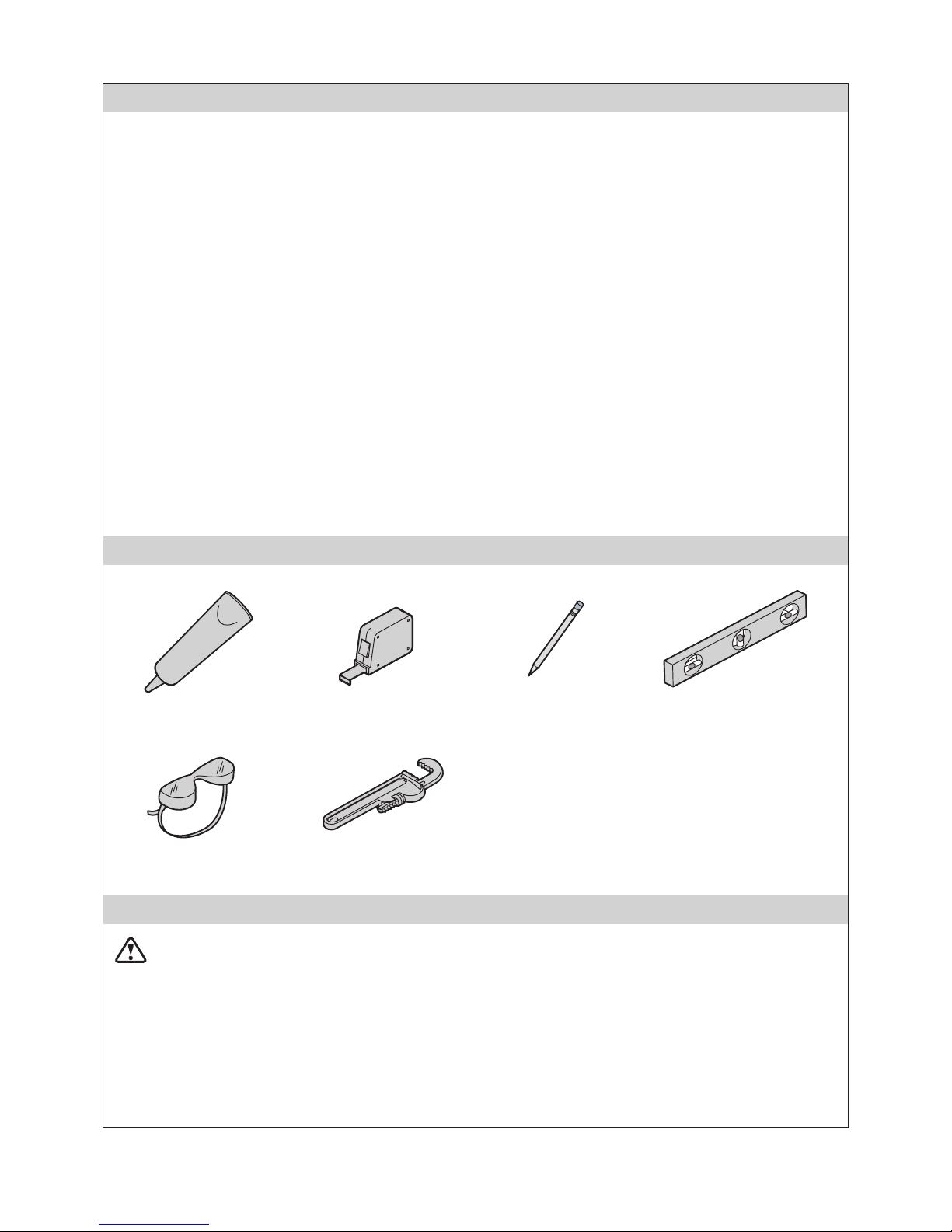

Tools
Before You Begin
Product Requirement
CAUTION : Risk of product damage. Do not lift the bath by the piping or pump, or use the piping or pump
for structural support of the bath.
□ We recommend this bath for drop-in.
□ Inspect the bath for damage before you begin installation.
□ You must install this bath to an adequately supported, level suboor.
□ Conrm adequate support for a rim-mounted faucet, large faucets that may be inadvertently used as a means
of support are not appropriate or safe for this installation.
Plus:
• Conventional woodworking or
concrete installation tools and materials
• Drop cloth
Silicone Sealant Measuring Tape LevelPencil
Pipe WrenchSafety Glasses
A. Summary of Key Requirements
□ Observe all local plumbing codes.
□ Install the unit to a level suboor.
□ Provide properly-dimensioned framing.
B. PlumbingSpecications
If using a rim-mounted bath faucet, exible connections between the valves and spout may be required. Conrm
adequate mounting, connection space of specied faucet for your installation.
C. Product Inspection
Carefully unpack and inspect the bath with airjets for damage. Leave all materials in the carton during constructions
to prevent damage.
D. Electrical Requirements
The installation must have a Earth-Leakage Circuit-Breaker (ELCB). The ELCB protects against Line-to-ground
shock hazard. Use a 220-240 V, 20 A (minimum), 50/60 Hz dedicated service for the bath with airjets.
E. Connections and Service Access
Before installation, ensure proper access to the nal connections.
NOTICE : Provide generous, unrestricted service access to the pump. You must provide access for servicing
the pump and controls. The access must be located immediately next to the pump. Study the roughing-in
information packed with the whirlpool (the size of access panel should not less than 500 x 450 mm).
Kohler Co. 3 1241693-X2-B

CAUTION : Risk of product damage. Do not support the bath by the rim.

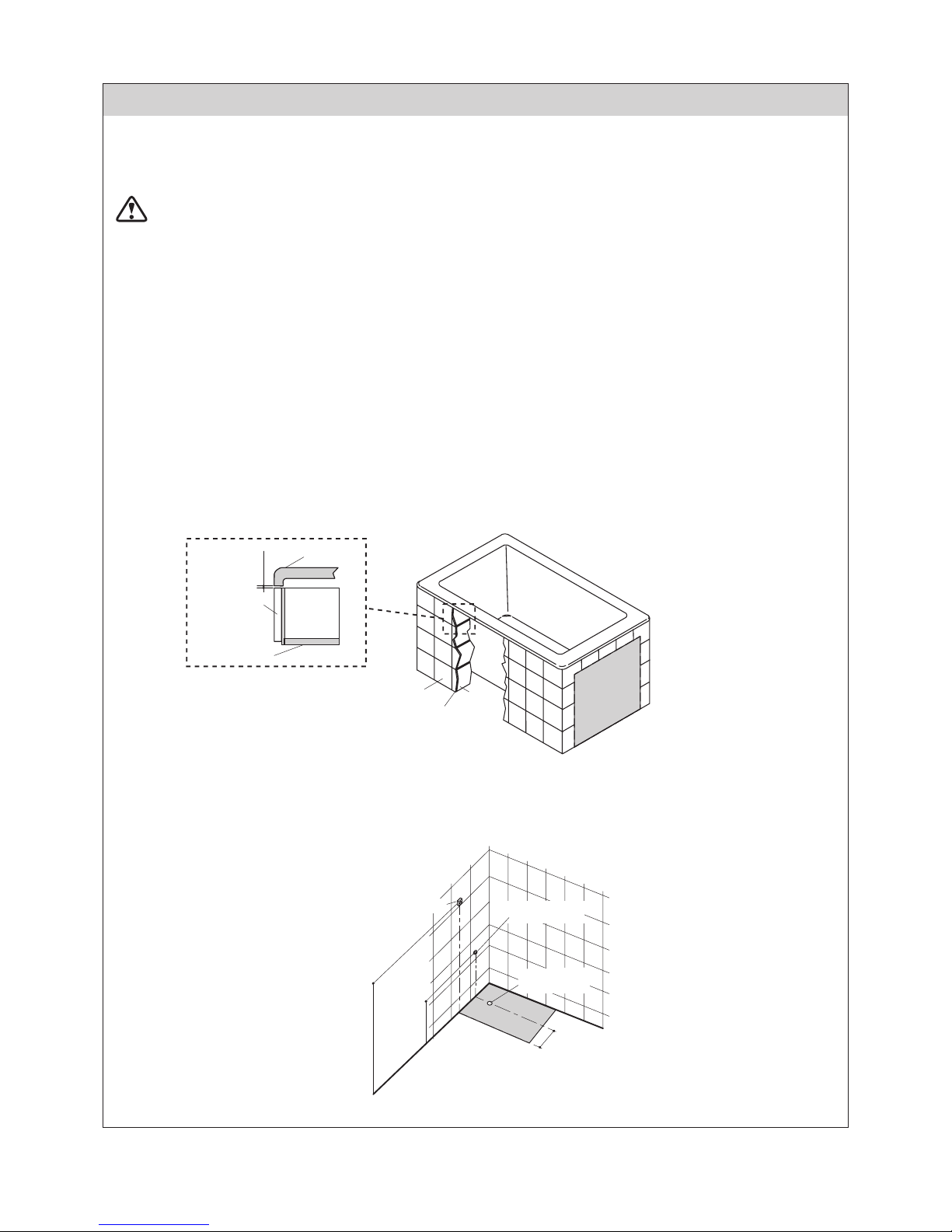

Prepare the Site
Concrete Construction
NOTICE : Adequate oor support must be provided. Consult the roughing-in sheet packed with your bath for
specic oor loading requirements.
NOTICE : Unless otherwise specied, oor support under the bath must provide for a minimum 390 kg/square
meter loading.
NOTICE: Provide adequate ventilation and a minimum of 15 cubic feet (0.4 cubic meters) in the installed location
for cooling the motor and to supply sucient air for the blower. Do not install the blower motor closer than 2.5 mm
from the wall or other objects.
□ Make sure the ooring oers adequate support for your bath, and verify that the suboor is at and level.
□ This bath may be installed next to the wall or in an island installation. An island installation requires a four
side surround. In both instances, make sure the deck is supported by brick or concrete.
□ Install an access panel to allow the pump to be serviced.
□ Construct brick or concrete supports.
□ Provide 2 mm gap between the bath rim and the concrete or brick framing. Frame the oor, or construct
a frame for a raised installation, in accordance with the roughing-in information packed with the bath.
□ Position the plumbing according to the roughing-in information packed. Cap the supplies, and check for leaks.
Typical
Access
Panel
Whirlpool may be installed next to
the wall or as an island installation.
Install an access panel to allow
the pump to be serviced.
Bath
2 mm
Approved
Tile Backing
Approved
Tile Backing
Tile
Brick
Tile Brick
1/2" Water Supply
Power Supply
300-400
Ø2" Outlet
1500
500-700
1241693-X2-B 4 Kohler Co.

CAUTION : Risk of product damage. Do not lift the bath by the piping or pump, or use the piping or pump
for structural support of the bath.

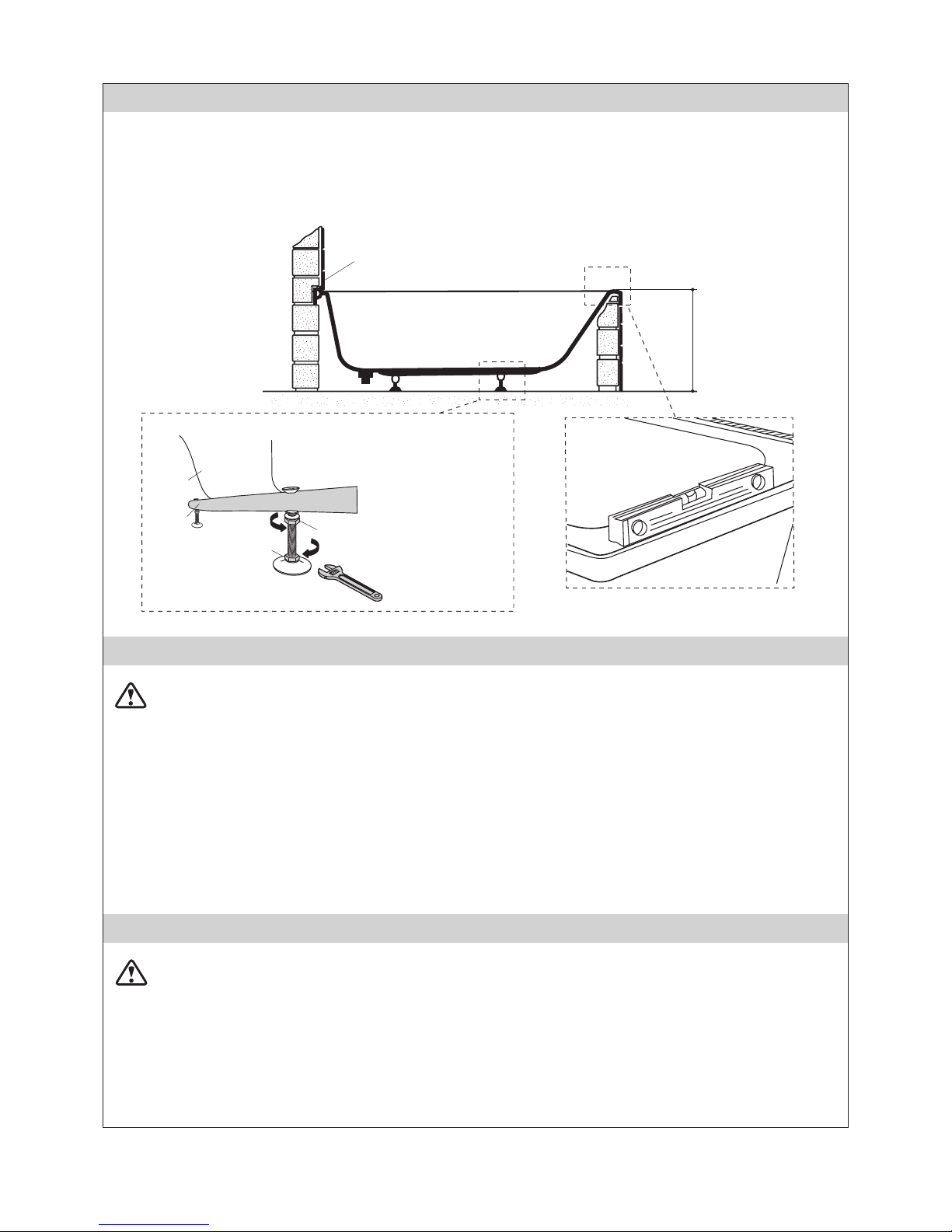

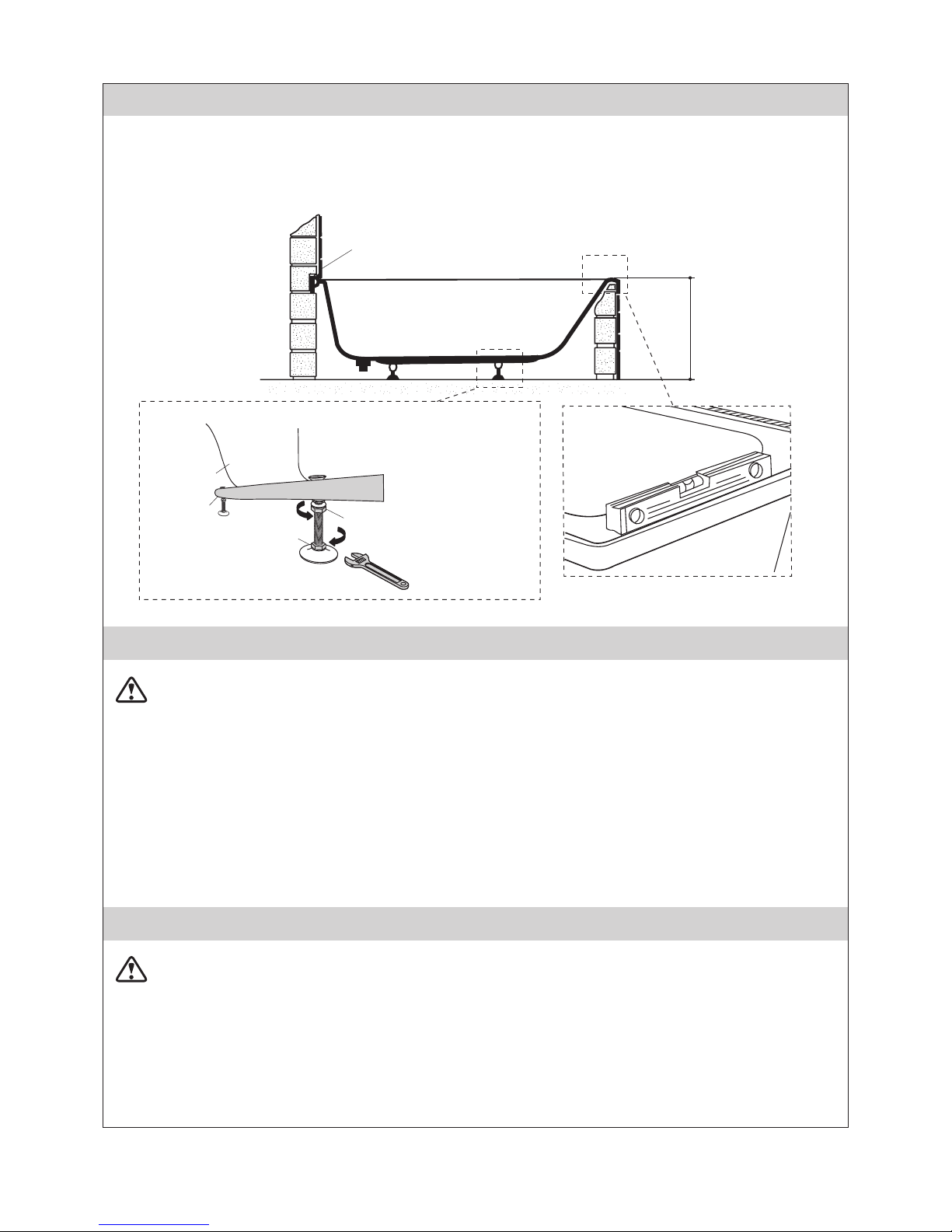

Bath Installation
Prepare the Bath
□ When removing bath. Do not lift bath by pipe work. Inspect for any possible damage that may have occurred
in transit.
□ Insert the drain tailpiece into the trap. Make sure the bath is level. Use silicone to seal between drain and trap.
□ Seal the joint between the bath rim and the nished tiled wall using silicone sealant.
□ Ensure adjustable feet are ed through holes drilled in support frame.
□ Locate bath in proposed position. The protect lm originally covering your spa has been recovered to t its
equipment, therefore, carefully protect its surface during installation.
□ Make sure the bath is level (and resting on all support blocks).
□ Install the drain to the bath according to the drain manufacturer’s instructions. Do not connect the trap
at this time.
□ To adjust the height, loosen the nut A, adjust the height by tightening the nut B, and then tighten the nut A.
□ Position the bath on the support, adjust the level.
Bath rim must be fully supported.
560-600 mm
Bath
Pipe
Adjust and lock to recommended height.
Adjust the nut A to lock/unlock
the adjustable feet.
Adjust the height of the bath
by tightening the nut B.
A
B
Bath must be installed level on all top edges.
Plumbing Installation
NOTE : An access panel will simplify future maintenance.
□ Connect the drain to the trap according to the drain manufacturer’s instructions.
□ Open the hot and cold water supplies, and check the supply connections for leakage.
□ Run water into the bath, and check the drain connections for leakage.
CAUTION : Risk of product damage. Ensure a watertight seal on the bath drain.
Kohler Co. 5 1241693-X2-B

WARNING : Risk of electric shock. Make sure the power has been disconnected before performing the
following procedures.
WARNING : Risk of re, electric shock, or injury to persons. Be sure to insert the grounding pin of the
power cord plug in to the grounding contact of the electrical outlet or power strip and make sure it works.
Improper insertion, no insertion or noneective grounding can result in eletric shock, re of damage to
your bath

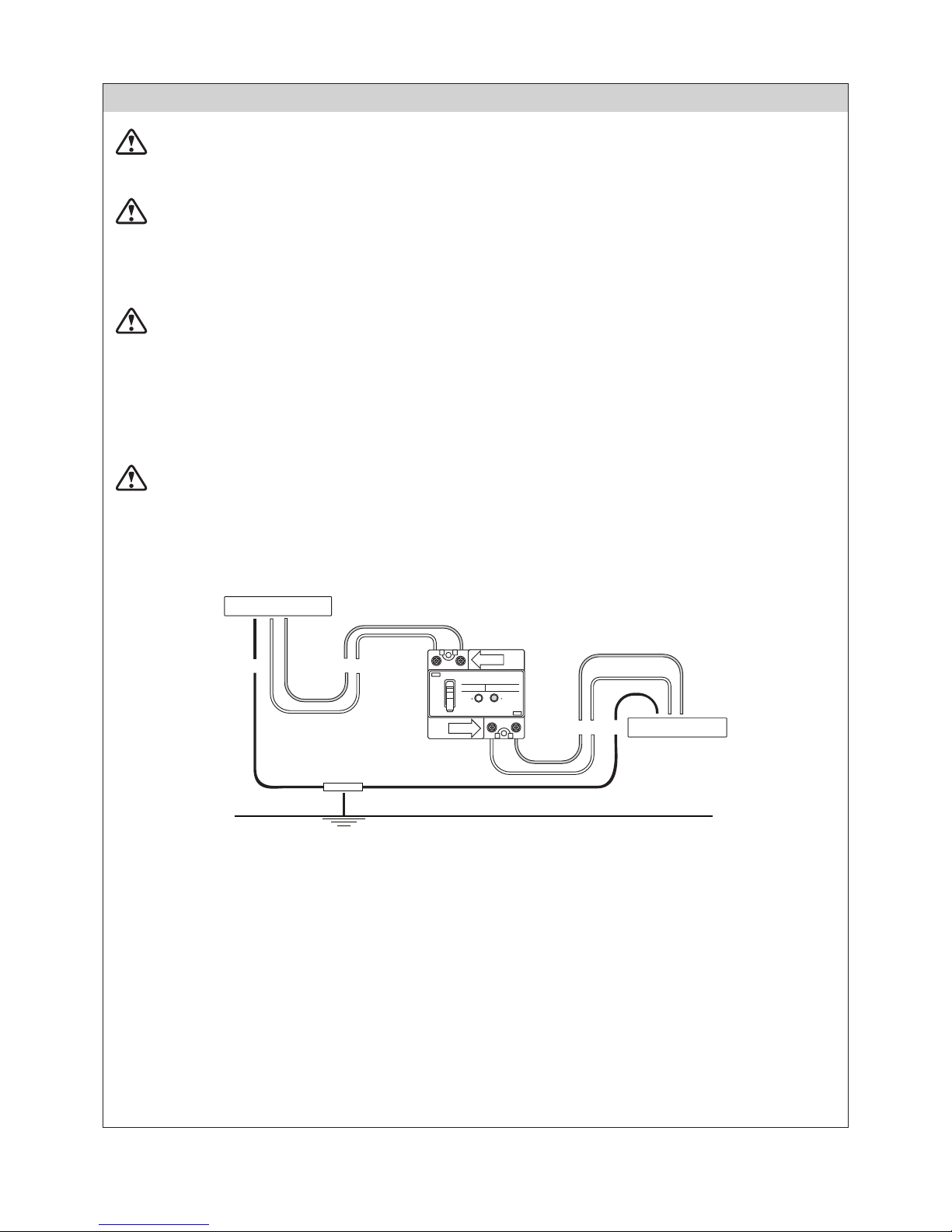

Make Electrical Connection
□ The whirlpool controls and system have been prewired at the factory. A licensed electrician must install ELCB
(Earth-Leakage Circuit-Breaker).
□ Provide a separate equipment earthing conductor for the earth lug located inside the junction box. The earthing
conductor must not be connected to any current-carrying conductor. Follow local electrical codes. Bond in
accordance with national and local codes.
N
NE
L
L
EControl Box
Power Supply
LINE
LOAD
OFF
ON
2 P
20 A
120-240V
50/60 Hz
SENSITIVITY 15 mA OPERATING TIME MAX. 0.1s
TEST
BUTTON
LEAKAGE
INDICATOR
INPUT
OUTPUT
DANGER : Risk of re, electric shock, or injury to persons. To reduce the risk of electric shock, connect
the pump to a properly grounded Earth-Leakage Circuit-Breaker (ELCB). This will provide additional
protection against line-to-ground shock hazard. A 220 - 240 V, 20 A, 50/60 Hz dedicated circuit is required.
WARNING : Risk of re, electric shock, or injury to persons. When using electrical products, basic
precautions should always be followed, including the following:
The above units must be connected by a registered electrician.
IMPORTANT : Access to power connections must be provided and must comply with local authority regulations.

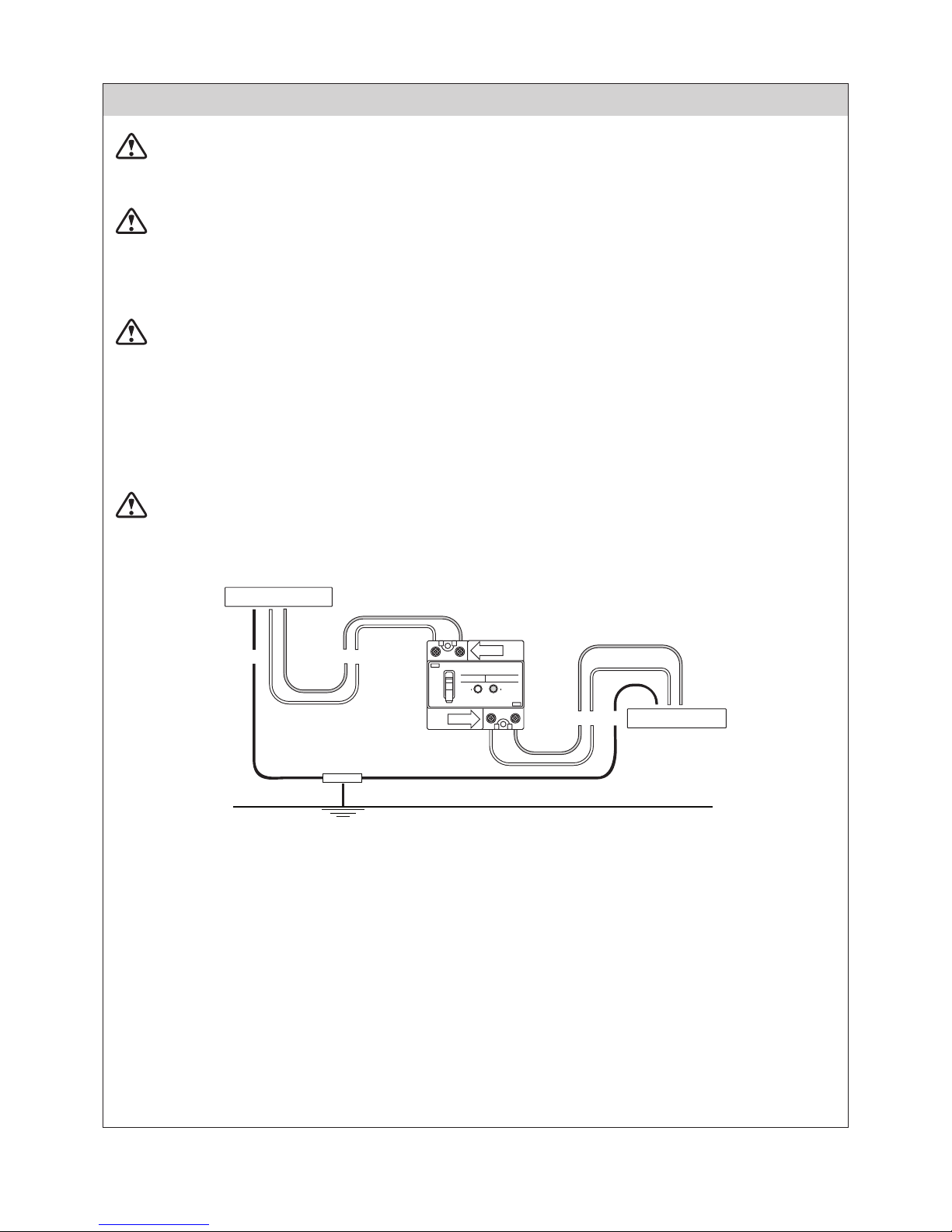

Earth-Leakage Circuit-Breaker (ELCB) Connection
1241693-X2-B 6 Kohler Co.

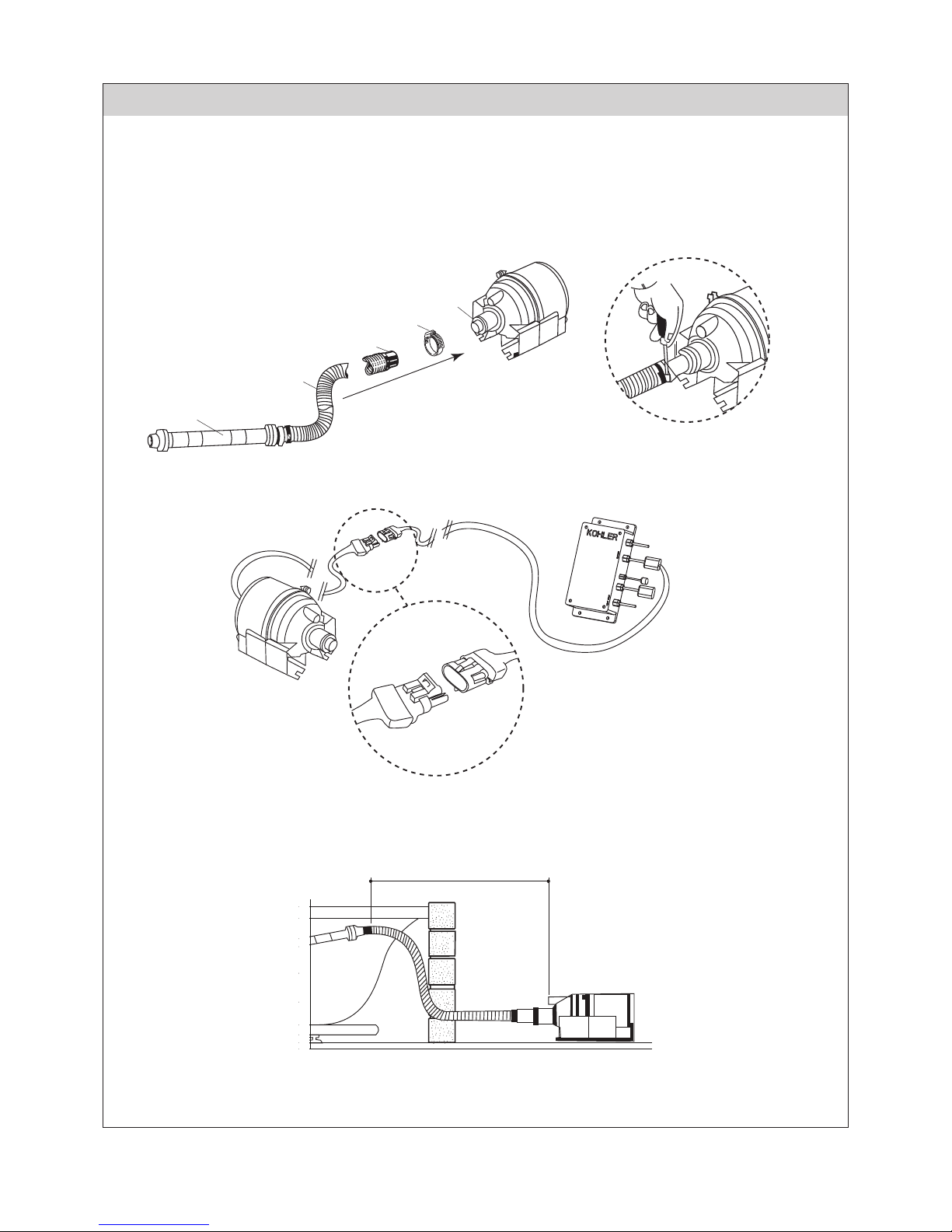

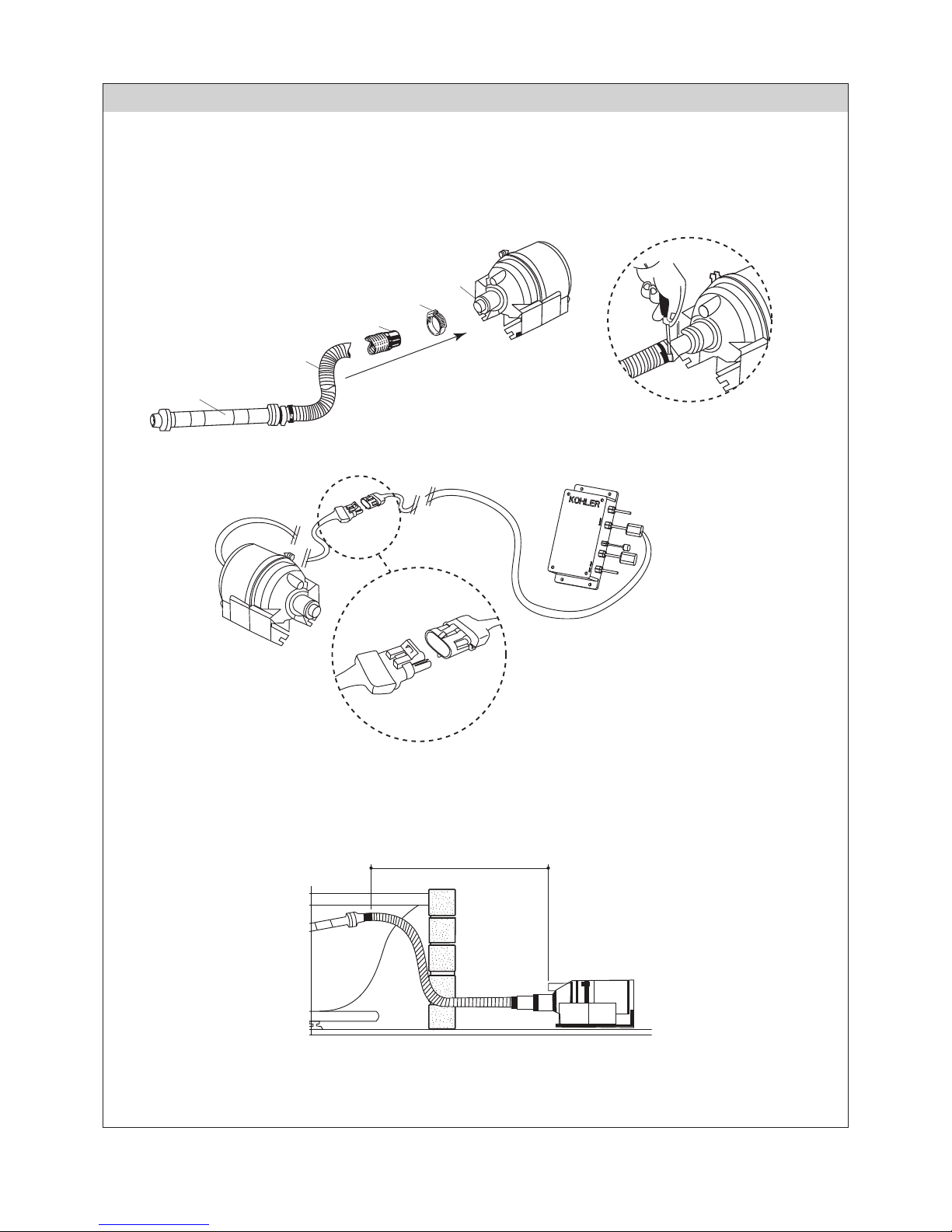

Air Blower Connection
Assemble nozzle connection onto blower.
IMPORTANT : Maximum standard length of exible blower hose 1.5 metres. If blower installation is greater
than specied distance then an extension kit will be required
NOTE : Hose connection to manifold is factory ed.
□ Push the rubber cu onto blower nozzle and secure in position with hose clip.
□ Connect the blower to the control box.
Hose Clip
Connector
Rubber Cuff
Flexible Hose
Manifold
Push rubber cuff onto blower nozzle
and secure in position with hose clip.
Connect the blower to the control box.
Maximum Distance 1.5 metres
Kohler Co. 7 1241693-X2-B

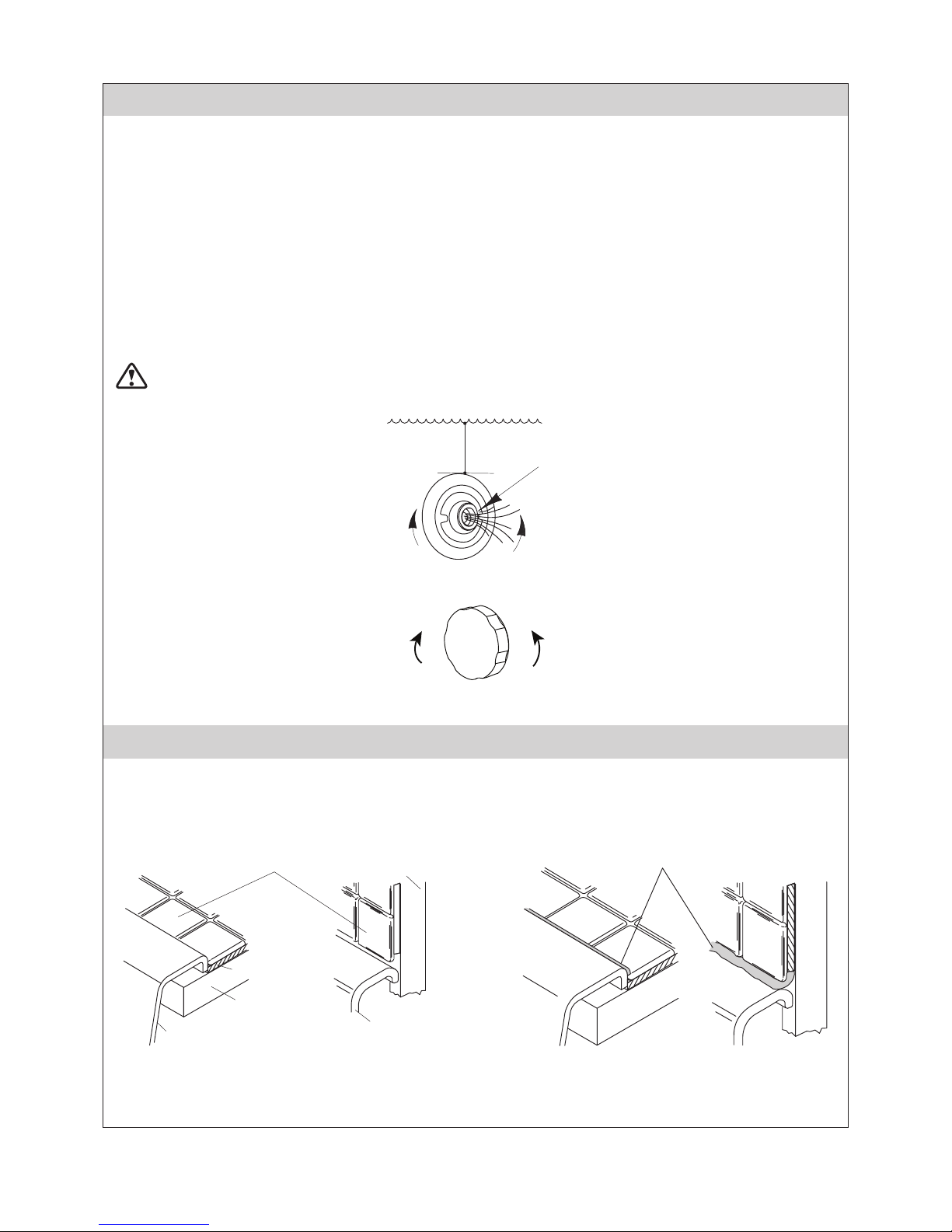

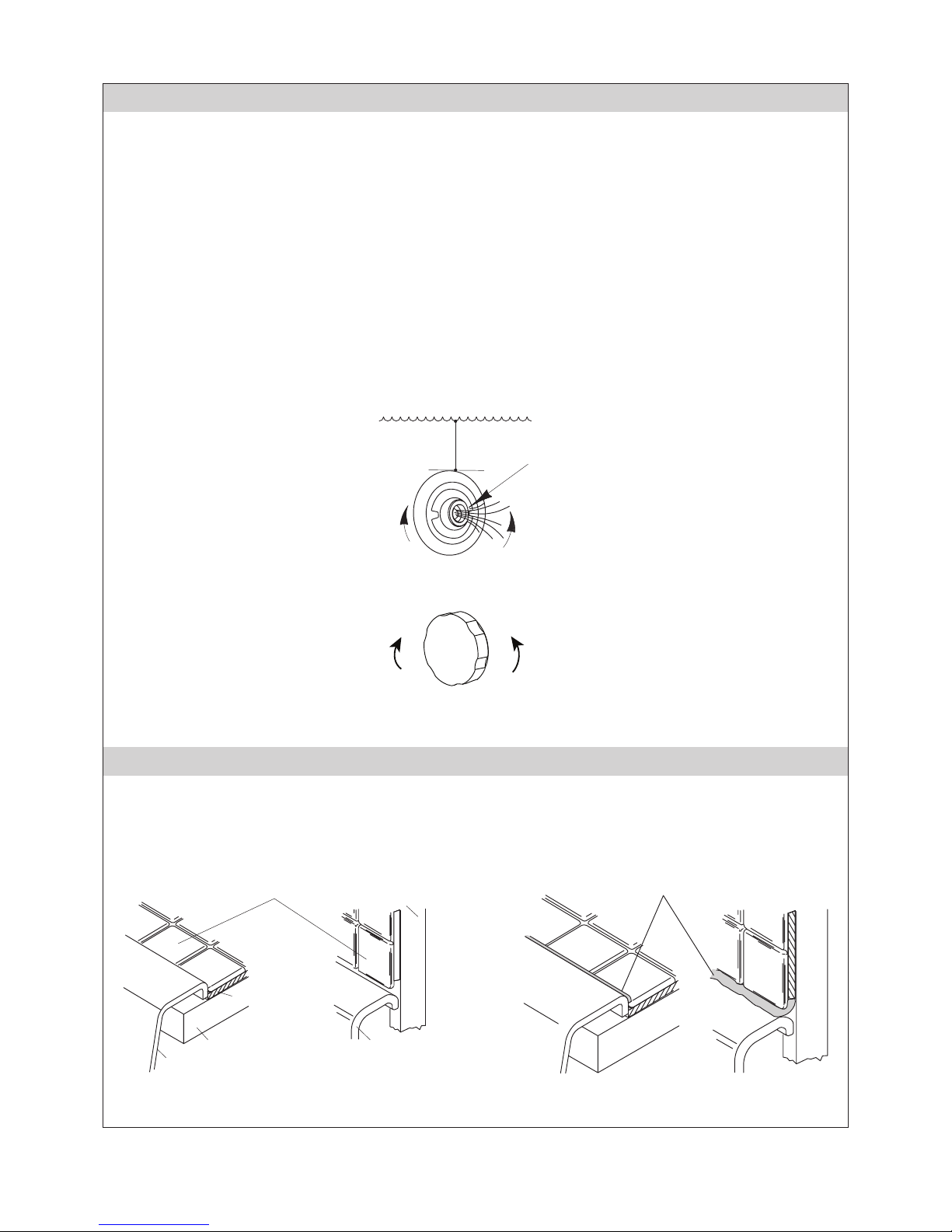

ConrmProperOperation
NOTE : Please read these steps carefully before you operate your dual system bath.
(refer to the “Switch Function and Operation” section)
□ Check all electrical connections, and make sure the electrical power to the whirlpool is turned on.
□ Make sure all union connections to the pump and heater are securely hand tightened.
□ Position the jet nozzles so they face down toward the basin. Turn the jet trim ring fully counterclockwise.
□ Fill the bath to a level above the top of the higher jet around 40 mm.
□ Press the Power On/O buon to turn on the whirlpool. The whirlpool will start at medium ow. Check all
bath piping connections, on the back side, for leaks.
□ Turn the jet trim clockwise to decrease the ow, and counterclockwise to increase the ow
□ Press the Power On/O buon a second time to turn the bath o.
NOTE : The water temperature in the bath should not exceed 40° C (104° F). The heater will automatically turn o
as the water temperature approaches 40° C (104° F), and will remain o until the water cools.
Complete the Brick
□ Cover the constructed brick with cement. Seal the joints between the bath rim edge and the brick with silicone
sealant.
□ Cover the outer side of the constructed brick with tiles. Seal the joints between the bath rim and tile with silicone
sealant.
Cement
Brick
Bath
Bath
Wall
Finished Material
Apply Silicone Sealant
Turn the jet trim ring counterclockwise
to increase the flow.
Turn the jet trim ring clockwise
to decrease the flow.
Fill with water (40 mm) above the highest jet.
Position the jet nozzles to direct
the water flow as desired.
Pop-Up Drain Control Knob
Turn counterclockwise
to close the pop-up drain.
Turn clockwise to
open the pop-up drain.
1241693-X2-B 8 Kohler Co.

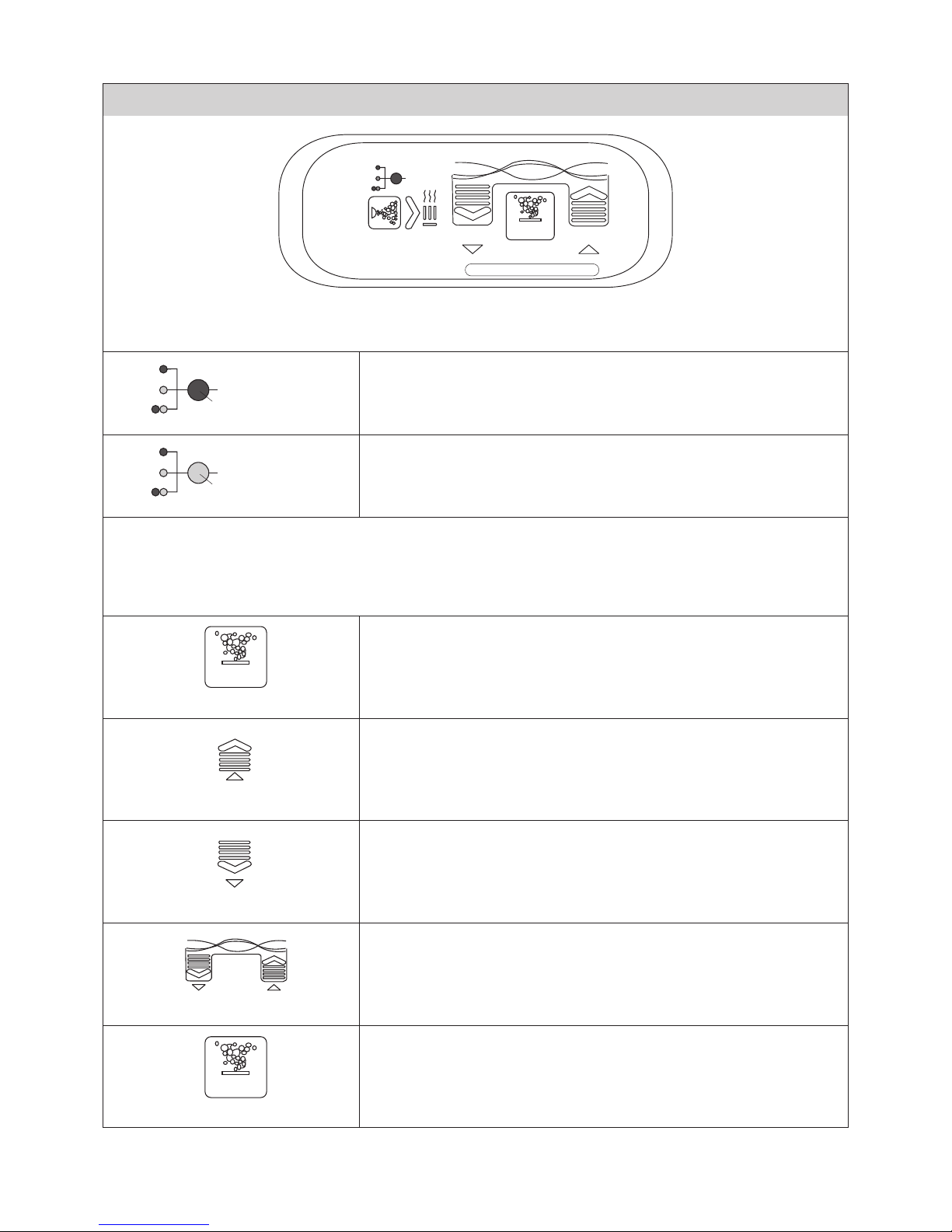

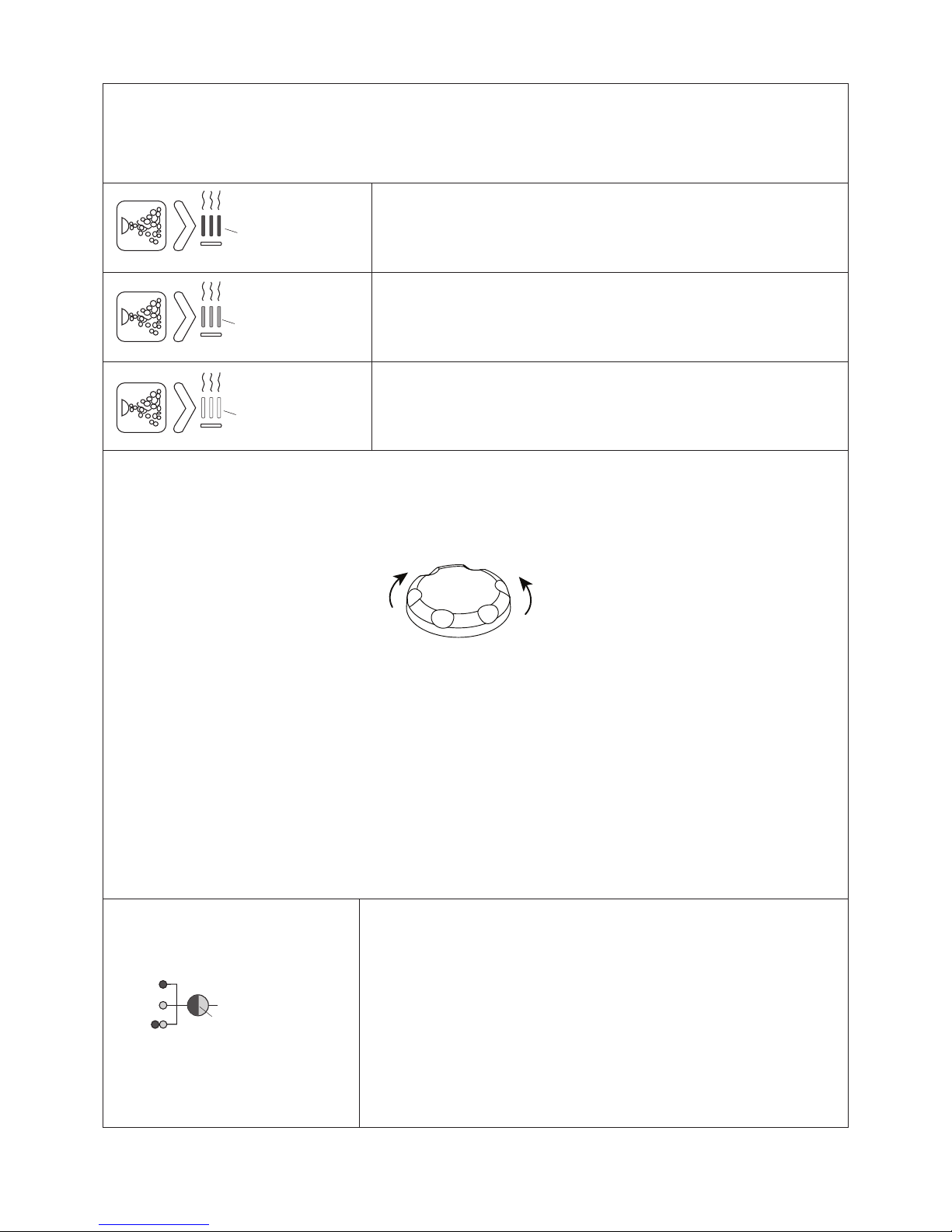

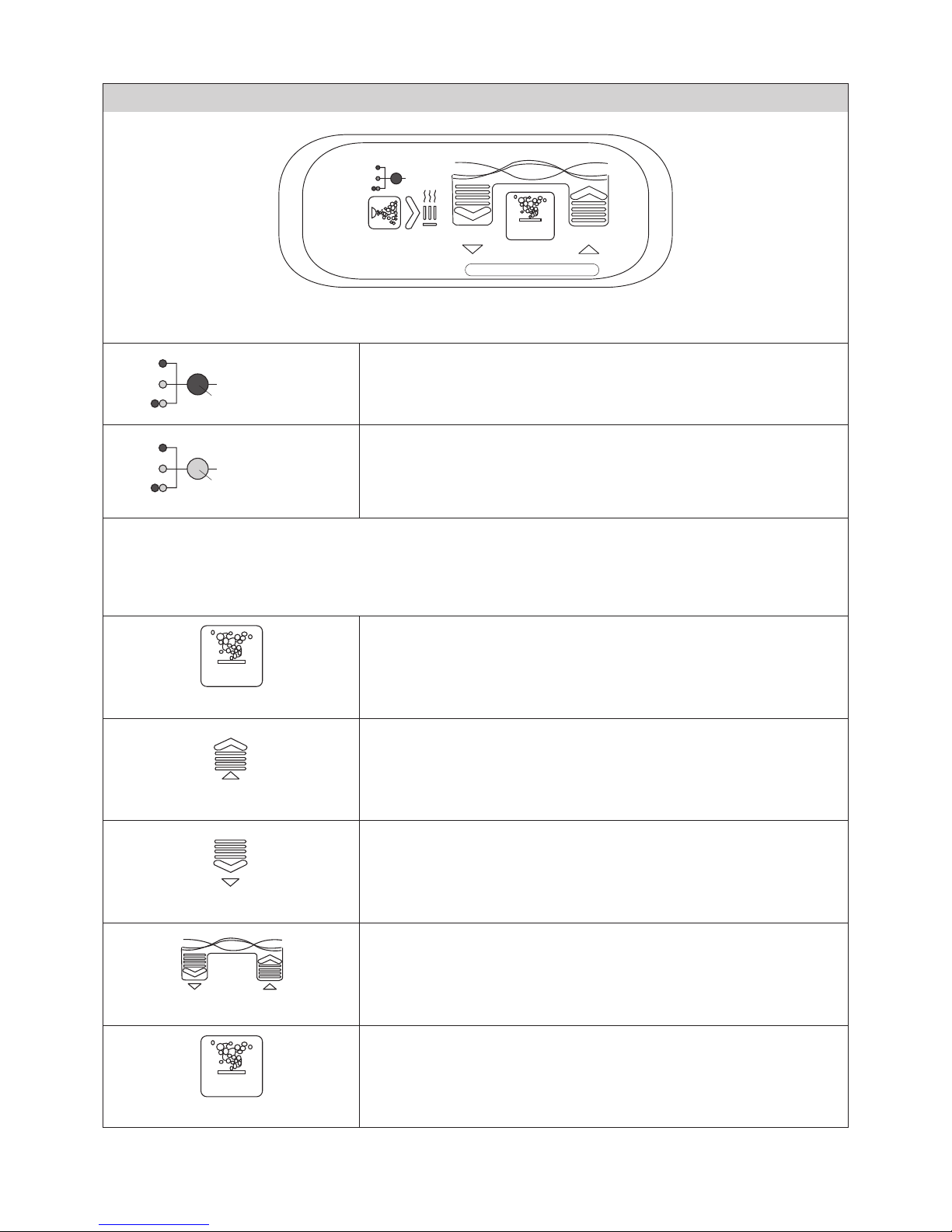

Switch Function and Operation
IMPORTANT : If the running system cannot detect the presence of water level (power indicator ashes in green),
the motor / heater / pump will shut o automatically.
A. Light Indicators
B. Air Massage Operation
Power
Water
Fault
ON/OFF
AUTO SANITISING CYCLE
OSCILLATING CYCLE-PRESS BOTH
Power available indicator
Red light indicates power available to control box and electronic switch.
Water level indicator
Fill bath with water ensuring that the water level 40mm above spa jets.
After you press Motor pump / heater on/o, the water level indicator
will light in green.
Fill the bath with warm water ensuring that the water level is 40 mm
above spa jet. Press on/o buon.
To increase Air Blower speed: press until desired speed reached.
To decrease Air Blower speed: press until desired speed reached.
Press both switches together for Auto High-Low cycle (Wave Action).
Press on/o buon.
Power
Water
Fault
Indicator lights in red
Power
Water
Fault
Indicator lights in green
ON/OFF
Turning off
ON/OFF
Turning on
High Speed
Low Speed
Oscillating cycle
Kohler Co. 9 1241693-X2-B

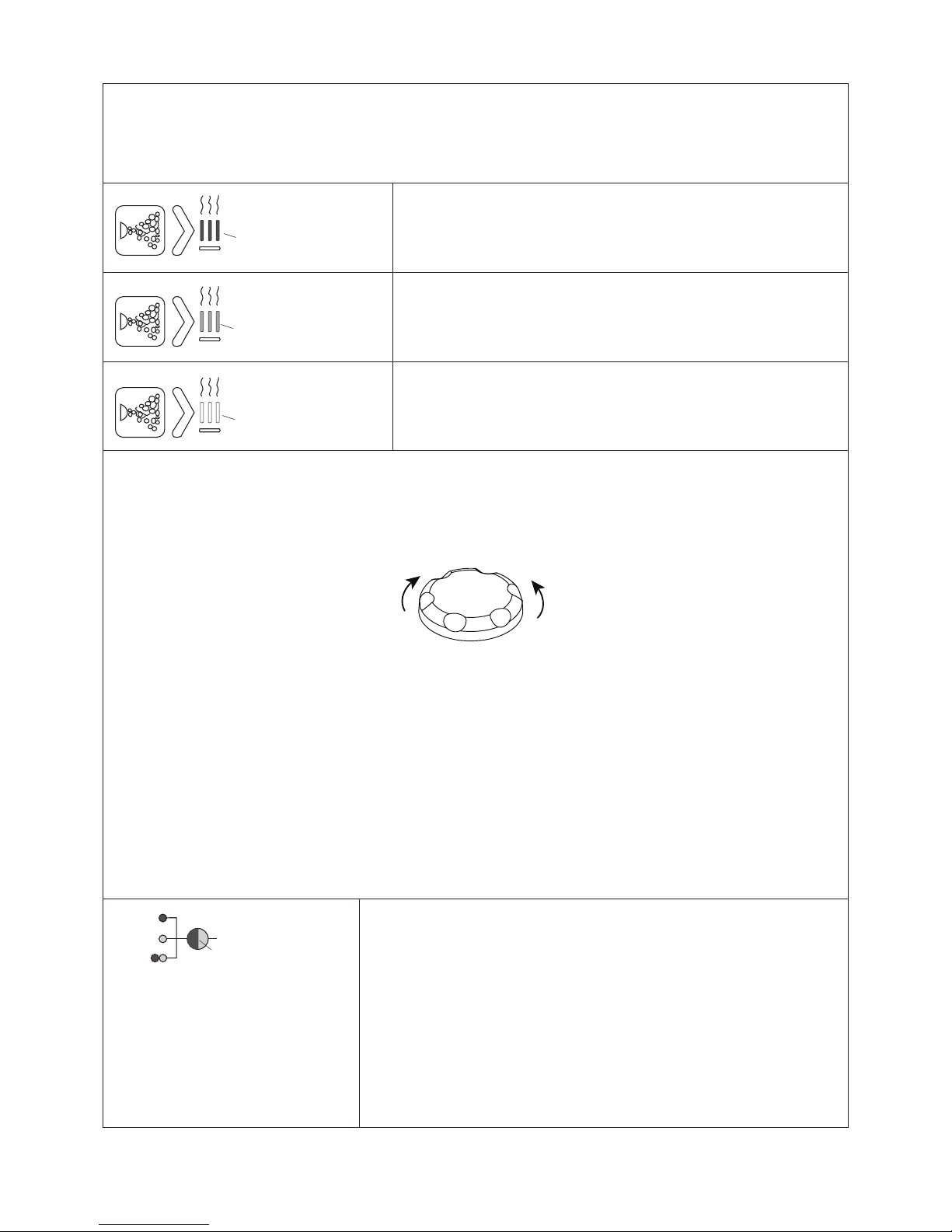

1st push
Motor Pump on / Heater on.
2nd push
Motor Pump on / Heater o.
3rd push
Motor Pump o / Heater o.
D. Air Bubble Volume Control
Turn the knob clockwise to increase air bubble volume and turn counterclockwise to decrease air bubble volume in
whirlpool system.
Switch Function and Operation (Cont.)
C. Motor Pump/Heater On/Off Control
Allows bather to switch o the heater when not required.
E. Auto Sanitising Cycle
Auto clean up cycle will commence 20 minutes after the bath has been emptied of water. The blower and heater
will then restart and operate for 2 minutes sanitising the system with hot air before automatically shuing down.
F. Auto Timer
The auto safety timer will shut the air/spa system down automatically after 30 minutes of continual operation,
and can be restarted again by pressing the electronic ON/OFF switch.
IMPORTANT : Air spa system will only operate for 5 seconds if insucient water level is detected, automatically
shuing down.
G. Leakage Detection
Leakage Detection indicator
When the fixture is powered on and the bath has run out of water,
press Blower Speed Decrease buon, Blower Speed Increase buon and
Motor/Pump-Heater buon simultaneously for more than 3 seconds to
create a simulation of electricity leakage, then the indicator will ash in
red and green alternatively. This indicates the leakage detection function
is well in use, otherwise, there’s possibility that this function fails to
operate normally and may result in electric shock accident.
Release three buons and the bath will not function anymore if any key
is pressed. Make the bath powered-on again and the bath will restore its
function.
Power
Water
Fault
Indicator flashes in red
and green alternatively.
Indicator lights in red
Indicator lights in blue
Indicator turns off
Turn counterclockwise to decrease
air bubble volume in whrilpool
Turn clockwise to increase
air bubble volume in whirlpool
1241693-X2-B 10 Kohler Co.

Care and Cleaning
SYMPTOMS PROBABLE CAUSES RECORRECTIVE ACTION
1. Dual System bath
does not start.
A. Controller is not power on. A. Set/reset ELCB breaker; check wiring.
B. User keypad cable loose or damaged. B. Check wire connections. If necessary,
replace user keypad.
C. User keypad does not work. C. Replace user key pad.
D. Pump does not work. D. Replace pump.
2. Pump stops
automatically
within 30 minutes.
A. ELCB trips. A. Correct ELCB trips.
3. Pump does not
stop automatically
after 30 minutes.
A. Controller trips. A. Replace controller.
4. Pump does not
stop when pump
on/o buon on
user keypad is
pressed.
A. User keypad cable loose or damaged. A. Check wire connections. If necessary,
replace user keypad.
B. User keypad does not work. B. Replace user keypad.
5. Pump operates
but cannot adjust
massage strength.
A. User keypad cable loose or damaged. A. Check wire connections. If necessary,
replace user keypad.
B. User keypad does not work. B. Replace user keypad.
C. Controller does not work. C. Replace the controller.
D. Electronic adjustment valve does not work. D. Replace electronic adjustment valve.
6. Pipe cleaning
does not work.
A. User keypad cable loose or damaged. A. Check wire connections. If necessary,
replace user keypad.
B. User keypad does not work. B. Replace user keypad.
C. Pump does not work. C. Replace pump.
D. Controller does not work. D. Replace the controller.
Troubleshooting
Cleaning Your Acrylic Bath
□ Use a mild detergent such as liquid dishwashing soap and warm water for cleaning. Do not use abrasive
cleaners that may scratch or dull the surface.
□ Carefully read the cleaner product label to ensure the cleaner is safe for use on the material.
□ Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
□ Do not allow cleaners to sit or soak on the surface.
□ Wipe surfaces clean and rinse completely with water immediately after cleaner application. Rinse and dry
any overspray that lands on nearby surfaces.
□ Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring pad to
clean surfaces.
NOTE : To restore dull or scratched units : Apply white automotive polishing compound with a clean rag. Rub scratches
and dull areas vigorously. Wipe o residue. Follow with a coat of white automotive paste wax. Do not wax areas
where you walk or stand.
Cleaning Your User Keypad
Use a soft cloth to wipe the keypad and remote control after each use. If the surface becomes dirty, use a non-abrasive
soap and warm water to clean.
Kohler Co. 11 1241693-X2-B




 


□ 
 
 
□ 
 
□ 


  
 





 
 
 


  


   
   
  
1241693-X2-B 12 Kohler Co.





□ 
□ 
□ 

 


 
  
    
 





 
 
 
  

□ 
□ 
□ 
□ 


Kohler Co. 13 1241693-X2-B







□ 
□ 
 
□ 
□ 
□      
 
□ 



300-400
Ø
1500
500-700
Brick
ช่อง
ซ่อมบํารุง




อ่างอาบนํ�า
2 มม.
ผนังของ
แผ่นกระเบื�อง
ผนังของ
แผ่นกระเบื�อง
กระเบื�อง
อิฐ
กระเบื�อง
1241693-X2-B 14 Kohler Co.


□ 
□ 
□ 



□ 
 
□    
□ 
□ 
□ 
□ 



□ 
□ 
□ 












Kohler Co. 15 1241693-X2-B

 
  
    
   
 
 
     

   
 
 

  
□      
  
□  
    
 
N
NE
L
L
Eกล่องควบคุม
แหล่งจ่ายไฟ
LINE
LOAD
OFF
ON
2 P
20 A
120-240V
50/60 Hz
SENSITIVITY 15 mA OPERATING TIME MAX. 0.1s
TEST
BUTTON
LEAKAGE
INDICATOR
INPUT
OUTPUT
1241693-X2-B 16 Kohler Co.




□ 
□ 

คลิปรัดท่อ ข้อต่อ
ข้อต่อยาง
สายอ่อน
ท่อลม ประกอบข้อต่อเข้ากับปลายท่อปั�มลม
แล้วยึดไว้ด้วยคลิปรัดท่อ

ระยะห่างไม่เกิน 1.5 เมตร
Kohler Co. 17 1241693-X2-B


□ 
□ 


□  
□ 
□ 
□ 
□ 
□ 
 
□ 









ปุ่มเปิด/ปิด สะดืออ่าง
หมุนปุ่มทวนเข็มนาฬิกาเพื�อปิดสะดืออ่าง
หมุนปุ่มตามเข็มนาฬ
ิกาเพื�อเปิดสะดืออ่าง
ทาซิลิโคน
ซีเมนต์
อิฐ
อ่างอาบนํ�า อ่างอาบนํ�า
ผนัง
ปูกระเบื�อง
1241693-X2-B 18 Kohler Co.

  








Power
Water
Fault
ON/OFF
AUTO SANITISING CYCLE
OSCILLATING CYCLE-PRESS BOTH

Power
Water
Fault
ไฟแสดงสว่างค้างเป็นสีเขียว
Power
Water
Fault
ไฟแสดงสว่างค้างเป็นสีแดง






ON/OFF

ON/OFF




Kohler Co. 19 1241693-X2-B








  

 
 

 


    
   

ไฟแสดงสว่างค้างเป็นสีแดง
ไฟแสดงสว่างค้างเป็นสีนํ�าเงิน
ไม่มีไฟแสดง




 




 


Power
Water
Fault
ไฟแสดงกะพริบเป็น
สีแดงและสีเขียวสลับกัน
1241693-X2-B 20 Kohler Co.
