Kohler Centerset K-15885 Assembly instructions

Homeowners Guide
Centerset Lavatory Faucet
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (e.j.
K-12345M)
Français, page“ Français-1”
Español, pagina “Español-1”
K-15885
112712-5-A

Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler faucet will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the Care and Cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
Your Kohler Lavatory Faucet
Your new lavatory faucet blends elegant styling and beauty with
exceptional performance and reliability. Each faucet is precision
engineered and constructed of premium quality materials to provide
trouble-free operation even under the hardest water conditions.
Care and Cleaning
Like anything of lasting quality, Kohler faucets and fittings require a
certain amount of periodic care to preserve their lustrous finish. Clean
your new Kohler faucet and fittings with a mild soap, rinse thoroughly
with warm water and dry with a clean, soft cloth. The ideal cleaning
technique is to always blot dry any water from metal surfaces.
Allowing water to evaporate on metal will form water deposits. It is
important to use a dabbing action to dry metal, not an abrasive or
rubbing action.
Never use cleaners containing abrasive cleansers, ammonia, bleach,
acids, or chemicals that can damage the finish. By taking the time to
dry your faucet often, soap and water deposits can be prevented.
If your chrome or Vibrant
®
color/finish faucet gets excessively dirty,
consider using the following cleaners: Windex
®
Original, Fantastik
®
All Purpose, Spic and Span Pine Liquid, or Mr. Clean
®
Springtime
Fresh Scent. For solid color faucets and fittings, consider using these
cleaners: Fantastik
®
All Purpose, Spic and Span Pine Liquid, or Mr.
Clean
®
Springtime Fresh Scent.
Failure to comply with these cleaning instructions may void Kohler’s
warranty obligations.
112712-5-A 2 Kohler Co.

Lifetime Limited Warranty
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
Kohler Co. 3 112712-5-A

Lifetime Limited Warranty (cont.)
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
One-Year Warranty
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
112712-5-A 4 Kohler Co.

One-Year Warranty (cont.)
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Kohler Co. 5 112712-5-A

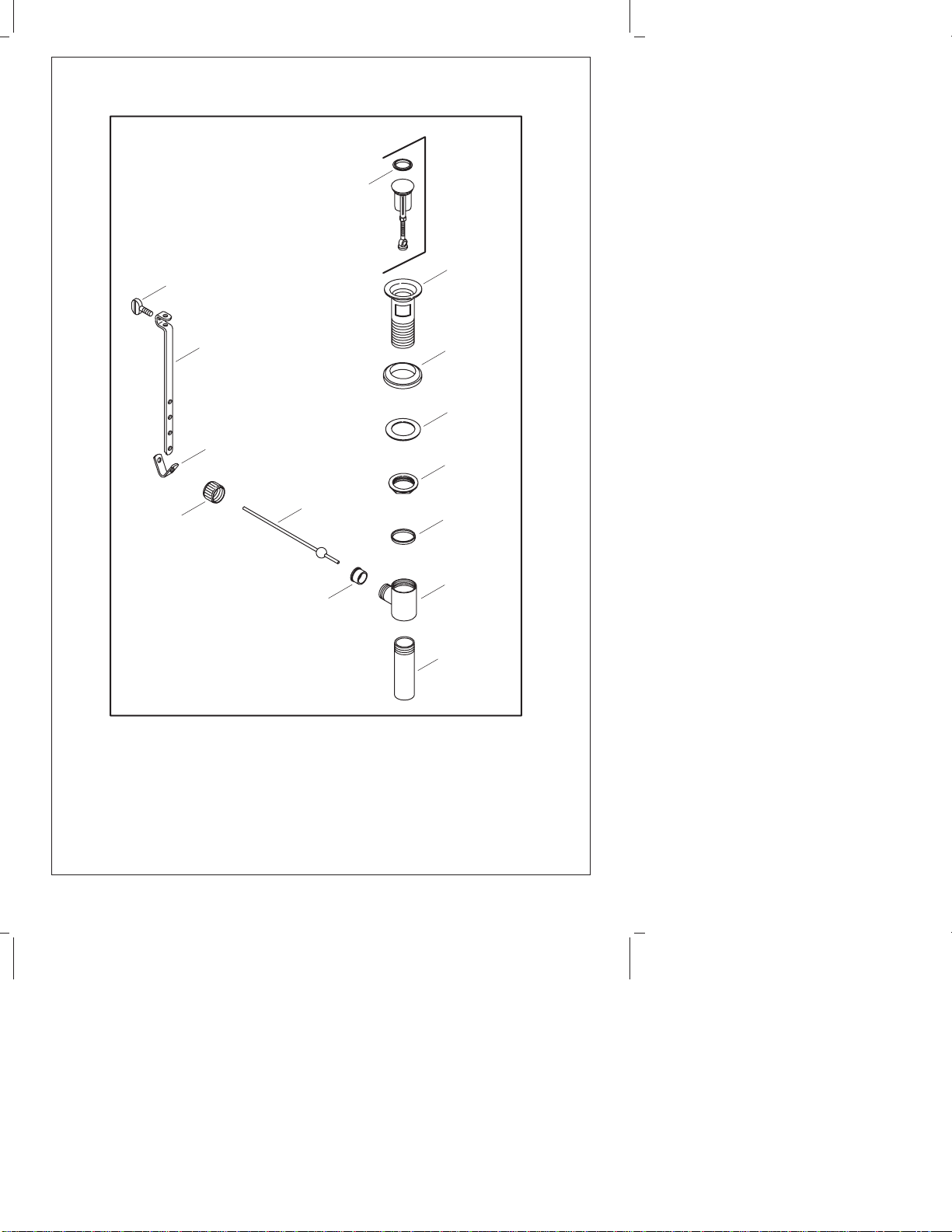

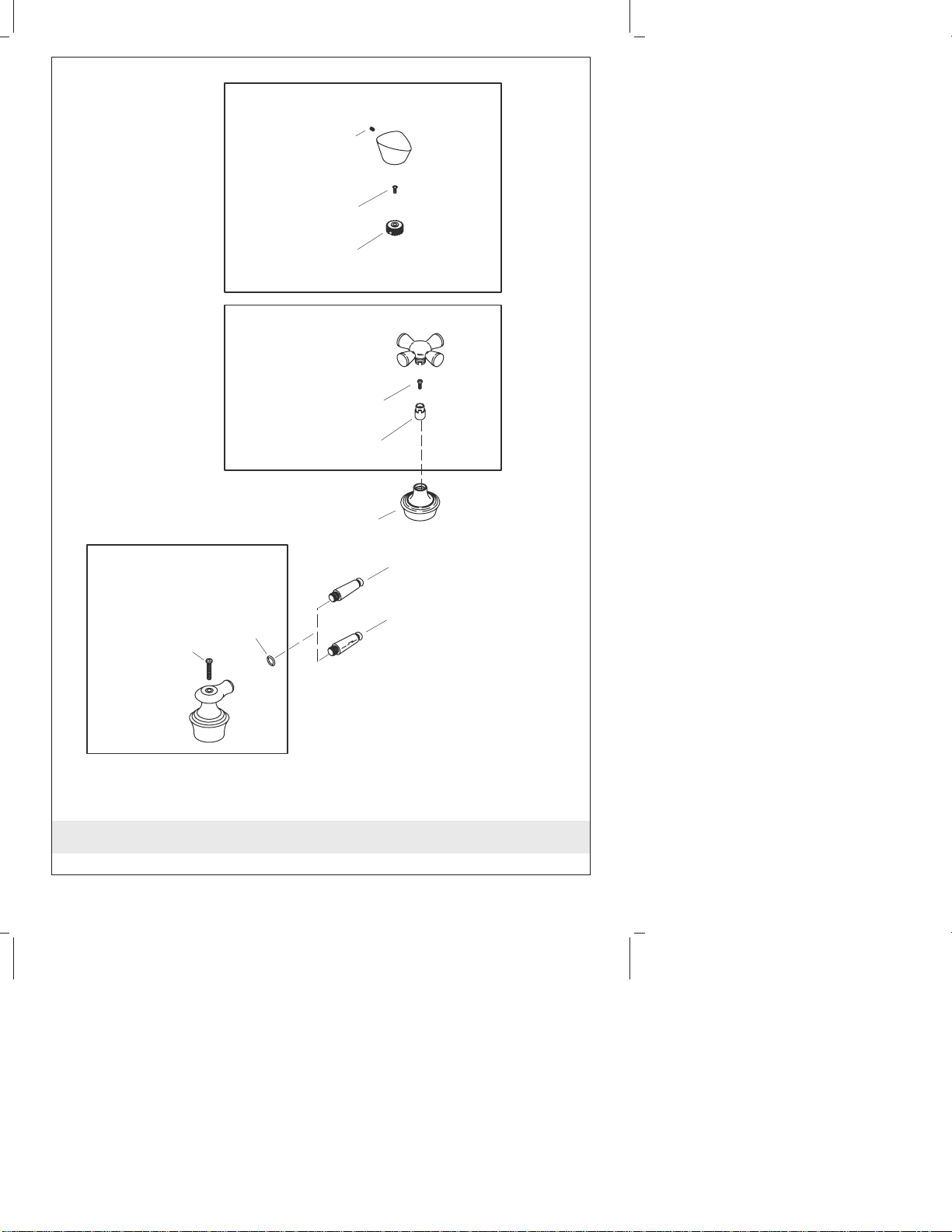

Service Parts
1007374**
Handle
1007375-C**
1007375-H**
Handle
(Cold)
(Hot)
76681**
Insert (Porcelain)
70577**
Insert (Metal)
1007376**
Handle
56249**
Screw
33993
O-Ring
70639**
Skirt
57069
Screw
76533
Screw
57067
Spline Adapter
70640
Screw
74622
Adapter
**Finish/color code must be specified when ordering.
112712-5-A 6 Kohler Co.

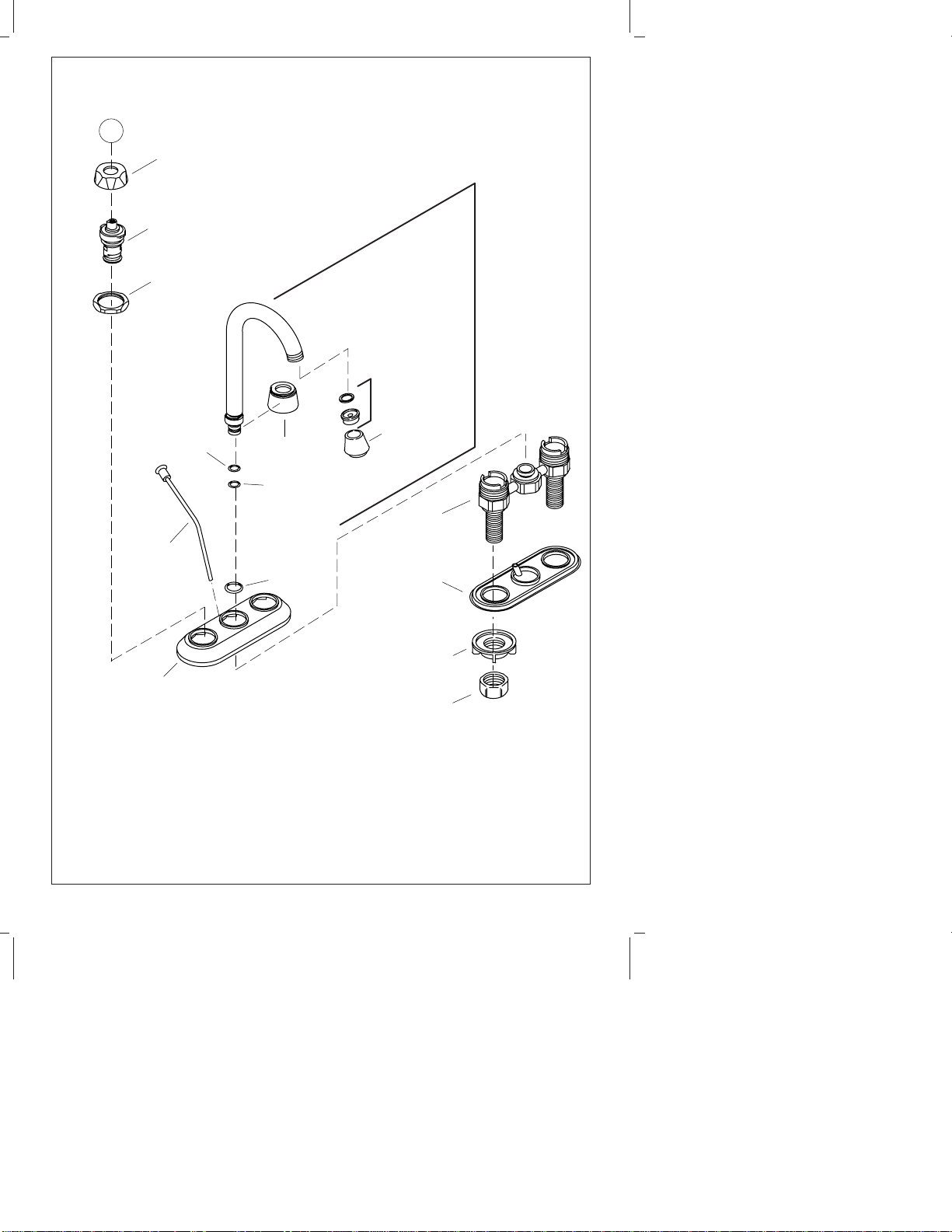

70007**
RetainingRing
70008**
A
Bonnet
32751
Coupling Nut
40080
Nut
70634
59905
Body
42045
O-Ring
70666**
LavShroud
32725
O-Ring
59815**
Nut
58754**
LiftRod
70642**
42045
O-Ring
76772**
Spout
73806
76672 (ClockwiseClose)
76671
Valve (CounterclockwiseClose)
Aerator
ServiceKit
Aerator
Housing
PuttyRing
Centerset
**Finish/color code must be specified when ordering.
Kohler Co. 7 112712-5-A

78172**
78084**
78176
78175
78177
78092**
78091**
78089
78086**
78058
78085**
78090**
78057
78087
78063
78072**

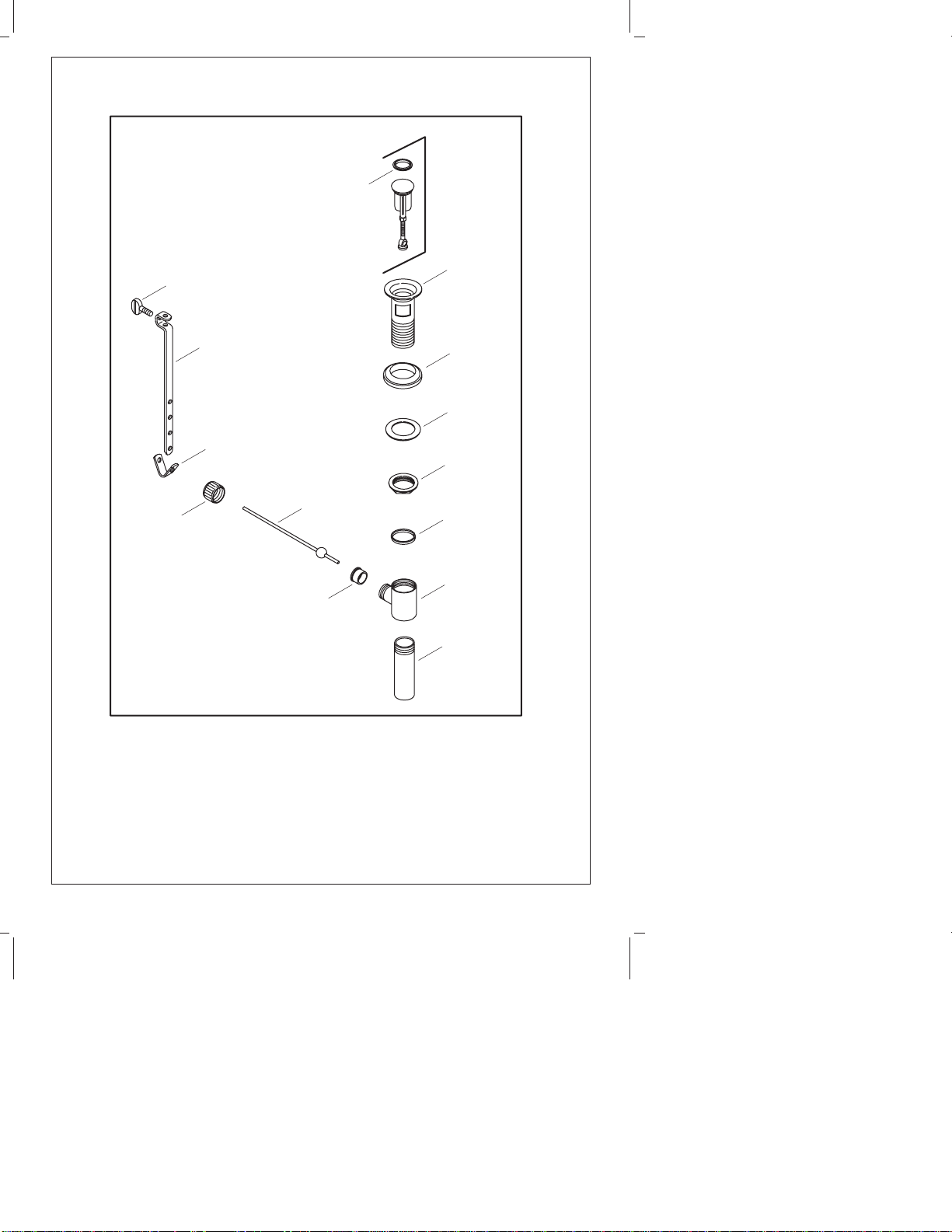

**Finish/color code must be specified when ordering.
Stopper
Flange
Screw
Link
Clip
Nut
Rod
Seal
Tailpiece
Washer
Body
Nut
Washer
Gasket
Seal
Drain

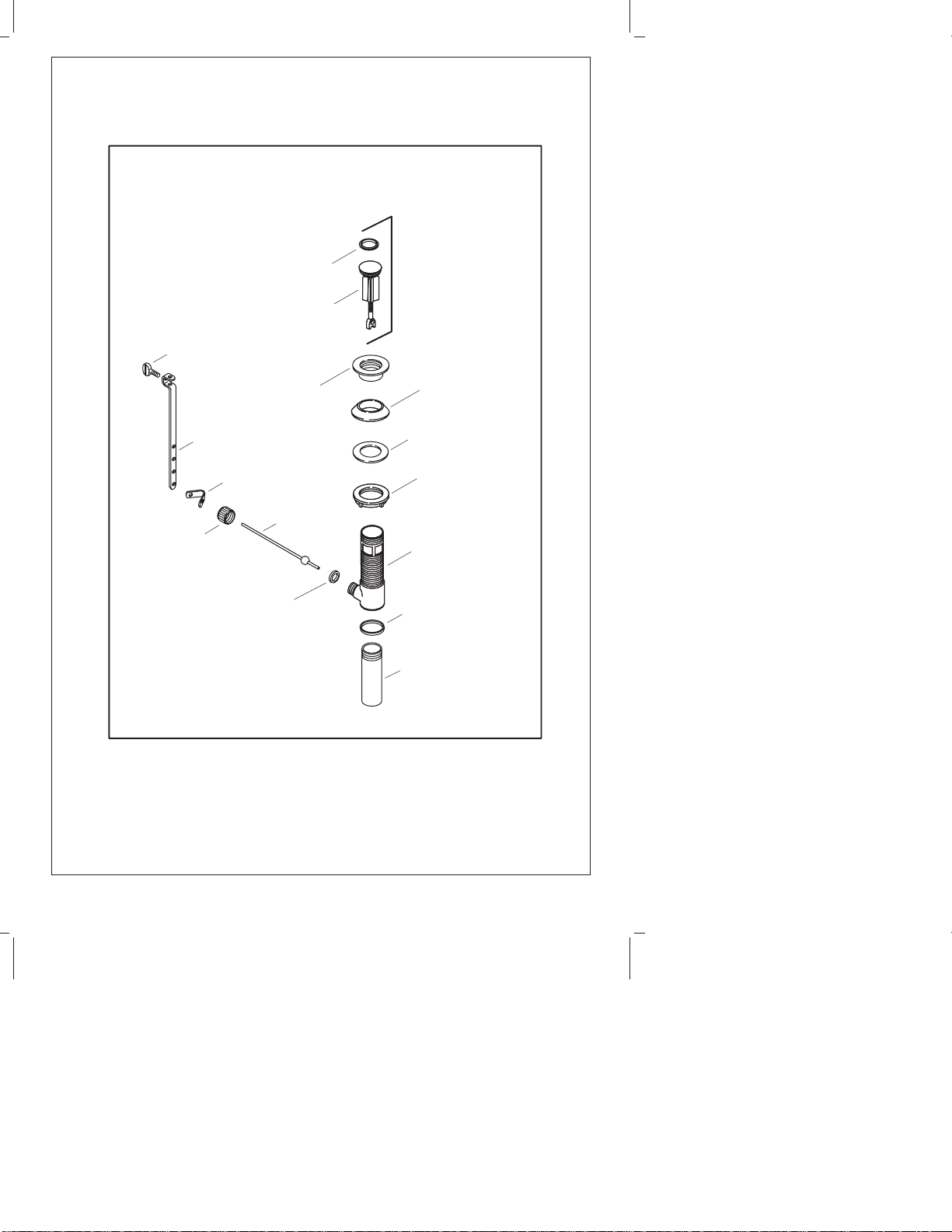

112712-5-A 8 Kohler Co.

**Finish/color code must be specified when ordering.
1037022**
1036932**
1037346
1035564
40228
1025645**
1037390
1025642
1036351**
1030925
1025639**
1035348**
1025678
1025650
1035350**
Stopper
Trim Ring
Screw
Link
Clip
Nut
Rod
Washer
Tailpiece
Washer
Body
Nut
Washer
Seal
Fin
(Metal stopper fins with overflow)
1037023** (Plastic stopper fins with overflow)
Drain
(Metal)
1037021** (Plastic)
1025656
O-Ring
Kohler Co. 9 112712-5-A

Guide du propriétaire
Robinet de lavabo à petit entraxe
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la ligne The Bold Look de Kohler. Le travail soigné
des Artisans de Kohler vous fera apprécier une rare combinaison de
performances prouvées et de sophistication gracieuse, qui vous
satisferont pour les années à venir. La fiabilité et la beauté de votre
robinet Kohler surpasseront vos plus grandes espérances. Chez Kohler,
nous sommes très fiers de nos produits et nous savons qu’il en sera se
même pour vous aussi.
Veuillez s’il vous plaît prendre quelques minutes pour étudier ce guide
du propriétaire. Porter une attention toute particulière aux instructions
d’entretien et de nettoyage.
Tous renseignements contenus dans ce manuel sont basés sur les
dernières données disponibles au moment de la publication. Chez
Kohler, nous tâchons constamment d’améliorer la qualité de nos
produits. Nous nous réservons le droit d’apporter des modifications
aux caractéristiques, à l’emballage ou sur la disponibilité des produits,
à tout moment et sans préavis.
Votre robinet de lavabo Kohler
Votre nouveau robinet de lavabo combine un style élégant et une
beauté avec une performance et une fiabilité exceptionnelles. Chaque
robinet est usiné et fabriqué avec précision à partir de matériaux de la
meilleure qualité pour offrir un fonctionnement sans défaut, même
avec les eaux les plus calcaires.
Entretien et nettoyage
Comme tout produit de qualité durable, les robinets et les accessoires
Kohler ont besoin d’un entretien périodique afin de préserver leur
finition brillante. Nettoyer vos nouveaux robinets et accessoires Kohler
avec du savon doux, rincer soigneusement à l’eau chaude et sécher
avec un tissu propre et doux. La technique de nettoyage idéale est de
toujours éponger toute l’eau restant sur les surfaces métalliques puis
de sécher. Si l’eau s’évapore naturellement sur le métal, elle laisse des
dépôts. Il est important de tamponner pour sécher les surfaces
métalliques, et de ne pas appliquer une action abrasive ou de
frottement.
Kohler Co. Français-1 112712-5-A
