Kohler HYDRO-TOWER 100 K-6281T-NA User manual

Read installation guide in illustration and word file
carefully, and install ZZthe tank according to instructions in
the guide to avoid product damage and installation
inconvenience caused by inappropriate operation.
All data contained is based upon the last product
information available at the time of publication. Kohler
Company reserves the right to implement changes of
product characteristics, packaging and availability at any
time without further notice.
Do not apply erosive cleanser and solvent in the tank,
which will damage tank spares and result in leakage in the
tank. Kohler will not be responsible for any damage
related to above mentioned cleanser or solvent.
Do not apply spares that are not provided by Kohler, and
please note that glass adhesive tape shall not be applied
to the installation of Kohler spares. Kohler will not be
responsible for any damage related to installation with
spares not provided by Kohler.
Function Explanation
, 2010
Copyright Kohler China Ltd., 2010
Wall-hung Toilet That Matches The Tank
上海科勒电子科技有限公司
上海市浦东新区金滇路18号E幢 邮编：201206
海德丽100 HYDRO-TOWER 100
自动感应入墙式隐藏水箱
Touchless Inwall Tank with Frame
安装说明书
INSTALLATION INSTRUCTIONS
K-6281T-NA
Advantages Of Touchless In-wall Tank
Anti-strike and erosion proof tank of macromolecule
materials, and leak proof.
Advanced tank spares, adjustable to of 3/6 liters.
Impact free to wall structures, and excellent sound
insulation effect.
Easy installation and time efficient.
Easy maintenance and no necessity of removing the wall
in the process of maintenance.
Clean, Garbage free, and space efficient.
flushing
自动感应入墙式隐藏水箱的优点
3/6
不仅具有单、双档手动冲水功能，还能自动感应区分大小便，
并完成相应的大、小水量分档冲水。
Single/double gear touchless flush
Single/double gear manual flush
Anti flow-backwards
Adjustment of inlet water level
Adjustment of flushing volume
Adjustable toilet height
双档自动感应冲水功能
双档手动冲水功能
防倒流功能
进水水位可调节功能
冲水水量可调节功能
座便器高度可以调节功能
Not only does the tank is equipped with single/double gear
manual flush function, but also it is able to distinguish and
complete flushing action depending on different ways of excretion.
K-8752T/K-8752T-S奥帝安挂墙式座便器
K-18133T/K-18133T-S佩斯格挂墙式座便器
K-19045T艾思格尔挂墙式座便器
K-18609T维雅挂墙式座便器
K-17647T/K-17647T-S欧芙挂墙式座便器
K-18132T/K-18132T-S费丽兰挂墙式座便器
K-8752T/K-8752T-S ODEON Wall-hung P-Trap Toilet
K-18133T/K-18133T-S PRESQU'ILE Wall-hung P-Trap
Toilet
K-19045T ESCALE Wall-hung P-Trap Toilet
K-18609T VIA Wall-hung P-Trap Toilet
K-17647T/K-17647T-S OVE Wall-hung P-Trap Toilet
K-18132T/K-18132T-S FREELANCE Wall-hung P-Trap
Toilet
1104563-T01-C
-1-

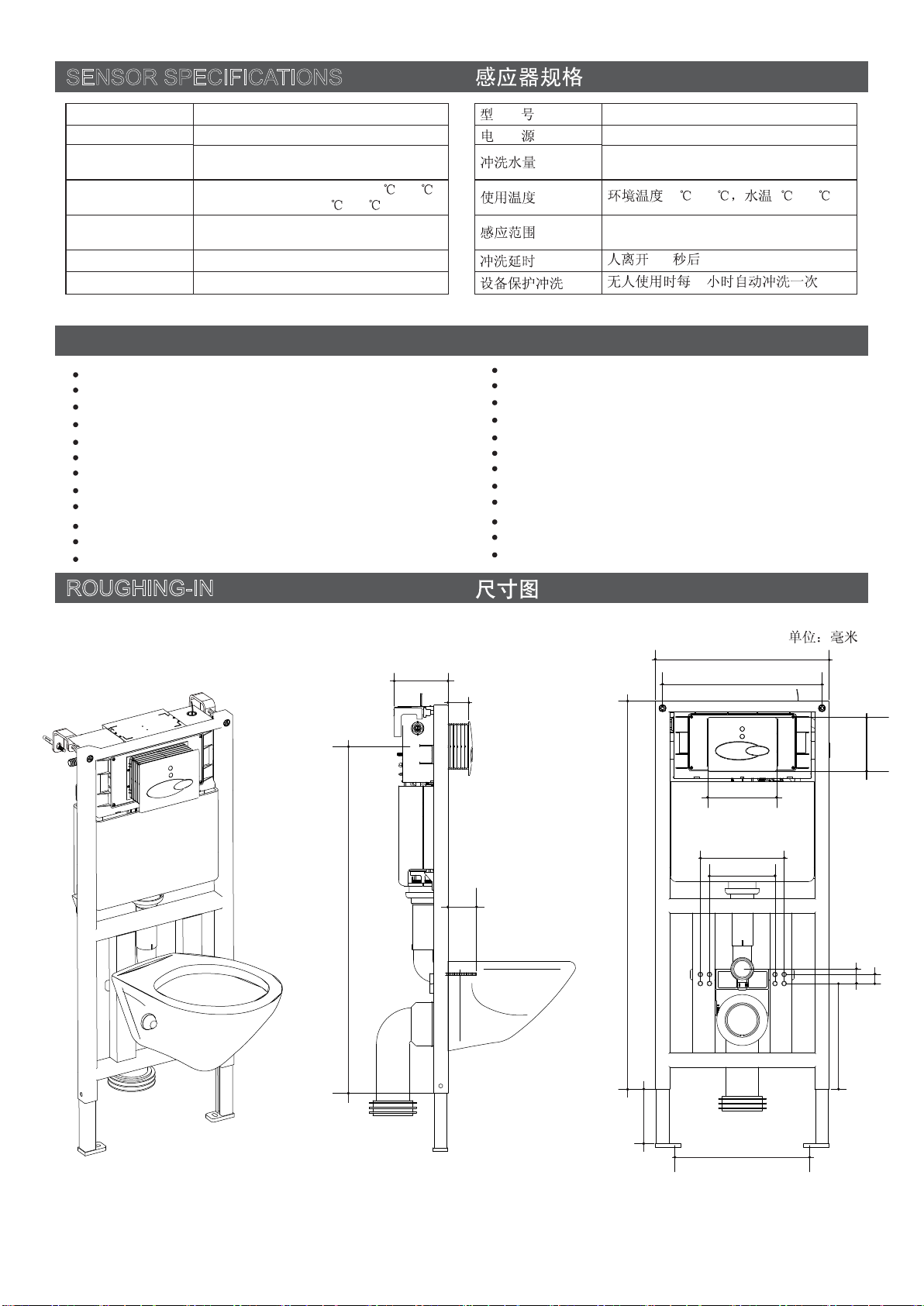

ROUGHING-IN
UNIT: mm
438
478
1081
147
190
0-300
180
230
290
25
35
337
155-200
962
48-58
0-48
RECOMMENDES TOOLS AND MATERIALS
所需工具及材料
开口/活动扳手
美工刀
锉刀
钢锯
冲击钻
水平尺
十字螺丝刀
绝缘胶布
卷尺
生料带
电工套管
润滑油
SENSOR SPECIFICATIONS
Model
Power 220V AC 50/60Hz 220V AC 50/60Hz
: 1 ~55 1 ~45
5~8
24
Liter per flushing
Temperature Environmental temperature: 1 ~55
Water temperature: 1 ~45
Sensing distance
Flushing delay
Protective flushing
5~8 seconds after user leave
Auto flush once every 24h if unused
Within 70cm fromsensingwindow
(along the direction of transmittingangle)
K-6281T-NA
K-6281T-NA
大档水量：6L
小档水量：3L
距感应窗口70cm以内（沿发射角度方向）
注：红外发射角度为水平向下10°。
Open end/adjustable Wrenches
Knife
File
Hacksaw
Masonry
Level
Screw driver
Insulation tape
Tape measure
Seal tape
Bushing
Lubricant
Large flushing volume: 6L
Small flushing volume: 3L
NOTE: The infrared transmitting angle is 10° downwards.
-2-
1104563-T01-C

2.
Nut
螺母
Hex Pan
内六角扳手
Adjustable Bracket
B
Fixing Frame
Nut
Fixing Cap
Hexagonal Screw
Tank Frame
A
固定架
螺母
固定套
内六角螺丝
水箱架
可调支架

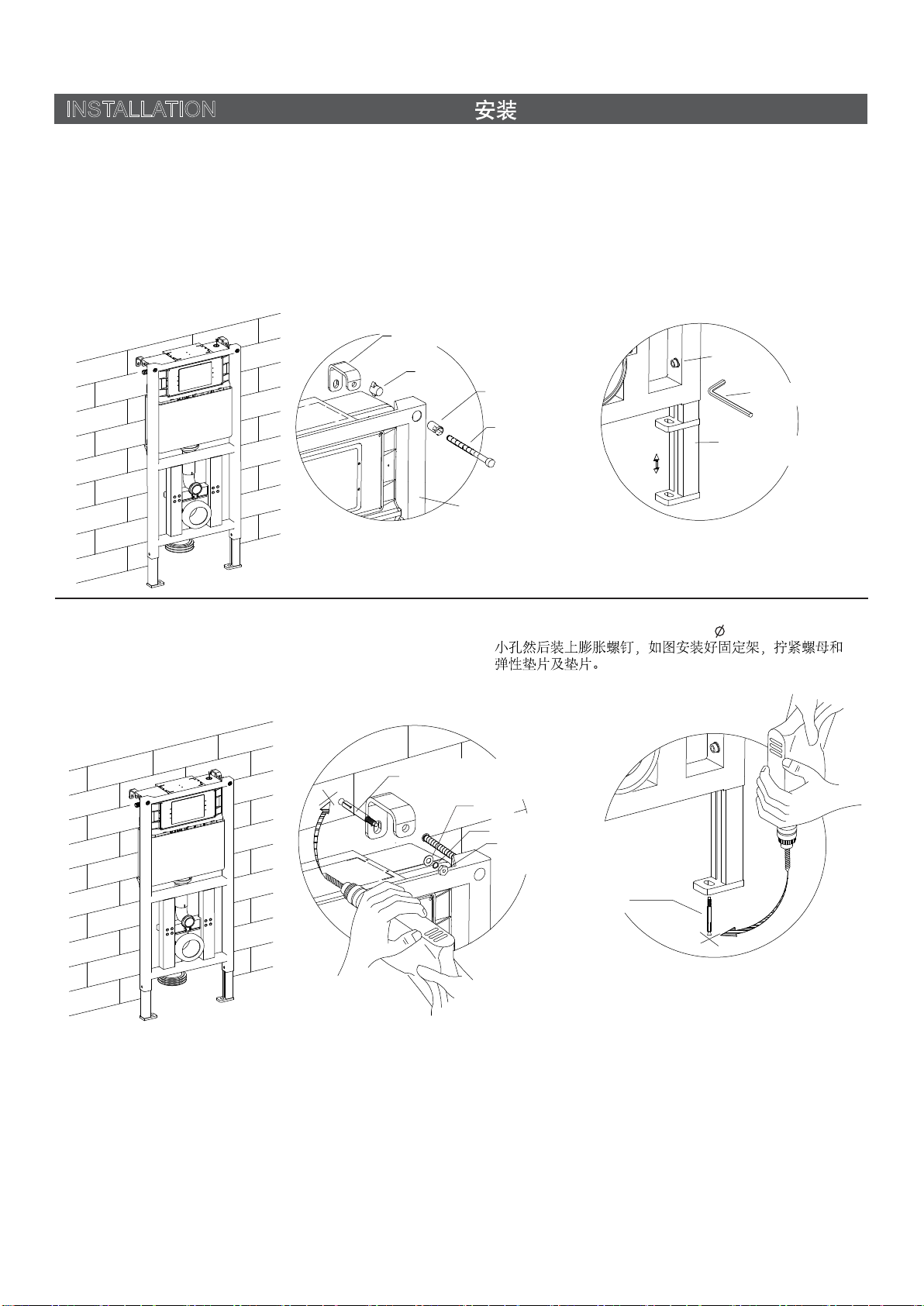

INSTALLATION
A. Installation of In-wall Tank
1. 1.
Nut
螺母
Gasket
垫片
Bulge Screw
膨胀螺钉
Bulge Screw
膨胀螺钉
Spring Gasket
弹性垫片
A. 自动感应入墙式隐藏水箱的安装
如图A将内六角螺丝连同固定套装在水箱架小孔内。然后将
螺母紧锁在内六角螺丝上,再用内六角扳手把内六角螺丝拧
紧在水箱架上。
如图B用内六角扳手拧松螺母，使可调支架可以按照客户的
理想高度进行调节，调节到合适位置后再用内六角扳手拧紧
螺母。
2. 依据水箱架比对好固定架和可调支架的位置，移开水箱架
如图在墙上合适位置用冲击钻钻四个 10.5mm深60mm的
Fix the fixing cap into the holes of fixing frame, then
tighten the hexagonal screws on the fixing frame
with hex pan as shown in Fig. A.
Tighten the bolts with medium Allen key as shown
in Fig. B, adjust the height of the adjustable bracket in
compliance with customer's requirements, and then
tighten the nut with hex pan.
Based on the frame, fixed the location of adjustable
bracket and Fixing Frame, then remove the frame, Drill
four holes with diameter of 10.5mm and depth of 60mm
with churn drilling as shown, and fill in the holes with
bulge screw and tighten the long screw, then install the
Fixing Frame and tighten the spring gasket and gasket.
1104563-T01-C
-3-

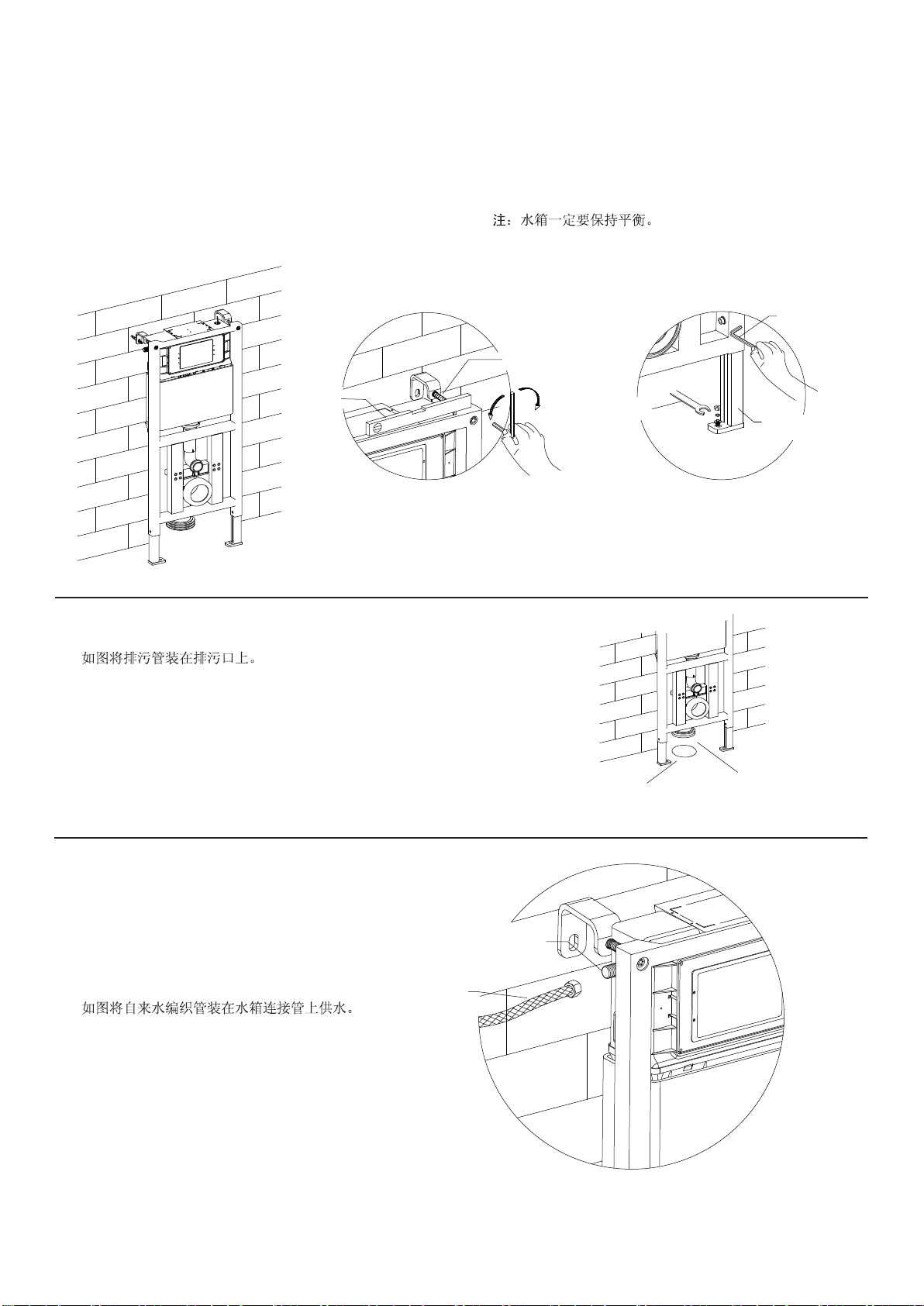

5. Install the water pipe to the connecting pipe at the side of
the tank for water supply.
NOTE:
1. Ensure inlet valves of frame should be shut down.
2. It is recommended that a temporary rubber or plastic
hose is attached to the stop valve, and the water supply
line should be flushed clean of dirt and debris.
5.
4. Connect the drainage pipe to the drainage hole as shown.
4.
3.
NOTE: Ensure the tank to remain level.
3.
ConnectingPipe
WaterPipe
连接管
自来水编织管
Drainage Hole
排污口
Drainage Pipe
排污管
将水箱放置到合适位置，对准固定架上的螺丝孔和地面上
的两个膨胀螺钉，如图A用内六角扳手把六角长螺丝拧紧。
注意要保持水箱架的水平。
如图B用扳手拧紧可调支架上的膨胀螺钉的螺母、弹性垫
片和垫片。
注：1. 确保水箱内部进水角阀为关闭状态。
2.建议在连接供水时,在角阀上连接一个临时橡皮或塑料软
管，冲洗供水管道，确保水干净，管道内无沙石、垢污等。
Spanner
Adjustable Bracket
Hex Pan
Tighten
Loosen
Hexagonal Screw
Level
B
A
水平尺
六角长螺丝
紧
松
内六角扳手
扳手
可调支架
Put the frame to the desired location, fixation of the
screw holes on the ground and the expansion of the
two Bulge Screw, Tighten the hexagonal long screw
with hex pan as shown in Fig. A. Please ensure the
frame remains level.
Tighten the screw of adjustable brackets with hex
pan as shown in Fig. B.
-4-
1104563-T01-C

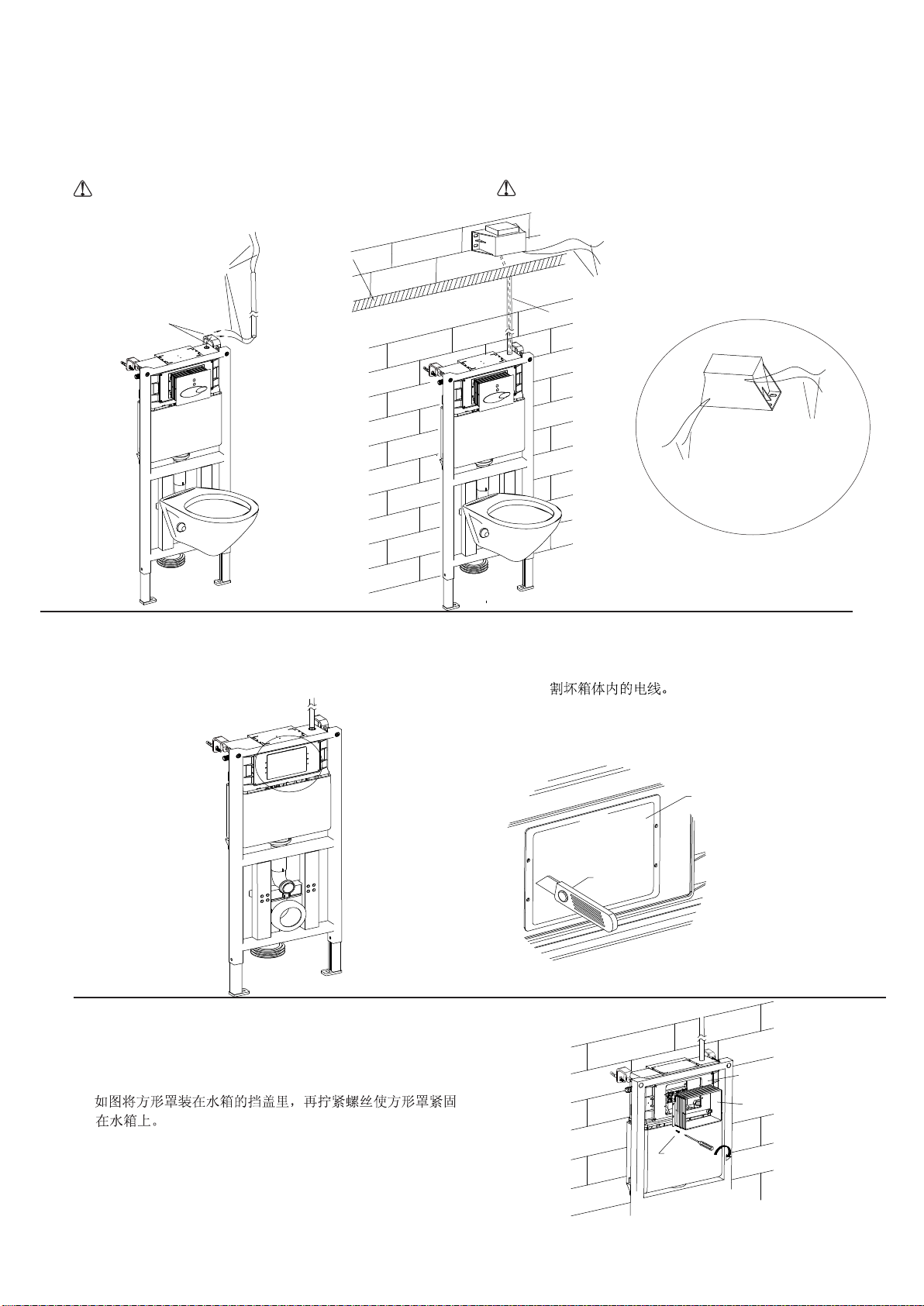

Block Screen
Rectangular Shield
Screw
挡盖
方型罩
螺丝
WARNING: Do not allow the knife enter the box deeper
than 15mm, otherwise it may damage the
electric wire inside.
1) Cut the cover with a knife as shown.
Low-voltage AC input
connector in tank
低压AC电源连接线
(水箱内)
low-voltage AC
变压器低压输出端
Brushing Pipe
电工套管
ceiling
天花板
Connect AC 220V
接AC 220V
Input AC 220V
输入AC 220V
Output AC 6V
输出AC 6V
Transformer Assy.
变压器组件
警告：请勿接错变压器的输入输出接线端，否则可能损
坏产品。
WARNING: Don’t mistake the input connector and output
connector, or product may be damaged.
6. 将变压器固定在墙上的合适位置，按照如图所示走线，
将变压器的低压输出端（棕线）穿过电工套管（建议电工
套管管径φ16～φ20）与水箱内的低压AC输入端相连，
接好后将线头连接处拉至水箱内的顶部，不能沉入水中，
电工套管如图示固定后，变压器的高压输入端（黑线）
接AC220V交流电。
B. Installation of Rectangular Shield
Knife
Cover
保护面板
美工刀
2) Install the rectangular shield in the block screen of the tank,
and tighten the screw to fix the rectangular shield to the
tank.
2)
1)
B. 方形罩的安装方法
警告：美工刀伸入箱体内的长度不能超过15mm,否则可能
如图用美工刀剪开保护面板。
6. Fix the transformer onto the wall, as illustrated,
connect the output connector of transformer (brown)
with the low-voltage AC input connector in tank, and
put the connector outside the tank. Connect the input
connector of transformer (black) with power supply
220V AC. Customer can use the PVC pipe for wiring.
1104563-T01-C
-5-

4)
5) Tighten the long screw into the holes of tank bracket.
5)
4) Cover the drainage cap with big filtration cap, and the
drainage hole with small filtration cap.
6) When finishing the brickwork of the wall, take out the big
and small filtration caps, and eliminate unwanted
rectangular shield with a sharp knife.
6)
Rectangular Shield
方形罩
Big Filtration Cap
Small Filtration Cap
小防物盖
大防物盖
Big Filtration cap Small Filtration cap
大防物盖
小防物盖
Long Screw
长螺杆
超出墙面的
3) Fix the motor wire (panel connector and low-voltage
connector included) to the soft belt on the right upper
corner.
NOTE: Don’t let the wire and connector fall into water.
3) 如图示，将电机线（含面板连接头和低压电源线连接头）
固定在右上角的软扎线上。
注意：不要让线和接头掉在水中。
String
软扎线
Motor Wire
电机线
美工刀
注意：砌墙时，需保证螺杆能自由转动。
割
NOTE: Build by laying bricks or stones, ensure the screw
could rotate freely.
-6-
1104563-T01-C

Inlet Pipe
Reserved Space
Outlet Pipe
3.
3.
Small Leak-proof Gasket
Inlet Pipe
Outlet Pipe
Big Leak-proof Gasket
2.
2. Eliminate unwanted part of the inlet pipe and outlet pipe
according to the marks of reserved space, and rasp a
smooth surface with files.
Inlet Pipe
Outlet Pipe

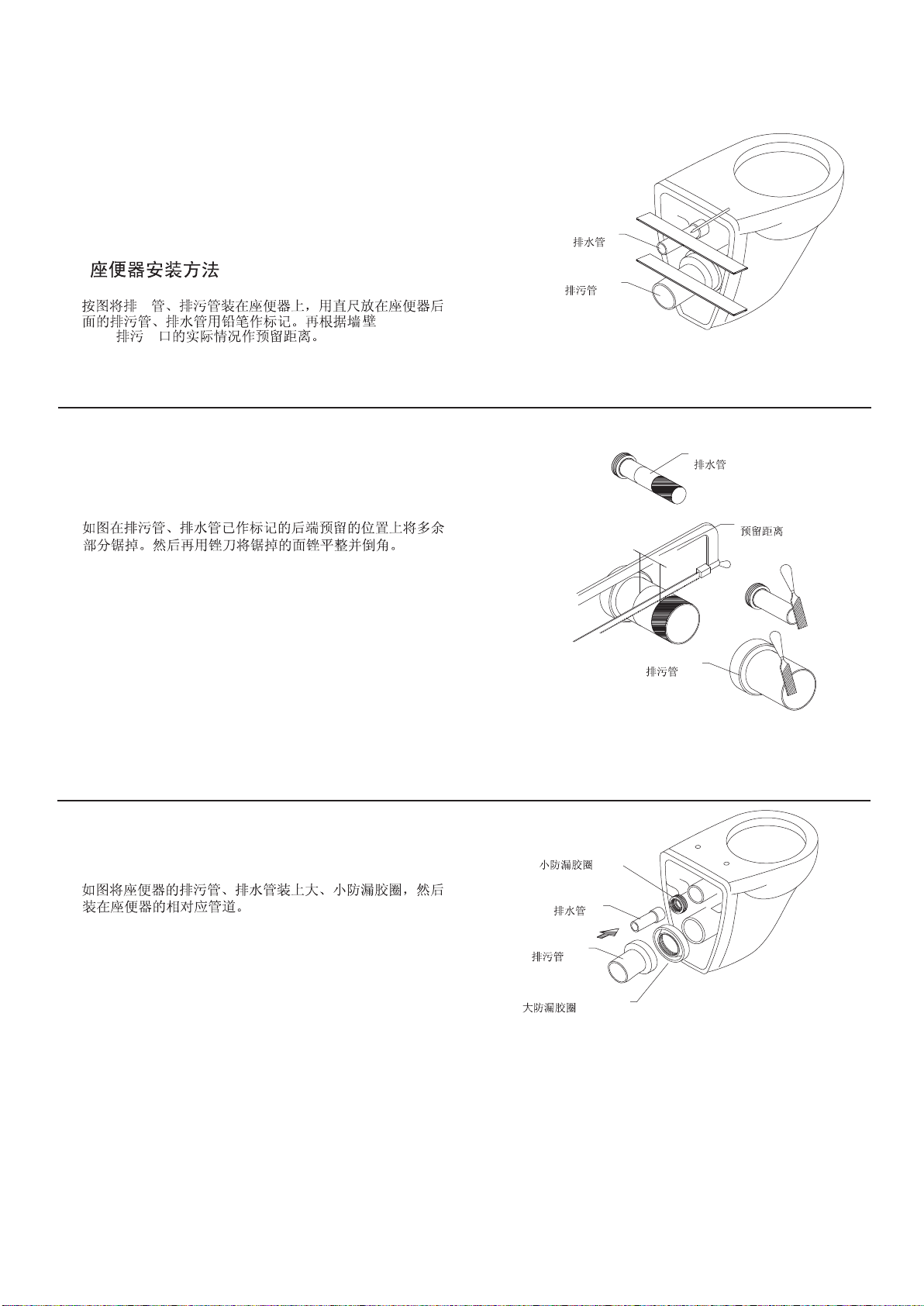

C. Installation of Toilet
1. Install the inlet pipe and outlet pipe to the lavatory as
shown, and mark on the pipes at the back side of the tank
with a ruler and a pencil, and reserve appropriate space
according to the distance from the back of the tank to the
outlet hole on the wall.
C.
1. 水
到墙内排水
管口、 管（保证排污管、排水
管伸入墙内的排污管口、排水管口约40mm。）
Install the small and big leak-proof gaskets on inlet pipe and
outlet pipe, then install it to corresponding pipes on the toilet
tank.
1104563-T01-C
-7-

Gasket
Long Screw
Reversed Lock
Rubber Cover
Hexagonal Nut
Decoration Cap
6. Install the r rubber cover, gasket, hexagonal
nut and decoration cap onto long screw according to the
order shown in the illustration.
eversed lock,
6.
5. Install the toilet as shown in the illustration, and use a
spirit level to ensure the lavatory to remain level.
5.
Spirit Level
4. 48mm-58mm of the long screw shall be reserved outside
the wall as shown in the illustration. If the long screw
outside the wall is not long enough or much longer than
that needed, it should be adjusted with screwdriver or by
hand. Then apply lubricant to drainage pipe and limber
pipe to ensure a smooth installation.
mm85-mm84.4
48mm-58mm
Long Screw
Lubricant
-8-
1104563-T01-C

4. Connect the connector on the cover with the connectors
in the tank.
4. 将面板上接头与水箱内电机线的面板连接头相连。
Connector, Cover
面板连接头
Voltage Power
Connect Low
Supply
Connector, Cover
面板连接头
接低压电源
Hole
Long Screw
Sign
3. Tighten the long screw to the bolt through the hole.
WARNING:
3.
长螺杆可根据实际安装尺寸视需要切除有
螺纹的一端，保证长螺杆运动时不与其他部
件相碰。
The sign on the long screw should accord with the
hole when the long screw is tightened. The end w/o
mark of the long screw could be cut to meet the
requirements of installation dimensions. And make
sure the long screw would not bump any other parts.
D. Installation of Cover
2. Fix the adjustable board to the wall by tightening the
lock nut as shown in the figure. And the locknut should
be directly put on the position of the sign of LOCK.
(Indications are marked on the adjustable board, please
refer to indications in installation)
D.
2.
Adjustable Board
注：若锁紧管因不同的安装与其他部件相碰，可根据实际情况
作适当切除。
NOTE: The locknut could be cut to a proper length if
necessary.
Lock Nut
1. 打开水箱内部进水角阀。
如图将调节板装在墙壁上，然后用手旋转锁紧管使调节板固
定。锁紧管需对准“LOCK”标识。（调节板已有标识，安装时
请按标识进行）。
L
O
C
K
OPEN
警告：
1. Open the inlet corner valve located inside the frame.
1104563-T01-C
-9-

REMOVE AND OF OUTLET VALVE
6. In-wall tank toilet is ready to be put into use.
6.
Long Flush
Button Short Flush
Button
1. 如图拆卸面板时，用双手握住面板用力向上推并以上部为支
点逆时针向后旋出面板，并轻轻拉出一定距离（注意不要拉
扯坏电线）。将水箱内的面板连接头拔出，再将面板取下。
注意：拆卸前，需关闭进水总阀。
Cover
面板
自动感应窗口
Sensing Window
Cover
面板
1. As illustrated, hold the cover with both hands and push
upwards to remove the cover and keep an appropriate
distance (pay attention not to damage the wire connection).
Disconnect the connectors and take down the cover.
NOTE: Before disassembly, please close the input
valve firstly.
Cover
面板
Lock
扣位
Cover
面板
AdjustableBoard
调节板
注意：
a. 安装过程中不要碰伤、刮伤面板，尤其是感应窗口，
并要保持感应窗口的清洁。
b. 安装过程需带上干净的手套，以防止水泥或沙砾损伤
面板，尤其是感应窗口。
5. As illustrated, make the locker of panel aim at locker of adjusting
board, lock them closely as the point.
5. 如图将面板的扣位对准调节板的倒扣，以此为支点向前旋转扣紧。
NOTE:
a. Do not bump, scratch the panel when installing,
in particular the window sensors. Pay special
attention to keep the window clean.
b. Put on clean gloves when installing, prevent
destroying the panel by cement and sand, in
particular the sensor window.
-10-
1104563-T01-C

4. Take out the adjustable board as shown.
4.
3. Tighten the locknut to the marked position of OPEN to
take out the adjustable board.
3. OPEN
Locknut
Adjustable Board
Adjustable Board
Long Screw
2.
2. Loosen the long screw as shown.
1104563-T01-C
-11-

7.将左右两边的大冲拉杆组件和小冲拉杆组件从拉杆卡扣上拉起
并向后转，再从左右两边分别取出。
Motor Box
Locker
电机盒卡扣
Lock
拉杆卡扣
Lock
拉杆卡扣
Short Flush Assy
小冲拉杆组件
Long Flush Assy
大冲拉杆组件
7. Unlock the long flush assy. and short flush assy., Lift and turn
backwards, and take them out.
5. 将电机线从软扎线上取下,用螺丝刀松开两个锁电机盒
的螺丝。
注意：螺丝不会轻易退出，只要感觉螺丝拧出螺纹即可。
String
软扎线
Screw
螺丝
5. Take motor wire out of the soft belt, release the two screws
that locked the box.
NOTE: Screws will not quit easily, just feeling that the screw
is threaded out is enough.
6. Catch the motor box under the edge ，press the motor box locker
with thumb, the motor box from the box seats will be out.
6. 抓住电机盒下边缘，用大拇指压出电机盒卡扣,将电机盒从机位上取出。
-12-
1104563-T01-C

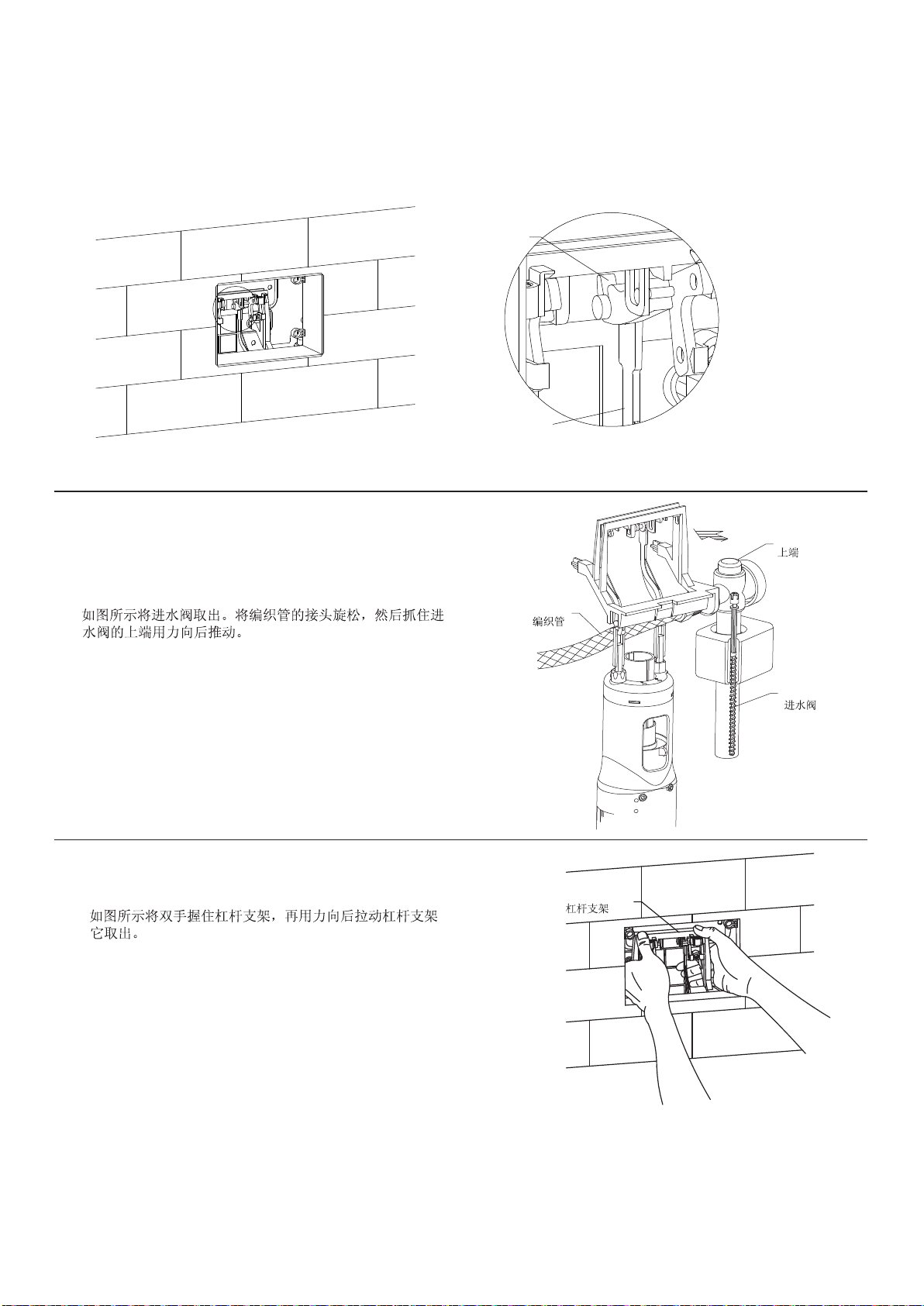

9. Take out the inlet valve as shown. Loosen the terminal of
the pipe, then grasp the top of the inlet valve and push
back.
9. Pipe
Top
Inlet Valve
10. Hole the pole bracket with your hands as shown. Then take
out the pole bracket by pulling it.
10. Pole Bracket
将
8. 如图把杠杆扣与倒扣拆出。
8.Remove the lock and reversed lock as illustrated.
Pole Lock
Reversed Lock
倒扣
杠杆扣
1104563-T01-C
-13-

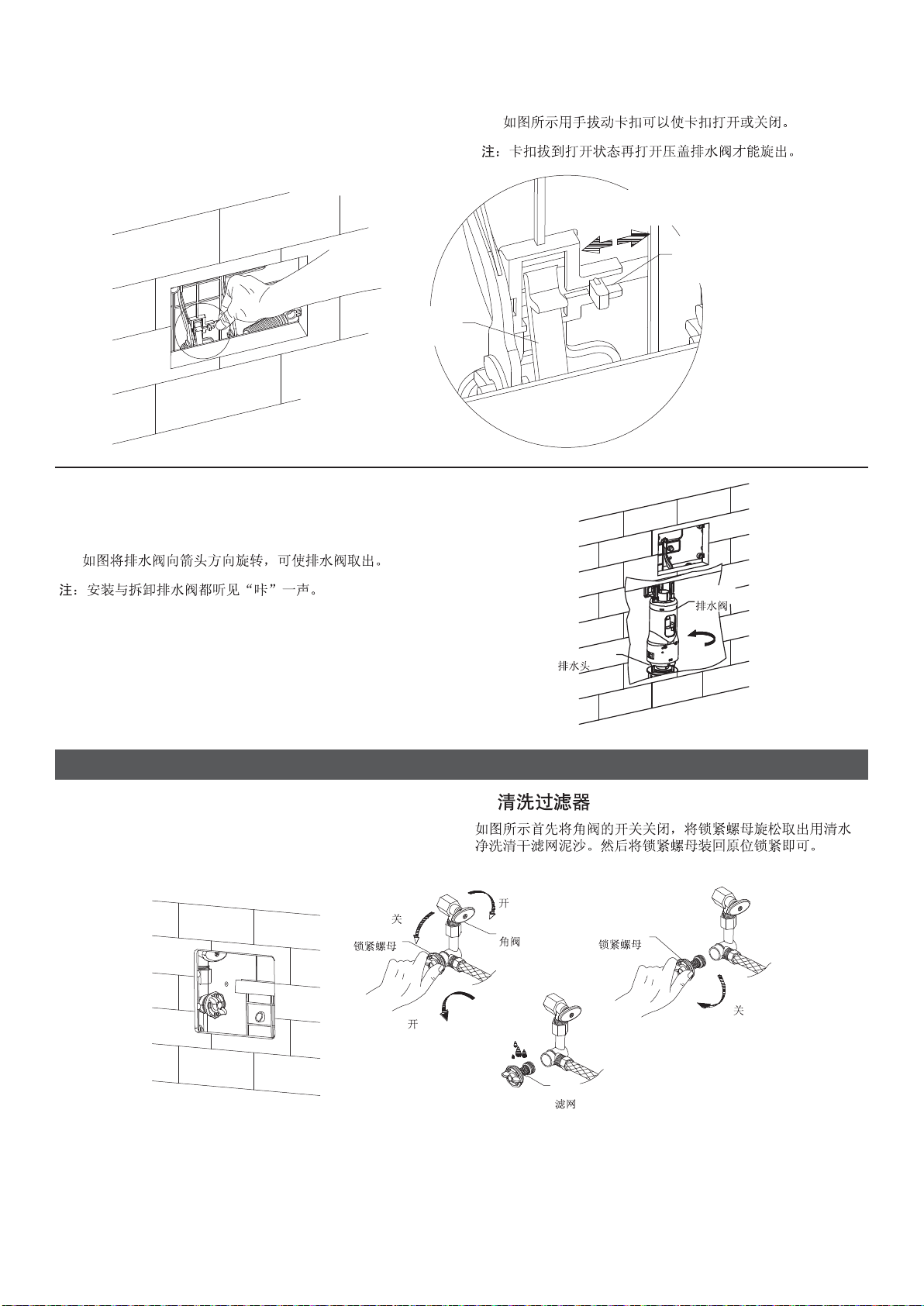

12. Turn the outlet valve in according to the arrow direction,
then the outlet valve can be taken out. Installing and
removing the outlet valve will click.
12.
Outlet Hole
Outlet Valve
Cover
压盖
Close
关
11. Move the lock on or off by hand.
Move the lock on and open the cover, then the outlet
valve can be loosen.
Note:
11.
Open
开
Lock
卡扣
A Wash Filtration Net
Close corner valve first, then loosen and take out the tighten
nut, and wash the waste on filtration net with clean water.
Then reset the tighten nut to the original position.
.A.
Tighten
Close Open
Corner Valve
Open
A
Tighten
Close
C
Filtration Net
B
MANTENANCE 维护
-14-
1104563-T01-C

B. Floating Box
Drainage valve
Adjustment Switch
B
As illustrated, flush valve could be used to adjust the flushing
volume of the tank ,1.Adjustment of the big volume: Regulate the
opening and closing holes, as illustrated, the larger the hole, the
smaller the flushing volume and vice versa. 2.Adjustment of the low
volume: The higher the float, the less the flushing volume and vice
versa.
. Adjust Drainage Valve
C.
Control Pole
Inlet Valve
Floating Box
C. Adjust Inlet Valve
Hoist and reduce the water level in the tank by adjusting
the control pole. Turn the control pole counterclockwise to
lower down the floating box and reduce the water level of
the tank. Turn the control pole clockwise to hoist the
floating box and increase the water level in the tank.
Keep the sensing window clean. Wipe with soft cloth and mild cleaner.
Note:
a. Do not use dust-removing powder, abrasive powder or
cleaner containing oil, acid or alkaline ingredient.
b. Do not spray air-refresher, disinfector, or other deodorizing,
cleaning solvent directly into the sensing window.
c. Keep wire away from water.
d. Don't attack the sensor window.
保持感应窗口清洁，可用蘸有中性清洁剂的软布擦洗。
注意：
a. 禁止使用去污粉、研磨粉及油类、酸性类、碱性类清洁剂。
b. 禁止直接对感应窗口喷洒空气清新剂、消毒液或其他除臭、
清洁类有机溶剂。
c. 避免水直接接触电线接插件。
d. 勿撞击感应窗口。
Long Flush
Button Short Flush
Button
感应窗口
Sensing Window
如图排水阀可调节水箱排水量的大小：（1）大档冲水量调节方法：
调节小孔的开合程度，如图示，向下调节水量越大，反之越小。
（2）小档冲水量调节方法：浮筒越高，冲水量越小，反之越大。
D. Clean the sensing window
D. 清洁感应窗口
1104563-T01-C
-15-

TROUBLE SHOOTING PROCEDURES
TROUBLE SHOOTING PROCEDURES
如按以上操作仍未解除故障，请通过经销商与本公司联系。
1.检查电源连接
2.清理物体
3.清洁窗口
I the trouble remains after above-mentioned actions are taken, please contact with us via distributor.
按钮被箱体内电线卡住 打开面板，重新布线
1.排水阀未能装紧在排水头上
2.排水阀封水片有杂物
3.电机盒摆杆卡住
1.重新拧紧排水阀（参照15页）
2.排水阀封水片
3.将电机盒取下，并手动将摆杆置于复位状态
（参照18页）
1.进水角阀没有打开
2.进水阀的浮筒被水箱壁顶住
3.进水阀的浮筒被杂物粘住
1.把进水角阀打开（参照14页）
2.调整浮筒到合适位置
3.应用水清洗干净浮筒
1.长螺杆拧得过前
2.杠杆扣与倒扣没有扣紧
1.旋转长螺杆，使长螺杆标记对上固定孔（参照9页）
2.重新扣紧杠杆扣与倒扣
按钮卡住
(15)
不出水
（感应指示灯不闪烁） 1.无电或接线错误 2.感应范围内有其他物体一直被感应
3.感应窗口较脏
无水流出或出水较差
(感应指示灯闪烁)
1.接插件松动
2.水路不通
3.电机控制盒故障
4.大冲拉杆、小冲拉杆与杠杆扣没有扣紧
1.检查接插件连接
2.检查水路
3.检查电源连接是否正常，并断开电源输入2秒后重
新上电
4.将大冲拉杆、小冲拉杆与杠杆扣扣紧
No water fills in via inlet
valve
No drainage when
pressing the heavy and
slight drainage button
Leak of the toilet and
squat
Symptoms Probable Causes Recommended Action
1. The outlet valve is not installed tight enough
with the outlet hole.
2. The rubber gasket of the outlet valve is blocked
by waste.
3. Swing pole of the motor box is stucked.
1. Retighten the outlet valve (refer to page 15)
2. Clean the rubber gasket of the outlet valve.
3. Remove the motor box and place the swing
pole manually to reset position.(See Page 18).
1. The inlet valve is closed
2. Floating box of inlet valve is blocked by tank wall
3.Floating box of inlet valve is block by waste
1. Open inlet valve(refer to page 14)
2. Adjust floating box to appropriate position
3. Wash the floating box with clean water
1. Long screw is tighten too far.
2. Pole lock is not locked tight enough with the
reversed lock.
1. Loosen the long screw, make sure the sign
the long screw accords with the hole on
(refer to page 9).
2. Relock the pole lock with the reversed lock.
Water level of the inlet valve is not appropriateToo high or too low water
level Readjust water level (refer to page 15)
No flushing
(Indicator not flashing)
1. No power or mistake connected.
2. There is an object within the sensing distance.
3. The sensing window needs cleaning.
1. Check the power connect.
2. Remove the object or reduce the sensing
distance.
3. Clean the window.
No flushing or poor
flushing while the indicator
can flash
1. Connector is loosen.
2. Waterway is jammed
3. Motor box assy. is break.
4. Long flush lever and short flush lever are not
linked to the leverage properly.
1. Check connector for connection.
2. Check the waterway
3. Make sure the power supply normal, and
plug off the power cord connector, Re-plug
in after 2 sec.
4. Tighten the link of long flush lever, short
flush lever and the leverage.
The button was stuck. The button was stuck by wire in the power box. Open the cover, arrange the layout of wire
again.
-16-
1104563-T01-C

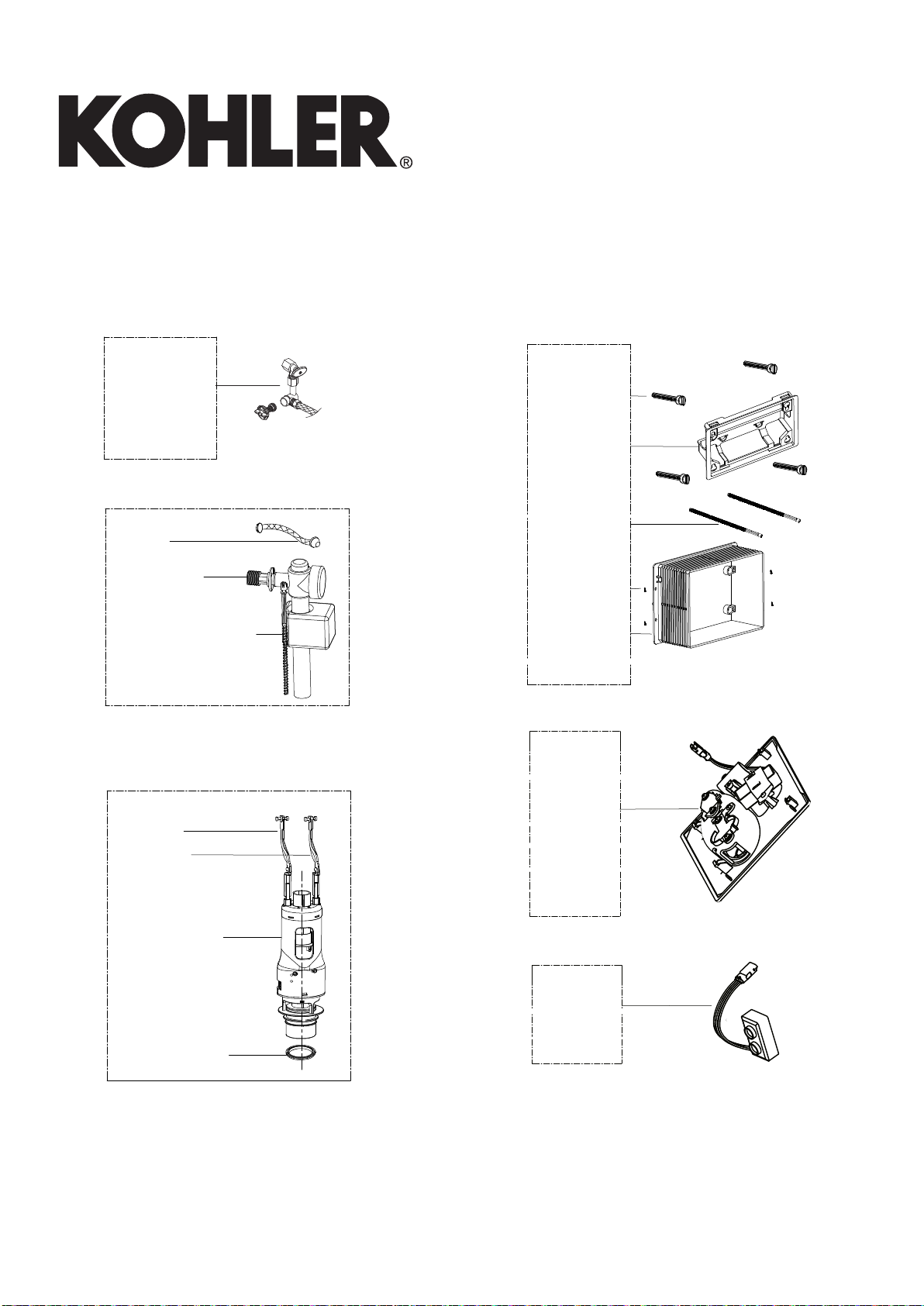

Pipe
编织管
Joint Nut
连接螺母
747 Side Fill Valve
747进水阀
Hook, Left
左拉臂
Hook, Right
右拉臂
P60A Flush Valve/P60A
排水阀
Rubber Gasket
封水圈
1110040
1110041
G12Filter/G12过滤器
G06Valve/G06角阀
TankInletConnection
水箱进水头
Washer/ 垫片
1110039
Filter Joint
过滤器接头
Nut /螺母
1110042
Square Mask
ST3.5
ST3.5 Screw
LocationPanel
1110963
Fixation Shank
锁紧管
螺丝
方型罩
定位板
1101482
Cover Assy
面板组件
1104768
Control Box Assy
电控盒组件
1110962
Push Bar
推杆
海德丽100 HYDRO-TOWER 100
自动感应入墙式隐藏水箱
Touchless Inwall Tank with Frame
安装说明书
INSTALLATION INSTRUCTIONS
K-6281T-NA
1104563-T01-C
-17-

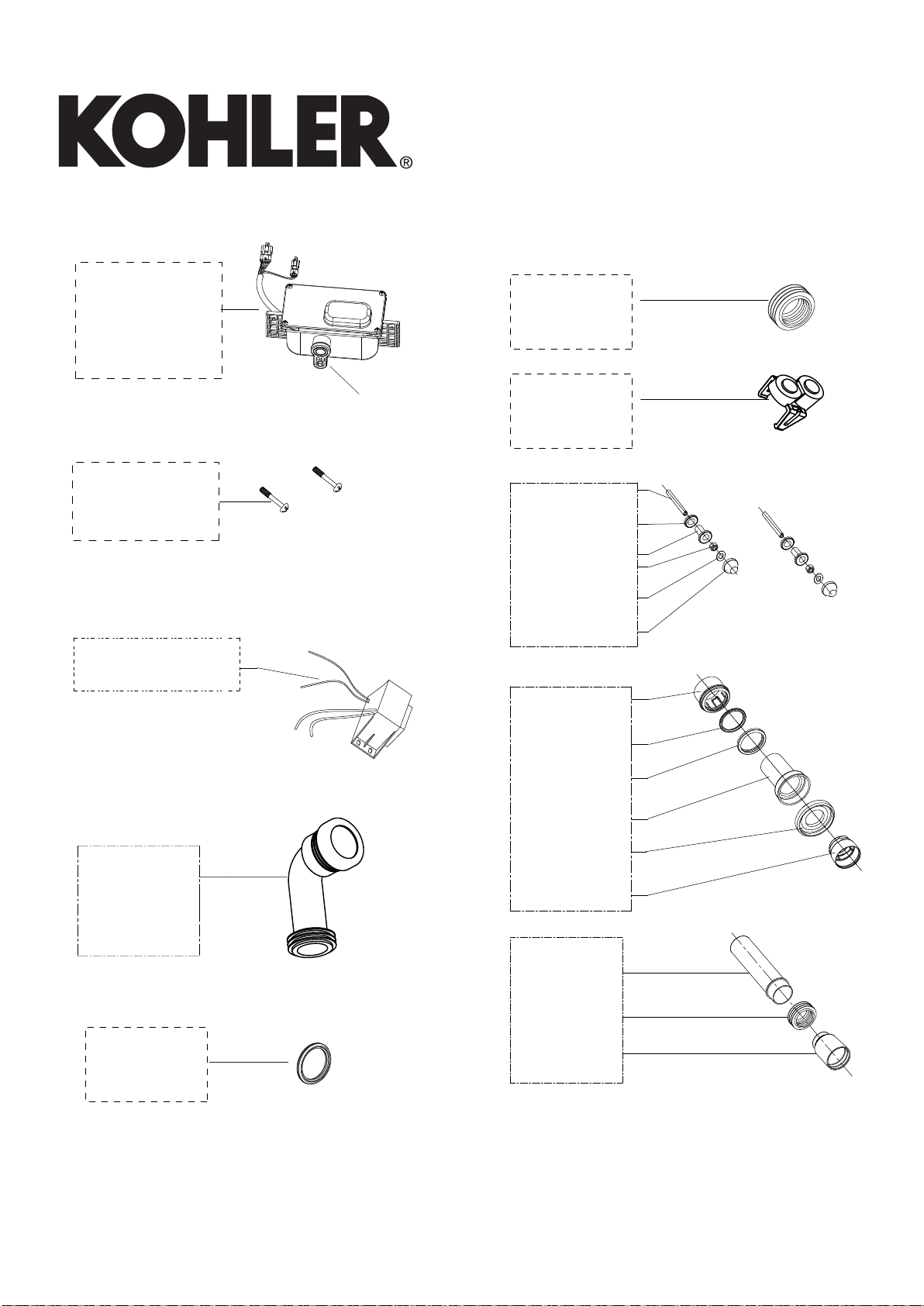

Screw/螺丝
1110043
Outlet Pipe
排污管
Motor Box Assy.
电机控制盒组件
Swing pole is placed to
reset position
摆杆复位状态
Transformer Assy.
变压器组件
Screw/ 侧缸螺丝
Screw Cover/ 螺丝底盖
Screw Washer/ 螺丝垫
Nut B/B 螺母
Washer B/B 垫片
Screw Cover/ 螺丝盖
1110967
1110968
Rubber Stopper Ring,
Water Outlet
排水口胶圈
1110969
Rubber Stopper Gasket
密封圈（含配件说明）
Outlet Pipe
排水管
1110965
Small Rubber Gasket
小防漏胶圈
Small Filtration Cap
小防物盖
KL-B
Outlet Pipe, Rear
Outlet Pipe, Front
排污管后段
排污管前段
Big Filtration Cap
大防物盖
1110966
C Rubber Gasket
C胶圈
1110964
Big Rubber Gasket
大防漏胶圈
Outlet Pipe
排污管
KL-A
1101486
1108553
1110724
1098699
Lens
透镜
海德丽100 HYDRO-TOWER 100
自动感应入墙式隐藏水箱
Touchless Inwall Tank with Frame
安装说明书
INSTALLATION INSTRUCTIONS
K-6281T-NA
-18-
1104563-T01-C

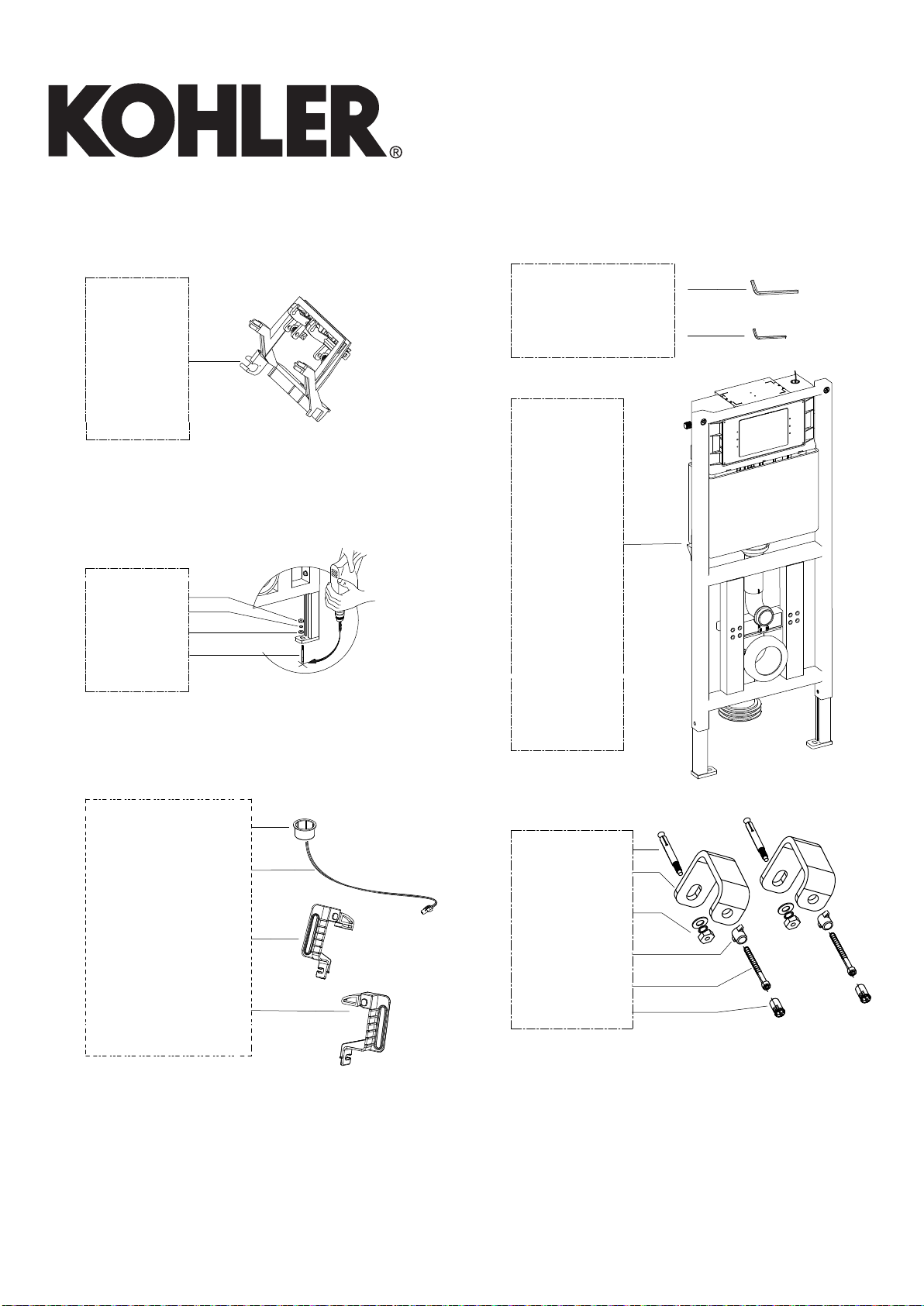

Inwall Tank
隐藏式水箱
Screw Cap螺丝套
Expanding Bolt
膨胀螺丝
Fixation Base摆块
Nut & Washer
螺母及垫片
Frame Screw
框架螺丝
Bulge Screw
膨胀螺钉
Nut 螺母
Spring Gasket
弹性垫片
M10 Interior Hexagon Wrech
M10的内六角螺丝刀
M5 Interior Hexagon Wrech
M5的内六角螺丝刀
Dustproof Cover
防尘罩
Wire, Connecting Low
Voltage Power Supply
低压电源连接线
Big Flush Puller Assy
大冲拉杆组件
Small Flush Puller Assy
小冲拉杆组件
KL-D
KL-E
KL-F
KL-G
KL-H
Nut
螺母
Gasket 垫片
Tank Bracket Assy.
水箱支架组件
KL-C
海德丽100 HYDRO-TOWER 100
自动感应入墙式隐藏水箱
Touchless Inwall Tank with Frame
安装说明书
INSTALLATION INSTRUCTIONS
K-6281T-NA
1104563-T01-C
-19-

4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
-20-
1104563-T01-C
