Kohler K-10282 Assembly instructions

Installation and Care Guide
Showerheads
K-444, K-449, K-457,
K-965, K-966, K-10282,
K-10284, K-10391, K-10590,
K-10591, K-12008, K-12009,
K-13137, K-16166, K-16167,
K-16244, K-16245
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
1054642-2-B

Thank You For Choosing Kohler Company
We appreciate your commitment to Kohler quality. Please take a few
minutes to review this manual before you start installation. If you
encounter any installation or performance problems, please don’t
hesitate to contact us. Our phone numbers and website are listed on
the back cover. Thanks again for choosing Kohler Company.

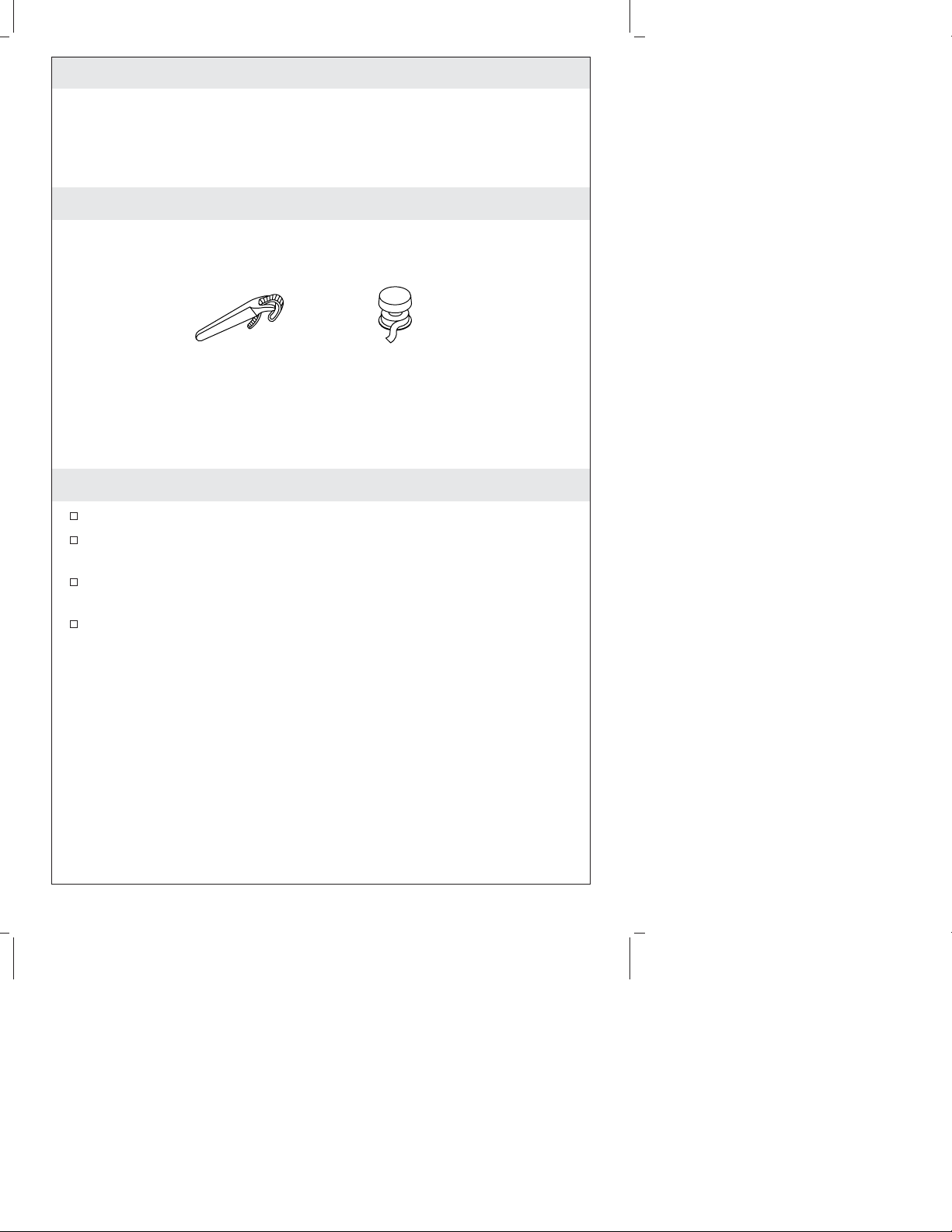

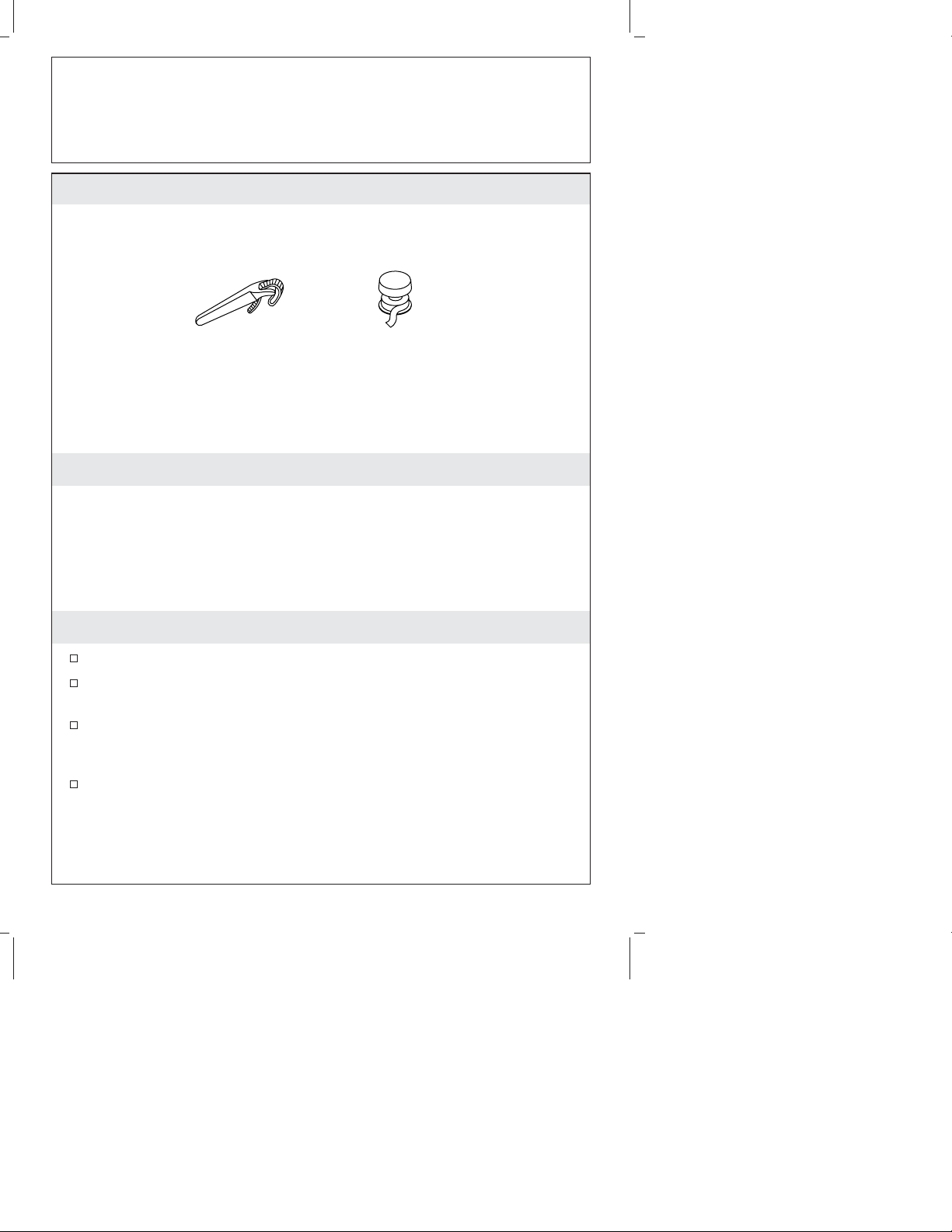

Tools and Materials
Before You Begin
Observe all local plumbing codes and building codes.
The finished wall or bath/shower unit must be installed prior to
this installation.
Your showerhead may differ in appearance from the one
illustrated in this guide. The instructions still apply.
Kohler Co. reserves the right to make revisions in the design of
faucets without notice, as specified in the Price Book.
Strap
Wrench
Thread
Sealant
1054642-2-B 2 Kohler Co.

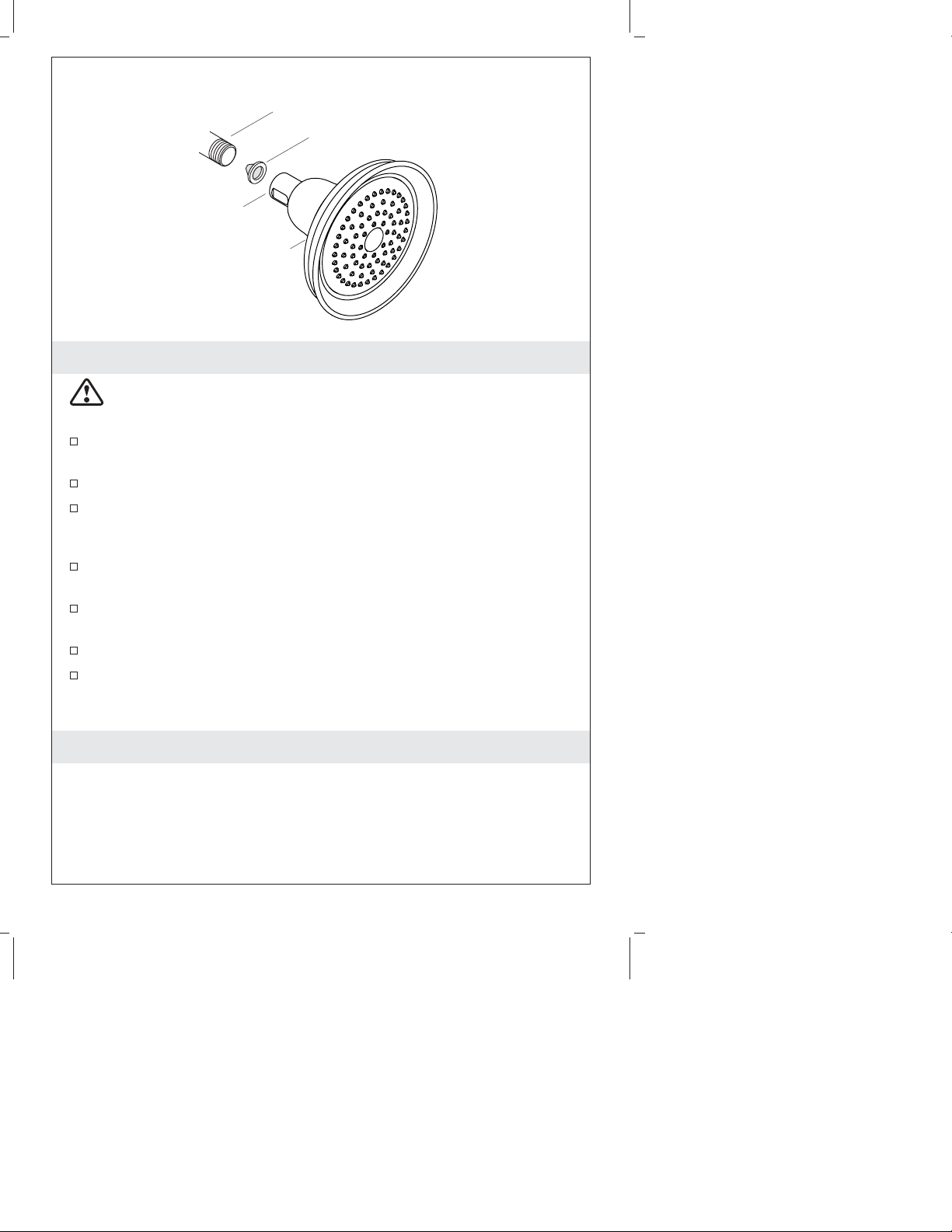

1. Install the Showerhead
CAUTION: Risk of product damage. To avoid plugging the
showerhead spray outlets, use thread sealant tape on the shower
arm threads.
Remove the existing showerhead and thread sealant tape from the
shower arm, if applicable.
Apply thread sealant tape to the threads on the shower arm.
Run cold and hot water through the shower arm for several
minutes to flush out dirt and debris.
Place the screen/washer with the tapered side down into the
showerhead inlet.
Secure the showerhead to the shower arm using a clean strap
wrench. Do not overtighten.
Pivot the showerhead to verify smooth operation.
Run water through the showerhead to check for leaks between
the shower arm and showerhead inlet. Adjust as needed.
Care and Cleaning
For best results, keep the following in mind when caring for your
Kohler product:
•Test First - Always test your cleaning solution on an
inconspicuous area before applying it to the entire surface.
•Do Not Let Cleaners Soak - Do not allow cleaners to sit or soak
on the product.
Screen/Washer
Showerhead
Apply thread sealant tape.
Inlet
Kohler Co. 3 1054642-2-B

Care and Cleaning (cont.)
•Avoid Abrasive Materials - Use a soft, dampened sponge or
cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
•Wipe Clean - Wipe surfaces clean and rinse completely with
water immediately after applying cleaners. Rinse and dry any
overspray that lands on nearby surfaces.
Care Tip: The ideal cleaning technique is to
always blot dry any water from metal surfaces.
Allowing water to evaporate on metal will
form water deposits. It is important to use a
dabbing action to dry metal, not an abrasive or
rubbing action. Cleaning with a damp sponge
and blot drying should keep your product
looking beautiful.
Chrome, Solid Color, and Vibrant
®
PVD Color/Finishes – Faucets and
Fittings:
•Do not use cleaners containing ammonia, bleach, or acid.
•Use a mild detergent such as dishwashing soap. Do not use
abrasive cleaners.
•Rinse and be sure to blot the entire surface dry.
•Consider using Comet
®
Bathroom Cleaner, Windex
®
Original, or
Fantastik
®
Antibacterial All Purpose Cleaner.
Vitreous China Faucets:
•Rinse thoroughly and use a soft cloth to wipe the product after
each use.
•Soft abrasive cleaners may be used when necessary to clean
vitreous china products. Strong abrasive cleaners will scratch and
dull the surface.
•Consider using Comet
®
Bathroom Cleaner, Windex
®
Original, or
Fantastik
®
All Purpose.
Screen Washers:
•Use a clean strap wrench to remove the showerhead from the
shower arm.
•Remove the screen washer using a thin-bladed screwdriver.
Carefully pry up the edge of the screen washer.
1054642-2-B 4 Kohler Co.

Care and Cleaning (cont.)
•Clean the screen washer, gently rubbing the debris away.
•Place the screen washer O-ring side down into the showerhead
inlet.
•Secure the showerhead to the shower arm using a clean strap
wrench.
NOTICE: Failure to comply with these cleaning instructions may
void Kohler’s warranty obligations.
NOTE: Success with cleaners and procedures is dependent upon
such factors as the hardness and temperature of the water, using
exact quantities of ingredients, changes in cleaning formulas, and
the condition of the product being cleaned. Since there are variations
within these factors, Kohler cannot guarantee the effectiveness of the
formulas mentioned.
Lifetime Limited Warranty — USA and Canada
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
Kohler Co. 5 1054642-2-B

Lifetime Limited Warranty — USA and Canada (cont.)
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
One-Year Warranty — Mexico
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
1054642-2-B 6 Kohler Co.

One-Year Warranty — Mexico (cont.)
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
Kohler Co. 7 1054642-2-B

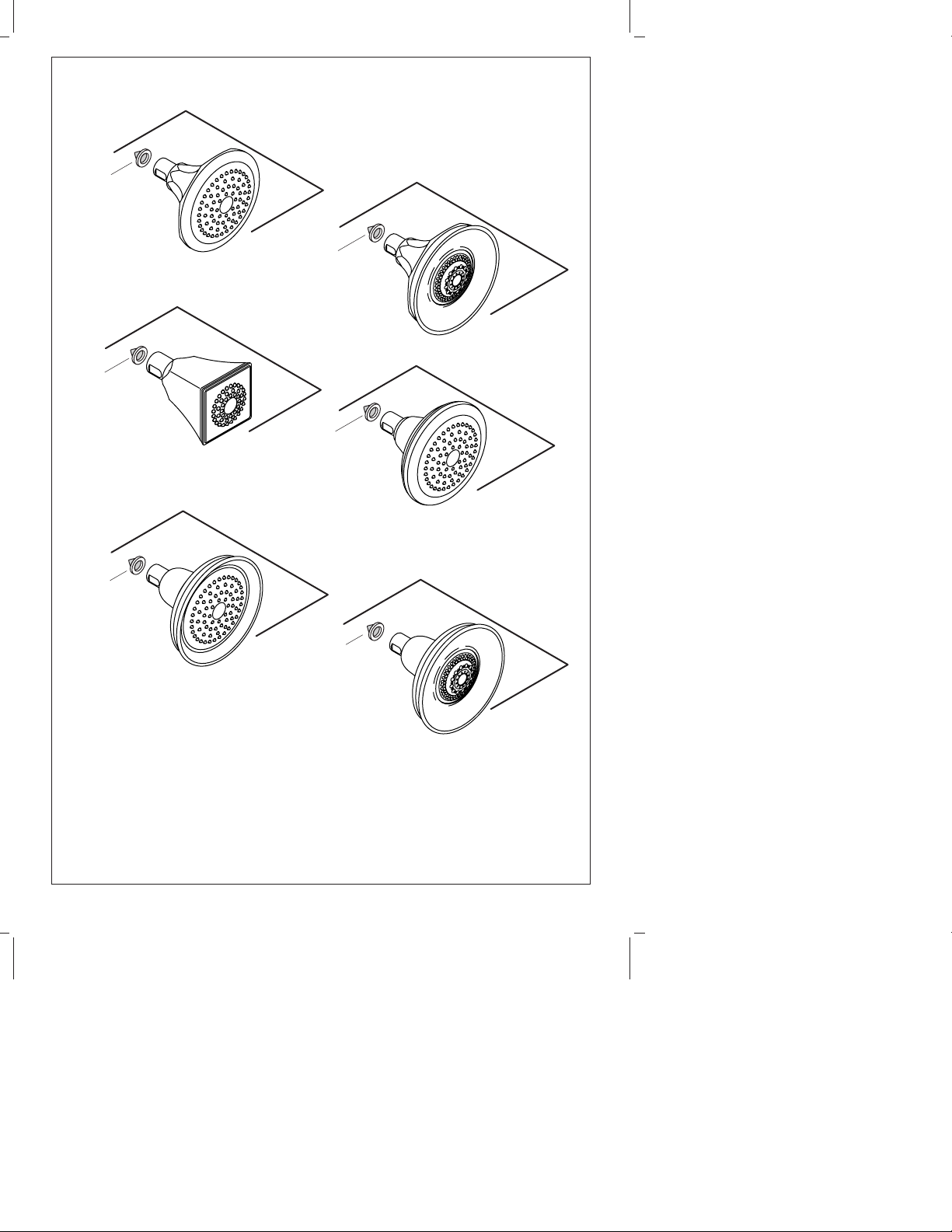

Service Parts
**Finish/color code must be specified when ordering.
1014954**
79676
79676
79676
79676
79676
79676
79676
79676
1025630**
1013830** 1023214**
1014923** 1022257**
1017569**
1022128**
Screen/Washer
Screen/Washer
Screen/Washer
Screen/Washer
Screen/Washer
Screen/Washer
Screen/Washer
Screen/Washer
Showerhead
Showerhead
Showerhead
Showerhead
Showerhead
Showerhead
Showerhead
Showerhead

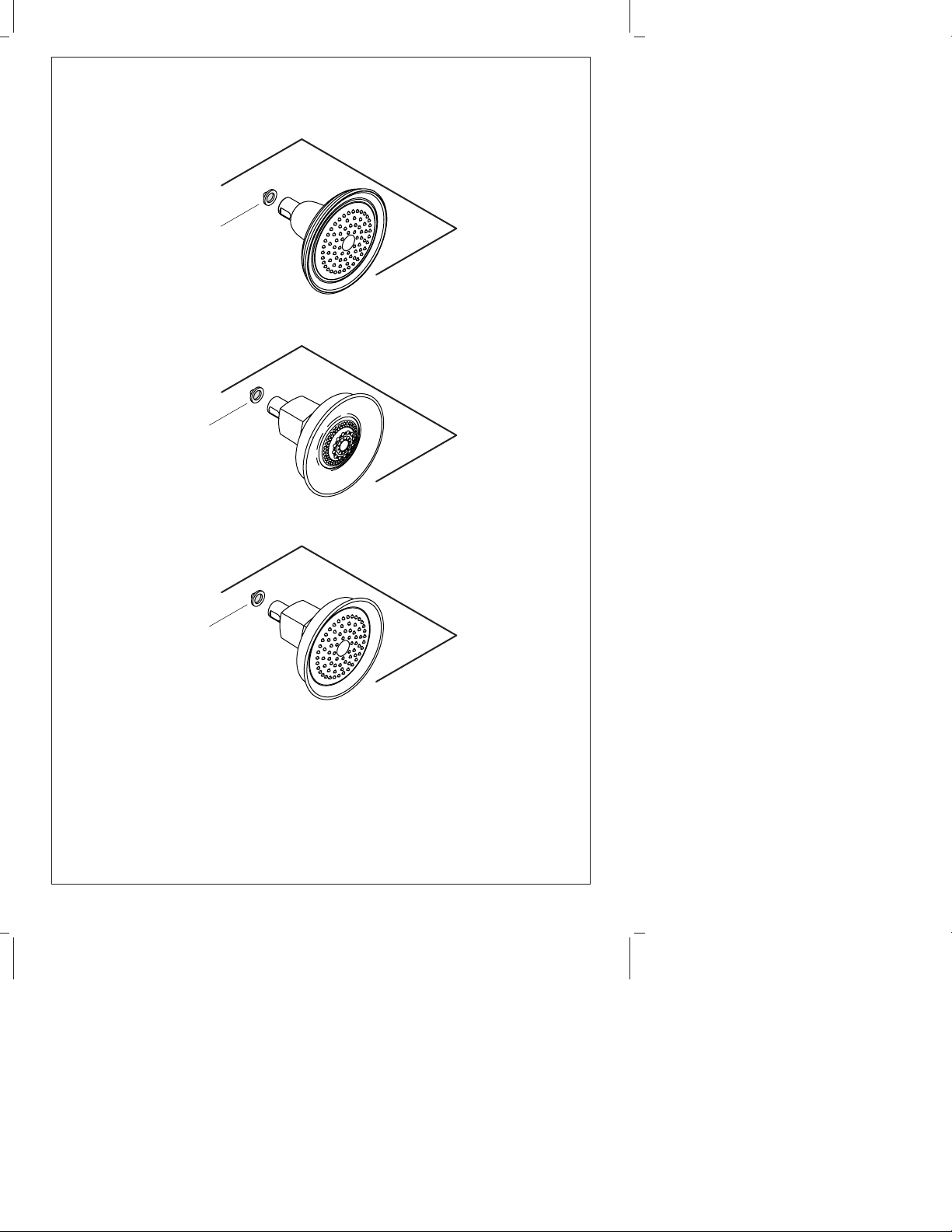

1054642-2-B 8 Kohler Co.

**Finish/color code must be specified when ordering.
1013934**
79676
79676
79676
79676
79676
79676 1022256**
1034712**
1034713**
1030635**
1031098**
Screen/Washer
Screen/Washer
Screen/Washer
Screen/Washer
Screen/Washer
Screen/Washer
Showerhead
Showerhead
Showerhead
Showerhead
Showerhead
Showerhead

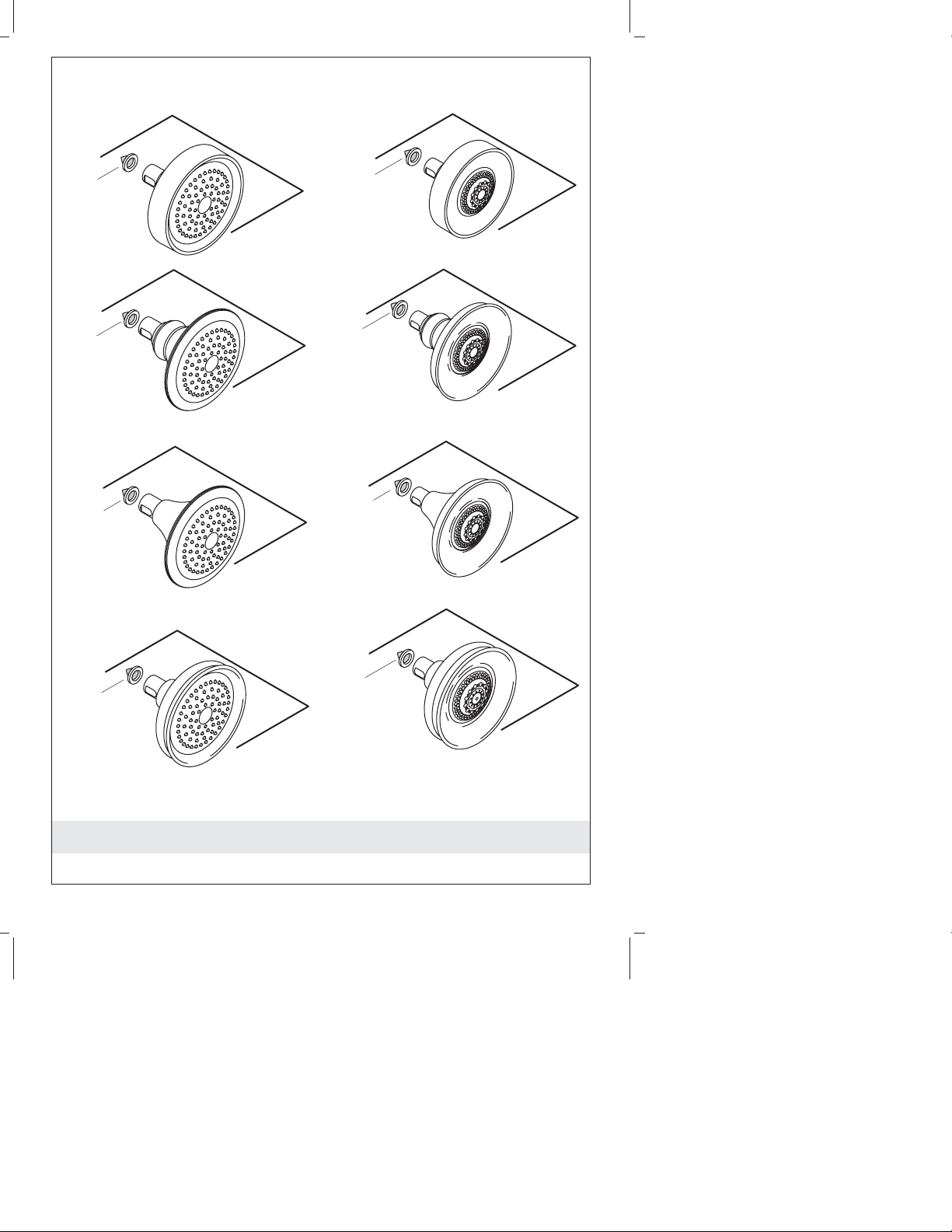

Kohler Co. 9 1054642-2-B

**Finish/color code must be specified when ordering.
1049090**
Showerhead
1049313**
Showerhead
1049316**
Showerhead
79676
Screen/Washer
79676
Screen/Washer
79676
Screen/Washer
1054642-2-B 10 Kohler Co.
