Kohler K-1954 Assembly instructions

Installation and Care Guide
Touchless Flush
Français, page “Français-1”
Español, página “Español-1”
K-1954
1216369-2-D

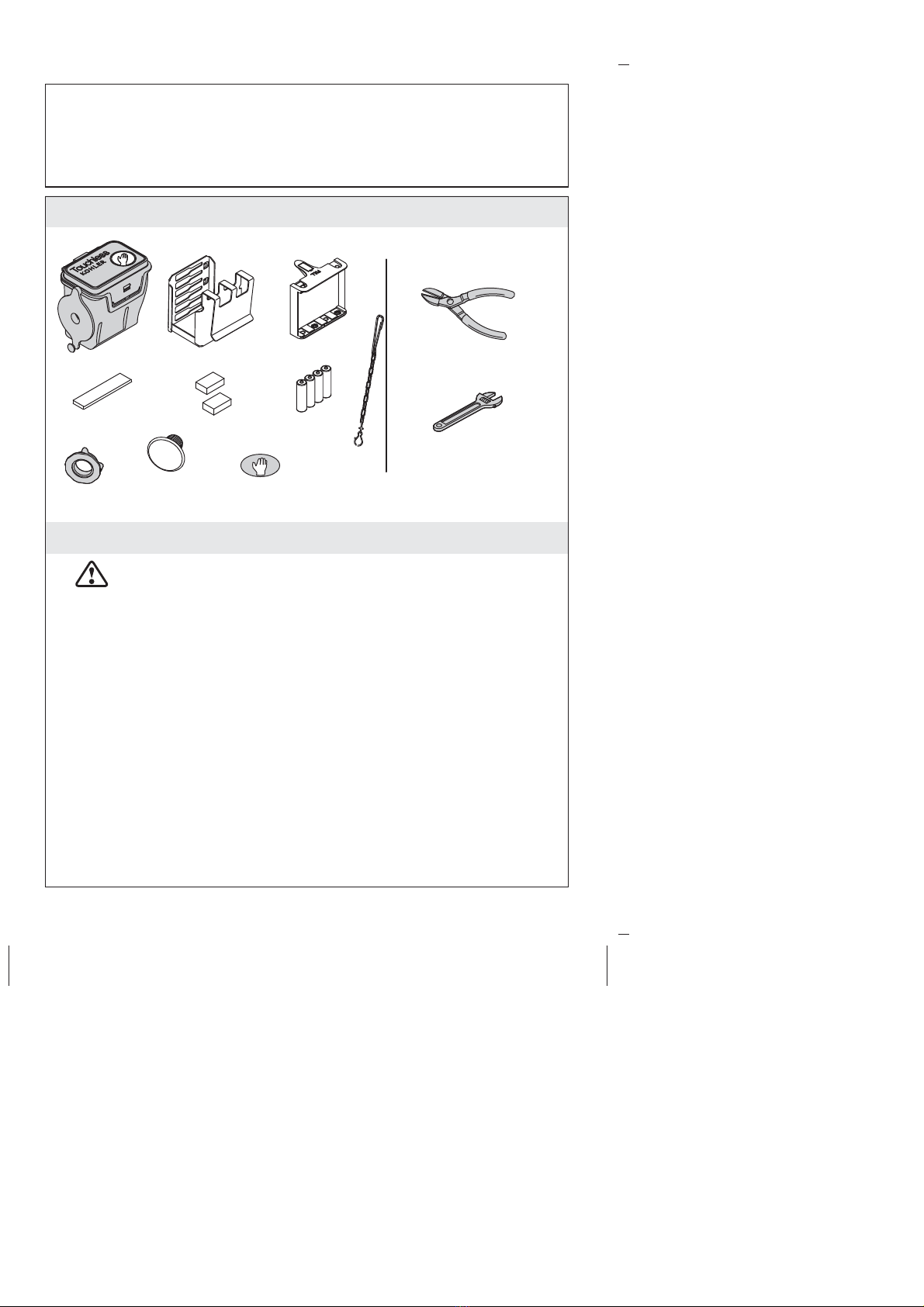

Included Components/Recommended Tools
Before You Begin
CAUTION: Risk of property damage: Do not use lithium
ion batteries with this product. Exposing lithium ion batteries
to water can result in a fire.
NOTICE: Risk of property damage. If the toilet is plugged, turn off
the water supply before attempting to unplug it. The sensor can be
inadvertently activated while unplugging the toilet, resulting in an
overflow.
NOTICE: Risk of product damage. Use of in-tank toilet cleaners
will damage this product. In-tank cleaners emit gases which will
damage the seals and corrode the interior components. Damage due
to use of in-tank cleaners voids the warranty.
IMPORTANT! This product is designed to work as a retrofit on
existing toilets, but will not work with all models or variations. The
steps required to install the touchless module to some models of
toilets may differ from those shown.
IMPORTANT! If you experience difficulty installing this product on
your style of toilet, review the compatibility list and installation
videos at KOHLER.com/TouchlessToilet.
NOTE: Most toilets can be configured as touchless flush only
(recommended) or both handle flush and touchless flush. A hole
cover is provided for touchless only configuration.
5
1
2
3
4
6
Pads
(To remove the trip lever)
(To trim the chain)
Recommended ToolsProvided Components
Chain
and
Clips
Emblem
Bracket
Module
Hole Cover
Nut
Vent Bridge (4) AA
Batteries
Battery Holder
1216369-2-D 2 Kohler Co.

Before You Begin (cont.)
NOTE: While it is not required, emptying most of the water from
the tank will allow for a more pleasant installation and reduce the
risk of damage to parts if they are dropped in the tank. Instructions
for this process are provided at the appropriate time.
NOTE: When replacing the batteries, consult the installation guide
or go to www.kohler.com and go to the product page for K-1954 if
additional information is required.
Before starting the installation, confirm this product is compatible
with your toilet by visiting KOHLER.com/TouchlessToilet and
going to the product page for K-1954.
Before starting the installation, determine if you will use both the
handle flush and touchless sensor, or be removing the handle and
covering the handle hole with the provided hole cover.
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
This Class B digital apparatus complies with Canadian ICES-003.
Kohler Co. 3 1216369-2-D

1. Remove the Handle
Touchless Only Configurations (recommended)
IMPORTANT! Do not install the batteries until instructed. The
sensor will activate when the batteries are installed, making it
difficult to complete the installation process.
NOTE: The steps in this section are recommended, but are optional
for most installations. If your installation will retain the handle, go
to the ″Determine the Bracket Location″section.

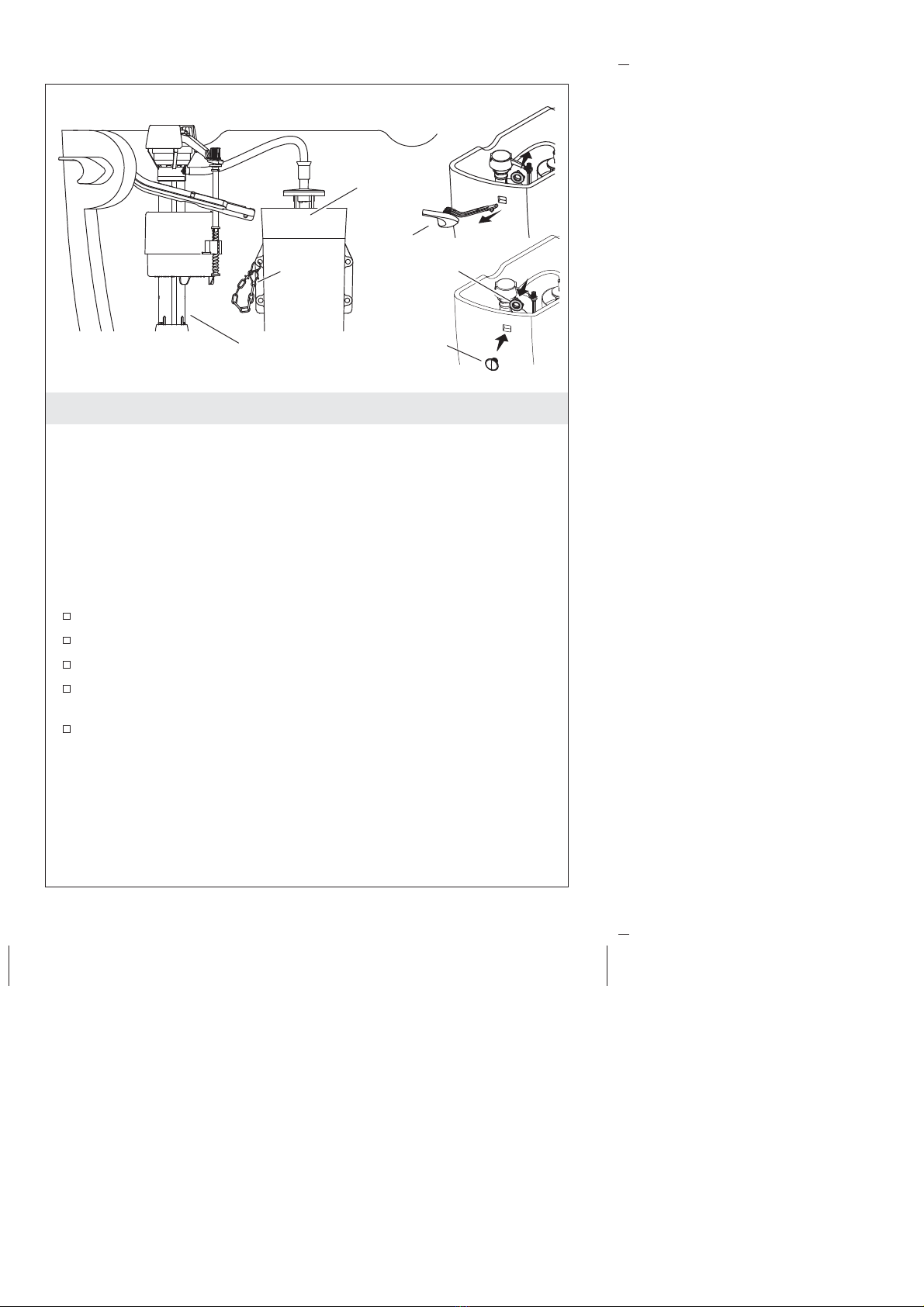

Remove the Handle Components
Turn off the water supply to the toilet.
Flush the toilet to remove most of the water from the tank.
Disconnect the chain from the handle.
If the tank has a canister (shown), reattach the chain to itself near
the canister attachment point.
Remove the handle assembly (the nut on the handle assembly
will most likely loosen clockwise).
IMPORTANT! If your model of toilet has a float attached to the
handle chain, the float must not be removed. The float is critical for
proper flushing performance.
Install the Handle Hole Cover
Chain
Hole Cover
Nut
Flush Valve
Handle
Fill Valve
1216369-2-D 4 Kohler Co.

Remove the Handle (cont.)
NOTE: The hole cover is available in other colors. Go to
KOHLER.com, call the contact numbers on the back of this
document, or contact the retail outlet where you purchased this
product for other options.
Remove the nut from the hole cover if it is attached.
Insert the hole cover in the handle opening in the toilet tank.
Secure the hole cover with the nut.
Kohler Co. 5 1216369-2-D

2. Determine the Bracket Location
If the water supply was not turned off previously, turn off the
water supply to the toilet.
If there is still water in the tank, flush the toilet to remove most
of the water from the tank.
Close the toilet seat and seat cover to avoid dropping parts in the
bowl.
Remove the tank lid and with the back of the lid toward you
position it upside down on the seat cover or a surface covered
with a towel or other soft material.

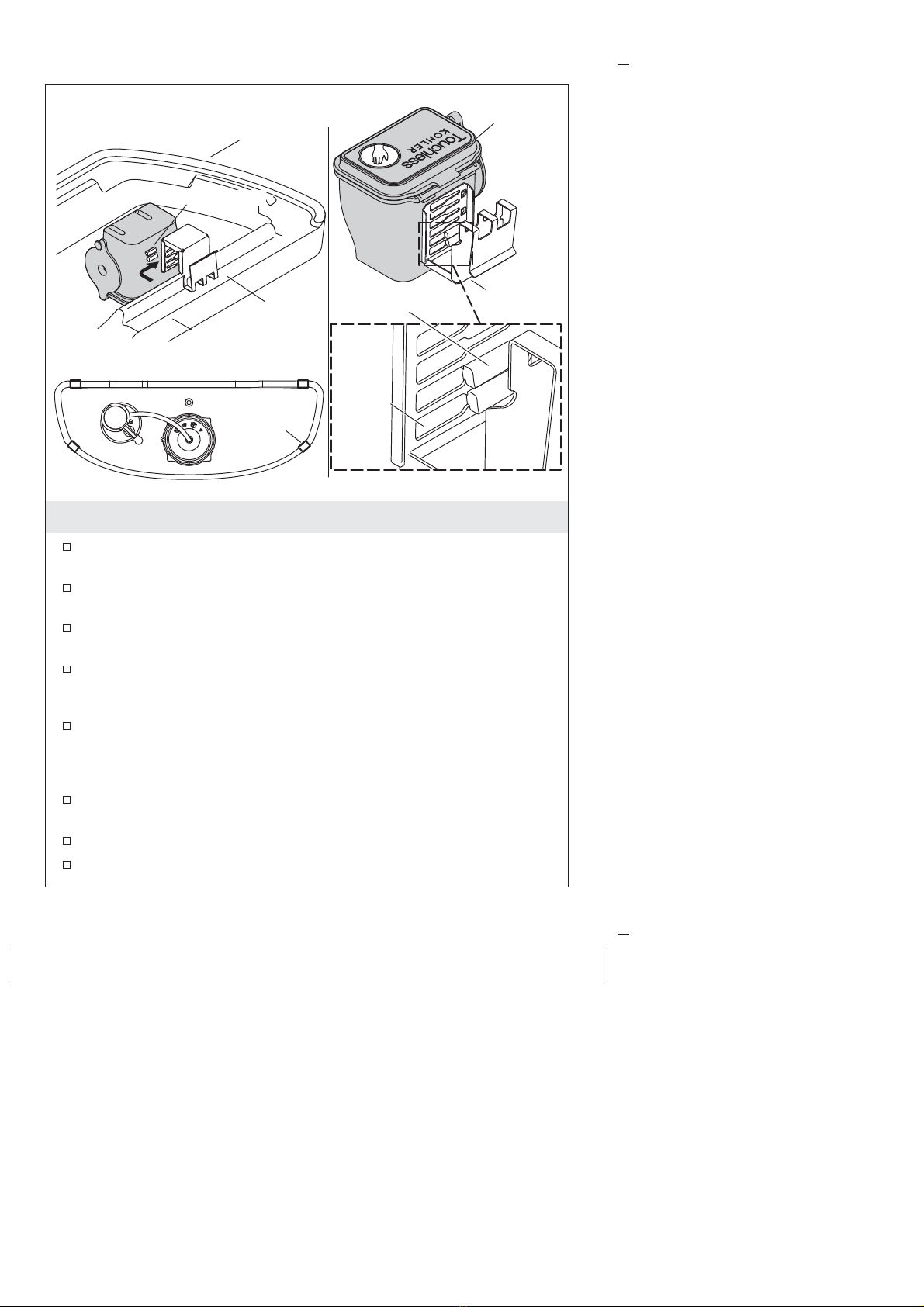

Recommended: For tank lid stability, install four pads, two on the
front and two on the back, near each corner of the tank rim
where the lid contacts the tank rim. The pads stabilize the lid,
helping to stop false flushes when the lid is bumped.
Position the module upside down on the right side of the lid,
against the inside of the lid ledge.
Position and hold the bracket on the back ledge as shown.
Note the number of the slot closest to the bottom tab.
6
4
3
2
1
5
Slot
Bottom Tab
Ledge Bracket
Back of Lid
Module
Tank Lid
Top Tab
6
4
3
5
Pad
1216369-2-D 6 Kohler Co.

Determine the Bracket Location (cont.)
Remove the module from the tank lid and turn it lid side up.
Install the bracket, inserting the top tab in the slot determined in
the previous step.
Move the tank lid to a safe location.
Kohler Co. 7 1216369-2-D

3. Position the Module
Flapper Style
NOTE: For most flapper installations, install the module above the
flapper, with the center of the flapper located directly below the
wheel. On some models of toilets, it may be necessary to relocate
the hose to avoid interference with the module.
If the bracket location is on a vent, install the supplied bridge
over the vent.
Position the module with the wheel directly above the center of
the flapper.
Confirm the hose does not interfere with the rotation of the wheel
(manually rotate the wheel). Adjust the position of the hose as
needed.
Canister Style
If the bracket location is over a vent, install the supplied bridge
over the vent to keep the module level.
Locate the module 1″(25 mm) to the side of the canister away
from the fill valve.
Flapper
Center
of Flapper
Canister StyleFlapper Style
1" (25 mm)
Hose
Hose
Overflow
Vent
Bridge
Bridge
Wheel
1216369-2-D 8 Kohler Co.

4. Adjusting the Module Location
NOTE: To achieve optimal module range and performance, the top
of the module may either lightly contact the bottom of the tank lid
or be within 1/4″(6 mm) of the bottom of the lid. The tank lid and
module can be in contact with each other when the module is
installed, as long as the tank lid sits on the tank correctly when
closed.
Position the tank lid on the tank. Check for fit. Confirm the pads
are correctly installed.
Confirm the module height allows the tank lid to rest in the
correct position.
If the module or bracket interferes with the tank lid, first confirm
the bracket is tight against the rim of the tank.
NOTE: To confirm the tank lid is within 1/4″(6 mm) of the
module, place four quarters on the module. If the tank lid touches
the quarters, the module is within 1/4″(6 mm) of the tank lid.
Confirm the top of the module is within 1/4″(6 mm) or contacts
the bottom of the tank lid.
Adjust the bracket height as needed until the correct module
position is achieved.
Move the tank lid to a safe location when the adjustments are
complete.
1/4" (6 mm) Maximum
Lid
Kohler Co. 9 1216369-2-D

5. Connect the Module - Flapper Style
IMPORTANT! For optimal flushing performance, in models where
a float is integrated in the existing handle chain, the float must not
be removed. Use the chain with the float attached. Extend the chain
using the provided chain if needed.
Connect the Module
IMPORTANT! Risk of product damage. Never position the module
with the chain angled from the wheel to a point under the module.
The chain will wrap onto the wheel axel, resulting in continuously
running water and damage to the module.
IMPORTANT! For optimal flushing performance, there must be less
than 1/4″(6 mm) of slack in the chain. The chain must run
vertically or at a slight angle away from the flapper. Flushing
performance will decrease if the chain has too much slack or is at an
extreme angle.

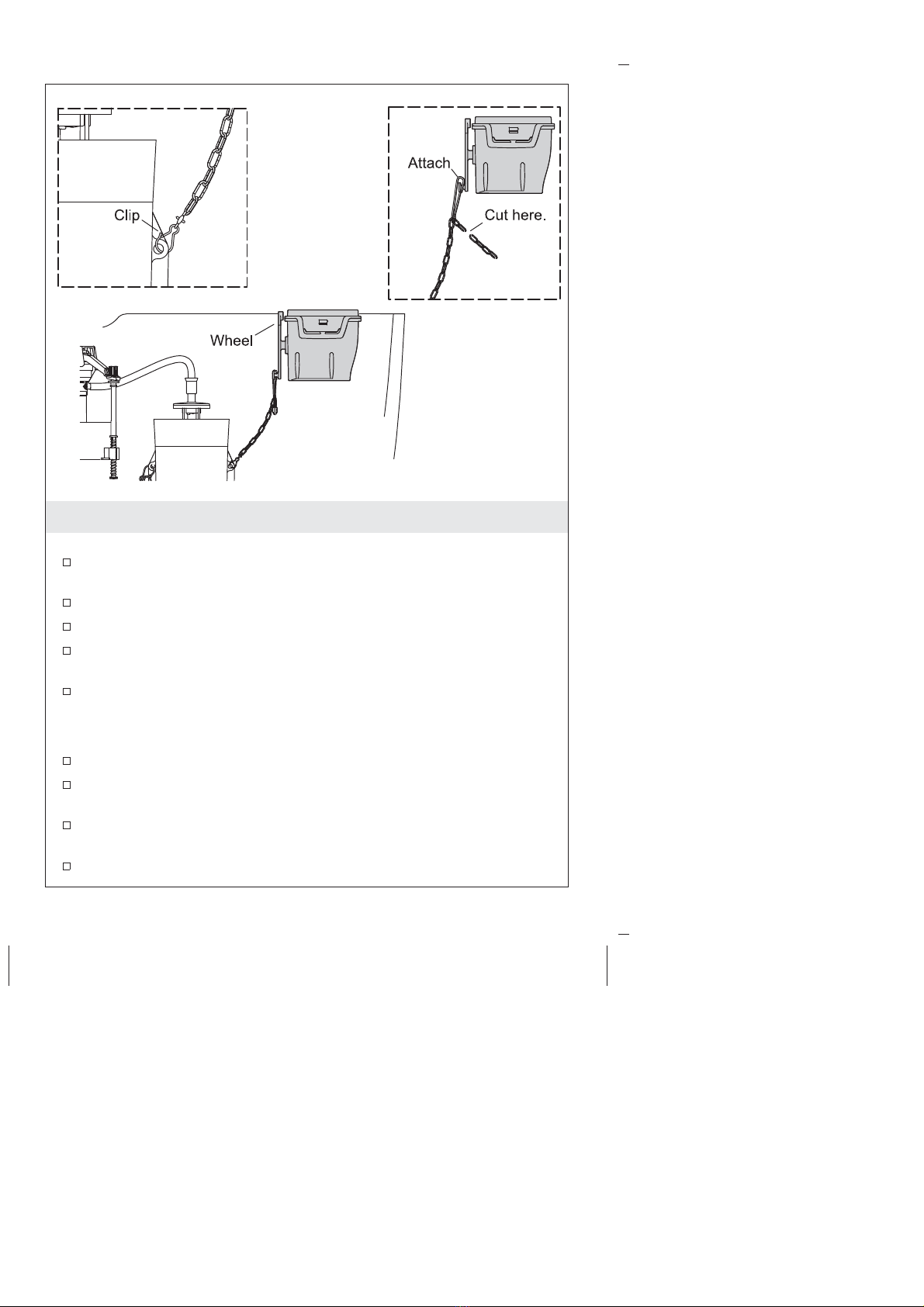

Remove the large clip from the chain supplied with the touchless
kit.
Clip
Large
Cut here.
Hose
Adjust location
as needed.
Wheel
Incorrect Correct
Float
Center
of
Flapper
1216369-2-D 10 Kohler Co.

Connect the Module - Flapper Style (cont.)
Determine if the chain attached to the flapper is long enough to
reach to the module wheel attachment point when adding the
large clip. It the existing chain is long enough, attach the large
clip to the chain and wheel.
If the original chain is not long enough, remove the clip on the
original chain.
Connect the small clip on the suppled chain to the end of the
original chain. The attachment point may vary from the model
shown.
Pull the chain tight from the flapper to the wheel. Grasp the chain
link aligned with the connection point on the wheel.
Attach the large clip to the chain link even with the wheel
connection point.
Remove the large clip from the wheel, attach it to the marked
chain link, and reattach the large clip to the wheel.
Confirm Operation
Manually turn the wheel and observe the flapper.
For installations with the handle in place, confirm the handle
chain and module chain do not interfere with each other.
Confirm the chain and wheel do not contact the hose.
Confirm the chain does not wrap on the axle. Adjust the module
position to align the chain closer to vertical if the chain wraps on
the axle.
Confirm the flapper lifts clear of the tank outlet when the chain
connection on the wheel is at the highest point.
Confirm the flapper is fully sealed when the wheel chain
attachment is at its lowest point.
Adjust the clip and add or remove slack if needed.
Remove Extra Chain
Go two chain links past the connection to the large clip and cut
the chain.
NOTE: Leaving more than two chain links hanging below the
wheel connection could result in the chain interfering with the
wheel, causing poor operation or continuously running water.
Kohler Co. 11 1216369-2-D

6. Connect the Module - Canister Style
Connect the Module

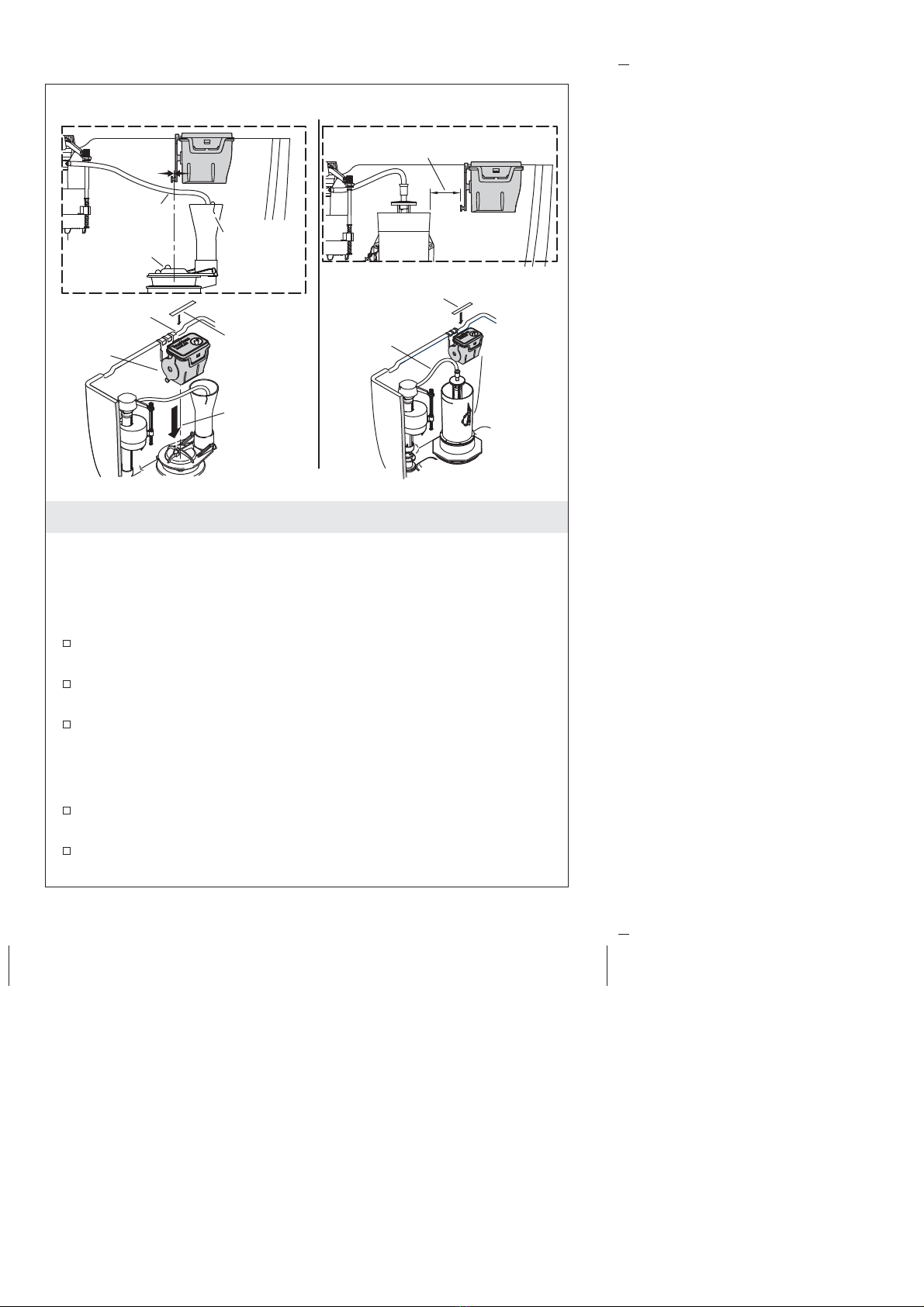

Position the canister so a connection point is aligned with the
wheel.
Attach the small clip to the canister.
Remove the large clip from the chain.
Run the chain from the canister to the attachment point on the
wheel.
Grasp the chain at the attachment point and attach the large clip
to that chain link.
Confirm Operation
Manually turn the wheel and observe the canister.
Confirm the canister lifts clear of the base when the chain
connection on the wheel is at the highest point.
Confirm the canister is fully sealed when the wheel is at its
lowest point.
Adjust the clip and add or remove slack if needed.
1216369-2-D 12 Kohler Co.

Connect the Module - Canister Style (cont.)
If the handle is still attached, confirm the handle works correctly
and the chains do not interfere with each other or prevent the
canister from sealing.
Remove Extra Chain
Go two chain links past the connection and cut the chain.
Confirm the extra chain does not interfere with the canister while
it moves.
NOTE: Leaving more than two chain links hanging below the
wheel connection could result in the chain interfering with the
wheel, causing poor operation or continuously running water.
Kohler Co. 13 1216369-2-D

7. Install the Batteries
CAUTION: Risk of property damage: Do not use lithium
ion batteries with this product. Exposing lithium ion batteries
to water can result in a fire.
NOTE: When the batteries are low, the unit will beep five times at
half second intervals when activated. Replace the batteries when this
happens.
Install the batteries in the battery holder. Orient them as shown in
the diagram on the battery holder.
Open the module lid.
Install the battery holder with the open side facing the back of
the module and press down until it stops.
Confirm the top edge of the battery holder is below the rim of the
module.
Close the module lid and press on the front ledge until the clasp
engages.
Position
as shown.
Battery Holder
Rim
Press.
1216369-2-D 14 Kohler Co.

8. Check Operation
Flush the toilet repeatedly using the module.
Observe the chain and flapper or canister.
Does the flapper/canister lift high enough to flush? If not, adjust
the chain tighter as needed.
IMPORTANT! If the canister spins when flushed, add 1-2 links of
slack to the chain.
Does the flapper/canister fully close when the flush cycle is
complete? If not, adjust the chain to add slack as needed.
Does the canister spin when being raised or lowered during the
flush cycle? If yes, add slack to the chain.
If the handle is still attached, does the chain from the handle
interfere with the flushing action when the touchless flush is
activated? If yes, you may need to disconnect the handle.
Observe the movement of the wheel.
Does the wheel come in contact with anything when rotating?
Adjust the location as needed.
For installations with the handle in place, flush the toilet using
the handle. Confirm the handle chain and module chain do not
interfere with each other.
Turn the water supply back on. Allow the tank to fill.
Confirm operation with a full flush.
Kohler Co. 15 1216369-2-D

9. Complete the Installation
IMPORTANT! Wait at least 10 seconds after the last test flush
before installing the tank lid. Hold your hand over the sensor for 1-2
seconds after installing the lid to confirm proper operation.
NOTE: If you are unable to activate the sensor immediately after
installing the tank lid, wait a minimum of 5 minutes for the sensor
to calibrate.
Position the tank lid in front of the module on the tank, in the
install position.
Install the emblem directly above the sensor indicator.
Install the tank lid.
Hold your hand approximately 1″(25 mm) above the module.
The toilet will flush.
Check for proper operation.
Consult the troubleshooting chart for operation or performance
issues.
3" (76 mm) Emblem
Sensor Indicator
1216369-2-D 16 Kohler Co.

Troubleshooting
NOTICE: Risk of property damage. If the toilet is plugged, turn off
the water supply before attempting to unplug it. The sensor can be
inadvertently activated while unplugging the toilet, resulting in an
overflow.
NOTE: For service parts information, visit your product page at
www.kohler.com/serviceparts.
Symptoms Recommended Action
1. The toilet is blocked. A. Turn off the water supply. Clear
the blockage using a plunger.
Consult the toilet troubleshooting
guide for further information.
2. Nothing happens when I
try to activate the sensor. A. Confirm the batteries are correctly installed.
B. Confirm the batteries have a
charge.
3. The module works, I hear a
beep, the wheel rotates, the
chain moves, but the toilet
does not flush.
A. Remove some of the slack from
the chain.
B. Confirm the chain is attached to
the wheel and flush valve.
4. The wheel contacts the
flush valve when flushing. A. Relocate the module further from the flush valve to allow room for
operation.
5. The toilet flushes, but the
flush is weak. A. Remove any slack in the chain.
6. The sensor is not sensitive
enough (does not activate
when hand is within 1″(25
mm)-2″(51 mm)).
A. Move the module up one notch on
the bracket if the gap is more than
1/4″(6 mm).
B. Confirm the sensor emblem is
located directly above the icon on
the module. Relocate the emblem
if it is not located correctly.
7. The toilet flushes when I
am sitting on it. A. Are you leaning back and bumping the tank lid? Moving the
tank lid may cause the toilet to
flush.
B. Are pads installed on the tank
rim? Install the provided foam
pads on the tank rim to stabilize
the tank lid.
Kohler Co. 17 1216369-2-D

Troubleshooting (cont.)
Symptoms Recommended Action
8. The toilet flushes when
opening the seat cover. A. Does the seat or lid strike the tank lid when they are opened?
Moving the tank lid may cause the
toilet to flush.
B. Are pads installed on the tank rim
or lid? Install the provided foam
pads on the tank rim or lid to
stabilize the tank lid.
Warranty
ONE-YEAR LIMITED WARRANTY
KOHLER plumbing products are warranted to be free of defects in
material and workmanship for one year from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate
adjustment where Kohler Co. inspection discloses any such defects
occurring in normal usage within one (1) year after installation. Kohler
Co. is not responsible for removal or installation costs. Use of in-tank
toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your
Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing
Kohler Co., Attn.: Customer Care Center, 444 Highland Drive, Kohler,
WI 53044, USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from
within the USA and Canada, and 001-800-456-4537 from within Mexico,
or visit www.kohler.com within the USA, www.ca.kohler.com from
within Canada, or www.mx.kohler.com in Mexico.
IMPLIED WARRANTIES INCLUDING THAT OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE EXPRESSLY LIMITED IN DURATION TO THE
DURATION OF THIS WARRANTY. KOHLER CO. AND/OR
SELLER DISCLAIM ANY LIABILITY FOR SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states/provinces do not
allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of special, incidental or consequential damages,
so these limitations and exclusions may not apply to you. This
warranty gives you specific legal rights. You may also have other
rights which vary from state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
1216369-2-D 18 Kohler Co.

Guide d’installation et d’entretien
Chasse sans contact
Composants inclus/Outils recommandés
Avant de commencer
ATTENTION: Risque de dommages matériels: Ne pas
utiliser de piles aux ions de lithium avec ce produit.
L’exposition de piles aux ions de lithium à l’eau peut
entraîner un incendie.
AVIS: Risque de dommages matériels. Si la toilette est bouchée,
couper l’arrivée d’eau avant d’essayer de la déboucher. Le capteur
peut être activé par accident pendant que l’on débouche la toilette,
ce qui entraîne un débordement.
AVIS: Risque d’endommagement du produit. L’utilisation de
nettoyants de toilette dans le réservoir endommage ce produit. Les
nettoyants dans le réservoir émettent des gaz qui endommagent les
joints et corrodent les composants intérieurs. Les endommagements
dûs aux nettoyants à l’intérieur du réservoir annulent la garantie.
IMPORTANT! Ce produit est conçu pour fonctionner comme
installation rétroactive sur les toilettes existantes, mais ne fonctionne
pas avec tous les modèles ou toutes les variations. Les étapes
5
1
2
3
4
6
Coussinets
(Pour retirer le levier
de déclenchement)
(Pour tailler la chaîne)
Outils recommandésComposants fournis
Chaîne
et attaches
Emblème
Support
Module
Couvercle
de trou
Écrou
Pont d'évent (4) Piles AA
Porte-piles
Kohler Co. Français-1 1216369-2-D

Avant de commencer (cont.)
requises pour une installation du module touchless sur certains
modèles peuvent être différentes de celles illustrées.
IMPORTANT! En cas de difficultés lors de l’installation de ce
produit sur le style de toilette en question, revoir la liste de
compatibilité et les vidéos d’installation à
KOHLER.com/TouchlessToilet.
REMARQUE: La plupart des toilettes peuvent être configurées
comme chasse sans contact seulement (recommandé) ou à la fois
comme chasse à poignée et chasse touchless. Un couvercle de trou
est fourni pour la configuration touchless seulement.
REMARQUE: Bien que ceci ne soit pas requis, la vidange de l’eau
du réservoir permet une installation plus agréable et réduit le risque
d’endommagements de pièces si elles tombent dans le réservoir. Les
instructions pour cette procédure sont fournies au moment
approprié.
REMARQUE: Lors du remplacement des piles, consulter le guide
d’installation ou aller à www.kohler.com et aller à la page de
produits pour K-1954 si de l’information supplémentaire est requise.
Avant de commencer l’installation, confirmer que ce produit est
compatible avec la toilette en question en visitant
KOHLER.com/TouchlessToilet et en allant à la page des produits
pour K-1954.
Avant de commencer l’installation, déterminer si la chasse avec
poignée et le capteur touchless seront tous les deux utilisés, ou si
la poignée sera retirée et si le trou de la poignée sera recouvert
avec le couvercle de trou fourni.
Cet appareil est conforme à la section 15 des réglementations FCC.
L’utilisation est autorisée aux deux conditions suivantes: (1) Ce
dispositif ne peut pas causer d’interférence nocive, et (2) ce dispositif
doit accepter toute interférence reçue, y compris une interférence qui
pourrait créer un fonctionnement non souhaité.
Cet appareillage numérique de classe B est conforme à la norme
canadienne NMB-003.
1216369-2-D Français-2 Kohler Co.
