Kohler K-45764X Assembly instructions

Kohler Co. 1 1204965-X2-B
BEFORE YOU BEGIN 
SAFETY: WARNINGS 
Kohler products are precision-engineered and should give
continued superior and safe performance, provided:
1.They are installed, commissioned, operated and
maimtained in accordance with the recommendation
given in this Manual.
2. Periodic attention is given, as necessary, to maintain the
product in good functional order. Reccomended guidelines
are given in the "CARE AND CLEANING" section.
When installing Kohler Products, manufacturers guidelines
for power tool safety should be followed.
 


 
 
 
 
 

Please read these instructions carefully to familiarize
yourself with the required tools, materials and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and important information.
Before installation, please refer to "Site Requirements".
All information in these instructions is based upon
the latest product information available at the time of
publication. Kohler Co. reserves the right to make
changes in product characteristics, packaging, or
availability at anytime without notice.
ALEUTIAN/FOREFRONT bathroom cabinet adopts E1
grade wood-based panal of high quality, and with further
processing, its harmful emissions will be less than
1.5mg/L.
 Pleaseensuretheelectricworkisnishedbefore
starting to install the furniture.
Turn off the water supply.
The pluming installation must comply with Water Supply
Regulations/Bye-laws, Building Regulations or any
 particular regulations and practices, specied by the
local water company or water undertakers. The installation
should be carried out by a plumber.
 Beforeinstallationcarefullyinspectthenewxturefor
any signs of damage.

  
  
 
 

 
 

 

 
 
 
 
 

  
 

INSTALLATION AND CARE GUIDE
ขอแนะนําการติดตั้งและการดูแลรักษา
ALEUTIAN/FOREFRONT VANITY CABINET
ตู้เฟอร์นิเจอร์ รุ่นอลูเชียน/ฟอร์ฟร้อนท์
K-45764X

1204965-X2-B 2 Kohler Co.
SITE REQUIREMENT 
ROUGH-IN/
NOTE: Minimum space for door opening is 200mm.
Please reserve enough space before installation.
Fig. 1/
  

Unit: mm

*Kohler reserves the right to change marked dimensions without prior notice.

892
575
517
Drawer
 
Door

Min 200 mm

Min 200 mm

Status when door opens.


Kohler Co. 3 1204965-X2-B
INSTALLATION 
A. Prepare the Site
Connect hot and cold inlets to the inlet pipes correctly.
Install the drain in accordance with the menufacturer’s
instructions.
We suggest using P-trap Drain. Connect P-trap pipe with
washbasin drain.
NOTICE: Makesureawatertightsealexistingonall
washbasin drain connections.
NOTE: Provide access to the plumbing connections for
future plumbing maintenance.
Install the hot and cold water supplies with isolating valves.
Fig. 2/
Fig. 3/




  
 


Connect P-trap pipe with washbasin drain.

B. Install the Cabinet
Install The bathroom furniture feet.
NOTE: The bathroom furniture feet (K-45765X-NA) is not
included.
Install the bathroom support legs as illustrated.
(The bathroom furniture is for reference only).






1204965-X2-B 4 Kohler Co.

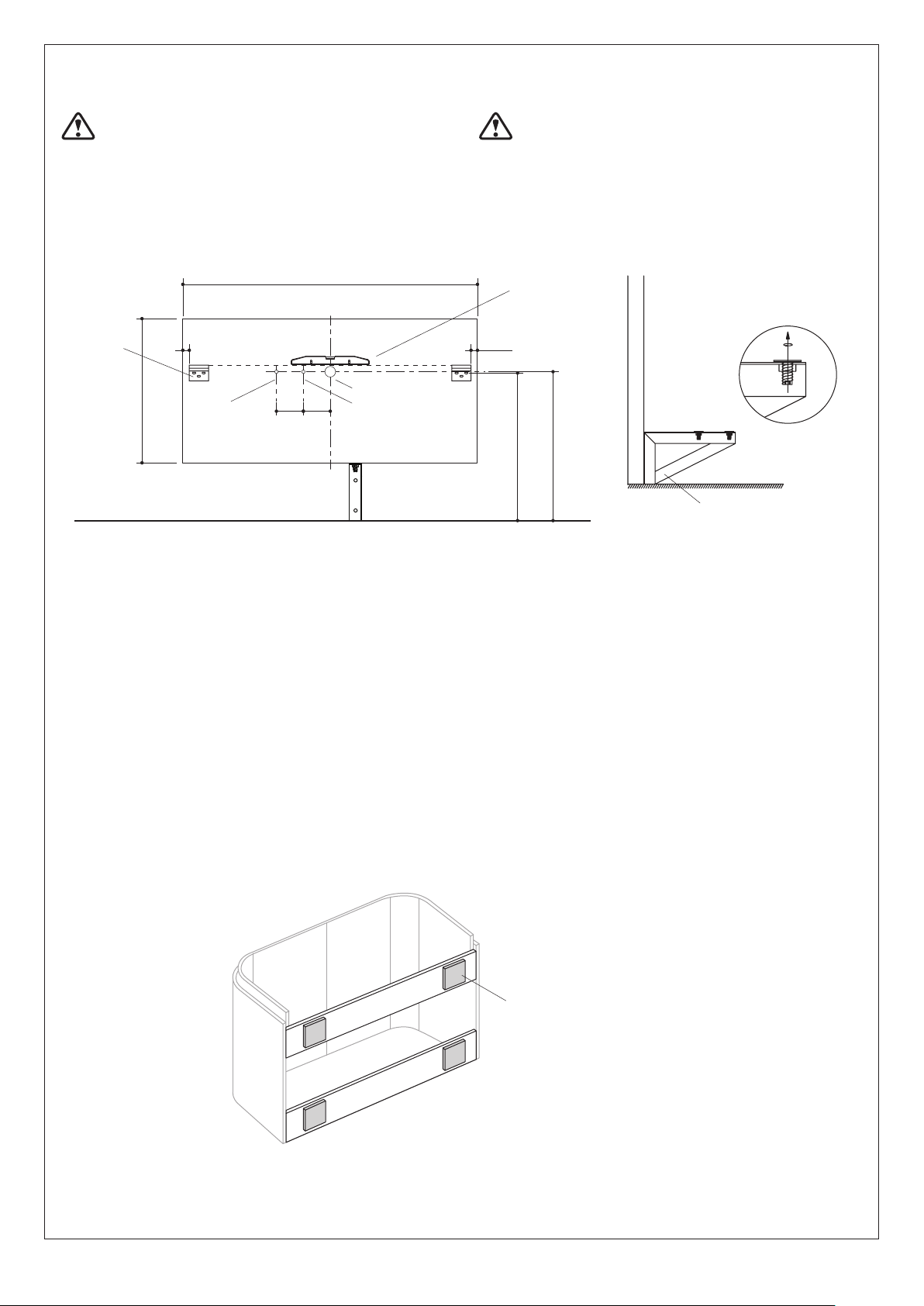

1. Mark the position of bracket according to dimensions as
illustrated .
CAUTION: Avoid the cables and pipes inner set
when drilling in the wall.
NOTE: Different types of bolts are required for different
decoration boards. Please apply suitable bolts and plugs.
1.  
 
   
   
 
Finished Floor/พื �น
Bracket
ขอแขวน
Level
ระดับนํ�า
Middle Support Foot
ขารองตู้เฟอร์นิเจอร์
Screw Adjustment
สกรูปรับระดับ
25
25
1-1/2" OD
G1/2"
Hot/นํ �าร้อน G1/2"
Cold/นํ �าเย็น
892
575
102 102
497 500
Do not remove the pieces of wood
from the back of cabinet.
หามถอนแผนไมบริเวณหลังตูเฟอรนิเจอรออก
2.Drillholeforxingthebracket.Usingalevel,ensurethat
the hanged bracket is level.
3.Usesuitableplugsandbolts,andxthehangedbracket
on the wall.
4.FixthesupportfootontowallasshowninFig.4.(Besure
 tousethemetalexpansionscrewsupplied.)
5. Hang the cabinet on the wall and position the suspension
on the hanged bracket.
NOTICE: Do not remove the pieces of wood from the
back of cabinet.
2. 
 
 
  
 
 
 
Fig. 4/
Fig. 5/

Kohler Co. 5 1204965-X2-B
  
 
 
 
 
 

3
2
1
Gap
ช่องว่าง
Finished Wall
ผนัง
6.Mark the wall through two holes at the corresponding
positions as shown in Fig. 7 .
7.Dismount the washbasin cabinet and put aside. Drill holes at
the marked position.
CAUTION: Avoid the cables and pipes inner set when
drilling in the wall.
8. Insert the plug into the wall.
9. Set the washbasin cabinet onto the brackets. Besure
the cabinet adjusted level and the back board of cabinet
appressed to the wall.
10. Tighten the screw, make sure the washbasin cabinet has
 beenxedrmlyonthewall.

 

Drill Hole Ø8 mm/
ขนาดรูเจาะ Ø8 มม.
5.1 Loosen the suspension of washbasin cabinet (1).
5.2 Adjust the suspension on the hanged bracket (2),
be sure the cabinet adjusted level.
 5.3Tightenthescrewtoxthebackboardofcabinet
appressed to the wall (3).
NOTE: Thereisgapbetweencabinetandnishedwall
after hanged the cabinet on to the wall.
 
  
  
 
 

Fig. 6/
Fig. 7/

1204965-X2-B 6 Kohler Co.
D. Install the Faucet and Drain
NOTE: Please set the water supply and drainage position
according to the suppliers instructions.
1. Install the faucet in accordance with the manufacture’s
instructions.
2. Connect the hot and cold water supplies.
NOTE: Minimum length of supply hose is 500 mm (20 inchs).
3. Install the waste pipe to the washbasin drain.







Faucet
ก๊อกนํ�า
Supply Lines
ท่อนํ�าดี
Drain Assembly
ชุดท่อนํ�าทิ�ง
Finished Floor/พื �น
Finished Wall/
ผนัง
Shut-off Valve
วาล์วเปิด-ปิดนํ�า
C. Install Vanity Lavatory
NOTE: Please refer to the installation instructions of lavatory
for its installation. To protect the cabinet from dampness,
please apply silicone sealant where the synthetic top and the
cabinet connect.




Adjust the Door
Refer to the illustration and note the screwdriver location
for the desired adjustment.




Kohler Co. 7 1204965-X2-B
CARE AND CLEANING 
1. Many cleansers contain abrasive and chemical substance
which is not suitable for cleaning stainless steel, enamel,
plating or plastic products. You may use mild cleansers or
soaps to clean the surfaces. Wipe any splashes of cleaner
solutions from the surface with clean soft cloth.
2. Maintain ventilation in the bathroom, and separate the
dry area from the damp one if conditions permit. Try to
open the door and windows of the bathroom and maintain
good ventilation.
3. Kohler bathroom cabinet are dealt with strict procedures
for damp-proof, whose good damp-proof function ensures
good performance even in bathroom of huge humidity.
Yet do not splash and pour water directly on the bathroom
cabinet. Make sure that the bathroom is not over damp
and wipe any splashes from surfaces immediately.
4. Clean and wipe cabinet regularly, and wipe the condensation
vapor with dry and soft cloth.
5. Ensure that electrical connections for appliances such as
head lamp is insulated wipe mirror surface with chamois
 regularlytoguaranteethepersistentexcellentperformance.
6. Please do not sit, lean or step on the basin cabinet.

 
 
 
  
 
  
  
 
  
  
   
 

 

 



 

