Kohler K-6284 Assembly instructions

Installation and Care Guide
In-Wall Tank and Carriage
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-6284
1142998-2-C

Tools and Materials
Before You Begin
IMPORTANT! 2x6 framing is required for this product. 2x4 framing
will not be deep enough to accommodate the carriage assembly.
IMPORTANT! In areas with freezing temperatures, install on an
interior wall. If installed on an exterior wall, provide adequate
insulation to prevent the possibility of freezing.
NOTE: This device is not intended to be used as a retrofit device
for 1.28 gpf (4.8 lpf) water closets.
NOTE: Performance may vary. This product was not tested with
toilets not listed as compatible.
Only bowl numbers K-6299 and K-6300 are compatible with the
carriage.
During installation, make sure the inlet tube connections and
gaskets remain fully engaged to ensure a watertight seal.
Carefully inspect the carriage and tank for damage.
Observe all local plumbing and building codes.
For Installations with a Bidet Seat
CAUTION: Risk of personal injury. If the optional electrical
outlet will be installed, it must be connected to a GFCI or
RCD protected circuit.
Assorted Drill Bits Silicone Plumbers
Grease 1/4" x 2" (51 mm)
Min Lag Bolts
2" Hole Bit
1/4 turn, 1/2" NPT
Supply Shut-off with 5/8"
or Shorter Handle
1/2"
Plus:
• Conventional
woodworking
tools and materials
• Cement board,
24" (610 mm) x
24" (610 mm) min
Optional:
• Assorted electrical
tools
5/8"
(16 mm)
1142998-2-C 2 Kohler Co.

Before You Begin (cont.)
If the optional electrical outlet will be installed, observe all local
electrical codes.
Kohler Co. 3 1142998-2-C

1. Install the Framing
IMPORTANT! This installation requires 2x6 studs. Note the
center-to-center stud dimension is not standard.
IMPORTANT! Note the 3-3/4″(95 mm) dimension from the front
edge of the framing to the center of the outlet pipe. This dimension
is critical for the installation.
NOTE: Refer to the specification sheet for more details and
dimensions for roughing-in.
NOTE: The waste outlet pipe may need to be relocated for this
installation.
NOTE: A plastic elbow is supplied with this product. A cast iron
elbow may be required by codes in some areas. The height of the
toilet drain pipe may need to be adjusted if the cast iron elbow is
used.
Construct the stud pocket using lag bolts.
Install the stud pocket following the dimension shown.
19"
(483 mm)
19"
(483 mm)
Waste
Outlet
Pipe
3-3/4" (95 mm)
9-1/2" (483 mm)
2x6 Studs
19"
(483 mm)
3-3/4" (95 mm)
Ø 3-9/16"
(90 mm)
1142998-2-C 4 Kohler Co.

Install the Framing (cont.)
The center of the waste outlet should be 3-3/4″(95 mm) from the
front edge of the framing.
Kohler Co. 5 1142998-2-C

2. Prepare the Carriage
Raise the Carriage
NOTE: Raise the carriage for ease of installation. It will be lowered
again in a later step.
Position the carriage face down on the floor.
Loosen the nuts securing the legs to the carriage using the
supplied hex wrench.
Raise the carriage 8″(203 mm) - 10″(254 mm) high, enough to
allow room for a wrench and lag bolts over the feet.
Tighten the nuts securing the legs to the carriage.
Install the Electrical Box - Bidet Installations
NOTE: The electrical box is required when the K-4744 bidet seat
will be paired with the bowl. Skip this step for standard
installations.
Connect the electrical box to the carriage at the location shown.
Front View Back View
Electrical
Box
Hex
Wrench
Leg
Nut
Screws
1142998-2-C 6 Kohler Co.

3. Position the Elbow
Position the carriage upright in a secure position.
Gently turn the upper screw (labeled ″Open″) counterclockwise
while applying slight downward pressure on the support strap
until the strap comes free of the locking mechanism.
Move the end of the elbow into place from the front of the
carriage. Rotate the elbow downward as it moves through the
carriage.
With the flared end of the waste pipe against the support strap,
insert the support strap upward into the locking mechanism as
far as possible.
Gently turn the lower locking screw (labeled ″Lock″) clockwise
until you hear a click to secure the waste pipe.
Unlock
Lock
Support Strap
Support Strap
Elbow
Elbow
Kohler Co. 7 1142998-2-C

4. Install the Carriage
Move the carriage into place in the stud pocket.
Temporarily secure the carriage in place so it will not fall.
Align the carriage flush with the front edge of the studs. The
front of the carriage should be flush with the front edge of the
studs or set back slightly for finished wall installation.
Check the front of the carriage for plumb.
Mark the hole location for each foot.
Drill a pilot hole (remove the carriage if needed) to reduce the
risk of the lag bolt causing the stud to split or crack.
Secure the feet of the carriage to the studs using 2″(51 mm)
(minimum) lag bolts (not supplied).
Install the threaded rods several turns into the carriage.
Leg
Lag Bolt
Threaded
Rod
Front View
1142998-2-C 8 Kohler Co.

5. Adjust the Carriage Height
IMPORTANT! If the carriage is not correctly adjusted, the bowl rim
height may not be compliant with applicable codes. The finished
wall would need to be removed to make the correct adjustments if
the bowl height is not correct.
NOTE: For the K-6299 and K-6300 bowls, the minimum rim height
is 15-5/8″(391 mm) when the finished floor is even with the bottom
of the carriage legs. The maximum rim height is 26″(660 mm) when
the legs are fully raised. The carriage can be adjusted up to 12″(305
mm), with 6″(152 mm) or less of adjustment sufficient in most
installations.
Make a mark 2-5/8″(67 mm) above the top of the threaded rod.
Measure from the top of the finished floor to the mark (A) to
determine the rim height of the bowl.
Loosen the nuts securing the legs to the carriage.
As the carriage is lowered, make sure the elbow aligns with the
toilet drain pipe.
Nut
Leg
Front View
A
Finished
Floor
Mark the
carriage.
2-5/8"
(67 mm)
2-5/8"
(67 mm)
Kohler Co. 9 1142998-2-C

Adjust the Carriage Height (cont.)
If applicable, confirm the gasket on the elbow stays correctly
positioned as it enters the toilet drain pipe.
Adjust the carriage until the desired height is reached. Securely
tighten the nuts using the provided hex wrench to secure the legs
in place.
If a cast iron elbow is required, make the connections following all
applicable codes.
1142998-2-C 10 Kohler Co.

6. Secure the Top of the Carriage
Drill pilot holes at the lag bolt locations.
Install two 6″(152 mm) long support 2x4’s, located at the top of
the carriage, aligned with the mounting holes, 1-5/8″(41 mm) in
from the front edge of the studs.
Secure the carriage to the support studs using 2″(51 mm) long
(minimum) lag bolts (not supplied), one on each side.
At the location of the inlet, drill a 2″(51 mm) hole.
Connect the Power - Bidet Seat Installations
WARNING: Risk of personal injury. Disconnect the power
before connecting the wires.
CAUTION: Risk of personal injury. The electrical outlet
must be connected to a GFCI or RCD protected circuit or an
accessible Ground-Fault Circuit-Interrupter (GFCI) or
Residual-Current Device (RCD) must be installed.
NOTE: This step is only needed if the electrical box was installed in
the ″Prepare the Carriage″section.
Connect the power following all applicable codes.
Ø 2"
(51 mm)
6" (152 mm)
Inlet
1-5/8"
(41 mm)
Lag Bolt
Screws
2x4
Kohler Co. 11 1142998-2-C

7. Install the Water Supply
All Installations
IMPORTANT! Optional bidet water supply is shown. Do not install
a second water supply unless a bidet seat will be installed.
Install the water supply pipes, following all local codes.
Connect the waste pipe following all applicable local codes.
Installations With a Bidet Seat
Optional: Install the bidet water supply and a quarter turn, 1/2″
NPT supply shut-off.
IMPORTANT! The bidet supply shut-off must extend 3″(76 mm)
minimum to 4″(102 mm) maximum from the finished wall to allow
access to the handle. The supply shut-off handle should be no
higher than 5/8″(16 mm) from the center of the water supply.
3-1/2" (89 mm)
Maximum Clearance
from the Front of
the Finished Wall
5/8"
(16 mm)
Bidet Water Supply (Optional)
1142998-2-C 12 Kohler Co.

8. Install the Plaster Guards
Insert a plaster guard into the inlet hole in the carriage.
Install a plaster guard into the outlet hole in the carriage.
Install the flush shield in the flush valve opening using the four
supplied screws.
If it is not already installed, install the flat panel in the flush valve
opening.
Plaster Guard
Outlet Hole
Inlet Hole
Flush Shield
Screws
Kohler Co. 13 1142998-2-C

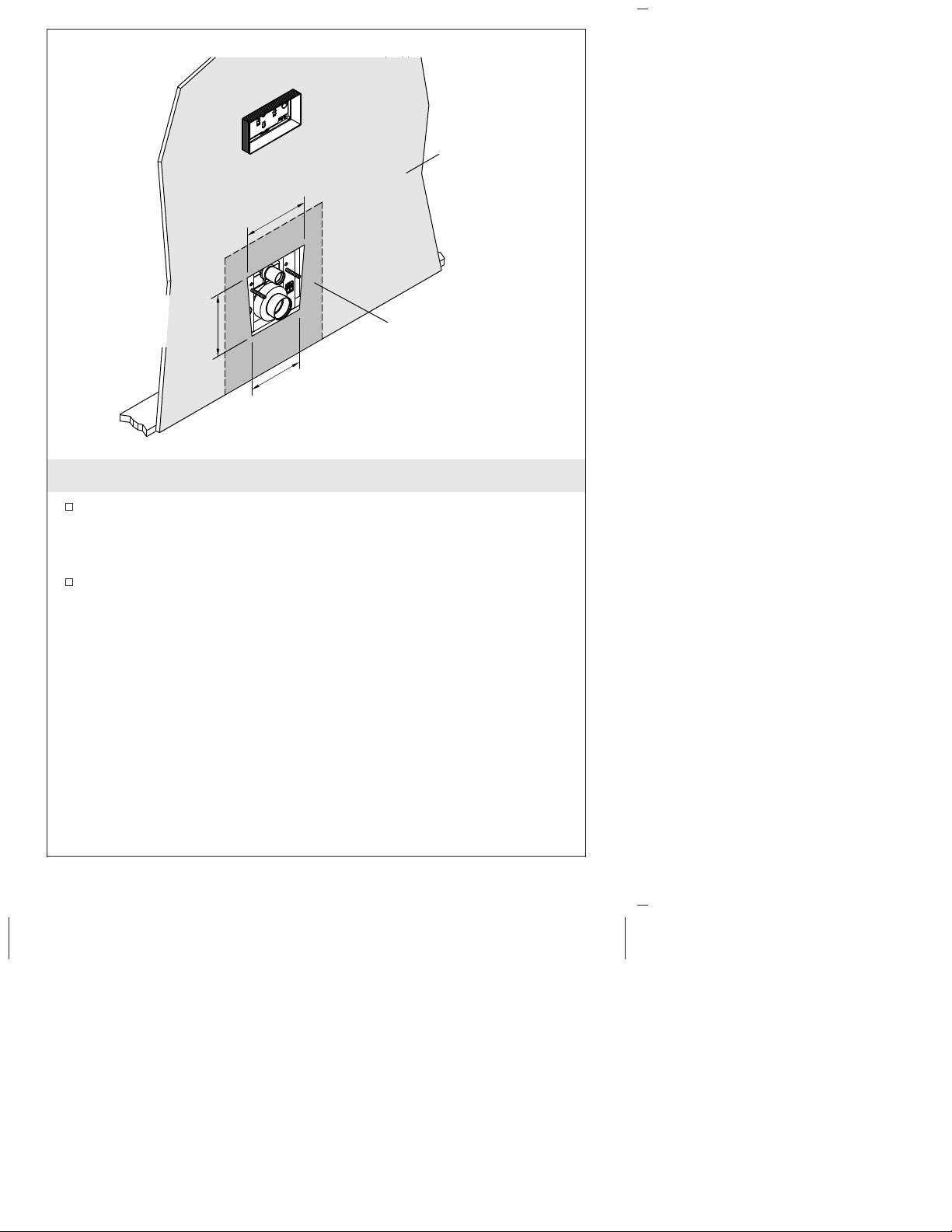

9. Install the Finished Wall
Install a minimum 24″(610 mm) by 24″(610 mm) piece of cement
board with a 10-1/2″(267 mm) by 10″(254 mm) hole, installed
directly behind the bowl and centered over the waste outlet
opening.
Install the finished wall.
10"
(254 mm)
8" (203 mm)
10-1/2"
(267 mm)
Finished Wall
Cement Board,
24" (610 mm) x
24" (610 mm) Min
1142998-2-C 14 Kohler Co.

10. Trim the Flush Shield
Use a utility knife to carefully trim the flush shield even with the
finished wall.
Care and Cleaning
WARNING: Risk of property or product damage. Do not
use in-tank cleaners in your toilet. Products containing
chlorine (calcium hypochlorite) can seriously damage fittings
in the tank. This damage can cause leakage and property
damage.
Kohler Co. shall not be responsible or liable for any tank fitting
damage caused by the use of cleaners containing chlorine (calcium
hypochlorite).
For best results, keep the following in mind when caring for your
KOHLER product:
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
Flush Shield
Finished Wall
Utility Knife
Kohler Co. 15 1142998-2-C

Care and Cleaning (cont.)
•Wipe surfaces clean and rinse completely with water immediately
after applying cleaner. Rinse and dry any overspray that lands on
nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
•For Artist Edition Toilets: Treat your decorative product just as
you would treat your fine china. DO NOT use bristle brushes or
abrasive-backed sponges. They will scratch decorative surfaces.
Use only warm water to clean. Dry with a cotton cloth or soft
sponge.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.
Troubleshooting
Symptoms Cause Recommended Action
1. Poor flush. A. Water level is
too low. A. The water line should be about 8″(203 mm)
above the bottom of
the tank. Raise the
water level in the tank
to the marked
waterline by turning
the white knob
clockwise until the
water level reaches the
waterline marked in
the tank.
B. Improper waste
line venting. B. Install venting to code.
2. Running fill
valve. A. Water level is too high. A. Lower the water level in the tank by turning
the knob at the top of
the threaded rod
counterclockwise until
the fill valve shuts off
when the water level
reaches the marked
waterline in the tank.
1142998-2-C 16 Kohler Co.

Troubleshooting (cont.)
Symptoms Cause Recommended Action
B. Flush valve
gasket or flush
valve are
damaged.
B. Replace gasket or
flush valve as
necessary.
C. Flush valve is
sticking open. C. Check flush valve and actuating mechanisms
for free movement.
Push button actuators
should raise levers
then spring back
without force. Replace
components as
necessary.
3. Leaks from
behind the bowl. A. Gaskets not positioned
correctly.
A. Remove the bowl and
inspect all the gaskets.
Reposition the gaskets
if needed. Lubricate
the gaskets so they
slide in or over the
mating part they seal.
Reinstall the bowl,
making sure the
gaskets stay in the
correct positions.
4. Carriage and
bowl flex when
used.
A. Insufficient
support for
frame.
A. Add additional
support members, and
mount the frame with
1/4″or larger lag
screws.
5. No water flow. A. Supply stop
located in tank
is closed.
A. Open the supply stop
(located on the left
side).
B. There is an
obstruction in
the water line.
B. Close the external
supply stop,
disconnect the braided
hose where it attaches
to the fill valve. Turn
on the water supply
and check the flow
through the hose.
Continue to
investigate water path
for obstructions. Clear
any blockages.
Kohler Co. 17 1142998-2-C

Warranty
ONE-YEAR LIMITED WARRANTY
KOHLER plumbing products are warranted to be free of defects in
material and workmanship for one year from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate
adjustment where Kohler Co. inspection discloses any such defects
occurring in normal usage within one (1) year after installation. Kohler
Co. is not responsible for removal or installation costs. Use of in-tank
toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your
Dealer, Plumbing Contractor, Home Center or E-tailer, or by writing
Kohler Co., Attn.: Customer Care Center, 444 Highland Drive, Kohler,
WI 53044, USA, or by calling 1-800-4-KOHLER (1-800-456-4537) from
within the USA and Canada, and 001-800-456-4537 from within Mexico,
or visit www.kohler.com within the USA, www.ca.kohler.com from
within Canada, or www.mx.kohler.com in Mexico.
IMPLIED WARRANTIES INCLUDING THAT OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE ARE EXPRESSLY LIMITED IN DURATION TO THE
DURATION OF THIS WARRANTY. KOHLER CO. AND/OR
SELLER DISCLAIM ANY LIABILITY FOR SPECIAL, INCIDENTAL
OR CONSEQUENTIAL DAMAGES. Some states/provinces do not
allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of special, incidental or consequential damages,
so these limitations and exclusions may not apply to you. This
warranty gives you specific legal rights. You may also have other
rights which vary from state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
1142998-2-C 18 Kohler Co.

Guide d’installation et d’entretien
Bâti-support et réservoir encastrés
Outils et matériaux
Avant de commencer
IMPORTANT! Une ossature de 2x6 est requise pour ce produit.
Une ossature de 2x4 n’est pas assez profonde pour accueillir le
bâti-support.
IMPORTANT! Dans les régions sujettes au gel, effectuer
l’installation sur une cloison intérieure. Pour les installations sur un
mur extérieur, prévoir une isolation suffisante pour écarter tout
risque de gel.
REMARQUE: Cet appareil n’est pas destiné à être utilisé en tant
que remplacement de toilettes de 1,28 gal/chasse (4,8 gal/chasse).
REMARQUE: Les résultats peuvent varier. Ce produit n’a pas été
testé avec des toilettes ne figurant pas sur la liste des modèles
compatibles.
Seules les cuvettes K-6299 et K-6300 sont compatibles avec le
bâti-support.
Assortiment
de mèches
Graisse de
plombier
à la silicone
Tire-fonds de
1/4" x 2" (51 mm) min.
Scie cloche
de 2"
Robinet d'arrêt 1/4 de tour
de 1/2" NPT avec poignée
de 5/8" ou moins
1/2"
Plus:
• Outils et matériaux
de menuiserie
• Panneau de
fibrociment
24" (610 mm) x
24" (610 mm) min
Facultatif:
• Outils d'électricien
assortis
5/8"
(16 mm)
Kohler Co. Français-1 1142998-2-C

Avant de commencer (cont.)
Durant l’installation, s’assurer que les raccordements et les joints
du tube d’arrivée restent complètement engagés afin préserver
leur étanchéité.
Contrôler soigneusement l’état du bâti-support et du réservoir.
Respecter tous les codes de plomberie et de bâtiment locaux.
Pour les installations avec un siège-bidet
ATTENTION: Risque de blessures. Si la prise électrique en
option doit être installée, elle doit être raccordée à un circuit
protégé par un disjoncteur de type GFCI ou RCD.
Si la prise électrique en option doit être installée, respecter tous
les codes électriques locaux.
1142998-2-C Français-2 Kohler Co.
