Kohler K-7341 Assembly instructions

Homeowners Guide
Two-Handle Kitchen Sink Faucets
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-7341 K-7342
1069123-5-A

Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler product will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the care and cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
Your New Kohler Kitchen Faucet
Your new Kohler kitchen faucet blends classic styling with the ease of
operation for a unique expression in your kitchen. All metal
construction and one-piece ceramic valving provide trouble-free
operation even under the hardest water conditions.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
•Use a mild detergent such as liquid dishwashing soap and warm
water for cleaning. Do not use abrasive cleaners that may scratch
or dull the surface.
•Carefully read the cleaner product label to ensure the cleaner is
safe for use on the material.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Do not allow cleaners to sit or soak on the surface.
•Wipe surfaces clean and rinse completely with water immediately
after cleaner application. Rinse and dry any overspray that lands
on nearby surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
1069123-5-A 2 Kohler Co.

Care and Cleaning (cont.)
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537 and press 1 for Kohler Products and then 3 for
Literature.
Kohler Co. 3 1069123-5-A

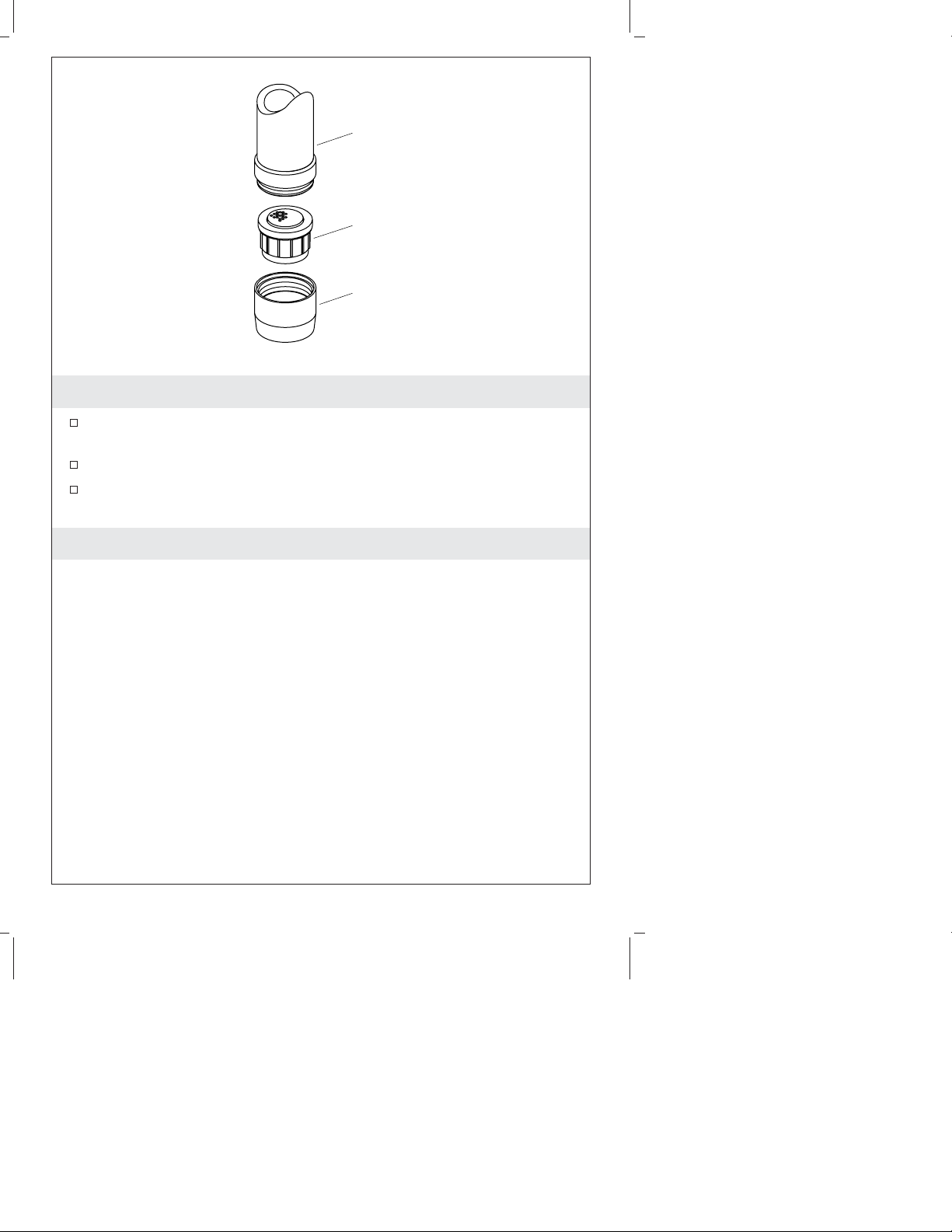

1. Adjust the Water Temperature
Remove the aerator from inside the spout by turning the housing
counterclockwise.
Clean the aerator to dislodge debris and mineral build-up.
Reinstall the aerator into the spout, then turn the housing
clockwise to secure the aerator to the spout.
Lifetime Limited Warranty — USA and Canada
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
Spout
Aerator
Housing
1069123-5-A 4 Kohler Co.

Lifetime Limited Warranty — USA and Canada (cont.)
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
This is our exclusive written warranty.
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
One-Year Warranty — Mexico
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
Kohler Co. 5 1069123-5-A

One-Year Warranty — Mexico (cont.)
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A.B. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
1069123-5-A 6 Kohler Co.

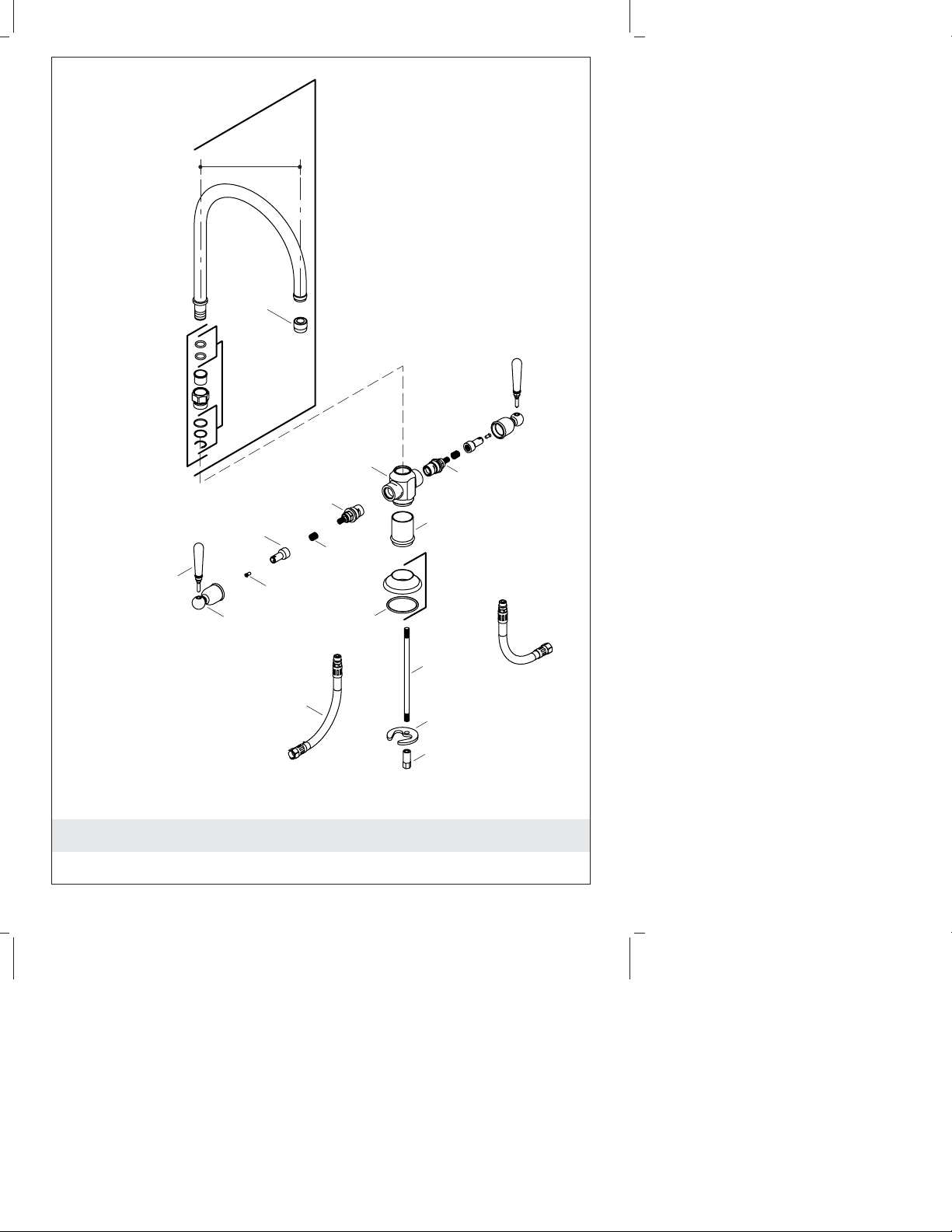

Service Parts
1069094**
Aerator
1069096
Seals
1069090**
Handle
1069089**
Bonnet
1069091
Screw
1069066
O-Ring
1069122
Stud
1069120
Bracket
1069068
Hose
1069121
Nut
78125
1069117**
Center Pillar
1069118**
Escutcheon
77006**
Valve
77005**
Valve
1069116**
Body
1069092
1069126**
Spout
1069093**
[X = 7" (17.8 cm)]
[X = 10" (25.4 cm)]
1069095**
Spout Pivot
**Finish/color code must be specified when ordering.
Stem Adapter
Spline
Adapter
X
Kohler Co. 7 1069123-5-A

Guide du propriétaire
Robinets d’évier de cuisine à deux poignées
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la ligne the Bold Look of Kohler. Le travail soigné
des artisans de Kohler vous fera apprécier une rare combinaison de
performances prouvées et une sophistication gracieuse, qui vous
satisferont pour les années à venir. La fiabilité et la beauté de votre
produit Kohler surpasseront vos plus grandes espérances. Chez Kohler,
nous sommes fiers du rendement de nos produits et nous savons que
vous le serez aussi.
Veuillez prendre s’il vous plaît quelques minutes pour consulter ce
guide du propriétaire. Prêter une attention toute particulière aux
instructions d’entretien et de nettoyage.
Toute l’information dans ce manuel est basée sur la dernière disponible
au moment de la publication. Chez Kohler, nous veillons constamment
à améliorer la qualité de nos produits. Nous nous réservons le droit
d’apporter des modifications aux caractéristiques, emballages et
disponibilités des produits à tout moment, et ce sans préavis.
Votre nouveau robinet de cuisine Kohler
Votre nouveau robinet de cuisine Kohler combine un stylisme classique
et une facilité d’utilisation pour une expression unique dans votre
cuisine. Toute construction métallique et valve en céramique d’une
pièce fonctionnent sans problèmes, même dans des régions où les
conditions d’eau sont les plus rudes.
Entretien et nettoyage
Pour de meilleurs résultats, prendre ce qui suit en considération lors de
l’entretien de votre produit KOHLER:
•Utiliser un détergent doux tel que liquide pour vaisselle et de
l’eau chaude pour nettoyer. Ne pas utiliser de nettoyants abrasifs
car ils pourraient rayer ou abîmer la surface.
•Lire attentivement l’étiquette du produit de nettoyage pour
vérifier qu’il soit adéquat à utiliser sur le matériau.
•Toujours tester la solution de nettoyage sur une surface la moins
évidente avant de l’appliquer sur la totalité de la surface.
Kohler Co. Français-1 1069123-5-A

Entretien et nettoyage (cont.)
•Ne pas permettre aux nettoyants de reposer sur la surface.
•Essuyer les surfaces et rincer complètement avec de l’eau
immédiatement après l’application du nettoyant. Rincer et sécher
tout éclaboussement sur les surfaces avoisinantes.
•Utiliser une éponge ou un chiffon doux et humide. Ne jamais
utiliser de matériau abrasif tel que brosse ou éponges à récurer
pour nettoyer les surfaces.
Pour l’information détaillée de nettoyage et des produits à considérer,
visiter www.kohler.com/clean. Pour commander des informations
d’entretien et de nettoyage, composer le 1-800-456-4537 puis presser 1
pour les produits Kohler et 3 pour littérature.
Kohler Co. Français-2 1069123-5-A

1. Ajuster la température de l’eau
Retirer l’aérateur de l’intérieur du bec en pivotant le logement
vers la gauche.
Nettoyer l’aérateur pour déloger les débris et les dépôts
minéraux.
Réinstaller l’aérateur dans le bec, puis pivoter le logement vers la
droite pour sécuriser l’aérateur au bec.
Garantie limitée à vie - É.U. et Canada
Kohler Co. garantit que ses robinets fabriqués après le 1 Janvier 1997
ne goutteront pas, et seront sans fuites pendant leur utilisation normale
à domicile, aussi longtemps que l’acquéreur initial en soit le
propriétaire. *Si le robinet gouttait ou présentait des fuites en cours
d’utilisation normale, Kohler vous enverra par courrier, sans frais, la
cartouche nécessaire pour réparer le robinet.
Kohler garantit aussi que toutes les autres caractéristiques du robinet, à
l’exception de la finition dorée, sont exemptes de défauts de matériau
et de fabrication durant l’utilisation résidentielle normale, aussi
longtemps que l’acquéreur initial soit propriétaire de son domicile. Si
un défaut est décelé en cours d’usage normal domestique, Kohler Co.
décidera à sa discrétion, de réparer, de remplacer ou d’effectuer les
réglages appropriés. Cette garantie n’offre pas de protection contre les
dommages causés par accident, mauvais usage ou mauvais traitement.
Une preuve d’achat (ticket de caisse original) doit être présentée à
Kohler avec tous les recours en garantie. Kohler Co. n’est pas
Bec
Aérateur
Logement
1069123-5-A Français-3 Kohler Co.
