Kohler STRAYT 45370T-B4 User manual

1338593-2A-B 1
INSTALLATION INSTRUCTIONS
45370T-B4/B4DPR/B4DPW Wall-Mount Bath & Shower Faucet
45371T-B4/B4DPR/B4DPW Wall-Mount Shower Faucet
HANDLE OPERATION
ROUGH-IN DIMENSIONS
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Flush the water supply pipes thoroughly to remove debris.
2. The minimum inlet water pressure for the diverter is 0.05MPa(0.5bar).
3. The highest working pressure for handshower & showerhead is 0.5MPa(5bar). If it exceeds 0.5MPa(5bar),
a pressure reducer is needed. The highest water and environment temperature is 60ºC. Please keep handshower,
showerhead and shower arm away from heater, or it may become damaged and cause injury to the user.
STANDARD APPLICABLE
Special model meets or exceeds the following at date of manufacture: TIS
1338593-2A-B 4
SERVICE PARTS
**Color code must be specified when ordering.
NOTE: For all Asia pacific regions (excluding China) add SP (SPxxxxxxx**) in front of the part number when ordering.
For 45370T, lift the handle gently, turn clockwise for hot water, counter-clockwise for cold water, bath spout works;
turn bath spout clockwise or counter-clockwise, shower works.
For 45371T, lift the handle gently, turn clockwise for hot water, counter-clockwise for cold water.
STRAYTSTRAYT
45370T-B4/B4DPR/B4DPW Wall-Mount Bath & Shower Faucet
45371T-B4/B4DPR/B4DPW Wall-Mount Shower Faucet
1297484**
1030624
77420
1240266
3010697**
3010698
871363
864985
1218659
1161905**
1170944**
1120988
1177385**
1119427
1177515
1177513**
1248781**
864922**
870721 834460
880085
880084
1167323**
3010213
833438
1106842**
833730
B4:1160487**
B4DPR:1188273**
B4DPW:1192953**
1285735
42084
1024329
91640
32725
3005148
3006148
1167323**
834792
833438
1106842**
B4:1160487**
B4DPR:1188273**
B4DPW:1192953**
834793
880086
1276812
1285734**
BEFORE YOU BEGIN
45370T 45371T
60X60
G1/2˝
82~92
G1/2˝
239~249
179
85
Handshower
Hose
G1/2˝
G1/2˝
1500
Bracket
Finished Wall
56
36
56
36
36
81
35°
35°
210
150±15
60X60
G1/2˝
77~87
G1/2˝
147~157
150±15
210
G1/2˝
250
28 28
240
1338593-2A-B 2
1338593-2A-B 3

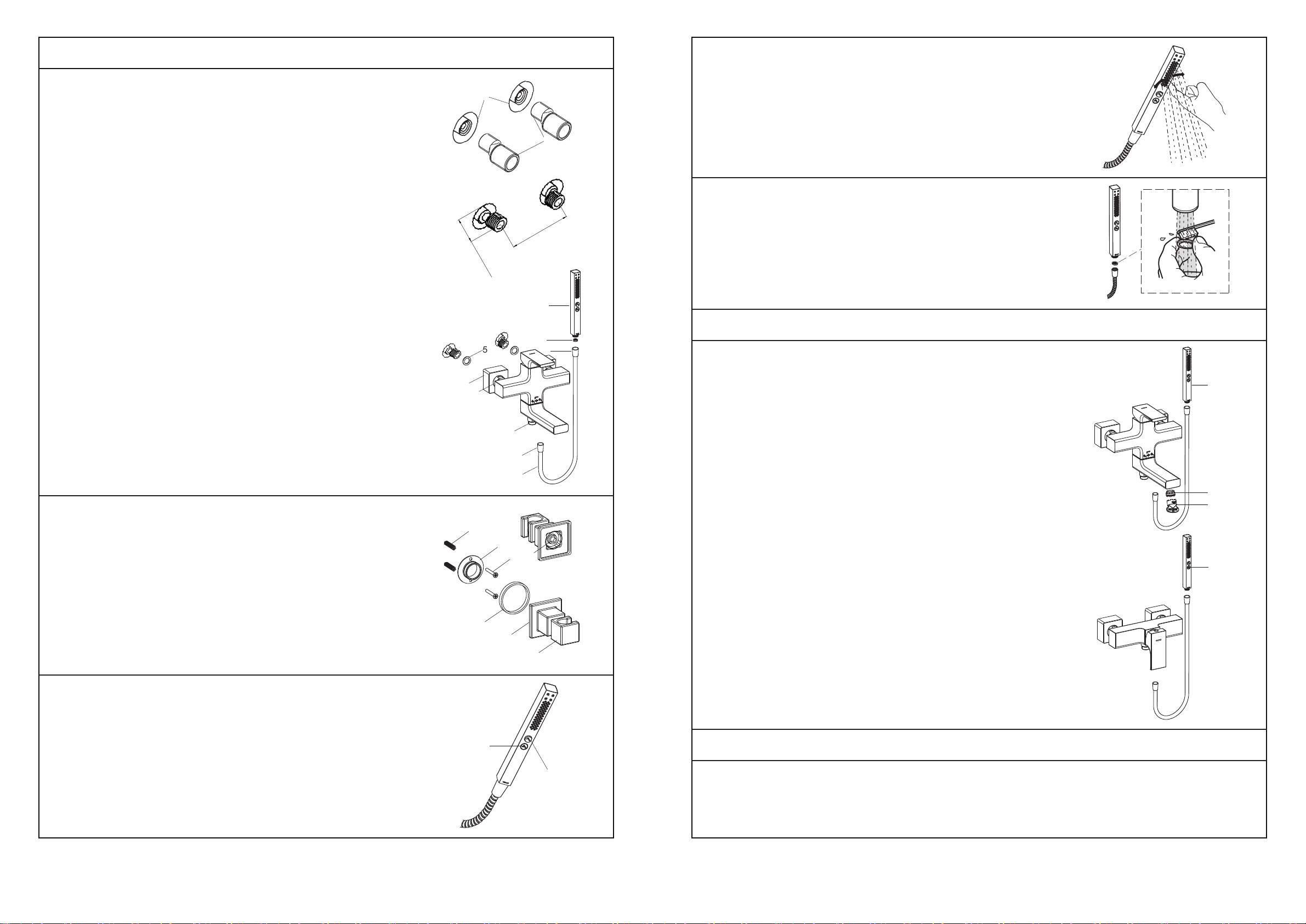

INSTALLATION
CLEANING INSTRUCTIONS
INSTALLATION CHECKOUT
All Finishes: Clean the finish with mild soap and warm water. Wipe entire surface completely dry with clean soft
cloth. Many cleaners may contain chemicals, such as ammonia, chlorine, toilet cleaner etc. which could adversely
affect the finish and are not recommended for cleaning.
Do not use abrasive cleaners or solvents on Kohler faucets and fittings.
How to Operate the Handshower
Press the buttons of the handshower to change the water flow.
How to Maintain the Handshower
Any debris or mineral build-up may cause the flow stream to become
distorted or reduce the flow rate. To remove the debris or mineral build-up,
run water through the handshower, firmly press or rub your finger back
and forth across the rubber nozzles.
Remove and clean the screen washer.
How to Install the Faucet
To perform installation, installer must provide G1/2˝ female supply fittings(1),
spaced 150mm apart and horizontally. The supply fittings should be vertical
and not beyond the finished wall. Hot supply pipe must be located on the left.
Install the two offset connectors(2) into the hot and cold supply pipes. Use
appropriate thread sealants or thread tape on pipe threads.
Adjust the center-to-center distance between the connectors to 150mm and
horizontally. They should extend 36 to 47mm beyond the finished wall.
Slide the escutcheons(3) onto the nuts(4). Put the washers(5) into the nuts,
thread the nuts to connectors. Tighten the nuts with strap wrench or soft
cloth between product and regular wrench. Push the escutcheon against the
finished wall.
Remove the guards on the connectors of the hose(6). Tighten one
connector(7) of the hose to the connector(8). Install the restrictor(11) into the
handshower(10) inlet if needed. Tighten the other connector(9) of the hose
to the handshower(10).
How to Install the Bracket
Determine a suitable location on the finished wall to install the bracket.
Mark bracket support(12) mounting hole locations on the wall according to
the dimension. Drill two holes on the finished wall, the holes should match
the anchors(13). Install the anchors. Tighten screws(14) to secure bracket
support. Before installing the bracket(15), check if the ring(16) of the bracket
loosen. If yes, tighten the nut(17) on the bottom of the bracket with 9.5mm
hex wrench(not provided). Install the washer(18) onto the bottom of the
bracket, and then tighten the bracket onto the bracket support until they
contact the finished wall.
2
1
Hot
Cold
150mm
36~47mm
Hot
Cold
Katalyst Air
Intense Massage
12
15
13
14
16
17
18
3
4
5
6
7
8
9
10
11
20
10
19
10
Ensure that all connections are tight. Ensure that the handle is in the off
position.
Turn on the drain and main water supply, and check for leaks. Repair as
needed.
For 45370T
Bath & Shower Faucet
Remove the handshower(10). Remove the aerator(20) with the key(19).
Turn on the faucet. Run the water through the spout for about one minute
to remove any debris. Check for leaks. Remove any debris from the
aerator. Shut off the faucet. Reinstall the handshower and aerator.
For 45371T
Shower Faucet
Remove the handshower(10). Turn on the faucet. Run the water through
the spout for about one minute to remove any debris. Check for leaks.
Shut off the faucet. Reinstall the handshower.
