Kohler Lyntier K-T10333 Assembly instructions

Homeowners Guide
Single-Control Bath and Shower Trim
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de
Mcorresponden a México (Ej.
K-12345M)
Français, page ″Français-1″
Español, página ″Español-1″
K-T10333 K-T10334
K-T10335 K-10336
K-10337
1048324-5-B

Thank You For Choosing Kohler Company
Thank you for choosing the Bold Look of Kohler. Kohler craftsmanship
offers you a rare combination of proven performance and graceful
sophistication that will satisfy you for years to come. The
dependability and beauty of your Kohler product will surpass your
highest expectations. We’re very proud of our products here at Kohler
and we know you will be too.
Please take a few minutes to study this Homeowners Guide. Pay
special attention to the care and cleaning instructions.
All information in this manual is based upon the latest product
information available at the time of publication. At Kohler, we
constantly strive to improve the quality of our products. We reserve
the right to make changes in product characteristics, packaging or
availability at any time without notice.
Your Kohler Bath and Shower Trim
Your new bath and shower trim blends elegant styling and beauty
with exceptional performance and reliability. Each trim kit is precision
engineered and constructed of premium quality materials to provide
trouble-free operation even under the hardest water conditions.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
•Use a mild detergent such as liquid dishwashing soap and warm
water for cleaning. Do not use abrasive cleaners that may scratch
or dull the surface.
•Carefully read the cleaner product label to ensure the cleaner is
safe for use on the material.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Do not allow cleaners to sit or soak on the surface.
•Wipe surfaces clean and rinse completely with water immediately
after cleaner application. Rinse and dry any overspray that lands
on nearby surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
For detailed cleaning information and products to consider, visit
www.kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537 and press 1 for Kohler Products and then 3 for
Literature.
1048324-5-B 2 Kohler Co.

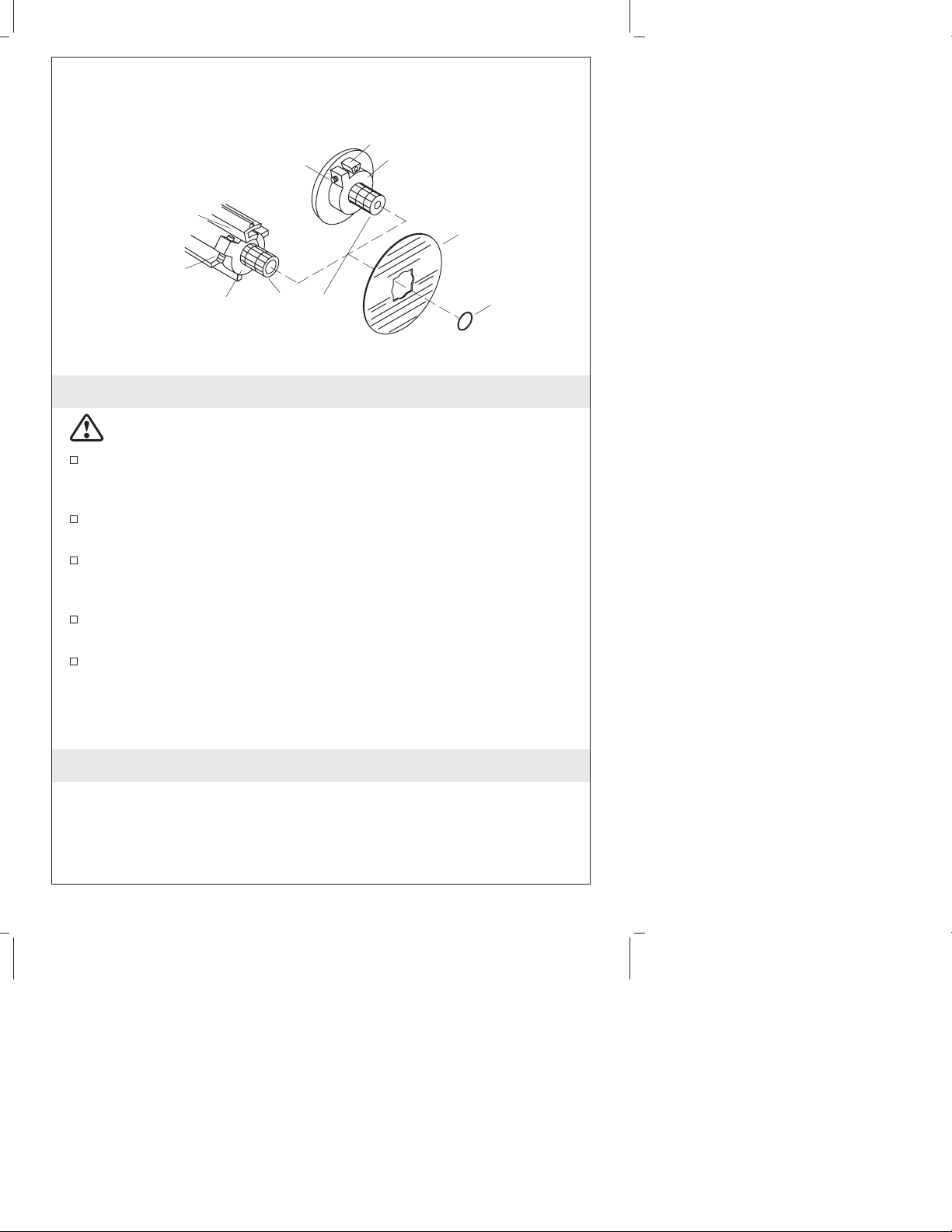

Adjustments
CAUTION: Risk of personal injury. The water temperature
should never be set above 120°F (49°C).
Turn the valve clockwise to the full open position and let the hot
water run for several minutes. Position a thermometer in the
water stream and check the temperature.
For minor water temperature changes, adjust the setscrew, and
recheck the water temperature.
For major water temperature changes, remove the O-ring and
collar from the valve stem. Slowly rotate the valve stem until the
desired water temperature is reached.
Reinstall the collar on the valve stem with the setscrew against
the side of the tab.
Reinstall the O-ring, rotate the valve stem counterclockwise to
shut the water off, and recheck the water temperature.
NOTE: After adjustment, complete the required information on the
valve label.
Lifetime Limited Warranty — USA and Canada
Kohler Co. warrants its faucets manufactured after January 1, 1997, to
be leak and drip free during normal residential use for as long as the
original consumer purchaser owns his/her home. *If the faucet should
leak or drip during normal use, Kohler will, free of charge, mail to the
purchaser the cartridge necessary to put the faucet in good working
Setscrew
Tab
Valve Stem
Collar
Valve Label
O-Ring
Tab
Collar
Setscrew
HiFlow Valve
All Other Valves
Kohler Co. 3 1048324-5-B

Lifetime Limited Warranty — USA and Canada (cont.)
condition.
Kohler also warrants all other aspects of the faucet, except gold finish,
to be free of defects in material and workmanship during normal
residential use for as long as the original consumer purchaser owns
his/her own home. If a defect is found in normal residential use,
Kohler Co. will, at its election, repair, provide a replacement part or
product, or make appropriate adjustment. Damage to a product caused
by accident, misuse, or abuse is not covered by this warranty. Proof of
purchase (original sales receipt) must be provided to Kohler with all
warranty claims. Kohler Co. is not responsible for labor charges,
installation, or other consequential costs. In no event shall the liability
of Kohler exceed the purchase price of the faucet.
If the faucet is used commercially, Kohler warrants the faucet to be free
from defects in material and workmanship for one (1) year from the
date the product is installed, with all other terms of this warranty
applying except duration.
If you believe that you have a warranty claim, contact Kohler Co.,
either through your Dealer, Plumbing Contractor, Home Center or
E-tailer, or by writing: Kohler Co., Attn.: Customer Service Department,
444 Highland Drive, Kohler, WI 53044, USA. Please be sure to provide
all pertinent information regarding your claim, including a complete
description of the problem, the product, model number, color, finish,
the date the product was purchased and from whom the product was
purchased. Also include your original invoice. For other information,
or to obtain the name and address of the service and repair facility
nearest you, call 1-800-4-KOHLER from within the USA, 1-800-964-5590
from within Canada and 001-877-680-1310 from within Mexico.
The foregoing warranties are in lieu of all other warranties, express
or implied, including but not limited to the implied warranties of
merchantability and fitness for a particular purpose.
Seller disclaims any liability for special, incidental or consequential
damages. Some states/provinces do not allow limitations of how long
an implied warranty lasts or the exclusion or limitation of such
damages, so these limitations and exclusions may not apply to you.
This warranty gives the consumer specific legal rights. You may also
have other rights that vary from state/province to state/province. This
warranty is to the original consumer purchaser only, and excludes
product damage due to installation error, product abuse, or product
misuse, whether performed by a contractor, service company, or the
consumer.
This is our exclusive written warranty.
1048324-5-B 4 Kohler Co.

Lifetime Limited Warranty — USA and Canada (cont.)
*Trend
®
faucets, MasterShowerTM Tower, polished gold finish, all items
within the ″Fixture Related″section of the KOHLER Faucets Price
Book, drains, Duostrainer
®
sink strainers, soap/lotion dispensers and
faucets used in commercial settings are covered by Kohler’s one-year
limited warranty.
One-Year Warranty — Mexico
For Mexico Only
KOHLER CO.
It is recommended that at the time of purchase, you verify that all
accessories and components are complete in this package.
This Kohler product is warranted to be free of defects in material and
workmanship for one (1) year from the date of purchase as shown on
the invoice or receipt.
1. Kohler Co. will only service its commercialized products through its
authorized distributors.
2. To obtain warranty service, please present the invoice and
corresponding warranty.
3. Through its authorized distributors, Kohler Co. promises to repair
the defective product or provide a new replacement or an equivalent
model (in those cases that the model has been discontinued) when the
product is beyond repair, without any charge to the consumer.
4. The time of repair will not exceed six (6) weeks commencing on the
date the product is received.
5. It is recommended that the consumer save the invoice or receipt as
additional protection, as it may substitute the warranty in the case that
there is a discrepancy in the validity of the warranty.
EXCEPTIONS AND RESTRICTIONS
The Warranty will not be valid in the following cases:
1. When the product is not operated in accordance with the
instructions concerning use and operation set forth in the owner’s
manual or installation instructions, and when the recommendations
and warnings included are not observed.
2. When the product has been modified or dismantled partially or
totally; or has been used in a negligent fashion and as a consequence
has suffered damages attributable to the consumer, individual, or
hardware not authorized by Kohler Co.
Kohler Co. 5 1048324-5-B

One-Year Warranty — Mexico (cont.)
3. This warranty does not cover the damages as a result of disaster
such as fire or acts of God, including flooding, earthquake, or electric
storms, etc. To obtain a list of distributors in your area where you can
exercise your rights under this warranty, please call 001-877-680-1310.
KOHLER CO., KOHLER, WI 53044 U.S.A.
IMPORTER:
INTERNACIONAL DE CERÁMICA, S.A. DE C.V.
AV. CARLOS PACHECO NO. 7200
CHIHUAHUA, CHIH., MEXICO C.P. 31060
TEL: [phone]
1048324-5-B 6 Kohler Co.

Service Parts
**Finish/color code must be specified when ordering.
1045907**
Flange 1017569**
Showerhead
1020006**
Shower Arm
1006026
Retainer
1046070**
Escutcheon
1018647
Stem Adapter
61336
Screw
77585
O-Ring
75697
Spring Washer
1045226**
Bonnet
1044884**
Handle
56585
Washer
1049899
O-Ring
75603
Washer
1048123
Stem Driver
76538
Screw
1047414**
1049468** (Slip) (IPS)
Spout
52375
Gasket
62394
Screw
79676
Screen Washer
1058342**
1057471** (Slip) (IPS)
Spout
Kohler Co. 7 1048324-5-B

Guide du propriétaire
Garniture de mono-contrôle de baignoire et de
douche
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la ligne the Bold Look of Kohler. Le travail soigné
des artisans de Kohler vous fera apprécier une rare combinaison de
performances prouvées et une sophistication gracieuse, qui vous
satisferont pour les années à venir. La fiabilité et la beauté de votre
produit Kohler surpasseront vos plus grandes espérances. Chez Kohler,
nous sommes fiers du rendement de nos produits et nous savons que
vous le serez aussi.
Veuillez prendre s’il vous plaît quelques minutes pour consulter ce
guide du propriétaire. Prêter une attention toute particulière aux
instructions d’entretien et de nettoyage.
Toute l’information dans ce manuel est basée sur la dernière disponible
au moment de la publication. Chez Kohler, nous veillons constamment
à améliorer la qualité de nos produits. Nous nous réservons le droit
d’apporter des modifications aux caractéristiques, emballages et
disponibilités des produits à tout moment, et ce sans préavis.
Votre robinet de baignoire Kohler
Votre nouvelle garniture de baignoire et de douche combine élégance
et beauté avec une performance et une fiabilité exceptionnelles. Chaque
kit de garniture est conçu avec précision et fabriqué avec des
matériaux de première qualité pour garantir un fonctionnement sans
problème, et ceci même dans des conditions d’eau les plus extrêmes.
Entretien et nettoyage
Pour de meilleurs résultats, prendre ce qui suit en considération lors de
l’entretien de votre produit KOHLER:
•Utiliser un détergent doux tel que liquide pour vaisselle et de
l’eau chaude pour nettoyer. Ne pas utiliser de nettoyants abrasifs
car ils pourraient rayer ou abîmer la surface.
•Lire attentivement l’étiquette du produit de nettoyage pour
vérifier qu’il soit adéquat à utiliser sur le matériau.
•Toujours tester la solution de nettoyage sur une surface la moins
évidente avant de l’appliquer sur la totalité de la surface.
•Ne pas permettre aux nettoyants de reposer sur la surface.
Kohler Co. Français-1 1048324-5-B

Entretien et nettoyage (cont.)
•Essuyer les surfaces et rincer complètement avec de l’eau
immédiatement après l’application du nettoyant. Rincer et sécher
tout éclaboussement sur les surfaces annexes.
•Utiliser une éponge ou un chiffon doux et humide. Ne jamais
utiliser de matériau abrasif tel que brosse ou éponges à récurer
pour nettoyer les surfaces.
Pour l’information détaillée de nettoyage et des produits à considérer,
visiter www.kohler.com/clean. Pour commander des informations
d’entretien et de nettoyage, composer le 1-800-456-4537 puis presser 1
pour les produits Kohler et 3 pour littérature.
Kohler Co. Français-2 1048324-5-B

Réglages
ATTENTION : Risque de blessures corporelles. La température
de l’eau ne devrait jamais être supérieure à 120° F (49° C).
Tourner la valve vers la droite à la position ouverte et laisser
couler l’eau chaude pendant quelques minutes. Placer un
thermomètre dans le courant d’eau et vérifier la température.
Pour de petits changements de température,ajuster la vis de
serrage, et re-vérifier la température d’eau.
Pour de grands changements de température, retirer les joints
toriques et le collier de la tige de la valve. Tourner lentement la
tige de la valve jusqu’à atteindre la température désirée.
Réinstaller le collier sur la tige de la valve de manière à placer la
vis de retenue contre la languette.
Réinstaller le joint torique, tourner la tige de la valve vers la
gauche pour arrêter l’eau, et re-vérifier la température d’eau.
REMARQUE : Après le réglage, compléter les informations requises
sur l’étiquette de la valve.
Garantie limitée à vie pour les É.U. et le Canada
Kohler Co. garantit que ses robinets fabriqués après le 1 Janvier 1997
ne goutteront pas, et seront sans fuites pendant leur utilisation normale
à domicile, aussi longtemps que l’acquéreur initial en soit le
propriétaire. *Si le robinet gouttait ou présentait des fuites en cours
Vis de retenue
Languette
Tige valve
Collier
Etiquette valve
Joint torique
Languette
Collier
Vis de retenue
Valve haut débit
Toutes les autres valves
1048324-5-B Français-3 Kohler Co.
