Mira Escape Thermostatic
9.0, 9.8 kW
These instructions must be left with the user
Installation and User uide
For SPARES, ADVICE
or REPAIRS
Please call us on
0844 571 5000
(UK Only)

2
Product Model Number Colour
Mira Escape 9.0 J95Hb/c Chrome, Satin/Chrome
Mira Escape 9.0 J95Hf White
Mira Escape 9.8 J95 /H Chrome, Satin/Chrome
Patents and Design Registration
Design Registration: 000373543-0003
Patents: B: 2 341 667, 2 404 000, 2 427 460,2 428 286
Ireland: 82835, 85128, 85163, 85912
Patent Applications: Ireland: 2006/0462
Recommended Usage
Domestic ü
Light Commercial ü
Heavy Commercial û
Healthcare û
INTRODUCTION
Thank you for purchasing a quality Mira product. To enjoy the full potential of your
new product, please take time to read this guide thoroughly. Having done so, keep
it handy for future reference.
The Mira Escape Thermostatic is an electric shower with separate controls for power
selection and temperature/Àow adjustment. A unique thermostatic valve stabilises
temperature changes caused by water pressure Àuctuations. These can result from
taps being turned on or off, or toilets being Àushed. Individual lights indicate “ON/
OFF” and “LOW FLOW”.
The Mira Escape comes complete with Mira Energise adjustable spray handset
with four different spray actions (start, soothe, force and eco*), Àexible hose, clamp
bracket assembly, slide bar, supports, hose retaining ring and soap dish.
* On electric showers the ‘eco’ setting will have no effect, and will give the same
spray action as the ‘start’ setting.
Mira Escape models covered by this guide:
uarantee
For domestic installations, Mira Showers guarantee the Mira Escape 9.0 kW and
9.8 kW against any defect in materials or workmanship for a period of two years
from the date of purchase (shower ¿ttings for one year).
For non-domestic installations, Mira Showers guarantee the Mira Escape 9.0 kW
and 9.8kW against any defect in materials or workmanship for a period of one year
from the date of purchase.
For terms and conditions refer to section “ Customer Services” .

3
If you experience any dif¿culty with the installation of your new shower, then please
refer to “ Fault Diagnosis” , before contacting Kohler Mira Limited. Our telephone
and fax numbers can be found on the back cover of this guide.
IMPORTANT SAFETY INFORMATION
WARNIN - This shower can deliver scalding temperatures if not operated,
installed or maintained in accordance with the instructions, warnings and
cautions contained in this guide and on or inside the appliance.
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
1. Installation of this shower must be carried out in accordance with these
instructions by quali¿ed, competent personnel.
2. Isolate the electrical and water supplies before commencing installation. The
electricity must be isolated at the consumer unit and the appropriate circuit
fuse removed, if applicable. Mains connections are exposed when the cover
is removed.
3. DO NOT install the shower in areas with high humidity and temperature
(i.e. Steam rooms and saunas).
4. DO NOT install the shower where it may be exposed to freezing conditions.
Ensure that any pipework that could become frozen is properly insulated.
5. DO NOT switch the shower on if there is a possibility that the water in the
shower is frozen.
6. DO NOT switch the shower on if water starts leaking from the shower case.
Isolate the electrical supply to the shower immediately.
7. DO NOT connect the outlet of the shower to any tap, control valve, trigger
handset or showerhead other than those speci¿ed for use with this shower -
scalding water temperatures and product damage will occur. Only Kohler Mira
recommended accessories should be used.
8. The water supplies to this product must be isolated if the product is not to be
used for a long period of time. If the product or pipework is at risk of freezing
during this period they should also be drained of water.
9. DO NOT perform any unspeci¿ed modi¿cations to the shower or its
accessories. When servicing only use genuine Kohler Mira replacement
parts.
10. If the shower is dismantled during installation or servicing then upon completion
the product must be inspected to ensure all electrical connections are tight and
that there are no leaks.
11. Read all installation instructions before installing this shower.
12. Upon completion of the installation, make sure that the user is familiar with the
operation of the shower, and leave this guide with the owner.

4

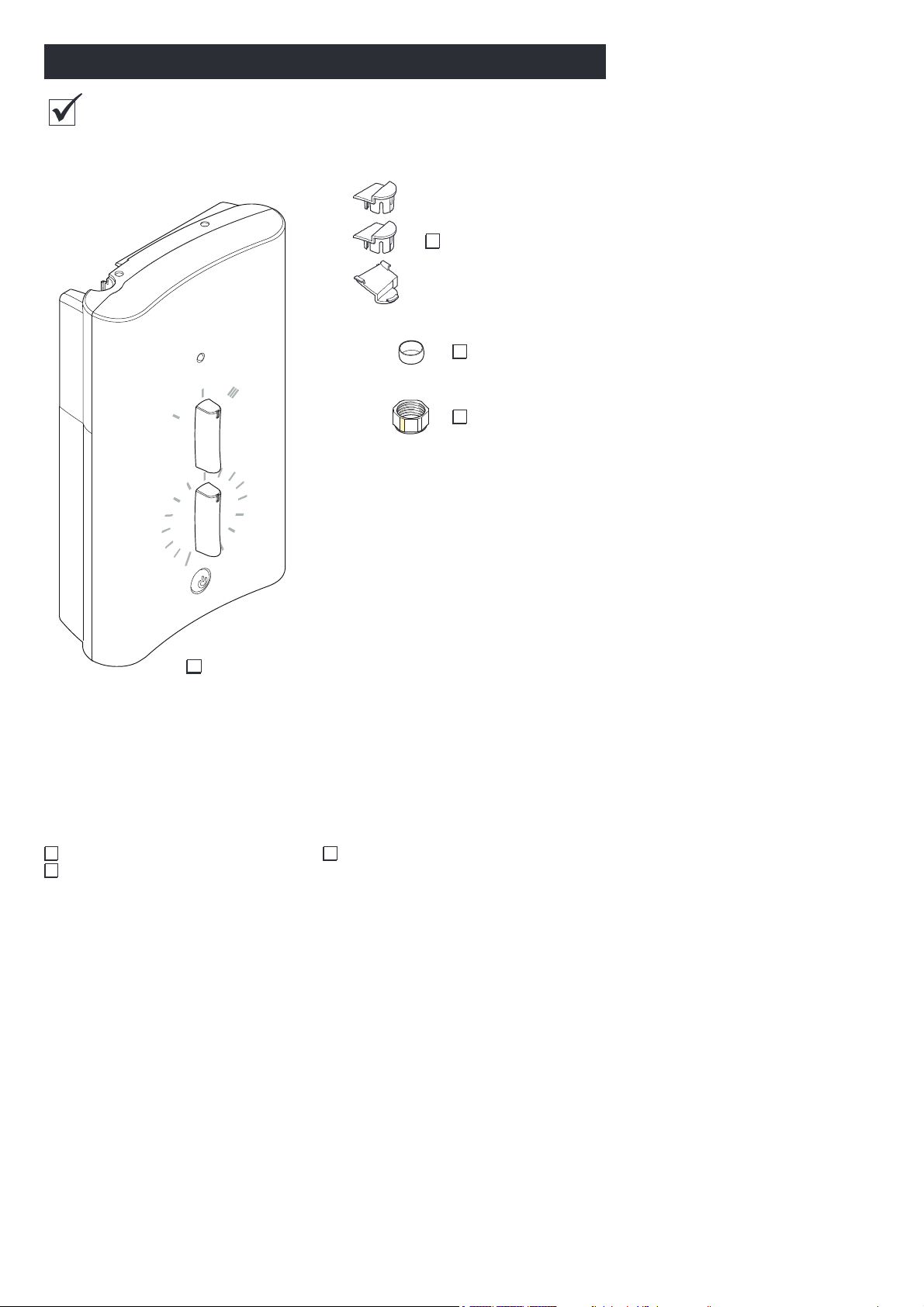

1 x Mira Escape
1 x Compression Nut
1 x Olive
3 x Case Inserts
Tick the appropriate boxes to familiarize yourself with the part names and to
con¿rm that the parts are included.
Documentation
1 x Installation and User uide 1 x Installation Template
1 x uarantee and Registration Document
PACK CONTENTS

5
BROWN
BROWN BROWN
BLUE
BLUE
REEN
REEN
BROWN
BROWN
BROWN
BLACK
BLACK BLACK
RED
RED
RED
WIRIN DIA RAM
Thermal Cutout
Dual Disc
Tank Connection
Load
Inlet Connector
Pressure/Power
Selector Switch
Solenoid Valve
Low Flow Neon
Power On
Neon
START/STOP
L
E
N
Internal Wiring Diagram

6
European Conformity Information
The Mira Escape range of showers comply with the following European directives:
2006/95/EC Low Voltage Directive, 2004/108/EC EMC Directive.
The Mira Escape range of showers are high power appliances and are subject to
conditional connection. If the main electrical supply fuse is rated less than 80 Amps,
the local electricity supply company must be contacted to con¿rm if the electrical
supply is adequate.
The Mira Escape range of showers comply with the requirements of the UK’s
water regulations.
Dimensions
Height 348 mm
Width 207 mm
Depth 90 mm
Electrical Variant
Escape 9.0 Escape 9.8
Nominal Power at 230 V ac 8.3 kW 9.0 kW
Nominal Power at 240 V ac 9.0 kW 9.8 kW
Recommended MCB Rating 40 A 45 A
Maximum Supply Cable Size 16 mm²
Recommended RCD Rating 30 mA tripping current
Recommended Isolator Switch 45 A double-pole with 3 mm contact separation
Appliance Sealing Rating IP X4 - Suitable for installation in Zone 1
Maximum Ambient Temperature 30°C
Minimum Ambient Temperature 2°C
Plumbing Variant
Escape 9.0 Escape 9.8
Minimum Dynamic Pressure 70 kPa (0.7 bar) 70 kPa (0.7 bar)
Maximum Dynamic Pressure 500 kPa (5 bar)
Maximum Static Pressure 1000 kPa (10 bar)
Minimum Static Pressure 20 kPa (0.2 bar)
Maximum Inlet Temperature 30°C
Minimum Inlet Temperature 2°C
Inlet Connection 1/2” BSP Male / 15 mm Compression Fitting
Maximum Water Hardness 200 ppm CaCO
3
Outlet Connection 1/2” BSP Male
SPECIFICATIONS

7
INSTALLATION REQUIREMENTS
Please read the Important Safety Information and speci¿cations sections at
the front of this guide, and the requirements detailed in this section before
installing the shower.
WARNIN - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
Plumbing
1. The plumbing installation must comply with all national or local water regulations
and all relevant building regulations, or any particular regulation or practice
speci¿ed by the local water supply company.
2. Do not install the product in a position in which service access is limited.
3. Decide on a suitable position for the shower (minimum distance of 200 mm from
the ceiling to allow for cover ¿t and removal).
4. The position of the shower and shower ¿ttings must provide a minimum gap of
25 mm between the showerhead and the spill over level of any bath, shower
tray or basin and a minimum gap of 30 mm between the showerhead and the
spill over level of any toilet, bidet or other appliance with a Fluid Category 5
backÀow risk (see diagram on page 8).
5. The shower is suitable for installation within the shower area and is ¿tted with
a pressure relief valve. It must be positioned over a water catchment area with
the controls at a convenient height for the user.
6. The shower must be ¿tted to a waterproof Àat and even wall surface.
7. DO NOT ¿t the shower to the wall and tile up to the case.
8. DO NOT seal the gap between the shower and the wall surface.
9. The showerhead should be positioned so that it discharges down the centre
line of the bath or across the opening of a shower cubicle.
10. The showerhead must be directed away from the shower unit, during normal
use the showerhead must not spray directly on to the shower unit.
11. DO NOT apply excessive force to plumbing connections; always provide
mechanical support when making plumbing connections. Any soldered joints
should be made before connecting the shower.
12. This shower is not designed to be plumbed directly from the rear. For rear-entry
supply, add an elbow to the supply pipe and connect as a rising or a falling supply.
13. If pipework and/or electrical cables enter the shower from the rear through a
hole in the wall provision must be made to prevent water ingress back into the
wall structure.
14. Only use the inlet connector supplied with the shower. DO NOT use any other
type of ¿tting.

8

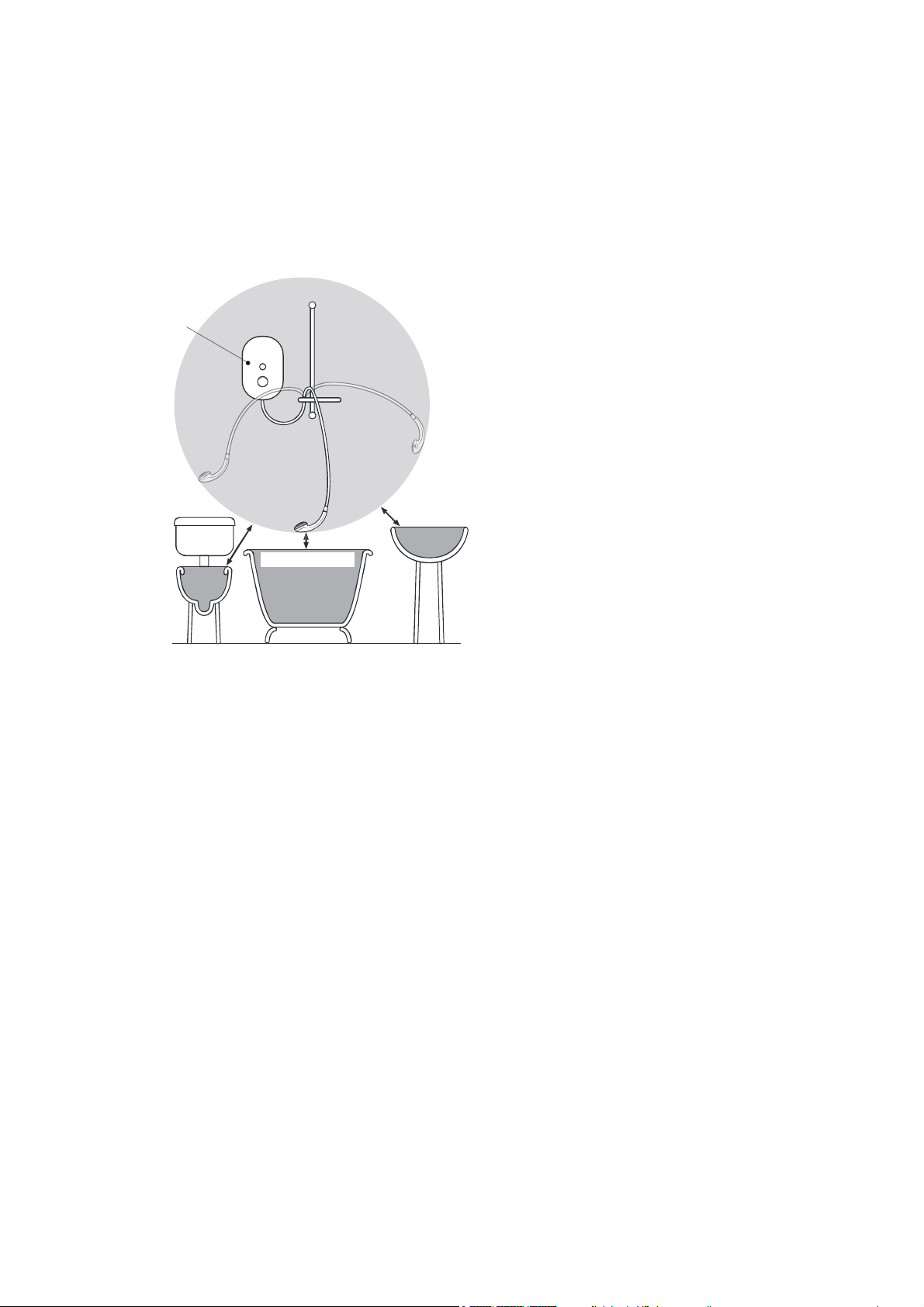

Zone of
BackÀow Risk
30 mm
Minimum
Toilet or Bidet
FC5
Hand Basin
FC3
Bath or Shower
Tray FC3
Electric
Shower
25 mm
Minimum
25 mm Minimum
15. A full bore/non restrictive servicing valve must be ¿tted in a readily accessible
position adjacent to the shower to facilitate maintenance of the shower.
DO NOT use a valve with a loose washer plate (jumper) as this can lead to a
build up of static pressure.
16. A water treatment device should be installed where the water hardness may
exceed 200 ppm. Malfunctions caused by excessive limescale formation are
not covered by this shower’s guarantee (see back page for details).
17. The installation must not cause the hose to be sharply kinked during normal use.
18. DO NOT perform the electrical installation until the plumbing has been completed
and checked for leaks.
Hose Retaining Ring ¿tted and shower ¿ttings ¿xed at a suitable height preventing
dirty water backÀow.
Note! There will be occasions when the hose retaining ring will not provide a suitable
solution for Fluid Category 3 installations, in these instances an outlet double
checkvalve must be ¿tted, this will increase the required supply pressure typically by
10kPa (0.1 bar). Double checkvalves ¿tted in the inlet supply to the appliance cause
a pressure build up, which affect the maximum static inlet pressure for the appliance
and must not be ¿tted. For Fluid Category 5 double checkvalves are not suitable.

9
Double-pole
Isolating Switch
Consumer Unit

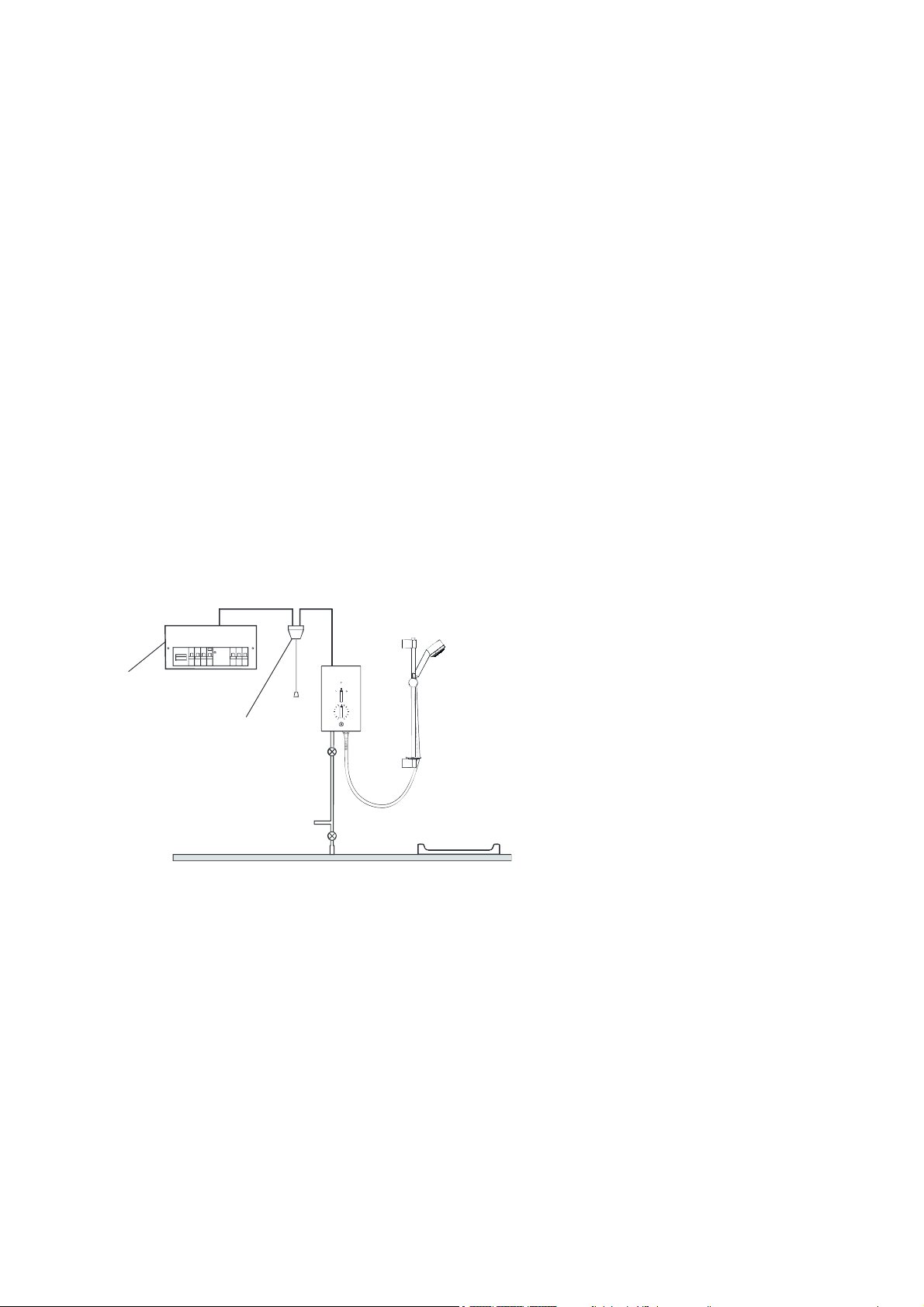

Plumbing and Electrical Schematic
WARNIN - TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR INJURY:
Electrical
1. The electrical installation must comply with BS 7671 (commonly referred to as
theIEE Wiring Regulations) and all relevant building regulations, or any particular
regulation or practice speci¿ed by the local electricity supply company.
2. Ensure that all circuit protection devices, switches and cabling is adequate
for the rated current of the shower and that the rating of the electricity supply
company fuse and the consumer unit are adequate for the additional demand.
3. The shower must be earthed. Ensure any supplementary bonding complies
with the relevant regulations.
4. This shower is intended to be permanently connected to the ¿xed electrical wiring
of the mains system. A separate supply must be provided from the consumer
unit to the shower.
5. DO NOT supply any other electrical equipment including extractor fans or pumps
via this product.
6. This shower must be provided with means for local disconnection that is
incorporated into the ¿xed wiring in accordance with the relevant local wiring
regulations. This must be a double pole switch, which has at least 3 mm contact
separation in each pole.The switch canbe a ceiling mounted pull-cord type within
the shower room or a wall mounted switch ¿tted in the applicable zone area.
7. A 30mAResidual Current Device (RCD) must be incorporated into the electrical
supply to this shower in accordance with wiring regulations.
8. DO NOT apply excessive force to the terminal block.
9. All electrical connections should be checked for tightness to prevent overheating
before switching on the electrical supply.
10. DO NOT switch on the electrical supply until the plumbing has been completed
and checked for leaks.

10
Warning! Turn off the electrical and water supplies before proceeding with the
installation of the Mira Escape. The electricity must be turned off at the mains
and the appropriate circuit fuse removed, if applicable.
Note! An installation template is supplied to help you install the Mira Escape.

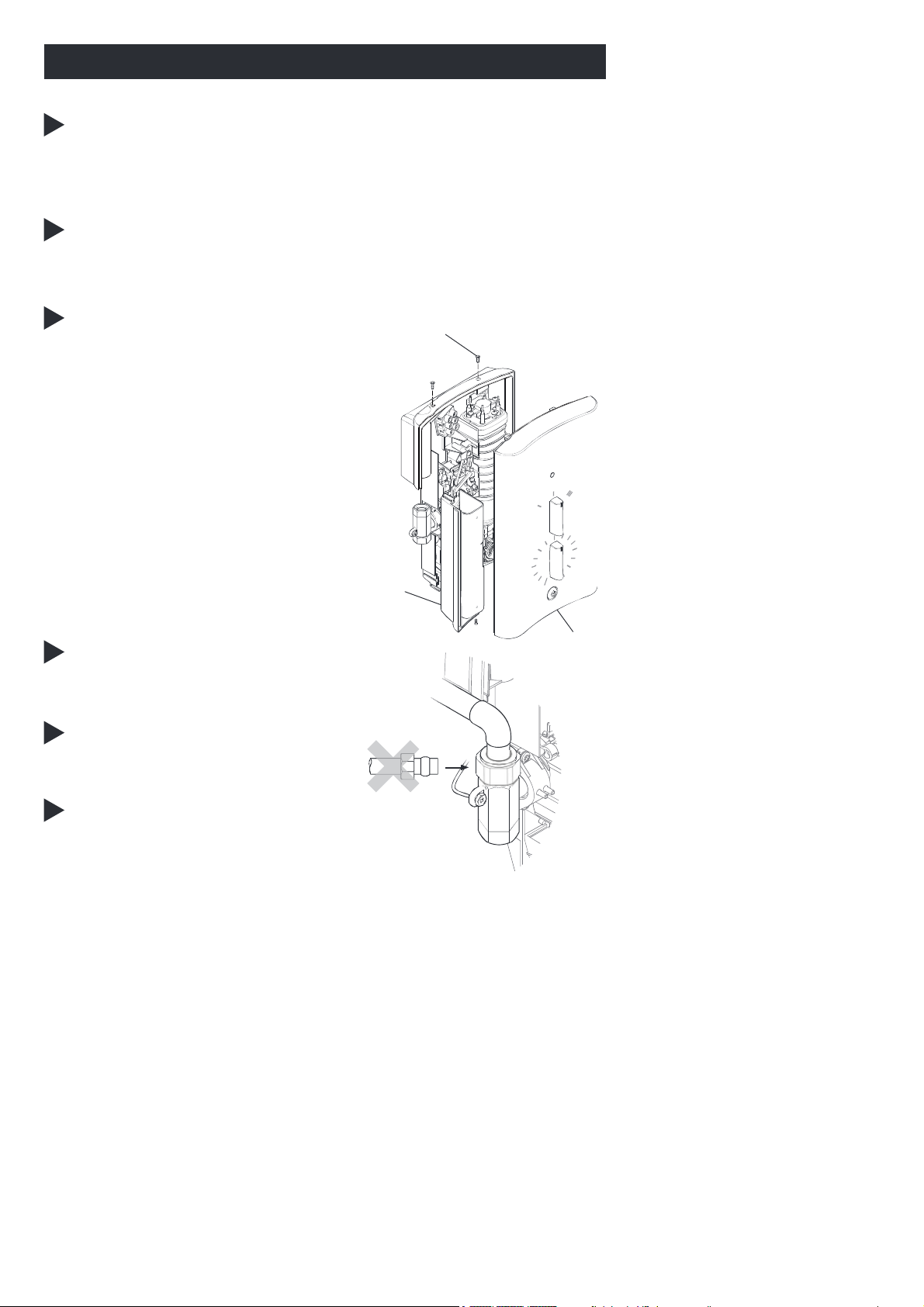

Remove the three cover retaining
screws, the cover and the service
tunnel.
Cover
Cover Retaining
Screw
Service Tunnel
Determine the direction of the inlet
water supply: top (falling), bottom
(rising), or back inlet .
Note! Make sure that the back inlet
does not go directly back into the wall.
Use a soldered elbow.
Swivel the inlet connector assembly
to suit. Remove the inlet blanking cap.
Avoid trapping the green earth bonding
wire.
INSTALLATION
Installation of Mira Escape
Wall ¿xings are not supplied. For solid wall structures a red rawl plug and a
no. 8 x 1½” countersunk brass or stainless steel screw should be used. For
other wall structures such as panels alternative ¿xings may be required. A
minimum of 3 ¿xing screws should be used.

11
Three case inserts are supplied with the Mira Escape, so that they can be trimmed
to suit the supplies entering the product. Before ¿tting the cover, make sure that
the case inserts are ¿tted.
Thoroughly Àush the mains-fed cold water supply pipe. The supply must
be clean and free from debris BEFORE connecting the Mira Escape.
To Àush the pipework, turn on the water supply and drain a minimum of 10 litres
(2 gallons) of water into a bucket or catchment area. Turn off the water supply.
An installation template is supplied to help you install the Mira Escape.
Put the installation template on the wall and mark through the positions of the
¿xing holes. Make sure that the position of these holes do not come in line with
any buried cables or pipework. Make sure that suf¿cient electrical supply cable
is available for connection to the terminal block.

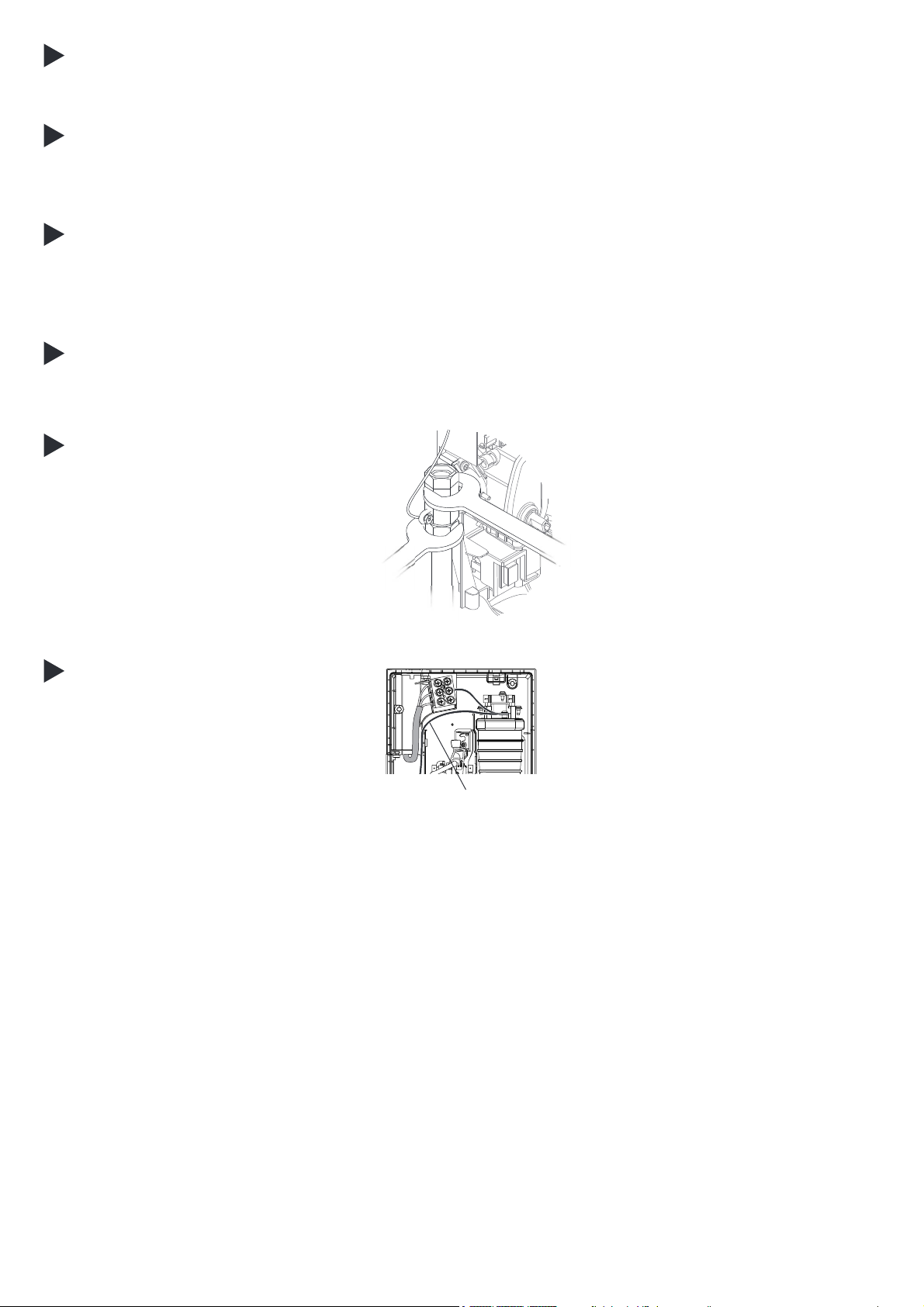

Drill and plug the top two ¿xing holes. Secure the Mira Escape to the wall
with appropriate screws. Drill the bottom ¿xing hole with the product in place.
Alternative ¿xings (not supplied) may be necessary for some wall structures.
Avoid drilling into any supply cable/pipe.
Install the mains-fed cold water supply
pipe. Do not overtighten.
Feed cable into Case. Fit Earth sleeve
(not supplied) and strip insulation.
Do not twist cable cores.
Important! Make sure
that the inlet earth wire is
routed as shown. Failure
to do so may cause
product malfunction.

12
Firmly connect the conductors. Do not
exert strain on the terminal block.
L = BROWN
E = REEN/YELLOW
N = BLUE
Re¿t the Service Tunnel and Cover.
Make sure they ¿t correctly.
Do not overtighten screws.
Do not use alternative screws to secure
the Cover. This can cause internal
damage to the appliance.
Do not seal around the back of
appliance.
Cover
Cover Retaining Screw
Service Tunnel

13

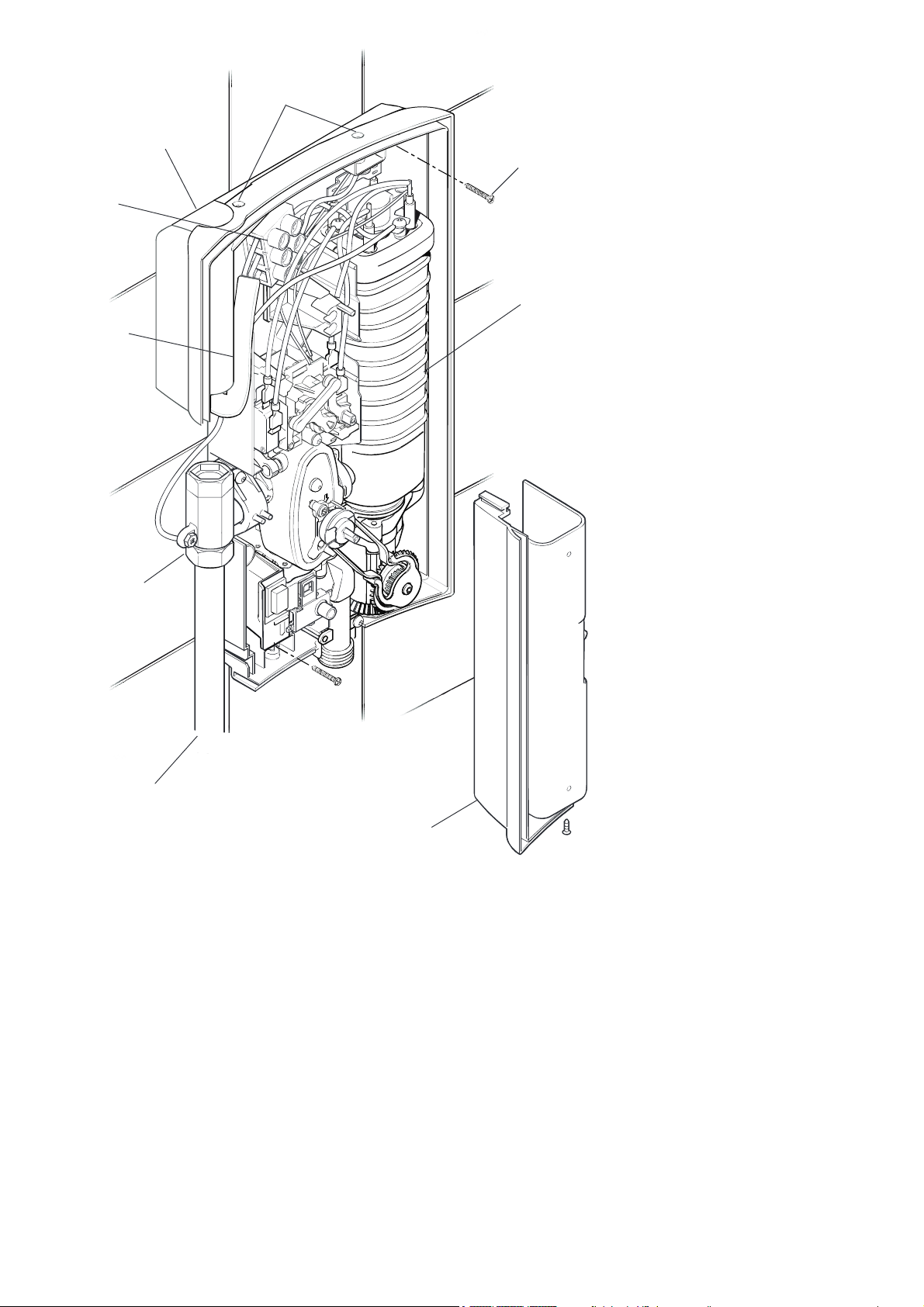

Cold Water Supply
Pipe (Bottom Entry)
Service Tunnel
Fixing Screw
Holes For Cover
Retaining Screws
Case Insert
Electrical
Supply Cable
Terminal
Block
Inlet Connector
Assembly
Heater Tank

14

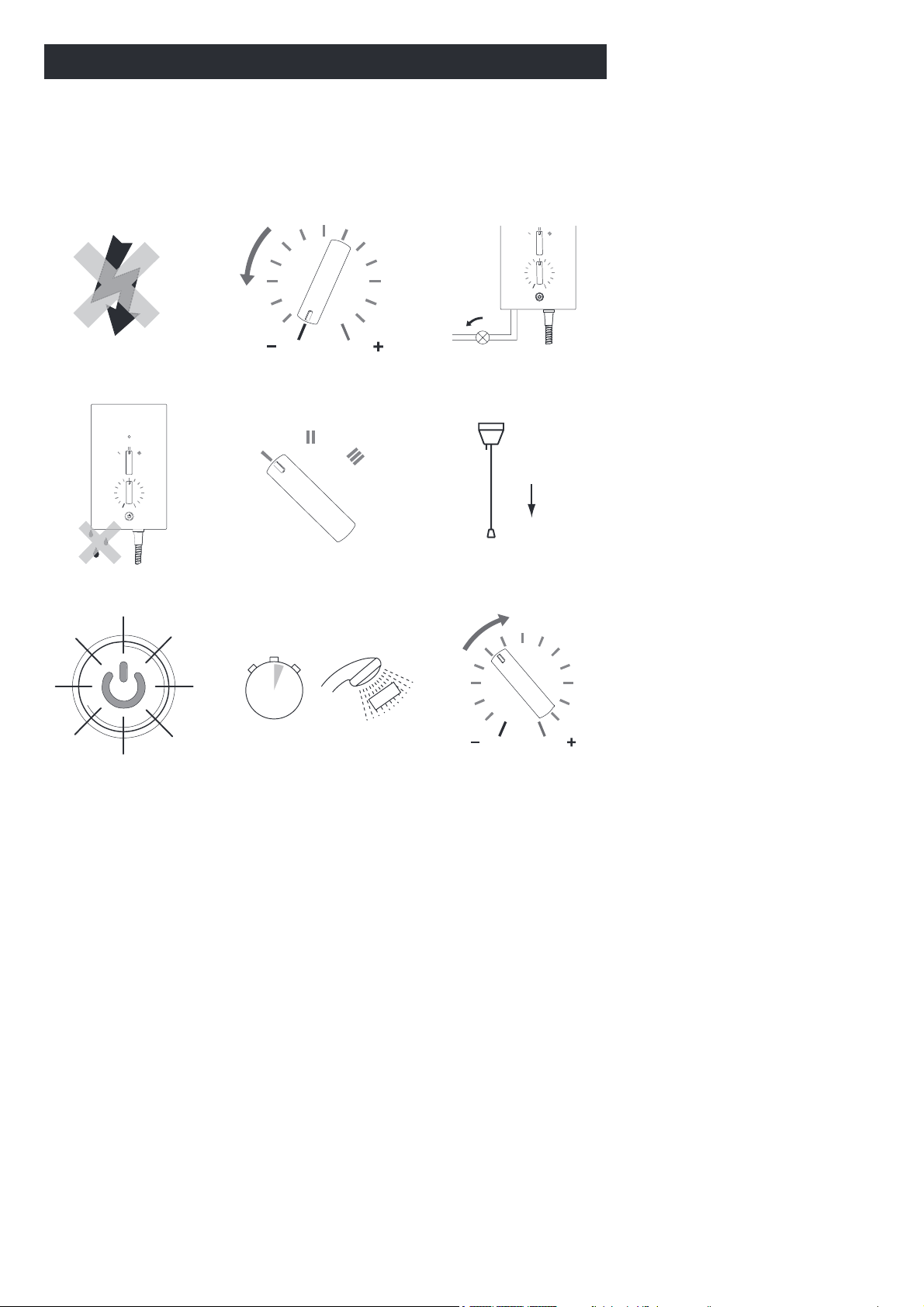

COMMISSIONIN
Turn control to full cold. Turn the water supply
fully on.
Check for water leaks. Set control to ‘I’. Sw itch on el ectrica l
supply.
Press the ‘Start/Stop’
button, light on the button
comes on
Waterwillbeatfullforceand
at a cool temperature.
Turn the control slowly.
Temperature remains cool
and Àow is reduced
Electrical supply is turned
off at the mains.
COLD
0 - 5 Secs
1.
4.
3.2.
6.5.
9.8.7.
Before carrying out the commissioning procedure install the Shower Fittings,
refer to the Shower Fittings Installation and User uide.
If you are unsure how an electric shower works, please read through the section
“ User Instructions” before continuing.

15

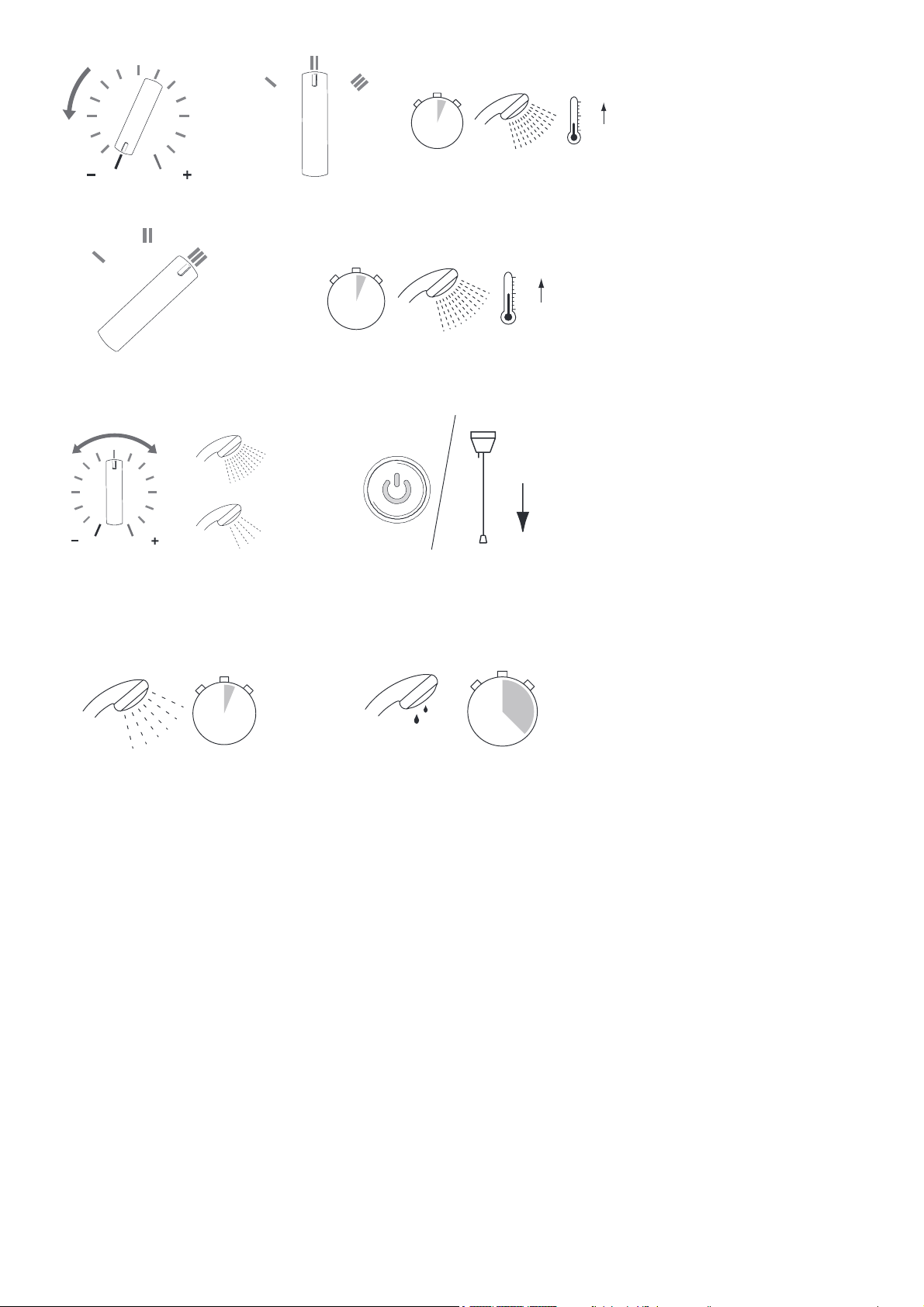

Turn control to full cold. The temperature will rise
slightly.
Set control to ‘II’.
_
+
0 - 10 Secs
12.11.10.
The temperature will rise further.
A dj us t te mp e ra tur e as
required. Flow rate will adjust
automatically.
The shower will purge water from
its tank for a few seconds.
Residual water may drain over a
few minutes.
Set control to ‘III’.
5 - 10 Secs
0 - 5 Secs
13.
15.
14.
16.
_
+
Press STOP button, light on the
button goes out. Shower Àow will
continue for a few seconds before
stopping. Isolate power.
17. 18.
Note! A slight hissing sound may be heard from the Mira Escape during operation.
High mains water pressure and high shower temperatures will affect the tone. This
is quite normal in use.

16
_
+
COLD
_
+
_
+
The warmer the shower, the lower the Àow
rate and vice versa.
Heated water is produced by adjusting the Àow
of cold water passed through a heater tank.
The shower has three heater settings.

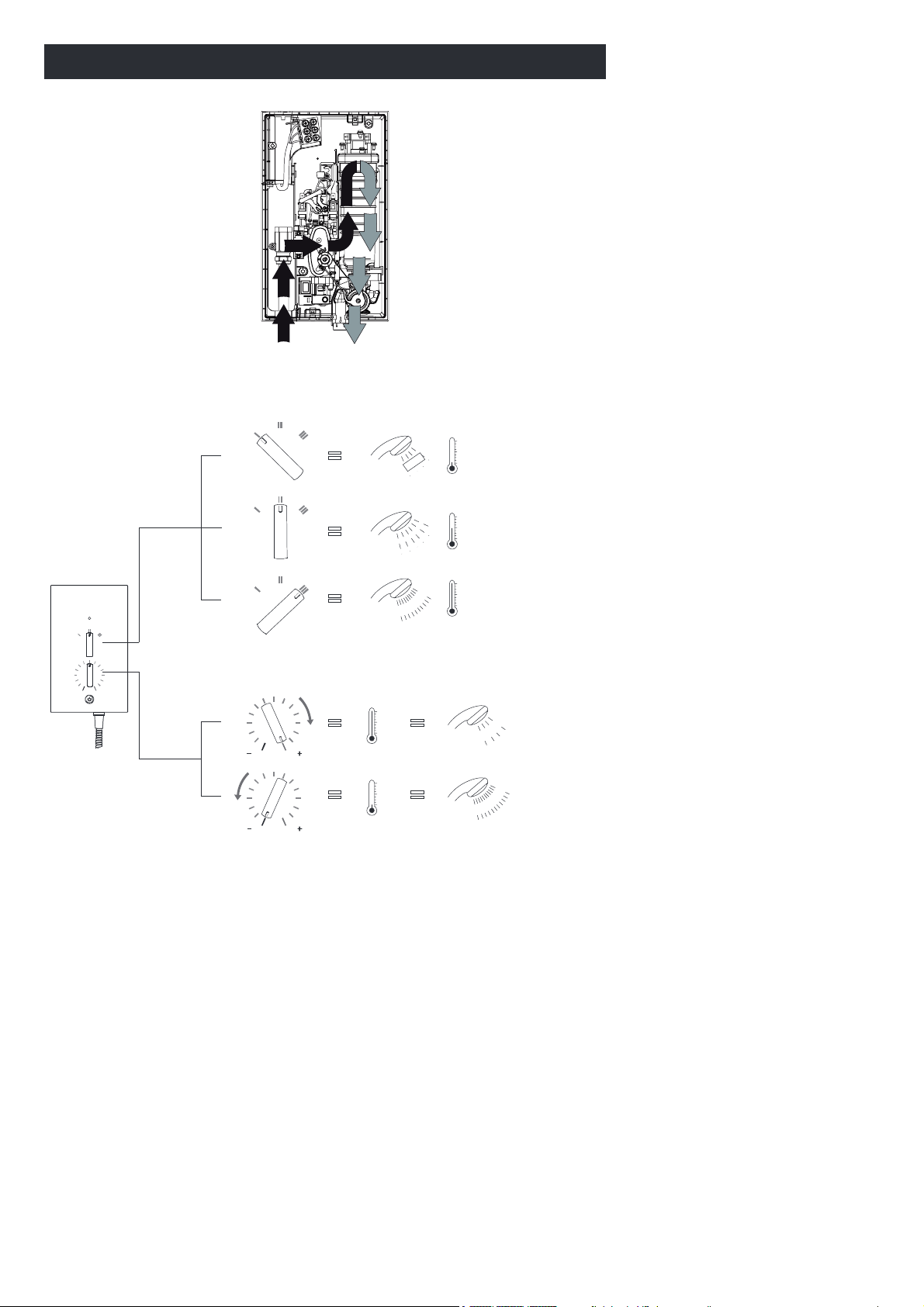

How Your Electric Shower Works
USER INSTRUCTIONS

17
The shower's top priority is to keep the desired water temperature constant. Electric
showers with thermostatic control are able to keep a stable temperature across the
range from hot to cold, whilst also dealing with Àuctuations in electrical and water
supplies. As a result, there is a temperature limit the shower cannot go beyond. For
safety, this temperature is factory set and cannot be adjusted to make the shower
hotter or colder.

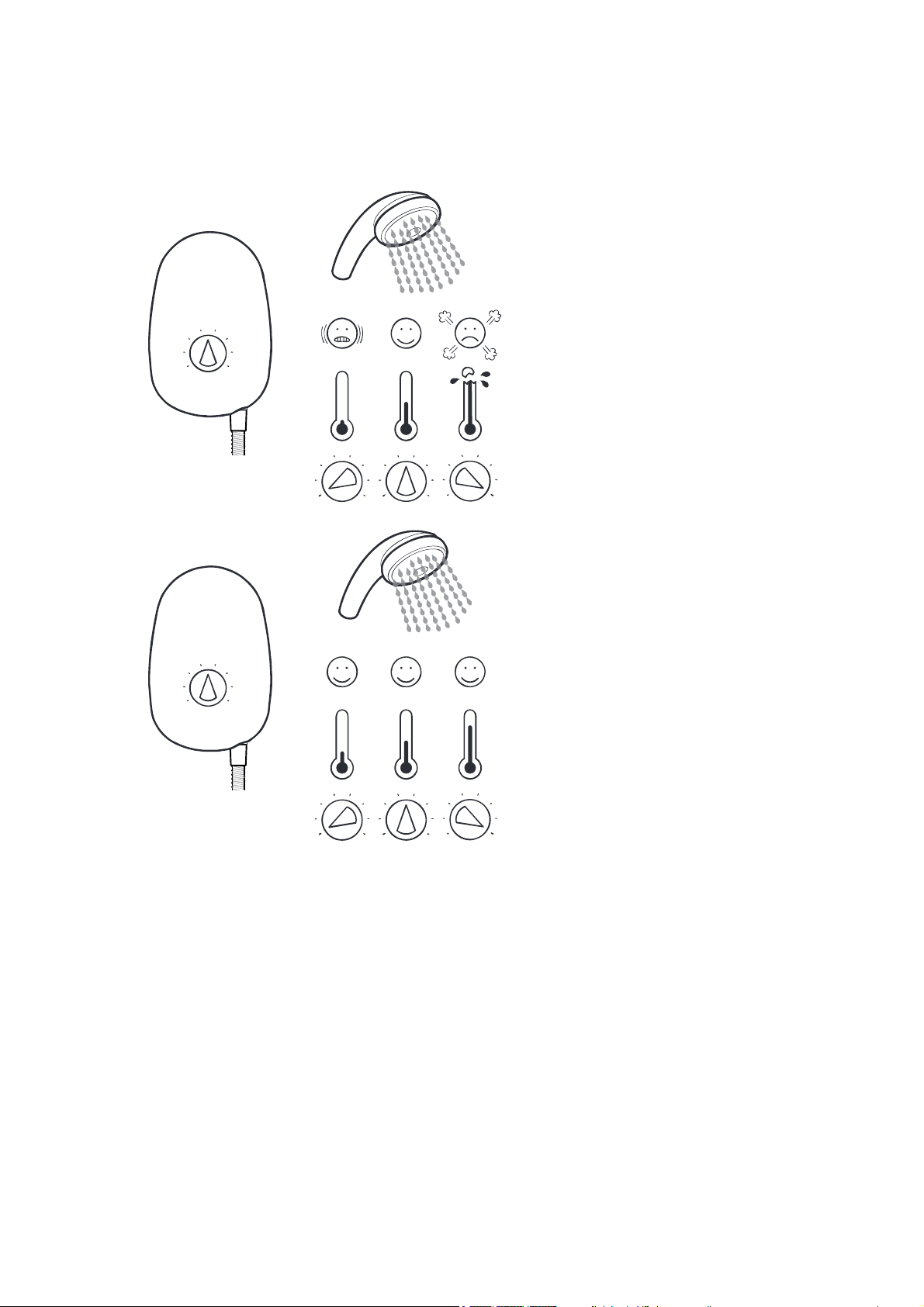

Thermostatic (Temperature-Stable)
THERMOSTATIC
ELECTRIC
SHOWER
ORDINARY
ELECTRIC
SHOWER

18
WARNIN - THIS SHOWER CAN DELIVER SCALDIN TEMPERATURES IF NOT OPERATED,
INSTALLED OR MAINTAINED IN ACCORDANCE WITH THE INSTRUCTIONS, WARNIN S AND
CAUTIONS CONTAINED IN THIS UIDE AND ON OR INSIDE THE APPLIANCE.
1. Make sure that you fully understand how
to operate this shower before use, read
all operating instructions and retain this
guide for future reference.
2. This shower is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities,
or lack of experience and knowledge,
unless they have been given supervision
or instruction concerning the use of the
shower by a person responsible for their
safety.
3. Children should be supervised to ensure
that they do not play with the shower.
4. DO NOT switch the shower on if there is
a possibility that the water in the shower
is frozen.
5. DO NOT switch the shower on if water
leaks from the shower unit. Isolate
the electrical supply to the shower
immediately.
6. DO NOT switch the shower on if the case
appears to be damaged or incorrectly
¿tted. Isolate the electrical supply to the
shower immediately.
7. DO NOT connect the outlet of the shower
to any tap, control valve, trigger handset
or showerhead other than those speci¿ed
for use with this shower - scalding water
temperatures and product damage will
occur. Only Kohler Mira recommended
accessories should be used.
8. The showerhead must be de-scaled
regularly, refer to the user maintenance
section towards the rear of this guide for
details.
9. The shower hose must be checked
regularly and replaced if damaged, refer
to the user maintenance section towards
the rear of this guide for details.
10. DO NOT store bathroom items on top of
the shower case. ie. Shampoo or shower
gel containers.
11. Always check the water temperature
before entering the shower. Sunburn
or skin conditions can increase your
sensitivity to hot water. Make sure
that you set the shower to a cooler
temperature.
12. DO NOT operate the temperature control
rapidly, allow 10 – 15 seconds for the
temperature to stabilise before use.
13. DO NOT block or restrict Àow through the
handset or hose whilst showering. eg. By
placing in direct contact with your body.
14. Be aware that any adjustment to
temperature control or power control
whilst showering will affect the showering
temperature and may result in a burst of
hot water.
15. Care to be taken when changing the
handset mode as this may affect the
shower temperature/performance.
16. Care is required if the shower is turned
off and then back on after a short time as
this will result in a burst of hot water from
the showerhead. Ensure temperature
has stabilised before re-using shower.
17. Switch off the appliance at electrical
isolating switch when not in use. This is
for safety and is recommended with all
electrical appliances.
18. If any of the following conditions occur,
isolate the electricity and water supplies
and contact your installer:
If the case is damaged or the cover is
not correctly ¿tted and water has entered
the shower case.
If the shower begins to make an odd
noise, smell or smoke.
If the shower shows signs of a distinct
change in performance indicating a need
for maintenance.
To reduce the risk of ¿re, electric shock or injury:
USER SAFETY INFORMATION

19
Using your Shower
Read the section “User Safety Information” ¿rst.
Note! At the end of every shower make sure that the shower head points into the
catchment area. A small amount of water may be retained in the shower handset
after the shower has been turned off. This may drain over a few minutes.

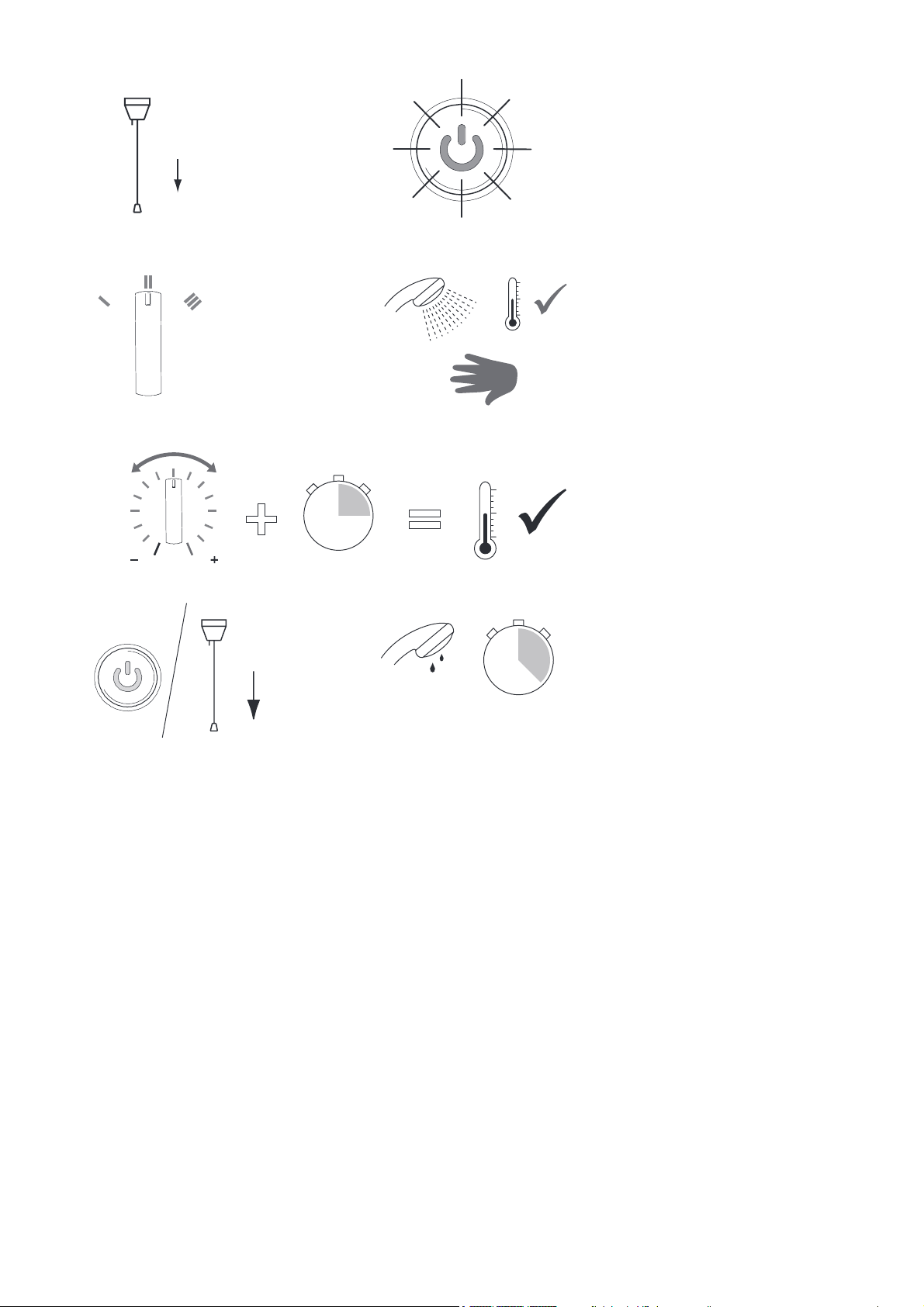

Press the ‘Start/Stop’ button, light
on the button comes on.
2.
Switch on electrical supply.
1.
Set to desired position.
3.
Residual water may drain over a
few minutes.
7.
4.
_
+
Check water temperature before
entering shower.
5.
_
+
Allow 10 - 15 seconds for any temperature adjustments to reach the
handset.
6.
Press STOP button, light on the
button goes out. Shower Àow will
continue for a few seconds before
stopping. Isolate power.

20

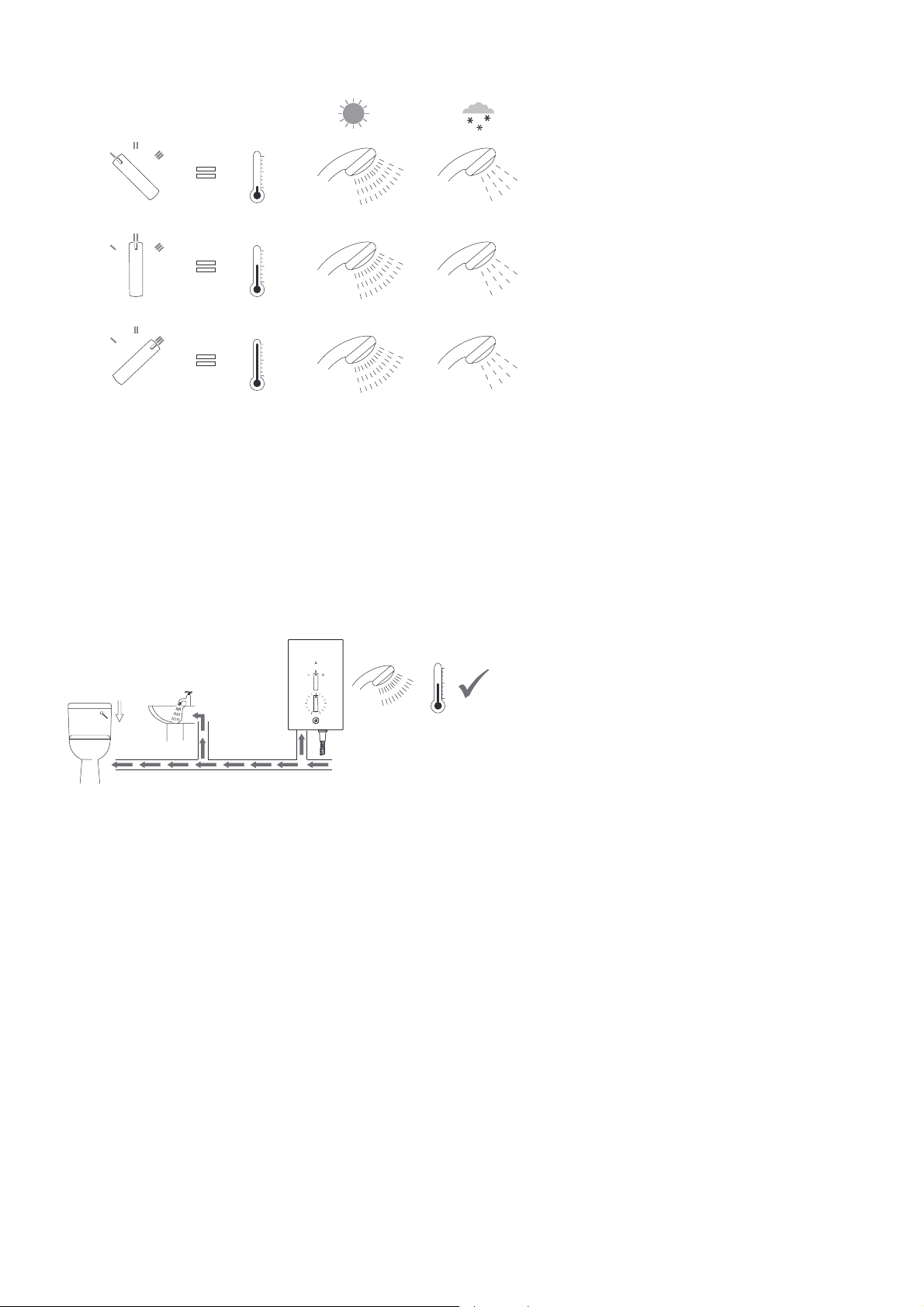

Water inlet pressure Àuctuations due to other draw offs (e.g. Àushing toilet). Shower
temperature will be controlled to within ± 2°C of the set temperature provided that
the supply conditions remain within the required operating parameters (refer to
section: ‘Speci¿cations’).
For a cold shower select I.
For a summer warm shower select II.
For a winter warm shower select III.
During extremes of mains water supply temperature, adjust heater setting to obtain
a better showering temperature.
The Effect of Seasonal Changes
The Effect of Other Water Devices
Example of how shower temperature
stabilises due to pressure changes.
_
+
_
+
± 2°C
