Thank You For Choosing Sterling
We appreciate your commitment to Sterling value. Please take a few
minutes to review this manual before you start installation. If you
encounter any installation or performance problems, please don’t
hesitate to contact us. Our phone numbers are listed on the back cover.
Thanks again for choosing Sterling.

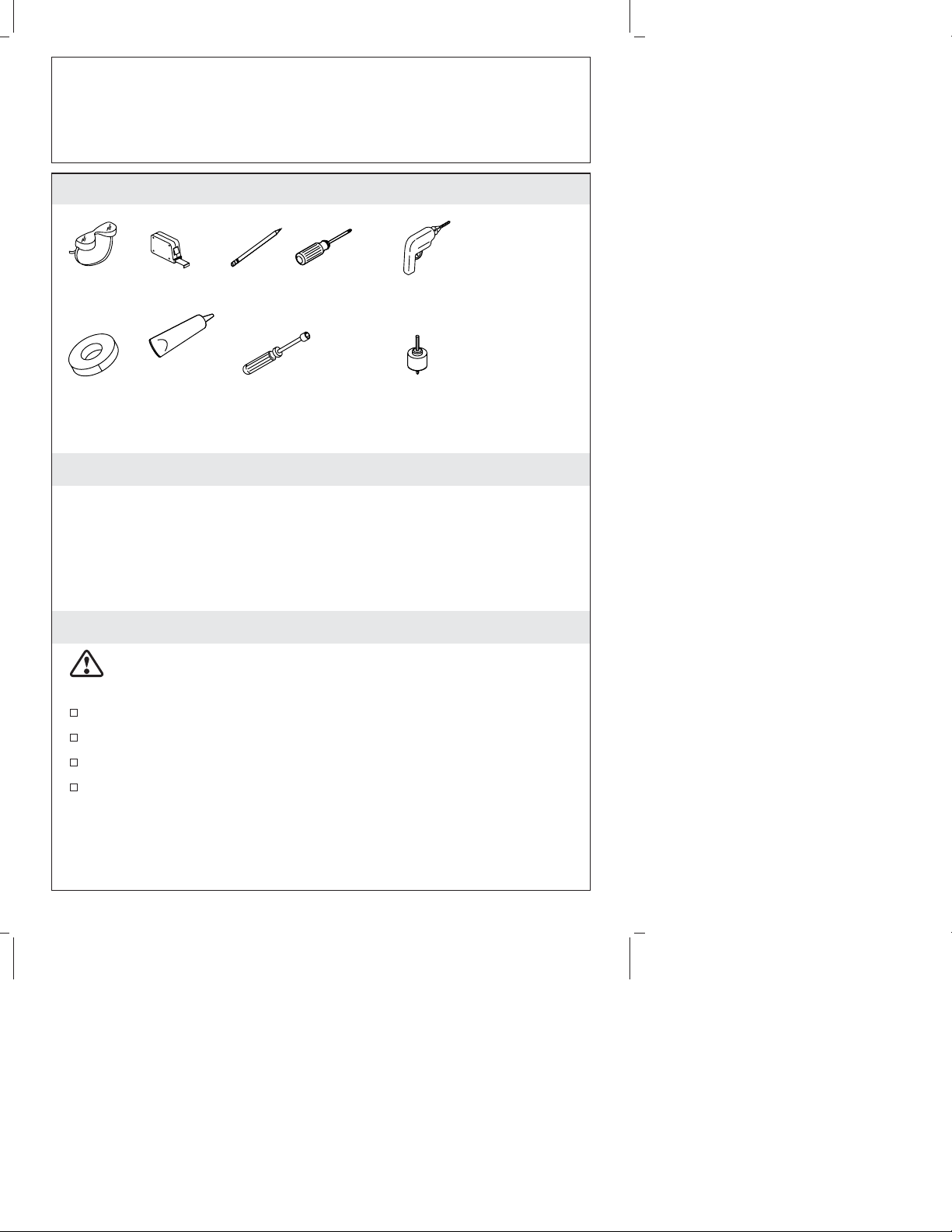

Tools and Materials
Before You Begin
CAUTION: Risk of personal injury or product damage. The
sink is heavy. Get help lifting the sink into place.
Observe all local plumbing codes.
Shut off the hot and cold water supplies.
Unpack the new sink and carefully inspect for damage.
Verify that all included materials are present.
Included Materials
•(1) Sink
•(1) Installation and Care Guide
Return the sink to its carton until it is time to install it.
Illustrations shown may not represent your actual product.
Pencil Drill
Safety
Glasses Tape Measure
Phillips
Screwdriver
Plus:
_ Jigsaw or
_ Keyhole Saw
_ Rags
_ Hammer
Masking
Tape
Silicone
Adhesive
Sealant Hollow Shaft
1/4" Nut Driver
Hole Saw Bit
1-1/2" D.
1064719-2-B 2 Sterling

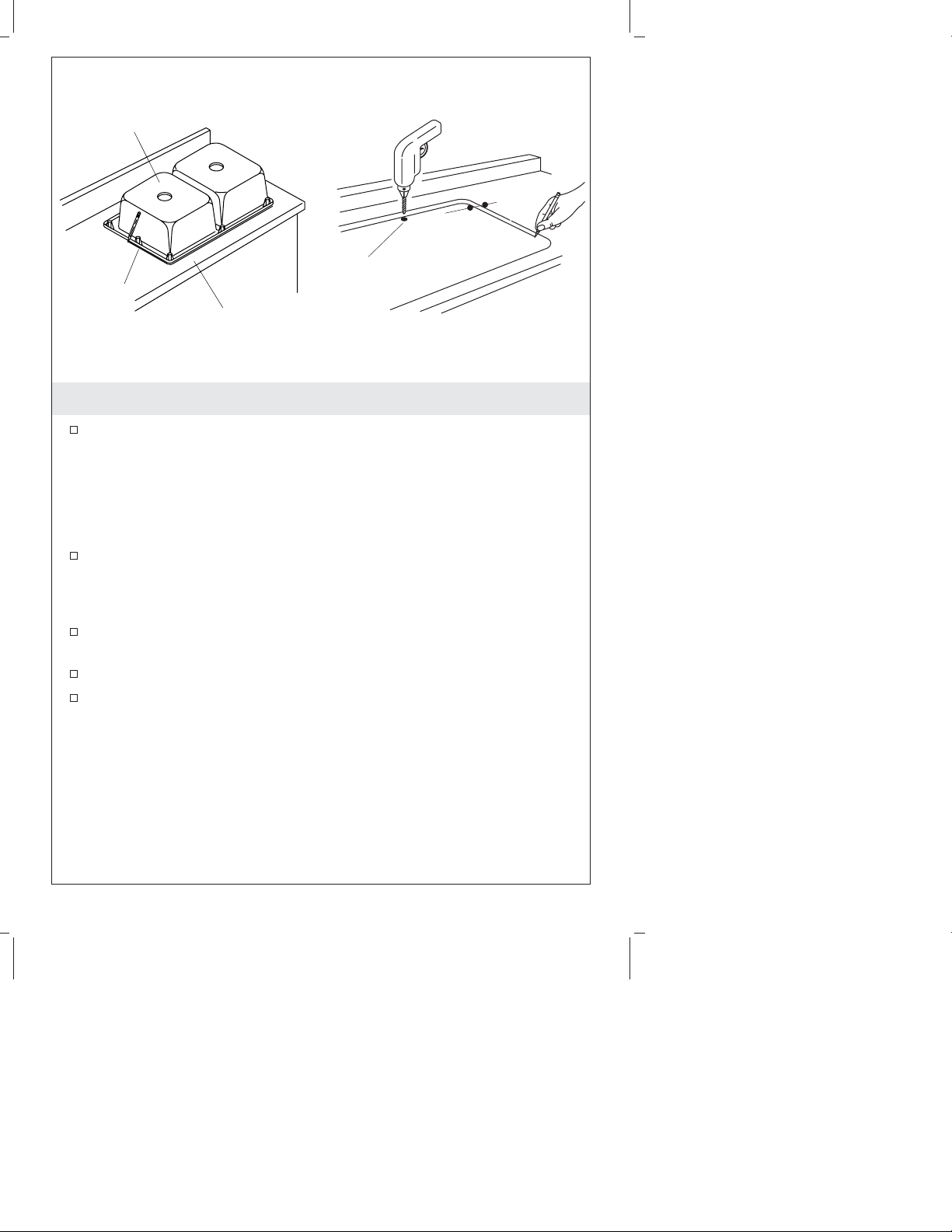

1. Prepare the Countertop
For existing installations, carefully lift the old sink out of the
countertop. Compare the existing cutout to the required cutout
size. If needed, enlarge the cutout hole according to the directions
for new installations.
NOTE: The front edge of the sink should be at least 1/2″(1.3 cm)
from the countertop edge.
For new installations, carefully place the sink upside down on the
countertop in the desired position. Be careful not to damage the
sink finish. Verify the sink will not interfere with the cabinet.
Trace the sink outline onto the countertop. Do not cut along this
line.
Draw a line 3/8″(1 cm) inside the sink outline.
Drill a pilot hole inside the cutting line. Using a jigsaw or keyhole
saw, cut along the inside line to cut out the opening in the
countertop.
Sink
Sink
Outline Countertop
Pilot Hole
3/8" (1 cm)
Sterling 3 1064719-2-B

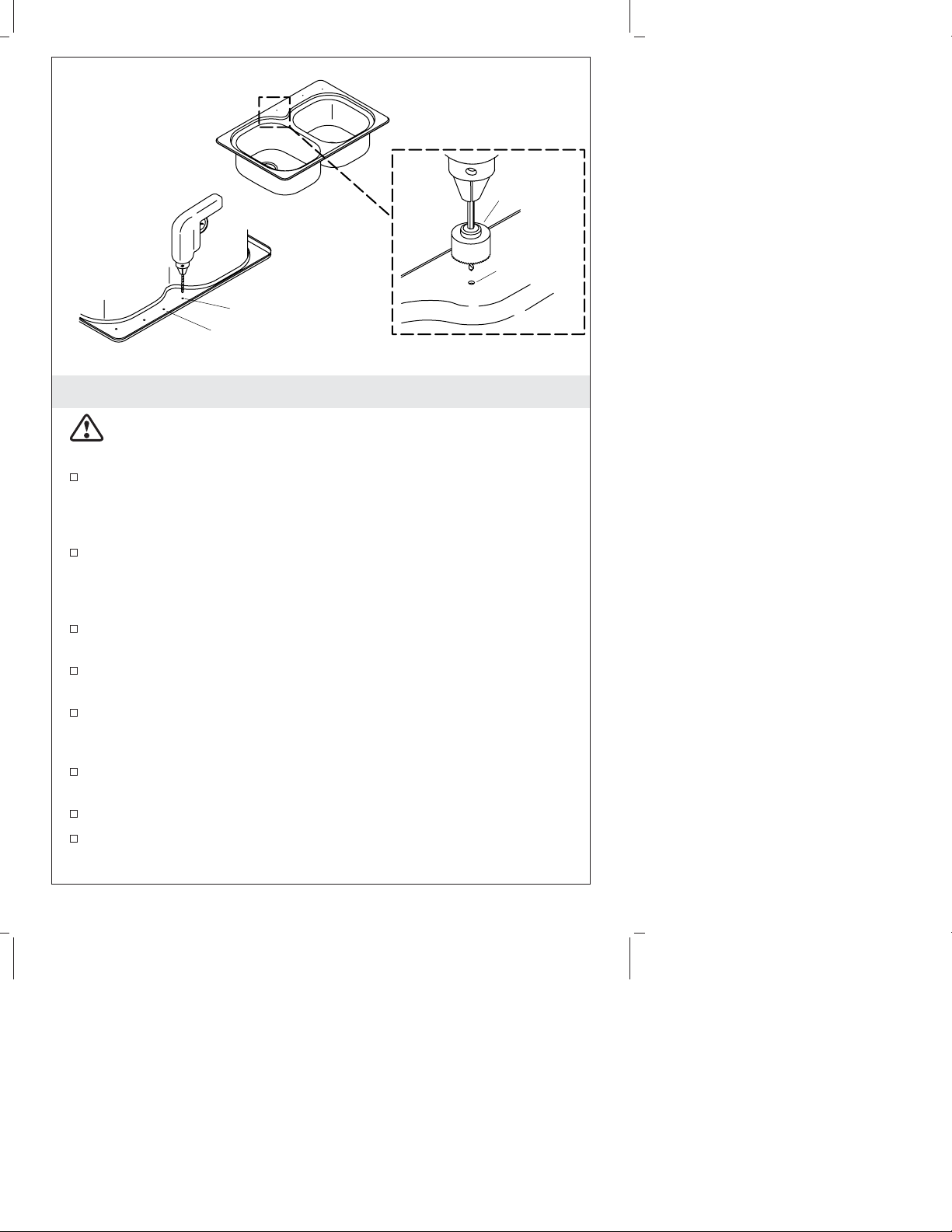

2. Sink Preparation
CAUTION: Risk of product damage. Use a sharp hole saw. A
dull hole saw can damage the sink.
Small drill point locators on the underside of the faucet deck
indicate the center of each potential faucet opening. Determine
which holes you will need for your particular faucet installation.
Carefully place the sink upside down over the cutout making
sure the countertop is supporting the sink and turn the sink so
that the drill point locators are over the cutout.
Drill pilot holes through the faucet deck at the desired faucet hole
locations.
Position the sink in the cutout with the faucet deck toward you.
Using a 1-1/2″diameter hole saw and the pilot holes as guides,
cut the faucet holes in the faucet deck.
Smooth the faucet holes with a file to remove any rough edges
and excess sink material.
Repeat the procedure for each desired faucet opening.
Remove the sink from the cutout.
Hole Saw
Pilot Hole
Drill Point
Drill pilot hole.
1064719-2-B 4 Sterling

3. Attach the Sink
Install the faucet and strainer fittings according to the
manufacturer’s instructions.
Clean the edge of the cutout with denatured alcohol.
Turn the sink upside down and place it on a smooth padded
surface.
NOTE: Apply sealant quickly as it sets within minutes.
Apply a thin, continuous bead of silicone adhesive sealant around
the bottom edges of the sink.
Carefully turn the sink over and align it with the drain trap and
water supply outlets.
Place the sink into the cutout opening.
Firmly press the sink into place.
NOTE: Do not move the sink until the sealant has cured.
Apply a thin, continuous bead of silicone adhesive sealant around
the rim of the sink where it makes contact with the countertop.
Smooth and finish the bead of caulk.
Allow the sealant to set overnight.
Sealant
Sealant
Sterling 5 1064719-2-B

4. Finish the Installation
Install the garbage disposal, if desired. Follow the manufacturer’s
instructions.
Connect and tighten the trap to the strainer, and complete the
water supply connections to the faucet according to the
instructions packed with the faucet.
Run water into the sink and check for leaks.
Clean up with a non-abrasive cleaner.
Care and Cleaning Instructions
For best results, keep the following in mind when caring for your
STERLING product:
•Use a mild detergent such as liquid dishwashing soap and warm
water for cleaning. Do not use abrasive cleaners that may scratch
or dull the surface.
•Carefully read the cleaner product label to ensure the cleaner is
safe for use on the material.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Do not allow cleaners to sit or soak on the surface.
•Wipe surfaces clean and rinse completely with water immediately
after cleaner application. Rinse and dry any overspray that lands
on nearby surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive
material such as a brush or scouring pad to clean surfaces.
For detailed cleaning information and products to consider, visit
www.sterlingplumbing.com/support. To order Care & Cleaning
information, call 1-800-456-4537 and press 2 for Sterling Products and
then 3 for Literature.
1064719-2-B 6 Sterling

Warranty
Fixtures Made of Solid VikrellTM Material
Bathing Fixtures and Bathroom Lavatories — 10 Years Limited
Consumer / 3 Years Limited Commercial
Kitchen Sinks — Lifetime Limited Consumer / 3 Years Limited
Commercial
Based on the classification specified above, Sterling Plumbing, a
division of Kohler Co., (Sterling) bathing fixtures and bathroom
lavatories made of solid Vikrell material are warranted to be free of
manufacturing defects for 10 years from the date of sale when fixtures
are used in residential (owner-occupied) buildings, or 3 years from the
date of sale when fixtures are used in commercial (hotels, motels,
rental property) buildings.
Whirlpool baths are warranted to be free of manufacturing defects for
the same period except for the pump/motor assembly, which is
warranted to be free of manufacturing defects for 1 year from the date
of sale.
Kitchen sinks made of solid Vikrell material are warranted to be free of
manufacturing defects for as long as the original consumer purchaser
owns his/her home, or for 3 years from the date of sale when used in
commercial (hotels, motels, rental property) buildings.
Sterling will, at its election, repair, rectify or replace a fixture when
Sterling’s inspection discloses any such defects occurring in normal
usage within the time period of coverage stated above. Sterling is not
responsible for removal or installation costs where replacement is
indicated. Damages due to improper handling, installation or
maintenance are not considered manufacturing defects and are not
covered by this warranty. This warranty is valid for the original
consumer purchaser only.
To obtain warranty service, contact Sterling, either through your
plumbing contractor, home center, wholesaler or dealer, or by writing
Sterling Plumbing, Consumer Services, 444 Highland Drive, Kohler,
Wisconsin 53044, 1-888-783-7546.
To the extent permitted by law, all implied warranties including that
of merchantability and fitness of particular purpose are hereby
disclaimed. Sterling disclaims any liability for special, incidental, or
consequential damages. Some states/provinces do not allow
limitations on how long an implied warranty lasts, or the exclusion or
limitation of special, incidental or consequential damages, so these
limitations and exclusions may not apply to you. This warranty gives
you specific legal rights. You may have other rights which vary from
state/province to state/province.
Sterling 7 1064719-2-B

Warranty (cont.)
This is our exclusive written warranty.
1064719-2-B 8 Sterling
