Kohler K-3524 Assembly instructions

Homeowners Guide
Tankless Toilet
Mproduct numbers are for Mexico (i.e. K-12345M)
Los números de productos seguidos de Mcorresponden a México
(Ej. K-12345M)
Français, page “Français-1”
Español, página “Español-1”
K-3524
1065104-5-A

IMPORTANT INFORMATION
SAVE THESE INSTRUCTIONS
Important Safeguards
When using electrical products, especially when children are present, follow basic safety precautions,
including the following:
READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE
DANGER: To reduce risk of electrocution:
•Connect only to a receptacle which is protected by a Ground-Fault Circuit-Interrupter (GFCI) or
Residual Current Device (RCD).
•Do not use while bathing.
•Do not place or store product where it can fall or be pulled into the sink or bath.
•Do not place or drop in water or other liquid.
•Do not reach for the heated toilet seat if it has fallen into water. Unplug immediately.
WARNING: Risk of personal injury. To reduce the risk burns, electrocution, fire, or injury to
persons, follow these precautions:
•Close supervision is necessary when this product is used by, on, or near children or invalids.
•Use the heated toilet seat for its intended use as described in this manual. Do not use attachments
not recommended by the manufacturer.
•Never operate the heated toilet seat if it has a damaged cord or plug, if it is not working properly, if
it has been dropped or damaged, or dropped in water. This product has no serviceable parts.
•Never use while sleepy or drowsy.
•Keep the cord away from heated surfaces.
•Do not use outdoors or operate where aerosol (spray) products are being used or where oxygen is
being administered.
Thank You For Choosing Kohler Company
Thank you for choosing Kohler Company. Your Kohler Company product reflects the true passion for design,
craftsmanship, artistry, and innovation Kohler Company stands for. We are confident its dependability and
beauty will surpass your highest expectations, satisfying you for years to come.
All information in this guide is based upon the latest product information available at the time of
publication. At Kohler Company, we strive to fulfill our mission of improving the level of gracious living for
each person who is touched by our products and services. We reserve the right to make changes in product
characteristics, packaging, or availability at any time without notice.
Please take a few minutes to review this guide. Pay special attention to the care and cleaning instructions.
Your Kohler Toilet
Crafted from a clay mixture that is fired at an intense heat to vitrify the clay and fuse the glaze, your Kohler
toilet is scratch- and abrasion-resistant. Its surface won’t stain, discolor, rust, or fade. Every component in
your Kohler toilet is specifically designed to increase the toilet’s useful life.
Care and Cleaning
WARNING: Risk of property or product damage. Do not use in-tank cleaners in your toilet.
Products containing chlorine (calcium hypochlorite) can seriously damage fittings in the tank. This
damage can cause leakage and property damage.
Kohler Co. shall not be responsible or liable for any tank fitting damage caused by the use of cleaners
containing chlorine (calcium hypochlorite).
For best results, keep the following in mind when caring for your KOHLER product:
1065104-5-A 2 Kohler Co.

Care and Cleaning (cont.)
•Use a mild detergent such as liquid dishwashing soap and warm water for cleaning. Do not use
abrasive cleaners that may scratch or dull the surface.
•Carefully read the cleaner product label to ensure the cleaner is safe for use on the material.
•Always test your cleaning solution on an inconspicuous area before applying to the entire surface.
•Do not allow cleaners to sit or soak on the surface.
•Wipe surfaces clean and rinse completely with water immediately after cleaner application. Rinse
and dry any overspray that lands on nearby surfaces.
•Use a soft, dampened sponge or cloth. Never use an abrasive material such as a brush or scouring
pad to clean surfaces.
•For Artist Edition Toilets: Gold and Platinum used on decorative products are like fine jewelry. Use
only warm water to clean, and dry with a soft cloth.
For detailed cleaning information and products to consider, visit www.kohler.com/clean. To order Care &
Cleaning information, call 1-800-456-4537.
Kohler Co. 3 1065104-5-A

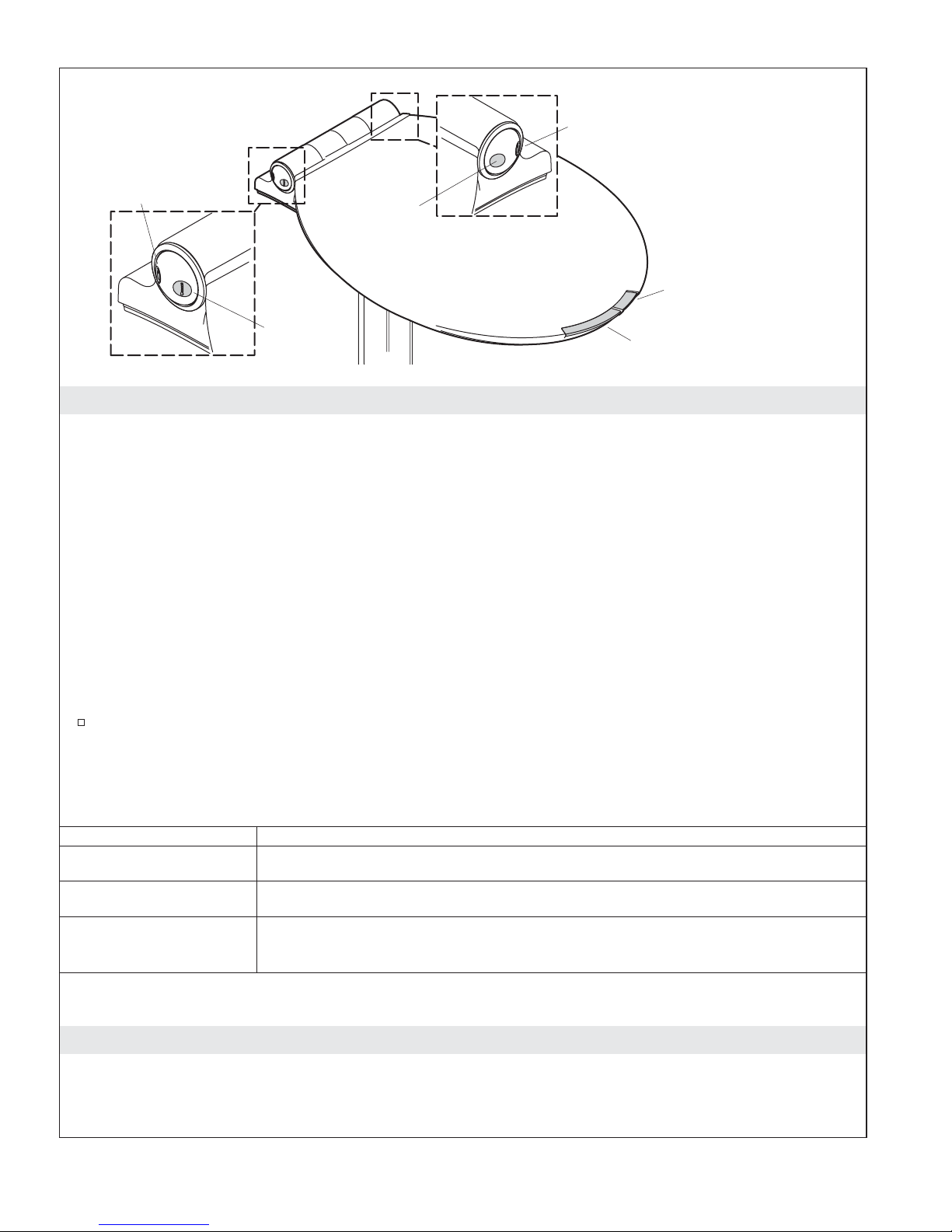

Seat Features and Operation
Auto Open -Turns the auto open feature on and off. To change the setting, push the button (usually twice)
until the light goes out.
Seat Heater - When the control light is yellow, the heat is set at low. When the control light is orange, the
heat is set at medium. When the control light is red, the heat is set at high. When the control light is off, the
heater is turned off.
Bowl Light - Turns the light located on the underside of the seat on and off. Push once to turn on or off.
Auto Flush - Turns the auto flush feature on and off. To change the setting, push the button (usually twice)
until the light goes out.
Lid Touch - Opens or closes the lid.
Lid and Ring Touch - Opens or closes both the lid and the ring.
Verify Correct Seat Operation
Verify the seat and ring operate correctly.
NOTE: The lid and ring must calibrate end positions after the power is switched on/off. After touching
either button on the lid, the ring and lid will both close, then open separately. Do not touch either button
until the sequence is complete.
Touch the buttons at the front of the lid to verify operation.
Seat Position Action/Result
When the lid and ring
are down Pushing the large button will make both the ring and lid raise. Pushing the small button will make the lid raise.
When the lid and ring
are up Touching the large button will make both the ring and lid close. The small button will make only the lid close.
When the lid is up and
the ring is down Touching the large button will make the ring open. Touching the small button will make the lid close
NOTE: If any of the seat functions are not operating correctly, consult the seat troubleshooting guide in
this document.
Seat Troubleshooting Guide
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Auto Open
Seat Heater
Auto Flush
Lid Touch Button
Lid and Ring Touch Button
Bowl Light
1065104-5-A 4 Kohler Co.

Seat Troubleshooting Guide (cont.)
Symptoms Probable Causes Recommended Action
1. The lights do not light up. A. The light feature is not turned
on. A. Push the light button on the side of the hinge until the blue light on the
button turns on.
B. Electrical power is not
available. B1. Verify that the power cord (wall) is plugged into the outlet.
B2. Verify that the seat power cord is
plugged into the toilet power cord.
C. The GFCI or RCD is tripped. C. Reset the GFCI or RCD.
D. There is an electrical problem
with the outlet. D. Verify there is proper (120V) power at the wall outlet.
2. The seat does not
automatically go up and
down.
A. The auto open/close feature is
not turned on. A. Push the auto open/close button on the side of the hinge until the blue
light on the button turns on.
B. Electrical power is not
available. B1. Verify that the power cord (wall) is plugged into the outlet.
B2. Verify that the seat power cord is
plugged into the toilet power cord.
C. The GFCI or RCD is tripped. C. Reset the GFCI or RCD.
D. There is an electrical problem
with the outlet. D. Verify there is proper (120V) power at the wall outlet.
3. The seat goes only
partially up or down. A. The seat calibration is wrong. A. Toggle the auto open feature on/off and then touch either lid button to
start the calibration sequence again.
4. The seat does not get
warm. A. The seat heater is not turned on. A. Push the heated seat button on the side of the hinge until the desired
color light on the button turns on.
No color = off, Yellow = low,
Orange = medium, Red = warmest.
B. Electrical power is not
available. B1. Verify that the power cord (wall) is plugged into the outlet.
B2. Verify that the seat power cord is
plugged into the toilet power cord.
C. The GFCI or RCD is tripped. C. Reset the GFCI or RCD.
D. There is an electrical problem
with the outlet. D. Verify there is proper (120V) power at the wall outlet.
5. The auto flush feature
does not work. A. The auto flush feature is not turned on. A. Push the auto flush button on the side of the hinge until the blue light
on the button turns on.
B. Electrical power is not
available. B1. Verify that the power cord (wall) is plugged into the outlet.
B2. Verify that the seat power cord is
plugged into the toilet power cord.
C. The GFCI or RCD is tripped. C. Reset the GFCI or RCD.
D. There is an electrical problem
with the outlet. D. Verify there is proper (120V) power at the wall outlet.
Troubleshooting Guide
This troubleshooting guide is for general aid only. A Kohler Authorized Service Representative or qualified
electrician should correct all electrical problems. For warranty service, contact your dealer or wholesale
distributor.
Kohler Co. 5 1065104-5-A

Troubleshooting Guide (cont.)
Symptoms Probable Causes Recommended Action
1. The toilet does not flush. A. Various. A. Perform the troubleshooting steps
below.
2. The toilet randomly
flushes 2 times. A. The tank is overfilling. A. Immediately perform the troubleshooting steps or turn the
water off. Turn the water back on
when troubleshooting.
To troubleshoot this toilet you must first:
NOTE: If the toilet supply cord is damaged, it must be replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
Unplug the toilet or turn off the power.
If needed, turn on the water supply.
Plug the toilet back in or turn the power back on.
IMPORTANT! When the power is turned on, the toilet may flush three times and then function correctly.
No action is needed if this happens.
Note the results (how many times the toilet flushes, whether it operates normally).
Consult the chart below. Perform the recommended action.
Symptoms Probable Causes Recommended Action
1. The toilet flushes 3 times,
then operates normally. A. The fill valve is not turning off. A. Repair or replace the fill valve.
B. The motorized valve is not
closing. B. Repair or replace the motorized valve.
2. The toilet flushes 5 times. A. The level switch has an
intermittent connection. A. Repair of replace the level switch.
B. The level switch is stuck in the
up position. B. Repair or replace the level switch.
C. The level switch is not properly
connected. C. Reconnect the level switch properly.
D. The level switch does not move
freely. D. Replace the level switch.
3. The toilet fails to operate. A. There is a problem with the
wiring. A. Check the wiring and connect the power.
B. The GFCI or RCD tripped. B. Reset the GFCI or RCD (if
applicable).
C. There is a problem with the
pump connection. C. Check the pump connection.
D. The actuation switch is not
properly connected. D. Check the actuation switch connection.
E. The level switch is not properly
connected. E. Check the level switch connection.
F. The pump assembly does not
work. F. Replace the pump assembly.
G. The actuation assembly does not
work. G. Replace the actuation assembly.
One-Year Limited Warranty
KOHLER plumbing products are warranted to be free of defects in material and workmanship for one year
from date of installation.
Kohler Co. will, at its election, repair, replace or make appropriate adjustment where Kohler Co. inspection
1065104-5-A 6 Kohler Co.

One-Year Limited Warranty (cont.)
discloses any such defects occurring in normal usage within one (1) year after installation. Kohler Co. is not
responsible for removal or installation costs. Use of in-tank toilet cleaners will void the warranty.
To obtain warranty service contact Kohler Co. either through your Dealer, Plumbing Contractor, Home
Center or E-tailer, or by writing Kohler Co., Attn.: Customer Service Department, 444 Highland Drive,
Kohler, WI 53044, USA, or by calling 1-800-4-KOHLER from within the USA, 1-800-964-5590 from within
Canada and 001-877-680-1310 from within Mexico.
Implied warranties including that of merchantability and fitness for a particular purpose are expressly
limited in duration to the duration of this warranty. Kohler Co. and/or seller disclaims any liability for
special, incidental or consequential damages.
Some states/provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or
limitation of special, incidental or consequential damages so these limitations and exclusions may not apply
to you. This warranty gives you specific legal rights. You may also have other rights which vary from
state/province to state/province.
This is Kohler Co.’s exclusive written warranty.
Kohler Co. 7 1065104-5-A

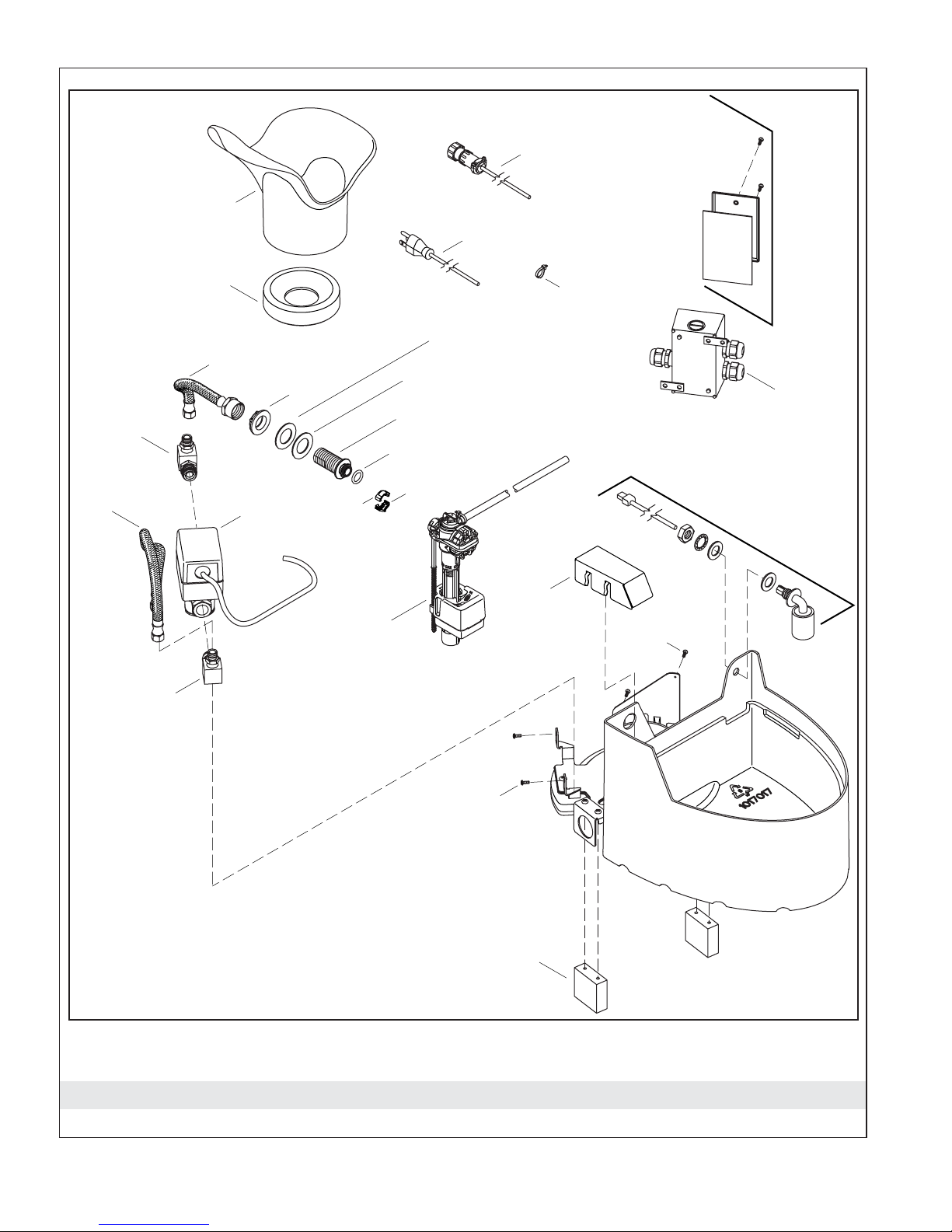

Service Parts
**Finish/color code must be specified when ordering.
1024576
Block
1030580
Valve
1032285
Inlet Nipple
1032285
Inlet Nipple
1020497
Braided Hose
1017207
Gasket
1098269
Tank Assembly
1017206
Collar
1031167
Water Sensor
1024416
Screw
1037611
Braided
Hose
1030579
Power Cord
1030578
Cord
38820
O-Ring
1023378
Gasket
1023378
Gasket
84678
Nut
1017874
Spray Shield
1018085
Inlet
1097551
Fill Valve
1033015
Junction Box
1034173
Cover Packet
1030800
Cable Tie
1024416
Screw
1006734
Nut
1006734
Nut
1065104-5-A 8 Kohler Co.

1030800
Cable Tie
**Finish/color code must be specified when ordering.
1023470
Spud
1025459
Switch
1037289
Washer
1018068
Refill Tube
1043214
Connector Kit
1020601
Connector
1069393
Pump Assembly
1084311
1022454
Priming Device
1025461
Tube
1023643
Hose Clamp
1023643
Hose Clamp
1017532
1017531
1017533
Washer
1017270
Tube
1017269
Tube
1023505
Clamp
1023505
Clamp
83040
Clamp
1061984
Bracket
1075496
Extension Cord
1042615**
Hold Down Kit
1070298**
Panel
Check Valve
Housing
Check Valve
Housing
1017534
Check Valve
Body
Pump Flush
Assembly
1023505
Clamp
1057635-CP**
Seat
1058368**
Large Button
1057639**
Small Button
1057645**
Mounting Hardware
1066791
Gasket
1066801
Gasket
Kohler Co. 9 1065104-5-A

Guide du propriétaire
W.C. sans réservoir
RENSEIGNEMENTS IMPORTANTS
CONSERVER CES INSTRUCTIONS
Instructions importantes de sécurité
Lors de l’utilisation d’appareillages électriques, spécialement lors de la présence d’enfants, suivre les
précautions de sécurité de base, y compris ce qui suit:
VEUILLEZ LIRE CETTE NOTICE AVANT D’UTILISER CET APPAREIL
DANGER : Pour réduire le risque d’électrocution:
•Raccorder uniquement à un boitier protégé par un Disjoncteur de Fuite de Terre (GFCI) ou un
appareil de courant résiduel (RCD).
•Ne pas utiliser pendant le bain.
•Ne pas placer ou laisser reposer dans des endroits où il pourrait tomber dans l’évier ou la baignoire.
•Ne pas placer ou faire tomber dans de l’eau ou autre fluide.
•Ne pas atteindre le siège de W.C. chauffé s’il est tombé dans l’eau. Débrancher la prise
immédiatement.
AVERTISSEMENT : Risque de blessures corporelles. Pour réduire le risque de brûlures,
d’électrocution, d’incendie ou de blessures corporelles, suivre ces précautions:
•Une surveillance attentive est nécessaire lorsque ce produit est à proximité ou utilisé par des enfants
ou des personnes invalides.
•N’utiliser le siège de W.C. chauffé que pour l’usage auquel il est destiné tel qu’indiqué dans ce
manuel. Ne pas utiliser des fixations non recommandées par le fabricant.
•Ne jamais utiliser le siège de W.C. chauffé si son cordon ou prise d’alimentation sont endommagés,
si il est tombé ou endommagé ou submergé dans de l’eau. Ce produit n’a pas de composants de
remplacement.
•Ne pas utiliser pendant le sommeil ou en état d’étourdissement.
•Éloigner le cordon d’alimentation électrique des surfaces chauffées.
•Ne pas utiliser à l’extérieur. Ne pas faire fonctionner dans des endroits où l’on emploit des produits
aérosols ou bien où l’on administre de l’oxigène.
Merci d’avoir choisi la compagnie Kohler
Merci d’avoir choisi la compagnie Kohler. Votre produit de la compagnie Kohler reflète la véritable passion
du design, d’artisanat, d’art et d’innovation représentant la compagnie Kohler. Nous sommes confiants que
sa fiabilité et beauté surpasseront vos exigences les plus élevées, vous satisfaisant pendant les années à venir.
Toute information contenue dans ce guide est basée sur l’information la plus récente du produit disponible
au moment de la publication. A la compagnie Kohler, nous aspirons à remplir notre mission d’améliorer le
niveau de vie gracieux pour chaque individu affecté par nos produits et services. Nous nous réservons le
droit d’apporter des modifications aux caractéristiques, emballages et disponibilités des produits à tout
moment, et ce sans préavis.
Veuillez prendre s’il vous plaît quelques minutes pour étudier ce guide. Prêter une attention toute
particulière aux instructions d’entretien et de nettoyage.
Kohler Co. Français-1 1065104-5-A
