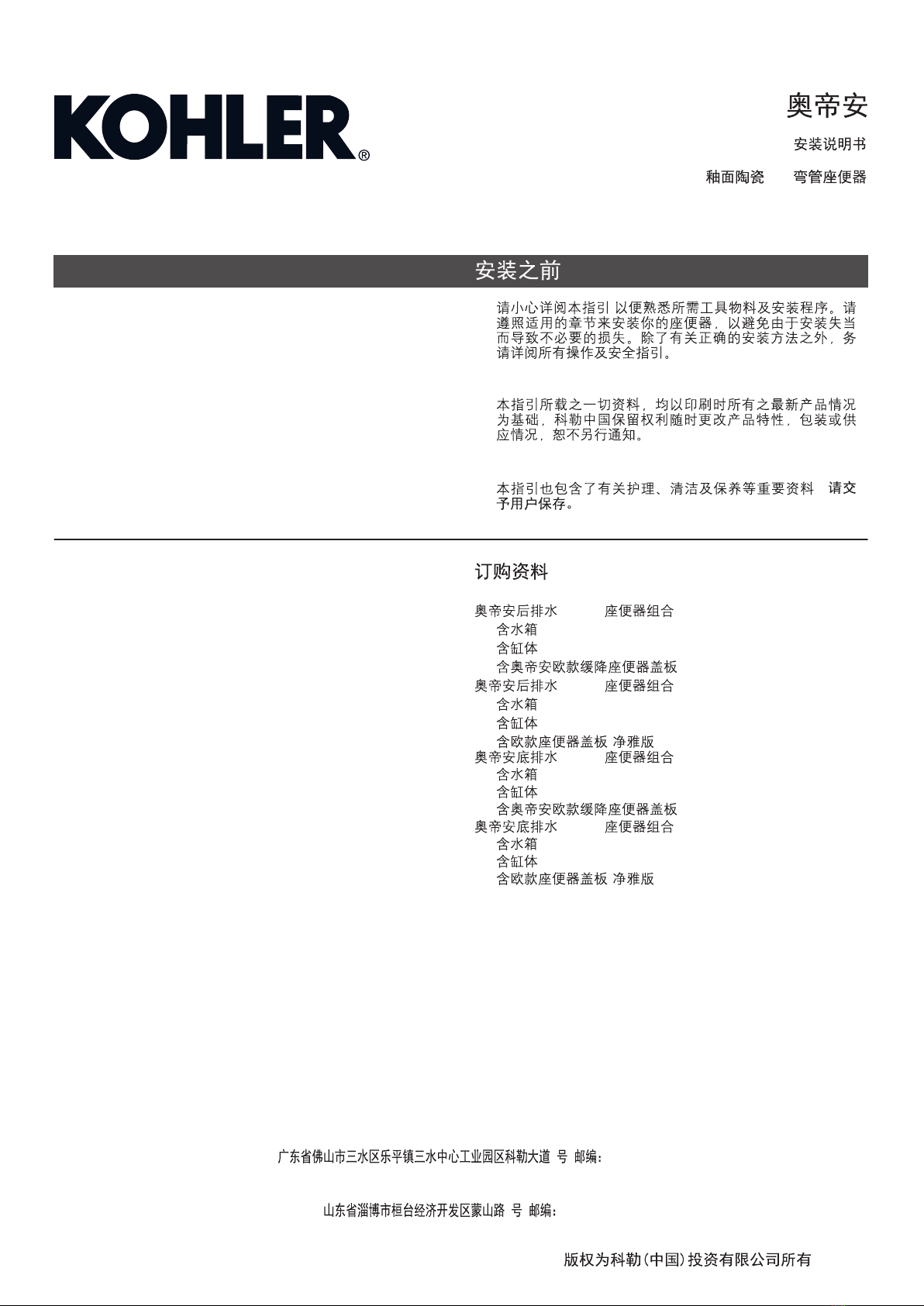

Kohler ODEON K-8711T-2 User manual

BEFORE YOU BEGINBEFORE YOU BEGIN
·
·
·
Please read these instructions carefully to familiarize
yourself with the required tools, materials, and installation
sequences. Follow the sections that pertain to your
particular installation. This will help you avoid costly
mistakes. In addition to proper installation, read all
operating and safety instructions.
All information in these instructions is based upon the
latest product information available at the time of
publication. Kohler China reserves the right to make
changes in product characteristics, packaging, or
availability at any time withoutnotice.
These instructions contain important care, cleaning, and
warranty information-please leave instructions for the
consumer.
ORDERING INFORMATION
ODEON P-trap 180mm Toilet .................................K-8711T-2
Includes Tank ........................................................K-8710T
Includes Bowl .....................................................K-8709T-2
Includes Quiet-close ...........K-8827T
ODEON P-trap 180mm Toilet .................................K-8711T-2
Includes Tank ........................................................K-8710T
Includes Bowl .....................................................K-8709T-2
Includes ...............................................K-8020T
®
®
®
ODEON Toilet Seat
Toilet Seat
·
·
·
,
-
·
180mm ..............................K-8711T-2
....................................................................K-8710T
.................................................................K-8709T-2
................................K-8827T
180mm ..............................K-8711T-2
....................................................................K-8710T
.................................................................K-8709T-2
( ).....................................K-8020T
-1-
INSTALLATION INSTRUCTIONS
VITREOUS CHINA P/S-TRAP TOILET
P/S-
P-TRAP 180mm K-8711T-S2/K-8711T-2
S-TRAP 305mm K-8766T-S2/K-8766T-2
ODEON
®
No.2 KOHLER ROAD, SANSHUI CENTRAL INDUSTRIAL PARK, LEPING TOWN, SANSHUI DIST., FOSHAN, GUANGDONG, PRC POST CODE 528137
2 528137
8# MENGSHAN RD, ECONOMIC DEVELOPMENT ZONE OF HUANTAI, ZIBO, SHANDONG, CHINA POST CODE: 256410
8 256410
©
©
Copyright Kohler China Investment Co., Ltd. 2016
2016
ODEON S-trap 305mm Toilet...............................K-8766T-S2
Includes Tank ........................................................K-8710T
Includes Bowl .....................................................K-8767T-2
Includes Quiet-close ...........K-8827T
ODEON S-trap 305mm Toilet .................................K-8766T-2
Includes Tank ........................................................K-8710T
Includes Bowl .....................................................K-8767T-2
Includes ...............................................K-8020T
®
®
®
ODEON Toilet Seat
Toilet Seat
305mm ...........................K-8766T-S2
....................................................................K-8710T
.................................................................K-8767T-2
................................K-8827T
305mm ..............................K-8766T-2
....................................................................K-8710T
.................................................................K-8767T-2
( ).....................................K-8020T
1037406-T01-N

NOTES
·
·
·
·
·
·
·
·
·
·
Observe all local plumbing and building codes.
Shut off the water supply.
Seat post holes are on 155mm (6-1/8") centers.
Passageways is 60mm (2-3/8").
Water depth from rim is 245mm (9-5/8")
Ensure that the new drain and shut-off valve have the
correct roughing-in dimensions. .
Be very careful while working with vitreous china products.
Vitreous china can break or chip if the bolts or nuts are
overtightened, or if carelessly handled.
Carefully inspect the new fixture for any sign of damage.
Fixture dimensions are nominal and conform to tolerances
established by ASME Standards (A112.19.2-2013).
The product complies with GB 6952-2015.
See Fig.#1
·
·
·
·
·
·
·
·
·
·
155mm(6-1/8")
60mm(2-3/8")
245mm(9-5/8")
1
ASME (A112.19.2-
2013)
GB 6952-2015
TOOLS AND MATERIALS REQUIRED
(Not supplied)
·
·
·
·
·
·
·
·
·
·
·
254mm adjustable wrench
Metal file (file cut)
Tape measure
Tubing cutter
Level
Hacksaw
Putty knife
Screwdriver
Straight pipe coupling
Connection packing
Toilet supply shut-off valve, 10mm (3/8") recommended
The fill valve
nut has been factory-tightened, wrench tighten 1/4 turn
past finger tight.
If no shut-off valve exists, install a shut-off valve
below the tank before installing the new toilet.
Flexible hose are recommended to connect the supply line to
the fill valve. If you use a rigid connection, take care not to
apply side forces to the bottom of the fill valve.
WARNING: Risk of external leakage.
NOTICE:
·
·
·
·
·
·
·
·
·
·
·
254mm
10mm(3/8")
1/4
-2-
1037406-T01-N

1. REMOVE EXISTING TOILET
Turn off water supply. flush the toilet and use a sponge to
remove the remaining water from the tank and bowl.
Disconnect the supply shut-off valve (if present) and remove
the old tank and bowl.
1.
()
ROUGHING-IN
Fig.#1
1
INSTALLATION
Unit:mm
:
-3-
Reference Value
Kohler reserves the right to change marked dimensions without prior notice.
204
776 10
392
93
474
305
K-8766T-S2/K-8766T-2
736
344
259
363
162
155
430
390
Finished
Wall
S-trap
12.5~30
Finished Floor
698
337
267
362
166
155
429
390
204
777 10
388
90
396
180
159
102
K-8711T-S2/K-8711T-2
Finished
Wall
P-trap
Finished Floor
1037406-T01-N

3. SELECT P-TRAP OR S-TRAP to installation
your toilet according to the drain and shut-off valve's
Roughing-in dimensions.
2. ASSEMBLE TANK BOLTS&WASHERS
Slip bolt heads into mounting hole on bottom of tank. Place
large foam washer on base of flush valve.
Place tank on bowl and attach with nuts and washers from
under bowl.
See Fig. #2a.
See Fig.#2b.
NOTE: Do not use white cement or high lime content
cements to install this toilet. The expansion of cement due to
a rise in temperature may make the toilet crack or cause
damage. Kohler is not responsible for any damage caused by
installation with the use of cement.
2.
2a
2b
3.
Fig.#2a
2a
Fig.#3a
3a
Fig.#3b
3b
S-trap installation P-trap installation
Fig.#2b
2b
100
120
180
50
180
-4-
100
120
60
Note: This connector is not supplied.
255/305
255/305
1037406-T01-N

4 Connect fill valve to water supply with hose only. 4
4. INSTALL THE TOILET & CONNECT WATER SUPPLY
Place the toilet in its final location. Use plastic drill guide and
8mm drill bit to drill floor mounting holes for installation over
concrete. Use 4mm to 4.5mm drill for wood floor installation.
.
3
See Fig.#4a
Install anchors and caps.
WARNING: Do not overtighten floor bolts, as damage
to the vitreous can occur.
4.
8mm
4-4.5mm
4a
3
NOTE: use hose only, length:
200-300mm mini.
(Not provided.)
200-300mm
()
4
Fig. #4a
4a
NOTE: Do not use white cement or high lime content
cements to install this toilet. The expansion of cement due to
a rise in temperature may make the toilet crack or cause
damage. Kohler is not responsible for any damage caused by
installation with the use of cement.
-5-
1037406-T01-N

5.CHECK WATER LEVEL
Turn on water supply check for leaks.
5.
Make sure the arrow on the green float on the white flush
valve is secure and pointing to#6.
6
Fig. #5
5
-6-
Float
6
6.
OPEN
6. MINOR ADJUSTMENT OF WATER
LEVEL
Move the snap along "OPEN" direction.
To lower water level: Move water cup
down to a proper height and rotate
screw anticlockwise to achieve the
desired water level. (Refer to float
adjustment instructions.)
To elevate water level: Rotate screw
clockwise and raise float to the desired
water level. Elevate water cup to a
proper position as well. (Refer to float
adjustment instructions.)
Fig.#6a
6a
Fig.#6b
6b
Fig.#6c
6c
Screw
Snap
SCALE
5:1
OPEN
CLOSE
1037406-T01-N

-7-
Fig. #7
7
7. ADJUST OVERFLOW HEIGHT (If necessary)
Adjust overflow tube so that the top is 20mm above the
waterline. Push locking mechanism to the side and adjust
tube height. Push locking mechanism back into position to
lock tube height. See Fig.#7.
7. ( )
20mm
7
1
maxi
2
CLOSE
E G 2-4mm
Fasten the snap along "CLOSE"
direction.
Float adjustment instructions: Make
sure the height of surface E is 2-4mm
lower than surface G.
Fig.#6d
6d
Fig.#6e
6e
Screw
E
Float
Water Cup G
SCALE
5:1
OPEN
CLOSE
1037406-T01-N

Fig. #8
8
-8-
9. Install the toilet seat according to the toilet seat installation
instructions.
9.
8. INSTALL AND ADJUST PUSH BUTTONS
(1) Fix tank cover onto the tank.
(2) Unscrew the big white nut on the push button and insert
the button into the hole on the tank.
(3) Test the push buttons.
1) No need for any adjustment if the rods just touch the
push buttons on the flush valve.
2) If the rods are tightly against the push buttons on the
flush valve, take out the buttons, loosen the small nuts
and screw clockwise until the rods just touch the push
buttons on the flush valve.
3) If the rods cannot touch the push buttons on the flush
valve, take out the buttons, loosen the small nuts and
screw anticlockwise until the rods just touch the push
buttons on the flush valve.
(4) Take out the buttons and tighten the small nuts.
(5) Tighten the big nut from inside the tank.
(6) Test flush several times to check for leakage.
8.
(3)
1)
2)
3)
(4)
(5)
(6)
(1)
(2)
Push Button
Tank Cover
Rubber Sleeve
Small Nut
1037406-T01-N

SYMPTOMS PROBABLE CAUSES CORRECTIVE ACTION
TROUBLESHOOTING CHARTTROUBLESHOOTING CHART
1. Float valve turns on/off
by itself without toilet
being flushed.
2. Float valve continues
to run, allowing water
to enter tank.
3. Incorrect water level
height.
4. Long or noisy tank fill
5. Poor flush.
6. Toilet overflows.
A. Flush valve seal worn, dirty or damaged.
A. Float height incorrect.
A. Plugged valve inlet or supply line.
A. Water usage is too low.
B. Trapway obstructed.
C. Soil pipe or vent is obstructed.
D. Supply shut-off valve not fully open.
A. Toilet trapway is obstructed.
B. Soil pipe or vent is obstructed.
A. Inspect, clean and, if necessary replace seal.
A. Refer to "Minor Adjustment of Water Level" for
waterline adjustment.
A. Perform corrective action 2.A.
A. Adjust the water level.
B. Unclog trapway.
C. Clear obstruction from soil pipe or vent.
D. Open supply shut-off valve.
tank
A. Use plunger to unclog.
B. Clear obstruction from soil pipe or vent pipe.
A. Float valve seal (located under float valve cap)
may be cracked or split.
B. Tank water level set above overflow level.
A.
B. During fill cycle, hold float under water a few
seconds to allow it to fill with water ballast.
Refer to "Minor Adjustment of Water Level" for
waterline adjustment.
Replace seal.
1.
/
2.
A.
A. ( )
B.
A.
A.
B.
3. A.A.
4. A. 2AA.
5.
6.
A.
B.
C.
D.
A.
B.
A.
B.
C.
D.
A.
B.
-9-
1037406-T01-N

0C
o
CONSUMER RESPONSIBILITIES
If you live in a hard water area, make certain that the holes in
the toilet rim are kept clean to ensure proper bowl flushing.
Toilet bowl cleaners should be used at least once a week.
Use a long-handled brush to clean the rim holes, and to clean
as far into the trap as possible to prevent mineral deposits
from forming.
Most toilet bowl cleaners are not harmful to the vitreous china
surface of the toilet bowl. Please follow the bowl cleaner
manufacturers instructions carefully.
Do not use abrasive cleaners or solvents.
Do not use in-tank cleaners. Products containing
chlorine (calcium hypochlorite) can seriously damage
fittings in the tank. This damage can cause leakage
and property damage.
Kohler Company shall not be responsible or liable for any
damage to these tank fittings caused by the use of cleaners
containing chlorine (calcium hypochlorite).
WARNING: Risk of property or product damage.
'
Please do not use hard materials (like
scouring pad) to clean product surface, especially the
product logo.
CAUTION:
CAUTION: Don t use any cement while installing
the toilet.
WARNING: Risk of product damage.
Heat expansion of the toilet may damage
the feet of the toilet. Kohler will not be responsible for
any damage because of using cement.
Do not throw into the toilet what is easy to block it,
such as newspaper, paper pilch, sanitary towel.
Do not bump the vitreous china with great force to
prevent it from damaging and leaking.
Do not use the product in the water below 0 C.
o
-10-
1037406-T01-N
