Kohler Quiet-Close C3-455 Assembly instructions

Homeowners Guide
Cleansing Seat
Français, page “Français-1”
Español, página “Español-1”
1381632-5-A

IMPORTANT SAFEGUARDS
READ ALL INSTRUCTIONS BEFORE
USING
When using electrical products, especially when children are present,
basic safety precautions should always be followed, including the
following:
WARNING: Risk of personal injury. Do not remove the UV
lamp protective cover. Eye damage may result from viewing
the UV light directly. Always be certain the lamp is off before
opening the protective cover.
CAUTION: Risk of personal injury. Replacement of the UV
lamp must only be performed by qualified service personnel.
IMPORTANT! Risk of product damage. Do not install this product
in a location exposed to excessive moisture where condensation
might form on the product surface. Provide adequate ventilation
when bathing to avoid damage to the electronic components due to
high humidity levels.
IMPORTANT! Risk of product or property damage. Pushing or
pulling on the water connection may cause water leakage.
IMPORTANT! Risk of product damage. Do not apply excessive
force to the spray wands.
IMPORTANT! Risk of product damage. In areas where water may
freeze in the pipes, make arrangements to keep the pipes warm.
Any water remaining in the seat may freeze during winter storage.
Allow the unit to warm to room temperature before reinstalling or
using.
IMPORTANT! Risk of product damage. Do not supply electrical
power to the unit until the plumbing installation work has been
completed, as it may cause the product to malfunction.
NOTE: The thermal protectors may trip during storage or
transportation in warm weather causing the unit to not operate.
Allow the unit to cool to room temperature before installation or
operation.
1381632-5-A 2 Kohler Co.

IMPORTANT SAFEGUARDS (cont.)
DANGER: To reduce the risk of electrocution:
Do not use while bathing.
Do not place or store this product where it can fall or be pulled
into a bath or sink.
Do not place in or drop into water or other liquid.
Do not reach for a product that has fallen into water. Unplug
immediately.
WARNING: To reduce the risk of burns, electrocution, fire,
or injury to persons:
Close supervision is necessary when this product is used by or
near children, the elderly, or invalids. Adjust the temperature of
the seat for the elderly, those who are incapacitated, or persons
with sensitive skin.
Use this product only for its intended use as described in this
manual. Only use attachments recommended by Kohler Co.
Never operate this product if it has a damaged cord or plug, if it
is not working properly, if it has been dropped, damaged, or
dropped into water. Return the product for examination and
repair.
Keep the cord away from heated surfaces.
Never block the air openings of the product or place it on a soft
surface, such as a bed or couch, where the air openings may be
blocked. Keep the air openings free of lint, hair, and the like.
Never use while sleeping or drowsy.
Never drop or insert any object into any opening or hose.
Do not use outdoors or where aerosol spray products are being
used or where oxygen is administered.
Connect this product to a properly grounded outlet only. See the
“Grounding Instructions” section.
This product conforms to applicable provisions of US 21 CFR,
Chapter 1, Subchapter J, Radiological Health.
SAVE THESE INSTRUCTIONS
Kohler Co. 3 1381632-5-A

Grounding Instructions
WARNING: Risk of electric shock. Connect only to a circuit
protected by a Class A Ground-Fault Circuit-Interrupter
(GFCI)*, which protects against line-to-ground shock hazard.
Use a 120 V, 15 A, 60 Hz service.
This product should be grounded. In the event of an electrical
short circuit, grounding reduces the risk of electric shock by
providing an escape wire for the electric current. This product is
equipped with a cord having a grounding wire with a grounding
plug. The plug must be plugged into an outlet that is properly
installed and grounded.
DANGER: Risk of electric shock. Improper use of the
grounding plug can result in a risk of electric shock.
If repair or replacement of the cord or plug is necessary, do not
connect the grounding wire to either flat blade terminal. The wire
with insulation having an outer surface that is green with or
without yellow stripes is the grounding wire.
Check with a qualified electrician or service personnel if the
grounding instructions are not completely understood, or if in
doubt whether the product is properly grounded.
Do not use an extension cord with this product.
*Outside North America, this device may be known as a Residual
Current Device (RCD).
Grounded
Outlet
Cover
Screw
Adapter
Grounding
Plug
Grounding
Screw Tab
Temporary ConnectionPreferred Connection
1381632-5-A 4 Kohler Co.

Grounding Instructions (cont.)
NOTICE: Follow local codes when determining the connection
type. The temporary connection may not be permitted by local
electrical codes.
NOTICE: To avoid possible product malfunction, do not plug in the
seat until instructed.
Preferred Connection
Connect the grounding plug into a grounded outlet that has the
same configuration as the plug.
Temporary Connection
NOTICE: Unless the outlet cover screw is grounded through the
house wiring, attaching the adapter grounding screw tab to the
cover screw will NOT ground the unit. If there is any doubt
whether the cover screw is grounded, have it checked by a qualified
electrician or service professional.
A temporary connection with a two-prong adapter may be used if
a properly grounded outlet is not available.
The temporary adapter should be used only until a properly
grounded outlet can be installed by a qualified electrician.
The green colored rigid ear, lug, and the like extending from the
adapter must be connect to a permanent ground such as a
properly grounded outlet box cover. Whenever the adapter is
used, it must be held in place by the screw.
Pairing a Remote Control
A remote control must be paired with the seat before use. The
remote included should already be paired with your seat. If a
replacement remote is required, follow the instructions below to
pair it with your seat.
Only one remote control can be paired with the seat at a time.
Bring the new remote control near the seat.
Make sure that all other remote controls have been removed from
the area of the seat.
Press and hold the ″Dryer″icon until the icon flashes.
Simultaneously press and hold the ″Front″and ″Rear″icons on
the seat until a beep is heard.
Kohler Co. 5 1381632-5-A

Pairing a Remote Control (cont.)
When the ″Dryer″icon on the remote control stops flashing and
the ″Preset 1″and ″Preset 2″icons are no longer illuminated, the
remote control has been successfully paired with the seat.
1381632-5-A 6 Kohler Co.

Remote Control Operation
NOTE: For features with multiple settings, press the icon to move
the setting one level higher. If the feature is set at the highest level,
pressing the icon will deactivate it or adjust it to a lower setting.
NOTE: Make sure that four AA batteries are installed correctly in
the remote control.
A - Preset 1 and Preset 2:
The presets allow two users to save their feature settings. When
″Preset 1″or ″Preset 2″are selected, the saved preferences will
activate. Refer to the ″User Presets″sections below.
B - Deodorizer:
Press the ″Deodorizer″icon to activate the deodorizer. Press the
″Stop″icon to deactivate.
To disable the deodorizer, press and hold the ″Deodorizer″icon
for 3 seconds until the icon blinks. Release and press the icon
again. A long beep indicates that the deodorizer is disabled.
Remote Control
ABC D
MLK JHG F E
Panel
NPQ
Kohler Co. 7 1381632-5-A

Remote Control Operation (cont.)
To enable the deodorizer, press and hold the ″Deodorizer″icon
for 3 seconds until the icon blinks. Release and press the icon
again. A short beep indicates that the deodorizer is enabled.
C - Clean:
To run the 45-minute UV disinfecting cycle, press the ″Clean″
icon.
Lift the seat lid to end the UV disinfecting cycle.
The UV disinfecting cycle automatically runs every 24 hours.
To disable UV disinfecting, press and hold the ″Clean″icon for 3
seconds until the icon blinks. Release and press the icon again. A
long beep indicates that UV disinfecting is disabled.
To enable UV disinfecting, press and hold the ″Clean″icon for 3
seconds until the icon blinks. Release and press the icon again. A
short beep indicates that UV disinfecting is enabled.
D - Battery Indicator:
Shows the status of the battery charge.
When the battery is at 100%-50% charge, the icon is off.
When the battery is at 49%-20% charge, the icon flashes for 4
seconds after the last icon is pushed.
When the battery is at 19% or less charge, the icon glows for 4
seconds after the last icon is pushed.
E - Dryer:
Press the ″Dryer″icon once to activate the dryer. Press again to
increase the air temperature. There are six settings.
F - Seat Temp:
Press the ″Seat Temp″icon to activate the heated seat. Press again
to increase the temperature. There are five settings.
G - Water Temp:
Press the ″Water Temp″icon to adjust the water spray
temperature. There are five settings.
H - Position:
Press the ″Position″icon to adjust the wand position when front
or rear wash is active. There are five settings.
1381632-5-A 8 Kohler Co.

Remote Control Operation (cont.)
J - Pulsate + Oscillate:
When front or rear wash is active, press the ″Pulsate + Oscillate″
icon once to oscillate the wand back and forth. Press again to
pulsate the water flow. Press a third time to oscillate and pulsate
simultaneously. Press again to turn off the feature.
K - Rear:
Press the ″Rear″icon to activate the rear wash feature and adjust
the rear wash water pressure.
L - Front:
Press the ″Front″icon to activate the front wash feature and
adjust the front wash water pressure.
M - Stop:
Press the ″Stop″icon to stop the front wash, rear wash, and dryer
features.
N - Rear:
Press the ″Rear″icon to activate the rear wash feature and adjust
the rear wash water pressure.
P - Front:
Press the ″Front″icon to activate the front wash feature and
adjust the front wash water pressure.
Q - Stop:
Press the ″Stop″icon to stop the front wash, rear wash, and dryer
features.
Setting the User Presets
NOTE: The presets allow two users to save their feature settings.
When ″Preset 1″or ″Preset 2″are selected, the saved preferences
will activate.
While seated, adjust the seat features to your preferences.
Press and hold the ″Preset 1″or ″Preset 2″icon for 3 seconds to
save activated features at the current settings.
To change a setting, adjust the front wash, rear wash, or dryer
feature while the preset is in use. Press and hold the ″Preset 1″or
″Preset 2″icon for 3 seconds to store the new setting to memory.
Using the User Presets
Kohler Co. 9 1381632-5-A

Remote Control Operation (cont.)
Press the ″Preset 1″or ″Preset 2″icon while you are seated to
activate front wash, rear wash, dryer temperature and speed, and
seat temperature at your stored settings.
If the ″Preset 1″or ″Preset 2″icon is pressed while the seat is not
occupied, the seat will gradually (approximately 2 minutes)
change to the preset temperature.
To reset or delete a preset, press and hold the ″Preset 1″or
″Preset 2″and the ″Stop″icons at the same time for 3 seconds.
Nightlight
To turn ON the nightlight, press the ″Stop″icon on the panel.
To turn OFF the nightlight, press and hold the ″Stop″icon on the
panel for 3 seconds.
To disable the nightlight, press and hold the ″Front″icon on the
remote for 3 seconds, until the icon blinks. Release and press the
icon again. A long beep indicates the nightlight is disabled.
To enable the nightlight, press and hold the ″Front″icon on the
remote for 3 seconds, until the icon blinks. Release and press the
icon again. A short beep indicates the nightlight is enabled.
Care and Cleaning
For best results, keep the following in mind when caring for your
KOHLER product:
IMPORTANT! Do not immerse product in water.
•Always test your cleaning solution on an inconspicuous area
before applying to the entire surface.
•Use a soft, dampened sponge or cloth to wipe surfaces clean.
Remove the cleaner quickly after applying. Rinse and dry any
overspray that lands on nearby surfaces.
•Do not allow cleaners to soak on surfaces.
•Never use an abrasive material such as a brush or scouring pad
to clean surfaces.
For detailed cleaning information and products to consider, visit
kohler.com/clean. To order Care & Cleaning information, call
1-800-456-4537.
1381632-5-A 10 Kohler Co.

Cleaning the Wand
NOTE: The spray wand can only be extended for cleaning when
the seat is not activated or occupied.
Raise the lid and seat.
Press the ″Position″icon on the panel to extend the wand
forward for cleaning.
Clean the spray wand with a soft-bristled brush and hot water.
Press the ″Position″icon again to retract the wand.
Spray
Wand
Kohler Co. 11 1381632-5-A

Cleaning the Screen
NOTE: Clean the filter screen every 6 months or when there is a
reduction in the maximum water flow from the spray wand.
Turn off the water at the supply stop.
Press the release button to disengage the seat from the mounting
bracket. Refer to the ″Removing the Seat″Section.
Slide the seat forward to allow access to the hose inlet.
Disconnect the water supply hose from the seat connection.

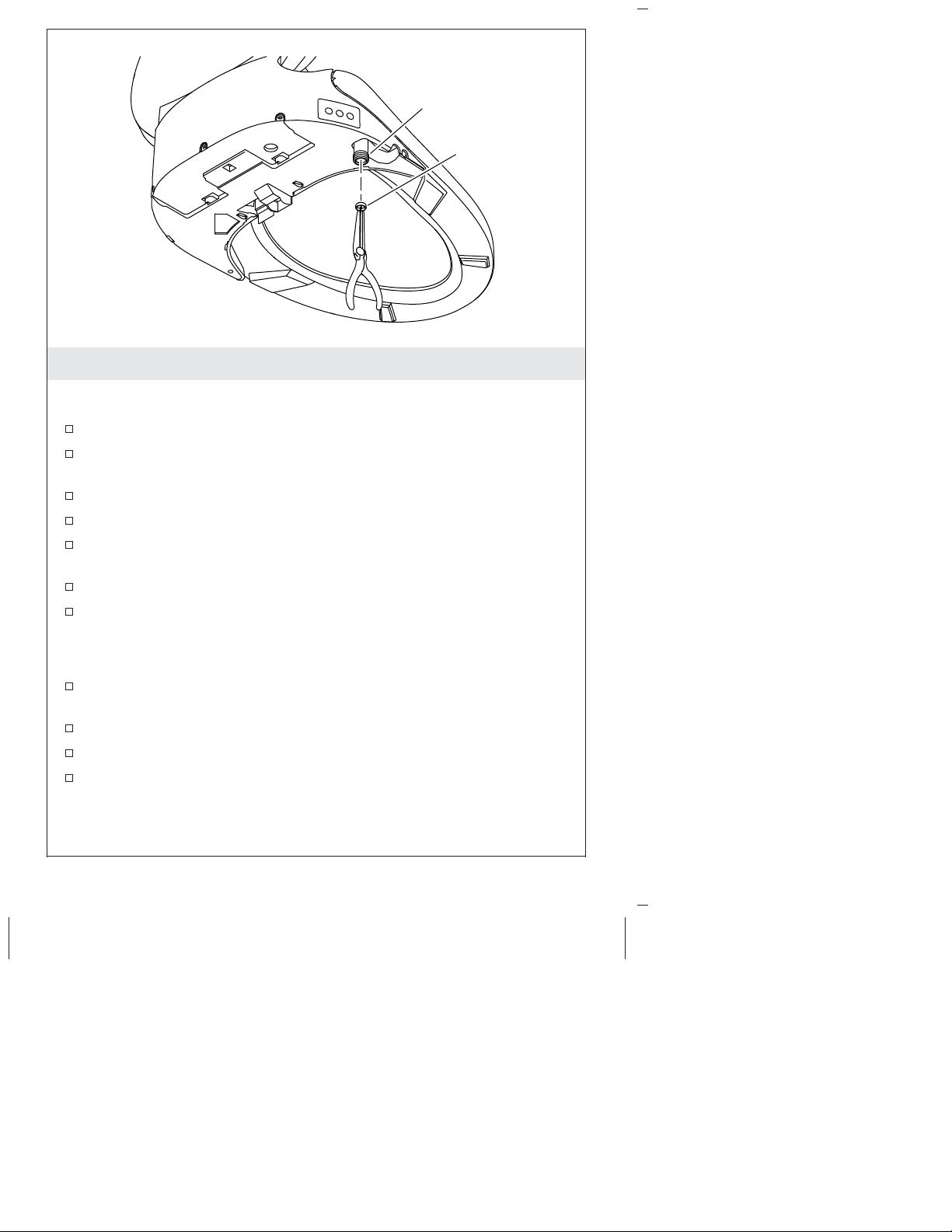

Using long-nosed pliers, carefully remove the filter screen from
the inlet.
Clean the filter screen with a soft-bristled brush.
Reinstall the filter screen.
CAUTION: Risk of product damage. Do not cross-thread the hose
connection to the inlet.
Reconnect the water supply hose to the inlet, one-quarter turn
past hand tight.
Reinstall the seat.
Turn on the water supply.
Check all connections for leaks, and make any adjustments as
needed.
Filter Screen
Inlet
1381632-5-A 12 Kohler Co.

Replacing the Deodorizer
NOTE: The deodorizer should be replaced every two years or when
the deodorizing performance decreases.

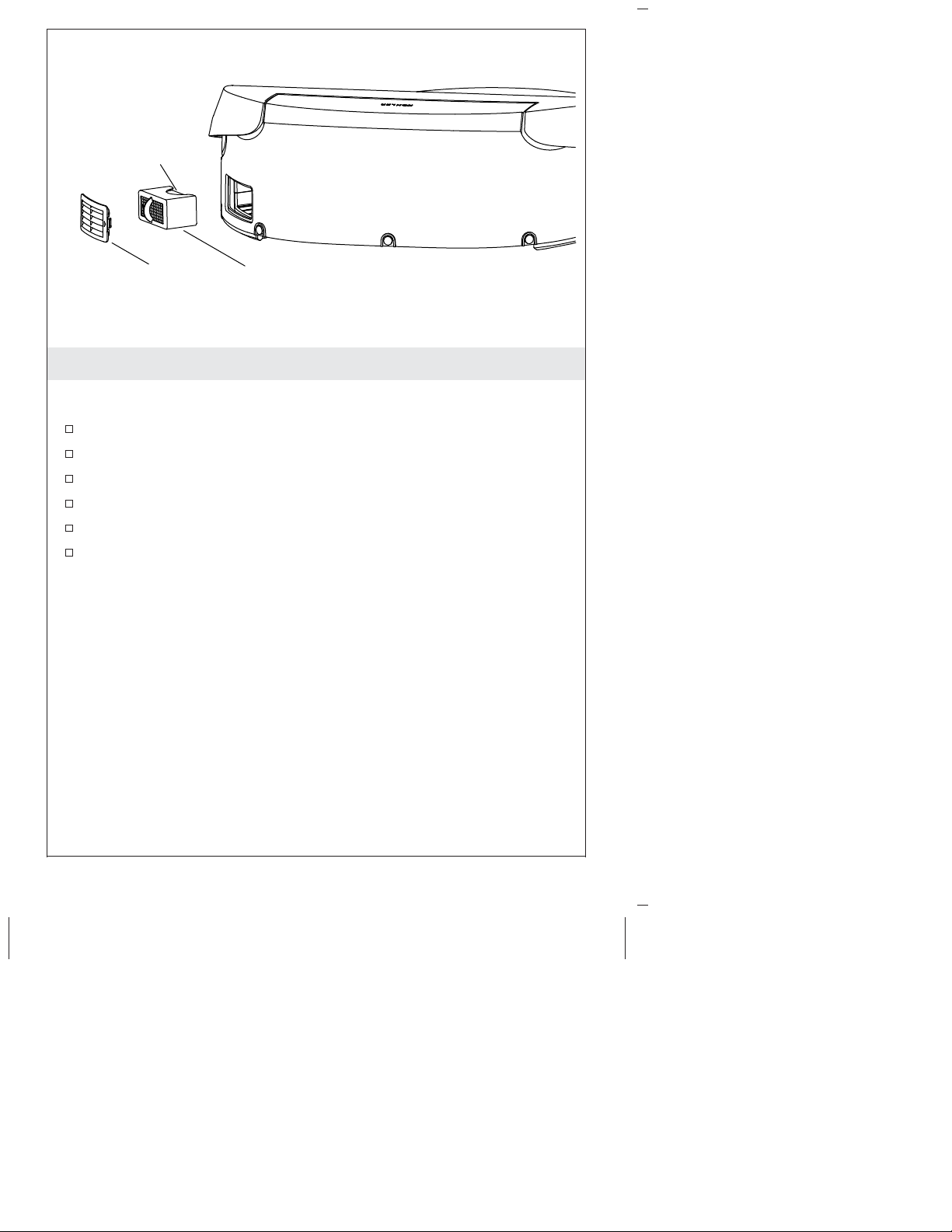

Remove the cover.
Carefully remove the deodorizer housing from the seat.
Remove the deodorizer block from the housing.
Insert the new deodorizer block in the housing.
Reinstall the housing into the seat.
Reinstall the cover.
Housing
Cover
Deodorizer
Block
Kohler Co. 13 1381632-5-A

Removing the Seat
For Cleaning
IMPORTANT! When removing the seat for cleaning, take care to
avoid exerting any force on the hose connections.
Press the release button.
Slide the seat forward to access the area around the mounting
plate. Avoid putting pressure on the hoses.
Clean the area as needed.
To reinstall, slide the seat back until it engages the mounting
plate.
For Servicing
Turn off the water at the supply stop.
Flush the toilet to relieve any pressure from the supply hose.
Unplug the power cord from the electrical outlet.
Disconnect the water supply hose from the T-valve.
Press the release button.
Slide the seat forward to disengage from the mounting plate.
When servicing is complete, reinstall the seat and reconnect all
components.
Release
Button
Mounting
Plate
1381632-5-A 14 Kohler Co.

Servicing the Batteries
Remove the remote control from the remote dock.
Open the door to the battery compartment.
Remove the batteries.
Install the replacement batteries, oriented as shown.
Close the door to the battery compartment.
Reinstall the remote control to the remote dock.
Troubleshooting
This troubleshooting guide is for general aid only. A Kohler Co.
Authorized Service Representative (ASR) or qualified electrician should
correct any electrical problems.
For warranty service, contact the Customer Care Center using the
numbers located on the back page of this manual.
Cleansing Features
Symptoms Probable Causes Recommended Action
1. The seat
features are not
working.
A. A power failure
has occurred. A. Wait until power is restored.
B. The power cord is
unplugged. B. Plug the power cord into a GFCI or RCD
electrical outlet.
Kohler Co. 15 1381632-5-A

Troubleshooting (cont.)
Cleansing Features
Symptoms Probable Causes Recommended Action
C. The Ground-Fault
Circuit-Interrupter
(GFCI) or Residual
Current Device
(RCD) is tripped.
C. Reset the GFCI or
RCD.
D. The user is not
detected by the
seat sensor.
D1. Small children may
be too light to be
detected by the
sensor.
D2. Shift your position
on the seat. The
sensor is located on
the front of the seat.
2. The seat is
loose. A. The mounting plate fasteners are
loose.
A. Tighten the fasteners.
Refer to the
Installation Guide.
3. Water stops
flowing from
the spray
wand before
cleansing is
complete.
A. Washing
automatically stops
1 minute after
pressing a spray
icon.
A. Press the ″Front″or
″Rear″icon to restart
cleansing.
B. The user shifted
position and is no
longer detected by
the seat sensor.
B. Shift your position
on the seat. The
sensor is located on
the front of the seat.
Remote Control Compliance
FCC ID: N82-KOHLER024, N82-KOHLER025
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
1381632-5-A 16 Kohler Co.

Remote Control Compliance (cont.)
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
CANADA IC: 4554A-KOHLER024, 4554A-KOHLER025
This device complies with Industry Canada licence-exempt RSS
standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference, including interference that
may cause undesired operation of the device.
Under Industry Canada regulations, this radio transmitter may only
operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential
radio interference to other users, the antenna type and its gain should
be so chosen that the equivalent isotropically radiated power (EIRP) is
not more than that necessary for successful communication.
Kohler Co. 17 1381632-5-A

Guide du propriétaire
Siège nettoyant
Mesures de sécurité importantes
Lire toutes les instructions avant
utilisation
Lors de l’utilisation de produits électriques, et en particulier en
présence d’enfants, toujours observer les mesures de sécurité
fondamentales, notamment :
AVERTISSEMENT: Risque de blessures. Ne pas retirer le
couvercle de protection de la lampe UV. Les yeux pourraient
subir des lésions lorsque l’on regarde directement dans la
lumière UV. Toujours s’assurer que la lampe est éteinte avant
d’ouvrir le couvercle de protection.
ATTENTION: Risque de blessures. Le remplacement de la
lampe UV peut seulement être effectué par un personnel
d’entretien qualifié.
IMPORTANT! Risque d’endommagement du produit. Ne pas
installer ce produit dans un emplacement exposé à un excès
d’humidité et où de la condensation pourrait se former sur la
surface du produit. Fournir une ventilation adéquate lors des bains
afin d’éviter d’endommager les composants électroniques en raison
de niveaux d’humidité élevés.
IMPORTANT! Risque d’endommagement du produit ou de
dommages matériels. Des fuites d’eau pourraient se produire si l’on
pousse ou tire sur le raccord d’eau.
IMPORTANT! Risque d’endommagement du produit. Ne pas
appliquer de force excessive sur les baguettes de vaporisation.
IMPORTANT! Risque d’endommagement du produit. Prendre les
mesures nécessaires pour maintenir les tuyaux au chaud dans les
régions où l’eau pourrait geler dans les tuyaux. Toute l’eau qui reste
dans le siège pourrait geler pendant l’entreposage en hiver. Laisser
le dispositif se réchauffer à la température ambiante avant de le
réinstaller ou de l’utiliser.
Kohler Co. Français-1 1381632-5-A

Mesures de sécurité importantes (cont.)
IMPORTANT! Risque d’endommagement du produit. Ne pas
fournir d’alimentation électrique au dispositif avant d’avoir effectué
le travail d’installation de la plomberie, étant donné que cela
pourrait créer des problèmes de fonctionnement.
REMARQUE: Les protecteurs thermiques pourraient se déclencher
pendant l’entreposage ou le transport par temps chaud, et le
dispositif ne fonctionnera pas. Laisser le dispositif se refroidir à la
température ambiante avant de l’installer ou de l’utiliser.
DANGER: Pour réduire le risque d’électrocution :
Ne pas utiliser pendant un bain.
Ne pas placer ou entreposer ce produit dans un endroit où il
pourrait tomber ou d’où il pourrait être tiré et tomber dans une
baignoire ou un lavabo.
Ne pas placer et ne pas laisser tomber ce dispositif dans de l’eau
ou un autre liquide.
Ne pas essayer de récupérer un produit qui est tombé dans de
l’eau. Débrancher le dispositif immédiatement.
AVERTISSEMENT: Pour réduire le risque de brûlures,
d’électrocution, d’incendie ou de blessures personnelles :
Il est nécessaire de superviser de près lorsque ce produit est
utilisé par des enfants, des personnes âgées ou invalides, ou
lorsqu’il se trouve dans leur proximité. Ajuster la température du
siège pour les personnes âgées, les personnes frappées
d’incapacité, ou les personnes dont la peau est sensible.
Utiliser ce produit uniquement pour l’usage auquel il est destiné,
tel que décrit dans ce manuel. Uniquement utiliser des accessoires
recommandés par Kohler Co.
Ne jamais faire fonctionner ce produit si son cordon ou sa prise
sont endommagés, s’il ne fonctionne pas correctement, s’il est
tombé, s’il est endommagé, ou s’il est tombé dans de l’eau.
Retourner le produit pour le faire examiner et réparer.
Tenir le cordon à distance de surfaces chauffées.
Ne jamais bloquer les ouvertures d’air du produit et ne jamais le
placer sur une surface molle, comme un lit ou un divan, à un
emplacement ou les ouvertures d’air pourraient être bloquées.
S’assurer de l’absence de peluches, de cheveux ou d’autres
éléments similaires sur les ouvertures d’air.
Kohler Co. Français-2 1381632-5-A

Mesures de sécurité importantes (cont.)
Ne jamais utiliser ce dispositif lorsque l’on dort ou si l’on se sent
somnolent.
Ne jamais faire tomber ou insérer un objet quelconque dans une
ouverture ou un tuyau.
Ne pas utiliser ce dispositif à l’extérieur et ne pas le faire
fonctionner en présence de produits aérosols ou si l’on administre
de l’oxygène.
Connecter ce produit à une prise mise à la terre de manière
adéquate uniquement. Voir la section « Instructions de mise à la
terre ».
Ce produit est conforme aux conditions applicables de l’US 21
CFR, Chapitre 1, Sous-chapitre J, Hygiène radiologique.
CONSERVER CES INSTRUCTIONS
1381632-5-A Français-3 Kohler Co.
