Kolcraft Jeep Overland Limited User manual

©2006 Kolcraft® Enterprises, Inc. All Rights Reserved. S56J-A 3/06
by
Jeep®Overland Limited Jogging Stroller Instructions
S56J-A.qxd 03/06/2006 9:51 AM Page 1

2
Your child's safety depends on you. Proper stroller usage cannot be assured
unless you follow these instructions.
DO NOT USE STROLLER UNTIL YOU READ AND FOLLOW
THE MANUFACTURER’S INSTRUCTIONS.
IIMMPPOORRTTAANNTTSSAAFFEETTYYIINNFFOORRMMAATTIIOONN::
HHoowwttooKKeeeeppYYoouurrCChhiillddSSaaffeeWWhhiilleeUUssiinnggtthhiissSSttrroolllleerr
•NNEEVVEERRLLEEAAVVEEYYOOUURRCCHHIILLDDUUNNAATTTTEENNDDEEDDWWHHIILLEEIINNSSTTRROOLLLLEERR.
Accidents can happen quickly while your back is turned. You must
always keep your child in view while your child is in the stroller,
even when sleeping. Do not use this product as a bed. Your child
may become tangled in straps or pads and suffocate.
•AAllwwaayyssuusseerreessttrraaiinnttssyysstteemmttookkeeeeppcchhiillddffrroommssttaannddiinngguuppoorr
ffaalllliinnggoouuttoofftthheessttrroolllleerr..UUsseetthhiisshhaarrnneessssaattaallllttiimmeess..Do not use
product without full 5 point Harness Restraint. Removing the
shoulder straps will not adequately restrain child.
••TThhiissssttrroolllleerriissffoorruusseewwiitthhcchhiillddrreennwwhhooccaannssiittuuppuunnaassssiisstteeddaanndd
wwhhoowweeiigghhlleesssstthhaann4455llbbss..((2200..44kkgg))aannddwwhhoosseehheeaaddrreessttss
bbeelloowwtthheettooppoofftthheesseeaattbbaacckk..Use by larger children may
damage the stroller, or cause a hazardous unstable condition to
exist.
••NNoottrreeccoommmmeennddeeddffoorraacchhiilldduunnddeerr66mmoonntthhssoolldd..
••DDOONNOOTTuse any infant car seat with this stroller. Serious injury
may occur.
••AAllwwaayysslloocckktthheessttrroolllleerrooppeennbbeeffoorreeaalllloowwiinnggyyoouurrcchhiillddiinnoorrnneeaarr
tthheessttrroolllleerr..This prevents injuries caused by stroller collapsing.
••AAllwwaayysssseetttthheewwhheeeellbbrraakkeesswwhheennssttrroolllleerriissnnoottmmoovviinngg,,eessppeecciiaallllyy
oonnaanniinncclliinnee..This prevents the stroller from rolling away.
••Always use tether strap while jogging with this stroller.
••Do not use your stroller until you have thoroughly tested and
calibrated your hand brake. Adjustments must be made
periodically due to cable stretch and wear on the rubberbrake
shoes. See “To Adjust Hand Brake” for details.
••To avoid serious injury from the wheel falling off, make sure to
properly install and adjust the quick release hub located on the
front wheel.
WARNING
Continued on next page
S56J-A.qxd 03/06/2006 9:51 AM Page 2

WWhhaattttooAAvvooiiddWWhhiilleeUUssiinnggtthhiissSSttrroolllleerr
••SSUUFFFFOOCCAATTIIOONNHHAAZZAARRDD::
••Never leave child unattended while using weather shield. Only
use with this product. When using weather shield, canopy must
be open. DDOONNOOTTleave child in sun under weather shield, as
child may overheat. AALLWWAAYYSSstore weather shield out of child’s
reach in the provided bag. DDOONNOOTTallow children to play with
weather shield, IITTIISSNNOOTTAATTOOYY.
•AAllwwaayyssbbaallaanncceetthheewweeiigghhttoofftthheessttrroolllleerreevveennllyy..To prevent the
stroller from becoming unstable or tipping:
• Do not place parcels or accessory items on the stroller canopy,
seat, or over the handle.
• This stroller is designed for one child only.
• Do not put more than 10 lbs. (4.54 kg) in the basket.
• Do not allow children to play with or hang onto the stroller.
••NNeevveerruusseetthhiissssttrroolllleerroonnssttaaiirrwwaayyssoorreessccaallaattoorrss..
•DDoonnoottaalllloowwcchhiillddttoossttaannddoonnsseeaattoorrssiittoonnffoooottrreesstt..
• PPuuttoonnaallllbbrraakkeesswwhheenneevveerryyoouuppaarrkktthheessttrroolllleerr,,eessppeecciiaallllyyoonnaann
iinncclliinnee..This prevents the stroller from rolling away.
••DDOONNOOTTlliiffttbbyyttrraayy..
••DDOONNOOTTppuuttcchhiillddiinnbbaasskkeett..
••DDOONNOOTTallow children to climb into stroller unassisted. Stroller
may tip over and injure child.
••Keep wheels at a recommended tire pressure of 35 p.s.i. (241 kPa)
or as specified on the tire wall.
••Only use replacement parts supplied by the manufacturer. If you
have a flat tire, you may use a standard bicycle tire repair kit or
take it to a bicycle shop to be repaired.
• DDoonnoottccaarrrryyeexxttrraacchhiillddrreennoorruusseeaacccceessssoorriieessootthheerrtthhaanntthhoossee
aapppprroovveeddbbyytthheevveehhiicclleemmaannuuffaaccttuurreerr..
•TThheessttrroolllleerrsshhoouullddnnoottbbeeuusseeddnneeaarraannooppeennffiirreeoorreexxppoosseedd
ffllaammee..
•MMaakkeessuurreecchhiillddrreennaarreecclleeaarrooffaannyymmoovviinnggppaarrttssiiffyyoouuaaddjjuusstttthhee
ssttrroolllleerr,,ootthheerrwwiisseetthheeyymmaayybbeeiinnjjuurreedd..
3
S56J-A.qxd 03/06/2006 9:51 AM Page 3

4

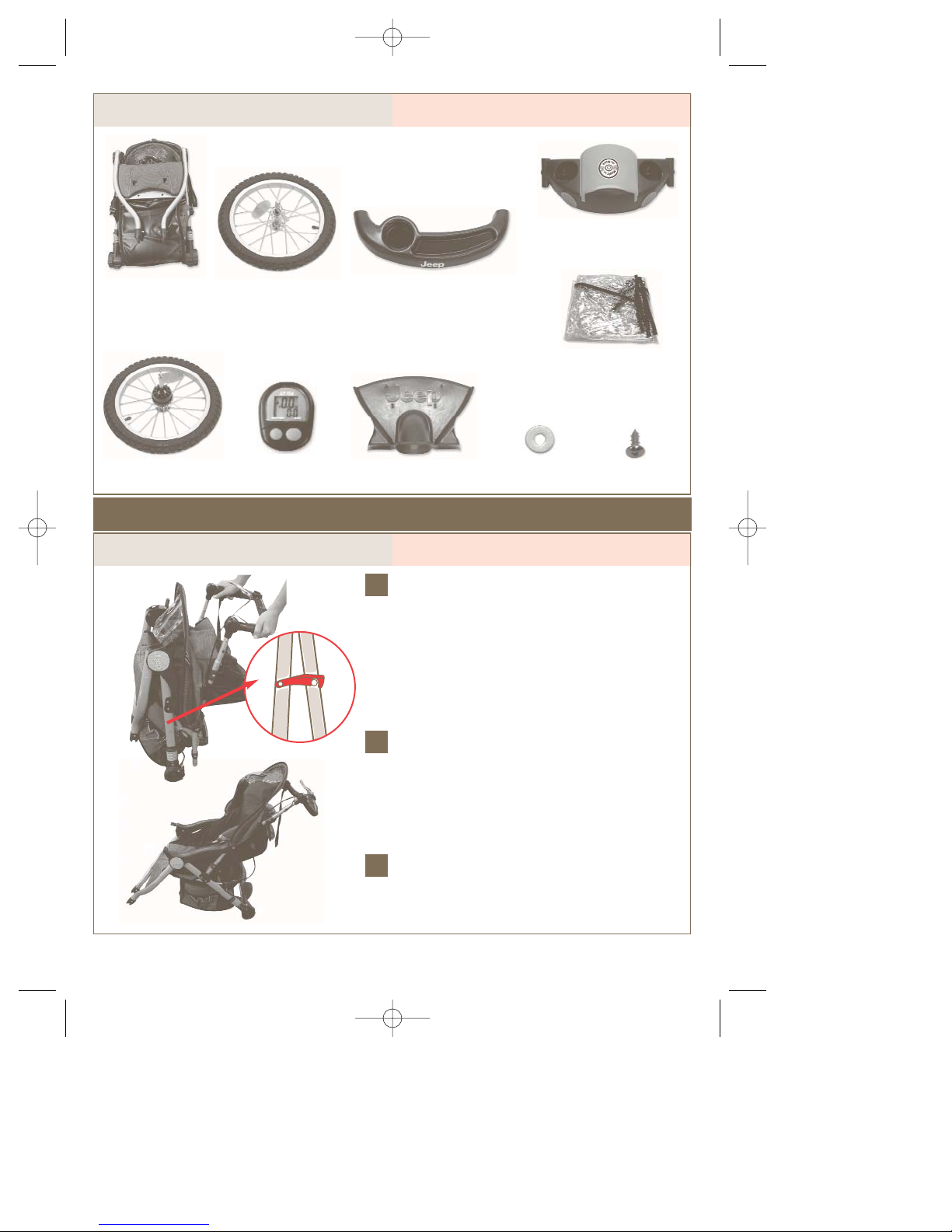

To Open Stroller
Remove any cardboard inserts or plastic ties
used to protect the product during shipment.
Release the locking latch.
Unfold, making sure both side locks snap into
place.
Parts List
2
3
2
3
How to Assemble Your Stroller
SSttrroolllleerrFFrraammeeFFrroonnttWWhheeeell((11))
RReeaarrWWhheeeellss((22))
FFrroonnttTTrraayy
MMuussiiccOOnnTThheeMMoovvee®®
1
WWaasshheerrss((44))OOddoommeetteerrFFoooottrreessttSSccrreewwss((44))
WWeeaatthheerrSShhiieelldd
S56J-A.qxd 03/06/2006 9:52 AM Page 4

5
To Assemble Rear Wheels
Lay stroller on its side.
Slide wheel pins into axle hole as shown.
Push down on wheel until you hear a click.
Pull up on wheel to make sure it is properly
secured.
Repeat for second side.
TTOORREEMMOOVVEEWWHHEEEELL::Lift up on tab
underneath rear axle as shown and slide the
wheel off.
NNOOTTEE::Keep wheels at a recommended tire
pressure of 35 p.s.i. (241 kPa) or as specified
on the tire wall.
1
2
4
5
3
2
TTaabb
To Assemble Front Wheel
1Place the stroller back on its handle bar.
Locate the front wheel, and find the magnet
located on one of the spokes. Align the
wheel so that the magnet on the spoke is
positioned on the same side as the sensor,
located on the frame.
2
2
MMaaggnneett
SSeennssoorr
Continued on next page
5
S56J-A.qxd 03/06/2006 9:52 AM Page 5

6

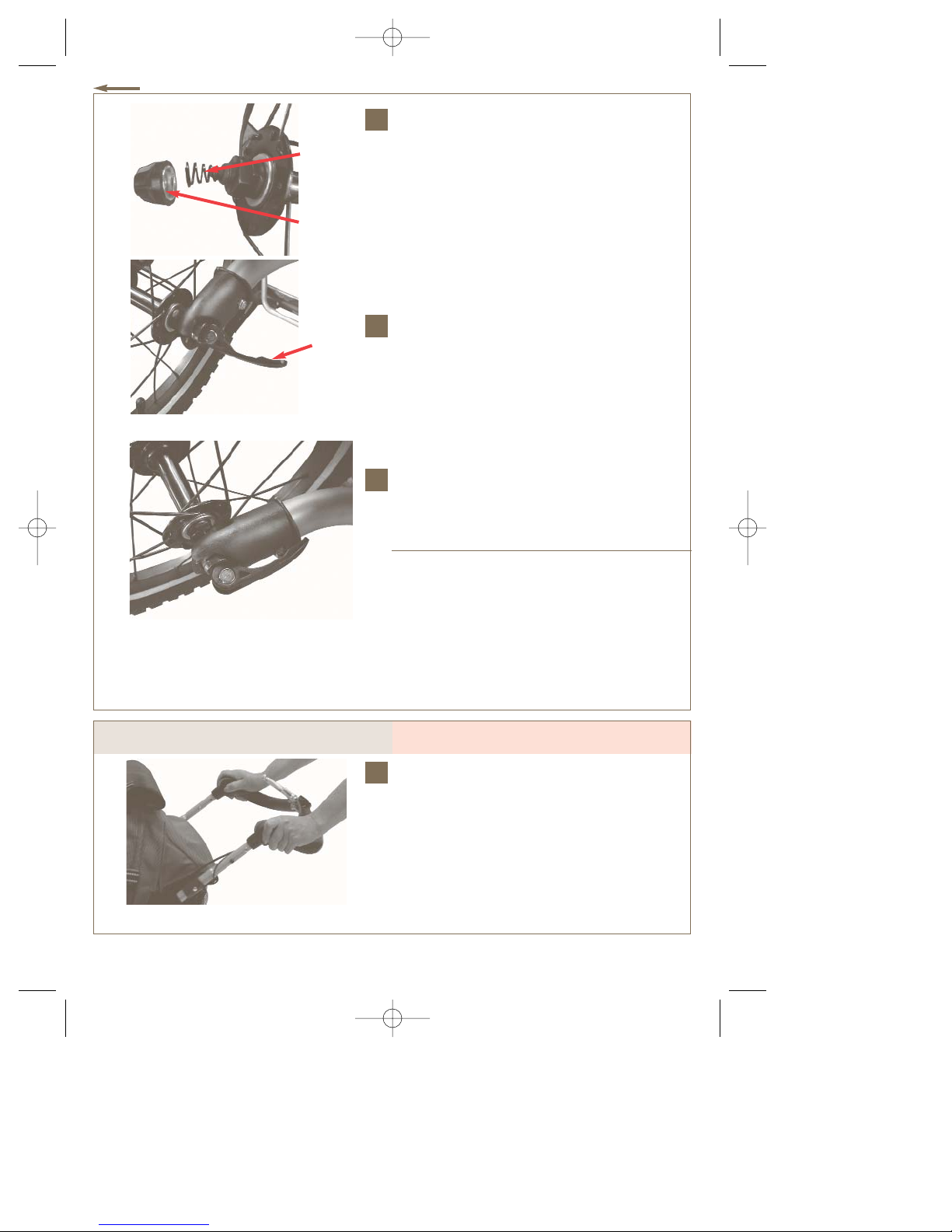

Loosen the round nut on the wheel enough
for the wheel to slide onto the frame. If the
round nut comes all the way off, be sure to
reassemble it with the spring as shown.
Position wheel lever, 90° angle from wheel as
shown, and slide wheel axle onto frame.
Tighten round nut clockwise, as tight as
possible.
Push lever toward frame as shown. Lever must
be very tight. If it isn’t tight, open lever to 90
°
angle from wheel
and retighten the round
nut. Push lever toward frame until it is tight.
TTEESSTT::Shake wheel back and forth to be sure
it is tight on the frame.
TTOORREEMMOOVVEEWWHHEEEELL::Open lever to the 90°
angle position. Rotate round nut on opposite
side counter clockwise until the wheel can
slide off of the frame.
3
4
5
3
4
5
RRoouunnddNNuutt
SSpprriinngg
LLeevveerr
To Adjust Handle
1
1
Press buttons on handle frame in with your
thumbs and rotate handle up or down until
you find your desired height.
S56J-A.qxd 03/06/2006 9:52 AM Page 6

7
To Adjust Odometer Magnet
1
TTOOAADDJJUUSSTTOODDOOMMEETTEERRMMAAGGNNEETT
In order for the odometer to function
properly, the magnet on the front wheel must
be in the correct position. The magnet may
have shifted during shipping.
Using a screwdriver, loosen the screw on the
back of the magnet.
Slide the magnet along the spoke so that it is
as close as possible to the two lines on the
bottom of the sensor.
Rotate the magnet so that it faces the sensor.
2
3
To Attach Footrest
SSccrreeww
SSeennssoorr
Position stroller upside down.
Align the posts on the footrest through the
4 holes on the frame over the front wheel.
Using the screws and washers provided,
fasten the footrest to the stroller frame, until
washers are tight.
Stand stroller upright.
1
2
1
3
2
3
4
S56J-A.qxd 03/06/2006 9:52 AM Page 7

8
To Attach Front Tray
Slide tray onto round post while pushing in
spring loaded buttons, and a click is heard.
Make sure there is no gap between stroller
frame and front tray.
Push down on the right side of the tray until
the plastic button on the stroller frame pops
out through the hole on the front tray.
TTOOOOPPEENNTTRRAAYY::Press the plastic button on
the right side of the tray and rotate the tray
upwards.
1
2
1
2
To Attach Music On The Move®
Parent Tray
To assemble Music On The Move®, align tray
holes with posts on handle and snap on.
To remove Music On The Move®, pull each
side up and out.
1
WARNING
• Loud volume can damage your
child’s hearing. When turning on
music, gradually adjust the volume
to a comfortable listening level so
child is not startled.
• Do not place more than 3 lbs. (1.36
kg) in this tray to avoid tipping!
• Do not place hot liquids in this tray.
Hot liquids can burn your child.
2
1
PPoossttss
BBuuttttoonnss
S56J-A.qxd 03/06/2006 9:52 AM Page 8

To Install Batteries into
Music On The Move®
9
Requires 4 “AA” Batteries (Not Included).
Lift up the foam padding in the bottom of
the unit.
NNOOTTEE::Foam is used to reduce skipping &
eliminate sliding of your portable unit. If your
player does not fit inside, remove foam.
Use a Phillips screwdriver to remove the
battery door.
Place batteries in the battery compartment
as shown.
Screw the battery door back onto the unit
and replace the foam.
1
2
1
2
3
4
To Attach Odometer
Slide odometer onto clip located on handle,
as shown.
TTOORREEMMOOVVEEOODDOOMMEETTEERR::Push down on
small tab under odometer, and slide off.
1
2
1
2
TTaabb
3
S56J-A.qxd 03/06/2006 9:52 AM Page 9

10

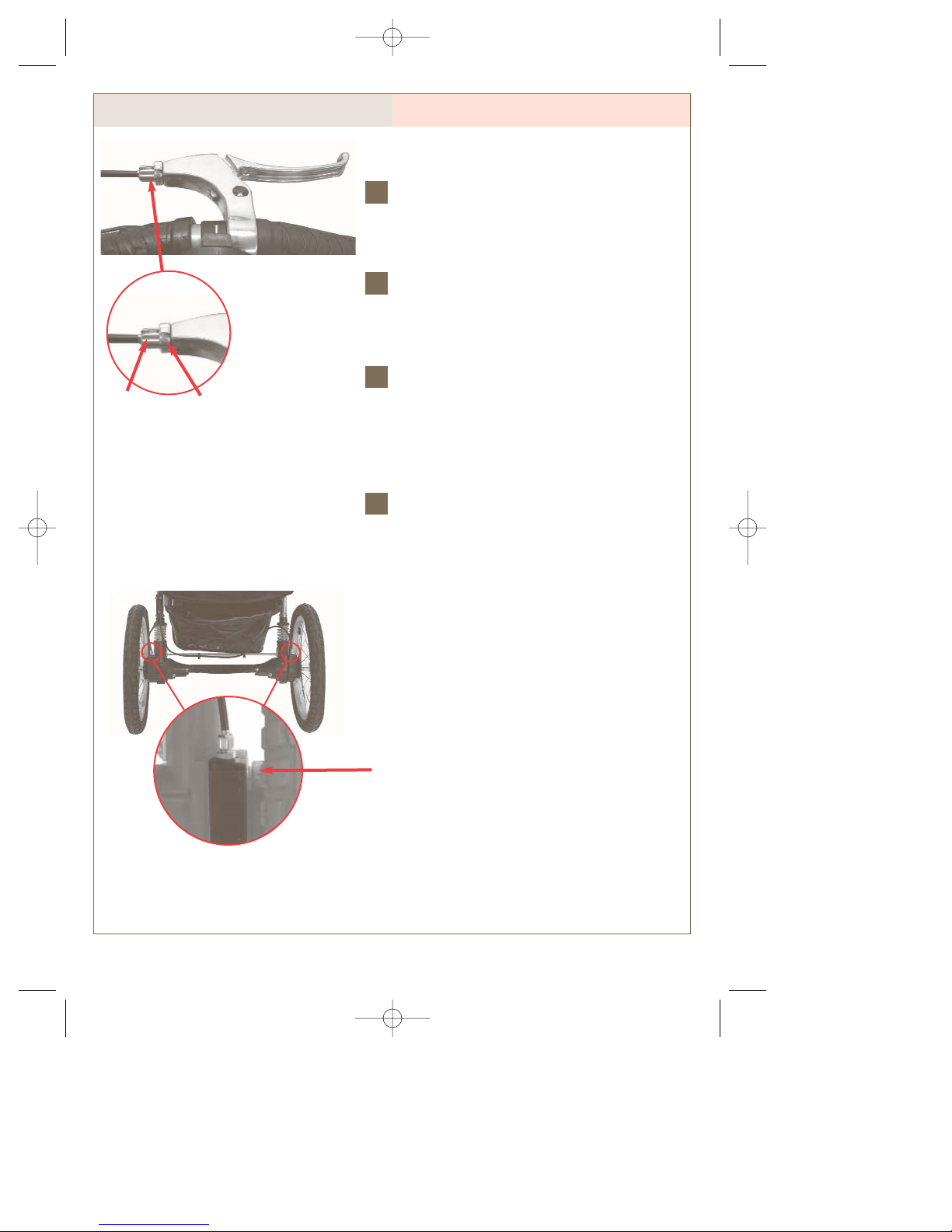

To Adjust Hand Brake
1
TTOOTTIIGGHHTTEENNHHAANNDDBBRRAAKKEETTEENNSSIIOONN::
Loosen nut A by turning it away from you,
while holding nut B in place.
Rotate nut B, away from you while holding
nut A in place.
Check the tension in the hand brake at this
point, by squeezing it tight. Make sure the
hand brake lever has very little movement.
You should not be able to push the stroller.
If the tension is correct, retighten nut A
tightly, by turning it towards you, while
holding nut B in place.
FFIIRRSSTTTTIIMMEEUUSSEENNOOTTEE::Be sure to activate
the hand brake 25 times to stretch the cable.
Readjust if necessary. Adjustments must be
made periodically due to cable stretch and
wear on the rubber brake shoes. Do not use
your stroller until you have thoroughly tested
your brakes.
NNOOTTEE::If the hand brake still does not
function properly, adjust the nuts in the same
manor, by the rear wheels. Be sure to adjust
both left and right sides evenly.
2
3
4
B A
S56J-A.qxd 03/06/2006 9:52 AM Page 10

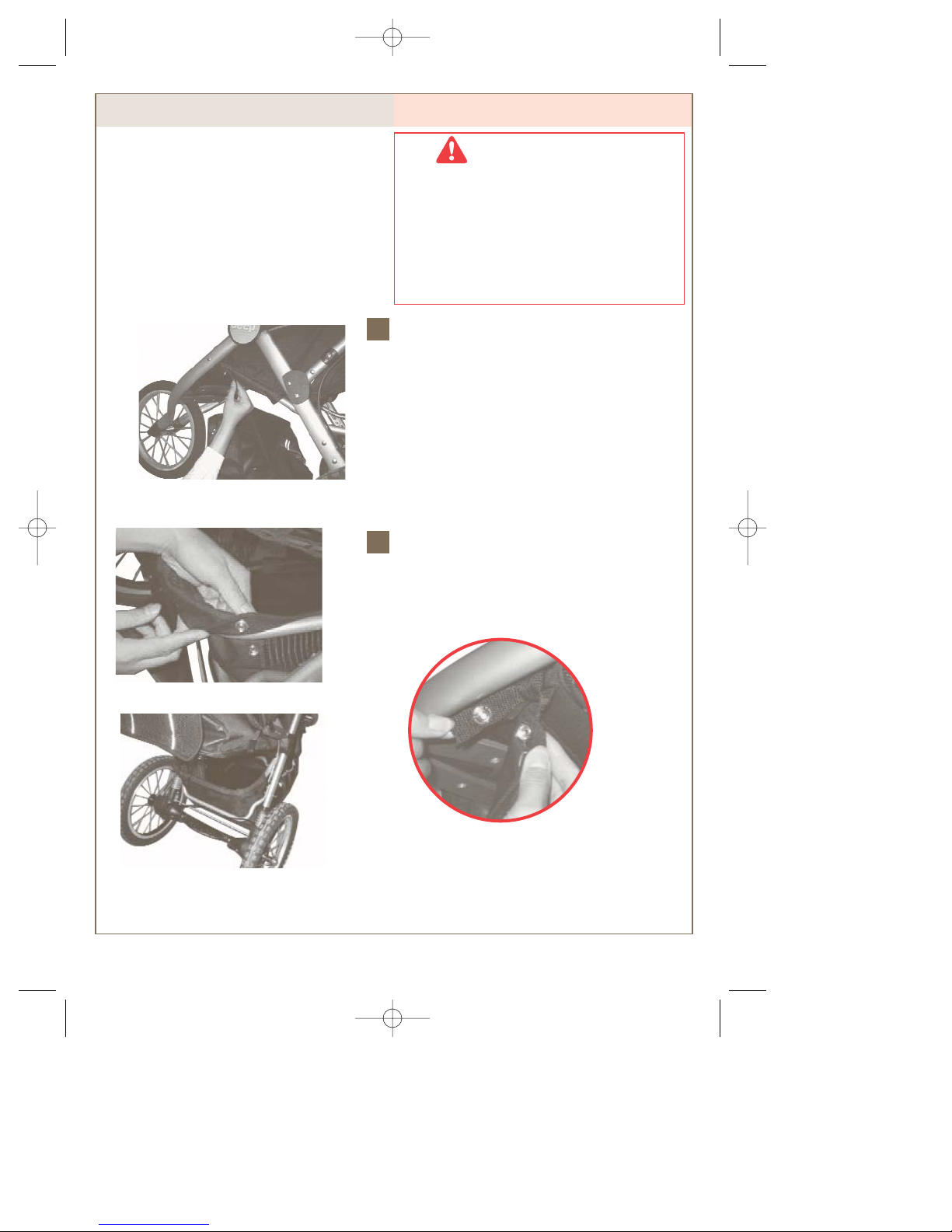

On the front side of the basket, locate the
webbing with snaps on it. On the underside
of the footrest, feed the webbing through the
loop and snap together. Repeat for the other
side of the basket.
Snap rear of basket around the back tube as
shown.
11
1
To Attach Basket
WARNING
•AAllwwaayyssbbaallaanncceetthheewweeiigghhttoofftthhee
ssttrroolllleerreevveennllyy..To prevent the
stroller from becoming unstable or
tipping:
• Do not put more than 10 lbs.
(4.54 kg) in the basket.
• Do not put more than 3 lbs.
(1.36 kg) in any of this product’s
pockets.
2
2
1
S56J-A.qxd 03/06/2006 9:52 AM Page 11

4
5
6
4
6
Adjust Restraint System Harness
To Secure Child In Stroller
Lock foot brake to keep stroller from rolling.
Place child in stroller.
Hook shoulder straps to waist belt.
To fasten restraint system buckles - push
together. Be sure both buckles are fastened
to secure child safely.
To unsnap restraint system buckles - press
tabs to release.
For proper fit, adjust shoulder straps and
waist band as shown.
1
How to Properly Use Your New Stroller
3
WARNING
Avoid serious injury from falling or
sliding out. Always use restraint
system. Do not use product without
full 5 point Harness Restraint.
Removing the shoulder straps will
not adequately restrain child.
2
3
12 Continued on next page
S56J-A.qxd 03/06/2006 9:52 AM Page 12

13
TTOOAADDJJUUSSTTSSHHOOUULLDDEERRSSTTRRAAPPHHEEIIGGHHTT
NNOOTTEE::For a secure fit, straps should be at or
below the child's shoulder. Adjust straps to
higher positions as your child grows.
Push buckle through slot as shown. Repeat
for second side
From the back side of the stroller, fasten
buckles together to secure restraint.
1
2
1
2
To Attach Weather Shield
WARNING
SSUUFFFFOOCCAATTIIOONNHHAAZZAARRDD: Never leave
child unattended while using this
weather shield. Only use with this
product. When using weather shield,
canopy must be open. DDOONNOOTTleave
child in sun under weather shield, as
child may overheat. AALLWWAAYYSSstore
weather shield out of child’s reach in
the provided bag. DDOONNOOTTallow
children to play with weather shield,
IITTIISSNNOOTTAATTOOYY.
Open canopy.
Insert long narrow piece of
Weather Shield
between the parent tray and the stroller
handle.
Pull
Weather Shield all the way through
opening between parent tray and canopy
and fasten Velcro straps.
Anchor front of Weather Shield under
footrest as shown.
1
2
4
3
2
3
4
S56J-A.qxd 03/06/2006 9:52 AM Page 13

14
To Operate Foot Brake
1TTOOLLOOCCKKBBRRAAKKEE::Push 1-Touch brake bar
down to lock wheels.
TTOOUUNNLLOOCCKKBBRRAAKKEE::Lift up on brake bar.
2
UUnnlloocckk
LLoocckk
To Operate Hand Brake
1Squeeze hand brake toward handle to
temporarily activate the rear brakes on your
stroller.
CCAAUUTTIIOONN::Rear brakes will disengage when
hand brake is released.
1
To Recline Seat
To recline seat back, loosen belt.
To raise seat back, tighten belt.
1
2
WARNING
To avoid finger entrapment or pinching,
do not adjust the seat back while child
is in the stroller. To avoid head
entrapment, always fasten the canopy
to the seat back when using the stroller
in the reclined position.
TTiigghhtteenn
2
S56J-A.qxd 03/06/2006 9:53 AM Page 14

15
AAiirrTTuubbee

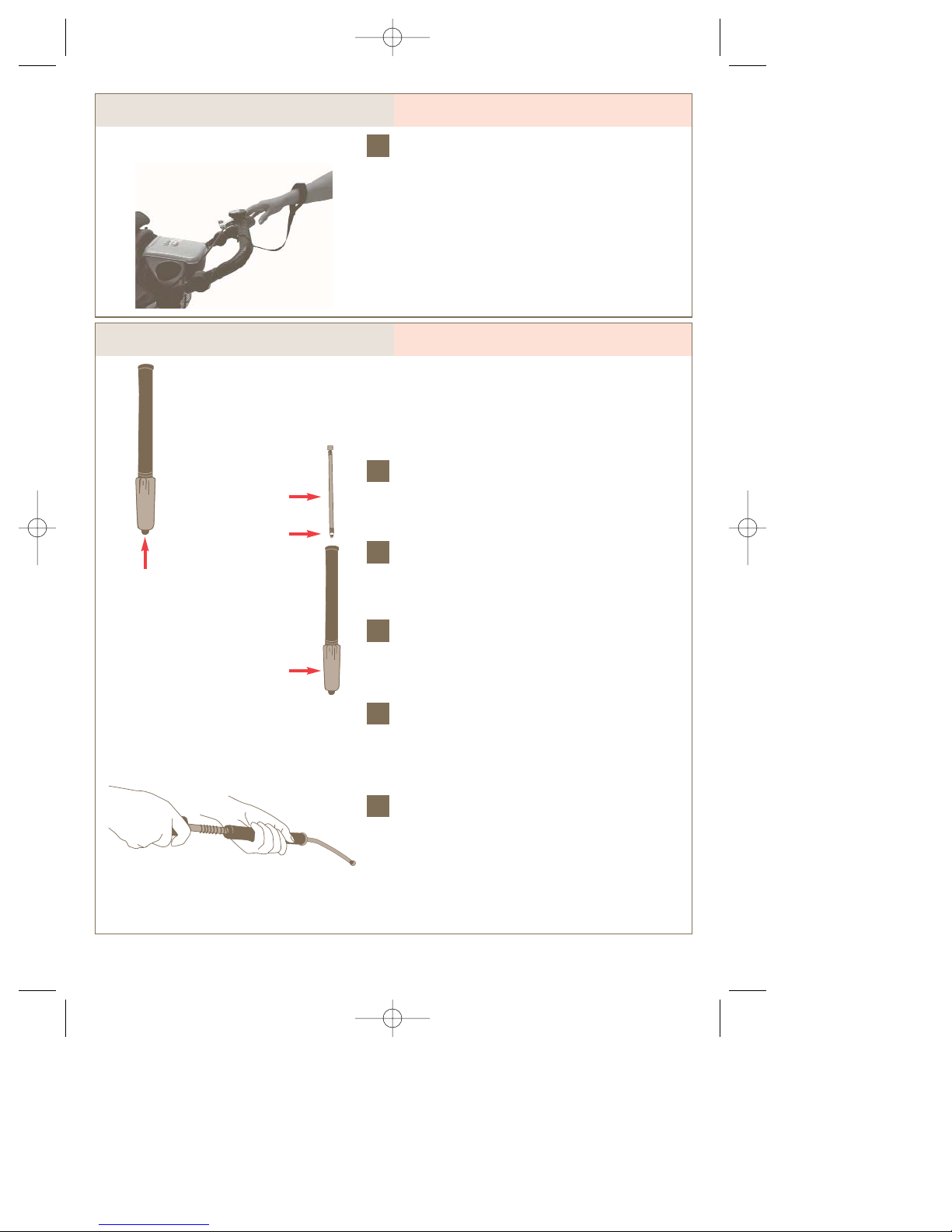

Airpump use and storage
1
Keep air pump stored in basket when not in
use.
Remove air tube from pump.
Screw air tube to opposite end of pump.
Attach air pump to fill tube on tire.
Pump air pump until tires are filled to 35 PSI
(241 kPa) or as specified on the tire wall.
Disassemble pump and store in basket when
not in use.
2
3
To Properly Use the Tether
1
1
Always attach tether around your wrist when
using jogging stroller, so that the stroller will
not roll away from you.
1
4
5
2
AAiirrTTuubbee
AAttttaacchh
AAiirrPPuummpp
4
5
S56J-A.qxd 03/06/2006 9:53 AM Page 15

16
To Operate Music On The Move®
1Connect the
Music On The Move plug to the
headphone jack of your personal sound
system (iPod®*, radio, cassette, CD, MP3 or
mini disk player).
Turn on
Music On The Move by locating the
power switch as shown. A red light will indi-
cate that the power is on. Be sure to turn off
unit after use so not to drain the batteries.
To avoid startling your child, adjust volume
on your personal sound system to its lowest
level. Turn on your personal sound system
and slowly increase volume to a comfortable
listening level for you and your child.
NNOOTTEE::If sound cuts out or becomes
distorted, check your personal sound system
battery level. If battery level is okay and
sound is still distorted, replace
Music On The
Move’s
batteries.
DDOONNOOTTleave
Music On The Move in a hot
car or outside in the rain.
2
3
1
2
OOffffOOnn
S56J-A.qxd 03/06/2006 9:53 AM Page 16

17

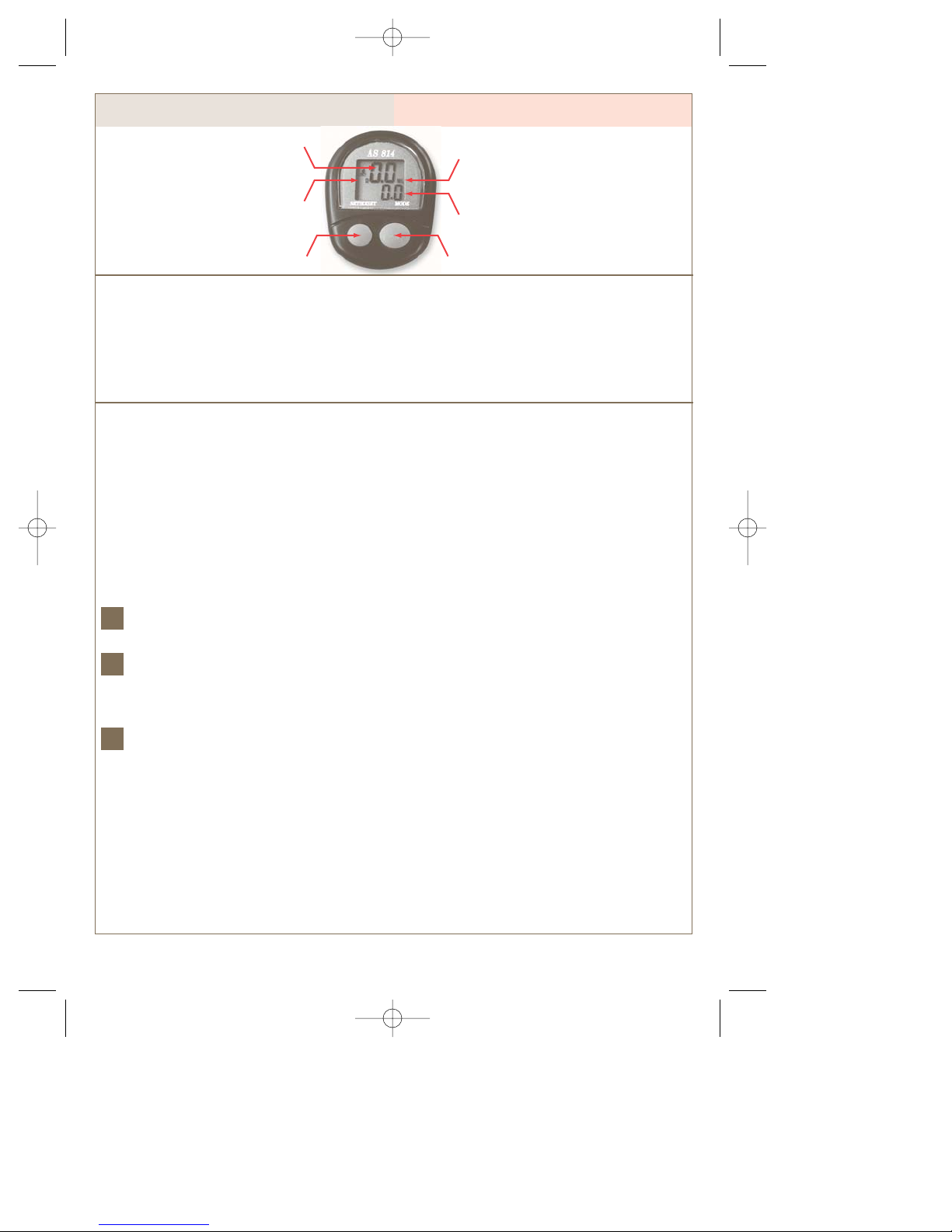

To Set Up Odometer
Mode Symbol
SET/RESET button
Current Speed Kilometers/Miles
Selected Function Display
MODE Button
TTOOTTUURRNNOODDOOMMEETTEERROONN::Press
SET/RESET button once.
TTOOTTUURRNNOODDOOMMEETTEERROOFFFF::The
odometer will automatically shut off
after 2 minutes of inactivity.
IINNIITTIIAALLSSEETTUUPP--The following steps
allow you to change the wheel
diameter setting on your odometer, to
16 inches. This must be done in order
for the odometer to work properly with
this jogging stroller. There is also an
option to set the odometer to
kilometers (Km) or miles (ML). This is a
one time set up, but they can be
changed in the future if desired, using
these steps.
Turn odometer on.
Push
MODE button until either a “T”
or “D” is displayed in the
Mode
Symbol
area.
Press and hold
SET/RESET button until
a set up screen appears. A number
between 5” and 30” may be present.
Hold the
SET/RESET button down,
until 16” appears, then STOP. Once
the 16” is flashing, immediately hit the
MODE button so that ML or Km are
flashing. Once it is flashing, hit the
SET/RESET button to select your
desired setting. After you have made
your selections, wait a few seconds
and the odometer will return to the
orginal screen.
1
2
3
S56J-A.qxd 03/06/2006 9:53 AM Page 17

18
To Operate Odometer
TTOODDIISSPPLLAAYYEELLAAPPSSEEDDTTIIMMEE::
Press MODE button until a “T” is
displayed in the Mode Symbol area.
Pressing the SET/RESET button will
reset the time to zero.
Elapsed time will be displayed in the
lower portion of the screen. Time will
not advance while the stroller is
stopped.
TTOODDIISSPPLLAAYYDDIISSTTAANNCCEETTRRAAVVEELLEEDD::
Press MODE button until a “D” is
displayed in the Mode Symbol area.
Pressing the SET/RESET button will
reset the distance to zero.
The distance traveled will be displayed
in tenths of a Km/ML in the lower right
portion of the screen. Distance
traveled will not advance while the
stroller is stopped.
TTOODDIISSPPLLAAYYBBOOTTHHDDIISSTTAANNCCEE&&
EELLAAPPSSEEDDTTIIMMEEMMOODDEE::
To view elapsed time and distance
while jogging, press MODE button
until an “ST” is displayed in the Mode
Symbol area. Odometer will alternate
time and distance views, every 5 sec-
onds. Scan mode will not work while
stroller is stopped.
1
2
1
2
1
WARNING
•DDOONNOOTTuse odometer in the rain or
leave in direct sunlight for prolonged
periods of time
• Do not disassemble outer case. This
could cause device to lose its water
resistant properties.
• Do not dispose of battery in fire.
Battery could explode resulting in injury
or death.
S56J-A.qxd 03/06/2006 9:53 AM Page 18

19
To Replace Battery in Odometer
Remove odometer from clip.
Turn odometer upside down.
Remove battery cover, by placing a
coin in the battery door slot, and turn
it counter clockwise.
Remove old battery, and replace with
new LR44 battery. Place battery in,
positive side up.
Replace battery door cover and
tighten battery door clockwise.
1
3
4
5
Battery Cover
2
To Trouble Shoot Odometer
TROUBLE
No LCD
display.
No current
speed
reading.
CHECK ITEMS
1. Is the battery dead?
2. Is the battery properly
installed?
1. Check for: broken wire,
odometer not properly
positioned on clip, or sensor
and magnet incorrectly aligned.
2. Is the calibration correct?
REMEDY
1. Replace old battery with a new battery.
2. Make sure that the positive side of the
battery is facing up.
1. Clean the contacts on back of odometer.
2. Install the odometer onto clip again.
3. Refer to the procedure of Initial Set Up
and set the correct value for tire diameter.
NNOOTTEE::Requires an LR44 battery.
Replacement battery not included.
S56J-A.qxd 03/06/2006 9:53 AM Page 19

Lock foot brake.
Recline seat.
Close canopy.
Locate trigger fold on frame below parent
tray. Pull up latches on frame to fold.
Push stroller forward to fold stroller.
Engage locking latch.
20

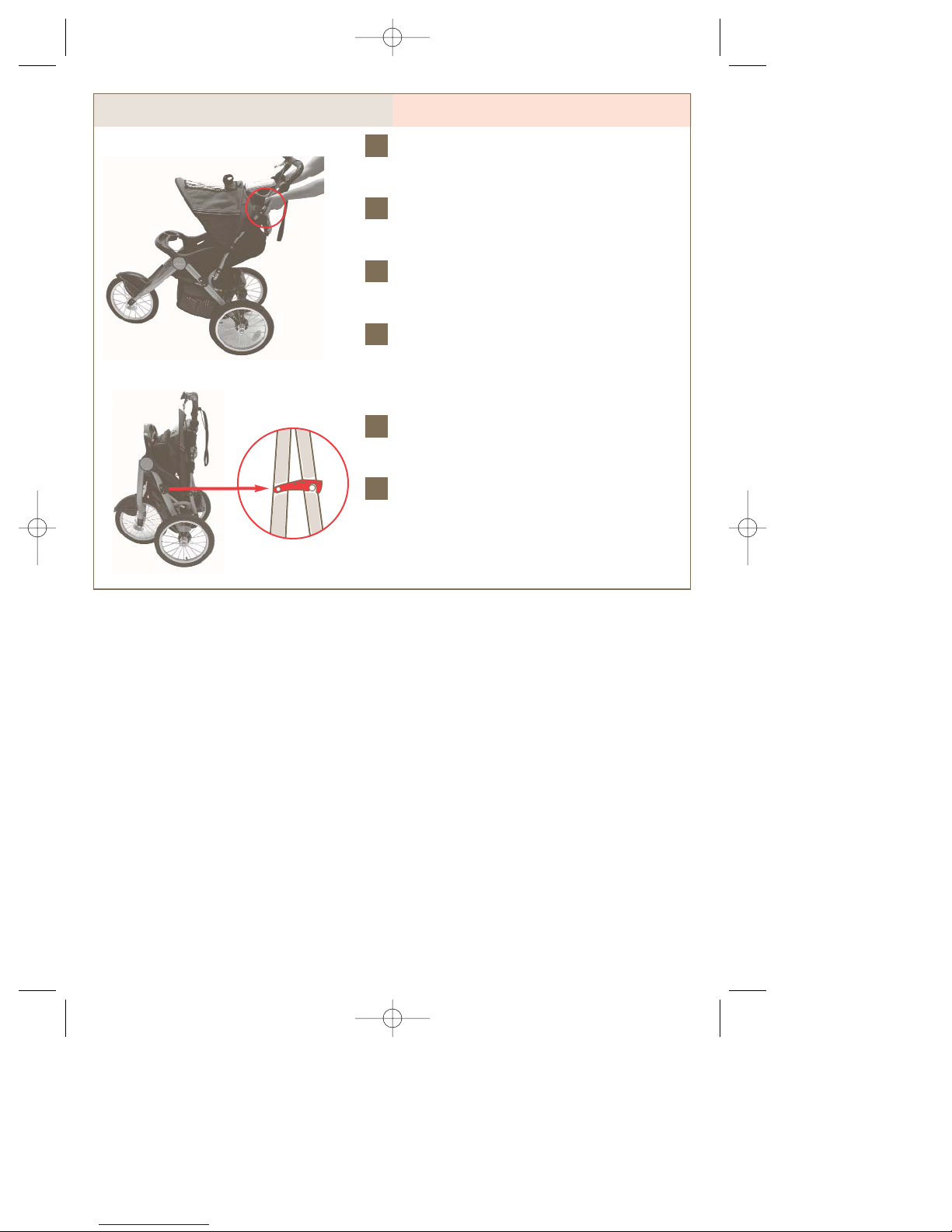

To Fold Stroller
1
2
5
3
4
6
6
4
S56J-A.qxd 03/06/2006 9:53 AM Page 20
