Kolibri Domino User manual

Table of Contents:
1. INTRODUCTION
1.1 About the Kolibri Domino_______________________________________________________ 1
1.2 Important Safety Notes ________________________________________________________ 1
1.3 Box Contents __________________________________________________________________ 2
1.4 Specications _________________________________________________________________ 2
1.5 Views of the Kolibri Domino ____________________________________________________ 3
1.6 Control Panel __________________________________________________________________ 4
1.7 Home Screen __________________________________________________________________ 5
2. GETTING STARTED
2.1 Powering Up ___________________________________________________________________ 6
2.2 Loading the Hopper ____________________________________________________________ 6
3. OPERATING MODES
3.1 Mix Mode______________________________________________________________________ 8
3.2 Sort Mode _____________________________________________________________________ 8
3.3 VSort Mode____________________________________________________________________ 9
3.4 Count Mode ___________________________________________________________________ 9
4. FUNCTIONS
4.1 Auto and Manual Function_____________________________________________________ 10
4.2 Add Function _________________________________________________________________ 10
4.3 Batch Function________________________________________________________________ 10
4.4 Add+Batch Function __________________________________________________________ 11
5. AFTER-COUNT FUNCTIONS
5.1 Report ________________________________________________________________________ 11
5.2 Serial Report__________________________________________________________________ 11
5.3 Print__________________________________________________________________________ 12
5.4 Menu _________________________________________________________________________ 12
6. MAINTENANCE AND TROUBLESHOOTING
6.1 Maintenance__________________________________________________________________ 13

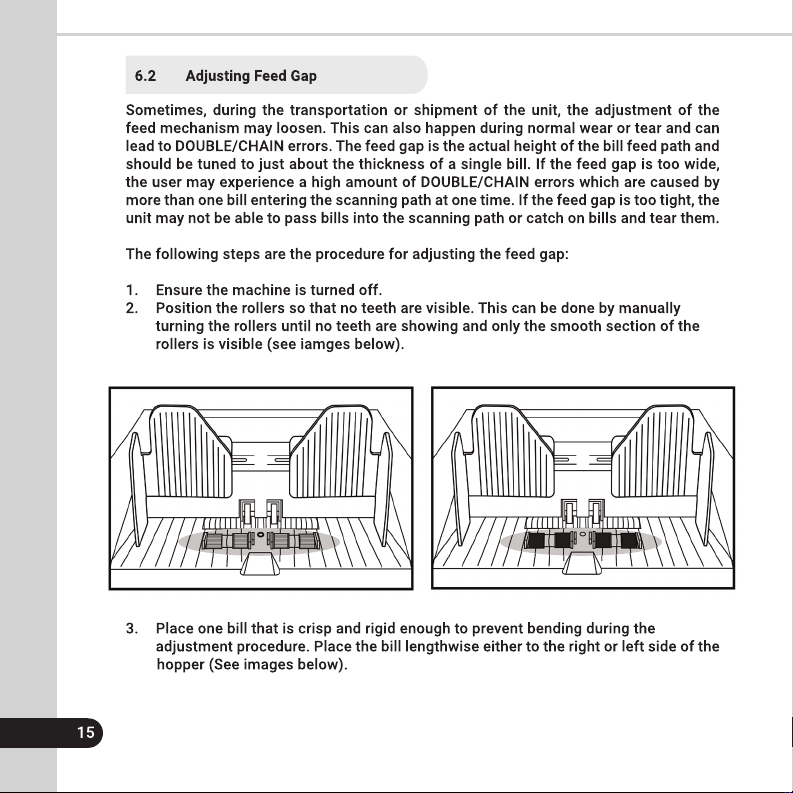

6.2 Adjusting the Feed Gap _______________________________________________________ 15
6.3 Calibration Procedure _________________________________________________________ 17
6.4 Troubleshooting ______________________________________________________________ 18
6.5 Warranty______________________________________________________________________ 21
6.6 Contact Information___________________________________________________________ 22

1.1 About the Kolibri Domino
Thank you for choosing the Kolibri Domino one-pocket currency discriminator.
The Kolibri Domino is a professional, powerful, value counter and sorter.
Kolibri Domino has a convenient user-friendly interface, intuitive control panel, and a
variety of counting modes. All of these features come with strong built-in counterfeit
detection technology and high level performance.

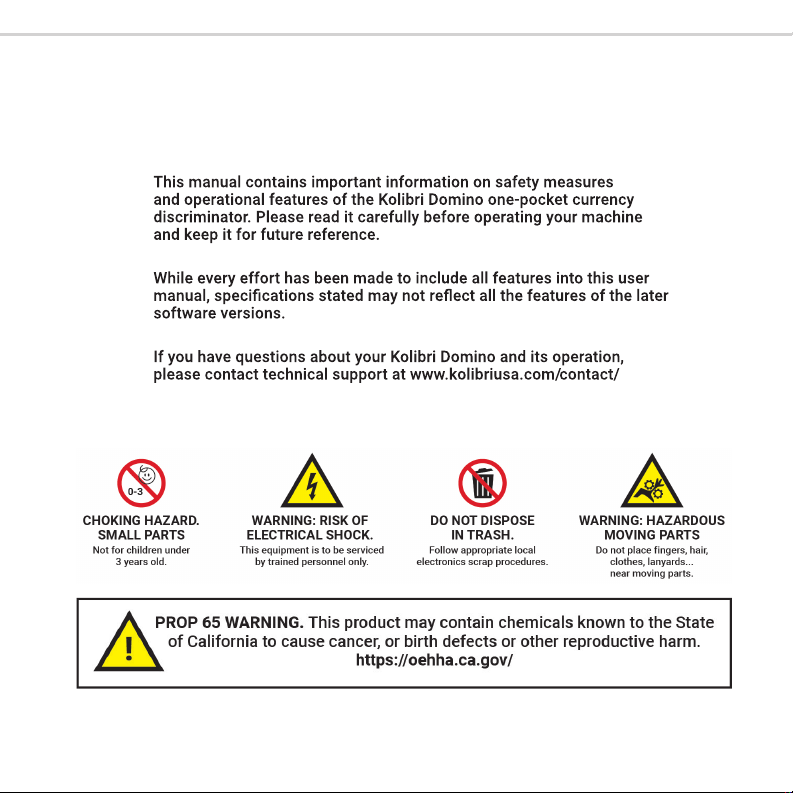

1.2 Important Safety Notes
When using this product, basic safety precautions should always be followed, including
the following:
• Do not use this product in areas where it may be exposed to water or any other
liquids.
• Unplug this product from the wall outlet before cleaning. Use a damp cloth or
air duster to clean the unit.
• To avoid the risk of electrical shock, do not disassemble this unit. Disassembling
will expose you to dangerous voltages and other safety risks. Incorrect
reassembly may cause electrical shock when the unit is subsequently used.
• Only use this product with the power cord supplied with the it. Plug the power
cord into a properly grounded wall outlet. Do not remove the grounding pin
from the power cord. Failure to properly ground the unit can result in severe
injuryorre.
•Makesurethedeviceisplacedonaatsurface.Donotoperatetheunitin
areas with high temperature, humidity or smoke as these conditions may
impede performance.
• This product is designed for indoor use in a well-ventilated environment. Keep
theunitawayfromdirectsunlightandstrongmagneticeldswhichmay
interfere with the counterfeit detection sensors.
• When not using the unit for an extended period of time, disconnect the power
cord from the wall outlet.
INTRODUCTION
1.
1

1.3 Box Contents
- Kolibri Domino Currency Discriminator
- Adapter Cable (for Printer*)
- Power Cord
- User Manual
- Cleaning Brush
- Calibration Card (White Paper Card)
*Printer sold separately
1.4 Specications
Counting speed: Adjustable 800, 1000 and 1200 bills/min
Hopper capacity: 500 bills
Stacker capacity: 200 bills
Weight: 12.8 lbs (5.8 kg)
Dimensions: 11.3’’ x 8.9’’ x 9.25’’ (287mm x 270mm x 235mm)
Powersource:AC100-240V,50/60Hz,≤70W
2

1
2
3
TOP VIEW
1. Feed Gap Adjustment Knob
2. Bill Guides
3. Hopper
4. Control Panel
5. TFT Screen
6. microSD Card Port
7. Stacker
8. Carrying Handle
9. Back Door
10. Back Door Handle
11. RJ11 Port (Printing)
12. USB Port
13. Power Switch
14. AC Power
15. Fuse
1.5 Views of the Kolibri Domino
2
5
6
FRONT VIEW
1 1
910
12
13
14
15
BACK VIEW
3
4
7
8

1.6 Control Panel
Key Function
1. CUR Button Changes currency type (USD, CAD, MXN)
2. BATCH Button Activates/Deactivates Batch function
3. REPORT Button Shows the detailed Report Screen
(for Serial Report press REPORT button twice)
4. ADD Button Activates/Deactivates Add function
5. +1/+10 Button Customizes batch in incriments of 1 or 10
(Press for +1, Hold for +10)
6. PRINT Button Prints the displayed report if a printer is connected
7. Display Shows total count and all settings (or shows all data)
8. MENU Button Shows settings and works as a “back button” in Menu
9. MODE Button Changes mode and moves cursor up in Menu
10. CLEAR Button Resets the count and moves cursor down in Menu
11. START/STOP Button Starts or Stops the count (when not in auto-start func-
tion)orvalidate/conrmsettings
1
2
3
4
5
6
8
7
9
10
4
1 1
Domino

1.7 Home Screen
1. Currency Selected
2. Mode Selected
3. ADD Function (Activated)
4. Selected Batch Number (Activated)
5. Number of Bills Counted
6. Total Value Counted
7. Auto/Manual Start Function
8. Counterfeit Detection (ON)
9. Time
10. Date
11. Serial Number of Last Bill Scanned
12. Number of Rejected Bills
1 2 3 4
5
6
87
911 10
12
5

6
GETTING STARTED
2.
2.1 Powering Up
Ensure the hopper and stacker are empty. Then, attach the provided power cable to
the power inlet on the back of the machine. Make sure to plug the power cable into a
three-prong outlet and turn on the power switch located on the back of the machine .
The unit will load and conduct a self-checking. When the home screen is displayed the
machine is ready to operate.

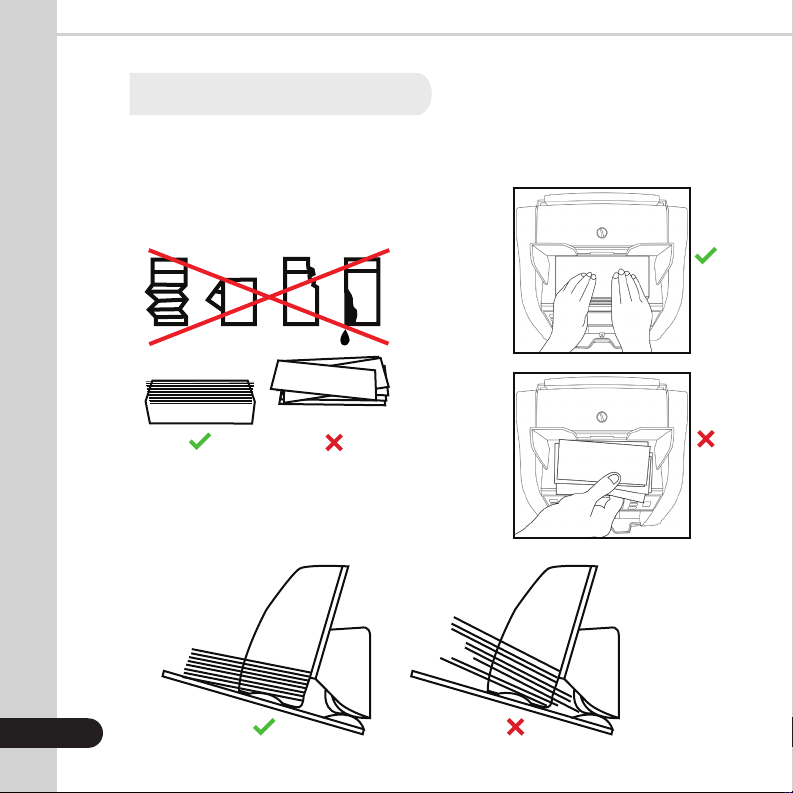

2.2 Loading the Hopper
In order to avoid jams and ensure proper operating speed of the machine, it is important
to correctly load the hopper. Bills should be placed in a neat stack prior to being placed
into the hopper.
Avoid counting bills that are wet, excessively dirty, spoiled, folded, curled or with
foreign material like clips, bands, etc. Bills such as these can cause the machine to
malfunction.
Adjust the hopper bill guides to a size slightly wider (0.10’’ on each side) than the width
of the bills in the stack (all US dollar denomination are the same size). This will help to
correctly place the bills in the hopper, and will ensue smooth bill feeding.
WARNING: Hazardous moving parts!
Do not place fingers, hair, clothes, etc. near the moving parts.
7

7
TIPS: To Reduce Rejects
1. MAKE A STACK
Correct or remove bills that are
severly wrinkled, damaged or
folded. Square the bill stack.
3. FEED THE BILLS
2. LOAD THE STACK

OPERATING MODES
3.
3.1 Mix Mode
MIX mode is used to count a stack of mixed denominations. To count mixed bills, place
them in the hopper and follow the procedure described in 2.2 LOADING THE HOPPER.
The machine will start counting and will move the bills from the hopper to the stacker as
it counts them. The machine will stop counting when the hopper is completely emptied.
Total number of bills and total value will be displayed on home screen. When operation
is complete, you can view a detailed report by pressing the REPORT button.
To return to MIX mode from another mode, press the MODE button until ‘’MIX’’ is
displayed on the home screen. Note that the Kolibri Domino will keep in memory the
last mode used.
3.2 Sort Mode
This mode is available by pressing the MODE button until ‘’SORT’’ is displayed on the
home screen.
SORT mode allows the user to count and sort bills by one denomination which is
automaticallydeterminedbytherstbillscannedinastack.Thiscanbeusefultobe
sure that there are no bills of other denominations in a large strap of one denomination.
Therstbillinthehopperdeterminesthecountingandsortingdenomination.Anytimea
bill passes through the machine and does not conform to the denomination determined
bytherstbill,themachinewillrejectthisbill,beepanda“DIFFERENTDENOMINATION”
message will be displayed on the screen. Total number of bills and total value will be
displayed on home screen. When operation is complete, you can view a detailed report
by pressing the REPORT button.
To return to SORT mode from another mode, press the MODE button until ‘’SORT’’ is
displayed on the home screen. Note that the Kolibri Domino will keep in memory the
last mode used.
8

3.3 VSort Mode
This mode is available by pressing the MODE button until “VSORT” is displayed on the
home screen.
VSort mode allows the user to count a mixed stack of bills and separate them by
denomination,similartoacashregister.Thismodeidentiestherstbillinthehopper
when Domino begins to count, and if a different denomination is detected, the machine
stops and displays a message. The user must follow the instructions displayed on that
message. Every time a denomination changes, the user must remove all bills from the
stackerandseparatethembydenomination.Whencountingisnished,theuserwill
have separated all bills into piles of each denomination. VSort by default works with
ADD mode, allowing the user to keep track of the total number of bills along with the
total value displayed on the home screen. When the operation is complete, the user can
review a detailed report by pressing the REPORT button.
To return to VSort mode from another mode, press the MODE button until “VSORT” is
displayed on the home screen. Note that Domino will keep in memory the last mode
used.
3.4 Count Mode
This mode is available by pressing the MODE button until “COUNT” is displayed on the
home screen.
COUNT mode allows the user to simply count the total number of bills. It does not
recognize or record the denomination of any bills. During COUNT mode, there is no
counterfeit detection active except ultraviolet.
*Detection can be turned ON or OFF manually in MENU under option 2. DETECTIONS*
To return to COUNT mode from another mode, press the MODE button until “COUNT” is
displayed on the home screen. Note that the Kolibri Domino will keep in memeory the
last mode used.
9

10
FUNCTIONS
4.
4.1 Auto and Manual Function
After turning the machine on it will default to AUTO function, an “A” will be displayed
on the home screen, machine starts counting automatically. To switch to the Manual
function, go to Menu by pressing MENU button, select:
1. SETTINGS and press START/STOP button.
2. When in settings menu select 2. AUTO/MANUAL START by going down with the
CLEAR button and press START/STOP to enter.
3. Select 2. MANUAL and press START/STOP button to validate selection, check mark
will be displayed next to the selected function.
4. Press MENU button 3 times to go back to the home screen. If MANUAL is selected, a
“M” will be displayed on the home screen.
If on Manual, Kolibri Domino will stop counting automatically and START/STOP button
must be pressed to begin each count. To go back to Auto function repeat steps listed
above and select AUTO function.
4.2 Add Function
This function is available by pressing the ADD button on the control panel. When ADD
function is activated, an “ADD” will be displayed on the home screen.
ADD function allows the user to count multiple stacks of bills while keeping track of the
totalamountandvalueofbillscounted.Placetherststackofbillstobecountedinthe
hopper. The number and value of bills will be displayed on screen. When ready to count
the next stack of bills, empty the stacker and add the new stack to be counted into the
hopper. The unit will continue counting and add the new count to the total.
To exit ADD function, press again the ADD button.
4.3 Batch Function
This function is available by pressing the BATCH or +1/+10 button on the control panel.
When BATCH function is activated, a “BATCH” icon with the batch number will be
displayed on the home screen.

11
BATCHfunctionisusedtoselectabatchquantityforaspeciccountingprocess.With
the BATCH function active, the machine counts a preset number of bills and then stops
counting when the batch number has been reached, even if bills remain in the hopper.
By default, pressing the BATCH button will set the batch size to 100, 50, 20, 10, Off.
The batch size can be adjusted by pressing the +1/+10 or the BATCH button.
When the set batch amount is reached, the Kolibri Domino will automatically stop and
a “BATCH COMPLETE” message will be display on the screen alongside the number of
bills counted. When the stacker is emptied, the machine will automatically continue to
count up to the preset batch amount to create another batch.
If the hopper runs out of bills before a batch is completed, the machine will display
“INCOMPLETE BATCH” on screen. At this point, the user may add bills to the hopper to
complete the batch or remove the incomplete batch from the machine. To exit BATCH
function, press again the BATCH button until “BATCH” disappears from the home
screen.
4.4 Add+Batch Function
This function batches the desired quantity of bills and monitors the running total at
the same time. To activate this function, press the ADD and BATCH buttons separately,
both icons should be displayed on the screen.
To exit ADD+BATCH function, press the ADD and BATCH buttons again separately.
AFTER-COUNT FUNCTIONS
5.
5.1 Report
This function is available by pressing the REPORT button and provides an on-screen
report of the total amount of each denomination counted, the value of the counted bills
of that denomination, and a grand total value of all bills counted.
To exit the report screen, press the MENU button.
5.2 Serial Report
This function is available by pressing the REPORT button twice, it provides an on-
screen report of each bill counted with its serial number and denomination.
To exit the report screen, press the MENU button.

12
5.3 Print
This Function is available by pressing the PRINT button while being on the report
screen. If a printer* is connected, a detailed printout of the counting report will be
produced. Same is applied to get the report with serial numbers described in 5.2
Serial Report.
To connect a printer, use adapter cable provided. Insert one end of the adapter into
the RJ11 Port (refer to 1.5 Views of the Kolibri Domino). The other end should be
connected to the printer’s cable.
*Printer sold separately
5.4 Menu
The Menu can be accessed by pressing the MENU button. To navigate up and down
press MODE and CLEAR buttons, to choose a sub-menu press START/STOP button. To
go back to main menu screen or home screen press MENU button.
Description of the Menu:
Menu Description
1. SETTINGS Include main settings options like Speed, Auto/Man-
ual Start, Beep, Date & Time, Printing, Interface Color,
Display Brightness, Sleep Mode.
2. DETECTIONS Activate or deactivate serial number recognition,
printer connection and detection features like
Magnetic “MG”, Dimension “DD”, Double “DB”,
Ultraviolet “UV”, Double “DB”, Infrared “IR” and etc.
3. MODES Activate or deactivate the modes (COUNT, MIX, SORT,
VSORT) that can be used from the home screen. When
the mode is “ON”, this mode can be selected from the
home screen. When the mode is “OFF”, it cannot be
selected. Use START button to switch “ON/OFF”.
Printer
Printer
Cable
Domino
RJ11 Port
Adapter
Cable

13
Menu Description
4. SERVICE Provide the option to update and calibrate the unit
change the detection level, set and change the data as
well as reset to the factory settings.
5. PRODUCT INFO Display information about the product and the software
version.
MAINTENANCE AND TROUBLESHOOTING
6.
6.1 Maintenance
ATTENTION: The unit should always be turned off and disconnected from its power cord
before cleaning. DO NOT use solvents such as thinner, alcohol, etc. to clean the machine.
Most operational problems can be avoided by regular care and preventative maintenance.
TakingregularcareoftheDominowillsignicantlyincreaseitslifetime.
To avoid problems, make sure there are no metal clips or rubber bands in the bills being
counted. Be sure to follow the proper procedure for loading the hopper, refer to section 2.2
LOADING THE HOPPER.
For best results, it is recommended to use an air duster and a soft bristle brush to remove
any dust or debris from the interior of the unit. When not using the machine for an extended
period, cover it with the dust cover (not included with the unit) to prevent dust from settling
inside.
All parts of the Kolibri Domino need daily care and cleaning. Pay close attention to the
sensors, which are delicate components. If any dust or other foreign matter adheres to the
sensors, it may cause various problems during operation of the machine.
• To avoid malfunction caused by foreign objects, please clean your machine every day.
• Clean back door sensors with the provided bristle brush or a dry cloth frequently
• Clean inner sensors with the provided dry cloth frequently.
• Clean hopper and stacker sensors with the provided bristle brush or a dry cloth frequently.
• Rubber rollers may be cleaned with a slightly damp cloth. You may use a small
amount of liquid soap on the cloth, but the soap residue should properly removed.

14
1. Hopper Sensor
2. Stacker Sensors
3. Upper Sensors Block
4. Lower Sensors Block
1
2
3
4

16
4. Guide the bill between the inner rollers during this step; you should feel moderate
resistence as you move the bill back and forth through these rollers. In other
words, the gap between these rollers is wide enough to pass just one bill per
count, but narrow enough to feel a slight tension or friction when pulling the bill out.
To adjust the bill feed gap, use the instructions below to
turn the adjustment screw at the top of the unit:
a) Adjust the knob, slight turn at a time and then retest.
b) If the bill feels too loose, tighten the feed gap by
turning the adjustment screw clockwise.
c) If the resistence against the bill feels too strong,
loosen the gap by turning the screw counterclockwise.
IMPORTANT NOTE:
The Kolibri Domino’s feed gap adjustment can be
sensitive during adjustments. Do not overturn
each adjustment or you may overshoot
the optimum gap. We recommend testing with
a stack of bills after each adjustment turn.

1817
6.3 Calibration Procedure
The contact image sensors (CIS), Ultraviolet (UV) and Infrared (IR) sensors of the unit
are calibrated properly from the factory. With regular, basic use, the sensor’s sensitivity
decreases which can lead to ID errors. To resolve this issue, the unit can be re-calibrated
using the white calibration card that came with the unit.
Please follow the steps below to calibrate the sensor:
1. Ensure the machine is turned ON
2. Press MENU button, move down and select 4. SERVICE, when in SERVICE,
select 2. CALIBRATION, when in CALIBRATION, CIS will be highlighted and
instruction will be written on the screen.
3. Then turn the machine backside front.
4. Pull the back door handle to get access to sensor blocks. When inside, push
the metal latch down to get access to upper and lower sensor block with CIS
sensors. Put provided laminated calibration card between two sensor blocks.
Bring the lower sensor block back to its initial position by pushing the metal
latch down and lifting the lower sensor block. Make sure the lower sensor
block is hooked back properly.
