Kompernass BA 105 A1 User manual

MOTION SENSOR WITH ALARM BA 105 A1
BEWEGUNGSMELDER MIT
ALARMFUNKTION
Bedienungsanleitung
IAN 113952
MOTION SENSOR WITH ALARM
Operating instructions
POHYBOVÝ SENZOR S ALARMEM
Návod k obsluze
MOZGÁSÉRZÉKELŐ
RIASZTÓ FUNKCIÓVAL
Használati utasítás
HLÁSIČ POHYBU S ALARMOM
Návod na obsluhu

GB Operating instructions Page 1
HU Használati utasítás Oldal 15
CZ Návod k obsluze Strana 29
SK Návod na obsluhu Strana 43
DE/AT/CH Bedienungsanleitung Seite 57
Before reading, unfold the page containing the illustrations and familiarise yourself with
all functions of the device.
Olvasás előtt kattintson az ábrát tartalmazó oldalra és végezetül ismerje meg a készülék
mindegyik funkcióját.
Před čtením si otevřete stranu s obrázky a potom se seznamte se všemi funkcemi přístroje.
Pred čítaním si odklopte stranu s obrázkami a potom sa oboznámte so všetkými funkciami
prístroja.
Klappen Sie vor dem Lesen die Seite mit den Abbildungen aus und machen Sie sich
anschließend mit allen Funktionen des Gerätes vertraut.

2 x

1
BA 105 A1
GB
Table of Contents
Introduction ...........................................2
Intended use....................................................2
Package contents ................................................3
Technical details .................................................3
Warnings used ..................................................4
Safety instructions......................................5
Information regarding the handling of batteries.........................6
Device description ......................................6
Initial operation........................................7
Inserting/replacing the batteries ....................................7
Installation and surveillance area....................................8
Handling and use ......................................9
Standby mode ..................................................9
Surveillance mode ............................................. 10
Triggering mode ............................................... 10
Cleaning/storage .................................... 10
Disposal ............................................ 11
Disposal of the device .......................................... 11
Disposing of the batteries........................................ 11
Warranty........................................... 12
Service ............................................. 13
Importer............................................ 13

GB
2BA 105 A1
Introduction
Congratulations on the purchase of your new device.
You have selected a high-quality product. The operating instructions are part
of this product. They contain important information on safety, use and disposal.
Before using the product, familiarise yourself with all operating and safety instruc-
tions. Use this product only as described and only for the specified areas of
application. Retain these instructions for future reference. Please also pass these
operating instructions on to any future owner(s).
Intended use
This motion detector with alarm function is intended exclusively for the surveillance
of rooms and areas for private use, and is intended to deter burglars by emitting
an extremely loud alarm sound. This product is not intended for commercial or
industrial use. This product suitable only for use indoors. The warranty does not
provide compensation for damage caused by improper use of the device!

3
BA 105 A1
GB
Package contents
▯ 1 x motion detector
▯ 1 x wall bracket with swivel joint
▯ 2 x screws
▯ 2 x wall plugs
▯ 2 x remote controls
▯ 4 x AA batteries
▯ 6 x LR44 button cells
▯ 1 x operating manual
Technical details
Voltage supply
Motion detector:
6 V (4 x AA batteries) or 6 V ,
300 mA (mains adapter)
Remote control:
4.5 V (3 x LR44 button cells)
Alarm volume approx. 105 dB(A)
Alarm duration approx. 10min
Detection range approx. 8 m
Detection angle approx. 110°
Remote control range approx. 7 m

GB
4BA 105 A1
Warnings used
The following warnings are used in these operating instructions:
DANGER
A warning at this risk level indicates an imminently hazardous
situation.
If the hazardous situation is not avoided, it could lead to death or serious
physical injury.
► Follow the instructions in this warning to avoid a fatality or serious personal
injury.
CAUTION
A warning of this risk level indicates potential damage to
property.
Failure to avoid this situation could result in damage to property.
► Follow the instructions in this warning to prevent damage to property.
NOTE
► A note indicates additional information that will assist you in handling
the device.

5
BA 105 A1
GB
Safety instructions
This section provides you with important safety information regarding handling
of the device. The device complies with the statutory safety regulations. Incorrect
usage can lead to personal injury and property damage.
DANGER
► Loud alarm sound! Do not subject your hearing to this sound over a long
period, otherwise you could suffer serious damage to your hearing!
■ Before use, check the device for visible external damage. Do not use a device
that has been damaged or dropped.
■ This device may be used by children aged 8 over and by persons with
reduced physical, sensory or mental capabilities or lack of experience and
knowledge, provided that they are under supervision or have been told how
to use the device safely and are aware of the potential risks. Children must
not play with the device. Cleaning and user maintenance tasks must not be
carried out by children unless they are supervised.
■ Do not make any unauthorised modifications or alterations to the device.
■ Repairs to the device during the warranty period may only be carried out by
a customer service department authorised by the manufacturer. Otherwise
no additional warranty claims can be considered for subsequent damage.
■ Do not place the device in locations that are subject to direct sunlight as this
could lead to overheating and cause irreparable damage.
■ Protect the device from moisture and liquid penetration. Do not place any
liquid-filled vessels (such as flower vases) on the device.

GB
6BA 105 A1
Information regarding the handling of batteries
DANGER
► Do not throw the batteries into a fire.
► Do not short-circuit the batteries.
► Do not attempt to recharge the batteries.
► Check the condition of the batteries regularly. Leaking battery acid can
cause permanent damage to the device.
► Special care should be taken when handling a damaged or leaking
battery. Risk of acid burns! Wear protective gloves.
► Store batteries in a place inaccessible to children. If a battery should be
swallowed, seek medical attention IMMEDIATELY.
► If you do not intend to use the device for a long time, remove the batteries.
Device description
Remote signal transmitter LED for remote control status
Mode selection button Remote signal receiver
Movement sensor Status LED green
Siren Battery compartment
Status LED red Wall bracket
Battery compartment

7
BA 105 A1
GB
Initial operation
Inserting/replacing the batteries
Motion detector:
♦ Open the battery compartment on the rear of the device by pushing
the cover in the direction of the arrow.
♦ Insert 4 batteries of type AA in the battery compartment (observe the
correct polarity!). The siren will make a brief signal sound.
♦ Close the battery compartment again.
Remote control:
NOTE
► The batteries supplied (Type LR44) are already inserted in the remote
control when delivered. Before use, remove the insulating strip on the rear
of the remote control.
To insert new batteries proceed as follows:
♦ Undo the screws on the rear of the remote control and open the housing.
♦ Place the 3 batteries of type LR44 in the battery compartment
(observe the correct polarity!).
♦ Screw the remote control back together.

GB
8BA 105 A1
Installation and surveillance area
You can fix the motion detector to a wall using the wall bracket . Otherwise,
the motion detector can also be placed on a solid, level surface. The optimum
installation location is 2 m above the ground at a 15° angle. In order to guarantee
optimum motion detection, the motion detector must be located so that the object
to be detected is not moving towards the detector itself but moves across its field
of view from left to right or vice versa.
CAUTION
► When selecting a position for the motion detector, ensure that it is not
subjected to direct sunlight, vibrations, moisture, dust, heat or cold.
Otherwise, incorrect triggering or functional impairments can result.
♦ Using the wall bracket as a template, mark the positions for the drill
holes on the wall.
♦ Drill two holes (ø 6 mm) and insert the wall plugs supplied.
DANGER
► When drilling, ensure that you do not inadvertently damage power, gas
or water lines. There is a risk of fatal injury!
♦ Screw the wall bracket to the wall using the supplied screws.

9
BA 105 A1
GB

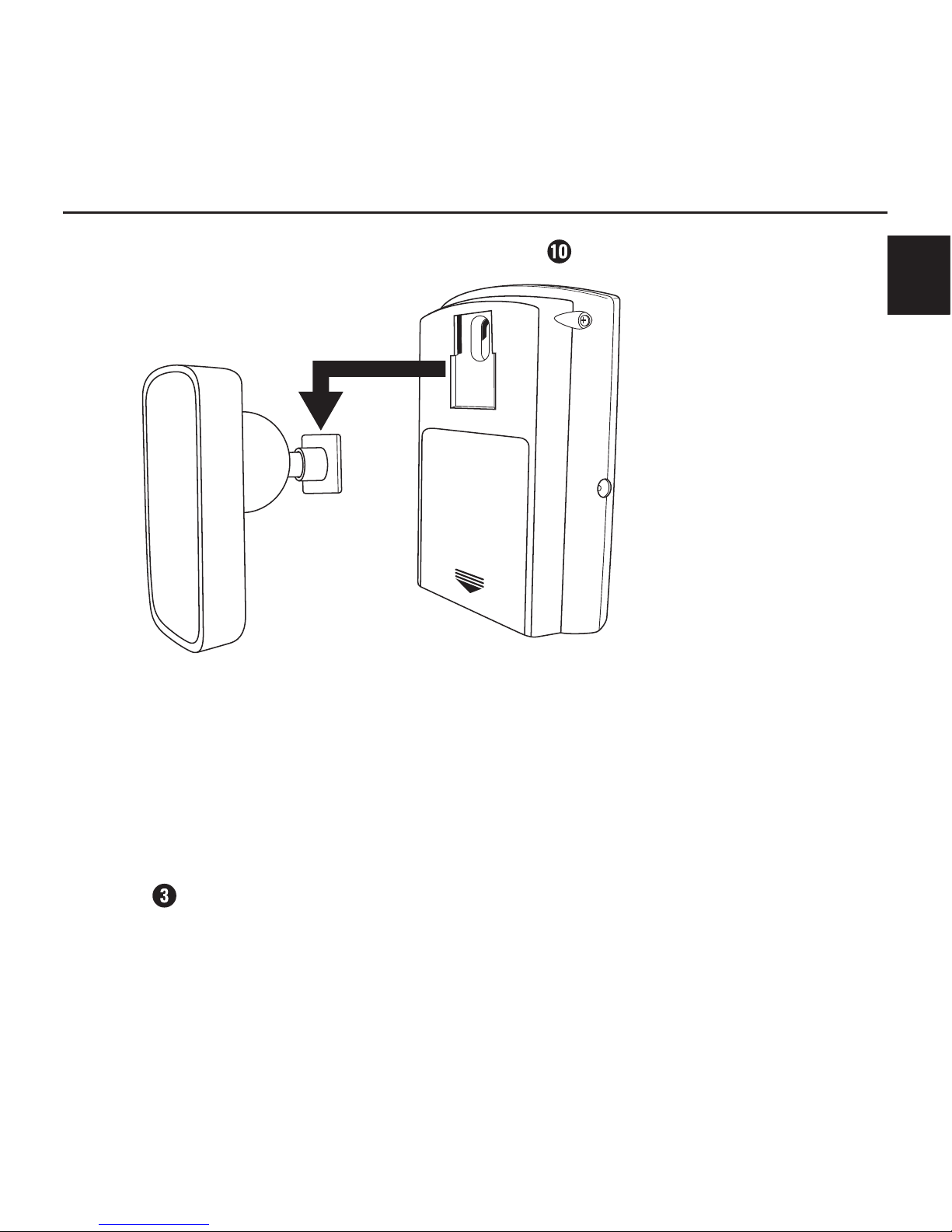

♦ Fix the motion detector to the wall bracket (Fig. 1).
Fig. 1
Handling and use
Standby mode
Once the batteries have been inserted or a power supply has been connected,
the motion detector will be in standby mode. You can use the mode selection
button on the remote control to switch the motion detector to another mode.
You can use the remote control at a distance of up to 7 m from the appliance.

GB
10 BA 105 A1
Surveillance mode
If the appliance is in standby mode, press the mode selection button to switch
to surveillance mode. The siren makes a brief signal sound and the green
status LED illuminates for approx. 15 seconds. The alarm is activated as soon
as the green status LED goes out.
Triggering mode
If an unauthorised person or a warm object enters the surveillance area when
the appliance is in surveillance mode, the red status LED begins to flash for
around 15 seconds, and the alarm is then sounded for around 10 minutes.
During this, the red status LED is permanently illuminated. After this period,
the motion detector returns to surveillance mode.
Press the mode selection button to reset a false alarm or to switch an alarm
off manually. The appliance will then return to standby mode.
Cleaning/storage
CAUTION
► To avoid irreparable damage, ensure that no moisture gets into the device.
♦ Clean the appliance with a soft, dry cloth.
♦ If you decide not to use the appliance for a long period, remove the batter-
ies and store it in a clean, dry place away from direct sunlight.

11
BA 105 A1
GB
Disposal
Disposal of the device
Do not dispose of the device in your normal domestic waste.
This product is subject to the provisions of European Directive
2012/19/EU WEEE (Waste Electrical and Electronic Equipment).
Dispose of the device through an approved disposal centre or at your community
waste facility. Please observe the currently applicable regulations. Please contact
your waste disposal centre if you are in any doubt.
Disposing of the batteries
Batteries should not be disposed of with household waste. Every consumer
is legally obliged to dispose of used batteries at a collection point in his
town/district or at a retail store. This obligation is intended to ensure that batteries
are disposed of in an environmentally responsible manner. Dispose of batteries
only when they are fully discharged.

GB
12 BA 105 A1
Warranty
The warranty provided for this device is 3 years from the date of purchase.
This device has been manufactured with care and inspected meticulously prior
to delivery.
Please retain your receipt as proof of purchase. In the event of a warranty claim,
please contact your Customer Service by telephone. This is the only way to
guarantee free return of your goods.
NOTE
► The warranty only covers claims for material and manufacturing defects, not
for transport damage, wearing parts or for damage to fragile components
such as switches and batteries.
This device is intended solely for private use and not for commercial purposes.
The warranty is deemed void if this product has been subjected to improper or
inappropriate handling, abuse or modifications that were not carried out by one
of our authorised service centres.
Your statutory rights are not restricted in any way by this warranty. The warranty
period is not prolonged by repairs made under the warranty. This also applies
to replaced and repaired parts.
Damage and defects present at the time of purchase must be reported imme-
diately after unpacking, or no later than two days after the date of purchase.
Repairs made after expiry of the warranty period are chargeable.

13
BA 105 A1
GB
Service
Service Great Britain
Tel.: [phone] (£ 0.10/Min.)
E-Mail: k[email protected]
IAN 113952
Hotline availability: Monday to Friday 08:00 - 20:00 (CET)
Importer
KOMPERNASS HANDELS GMBH
BURGSTRASSE 21
44867 BOCHUM
GERMANY
www.kompernass.com

14 BA 105 A1

15
BA 105 A1
HU
Tartalomjegyzék
Bevezető ........................................... 16
Rendeltetésszerű használat ...................................... 16
A csomag tartalma............................................. 17
Műszaki adatok ............................................... 17
Felhasznált figyelmeztető jelzések ................................. 18
Biztonsági utasítások ................................. 19
Tudnivaló az elemek kezeléséről .................................. 20
A készülék leírása.................................... 20
Üzembe helyezés .................................... 21
Az elemek behelyezése / cseréje ................................. 21
Telepítés és a felügyelt terület..................................... 22
Kezelés és üzemeltetés................................ 23
Készenléti üzemmód. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Felügyeleti üzemmód ........................................... 24
Kioldási üzemmód ............................................. 24
Tisztítás / Tárolás .................................... 24
Ártalmatlanítás ...................................... 25
A készülék ártalmatlanítása ...................................... 25
Elemek ártalmatlanítása ......................................... 25
Garancia ........................................... 26
Szerviz............................................. 27
Gyártja............................................. 27

HU
16 BA 105 A1
Bevezető
Gratulálunk új készüléke megvásárlásához!
Vásárlásával kiváló minőségű termék mellett döntött. A használati utasítás a termék
része. Fontos tudnivalókat tartalmaz a biztonságra, használatra és ártalmatlanításra
vonatkozóan. A termék használata előtt ismerkedjen meg valamennyi használati
útmutatóval és biztonsági figyelmeztetéssel. Csak a leírtak szerint és a megadott
célokra használja a készüléket. Őrizze meg jól ezt a használati útmutatót. A ké-
szülék harmadik személynek történő továbbadása esetén adja át a készülékhez
tartozó valamennyi leírást is.
Rendeltetésszerű használat
A riasztási funkcióval rendelkező mozgásérzékelő kizárólag magánhasználatú
helyiségek és területek felügyeletére, és rendkívül hangos riasztási hangja révén
betörők elijesztésére szolgál. A termék nem alkalmas kereskedelmi vagy ipari
használatra. A készülék csak beltéri használatra alkalmas. A készülék nem ren-
deltetésszerű használatából eredő károkért nem vállalunk felelősséget!

17
BA 105 A1
HU
A csomag tartalma
▯ 1 x mozgásérzékelő
▯ 1 x gömbcsuklós fali tartó
▯ 2 x csavar
▯ 2 db tipli
▯ 2 x távirányító
▯ 4 x AA-elem
▯ 6 x LR44-gombelem
▯ 1 db használati utasítás
Műszaki adatok
Feszültségellátás
Mozgásjelző:
6 V (4 x AA-elem) vagy 6 V ,
300 mA (hálózati tápegység)
Távirányító:
4,5 V (3 x LR44-gombelem)
Riasztási hangerő kb. 105 dB(A)
Riasztási időtartam kb. 10 perc
Lefedési tartomány kb. 8 m
Érzékelési szög kb. 110°
Távirányító hatótávolsága kb. 7 m
