Konect MULTI80 PLUS User manual

BALANCE CHARGER/DISCHARGER
FOR NiCd/NiMH/Lithium/Pb BATTERIES
:
After values
See the status of
individual cell in balance
charge mode
Scroll through the Main Menu
Stop any charge processes
Resume or start charge
processes
Confirm an action
Output charge lead
4mm banana plug
AC input power port
(AC 100-240V, 50/60HZ)
Balance lead sockets
JST-XH ports
DC input power port
11-18V DC
LCD
Display
BL Motor sensor
USB - Servo/ESC - Temp.
Optional
Temperature Sensor
# XT DUAL-TEMP
USER MANUAL ENG

Thank you for purchasing the Charger. You get a rapid charger/discharger with a built-in
balance, which is computerized with a high performance microprocessor and specialized operating software.
Please read this entire operating manual completely and attentively as it contains a wide variety of specific
programming and safety information.
SPECIFICATIONS
Operating voltage range: DC 11.0 - 18.0 Volt
AC to DC adaptator (DC 11.0 ~ 18.0V)
Circuit power: Max. charge power 80W [DC Input]
Max. discharge power 10W
Charge current range: 0.1 ~ 8.0A
Discharge current range: 0.1 ~ 2.0A
Current drain for balancing Li-po: 460mAh/cell
NiCd/NiMH battery cell count: 1 ~ 15 Cells
Lithium battery cell count: 1 ~ 6 Series
Pb battery voltage: 2 ~ 20V
Net Weight: 590g
Dimensions: 135 x 145 x 43mm
WHAT'S NEW IN MULTI80+
• Max charge current reach to 8A instead of 6A, that means that it can speed up your charge by
increasing the charge current.
• Max balance current increase to 460mA from 300mA, that means it can speed up the balance charge
of your lithium batteries.
• 15 extra functions provide more convenience for your hobby time.
1. LANGUAGES: There are 2 languages which you can select (English and Deutsch).
2. CELL METER: The charger can test the voltage of each cell of your batteries.
3. CAPACITY: Check the capacity of the battery.
4. IR: The battery pack measures internal resistance.
5. BALANCER: The charger can balance the voltage of each cell of your battery.
6. DIGITAL POWER: Using the charger's output as a DC power supply.
7. BRUSH MOTOR: You can easily beak-in new brushed electric motor using a variable voltage and
running time.
8. FOAM HOT CUTTER: The charger acts as a convenient power supply for a hot wire foam cutter.
9. MOTOR/ ESC/SERVO: The charger can output the PPM signal instead of your TX for your MOTOR/
ESC/SERVO, you can see it's working status.
10. BRUSHLESS MOTOR: The charger can drive an inductance brushless motor.
11. SERVER TEST: The charger can test the server.
12. THRUST CALCULATOR: You can easily calculate the thrust of a propeller.13. TEMP.: The charger can
measure the external temperature by using a temperature sensor.
14. VOLTAGE METER: The charger can measure the DC voltage of an object.
15. PPM TEST: The charger can test the PPM signal from TX, so that you can check out some problem
between your Tx and RX.
ENGLISH
2
fran
ç
ais

SPECIAL FEATURES
Optimized operating software
When charging or discharging, it has an “AUTO” function that sets the feeding current automatically.
Especially for Lithium batteries, it can prevent the over-charging can lead to an explosion by users fault.
Every program in the unit is controlled with mutual links and communication for every possible error so it
introduces a maximum safety. These can be set at users option.
Internal independent lithium battery balancer
It has an individual-cell-voltage balancer inside. So it does not need any balancer separately when charging
Lithium batteries (Lilon/LiPo/LiFe) for cell voltage balancing.
Balancing individual cells battery discharging
It also can monitor and balance individual cells of the Lithium battery pack during the discharge process. If
the voltage of any one cell varies abnormally, the process will be stopped with the error message.
Adaptable to various types of Lithium battery
It can accept three types of Lithium batteries: Lilon, LiPo and LiFe. They have different characteristics by
their chemistry. You can select any one of them that you are going to process before the job. For their
specifications, refer to “Warnings and safety notes” section.
Lithium battery “Fast” and “Storage” mode
You can charge Lithium battery for special purposes. “Fast” charge reduces the charging time of Lithium
battery and “Storage” mode controls the final voltage of the battery to be suit for long time storage.
Maximum safety
• Delta-peak sensitivity: The automatic charge termination program works on the principle of the Delta¬peak
voltage detection (NiCd/NiMH). When the battery's voltage exceeds the threshold, the process
• will be terminated automatically.
• Auto-charge current limit: When charging NiCd or NiMH at “AUTO” current mode, you can set the upper
limit of charge current to avoid from high current charging. This is very useful when charging the low
impedance and small capacity NiMH battery in “AUTO” mode.
• Capacity limit: The charging capacity always calculated by multiple of the charging current and time. If
the charging capacity exceeds the limit the process will be terminated automatically when you set the
maximum value.
• Temperature limit: The temperature of the battery on charging will rise by its internal chemical reaction.
If you set the limit of temperature the process will be expired forcibly when the limit has reached.
* This function is available by connecting optionnal temperature probe, which is not included in our
package
• Processing time limit: You can also restrain the maximum process time to prevent from any possible defect.
• Input power monitor: To protect the car battery using as DC input power from being damaged the
voltage of it always monitored. If it drops below the lower limit the process will be ended automatically.
Data store/load
For users convenience it can store maximum 5 data of different batteries. You can establish the data
contains program setting of the battery to charge or discharge continually. These data can be called out
at any time you need and the process can be executed without program setting.
Cyclic charging/discharging
Perform 1 to 5 cycles of charge> discharge or discharge> charge continually for battery refreshing and
balancing.
ENGLISH
3
fran
ç
ais

WARNINGS AND SAFETY NOTES
Those warnings and safety notes are particularly important. Please follow the instructions for a maximum
safety; otherwise the charger and the battery can be damaged violently. And also it can cause a fire to
injure a human body or to lose the property.
1. Never leave the charger unsupervised when it is connected to its power supply. If any malfunction is
observed immediately terminate the process and refer to the operation manual.
2. Keep away the charger from dust, damp, rain, heat direct sunshine and vibration. Do not drop it.
3. The circuit of this charger is designed to be powered by a 12V DC. But do not supply both input power
simultaneously. The circuit can be damaged permanently.
4. This charger and battery to be charged and discharged should be set up on a head-resistant, non-
inflammable and non-conductive surface. Never place them on a car seat, carpet or similar.
5. Keep all the inflammable volatile materials well away from operation area.
6. Be sure to understand the information of the battery to be charged or discharged accurately. If the
program is set up incorrectly the battery can severely be damaged. Especially Lithium battery can cause
a fire or an explosion by over-charging.
7.
7. To avoid short-circuits between the charge lead, always connect the charge cable to the unit first and only
then to the battery to be charged or discharged. Reverse the sequence when disconnection.
8. Do not connect more than one battery pack to charge at any one time.
9. Do not attempt to charge or discharge below types of battery:
a) Battery pack, which consists of different types of cell (including different manufacturers).
b) Battery, which is already fully charged or just slightly discharged.
c) Non-rechargeable batteries. (Explosion hazard)
d) Batteries that require a different charge technique from NiCd, NiMH, Lilon, LiPo, LiFe or Pb.
e) Faulty or damaged battery.
f) Battery fitted with an integral charge circuit or a protection circuit.
g) Batteries installed in a device, or which are electrically linked to other components.
h) Batteries that are not expressly stated by the manufacturer to be suitable for the currents the charger
delivers during the charge process.
10. Please check below point before charge operation.
a) Select the appropriate program which is suitable for the type of battery.
b) Set up adequate current for charging or discharging.

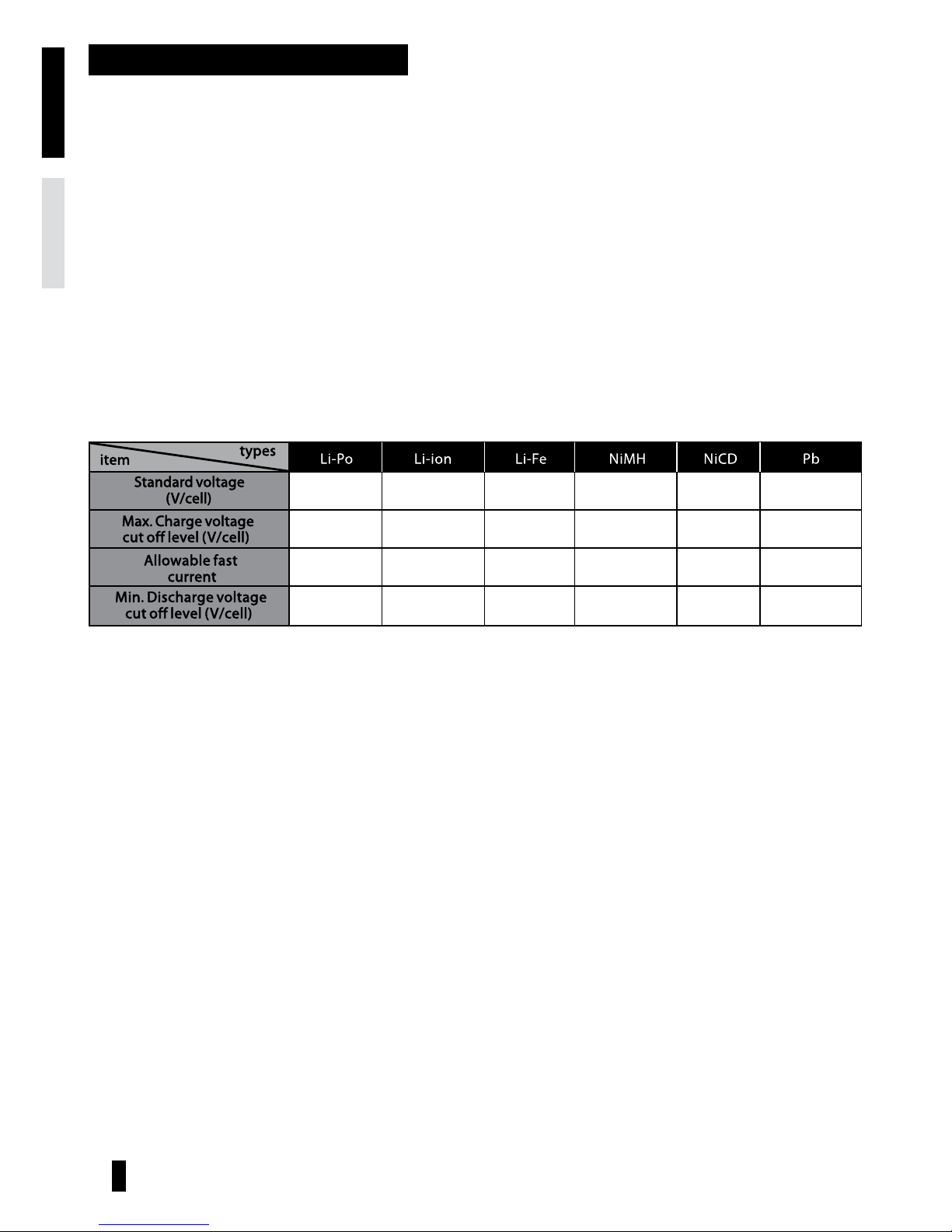

3.70 3.60 3.30 1.20 1.20 2.00
4.20 4.10 3.60 1.60 1.60 2.45
1C 1C 4C 2C 2C 0.4C
3.00 3.00 2.00 1.00 0.85 1.75
ENGLISH
4
fran
ç
ais

c) Lithium battery pack can be composed with parallel and series circuits mixed. You have to check the
composition of the battery pack carefully before charging.
d) Be sure all the connections firm and safe, on intermittent contact at any point in the circuit.
GENERAL NOTES ON OPERATING IT
Charging
A specific quantity of electrical energy is fed into the battery during charge process. The charge quantity
is calculated by multiplying charge current by charge time. The maximum permissible charge current
varies according to the battery type or its performance, and can be found in the information provided by
the battery manufacturer. It is only allowed to charge batteries at rates higher than the standard charge
current if they are expressly stated to be capable of quick-charge.
Connect the battery to charge to output terminal of the charger using suitable charge lead. They are red,
positive (+) and black, negative (-). Since the charger cannot detect the difference between the internal
resistance of the battery pack, cable resistance and connector transfer resistance, the first requirement
if the charger to work properly is that the charge lead should be of adequate conductor cross-section. And
also high-quality connectors (normally gold-contact type) must be fitted to both ends.
Refer to the information provided by the battery manufacturer regarding charging methods, and verify the
recommended charge current and charge time. Especially for Lithium batteries, you have to follow the
charge instruction provided by the manufacturer strictly.
Do not attempt to disassemble the battery pack arbitrarily.
You have to pay attention to verify the capacity and the voltage of the Lithium battery pack. It may be
composed of parallel and series connection mixed. In parallel link the capacity of the battery pack is multiplied
by the number of cells but the voltage remains same. That kind of voltage imbalance causes a fire or explosion
during charge process. We recommend you compose the Lithium battery pack in series only.
Discharge
The typical purpose of discharge is to determine the residual capacity of the battery, or to lower the voltage
of battery to a defined level. When you discharge the battery you also have to pay attention on the process
same as charging. To avoid the battery becoming deep-discharged, set the final discharge voltage correctly.
Lithium batteries should not be deep-discharged to lower than the minimum voltage, as this leads to a rapid
loss of capacity or a total failure. Generally, you do not need to discharge Lithium battery voluntarily.
Some rechargeable batteries are said to have a memory effect. If they are partly used and recharged
before the whole charge is drawn out, they “remember” this and next time will only use that part of their
capacity. This is a “memory effect”. NiCd and NiMH batteries are said to suffer from memory effect.
They prefer complete cycles; fully charge then use until empty, do not recharge before storage—allow
them to self-discharge during storage. NiMH batteries have less memory effect than NiCd.
The Lithium battery prefers a partial rather than a full discharge. Frequent full discharges should be
avoided if possible. Instead, charge the battery more often or use a larger battery.
The brand-new NiCd battery pack is partially useful with its capacity until it has been subjected to 10
or more charge cycles in any case. The cyclic process of charge and discharge will lead to optimize the
capacity of battery pack.
ENGLISH
5
fran
ç
ais

INITIAL PARAMETER SET UP (USERS SET UP)
As default this charger will be set to
typical user settings when it is connected
to a 12V battery for the first time.The
screen displays the following information
in sequence and the user can change the
parameter on each screen.
If you need to alter the parameter value in
the program,press"Start/Enter"key to make
it blink then change the value with"INC"or
"DEC"key. The value will be stored by
pressing"Start/Enter" key once.
ENGLISH
6
fran
ç
ais

ENGLISH
7
fran
ç
ais
The screen displays the nominal voltage of Lithium battery. There are three
kinds of Lithium battery; LiFe(3.3V), Lilo(3.6V) or LiPo(3.7V). This is very
important so you have to check the battery carefully and set it up correctly. If it
is different from correct value the battery can explode during charge process.
It recognizes the cell count of Lithium battery automatically at the beginning
of charge or discharge process to avoid from erroneous setting by user. But
deeply discharged battery can be perceived incorrectly. To prevent the error,
you can set the time term to verify the cell count by the processor. Normally, 15 seconds are enough to
perceive the cell count correctly. For the battery of larger capacity, you may extend the time term. But if
you set the time term too long for the battery of smaller capacity, the charge or discharge process can be
finished within the time term with the erroneous cell count. This may cause the fatal result. If the processor
recognizes the cell count incorrectly at the beginning of charge or discharge process, you may extend the
time. Otherwise, you had better use with the default value.
This shows the trigger voltage for automatic charge termination of NiMH and
NiCd battery. The effective value ranges from 5 to 20mV per cell. If the trigger
voltage is set higher, there is a danger of overcharging the battery; if it is set
lower, there is a possibility of premature termination. Please refer the technical specification of the battery.
(NiCd default: 12mV, NiMH default: 7mV)
(OPTIONAL) You can select the function of 3-pin port at left side of the unit. It
can be used temperature sensor port or USB port, selected at this screen. If
the port is assigned as a temp. port, an optional temperature probe contacting
the surface of battery can be used. When it is selected as an USB port, you can
link the charger to your PC via an optional USB cable. This can utilize the optional software that can show
you the charge process at PC.
(OPTIONAL) You can set the maximum temperature at which the charger should
allow battery to reach during charge. Once a battery reaches this temperature
during charge, the process will be terminated to protect the battery.
The battery is on the cyclic process of charge and discharge can often become
warm after charge or discharge period. The program can insert a time delay to
occur after each charge and discharge process to allow the battery adequate
time to cool down before being subjected to the next process. The value ranges from 1 to 60 minutes.
When you start a charge process, the integral safety timer automatically starts
running at the same time. This is programmed to prevent overcharge the
battery if it proves to be faulty, or if the termination circuit cannot detect the
battery full. Please refer the statement in below to calculate the time setting.
This program sets the maximum charge capacity that will be supplied to the
battery during charge. If the delta-peak voltage is not detected nor the safety
timer expired by any reason, this feature will automatically stop the process at
the selected capacity value.
LiFe
V.Type 3.3V
LiPo/Lilo/LiFe
CHK Time 10min
NiCd Sensitivity
D.Peak Default
USB/Temp Select
Temp Cut-off 80C
USB/Temp Select
Temp Cut-off Enabled
Waste time
CHG/DCHG 5min
Safety timer
ON 120min
Capacity Cut-Off
ON 5000mAh

The beep sounds at every time pressing the buttons to confirm your action.
The beep or melody sounded at various times during operation to alert different
mode changes. These audible sounds can be on or off.
This program monitors the voltage of input DC battery. If the voltage drops
below the value you set the operation forcibly terminated to protect the input
battery.
SELECT LANGUES :
Press”Start/Enter” button again, and a beep will be sound,you can see the
“English” is flashing, at this moment, please press ”DEC"or "INC" to select language.
The screen shows the language (Germany).
LITHIUM BATTERY (LILO/LIPO/LIFE) PROGRAM
These programs are only suitable for charging and discharging Lithium batteries with a nominal voltage
of 3.3V, 3.6V and 3.7V per cell. These batteries need to adopt different charge technique is termed a
constant voltage (CV) and constant current (CC) method. The charge current varies according to the
battery capacity and performance. The final voltage of charge process is also very important; it should be
precisely matched with the charade voltage of the battery. They are 4.2V for LiPo, 4.1V for Lilo, and 3.6V
for LiFe. The charge current and nominal voltage as for cell count set on the charge program must always
be correct for the battery to be charged.
When you are willing to alter the parameter value in the program, press Start/Enter key to make it blink
then change the value with INC or DEC key. The value will be stored by pressing Start/Enter key once.
SAFE TIMER CALCULATION
When charging NiCd or NiMH batteries, divide the capacity by current, then divide the result by 11.9, set
this number of minuters as the value for safety timer setting. If the charger stopped at this time thresold,
about 140% of the capacity will have been fed into the battery.
For example :
Capacity Current Safety time
2000 mAh 2.0A (2000/2.0=1000)/11.9=84 minutes
3300 mAh 3.0A (3300/3.0=1000)/11.9=92 minutes
1000 mAh 1.2A (1000/1.2=1000)/11.9=70 minutes
CHARGING LITHIUM BATTERY
The left side of the first line shows the type of battery you select at the users setting.
The value on the left side of second line sets a charge current and the value on the
right side of second line sets the voltage of the battery
After setting the current and voltage press Start/Enter key for more than 3 seconds to start the process.
(Charge current: 0.1 - 5.0A, Voltage: 1 - 6 series)
Key Beep ON
Buzzer ON
Input power low
Cut-off 10.0V
Select Language
English
Select Language
Deuts
LiPo Charge
2.0A 11.1V(3S)
ENGLISH
8
fran
ç
ais

This shows the number of cells you set up and the processor detects. “R:”
shows the number of cells found by the charger and “S:” is the number of cells
selected by you at the previous screen. If both numbers are identical you can
start charging by press Start/ Enter button. If not, press Batt type/Stop button
to go back to previous screen. Then carefully check the number of cells of the battery pack to charge again.
The screen shows the present situation during charge process. To stop
charging press Batt type/Stop key once.
CHARGING LITHIUM BATTERY AT BALANCE MODE
This is for balancing the voltages of Lithium batteries of the battery pack to be charged. To do this, the
battery pack being charged should have the individual cell connector. And connect it to the individual port
at the right side of charger with a suitable connection cable that fits with your battery pack. And also, you
need to connect the battery output plug to the output of charger.
In this mode, the charging process will be different from ordinary charging mode. The internal processor
of the charger will monitor the voltages of each cell of the battery pack and controls the charging current
that is feeding to each cell to normalize the voltage.
The value on the left side of second line sets a charge current and the value on the right
side of second line sets the voltage of the battery pack.
After setting the current and voltage press Start/ Enter key for more than 3
seconds to start the process.
This shows the number of cells you set up and the processor detects. “R:”
shows the number of cells found by the charger and “S:” is the number of
cells “S:” is the number of cells selected by you at the previous screen. If both
numbers are identical you can start charging by press Start/Enter button. If
not, press Batt type/Stop button to go back to previous screen. Then carefully check the number of cells of
the battery pack to charge again.
The screen shows the present situation during charge process. To stop
charging press Batt type/Stop key once.
INDIVIDUAL CELL CONNECTION DIAGRAM [PIN-ASSIGNMENT OF 8-PIN]
R:3 SER S:3SER
CONFIRM(ENTER)
Li3S 2.0A 12.59V
CHG 022:43 00682
LiPo Balance
2.0A 11.1V(3S)
R:3SER S:3SER
CONFIRM (ENTER)
Li3S 2.0A 12.59V
CHG 022:43 00682
ENGLISH
9
fran
ç
ais

“FAST” CHARGING LITHIUM BATTERY
The charging current is getting smaller as the process goes to the near end term of Lithium battery
charging. To finish charging process earlier, this program eliminate certain term of CV process. Actually,
the charging current will goes to 1/5 from the initial value to end the process while the normal charging
goes to 1/10 during CV term. The charging capacity may be a bit smaller than normal charging but the
process time will be reduced.
You can set up the charging current and the voltage of the battery pack being
charged. As you press Start/Enter button the voltage confirmation will be
displayed. And then, if you confirm the voltage and current, press Start/Enter
button again to start charging.
This shows the present state of “FAST” charging. To stop charging arbitrary,
press Batt type/Stop key once.
“STORAGE” CONTROL LITHIUM BATTERY
This is for charging or discharging Lithium battery not to be used for the time being. The program will
determine to charge or discharge the battery to the certain voltage depending on the voltage of the
battery at its initial stage. They are different from the type of the battery, 3.75V for Lilo, 3.85V for LiPo
and 3.3V for LiFe per cell. If the voltage of battery at its initial stage is over the voltage level to storage,
the program will start to discharge.
You can set up the current and the voltage of the battery pack to be charged.
The current will be used for charge or discharge the battery to reach the
“storage” level of voltage.
The screen shows the present situation during charge process. To stop
charging press Batt type/Stop key once.
DISCHARGING LITHIUM BATTERY
The value of discharge current on the left side of screen may not exceed 1C for a
maximum safety and the final voltage on the right should not be under the voltage
level that is recommended by the battery manufacturer to avoid deep discharging.
To start to discharge press Start/Enter key for more than 3 seconds.
This shows the present state of discharge. To stop discharging press Batt
type/Stop key once.
LiPo FAST CHG
2.0A 11.1V(3S)
Li3S 2.0A 12.59V
CHG 022:43 00682
LiPo STORAGE
2.0A 11.1V(3S)
Li3S 2.0A 12.59V
STO 022:43 00682
LiPo DISCHARGE
1.0A 11.1V(3S)
Li3S 2.0A 12.59V
DSC 022:43 00682
ENGLISH
10
fran
ç
ais

VOLTAGE BALANCING AND MONITORING DURING THE DISCHARGE
The processor monitors the voltage of individual cells during “storage-mode” and “discharge” of Lithium
battery pack. It tries to normalize the voltages to be equal. For this feature, the individual plug of the
battery pack should be connected to the individual port of the charger.
If the voltage of any one or more cells varies abnormally during the procedure, it terminates the process
forcibly with the error message. If this happens, the battery pack contains the bad cell, or the bad
connection of the cable or plug. You can easily know which one cell is bad by pressing INC button at time
of showing the error message.
The processor found that the voltage of one of the cell in the Lithium battery
pack is too low.
In this case, the 4th cell is bad. If there happens the connection-break of the
cable or plug, the voltage value may show zero.
NIMH/NICD BATTERY PROGRAM
These programs are for charging or discharging NiMH (Nickel-Metal-Hydride) or NiCd (Nickel-Cadmium)
battery commonly used for R/C models applications. To alter the value at the display, press Start/Enter
key to make it blink then change the value using INC or DEC key. The value will be stored by pressing Start/
Enter key once.
To start the process, press Start/Enter button for more than 3 seconds.
CHARGING NICD/NIMH BATTERY
This program simply charges the battery using the current you set. In “Aut” mode,
you need to set the upper limit of charge current to avoid from higher feeding current
that may damage the battery. Because some batteries of low impedance and small
capacity can lead to the higher charge current by the processor at automatic charge
mode. But in “Man” mode, it will charge the battery with the charge current you set at the display. Each mode can
be switched by pressing INC and DEC button simultaneously when the current field is blinking.
The screen displays the current state of charging. To stop the process, press Batt type/Stop key once.
The audible sound indicates charge you the end of process
DISCHARGING NICD/NIMH BATTERY
Set discharge current on the left and final voltage on the right. The discharge
current ranges from 0.1 to 2.0A and the final voltage ranges from 0.1 to
25.0V. To start the process, press Start/Enter key for more than 3 seconds.
The screen displays the current state of discharge. You can alter the discharge
current by pressing Start/Enter key during the process. Once you change the
current value, store it by pressing Start/Enter button again.
To stop discharging press Batt type Stop key once. The audible sound indicates
you at the end of process.
BATTERY VOL ERR
CELL LOW VOL
4.14 4.16 4.09
2.18 0.00 0.00
NiMH 2.0A 7.42V
CHG 022:45 00890
NiMH CHARGE Aut
CUR LIMIT 5.0A
NiMH DISCHARGE
1.0A 11.5V
NiMH 1.0A 7.42V
DSC 022:45 00890
ENGLISH
11
fran
ç
ais

CHARGE-TO-DISCHARGE & DISCHARGE-TO-CHARGE CYCLE NIMH/NICD BATTERY
Set the sequence on the left and the number of cycle on the right. You can use this
function for balancing, refreshing and break-in the battery. To avoid rising temperature
of the battery, there will a brief cool-off period that already fixed at “User setting” after
each charge and discharge process. The cycling number ranges from 1 to 5.
To stop the process, press Batt type/Stop key once. You can change the
discharge or charge current by pressing Start/Enter key once during the
process. The audible sound indicates you the end of process.
At the end of the process, you can see charged or discharged electric capacities of
the battery at each cyclic process.
By pressing INC or DEC button, the screen shows the result of each cycle in order.
PB (LEAD-SULPHURIC ACID) BATTERY PROGRAM
This is programmed for charging Pb (lead-acid) battery with nominal voltage from 2 to 20V. Pb batteries are totally
different from NiCd or NiMH batteries. They can only deliver relatively lower current compare to their capacity,
and similar restrictions definitely apply to charge. So the optimal charge current will be 1/10 of the capacity. Pb
batteries must not be charged rapidly. Always follow the instruction is supplied by the manufacturer of battery.
When you are willing to alter the parameter value in the program, press Start/Enter key to make it blink then change
the value with INC or DEC key. The value will be stored by pressing Start/Enter key once.
CHARGING PB BATTERY
Set up the charge current on the left and the nominal voltage of the battery on
the right. The charge current ranges from 0.1 to 8.0A and the voltage should
be matched with the battery being charged.
Start the charge process by pressing Start/Enter key for more than 3 seconds.
The screen displays the state of charging process. To stop charging forcibly,
press Batt type/Stop key once.
The audible sound indicates you at the end of the process.
DISCHARGING PB BATTERY
Set discharge current on the left and final voltage on the right. The discharge
current ranges from 0.1 to 2.0A.
To start the process, press Start/Enter key for more than 3 seconds.
The screen displays the current state of discharge. You can alter the
discharge current by pressing Start/Enter key during the process. Once you
change the current value, store it by pressing Start/Enter button again.
To stop discharging press Batt type/Stop key once. The audible sound indicates you at the end of process.
NiMH CYCLE
DCHG>CHG 3
NiMH 1.0A 7.42V
D>C 022:45 00890
DCHG 1 1314mAh
CHG 1 1430mAh
Pb Charge
4.0A 12.0V(6P)
Pb-6 4.0A 12.59V
CHG 022:43 00682
Pb DISCHARGE
1.0A 12.0V(6P)
Pb-6 0.4A 12.59V
DSC 022:43 00682
ENGLISH
12
fran
ç
ais

SAVE DATA PROGRAM
It has a data storage and load program for your convenience. This feature can store up to 5 battery data
by number that represent the individual specification of batteries you are using. They can be called back
for the process of charging or discharging without setting up the program again. To set up the parameter
value in the program, press Start/Enter key to make it blink then change the value with INC or DEC key.
The parameter value setting up in this screen dose not affect charge or
discharge process. They only represent the specification of the battery.
The following screens will automatically be displayed exactly matched with
the battery type you set up. The example shows the battery pack of NiMH,
12 cells and 3000mAh of capacity.
Set up the charge current for manual charge mode, or the current limit for
automatic charge mode. Each mode can be switched by pressing INC and
DEC button at the same time when the current field is blinking.
Setting up discharge current and final voltage.
Setting up the sequence of charge and discharge, and the cycling number.
Saving the data.
LOAD DATA PROGRAM
This program calls back the data that was stored at “Save Data” program.
To load the data, press Start/Enter key once to blink the data number field
and select the number using INC or DEC key then press Start/Enter key for
more than 3 seconds.
Select the data number to be called back.
The data matched with the number will be displayed at this time.
Loading the data.
VARIOUS INFORMATION DURING THE PROCESS
You can inquire various information on LCD screen during charging or discharging process. When you press DEC
button the charger shows the establishment of user settings. And also you can monitor the voltage of individual
cell by pressing INC button when the individual connection cable is linked to the Lithium battery being processed.
PROGRAM SELECT
SAVE DATA
SAVE [01] NiMH
14.4V 3000mAh
NiMH CHARGE At*
CUR LIMIT 5.0A
NiMH DISCHARGE
1.0A 11.0V
NiMH CYCLE
DCHG>CHG 3
Save . . .
PROGRAM SELECT
LOAD DATA
LOAD [01] NiMH
14.4V 3000mAh
Load...
ENGLISH
13
fran
ç
ais

The final voltage will be reached at the end of process.
Capacity Cut-Off
ON 5000mAh
Safety Timer
ON 200min
The 3-pin port is assigned as an USB port.
The external temperature only will be displayed when using the thermal
probe.
The present voltage of input power.
Using the individual connection cable to the battery, you can check the
individual voltages of each cell in the battery pack. When connect the cable
to the port on the right side of the charger the program shows the voltage
of each cells for maximum 6 cells in sequence. To utilize this feature, the
battery pack must have output connector that linked to each cells.
SELECT EXTERN FUNCTION PROGRAM
In this program,you can select extern function of battery
1> MEASURE INTERNAL RESISTANCE PROGRAM PER CELL (ONLY FOR LITHIUM BATTERIES)
In this program,the charger can ont only measure the internal resistance of the battery pack,and also can
measure the per-cell internal resistance (only available for lithium battery).
Press « Start » : The battery pack start to measure internal resistance per cell.
The two lines shows the first to the sixth cell’s internal resistance, which
is only available for the lithium battery. Press “DEC”or“INC” to dispaly more
information.
End Voltage
12.6(3S)
USB/Temp Select
USB Enabled
Ext.Temp 26C
IN Power Voltage
12.56V
4.14 4.16 4.09
0.00 0.00 0.00
1> Measure IR
---->
C1:3 3 3mQ
C4:3 0 0mQ
ENGLISH
14
fran
ç
ais

2> CHECK CAPACITY OF BATTERY
Start to check the capacity of lithium battery.
Press ”Start/Enter” button again, and then press ”DEC”or“INC”, you can
select battery type (LiPo/LiFe/LiIo) by pressing Start again.
Please press ”Start/Enter” button (>3 seconds), it displays the status
information of the lithium battery. It indication of capacity is balancing of
each cell in your battery pack (example of a 6S battery).
Press ”DEC” or “INC” button, it displays the capacity information of your
battery pack.
3> LIXX BALANCE OF BATTERY
In this program,you can simply balance your 2-6S Lixx batteries using the integrated balancer. It indicates
voltage for each cell in your battery pack.
Press « Start/Enter » button.
Press ”Start/Enter” button again, and then press ”DEC”or“INC”,
you can select battery type (LiPo/LiFe/LiIo) by pressing Start again.
Please press ”Start/Enter” (>3 seconds) button again, it indication of voltage
is balancing of each cell in your battery pack.(example of a 6S battery).
The voltage of your battery pack is balanced.
4> SET UP VOLTAGE AND CURRENT OF DIGITAL POWER
Press « Start/Enter » button
Using the charger's output as a DC power supply. Press « Start/Enter »
button again : a beep will be sound, then press "DEC" or "INC" button to set
up the voltage and current of digital power.
Voltage range : 5.0 to 25.0V
Current range : 0,1 to 10.0A
2>Check Battery
Capacity ---->
Select Battery
LiPo
LiPo-6S 19.878V
2% C____________
3.31 3.31V 3.31V
3.31 3.31V 3.31V
3>Lixx Balance
---->
Select Battery
LiPo
LiPo-6S 19.880V
Balancing
3.31 3.31V 3.31V
3.31 3.31V 3.31V
4> Digital Power
---->
Digital Power
12.0V 2.0A
ENGLISH
15
fran
ç
ais

Please press "Start/Enter" button for more than 3 seconds, and this screen
displays the current, voltage and test time of digital power (Max. power: 80W).
5> BRUSHED MOTOR DRIVE
BE CAREFUL :
Connect your brushed motor to the charger ONLY AFTER havinh selected this function on screen.
Always plug the motor off before leaving this function.
You can easily break-in new bushed electric motor using a variable voltage and running time. With this
function you also check the motor performance to optimize your power-train. The break-in process is
essential for maximizing the power of a new brushed motor. New motors have square brushes which press
up against the curved cpmmutator. The goal for the break-in process is to gentle shape the brushed so
that they develop a curved surface that fits snugly against the commutator giving greater conducting
surface area and hence lower losses and higher effciency.
Press « Start/Enter » button.
The value in the right side of the first line sets the test duration in minutes.
The second line shows the upper limit of current on the left and drive voltage
on the right. After setting the current and voltage Press ”Start/Enter” for
more than 3 seconds to start the new process. A beep tone will sound.
- Test time: 1 to 90 minutes
- Current: 0,1 to 20A
- Test voltage: 1 à 15V
Status display. The top line shows the drive current and voltage. The second
line shows the output capacity (mAh) and in the lower right corner alternately
displays the output power or total run time.
You can stop the test at any time by pressing “Start/Enter”.
6> HOT WIRE FOAM CUTTER DRIVE
In this mode, the charger acts as a convenient power supply for a hot wire foam cutter.
Press « Start/Enter » button,
The value on the right side of the first line sets the test duration in minutes.
The second line shows the upper limit of current on the left side and drive
voltage on the right. After setting the current and voltage press ”Start/Enter”
for more than 3 seconds to start the next process. A beep tone will be sound.
- Running time: 0 à 90min
- Current: 0,1 à 20A
- Voltage: 1 à 40V
DGPW 0.0A 19.87V
001:54 0.0W
5>Brushed Motor
Drive ---->
MOTOR DRV 30min
2.0A 12.00V
MOTOR 0.0A 19.78V
DRV 000:43 0.0W
MOTOR 0.0A 19.78V
STOP000:00 0.0W
6>Hot Wire Foam
Cutter DRV ---->
FOAM CUT 30min
2.0A 12.00V
ENGLISH
16
fran
ç
ais

Stauts display. The top line shows the foam cut current and voltage.
The second line shows the status and in the lower right comer alternately
displays the output power or tatal run time.
You can stop the test at any time by pressing “Start/Enter”.
7> CHECK ESC/MOTOR PPM AND BL MOTOR RPM
The new charger incorporates, as the first charger, a fantastic feature which
allows you to check your brushless motors sensors and even measure motor
RPM! In combination with the built-in receiver simulator port you can even
speed-controls for correct function. The receiver simulator port also allows
the check of servo’s.
Press ”Start/Enter” button, then press"DEC" or "INC". After setting the min.
and max. signals, press ”Start/Enter” button for more than 3 seconds to
start the next ptrocess.
Min.Puleswidth(range:700~1500us)Max.Puleswidth(range:1500~2300us).
Status displays. This screen checks out the output signal and motor RPM.
8> THRUST CALCULATOR
In this program, you can easily calculate the thrust of a propeller.
Press "DEC" or "INC" button, you can set up the RPM, the screen displays the
thrust calculator and its power. After setting the RPM, please press "Start/
Enter" button for more than 3 seconds to start the next process.
9/ MEASURE EXTERNAL TEMPERATURE :
In this program, the charger can measure the external temperature by using
a temerature sensor.
A>Measure Input Voltage and Output Voltage :
In this program, the charger can measure the DC voltage of an object.
FOAM 0.0V 19.87V
RUN 001:48 0.0W
FOAM 0.0V 19.87V
STOP000:00 0.0W
7>Esc/Motor PPM
BLMOTOR RPM -->
SignalMin: 900us
SignalMax: 2100us
SignalOut: 900us
Motor RPM:-30976
8> Thrust Calc
---->
8000RPM 105X60
Th: 977g P:168W
10.00V 20.0A
Pi:200W Ef:84%
9> Measure Ext.
Tempra: 0C
A> Measure VOL
I:12.1V 0:19.87V
ENGLISH
17
fran
ç
ais

B/ Measure TR/RX :
In this program, the charger can measure the signal between TR and RX.
WARNING AND ERROR MESSAGES
It incorporates various functions of protective and monitoring system to verify functions and the state of its
electronics. In any case of occurring error, the screen displays the cause of error that is self-explanatory
with audible sound.
The output is connected to a battery with incorrect polarity.
This will be displayed in case of detecting an interruption of the connection
between battery and output or voluntarily disconnecting the charge lead
during the operation of charge or discharge on output.
There was a short-circuit at OUTPUT. Please check the charging leads.
The voltage of input power lowers the limit.
The voltage of Lithium battery pack was selected incorrectly. Verify the
voltage of battery pack carefully.
There happens malfunction at the charger circuit by any reason.
The processor detects the voltage is lower than you set at Lithium program.
Please check the cell count of the cell one by one.
The processor detects the voltage is higher than you set at Lithium program.
Please check the cell count of the cell one by one.
The voltage of one of the cell in the Lithium battery pack is too low. Please
check the voltage of the cell one by one.
The voltage of one of the cell in the Lithium battery pack is too high. Please
check the voltage of the cell one by one.
B> Measure TR/RX
Signal: Ous
REVERSE POLARITY
CONNECTION BREAK
SHORT ERR
VOL SELECT ERR
VOL SELECT ERR
BREAK DOWN
BATTERY CHECK
LOW VOLTAGE
BATTERY CHECK
HIGH VOLTAGE
BATTERY VOLTAGE
CELL LOW VOL
BATTERY VOLTAGE
CELL CONNECT
ENGLISH
18
fran
ç
ais

ENGLISH
19
fran
ç
ais
There are bad connection at the individual connector. Please check the
connector and cables carefully.
The internal temperature of the unit goes too high. Cool down the unit.
The processor can not continue to control the feeding current by any reason.
The unit needs to be repaired.
GLOSSARY OF TERMS
• Amps(A): The unit of measure for charge or discharge electric current. The program of the charger will
show most of the current in amps(A) at its LCD screen.
• Milli-amps(mA) : The electric current, being amps(A) multiplied by 1000 and noted as “mA”. So 2.0A
is the same as 2000mA (2.0*1000). Or, to convert mA to amps, divide the mA number by 1000. So
200mA is the same as 0.2A. If a current value is below 1.0A, the LCD screen of the charger will still
show the current in amps, not milli¬amps. For example, a current of 600mA will be displayed as 0.6A,
and a current of 100mA will actually be shown as 0.1A.
• Capacity, milli-amp hours (mAh), and amp-hours (Ah): Charge energy stored by a battery is called
capacity, which is defined as how much current a battery can supply constantly over one hour of time.
Most hobby batteries are rated for capacity in “mAh” or milliamp hours. A 650mAh battery can deliver
650mA of current for one hour (650mA*1hr=650mAh). The batteries of very large capacity, such as
lead-acid(Pb) batteries, are usually rated in “Ah” or amp-hours. A “12V 60Ah” car battery can deliver 60
amps of current for one hour (60Ax*1hr=60Ah).
• Nominal voltage(V) : The nominal voltage of the battery pack can be determined as follows :
-NiCd or NiMH: multiply the total number of cells in the pack by 1.2. A 8-cell pack will have a nominal
voltage of 9.6 volts (8*1.2).
-LiPo: multiply the total number of cells in the pack by 3.6. A 3-cell Lilo wired in series will have a nominal
voltage of 11.1 volts (3*3.7).
-Lilo: multiply the total number of cells in the pack by 3.6. A 2-cell Lilo wired in series will have a nominal
voltage of 11.1 volts (3*3.6).
-LiFe: multiply the total number of cells in the pack by 3.3. A 4-cell Lilo wired in series will have a nominal
voltage of 11.1 volts (4*3.3).
• If the nominal voltage of the battery is not printed on the battery’s label, consult your battery manufacturer
or supplier. Do not guess the rated voltage of battery.
• “C”-rating: Capacity is also referred to as the “C” rating. Some battery suppliers recommend charge and
discharge currents based on the battery “C” rating. A battery’s “1C” current is the same number as the
battery’ s rated capacity number, but noted in mA or amps. A 600mAh battery has a 1C current value of
600mA, and a 3C current value of (3*600mA) 1800mA or 1.8A. The 1C current value for a 3200mAh
battery would be 3200mA(3.2A).
BATTERY VOL ERR
CELL HIGH VOL
TEMP OVER ERR
CONTROL FAILURE

ENGLISH
20
fran
ç
ais
MAXIMUM CIRCUIT POWER CHART
For the voltage of battery is more than 10V, the actual amount of charge current delivered to the battery
might automatically be limited so not to exceed the charger’s maximum rated charging power of 50 watts.
And also, for the battery having more than 5V, the discharge current delivered to the battery might be
limited by the maximum rated discharge power of 5 watts. The actual feeding current will be as follow;
Maximum charge/discharge current at 12V DC input
No. of cells Nominal voltage (V) Charge current (A) Discharge curr. (A)
NiCd/NiMH
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
1.2
2.4
3.6
4.8
6.0
7.2
8.4
9.6
10.8
12.0
13.2
14.4
15.6
16.8
18.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
5.0
4.6
4.2
3.8
3.5
3.2
3.0
2.8
1.0
1.0
1.0
1.0
0.8
0.7
0.6
0.5
0.5
0.4
0.4
0.3
0.3
0.3
0.3
Li-Po
1S
2S
3S
4S
5S
6S
3.7
7.4
11.1
14.8
18.5
22.2
5.0
5.0
4.5
3.4
2.7
2.3
1.0
0.7
0.5
0.3
0.3
0.2
Li-Ion
1S
2S
3S
4S
5S
6S
3.6
7.2
10.8
14.4
18.0
21.6
5.0
5.0
4.5
3.4
2.7
2.3
1.0
0.7
0.5
0.3
0.3
0.2
Li-Fe
1S
2S
3S
4S
5S
6S
3.3
6.6
9.9
13.2
16.5
19.8
5.0
5.0
5.0
3.8
3.0
2.5
1.0
0.8
0.5
0.4
0.3
0.3
WARRANTY AND SERVICE
We guarantee this product to be free of manufacturing and assembly defects for a period of one year
from the time of purchase. The warranty only applies to material or operational defects, which are present
at the time of purchase. During that period, we will repair or replace free of service charge for products
deemed defective due to those causes.
You will be required to produce proof of purchase (invoice or receipt). This warranty is not valid for any
damage or subsequent damage arising as a result of misuse, modification or as a result of failure to
observe the procedures outlined in this manual.
