Konica Minolta bizhub 360 User manual

Status: 06.02.2007 Konica Minolta Solutions Europe GmbH Page 1
Version: 1.0 Product Marketing Division
Office Marketing Group
b
bi iz zh hu ub b 3 36 60 0 / / 4 42 20 0 / / 5 50 00 0 P Pr ro od du uc ct t G Gu ui id de e
The Wonder Workers

Status: 06.02.2007 Konica Minolta Solutions Europe GmbH Page 2
Version: 1.0 Product Marketing Division
Office Marketing Group
b
bi iz zh hu ub b 3 36 60 0 / / 4 42 20 0 / / 5 50 00 0 P Pr ro od du uc ct t G Gu ui id de e

Status: 06.02.2007 Konica Minolta Solutions Europe GmbH Page 3
Version: 1.0 Product Marketing Division
Office Marketing Group
b
bi iz zh hu ub b 3 36 60 0 / / 4 42 20 0 / / 5 50 00 0 P Pr ro od du uc ct t G Gu ui id de e
P
Pr ro od du uc ct t B Ba as si ic c
MODEL DEVELOPMENT CODE
Ganges 1
Ganges 2
Ganges 3
Product
Basic
PROPOSED MODEL NAME
bizhub 500
bizhub 420
bizhub 360
Product
Configuration
SUCCESSOR MODEL FOR
Di470
7145
N / A
System
Specifications
ESTIMATED SALES START
03 / 06
03 / 06
04 / 07
Copier
Specifications
DATAQUEST SEGMENT
VI
III
III
Printer
Specifications
ALSO AVAILABLE AS
Develop ineo 500
Develop ineo 420
Develop ineo 360
Scanner
Specifications
TYPE
Console / Stationary Platen
Fax
Specifications
MAX. MONTHLY COPY VOLUME
175 k
150 k
150 k
Consumables
AVERAGE MONTHLY COPY VOLUME
17 k
12 k
10 k
Article
Numbers
MACHINE LIFE
2.25 Mio. or 5
years, what ever
comes first
1.8 Mio. or 5 years,
what ever comes
first
1.8 Mio. or 5
years, what ever
comes first
Installation
MCBF Body
(Mean Copies Between Failure)
66 k
50 k
50 k
Maintenance
MCBF System
(Mean Copies Between Failure)
70 k
50 k
50 k
Spare Parts
MCBJ (Mean Copies Between Jam)
15 k
10 k
10 k
Recommended
Media
MCBV (Mean Copies between Visit)
52 K
42 K
42 K
Appendix
MTTR (Mean Time To Repair)
30 min.
30 min.
30 min.
SAFETY & ENVIRONMENT
English Data Sheets
InfoHub / Business Solutions / Safety and Environment
German Data Sheets
http://partner.konicaminolta.de

Status: 06.02.2007 Konica Minolta Solutions Europe GmbH Page 4
Version: 1.0 Product Marketing Division
Office Marketing Group
b
bi iz zh hu ub b 3 36 60 0 / / 4 42 20 0 / / 5 50 00 0 P Pr ro od du uc ct t G Gu ui id de e
P
Pr ro od du uc ct t C Co on nf fi ig gu ur ra at ti io on n

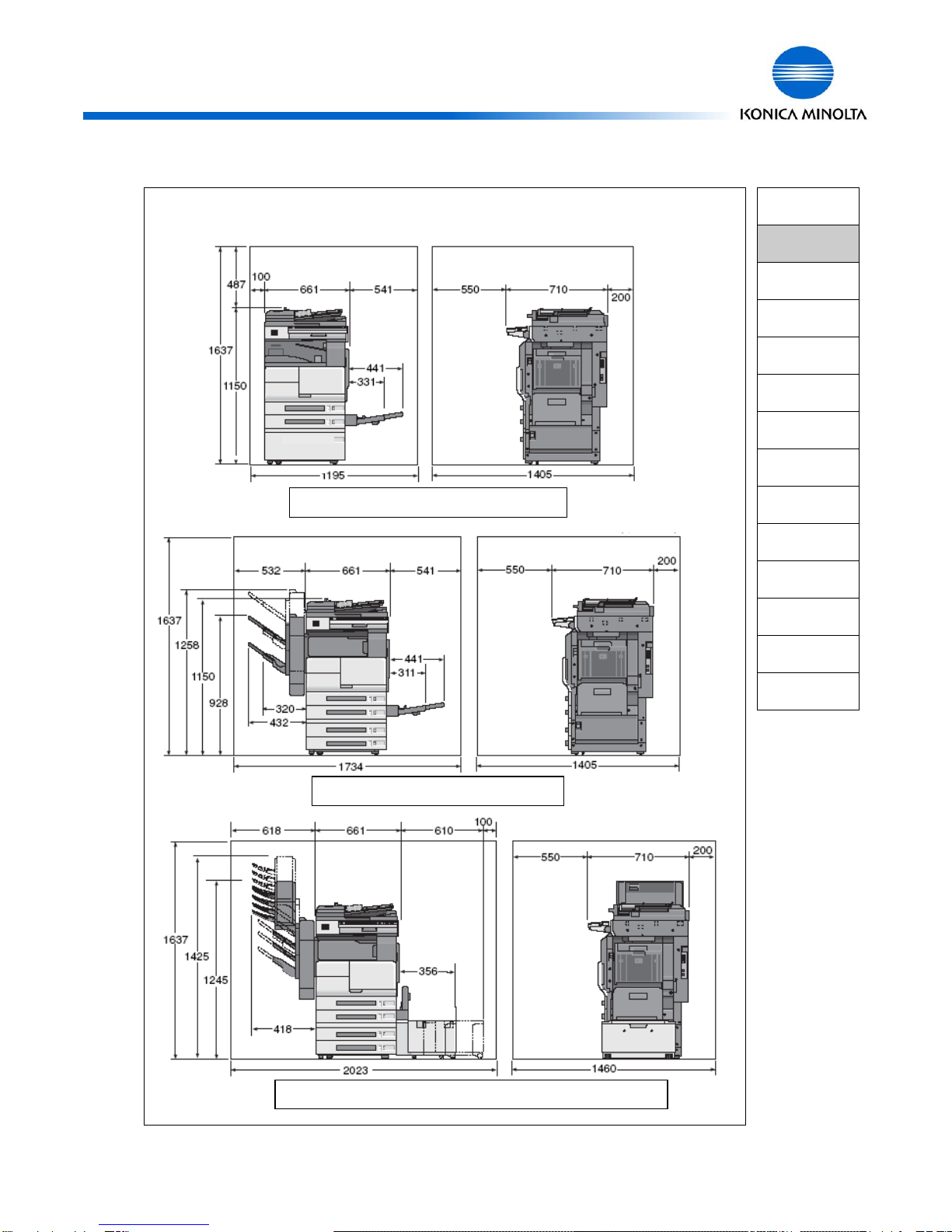

SYSTEM DIMENSIONS
Product
Basic
Product
Configuration
System
Specifications
Copier
Specifications
Printer
Specifications
Scanner
Specifications
Fax
Specifications
Consumables
Article
Numbers
Installation
Maintenance
Spare Parts
Recommended
Media
Appendix
Main Body with Copy Desk + OT-501
Main Body with PC-202 + FS-510 + MT-501 + LU-201
Main Body with PC-202 + FS-510
(mm)
(mm)
(mm)

Status: 06.02.2007 Konica Minolta Solutions Europe GmbH Page 5
Version: 1.0 Product Marketing Division
Office Marketing Group
b
bi iz zh hu ub b 3 36 60 0 / / 4 42 20 0 / / 5 50 00 0 P Pr ro od du uc ct t G Gu ui id de e
SYSTEM DIMENSIONS
Product
Basic
Product
Configuration
System
Specifications
Copier
Specifications
Printer
Specifications
Scanner
Specifications
Fax
Specifications
Consumables
Article
Numbers
Installation
Maintenance
Spare Parts
Recommended
Media
Appendix
Main Body with PC-202 + FS-510 + SD-502 + LU-201
Main Body with PC-402 + FS-511 + LU-201
(mm)
(mm)

Status: 06.02.2007 Konica Minolta Solutions Europe GmbH Page 6
Version: 1.0 Product Marketing Division
Office Marketing Group
b
bi iz zh hu ub b 3 36 60 0 / / 4 42 20 0 / / 5 50 00 0 P Pr ro od du uc ct t G Gu ui id de e

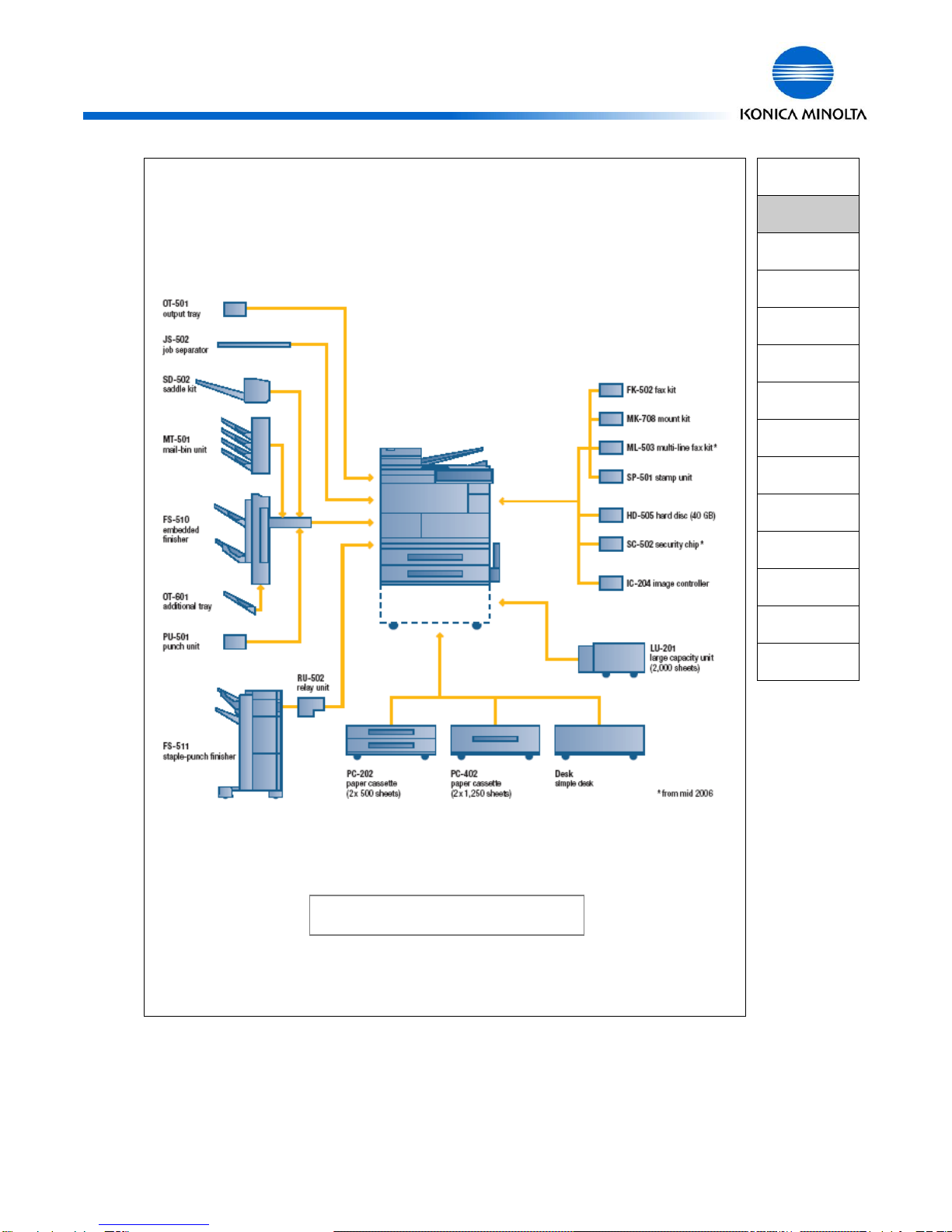

SYSTEM CONFIGURATION
Product
Basic
Product
Configuration
System
Specifications
Copier
Specifications
Printer
Specifications
Scanner
Specifications
Fax
Specifications
Consumables
Article
Numbers
Installation
Maintenance
Spare Parts
Recommended
Media
Appendix
Single-line fax: FK-502 + MK-708
Multi-line fax: 2 x FK-502 + MK-708 + ML-503

Status: 06.02.2007 Konica Minolta Solutions Europe GmbH Page 7
Version: 1.0 Product Marketing Division
Office Marketing Group
b
bi iz zh hu ub b 3 36 60 0 / / 4 42 20 0 / / 5 50 00 0 P Pr ro od du uc ct t G Gu ui id de e
S
Sy ys st te em m S Sp pe ec ci if fi ic ca at ti io on ns s
DOCUMENT FEEDER (DF-607)
Standard
Product
Basic
Original Size
A5 –A3
Product
Configuration
Original Weight
Simplex: 35 ~ 128 g/m²
Duplex: 50 ~ 128g/m²
System
Specifications
Tray Capacity
80 originals (80 g/m²)
Copier
Specifications
Feeding Type
Face up, upper sheet
Printer
Specifications
Feeding Speed
50 opm/A4 size simplex (600 x 600 dpi)
70 opm/A4 size simplex (300 x 300 dpi)
Scanner
Specifications
Dimensions (WxDxH) mm
582 x 558 x 145
Fax
Specifications
Weight (kg)
Approx. 10
Consumables
Remark
The DF-607 is already mounted to the machine from
factory side.
Article
Numbers
PAPER CASSETTES
Standard
Installation
Capacity
2 x 500 sheets universal (80 g/m²)
Maintenance
Paper Format
A5 –A3
Spare Parts
Paper Weight
60 –105 g/m²
Recommended
Media
Max. Paper Capacity
1150 sheets standard, max. 5650 sheets
Appendix
TWO WAY PAPER CABINET PC-202
Option
Capacity
2 x 500 sheets universal (80 g/m²)
Paper Format
A5 –A3
Paper Weight
60 –105 g/m²
Dimensions (WxDxH) (mm)
570 x 548 x 263
Weight (kg)
26
Remark
Due to engine design reason, the paper weight is
restricted by 90 g/m² although the cassette itself accepts
256 g/m² for feeding.

Status: 06.02.2007 Konica Minolta Solutions Europe GmbH Page 8
Version: 1.0 Product Marketing Division
Office Marketing Group
b
bi iz zh hu ub b 3 36 60 0 / / 4 42 20 0 / / 5 50 00 0 P Pr ro od du uc ct t G Gu ui id de e
LARGE CAPACITY CABINET
(PC-402)
Option
Product
Basic
Capacity
2,500 sheets (80 g/m²)
Product
Configuration
Paper Format
A4 crosswise
System
Specifications
Paper Weight
60 –105 g/m²
Copier
Specifications
Dimensions (WxDxH) (mm)
570 x 564 x 263
Printer
Specifications
Weight (kg)
26
Scanner
Specifications
Remark
Due to engine design reason, the paper weight is
restricted by 90 g/m² although the cassette itself accepts
256 g/m² for feeding.
Product
Basic
Fax
Specifications
2000 SHEET TRAY (LU-201)
Option
Consumables
Capacity
2000 sheets A4 crosswise (80 g/m²)
Article
Numbers
Paper Size
A4 crosswise
Installation
Paper Weight
60 –105 g/m²
Maintenance
Dimension (WxDxH) (mm)
356 x 515 x 299
Spare Parts
Weight (kg)
13
Recommended
Media
Remark
To connect LU-201 either the PC-202 or the PC-402 is
required.
Appendix
COPY DESK
Option
Remark
Used if no other cassette is connected. For storing paper
and consumables.
DUPLEX UNIT
Standard
Capacity
one sheet duplex
Paper Format
A5 lengthwise –A3
Paper Weight
60 –105 g/m²
BYPASS
Standard
Capacity
150 sheets (80 g/m²)
Paper Format
A6 –A3 (min.: 92 x 148 mm, max.: 297 x 431.8 mm) with
automatic size detection
Paper Weight
50 to 210 g/m²
Copy Media
Envelopes (refer to recommended media), OHP, thick
paper

Status: 06.02.2007 Konica Minolta Solutions Europe GmbH Page 9
Version: 1.0 Product Marketing Division
Office Marketing Group
b
bi iz zh hu ub b 3 36 60 0 / / 4 42 20 0 / / 5 50 00 0 P Pr ro od du uc ct t G Gu ui id de e
EMBEDDED FINISHER (FS-510)
Option
Product
Basic
Finishing Modes
Non-sort, sort, group, staple
Product
Configuration
Tray Capacity
Upper tray: 200 sheets (A4 / 80 g/m²)
Lower tray: 1000 sheets (A4 / 80 g/m²)
System
Specifications
Stapling Modes
Corner stapling, two position stapling
Copier
Specifications
Stapling Capacity
50 sheets
Printer
Specifications
Stapling Format
Corner(far side, near side), Parallel binding(far side, near
side, 2 points)
Scanner
Specifications
Dimensions (WxDxH) (mm)
319 x 558 x 573
Fax
Specifications
Weight (kg)
21.4
Consumables
Remark
1 staple cartridge MS –5D is included
Article
Numbers
ADDITIONAL FINISHER TRAY
(OT-601)
Option
Installation
Bin Capacity
200 sheets
Maintenance
Remark
Used for FS-510. For more details in regard to the
capacity refer to the chapter “Appendix”
Spare Parts
MAIL BIN TRAY (MT-501)
Option
Recommended
Media
Number of Bins
4
Appendix
Bin Capacity
125 sheets each
Dimensions (WxDxH) (mm)
624 x 503 x 390
Weight (kg)
8
Remarks
Either Mail Bin Tray or Saddle Stitch Unit can be installed
to FS-510
SADDLE STITCH UNIT (SD-502)
Option
Compatible
FN-117, FS-508
Article Number
4511 –811
Folding
Crease fold
Paper Size
A4 lengthwise / A3
Paper Weight
60 –90 g/m²
Tray Capacity
200 sheets or 20 sets
Stapling Modes
Centre parallel 2 points

Status: 06.02.2007 Konica Minolta Solutions Europe GmbH Page 10
Version: 1.0 Product Marketing Division
Office Marketing Group
b
bi iz zh hu ub b 3 36 60 0 / / 4 42 20 0 / / 5 50 00 0 P Pr ro od du uc ct t G Gu ui id de e
SADDLE STITCH UNIT (SD-502)
cont..
Product
Basic
Stapling Capacity
2 –15 sheets
Product
Configuration
Dimensions (WxDxH) (mm)
Inside the transport section: 48 x 399 x 146
Staple Unit and Output Tray: 576 x 281 x 478
System
Specifications
Weight (kg)
9.3 (inner and outer part together)
Copier
Specifications
Remark
1 staple cartridge MS –2C is included in the kit
Either Saddle Stitch Unit or Mail Bin Tray can be installed
to FS-510
Printer
Specifications
Scanner
Specifications
PUNCH UNIT (PU-501)
Option
Fax
Specifications
Number of Holes
4
Consumables
Paper Size
A4 –A3
Article
Numbers
Paper Weight
60 –160 g/m²
Installation
Dimensions (WxDxH) (mm)
114 x 461 x 136
Maintenance
Weight (kg)
1.9
Spare Parts
JOB SEPARATOR (JS-502)
Option
Recommended
Media
Appendix
Number of Trays
2
Tray Capacity
Tray 1: 250 sheets (60 –90 g/m²), 20 sh. (90 – 210 g/m²)
Tray 2: 100 sheets (60 –90 g/m²)
Paper Size
Tray 1: A6 lengthwise –A3
Tray 2: A5 –A3
Paper Weight
Tray 1: 60 –210 g/m²
Tray 2: 60 –90 g/m²
Dimensions (WxDxH) (mm)
450 x 443 x 75
Weight (kg)
1.7
STAPLE FINISHER (FS-511)
(Floor Type)
Option
Finishing Modes
Non-Sort, Sort (30 mm shift), Staple Sort, Staple Group,
Punch
Tray Capacity
Non-Sort Tray: 250 sheets
Elevator Tray: 3000 sheets A4 or 1500 sheets B4 and
bigger or 100 stapled sets with two A4 sheets
Stapling Modes
Corner upper or lower –1-point (45 degree diagonal)
Corner upper or lower –1 point (parallel)
Centre –2 point
