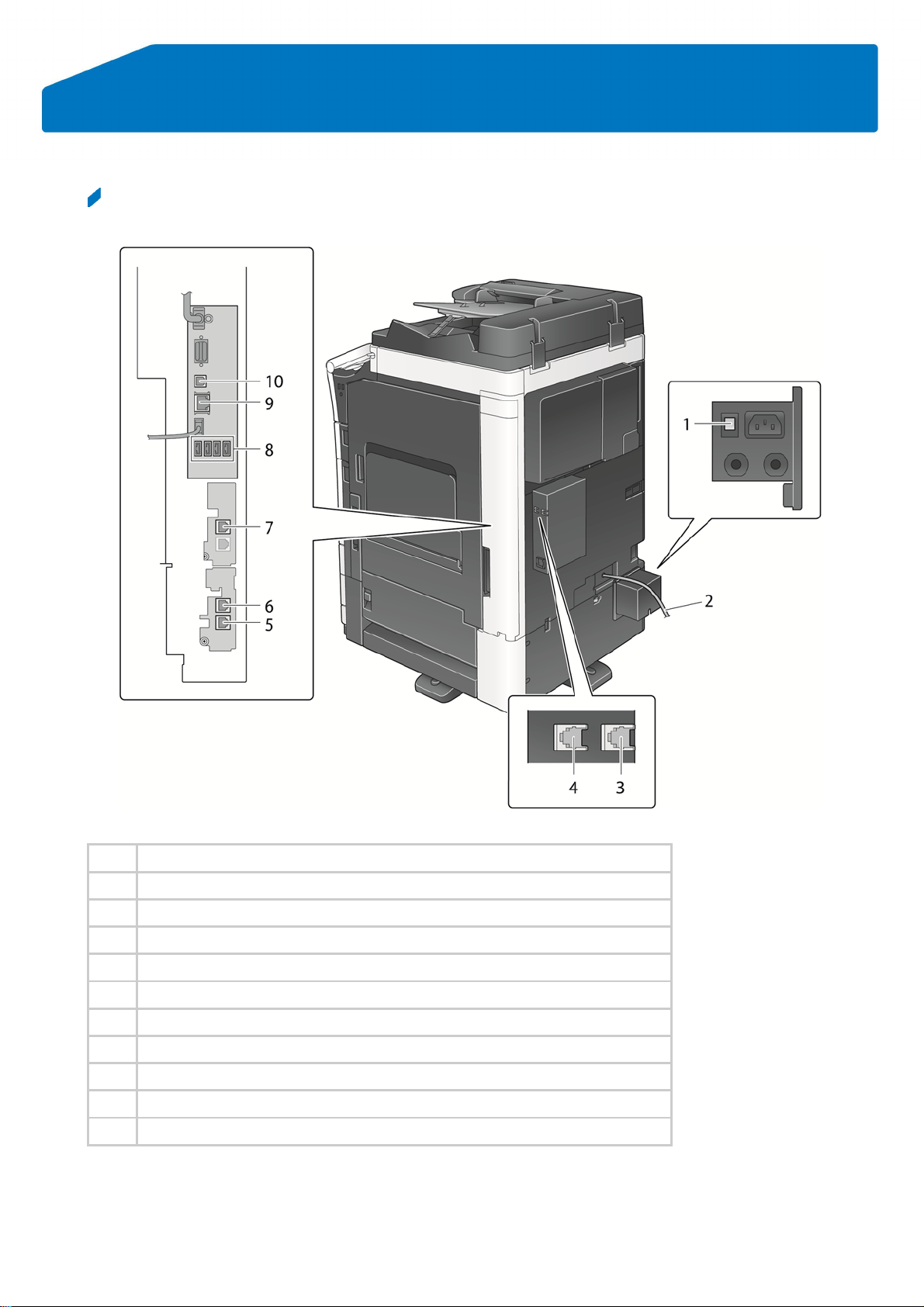

bizhub 758/PRO 958
No.
Name
Description
1
Finisher Connector
Connect the cable of the Finisher.
2
Filter
Used to collect toner powders inside the main unit.
3
Power Cord
Used to supply power to this machine.
4 Heater Power Switch Used to turn
Heater
operations on or off. This function prevents paper from
being affected by humidity when the power is turned on.
The Heater Power Switch is optional in some areas.
5
USB Port (Type B)
USB2.0/1.1
Connect to this port when using this machine as a USB-connected printer.
6
USB Port (Type A)
USB2.0/1.1
Used to connect the Authentication Unit or Wireless LAN Interface Kit.
7
USB Port (Type A)
USB2.0/1.1
Used to connect the Authentication Unit or Wireless LAN Interface Kit.

NETWORK DEFINITION PORT
for bizhub black/white products
4
No.
Name
Description
8
Network Connector
(10Base-T/100Base-
TX/1000Base-T)
Connect to this port when using this machine as a network printer or network
scanner.
9
USB Port (Type A)
USB2.0/1.1
Used to connect the Fax Kit (line 2) cable.
10
USB Port (Type A)
USB2.0/1.1
Used to connect the Fax Kit (line 1) cable.
Declaration
The network ports, which we declare in the sense of Lot 26 (801/2013/EU), are No.5 and No.8.
With this network port, the machine has low energy consumption in networked standby mode.
The network ports are activated when cables are inserted to the ports.

NETWORK DEFINITION PORT
for bizhub black/white products
5

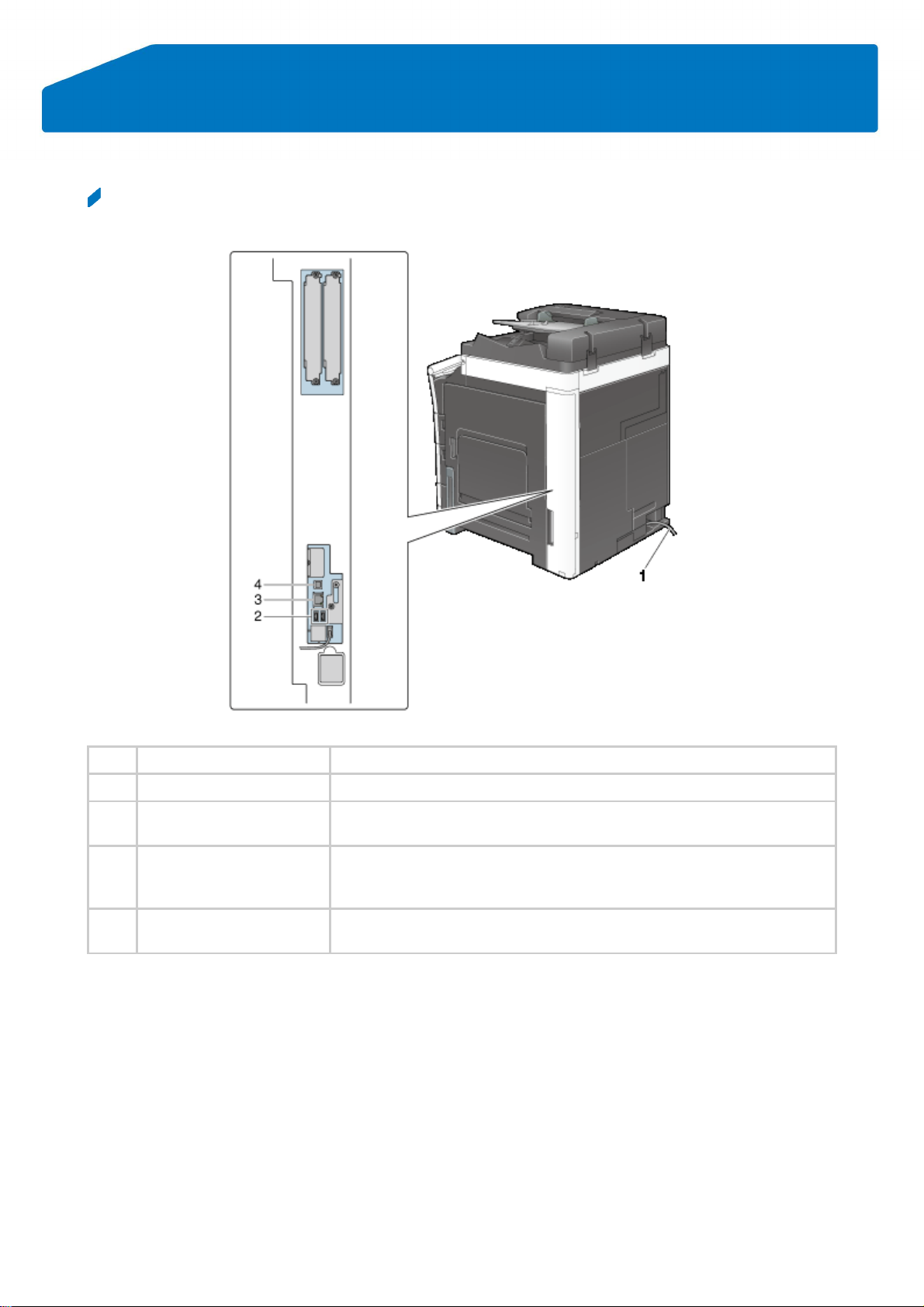

bizhub 558/458/368/308
No.
Name
1
Heater Power Switch
2
Power Cord
3
Telephone Jack 4 (LINE PORT4)
4
Telephone Jack 3 (LINE PORT3)
5
Jack for connecting a telephone (TEL PORT1)
6
Telephone Jack 1 (LINE PORT1)
7
Telephone Jack 2 (LINE PORT2)
8
USB Port (Type A) USB2.0/1.1
9
Network Connector (10Base-T/100Base-TX/1000Base-T)
10
USB Port (Type B) USB2.0/1.1

NETWORK DEFINITION PORT
for bizhub black/white products
6
Declaration
The network ports, which we declare in the sense of Lot 26 (801/2013/EU), are No.9 and No.10.
With this network port, the machine has low energy consumption in networked standby mode.
The network ports are activated when cables are inserted to the ports.

NETWORK DEFINITION PORT
for bizhub black/white products
7
bizhub 654e/754e
No.
Name
Description
1
Finisher Connector
Connect the cable of the Finisher.
2
Filter
Used to collect toner powders inside the main unit.
3
Telephone Jack 3 (FAX3)
Used to connect a general telephone subscriber line.
4
Telephone Jack 4 (FAX4)
Used to connect a general telephone subscriber line.
5
Power Cord
Used to supply power to this machine.
The shape of the Power Cord varies depending on the sales region.
6
Heater Power Switch
Used to turn Heater operations on or off. This function prevents paper from
being affected by humidity when the power is turned on.
7
Network Connector
(10Base-T/100Base-
TX/1000Base-T)
Connect to this port when using this machine as a network printer or network
scanner.

NETWORK DEFINITION PORT
for bizhub black/white products
8
No.
Name
Description
8
USB Port (Type B)
USB2.0/1.1
Connect to this port when using this machine as a USB-connected printer.
9
USB Port (Type A)
USB2.0/1.1
Used to connect Authentication Unit AU-102 or Authentication Unit AU-201.
10
Jack for connecting a
telephone (TEL PORT1)
Used to connect a telephone cord.
Connect the cord to this connector when using only one telephone line.
11
Telephone Jack 1 (LINE
PORT1)
Used to connect a general telephone subscriber line.
Connect the cord to this connector when using only one telephone line.
12
RS-232C port
Used to connect an IC card unit for JScribe.
13
Telephone Jack 2 (LINE
PORT2)
Used to connect a general telephone subscriber line.
14
Ozone Filter
Used to collect ozone inside the main unit.
Declaration
The network port, which we declare in the sense of Lot 26 (801/2013/EU), is No.7.
With this network port, the machine has low energy consumption in networked standby mode.
The network port is activated when cable is inserted to the port.

NETWORK DEFINITION PORT
for bizhub black/white products
9
bizhub 554e/454e/364e/284e/224e
No.
Name
Description
1
Power Cord
Used to supply power to this machine.
2
USB Port (Type A)
USB2.0/1.1
Used to connect Authentication Unit AU-102 or Authentication Unit AU-201.
3
Network Connector
(10Base-T/100Base-
TX/1000Base-T)
Connect to this port when using this machine as a network printer or network
scanner.
4
USB Port (Type B)
USB2.0/1.1
Connect to this port when using this machine as a USB-connected printer.
Declaration
The network ports, which we declare in the sense of Lot 26 (801/2013/EU), are No.3 and No.4.
With this network port, the machine has low energy consumption in networked standby mode.
The network ports are activated when cables are inserted to the ports.

NETWORK DEFINITION PORT
for bizhub black/white products
10

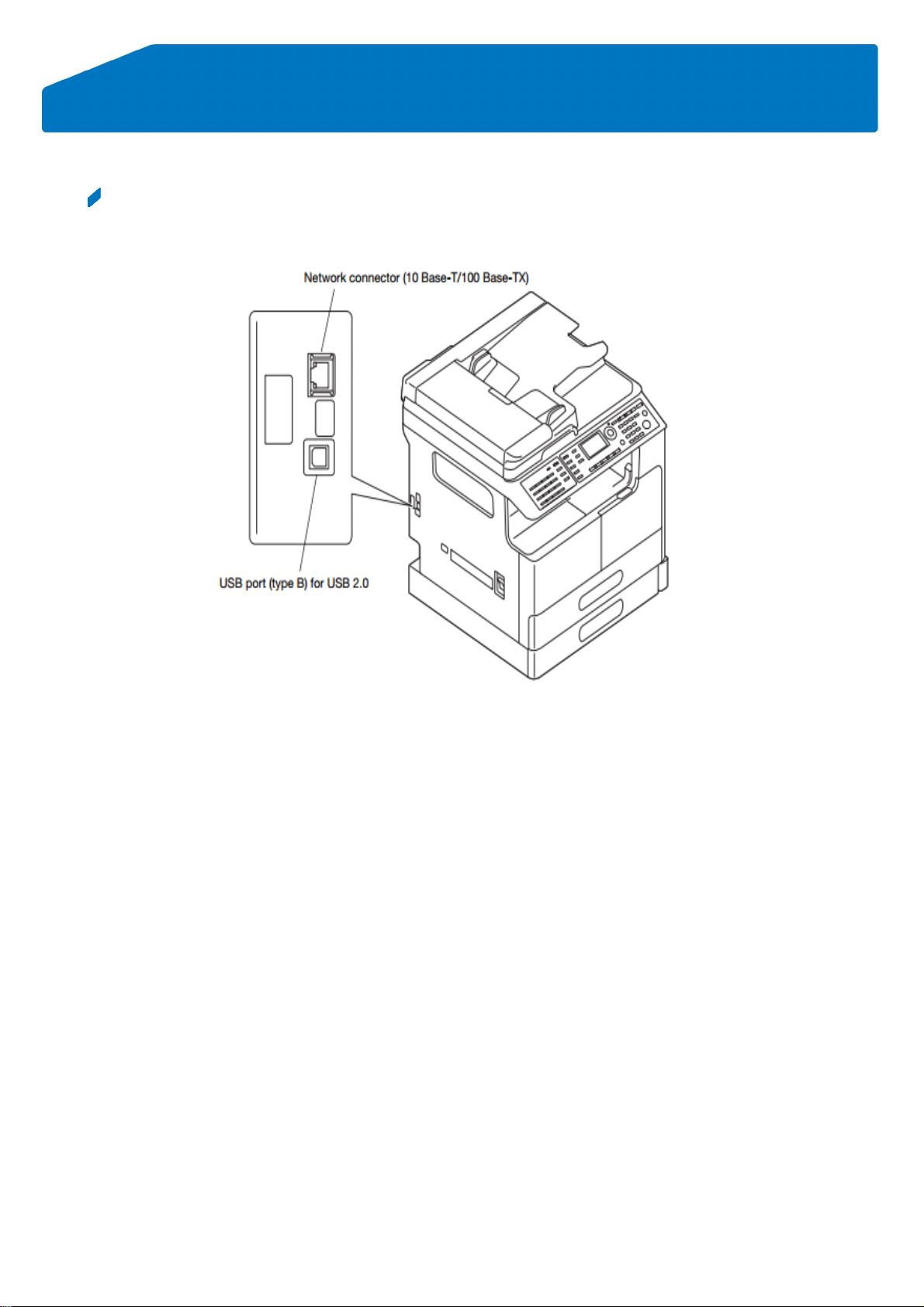

bizhub 306/266
Declaration
The network ports, which we declare in the sense of Lot 26 (801/2013/EU), are "Network nonnector (10 Base-T/100
Base-TX)" and "USB port (type B) for USB 2.0".
With this network port, the machine has low energy consumption in networked standby mode.
The network ports are activated when cables are inserted to the ports.

NETWORK DEFINITION PORT
for bizhub black/white products
11
bizhub 367/287/227
No.
Name
Description
1
Power Cord
Used to supply power to this machine.
2
USB Port (Type B)
USB2.0/1.1
Connect to this port when using this machine as a USB-connected printer.
3
Network Connector
(10Base-T/100Base-
TX/1000Base-T)
Connect to this port when using this machine as a network printer or network
scanner.
Declaration
The network ports, which we declare in the sense of Lot 26 (801/2013/EU), are No.2 and No.3.
With this network port, the machine has low energy consumption in networked standby mode.
The network ports are activated when cables are inserted to the ports.

NETWORK DEFINITION PORT
for bizhub black/white products
12

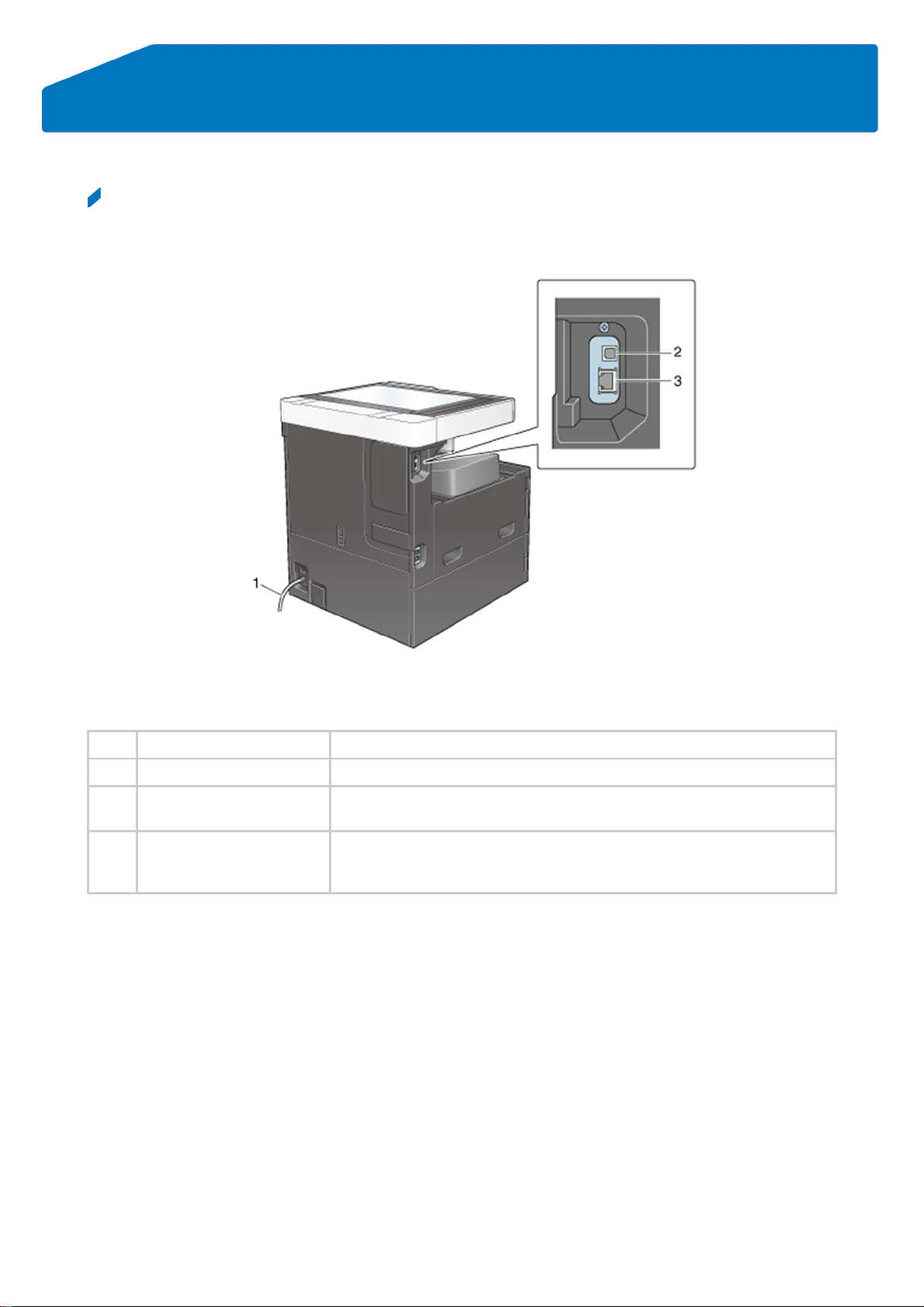

bizhub 4750/4050
No.
Name
1
Power Connection
2
Power Switch
3
USB Printer Port (Type B)
4
Ethernet (LAN) Port (1000Base-T/100Base-TX/10Base-T)
5
LINE (telephone line) Jack
6
TEL (telephone) Jack
Declaration
The network ports, which we declare in the sense of Lot 26 (801/2013/EU), are No.3 and No.4.
With this network port, the machine has low energy consumption in networked standby mode.
The network ports are activated when cables are inserted to the ports.

NETWORK DEFINITION PORT
for bizhub black/white products
13

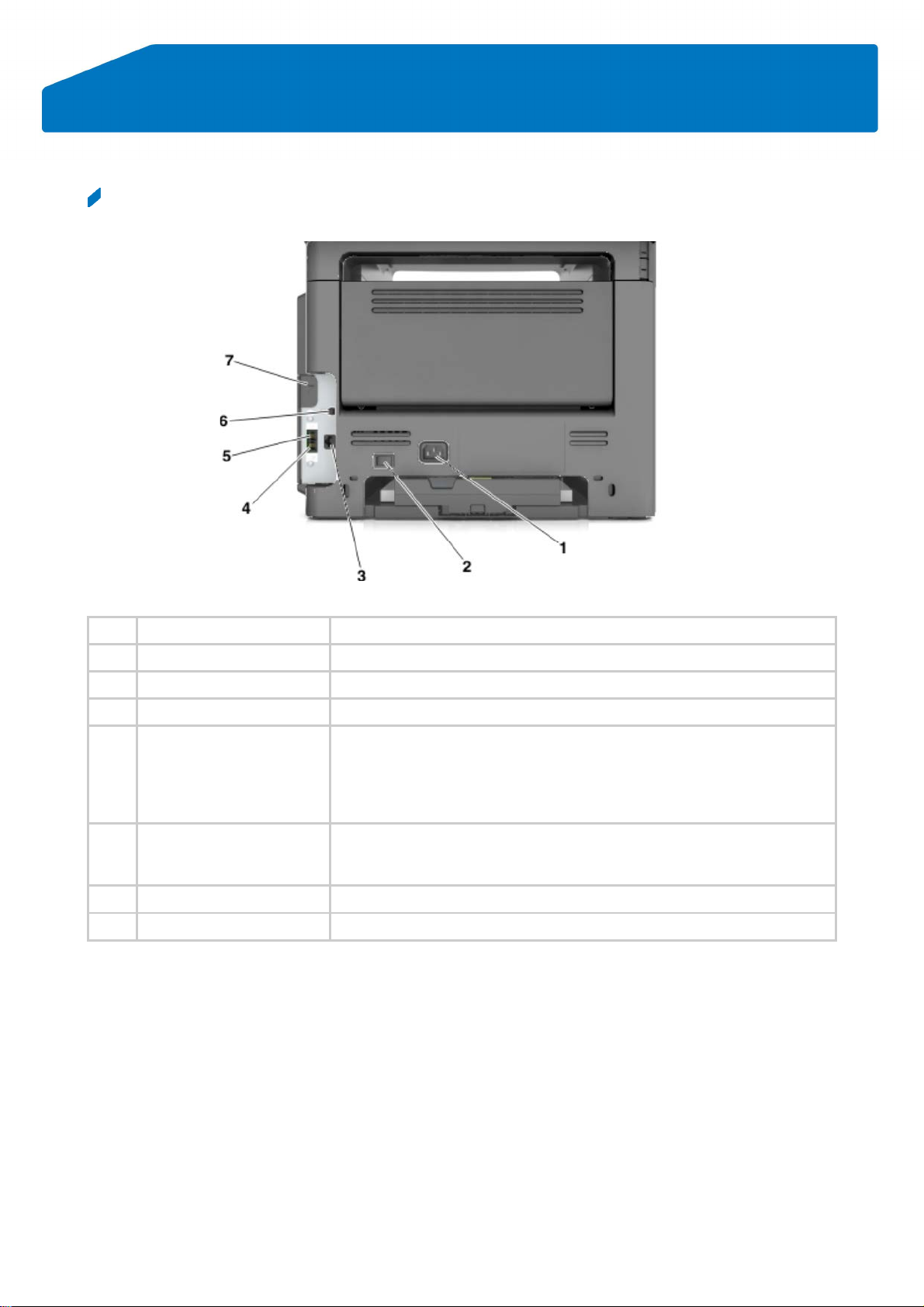

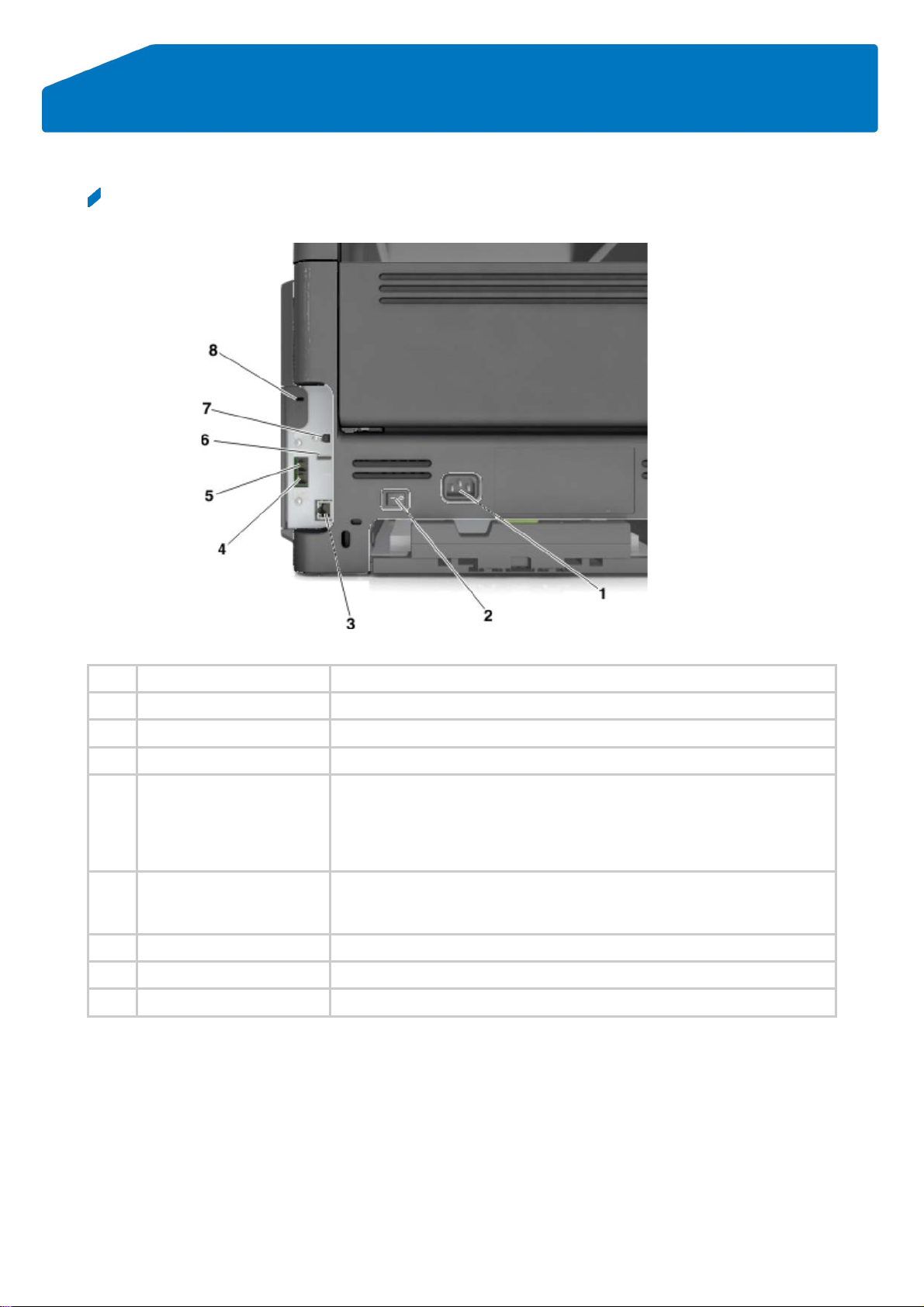

bizhub 4020
No.
Name
Description
1
Printer power cord socket
Connect the printer to a properly grounded electrical outlet.
2
Power switch
Turn the printer on or off.
3
Ethernet port
Connect the printer to an Ethernet network.
4
EXT port
Connect additional devices (telephone or answering machine) to the printer
and the telephone line. Use this port if you do not have a dedicated fax line
for the printer and if this connection method is supported in your country or
region.
Note: Remove the plug to access the port.
5
LINE port
Connect the printer to an active telephone line through a standard wall jack
(RJ-11), DSL filter, or VoIP adapter, or any other adapter that allows you to
access the telephone line to send and receive faxes.
6
USB port
Do not use.
7
USB printer port
Connect the printer to a computer.
8
Security slot
Attach a lock that will secure the printer in place.
Declaration
The network ports, which we declare in the sense of Lot 26 (801/2013/EU), are No.3 and No.7.
With this network port, the machine has low energy consumption in networked standby mode.
The network ports are activated when cables are inserted to the ports.

NETWORK DEFINITION PORT
for bizhub black/white products
14
bizhub 3320
No.
Name
Description
1
Printer power cord socket
Connect the printer to a properly grounded electrical outlet.
2
Power switch
Turn the printer on or off.
3
Ethernet port
Connect the printer to an Ethernet network.
4
EXT port
Connect additional devices (telephone or answering machine) to the printer
and the telephone line. Use this port if you do not have a dedicated fax line
for the printer and if this connection method is supported in your country or
region.
Note: Remove the plug to access the port.
5
LINE port
Connect the printer to an active telephone line through a standard wall jack
(RJ-11), DSL filter, or VoIP adapter, or any other adapter that allows you to
access the telephone line to send and receive faxes.
6
USB printer port
Connect the printer to a computer.
7
Security slot
Attach a lock that will secure the printer in place.
Declaration
The network ports, which we declare in the sense of Lot 26 (801/2013/EU), are No.3 and No.6.
With this network port, the machine has low energy consumption in networked standby mode.
The network ports are activated when cables are inserted to the ports.

NETWORK DEFINITION PORT
for bizhub black/white products
15
bizhub 4700P/4000P
No.
Name
Description
1
USB port
Attach an optional wireless network adapter.
2
USB printer port
Connect the printer to a computer.
3
Ethernet port
Connect the printer to an Ethernet network.
4
Power switch
Turn on or turn off the printer.
5
Printer power cord socket
Connect the printer to an electrical outlet.
6
Security slot
Attach a lock that will secure the printer in place.
Declaration
The network ports, which we declare in the sense of Lot 26 (801/2013/EU), are No.2 and No.3.
With this network port, the machine has low energy consumption in networked standby mode.
The network ports are activated when cables are inserted to the ports.

NETWORK DEFINITION PORT
for bizhub black/white products
16

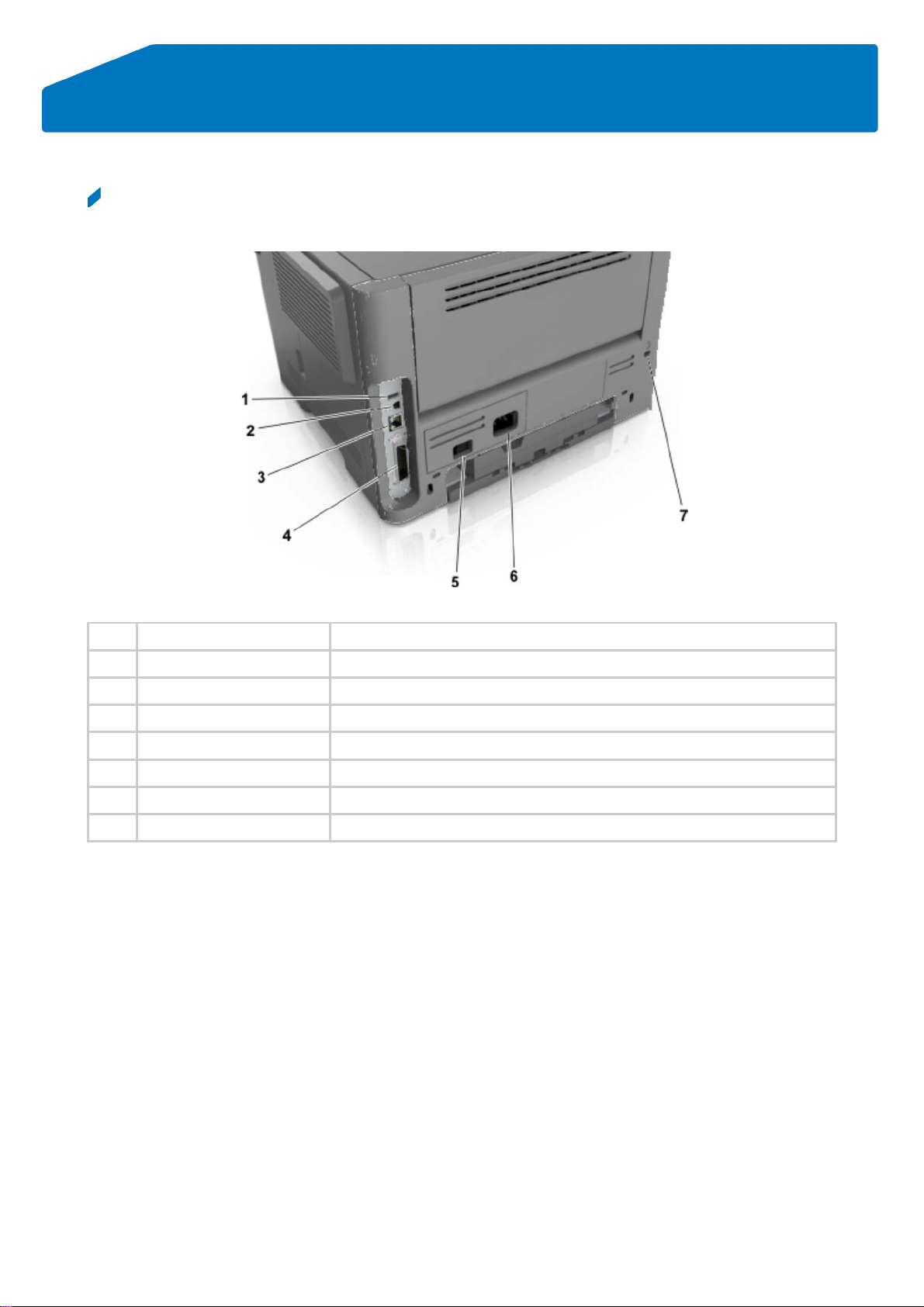

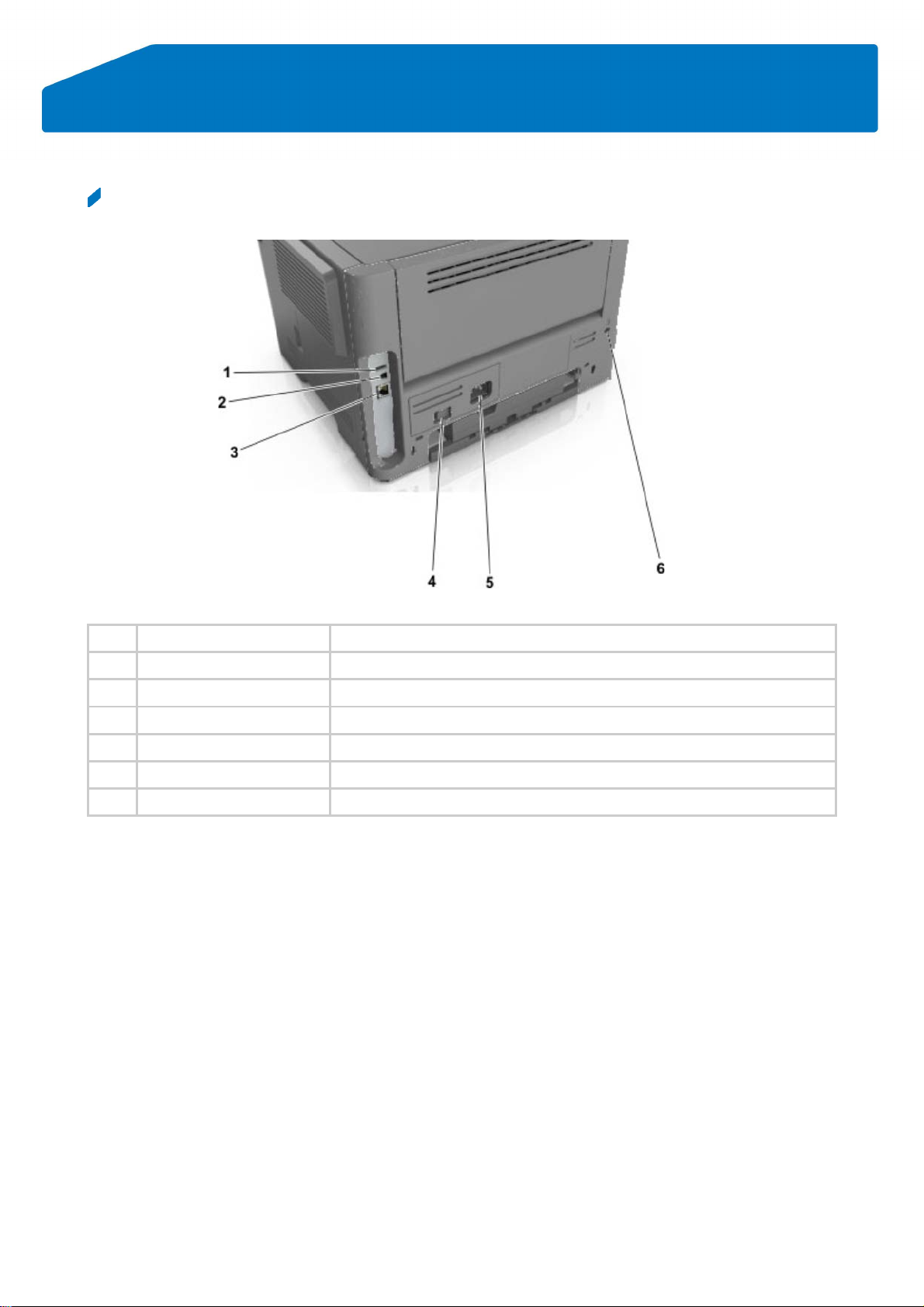

bizhub 3301P
No.
Name
Description
1
USB port
Attach an optional wireless network adapter.
2
USB printer port
Connect the printer to a computer.
3
Ethernet port
Connect the printer to a network.
4
Parallel port
Connect the printer to a computer.
5
Power switch
Turn on or turn off the printer.
6
Printer power cord socket
Connect the printer to an electrical outlet.
7
Security slot
Attach a lock that will secure the printer in place.
Declaration
The network ports, which we declare in the sense of Lot 26 (801/2013/EU), are No.2 and No.3.
With this network port, the machine has low energy consumption in networked standby mode.
The network ports are activated when cables are inserted to the ports.

NETWORK DEFINITION PORT
for bizhub black/white products
17
bizhub 226

NETWORK DEFINITION PORT
for bizhub black/white products
18
No.
Name
1
Output Tray
2
Front Cover
3
Tray1
4
1st Side Cover Release Button
5
Bypass Tray Extension
6
Bypass Tray
7
Auto Duplex Unit
8
1st Side Cover
9
USB Port (Host:Scan to USB)
10
Jack for connecting a telephone (TEL PORT)
11
Telephone Jack (LINE PORT)
12
USB Port (Type B) USB 2.0/1.1
13
Network Connector (10 Base-T/100 Base-TX)
14
Total Counter
15
Main Power Switch
16
Control Panel
Declaration
The network port, which we declare in the sense of Lot 26 (801/2013/EU), is No.12.
With this network port, the machine has low energy consumption in networked standby mode.
The network ports are activated when cables are inserted to the ports.
