bizhub C258/C308/C368
Status: 2015-12-01

2
Product Guide
bizhub C258/C308/C368
Revision
Description
26.05.2015
Initial version
1.0 –26.05.2015
Initial version
1.1 –15.06.2015
Changed information on Recommended media/envelopes
28.08.2015
Article Number change for UK-211
Sept. 30th, 2015
FS-534SD article number correction
Diagram update
October 10th, 2015
i-Options (v2 & 4) change of compatible products
October, 13th, 2015
Add Configuration bizhub C258
December 1st, 2015
Update pictures of System Configuration
Jan., 22nd, 2016
Change of measurements in product layout
Nov, 18th, 2016
Windows Server 2003 not supported anymore
Dec, 12th, 2016
UK-211 required (in addition to VI-508) to connect IC-416 (p19)
Dec, 23rd, 2016
SRA3 format added to SD-511 Saddle kit unit

3
Product Guide
bizhub C258/C308/C368
Since changes in technical features may occur, please note that the technical data provided in this product guide was
issued in May 2015. We reserve the right to make changes to the technical design. Specifications refer to maximum
performance under standard conditions. No guarantee is provided in relation to any of the data supplied.

4
Product Guide
bizhub C258/C308/C368
Table of contents
Product basics .................................................................................................................................... 5
System dimensions............................................................................................................................. 6
System configuration.......................................................................................................................... 9
System specifications.......................................................................................................................12
Copier specifications.........................................................................................................................23
Printer specifications (Emperon controller).......................................................................................26
Printer specifications (Fiery controller IC-416) ................................................................................29
Scanner specifications......................................................................................................................31
Fax specifications .............................................................................................................................33
i-Fax specifications ...........................................................................................................................34
IP-Fax specifications......................................................................................................................... 34
Consumables.................................................................................................................................... 35
Article numbers and compatibility..................................................................................................... 37
Documentation..................................................................................................................................40
Recommended media....................................................................................................................... 43
Appendix........................................................................................................................................... 44

5
Product Guide
bizhub C258/C308/C368
Product basics
MODEL DEVELOPMENT
CODE
Zeus S Z
Zeus S X
Zeus S 0
Zeus S 1
Zeus S 2
Zeus S 2.5
MODEL NAME
bizhub
C658
bizhub
C558
bizhub
C458
bizhub
C368
bizhub
C308
bizhub
C258
SUCCESSOR MODEL FOR
bizhub
C654e
bizhub
C554e
bizhub
C454e
bizhub
C364e
bizhub
C284e
bizhub
C224e
ALSO AVAILABLE AS
DEVELOP
ineo+ 658
DEVELOP
ineo+ 558
DEVELOP
ineo+ 458
DEVELOP
ineo+ 368
DEVELOP
ineo+ 308
DEVELOP
ineo+ 258
Olivetti
d-Color
Olivetti
d-Color
Olivetti d-
Color
Olivetti
d-Color
d-COLOR
MF364
Olivetti
d-Color
d-COLOR
MF304
Olivetti
d-Color
d-COLOR
MF254
ESTIMATED SALES START
08/2016
08/2015
01/2016
INFOSOURCE SEGMENT
Col IV
Col IV
Col III
AVERAGE MONTHLY
PAGE VOLUMES
(exp. colour ratio: 30%)
25k
16k
13k
MAX MONTHLY PAGE
VOLUMES
(KMI specified)
125k
100k
80k
(If the maximum volume is reached within a period of one year, then a maintenance cycle must be
performed!)
MACHINE LIFE
1500k or 5
years
1000k or 5
years
800k or 5
years
MCBF (Mean
Copies Between
Failure)
Total
Colour
Mono
63,5k
53,1k
69,3k
55,1k
46,0k
60,1k
48,0k
40,2k
52,4k
MCBJ (Mean Copies
Between Jam)
10k with standard paper
STANDARD COPY MODE
(MONO & COLOUR)
4 pages/
job
3 pages/
job
3 pages/
job
STANDARD ORIGINAL
DENSITY
5 % Mono & Colour
SAFETY & ENVIRONMENT
Available on CSES
PLEASE NOTICE
Standard paper weight for systems is 80 g/m2for monochrome machines. Since using these standards result in optimum system
performance, all specifications on performance, reliability, maintenance and replacement based on those standard papers. Using thick
papers, labels, transfer and polyester films continuously can increase the wear and tear on replacement parts and consumables –meaning
your servicing costs will go up. Use the bypass or the lower tray from the paper feed unit when working with materials having such
characteristics as polyester films, textile transfer films and labels. Otherwise, you may be faced with double feeding or a higher number of
feeding jams. If possible use subtray when working with materials having such characteristics as polyester films, textile transfer films and
labels. Rollermarks on the copy or print may appear or increased jams can occur. Standard paper weights yield the best possible copy and
print results. Using higher grammatures may influence the quality of the output. Using standard paper weights also guarantees that double
sided copies and prints are made reliably. Different characters of films as well as thick, thin and coated papers may increase the jam rate for
double sided copies and prints.

6
Product Guide
bizhub C258/C308/C368
System dimensions

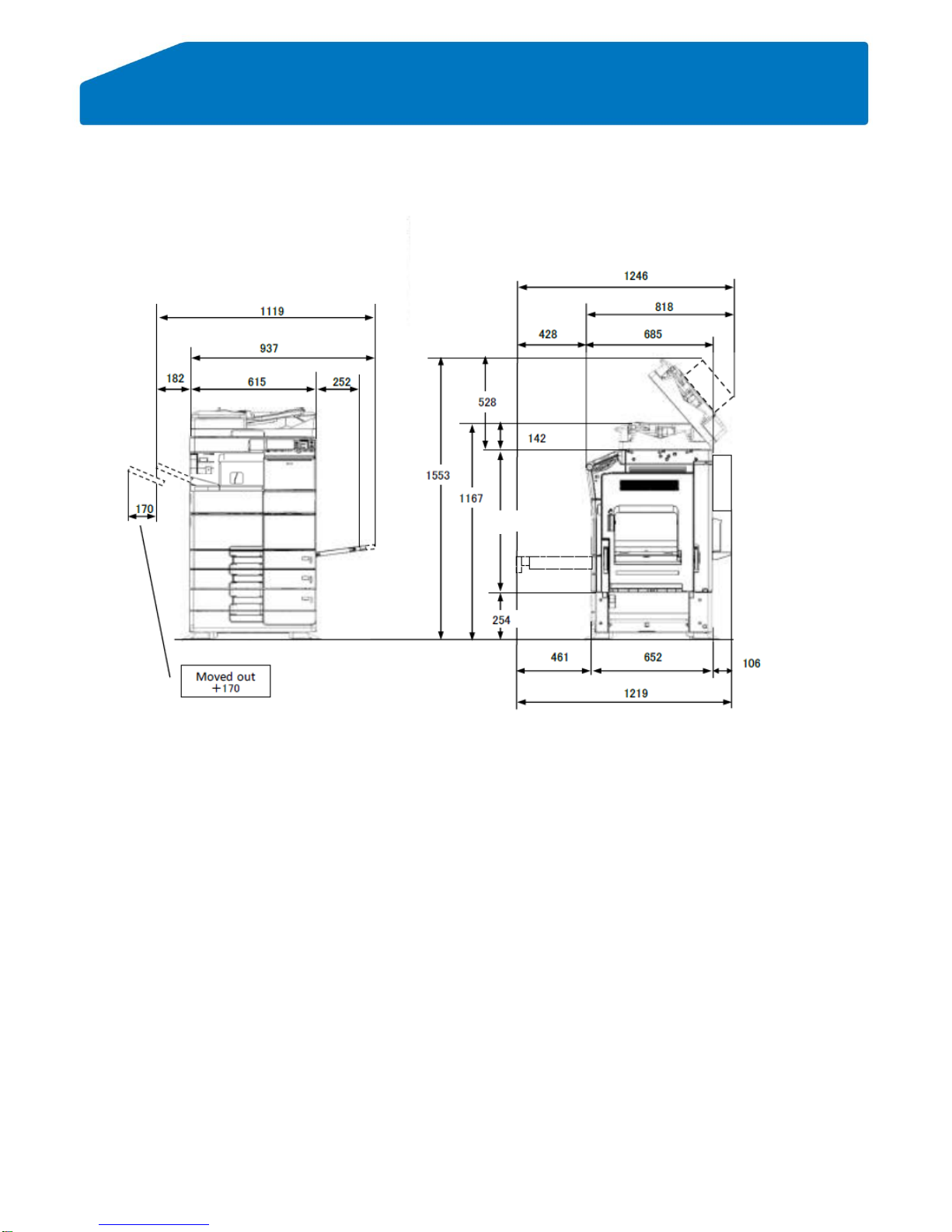

bizhub C368 (C308/C258) + PC-210 (PC-110/PC-410/DK-510) + DF-629
779

7
Product Guide
bizhub C258/C308/C368

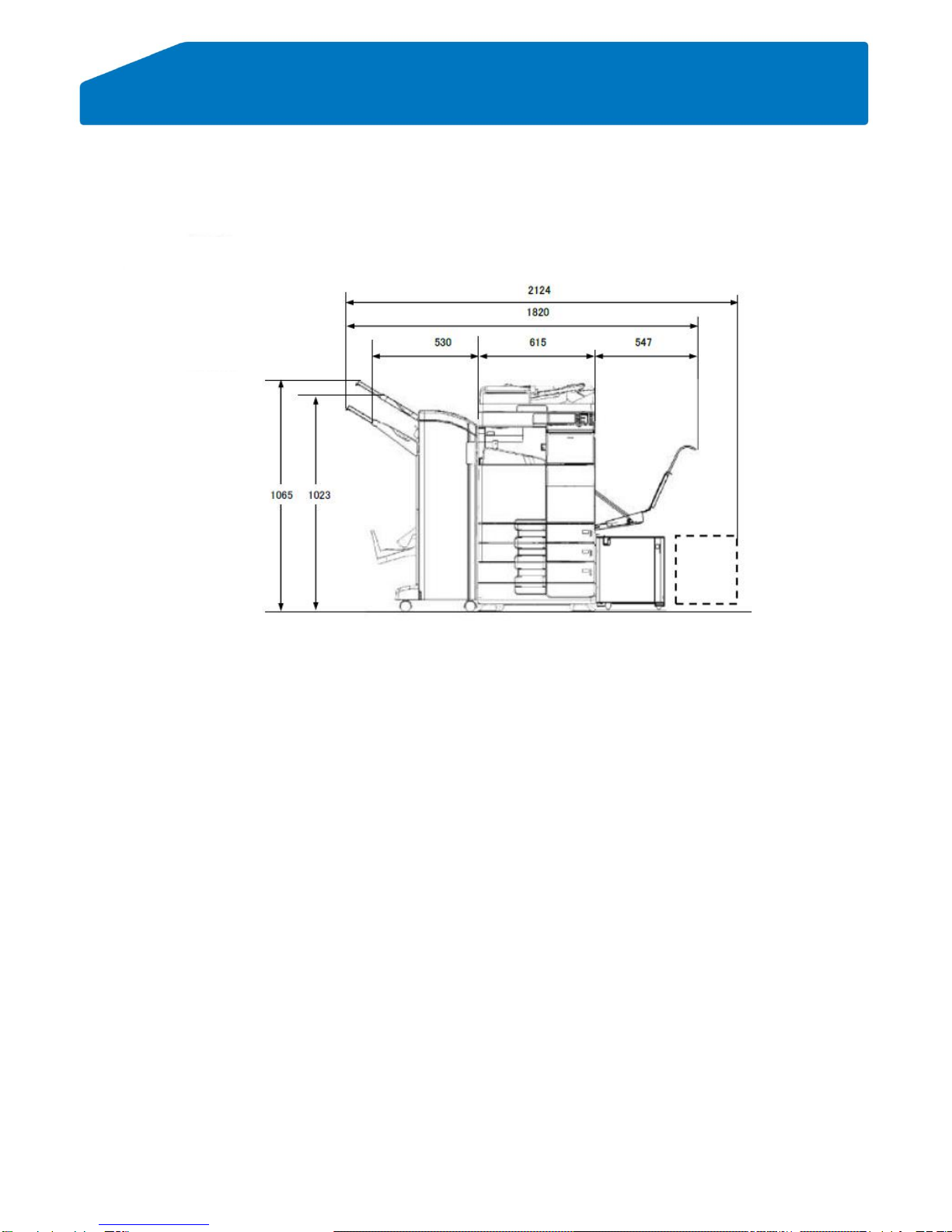

bizhub C368 (C308/C258) + DF-704 + PC-210 (PC-110/PC-410/DK-510) + FS-533 + CU-101
779

8
Product Guide
bizhub C258/C308/C368
bizhub C368/C308/C258 + PC-210 (PC-110/PC-410/DK-510) + DF-629+MK-730 + FS-534SD +
LU-302
.

9
Product Guide
bizhub C258/C308/C368
System configuration
Configuration bizhub C258

10
Product Guide
bizhub C258/C308/C368
Configuration bizhub C308

11
Product Guide
bizhub C258/C308/C368
Configuration bizhub C368

12
Product Guide
bizhub C258/C308/C368
System specifications
DF-629 Duplex type automatic
document feeder
OPTION for bizhub C258/C308/C368
Original size
A6 / max. A3
Original weights
35 - 128 g/m² (simplex)
50 - 128 g/m² (duplex/mix mode)
Tray capacity
100 sheets (80g/m², A4)
Feeding type
First page system
Feeding speed
Simplex mode:
Copy: 55 originals/min. (600 dpi) [mono & colour]
Scan: 80 originals/min. (300 dpi) [mono & colour]
Duplex mode:
Copy: 26 originals/min. (600 dpi) [mono & colour]
Scan: 37 originals/min. (300 dpi) [mono & colour]
Scanner life
1000k or 5 years (whichever comes first)
Dimensions (W x D x H)
611.2 x 503.6 x 130 mm
Weight
9.0 kg
DF-704 Dual scan document
feeder
OPTION for bizhub C258/C308/C368
Original size
A6 / max. A3
Original weights
35 - 163 g/m² (simplex)
50 - 163 g/m² (duplex)
50 - 128 g/m² (mixed mode)
Tray capacity
100 sheets (80g/m², A4)
Feeding type
First page system, dual scan
Feeding speed
Simplex mode:
Copy: 55 originals/min. (600 dpi) [mono & colour]
Scan: 80 originals/min. (300 dpi) [mono & colour]
Duplex mode:
Copy: 110 images/min. (600 dpi) [mono & colour]
Scan: 160 images/min. (300 dpi) [mono & colour]
Scanner life
1000k or 5 years (whichever comes first)
Dimensions (W x D x H)
611.2 x 503.6 x 130 mm
Weight
12 kg

13
Product Guide
bizhub C258/C308/C368
OC-511 Original cover
OPTION for bizhub C258/C308/C368
Remark
Required if no document feeder is attached.
Standard paper cassettes
STANDARD
Capacity
1 tray: 500 sheets (universal)
2 tray: 500 sheets (universal)
Paper formats
1 tray: A5 crosswise - A3
2 tray: A5 crosswise- SRA3 (320 x 450 mm)
Paper weights
1 - 2 tray: 52 - 256 gsm
PC-110 Paper cassette
OPTION for bizhub C258/C308/C368
Capacity
1 x 500 sheets (80 gsm)
Paper formats
A5 –A3
Paper weights
52 - 256 gsm
Media type
Plain paper
Dimensions (W x D x H)
615 x 652 x 246 mm
Weight
22 kg
PC-210 Paper cassette
OPTION for bizhub C258/C308/C368
Capacity
2 x 500 sheets (80 gsm)
Paper formats
A5 –A3
Paper weights
52 - 256 gsm
Media type
Plain paper
Dimensions (W x D x H)
615 x 652 x 246 mm
Weight
24 kg
PC-410 Paper cassettes
OPTION for bizhub C258/C308/C368
Capacity
2,500 sheets (80 gsm)
Paper formats
A4 crosswise
Paper weights
52 - 256 gsm
Media type
Plain paper
Dimensions (W x D x H)
615 x 652 x 246 mm
Weight
23 kg

14
Product Guide
bizhub C258/C308/C368

15
Product Guide
bizhub C258/C308/C368
LU-302 Large capacity tray
OPTION for bizhub C258/C308/C368
Capacity
3,000 sheets (80 gsm)
1,300 sheets (256 gsm)
Paper formats
A4 crosswise
Paper weights
52 - 256 gsm
Dimensions (W x D x H)
367 x 528 x 405 mm
Weight
18 kg
Remark
Cannot be installed together with DK-510.
DK-510 Copy desk
OPTION for bizhub C258/C308/C368
Type
Rigid, metal with plastic door
Dimensions (W x D x H)
615 x 653 x 252 mm
Weight
11.9 kg
Manual bypass tray
STANDARD
Capacity
150 sheets
Paper weight
60 - 300 gsm (OHP, labels, banner paper, etc.)
Paper format
A6 lengthwise - SRA3
Width: 90 to 320 mm x Length: 139.7 to 1,200 mm
Duplex
STANDARD
Capacity
Stackless
Paper weight
52 - 256 gsm
Paper format
A5 - SRA3

16
Product Guide
bizhub C258/C308/C368
FS-533 Inner finisher
OPTION
Functionality
Stacking, stapling, offset group/sort
Paper formats
A6 - SRA3, banner
Paper weights
52 –300 gsm
Stack capacity
500 sheets A4 (52 –90 gsm)
250 sheets A3 (52 –90 gsm)
Stapling modes
Corner front/back, 2-point
Stapling capacity
50 sheets A4 (52 - 90 gsm), 30 sheets A3 (52 - 90 gsm),
2 sheets (91 - 209 gsm for cover pages)
Staples
SK-602
Dimensions (W x D x H)
472.5 x 583.5 x 194.7 mm
Weight
12 kg
Remark
One staple cartridge is packed to the finisher.
Additional options for FS-533
PK-519
PK-519 Punch kit
(Europe/Sweden)
OPTION for FS-533
Punch method
On-line, page by page, 2 or 4 holes for Europe, 4 holes for Sweden
Hole diameter
6.5 mm ± 0,5 mm
Paper formats
A3, B4, A4 L, B5 L (200 mm x 330 mm)
Paper weights
52 - 157 gsm
Dimensions (W x D x H)
110.2 x 483.5 x 203.2 mm
Weight
3.2 kg

17
Product Guide
bizhub C258/C308/C368
FS-534 Staple finisher (50 sheets)
FS-534SD Booklet finisher
OPTION
Functionality
Non-sort, sort, group, staple, punch (additional option), fold
(additional option), offset group/sort
Tray capacity
100/200/3,000 sheets A4 (FS-534)
100/200/2,000 sheets A4 (FS-534SD)
100/200/1,500 sheets A3
Paper formats
A6 - SRA3, banner
Paper weights
52 –300 gsm
Stack capacity
500 sheets A4 (52 –90 gsm)
250 sheets A3 (52 –90 gsm)
Stapling modes
Corner (front/back), centre 2-points, saddle stitch (additional option)
Stapling capacity
50 sheets (52 - 90 gsm), 30 sheets (91 - 120 gsm), 15 sheets (121
- 209 gsm)
Stapling format
A3 - A5 lengthwise
Staples
SK-602
Remark
One staple cartridge is packed to the finisher.
Job separator function
Yes (finisher bridge unit is used for stacking)
Paper size for job separation function
A6 - SRA3
Capacity job separation function
Up to 100 sheets 52 –90 gsm
Up to 20 sheets > 90 gsm
Remark job separation function
This function is only available with Zeus/ZeusMLK /ZeusBK series.
It does not apply for all Minerva series.
Dimensions (W x D x H)
528 x 641 x 1,023 mm
Weight (FS-534/FS-534SD)
40 kg/64kg (incl. RU-513)
Additional options for FS-534/FS-543SD
PK-520
Standard for FS-534SD
SD-511
Remark
FS-534/SD always requires RU-513
RU-513 Relay Unit for FS-534/SD
OPTION FOR FS-534/SD
Functionality
Relay Unit for FS-534/FS-534SD
Remark
RU-513 is always required for FS-534/FS-534SD

18
Product Guide
bizhub C258/C308/C368
PK-520 Punch kit
(Europe/Sweden)
OPTION for FS-534/SD
Punch method
On-line, page by page, 2 or 4 holes for Europe, 4 holes for Sweden
Hole diameter
6.5 mm ± 0,5 mm
Paper formats
A3, B4, A4 L, B5 L (200 mm x 330 mm)
Paper weights
52 - 300 gsm
Dimensions (W x D x H)
61 x 492 x 142 mm
Weight
1.8 kg
SD-511 Saddle kit unit
STANDARD for FS-534SD
Paper formats
A4 lengthwise / A3+ (311 x 457 mm) / SRA3
Paper weights
Centre staple: 52 - 90 gsm
Half-fold: 52 - 209 gsm
(more than 91 gsm sheets can be used only as cover sheet)
Tri-fold: 52 - 90 gsm
Tray capacity
20 sets (1-3 pages), 5 sets (11-20 pages)
Tri-fold: 30 sets with 1 page, 10 sets with 2 or 3 pages
Stapling modes
Centre parallel 2-points (booklet staple)
Stapling capacity for centre stapling
20 sheets (52 - 90 gsm), 19 sheets + cover sheet (19 sheets 90
gsm + 1 sheet 209 gsm
Staples
SK-602
Dimensions (W x D x H)
210 x 556 x 547 mm
Weight
24 kg
Remark
One staple cartridge is packed to the saddle kit unit.
JS-506 Inner job separator
OPTION
Paper formats
Tray 1/2: A6 - SRA3
Banner and long length tray 2 only
Paper weights
52 - 300 gsm
Tray capacity
Tray 1: 100 sheets (90 gsm)
Tray 2: 150 sheets (90 gsm)
Dimensions (W x D x H)
491.9 x 469.5 x 226.5 mm
Weight
2.5 kg
Remark
Can’t be installed together with FS-533/534/SD.
Supports offset group/sort.

19
Product Guide
bizhub C258/C308/C368
KP-101 10-key-pad
OPTION
Functionality
Hardware 10 key pad for number entry instead of touch panel
WT-506 Working table
OPTION
Functionality
To place authentication unit.
FK-514 Fax board
OPTION
Specifications
Please refer to the chapter “Fax specifications”
Remark
For a second fax line a second FK-514 is required.
IC-416 Fiery controller
OPTION
Specifications
Please refer to the chapter “Fiery specifications”
Remark
VI-508 and UK-11 are required in addition.
VI-508 Video interface kit
OPTION
Remark
Required for installing IC-416
KH-102 Keyboard holder
OPTION
Functionality
To place the optional USB keyboard (keyboard is procured locally
by countries).
EK-608 USB host board
OPTION
Functionality
USB interface for connection of USB keyboard.
EK-609 USB host board and
Bluetooth
OPTION
Functionality
USB interface for connection of USB keyboard. Included Bluetooth
technology for connection to mobile devices. Includes also
speakers.

20
Product Guide
bizhub C258/C308/C368
IC card authentication unit
OPTION
Functionality
Authentication by contact less IC card
Remark
For details on available card technologies please refer to the price
list. MK-735 is required for inside installation, WT-506 is
recommended for outside placement.
MK-735 Mount kit
OPTION
Functionality
Installation kit for ID card reader (device integrated behind front
cover).
AU-102 Biometric authentication
unit
OPTION
Functionality
Authentication by finger vein scanner. WT-506 is recommended for
placement.
SC-508 Security kit
OPTION
Functionality
Copy Guard and Password copy functionality (security pattern
search)
Remark
2 x required if DF-704 is installed.
BT-C1e Banner tray
OPTION
Function
To support multi banner feeding through manual bypass.
UK-211 2 GB memory upgrade
OPTION
Capacity
2 GB
Functionality
Required in order to activate i-Options. Also required for overlay
function in copy mode and to have full device functionality if Web
Browser/IWS is activated
LK-102v3 i-Option license
OPTION
Functionality
PDF encryption function, PDF/A 1b support, Meta data
Remark
UK-211 is required in addition.
LK-105v4 i-Option license
OPTION
Functionality
OCR for searchable PDF, PPTX
PDF/A 1a (LK-102v3 needed in addition for PDF/A 1a)
Remark
UK-214 is required in addition.
