Konica Minolta bizhub C554e User manual

E-1
INSTALLATION MANUAL
////
A5C1-9620-12
<Important>
Be sure to correctly follow the procedures in order as explained in this Installation Manual.
If you do not follow the procedure in order, the image trouble may occur.
I. Outline of installation procedures (C554e/C454e)
When installing the machine and associated options as a system, follow the order shown on the upper.
Caution:
• For the detailed installation procedures for each
option, follow the instructions given in the corre-
sponding installation manual and perform the
procedures correctly. (Optional devices must be
installed after completing the main unit installa-
tion.)
• Once the Power Switch is turned ON, do not
turn OFF it until the installation work has been
completed.
• When placing the machine on the floor, make
sure to use the paper feed cabinet or the desk
to secure the performance and the quality of
the product.
• Lifting the machine in an awkward position or
transporting it in a poorly balanced position
could result in personal injury. When transport-
ing the machine, assign an adequate number of
persons to the job and ensure that each person
can take a good position of not being exces-
sively loaded.
(mass: approx. 101 kg (222-11/16 lb))
WT-506
SP-501
PC-110 PC-210 DK-705
Machine
PC-410
MK-730
MK-734
KH-102
DK-510
TK-101
MK-735
HT-509
LU-204
LU-301
UK-204*1
Electronic system options
EK-606*1 EK-607*1
SC-508*1
VI-506
IC-414
FK-511
✱Electronic system options
*1: No particular order in installation procedures.
*2: Unable to be installed in C454e.
*3: Varies depending on the applicable marketing area
UK-208*1
KP-101
AU-102
AU-201
OT-506FS-533PK-519 ZU-606*2
FS-535*2
JS-506
JS-602*2
PI-505*2
PK-521*2
SD-512*2
FS-534
PK-520SD-511
FS-534SD
FK-508*3 MK-728*3
A2XKIXC001DA
Applied Machines: / / / /

E-2
Outline of installation procedures (C364e/C284e/C224e)
When installing the machine and associated options as a system, follow the order shown on the upper.
Caution:
• For the detailed installation procedures for each
option, follow the instructions given in the corre-
sponding installation manual and perform the
procedures correctly. (Optional devices must be
installed after completing the main unit installa-
tion.)
• When placing the machine on the floor, make
sure to use the paper feed cabinet or the desk
to secure the performance and the quality of
the product.
• To use this machine, install the dual scan docu-
ment feeder, the reverse automatic document
feeder, or the original cover.
Even if you do not install the original cover, be
sure to install the hinge covers supplied with
the original cover.
• Once the Power Switch is turned ON, do not
turn OFF it until the installation work has been
completed.
• Lifting the machine in an awkward position or
transporting it in a poorly balanced position
could result in personal injury. When transport-
ing the machine, assign an adequate number of
persons to the job and ensure that each person
can take a good position of not being exces-
sively loaded.
(mass: approx. 85 kg (187-3/8 lb))
*1: No particular order in
installation procedures.
*2: Unable to be installed in
C224e.
*3: Varies depending on the
applicable marketing area
UK-204*1
PC-110 PC-210 DK-705
Machine
PC-410
MK-730
Electronic system options
EK-606*1 EK-607*1
UK-208*1
SC-508
IC-414*2
FK-511
DK-510
MK-734
HT-509
WT-506
✱Electronic system options
KP-101
VI-506*2
UK-209
AU-102
AU-201
JS-506
SP-501 OC-511DF-701
FS-533
PK-519
DF-624
MK-735
FS-534
SD-511
PK-520 FS-534SD
KH-102
FK-508*3 MK-728*3
A161IXC001DA

E-3
II. Installation space (unit: mm (inch))
bizhub C554e + PC-210 + ZU-606 + FS-535
+ LU-204
bizhub C364e + DF-701 + PC-210 + FS-534
+ MK-730
III. Pre-installation check items
1. Select a level and stable place for installing the
machine.
2. Be sure to use a power source of the voltage and
frequency indicated in the product specifications.
Ensure that the current carrying capacity of the
power outlet is at least equal to the current listed
in the product specifications.
3. Power the machine directly from a dedicated
power outlet. (Do not use an extension cord.)
4. Do not plug or unplug the power cord with wet or
dirty hands, otherwise you may get an electric
shock.
5. Avoid a hot and humid environment, or a place
exposed to direct sunlight.
6. Avoid a dusty location, or a place near volatile
and flammable substances.
7. Avoid a poorly ventilated place.
IV. Notes on using touch panel
Be sure to instruct users on the following points.
• This machine uses a capacitive touch panel.
When you touch the touch panel, use your fin-
ger or the stylus pen supplied with the machine.
If you touch the panel using your nail or a pen
tip instead of using your finger or the stylus pen,
the touch panel does not respond normally.
• Pressing the touch panel hard may cause dam-
age.
• Do not strongly press the panel or press it using
the sharp tip of mechanical pencils.
• The key is a finger tapping (quick light touch
using a finger) operation.
A61DIXC021DB
1217
(47-15/16)
480
(18-7/8)
2763
(108-3/4)
1066
(41-15/16)
1246
(49-1/16)
428
(16-7/8)
818
(32-3/16)
1568
(61-3/4)
386
(15-3/16)
936
(36-7/8)
246
(9-11/16)
A61DIXC022DB
937
(36-7/8)
225
(8-7/8)
1822
(71-3/4)
660
(26)
1246
(49-1/16)
428
(16-7/8)
818
(32-3/16)
1568
(61-3/4)
386
(15-3/16)
936
(36-7/8)
246
(9-11/16)

E-4
V. Accessory parts
*1 Varies depending on the applicable marketing
area.
*2 North American market: N/A
C554e/C454e for markets other than North Amer-
ica: One
C364e/C284e/C224e for markets other than
North America: Two
*3 C364e/C284e/C224e only
*4 C554e/C454e only
Note:
The parts shown below are used when installing
options. Keep them safe.
• Paper size label: Large capacity unit (LU-301)
(C554e/C454e only)
• Label (Super G3 label): Fax kit
Note:
This manual provides the illustrations of the acces-
sory parts and machine that may be slightly differ-
ent in shape from yours. In that case, instead of
the illustrations, use the appearance of your
machine to follow the installation procedure. This
does not cause any significant change or problem
with the procedure.
No. Name Q’ty
1. User’s guide holder 1
2. Quick start guide 1
3. Installation manual 1 set
4. User’s guide CD 1
5. CD-ROM 1 set
6. Paper size label 1
7. Label (Legal restrictions on copying) *1 1
8. Label (Super G3 label) 1
9. Panel sheet 1
10. Cap A (Black) 2
11. Cap B (White) 2
12. Power cord *1 1
13. Power cord instruction *1 1
14. Cord clamp*2 0 to 2
15. Connector cover 1
16. Duct cover 1
17. Screw A *1*3
1
18. Screw B 1
19. Screw C *1
1
20. Chart *4 1
21. Stylus pen 1
22. Waste toner box 1
A1530308
V1160308
V1160330
After unpacking, be sure to get rid of the
packaging materials and keep them out of
the reach of children.
Putting the head in the plastic bag
involves danger of suffocation.

E-5
VI. Removing the machine
1. Unpack and remove the machine package.
2. Remove the machine, holding it by the locations
on the left side and the handles on the right side
as shown in the illustration and keeping it level.
Caution:
Machine mass
C554e/C454e: approx. 101 kg/222-11/16 lb
C364e/C284e/C224e: approx. 85 kg/187-3/8 lb
• Make available collective manpower of an
appropriate size for transporting the machine.
• Before attaching the machine to the paper feed
cabinet, make sure that the supplied connector
cover is not attached.
• When attaching the machine, as the reference
fit the machine with the corner A and B of the
paper feed cabinet.
VII. Removing protective tape, packing
and other shipping materials
1. Remove the protective tape and the protective
materials.
Note:
After removing protective tape A, be sure to push
the area indicated by the “ ” mark to lock the
guide. (C554e/C454e only)
When holding the transportation handles,
be careful not to catch your fingers in the
machine.
A2XKIXC003DA
A2XKIXE034DA
A
B
Connector cover
A5AYIXC003DC
A5AYIXC002DC
<C554e/C454e>
A

E-6
2. Open the right door and remove the protective
sheet and packaging materials.
Note:
After removing the packaging materials, make
sure that the transfer roller assy is secured in
place. In the case of <NG>, press the transfer
roller assy into place so that it is secured as shown
in <OK>.
3. Remove the locking screws.
4. Remove the protective sheets.
A5C1IXC001DB
A5C1IXC003DB
A5C1IXC002DA
B
<Viewed from point B>
A5C1IXC004DA
<C364e/C284e/C224e>
A161IXC005DB
< OK > < NG >
A2XKIXC008DA
A2XKIXC009DA

E-7
5. Slide out the tray 1.
6. Remove the protective tapes from the inside of
the tray 1 and remove accessory part.
7. Slide out the tray 2 and remove the tray locking
materials.
8. Remove the protective tapes from the inside of
the tray 2 and remove accessory parts.
9. <C554e/C454e>
Open the lower front door.
<C364e/C284e/C224e>
Open the front door.
10. Remove the protective tape.
A5C1IXC032DA
A5C1IXC014DA
A5C1IXC015DA
A2XKIXC010DA
A161IXC015DB
A2XKIXC011DA
Protective tape
<C554e/C454e>
A5C1IXC016DA
Protective tape
<C364e/C284e/C224e>

E-8

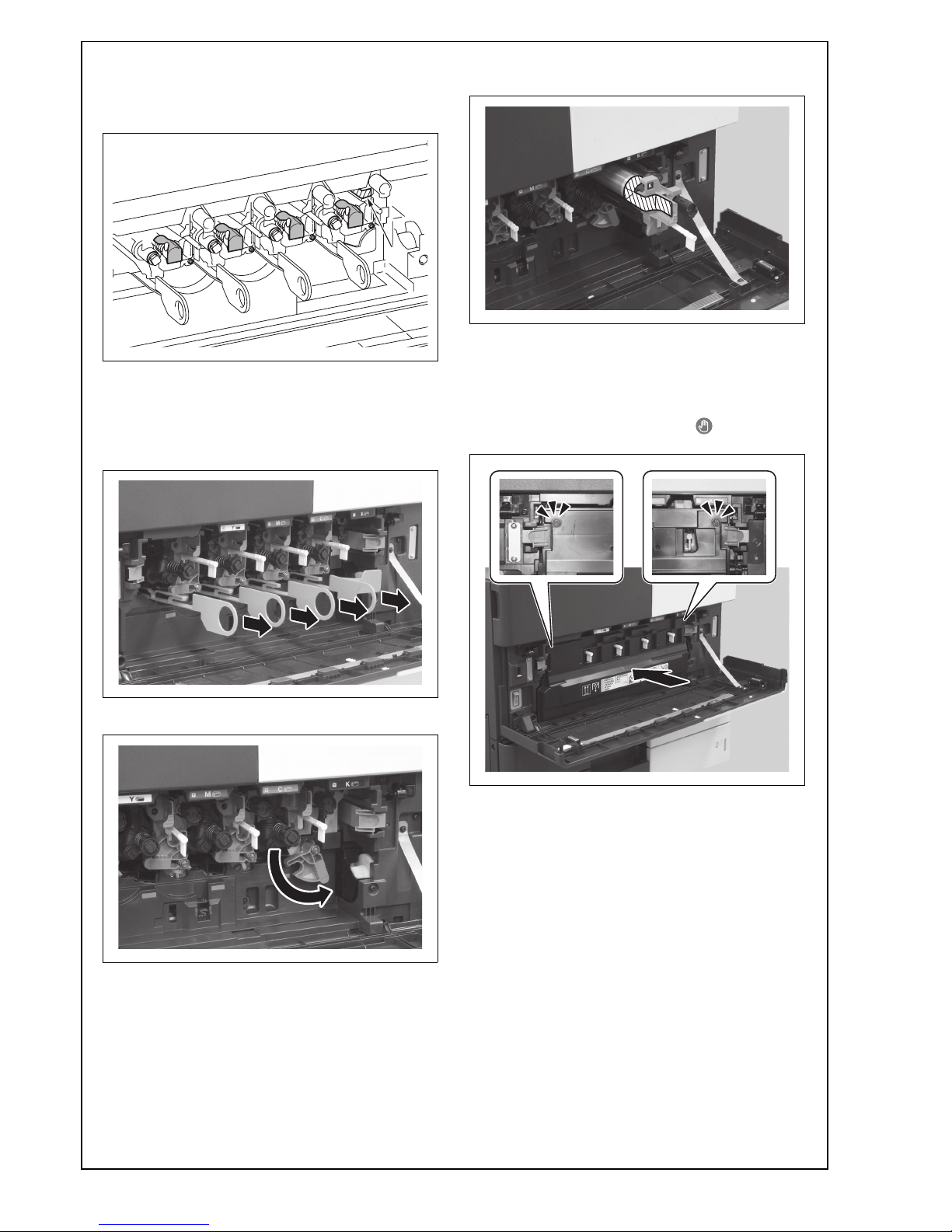

11. Remove the protective tape from the developing
units.
Note:
Do not remove the tape A in this procedure.
12. Remove the protective materials from the four
places.
Note:
Keep the protective materials. It is necessary for
transporting the machine.
13. Release the lever of the drum unit (K).
14. Slightly slide the drum unit (K) out and remove
the protective tape
15. Slide the drum unit (K) into the machine.
16. Lock the drum unit (K) with the lever.
17. Install the supplied waste toner box.
Note:
Push the areas indicated by the “ ” marks to set
the waste toner box to the machine
* Perform the following steps 18 and 19 only when
installing C554e/C454e.
18. Close the lower front door.
19. Open the upper front door.
A5AYIXC005DB
A
A2XKIXC013DA
A2XKIXC014DA
A2XKIXC015DA
A2XKIXC016DA

E-9
VIII. Installing the toner cartridge
Note:
Since cartridge is not supplied with the machine,
purchase toner cartridge (of different colors) sepa-
rately.
1. Shake the toner cartridge up and down and left to
right 5 to 10 times respectively.
Note:
Shake the cartridge adequately. Otherwise, it may
cause trouble.
2. Insert the toner cartridge into the machine.
Note:
• Make sure that the color is same between
inserting port and the toner cartridge.
• Make sure that the blue label position of the
toner cartridge is matched with the one of the
machine side.
3. Push the toner cartridge all the way in and rotate
it clockwise to lock it.
Note:
Make sure that the toner cartridge is pushed all the
way in.
4. Using the same procedure, install the toner car-
tridges for other colors of toner.
5. <C554e/C454e>
Close the upper front door.
<C364e/C284e/C224e>
Close the front door.

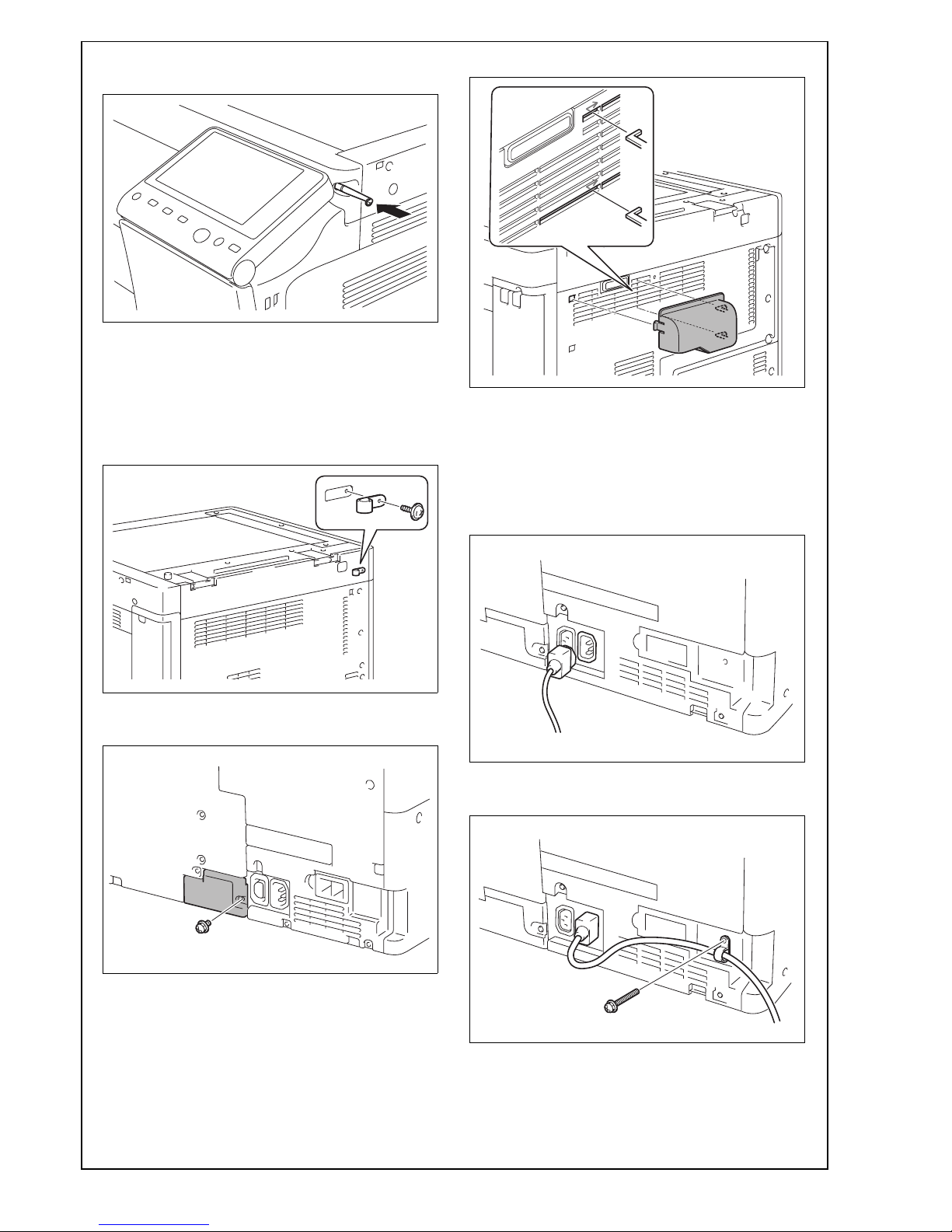

IX. Mounting the accessory parts
1. Attach the supplied caps A and B.
2. Remove the protective cover from the supplied
stylus pen.
Note:
Discard the removed protective cover.
A0EDIXC020DA
A2XKIXC017DA
A2XKIXC018DA
A2XKIXC019DA
A2X0IXC068DA

E-10
3. Set the stylus pen in the place shown in the illus-
tration.
4. Attach the supplied cord clamp to the scanner
rear cover of the machine. (One supplied screw
A)
Note:
• Only C364e/C284e/C224e needs this step.
• This may not be performed depending on the
applicable marketing area.
5. Attach the supplied connector cover to the
machine. (One supplied screw B)
6. Attach the supplied duct cover.
X. Connecting the power cord
Note:
Steps 1 and 2 may be unnecessary depending on
the applicable marketing area.
1. Connect the power cord.
2. Fit the supplied cord clamp over the power cord.
(One supplied screw C)
A5C1IXC007DA
A161IXE047DA
A161IXE065DA
A5C1IXC021DA
A161IXE042DA
A161IXE043DB

E-11
3. Plug the power cord into the power outlet.
XI. Toner supply
Turn ON the Main Power Switch.
Note:
• Toner is automatically supplied in parallel with
warm-up.
• If any one of the toner cartridges is not set,
toner supply does not start.
XII. Date & Time Setting/Time Zone Setting
(Service Mode)
1. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
2. Display the Date & Time Setting/Time Zone Set-
ting screen.
(To display the Date & Time Setting/Time Zone
Setting screen, press Stop →1 →1 →4 →4 →
Clear on the control panel.)
3. Input the time zone using up/down keys or direct
keys.
4. Touch “Entry.”
5. Touch “Apply.”
6. Touch “OK.”
7. Touch “END.”
XIII. Serial number input
Note:
Serial number input is needed only for optional
devices that will be installed later.
1. Select the Serial Number Input function as fol-
lows: System 1 →Serial Number.
2. Touch the item you want to enter and input the
serial number.
3. Touch “END.”
4. For other devices, enter their serial number in the
same way.
5. Touch “END.”
XIV. Unit change
Note:
This function allows the user to select the type of
message that will appear when the replacement
time arrives for each of the different units.
1. Select the Unit Change function as follows:
System 2 →Unit Change.
2. Select the appropriate message type for each
unit.
3. Touch “END.”
XV. List output
1. Load the tray 1 with A4 or Letter paper.
2. Touch “List Output.”
3. Check that “Machine Management List” is
selected and press the start key.
The list will be output.
4. Output “Adjustments List” in the same way.
5. Touch “2.”
6. Check that “Service Parameter” is selected and
press the start key.
The list will be output.
7. Touch “END.”
8. Touch “Exit” on the Service Mode screen.
9. Turn OFF and ON the Main Power Switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the main power after exiting the Service
Mode screen and wait for 10 seconds or more
before turning on.
C4004U139CA

E-12
XVI. Adjusting the height
Note:
• The following “XVI. Adjusting the height” to
“XXI. Adjusting the document stop position” and
“XXIII. Changing the stopper position” shall be
referenced only when installing C554e/C454e.
• When installing the dual scan document feeder
DF-701 or reverse automatic document feeder
DF-624 to C364e/C284e/C224e, adjustments
shall be made according to the installation man-
ual of each option.

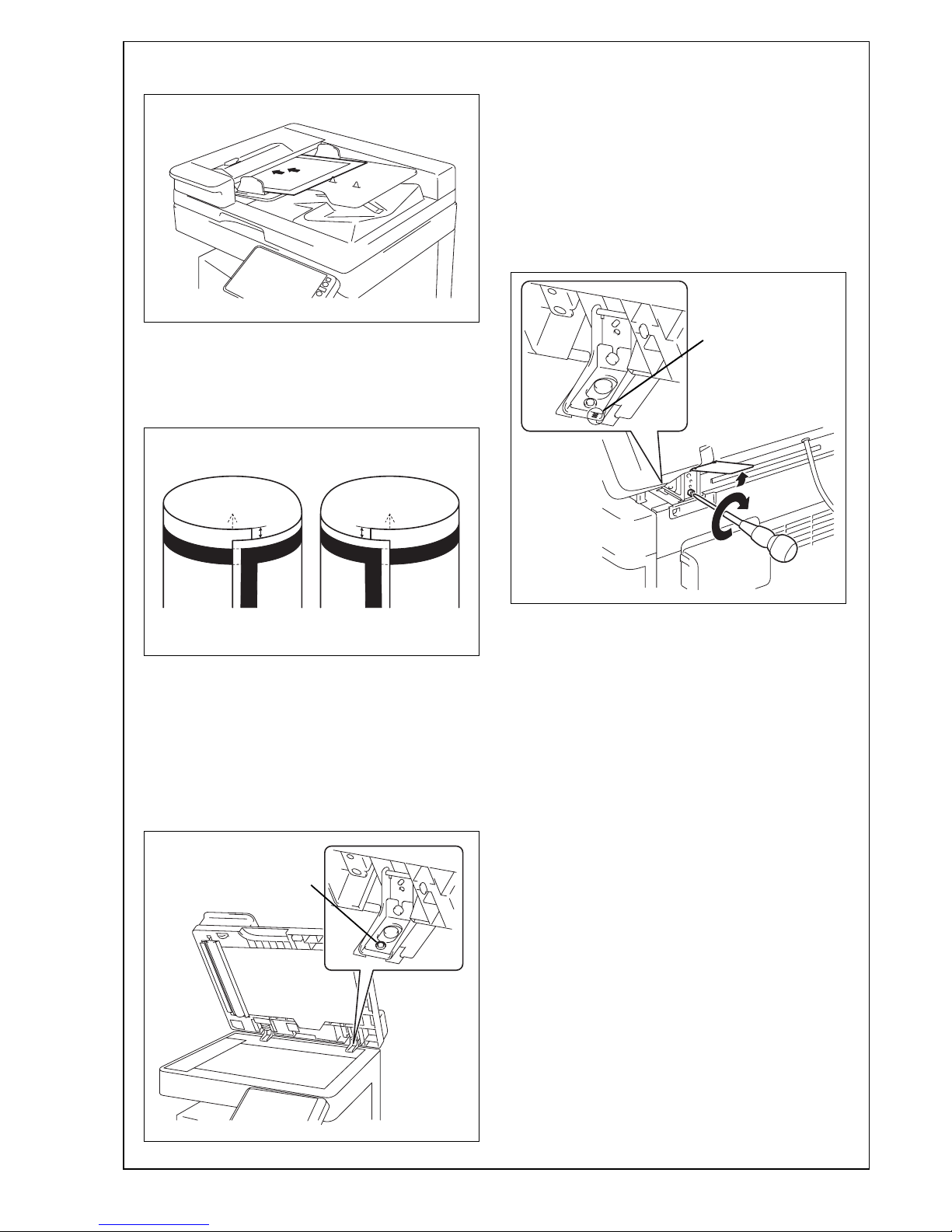

1. Check the clearance between the upper face of
scanner and the protrusion on the dual scan doc-
ument feeder side. (Three spots)
* There must be no clearance between the protru-
sion on the dual scan document feeder and the
upper face of scanner.
2. If there is any clearance, adjust the height by
turning the adjustment screw on the right side
viewed from the back.
Clockwise: The rear side will move up.
Counterclockwise: The rear side will move down.
• If further adjustment is required, adjust the height
by using the adjustment screw on the left side
viewed from the back together.
Clockwise: The rear side will move up.
Counterclockwise: The rear side will move down.

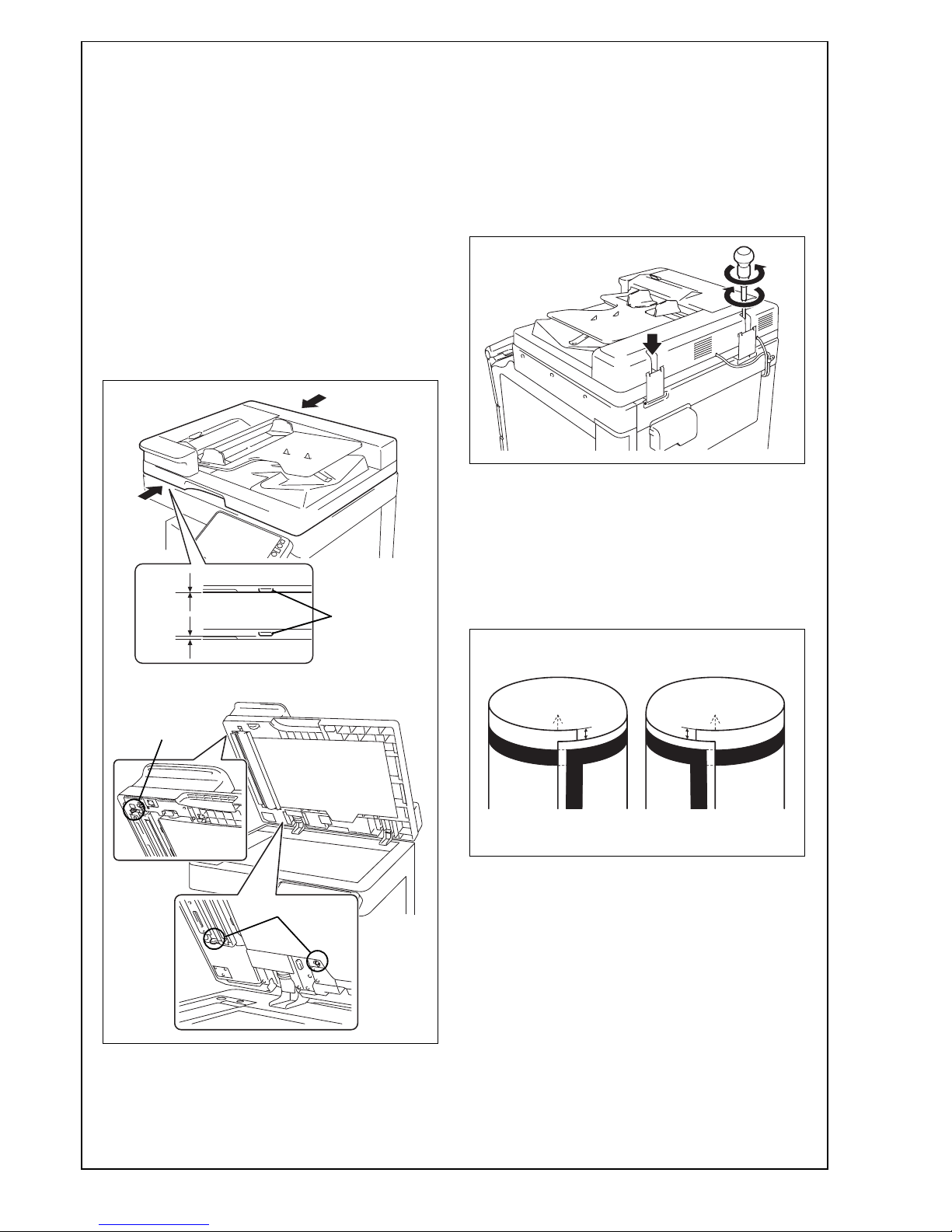

XVII. Adjusting skew feed (Front side)
Note:
Perform this adjustment if necessary.
1. Close the dual scan document feeder.
2. Check how the edges of the chart are misaligned.
The amount of the deviation of the chart will be X.
A3CFIXC010DA
A3CEIXC003DB
Protrusion
Protrusion
OK
NG
Protrusion
A2XKIXE027DB
9J07IXC043DA
XX
Deviation in + (plus) Deviation in - (minus)

E-13
3. Place the chart in the document feeding tray (with
the side having an arrow facing up).
4. Make copies 5 times repeatedly in single side
mode.
5. Fold all 5 sample copies as illustrated and check
for any deviation.
Deviation on the sample will be Y.
6. Obtain the difference between the deviation of
the chart and the deviation of the sample.
Difference of the deviation = Y - X
Specifications: 0 ± 2 mm
* If the difference of the deviation does not fall
within the specified range, perform the following
adjustment.
7. Loosen the mounting screw on the right hinge
viewed from the front.
8. When the difference of the deviation is + (plus),
turn the adjustment screw located at the back of
the dual scan document feeder clockwise to
adjust.
Note:
• Look at the guide lines when making the adjust-
ment.
• When turning the screw, be sure not to raise the
dual scan document feeder until in an upright
position.
* To prevent the adjustment screw breakage, be
sure to follow the above instructions.
A3CFIXC013DA
9J07IXC043DA
YY
Deviation in + (plus) Deviation in - (minus)
A3CEIXC004DA
Mounting screw
A2XKIXC026DC
Guide lines

E-14

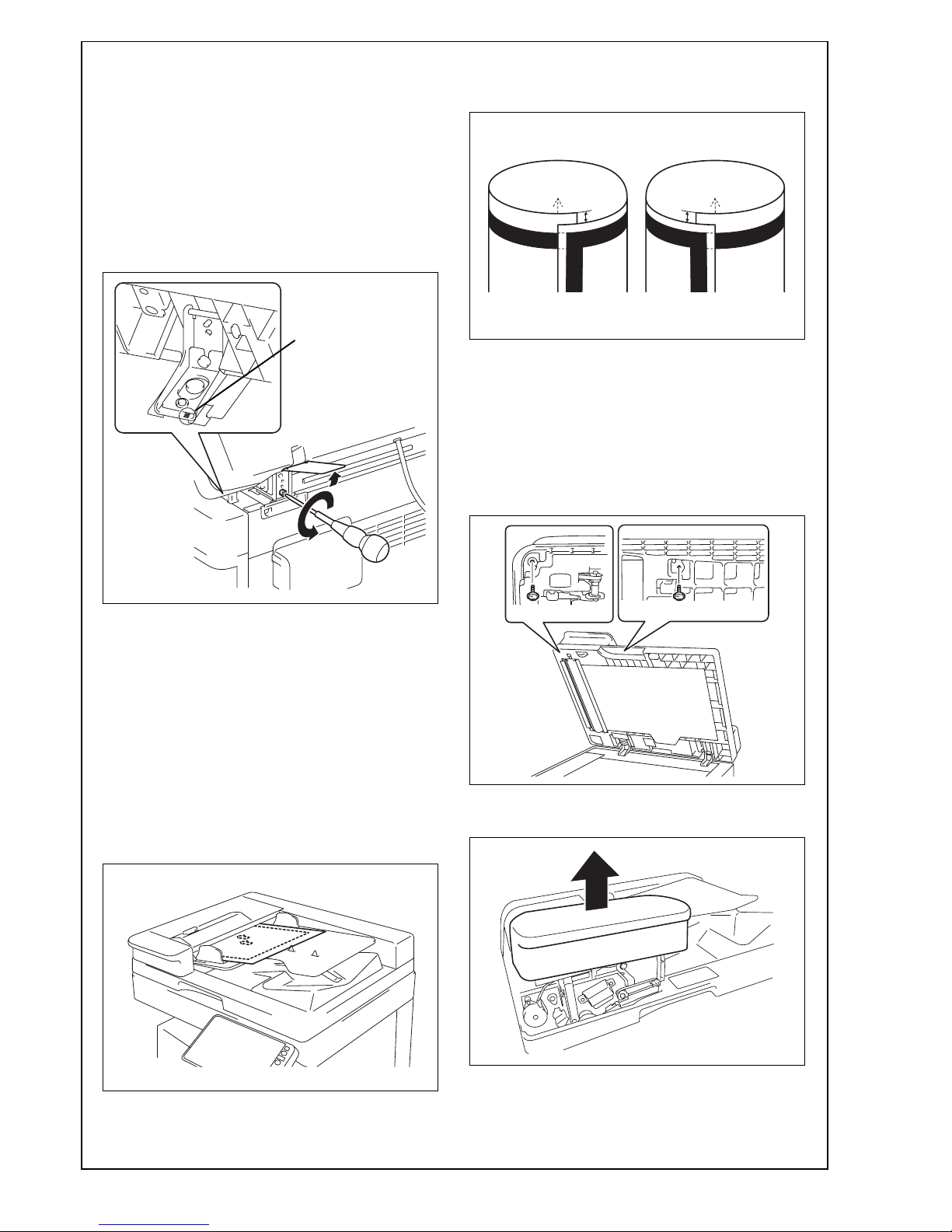

9. When the difference of the deviation is - (minus),
turn the adjustment screw located at the back of
the dual scan document feeder counterclockwise
to adjust.
Note:
• Look at the guide lines when making the adjust-
ment.
• When turning the screw, be sure not to raise the
dual scan document feeder until in an upright
position.
* To prevent the adjustment screw breakage, be
sure to follow the above instructions.
10. Tighten the mounting screw on the right hinge
that has been loosened in step 7 using a screw-
driver.
XVIII. Adjusting leading edge skew
(Back side)
Note:
Perform this adjustment if necessary.
1. Place the chart in the document feeding tray
(Make sure that the blank surface of the chart
faces up).
2. Make copies 5 times repeatedly in duplex mode.
3. Fold all 5 sample copies as illustrated and check
for any deviation.
Deviation on the sample will be Z.
4. Obtain the difference between the deviation of
the chart and the deviation of the sample.
Difference of the deviation = Z - X
Specifications: 0 ± 2 mm
* If the difference of the deviation does not fall
within the specified range, perform the following
adjustment.
5. Open the dual scan document feeder and remove
the two screws shown in the illustration.
6. Close the dual scan document feeder.
7. Remove the front cover.
A2XKIXC025DC
Guide lines
A3CEIXC039DA
9J07IXC043DA
ZZ
Deviation in + (plus) Deviation in - (minus)
A3CEIXC032DA
A3CEIXC033DA

E-15
8. Loosen the two screws shown in the illustration.
9. Turn the adjustment dial according to the differ-
ence of the deviation.
When the difference is a positive (+) value, turn
the dial clockwise
When the difference is a negative (-) value, turn
the dial counterclockwise
10. Make duplex copies and check the amount of
deviation (Z).
11. After completing the adjustment, tighten the
screws loosened in step 8.
12. Install the front cover removed in step 7. (Two
screws)
XIX. Magnification adjustment
<Magnification in the feeding direction>
Note:
Perform this adjustment if necessary.
1. Place the chart in the document feeding tray
(with the side having an arrow facing up).
2. Make a single-sided copy sample in full size.
3. Check whether the difference in the width C
between the chart and the copy sample is within
the specified range.
Difference in the width C = C of the copy sample
– C of the chart
Specifications: 0 ± 1.0 mm
* If the difference in the width C does not fall within
the specified range, perform the following
adjustment.
4. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
5. Touch “ADF.”
6. Touch “FD-Mag. Adj.(F).”
7. Check that “Orig. Feed Zoom Ad” is selected.
8. Specify a value using the -/+ key.
Adjustable range: -2.00 % to +2.00 %
(0.1% per step)
If the difference in the width C is greater than the
specifications, use the – (minus) key.
If the difference in the width C is smaller than the
specifications, use the + (plus) key.
9. Touch “Test Copy.”
10. Select the tray loading paper for the test copy.
11. Touch “2.”
A3CEIXC034DA
A3CEIXC035DA
A3CFIXC013DA
A1DMIXC018DA

E-16
12. Check that “1-Sided -> 1-Sided” is selected.
13. Place the chart in the document feeding tray
(with the side having an arrow facing up).
14. Press the start key, and check the difference in
the width C between the chart and the dis-
charged copy sample.
<Back side magnification in the feeding direction>
Note:
Perform this adjustment if necessary.
15. Place the chart in the document feeding tray.
(Make sure that the blank surface of the chart
faces up.)
16. Make a duplex copy sample in full size.
Note:
If the Test Copy screen on the Service Mode is
displayed, touch “2-Sided -> 2-Sided” and then
press the start key to make a copy sample.
17. Check whether the difference in the width C
between the chart and the copy sample is within
the specified range.
Difference in the width C = C of the copy sample
– C of the chart
Specifications: 0 ± 1.0 mm
* If the difference in the width C does not fall within
the specified range, perform the following
adjustment.
18. Display the Service Mode screen, and touch
“ADF.”
Note:
If the Test Copy screen on the Service Mode is
displayed, touch “END” twice.
19. Touch “FD-Mag. Adj.(B).”
20. Check that “Orig. Feed Zoom Ad” is selected.
21. Specify a value using the -/+ key.
Adjustable range: -2.00 % to +2.00 %
(0.1% per step)
If the difference in the width C is greater than the
specifications, use the – (minus) key.
If the difference in the width C is smaller than the
specifications, use the + (plus) key.
22. Touch “Test Copy.”
23. Select the tray loading paper for the test copy.
24. Touch “2.”
25. Touch “2-Sided -> 2-Sided.”
26. Place the chart in the document feeding tray.
(Make sure that the blank surface of the chart
faces up.)
27. Press the start key, and check the difference in
the width C between the chart and the dis-
charged copy sample.
<Back side zoom in the main scanning direction>
Note:
Perform this adjustment if necessary.
28. Place the chart in the document feeding tray.
(Make sure that the blank surface of the chart
faces up.)
29. Make a duplex copy sample in full size.
Note:
If the Test Copy screen on the Service Mode is
displayed, touch “2-Sided -> 2-Sided” and then
press the start key to make a copy sample.
A3CEIXC039DA
A1DMIXC018DA
A3CEIXC039DA

E-17
30. Check whether the difference in the width D
between the chart and the copy sample is within
the specified range.
Difference in the width D = D of the copy sample
– D of the chart
Specifications: 0 ± 2.0 mm
* If the difference in the width D does not fall within
the specified range, perform the following
adjustment.
31. Display the Service Mode screen, and touch
“ADF.”
Note:
If the Test Copy screen on the Service Mode is
displayed, touch “END” twice.
32. Touch “Main Scanning Direction Zoom.”
33. Check that “Main scanning direction zoom adj.”
is selected.
34. Specify a value using the -/+ key.
Adjustable range: -1.00 % to +1.00 %
(0.1% per step)
If the difference in the width D is greater than the
specifications, use the – (minus) key.
If the difference in the width D is smaller than the
specifications, use the + (plus) key.
35. Touch “Test Copy.”
36. Select the tray loading paper for the test copy.
37. Touch “2.”
38. Touch “2-Sided -> 2-Sided.”
39. Place the chart in the document feeding tray.
(Make sure that the blank surface of the chart
faces up.)
40. Press the start key, and check the difference in
the width D between the chart and the dis-
charged copy sample.
41. Touch “END” twice.
42. Touch “Exit” on the Service Mode screen.
43. Turn OFF and ON the Main Power Switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the main power after exiting the Service
Mode screen and wait for 10 seconds or more
before turning on.
XX. Mixed original size adjustment
Note:
Perform this adjustment if necessary.
1. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
2. Touch “ADF.”
3. Touch “Mixed original size adjustment.”
4. Place the chart in the document feeding tray
(lengthwise).
5. Press the Start key.
6. Check that “Adjustment Result” is “OK.”
7. Touch “END.”
XXI. Adjusting the document stop position
<Sub Scanning Direction 1-side/ Sub Scanning
Direction 2-side>
Note:
Perform this adjustment if necessary.
1. Place the chart in the document feeding tray (with
the side having an arrow facing up).
2. Make a single-sided copy sample in full size.
A1DMIXC015DA
A3CFIXC028DA
A3CFIXC013DA

E-18
3. Place the chart in the document feeding tray.
(Make sure that the blank surface of the chart
faces up.)
4. Make a duplex copy sample in full size.
5. Check whether the difference in the width B
between the chart and the copy sample is within
the specified range.
Difference in the width B = B of the copy sample –
B of the chart
Specifications: 0 ± 2.0 mm
* If the difference in the width B does not fall within
the specified range, perform the following
adjustment.
6. Display the Service Mode screen.
(For details of how to display the Service Mode
screen, see the service manual.)
7. Touch “ADF.”
8. Touch “Original Stop Position.”
9. Touch “Sub Scanning Direction 1-Side” or “Sub
Scanning Direction 2-Side.”
10. While looking at the copy sample, enter a value
using the ten-key pad on the touch panel. (To
switch the signs, press the +/- key.)
Adjustable range: -4.0 mm to +4.0 mm
(0.1 mm per step)
If the difference in the width B is greater than the
specifications, enter a positive (+) value.
If the difference in the width B is smaller than the
specifications, enter a negative (-) value.
11. Touch “Test Copy.”
12. Select the tray loading paper for the test copy.
13. Touch “2.”
14. Touch “1-Sided -> 1-Sided” or “2-Sided -> 2-
Sided.”
15. Place the chart in the document feeding tray.
1-Side: With the side having an arrow facing
up
2-Side: With the blank side facing up
16. Press the start key, and check the difference in
the width B between the chart and the dis-
charged copy sample.
<Main Scanning (Front)/ Main Scanning (Back)>
Note:
Perform this adjustment if necessary.
17. Place the chart in the document feeding tray
(with the side having an arrow facing up).
18. Make a single-sided copy sample in full size.
Note:
If the Test Copy screen on the Service Mode is
displayed, touch “1-Sided -> 1-Sided” and then
press the start key to make a copy sample.
19. Place the chart in the document feeding tray.
(Make sure that the blank surface of the chart
faces up.)
A3CEIXC039DA
A1DMIXC017DA
A3CFIXC013DA
A3CEIXC039DA

E-19
20. Make a duplex copy sample in full size.
Note:
If the Test Copy screen on the Service Mode is
displayed, touch “2-Sided -> 2-Sided” and then
press the start key to make a copy sample.
21. Check whether the difference in the width A
between the chart and the copy sample is within
the specified range.
Difference in the width A = A of the copy sample
– A of the chart
Specifications: 0 ± 2.0 mm
* If the difference in the width A does not fall within
the specified range, perform the following
adjustment.
22. Display the Service Mode screen, and touch
“ADF.”
Note:
If the Test Copy screen on the Service Mode is
displayed, touch “END” twice.
23. Touch “Original Stop Position.”
24. Touch “Main Scanning (Front)” or “Main Scan-
ning (Back).”
25. While looking at the copy sample, enter a value
using the ten-key pad on the touch panel. (To
switch the signs, press the +/- key.)
Adjustable range: -4.4 mm to +4.4 mm
(0.1 mm per step)
If the difference in the width A is greater than the
specifications, enter a positive (+) value.
If the difference in the width A is smaller than the
specifications, enter a negative (-) value.
26. Touch “Test Copy.”
27. Select the tray loading paper for the test copy.
28. Touch “2.”
29. Touch “1-Sided -> 1-Sided” or “2-Sided -> 2-
Sided.”
30. Place the chart in the document feeding tray.
Front: With the side having an arrow facing up
Back: With the blank side facing up
31. Press the start key, and check the difference in
the width A between the chart and the dis-
charged copy sample.
32. Touch “END” twice.
33. Touch “Exit” on the Service Mode screen.
34. Turn OFF and ON the Main Power Switch.
Note:
When displayed the Service Mode screen, be sure
to turn off the main power after exiting the Service
Mode screen and wait for 10 seconds or more
before turning on.
XXII. Affixing the label (Legal restrictions
on copying)
Affix the label (Legal restrictions on copying) to the
position shown below.
Note:
This step may not be performed depending on the
applicable marketing area.
A1DMIXC019DAA1DMIXC016DA
<Front> <Back>
Note:
When the dual scan document feeder/reverse
automatic document feeder is adjusted in ser-
vice mode, “Adjustments list” should be output
again as necessary. (Refer to E-11 “XV. List out-
put.”)
A2XKIXE030DA
Label

E-20
XXIII. Changing the stopper position
1. Raise the two hinge covers on the back of the
dual scan document feeder and remove the stop-
per from the hinge of the dual scan document
feeder.
2. Change the set position of the stopper to the
upper side and secure it in position.
XXIV. Affixing the paper size label
Affix the paper size labels that correspond to the
sizes of paper used in each tray.
For loading the paper as well as setting the paper
type, refer to the user’s guide.
XXV. Check through test print
Make operation checks using “Setting Information
Print.”
1. Select the function to be used as follows:
Menu →Utility →User Settings →Printer Set-
tings →Print Reports.
The types of the test prints that can be printed will
be displayed.
2. Touch “Configuration Page.”
3. Touch A4 size and press the start key.
Check that the machine produces the corre-
sponding printed page.
4. Touch “Cancel” and then touch “Close” four
times.
XXVI. Connecting the network cable
1. Connect the networking equipment (HUB) using
the network cable.
Note:
The following shows the recommended network
cables that correspond to each communication
speed.
• 10BaseT/100BaseTX: Category 5
• 1000BaseT: Category 5E, Category 6
2. Check LEDs for lighting conditions.
LED1:
Should light up steadily if the link network con-
nection has been made.
LED2:
Should blink according to the communications
status of the ACT network.
A3CEIXE047DB
Stopper
A161IXC026DA
Paper size label
A5C1IXC008DB
Networkport
LED1
LED2
