Introduction

Machine Parts2
Machine Parts
The parts of the machine referred to throughout this manual are illustrated
below. Please take some time to become familiar with them.

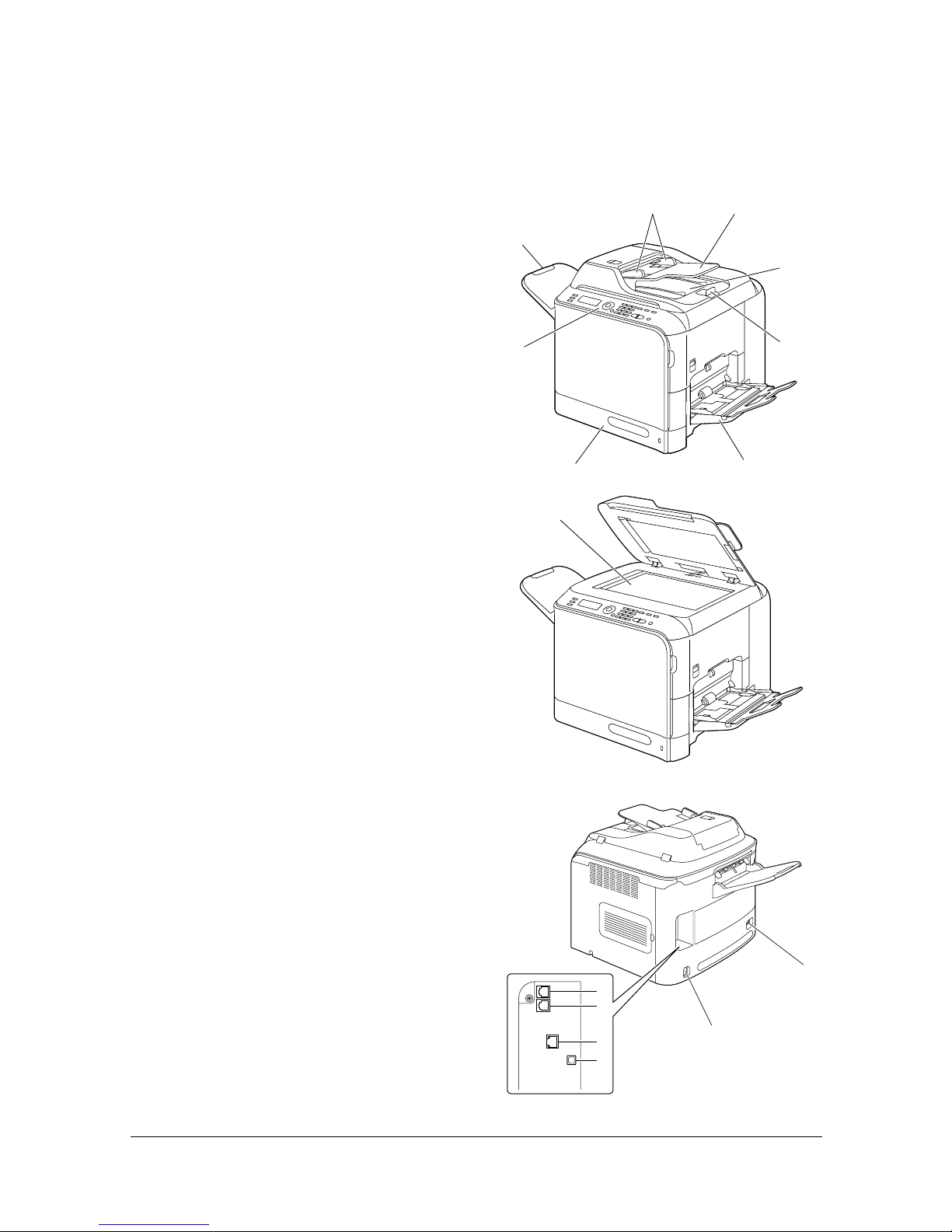

Front View
1–Automatic document feeder
(ADF)
1-a–Document guide
1-b–Document feed tray
1-c–Document output tray
1-d–Document stopper
2–Tray 1 (Manual feed tray)
3–Tray 2
4–Control panel
5–Output tray
6–Original glass
" The ADF may appear as
“document cover” in some
status and error messages.
" Lower the document stopper
when scanning Legal-size
paper with the ADF.
Rear View
1–TEL (telephone) jack
2–LINE (telephone line) jack
3-10Base-T/100Base-TX/
1000Base-T (IEEE 802.3) Ethernet
interface port
4–USB port
5–Power connector
6–Power switch
4
5
1-b
1-c
1-a
3 2
1-d
6
1
2
3
4
5
6

Control Panel and
Configuration
Menu

About the Control Panel4

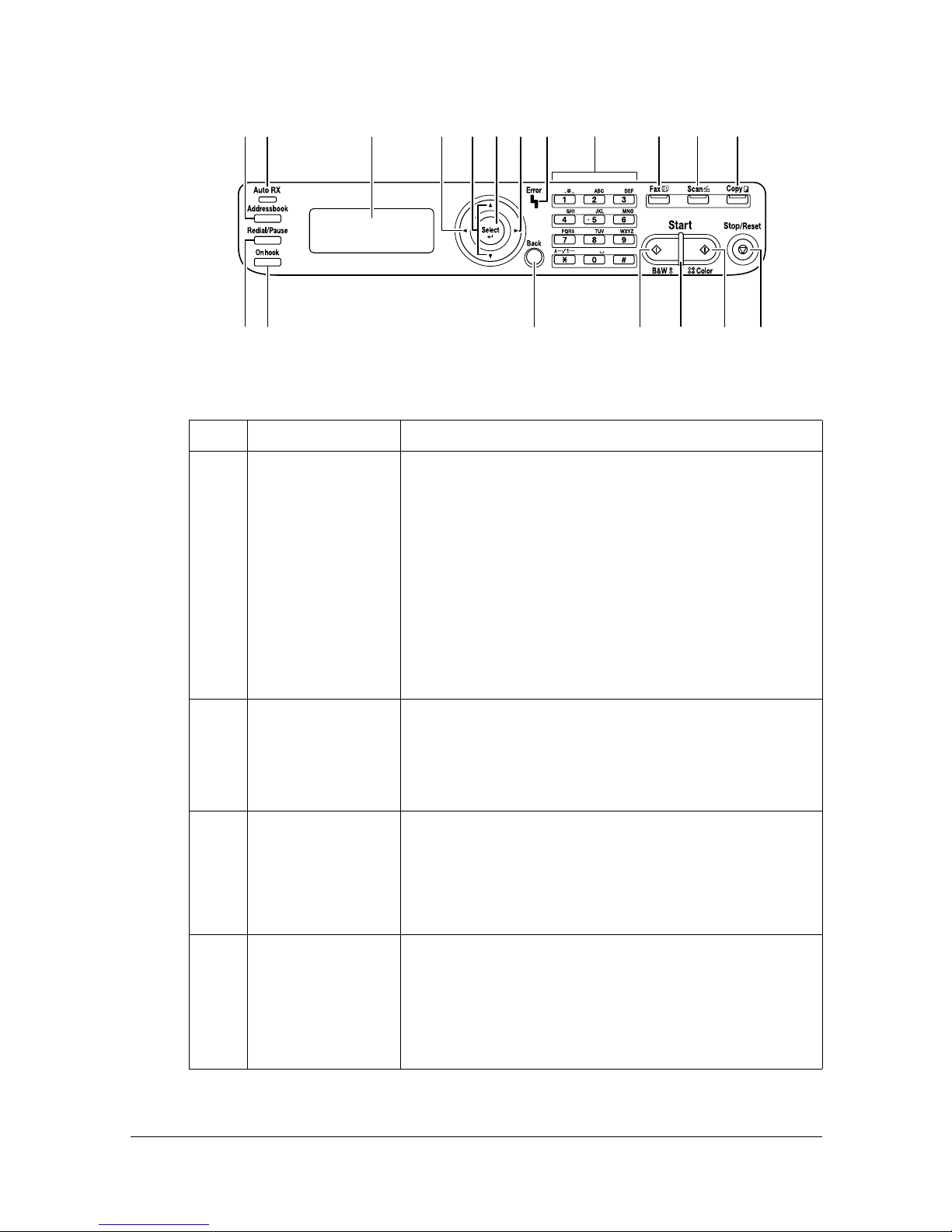

About the Control Panel
No. Part Name Description
1Addressbook
key
Displays the information registered in the favor-
ite list, speed dial destinations and group dial
destinations.
For detail on the favorite list, refer to “Using the
Favorite List” on page 44. For detail on the
speed dial destinations, refer to “Using the
Speed Dial Function” on page 45. For detail on
the group dial destinations, refer to “Sending a
Fax to Multiple Recipients (Group Dial)” on
page 49.
2Auto RX indica-
tor
Lights up when the automatic receiving function
is selected.
For details, refer to “Receiving Faxes Automati-
cally” on page 66.
3Redial/Pause
key
Recalls the last number dialed.
Inserts a pause when a number is dialed.
For details, refer to “Using the Redial Function”
on page 47.
4On hook key Sends and receives transmissions with the
receiver on the hook.
For details, refer to “Sending a Fax Manually
Using the On Hook Key” on page 55 or “Receiv-
ing Faxes Manually” on page 66.
257 11121314
10 15 16 1817
68 9
43
1 7

About the Control Panel 5
5 Message window Displays settings, menus, and messages.
For details, refer to “Fax Mode Screen” on page
7.
6+/,keys Moves up and down through menus, options, or
choices.
For details, refer to “Specifying Settings in Utility
Menu” on page 34.
7*/)keys Moves left and right through menus, options, or
choices.
For details, refer to “Specifying Settings in Utility
Menu” on page 34.
8Select key Press to select the setting that is currently dis-
played.
For details, refer to “Specifying Settings in Utility
Menu” on page 34.
9Error indicator Indicates an error condition.
For details, refer to “Error Messages on the
Message Window” on page 93.
10 Back key Clears the specified number of copies and
entered text.
Press to return to the previous screen.
Press to cancel the setting that is currently dis-
played.
For details, refer to “Specifying Settings in Utility
Menu” on page 34 and “Entering Text” on page
97.
11 Keypad Enters desired number of copies.
Enters fax numbers, mail addresses, and
names of recipients.
For details on dialing a destination, refer to
“Specifying a Recipient” on page 43. For details
on entering text, refer to “Entering Text” on page
97.
No. Part Name Description

About the Control Panel6
12 Fax key LED Enters Fax mode.
Lights up in green to indicate that the machine
is in Fax mode.
For details, refer to “Fax Mode Screen” on page
7.
13 Scan key LED Enters Scan mode (Scan to E-mail, Scan to
FTP, Scan to a shared folder on a computer,
Scan to PC, or Scan to USB Memory).
Lights up in green to indicate that the machine
is in Scan mode.
For details, refer to the Printer/Copier/Scanner
User’s Guide on the Documentation CD/DVD.
14 Copy key LED Enters Copy mode.
Lights up in green to indicate that the machine
is in Copy mode.
For details, refer to the Printer/Copier/Scanner
User’s Guide on the Documentation CD/DVD.
15 Start (B&W) key Starts monchrome copying, scanning or faxing.
For details, refer to “Basic Fax Operation” on
page 38 or “Receiving Faxes Manually” on page
66.
16 Start indicator Lights up in blue when copying and fax trans-
mission are possible.
Lights up in orange when copying and fax trans-
missions are not possible, for example, during
warm-up or if an error has occurred.
17 Start (Color) key Starts color copying, scanning or faxing.
For details, refer to “Basic Fax Operation” on
page 38 or “Receiving Faxes Manually” on page
66.
18 Stop/Reset key Returns the settings to their defaults and stops
functions. For details, refer to “Basic Fax Oper-
ation” on page 38.
No. Part Name Description

Fax Mode Screen 7
Fax Mode Screen
Main Screen

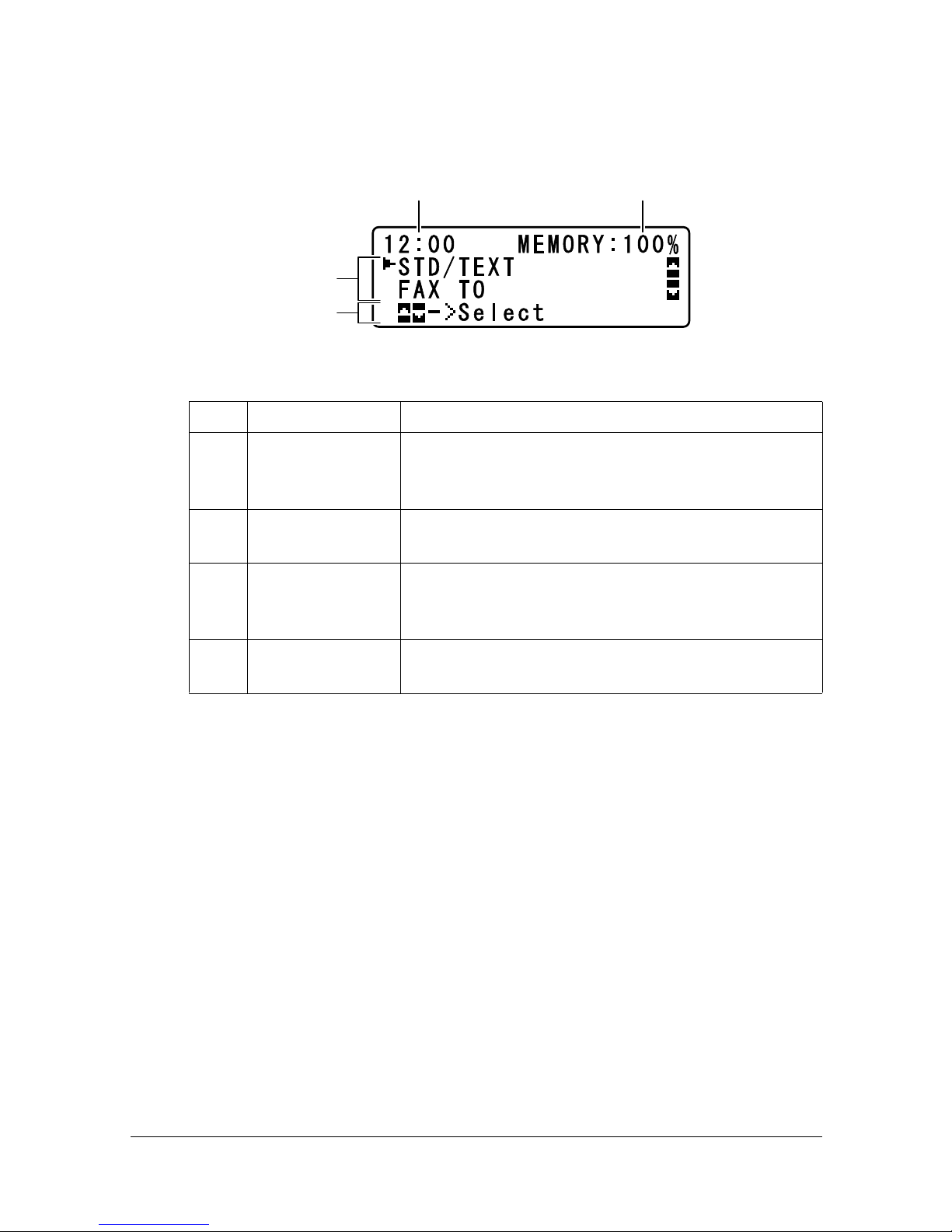

No. Indication Description
1 Time Displays the time currently specified with ADMIN.
MANAGEMENT/USER SETTING/DATE&TIME in
the UTILITY menu.
2 Available mem-
ory
Indicates the percentage of memory available for
scanning and fax operations.
3 Fax settings Allows the current settings to be checked and the
various settings to be changed. For details, refer to
“Fax settings” on page 8.
4 Status Depending on the situation, the machine status or
an error message may appear.
3
4
21

Fax Mode Screen8
Fax settings
No. Indication Description
1 Fax quality Indicates the fax quality that is selected. For
details on selecting the fax quality, refer to “FAX
TX OPERATION” on page 28 and “Adjusting the
Image Quality” on page 42.
2 Fax destination Indicates the specified fax destination. For details
on specifying the destination, refer to “Specifying a
Recipient” on page 43 and “Specifying Multiple
Recipients” on page 47.
" If no destination has been specified, FAX
TO appears.
1
2
3
4
6
5
8
7
Press +/,
Press +/,
Press +/,

Fax Mode Screen 9
3TIMER TX Select this menu item to specify the time when the
fax is to be sent. For details on specifying settings
for a timer transmission, refer to “Sending a Fax at
a Specified Time (Timer Transmission)” on page
50.
4 Transmission
mode
Indicates the fax transmission mode that is
selected. For details on the transmission modes,
refer to “FAX TX OPERATION” on page 28 and
“Memory Transmission and Direct Transmission”
on page 52.
5 Single-sided/dou-
ble-sided faxing
Indicates the fax document scanning method (sin-
gle-sided/double-sided) that is selected. For
details on selecting double-sided/single-sided
scanning, refer to “Sending a Duplex (Dou-
ble-Sided) Document Transmission” on page 53.
6CANCEL
RESERV.
Select this menu item to display the list of jobs
queued for transmission and to delete a job. For
details, refer to “Cancelling a Queued Transmis-
sion” on page 57.
" This menu item does not appear if a Fax
destination has been specified.
7UTILITY Select this menu item to change the various
machine settings. For details, refer to “Utility
Menu” on page 21.
" This menu item does not appear if a Fax
destination has been specified.
8REPORT/STATUS Select this menu item to view the total number of
pages printed by this machine and the results of
fax transmissions/receptions as well as to print
reports. For details, refer to “Confirmation Mode”
on page 83.
" This menu item does not appear if a Fax
destination has been specified.
No. Indication Description

Fax Mode Screen10
Entering Fax Mode
Before using the Fax function, make sure that the Fax key lits green. Other-
wise, press it to enter the Fax mode.
Pressing the Redial/Pause key or On hook key switches the machine to Fax
mode when it is in any mode other than Fax mode.
Symbol list
Symbol Description
Dialing A fax number is being dialed.
Ringing The machine is being called.
Sending The document is being sent.
Receiving A document is being received.
Number of scan-
ning document
pages
The number of scanning document pages appears
next to the icon.
Tone If Pulse is selected as the telephone line type,
press the key to temporarily change the line type
to Tone.
Pause A pause is inserted.
Queued timer
transmission or
batch transmis-
sion
A document is queued for timer transmission or
batch transmission.
Memory recep-
tion
A document is queued for memory reception.

Configuration Menu Overview 11
Configuration Menu Overview
The menu accessible from the control panel is structured as shown below.
STD/
TEXT
QUALITY
(ORIGINAL)
DENSITY
FAX TO
TIMER
TX
MEMORY
TX
1-SIDE
CANCEL
RESERV.
UTILITY MACHINE
SETTING
AUTO PANEL
RESET
PREHEAT MODE
ENERGY SAVE
MODE
LCD CONTRAST
KEY SPEED TIME TO START
INTERVAL
LANGUAGE
LAMP OFF TIME
LAMP WARMUP
TIME

Configuration Menu Overview12
BUZZER VOLUME
INITIAL MODE
TONER EMPTY
TONER NEAR
EMPTY
I-UNIT NEAR
EMPTY
AUTO CONTINUE
CALIBRATION
PAPER
SETUP
TRAY1 PAPER PLAIN PAPER
THICK PAPER
THICK PAPER2
TRANSPARENCY
LABELS
LETTERHEAD
GLOSSY
GLOSSY2
ENVELOPE
POSTCARD

Configuration Menu Overview 13
TRAY2 PAPER
ADMIN.
MANAGEMENT
ADMINISTRATOR
NO.
REMOTE
MONITOR
NETWORK
SETTING
TCP/IP
IP ADDR.
SETTING
DNS DNS AUTO
SETTING
SPECIFY
DHCP
BOOTP
ARP/PING
HTTP
FTP SERVER
FTP TX
SMB
BONJOUR
DYNAMIC DNS
IPP

Configuration Menu Overview14
RAW PORT
SLP
SNMP
WSD PRINT
IPSEC
IP ADDR.
FILTER
ACCESS PER.
ACCESS
REFUSE
IPv6 DISABLE/
ENABLE
AUTO SETTING
LINK LOCAL
GLOBAL
ADDRESS
GATEWAY
ADDRESS
NETWARE
APPLETALK
SPEED/DUPLEX
IEEE802.1X
E-MAIL
SETTING
SMTP
