KIP 9900 User Guide

(1)
Thank you for purchasing the KIP 9900.
This USER’S MANUAL contains functional and operational explanations for the KIP 9900. Please
read this USER’S MANUAL carefully before using the Printer. Please keep this USER’S MANUAL
for future reference.
When this machine is installed in USA
FCC ID : VP8-K115
This equipment satisfies the requirements in Part 15 of FCC Rules for a Classic A computing
device.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
In order to comply with FCC radio-frequency radiation exposure guidelines for an uncontrolled
exposure, this device and its antenna must not be co-located or operating in conjunction with any
other antenna or transmitter.
FCC 15.105(a)
NOTE: This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to
radio communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
FCC 15.21
Changes or modifications not expressly approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
When this machine is installed in Canada
IC Company No. & UPN No. : 7391A-K115
Operation is subject to the following two conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may cause undesired
operation of the device.
When this machine is installed in Europe
This equipment satisfies the requirements in Pub.22 of CISPR Rules for a Classic B computing
device. Operation of this equipment in a residential area may cause unacceptable interference to
radio and TV reception requiring the operator to take whatever steps are necessary to correct the
interference.
Do not install this machine around electronic equipment or precision instruments. Other
devices may be effected by electrical noise during operation.
If Machine is installed near other electronic equipment, such as a TV or a radio, interference
to said equipment, such as noise or flickering, may occur. Use a separate power line and
install the PRINTER as far as possible from said equipment.

(2)
The International ENERGY STAR ® Office Equipment Program is an international program that
promotes energy saving through the penetration of energy efficient computers and other office
equipment. The program backs the development and dissemination of products with functions that
effectively reduce energy consumption. It is an open system in which business proprietors can
participate voluntarily. The targeted products are office equipment such as computers, monitors,
printers, facsimiles, copiers, scanners, and multifunction devices. Their standards and logos are
uniform among participating nations.
The symbol shown indicates that this product conforms to
SJ/T11364-2006 of People’s Republic of China Electronic
Industry Standard and does not apply to countries outside of
People’s Republic of China.
The symbol shown indicates that this product conforms to GB
18455-2001 11364-2006 of National Standard of the People’s
Republic of China and does not apply to countries outside of
People’s Republic of China.
As an ENERGY STAR ® Partner, Katsuragawa Electric Co., Ltd. has determined
that this product meets the ENERGY STAR ® guidelines for energy efficiency.
The symbol shown indicates that this product conforms to Directive
2002/96/EC of the European Parliament and the council of 27 January
2003 on waste electrical and electronic equipment (WEEE) and does not
apply to countries outside of EU.
NOTE
KIP 9900 will not function if no optional device is connected.
Please ask the Service Personnel for the optional device.

(3)
The following warnings are very important in order to safely use this product.
These notes are very important in preventing danger to the operator or operation of the printer.
The following symbols are found throughout the USER’S Manual and have the following meaning:
WARNING
This WARNING mark means that there is a possibility of death or serious
injury if you ignore or do not follow the said instruction.
Safety Warning
CAUTION
This CAUTION mark means that there is a possibility of injury or physical
damage if you ignore or do not follow the said instruction.
When marked with this symbol, “DO NOT ATTEMPT”
When marked with this symbol, “pay close attention to”

(4)
WARNING
Ground the product with a correct ground source or you may be electrically
shocked.
1. Connected outlet must satisfy the following condition.
U.S.A. / Europe : 220 - 240V (+6% / -10%), more than 16A, 50/60Hz
2. Use a circuit with an exclusive breaker.
3. Install the machine as close to the wall outlet as possible.
4. If you wish to move the printer, please contact to your service personnel.
1. Do not remove the screw and do not open the cover if not instructed to do
so in this User’s Manual. If you ignore this warning, you may be burnt or
receive an electric shock due to a hot item or electrically charged part
inside of the printer.
2. Do not disassemble or tamper with the printer. It may result in a fire or
electrical shock.
1. Do not plug in the printer into a multi-wire connector in which some other
equipment is plugged into. It may cause a fire due to outlet overheating.
2. Do not damage the Power Cord by stepping on or placing something heavy
items on it. If the Power Cord is damaged, it may cause a fire or you may
receive an electric shock. REPLACE THE CORD IF DAMAGED.
1. Do not PUT a flower vase, a flowerpot or any water-filled item on the
product. Spilt water could cause a fire or an electric shock.
2. If the product generates an abnormal smell or noise, turn it off and unplug it
from the wall outlet immediately.
Do not throw the toner into a fire or other sources of heat, as it can explode.

(5)
CAUTION
Do not install the machine in a humidified room or a dusty room.
Also, do not install the machine on an unstable floor as injuries may occur.
1. Unplug the printer before you move it. The power cord may be damaged
and it may result in a fire or electric shock.
2. If you do not use the printer for a long duration (holidays, company
shutdown) turn off and unplug the printer from the outlet for safety.
Do not pull the cord when you unplug the printer as you may damage the
Power Cord. Make sure to unplug the plug from the plug case.
There are hot items inside of the machine. Take great care not to touch these
items when you remove mis-fed media.
Ventilate the room well if you print in a small area.

(6)
POWER CORD INSTRUCTION
The installation of (or exchange to) a power plug which fits in the wall outlet of the installation
location shall be conducted in accordance with the following:
WARNING
Select a power plug which meets the following criteria;
- The plug has a voltage and current rating appropriate for the product’s rating marked on
its name plate.
- The plug meets regulatory requirements for the area.
- The plug is provided with a grounding pin or terminal.
If the appropriate plug does not fit the wall outlet in the installation, the customer shall install an
appropriate outlet.
Connector Type:
Configuration Standard Rating Usually found in
IEC60320:C19 20A 250V (UL)
16A 250V (IEC)
Plug Type: Model Rating 220-240V
Configuration Standard Rating Usually found in
NEMA6-20 20A 250V North America
(UL Listed)
CEE7/7 16A 250V European countries
Cord Type
Standard Rating Usually found in
SJT 3X12AWG Long <4.5m 20A 250V North America
(UL Listed)
HO5VV-F 3X1.5mm216A 250V European countries
Argentina

Chapter 1 Before Use
Chapter 1
Before Use
Page
1.1 Installation Requirements 1-1
1.2 Originals Prohibited from Duplication 1-2
1.3 Features 1-3
1.4 Specifications 1-4
1.5 Appearance 1-6

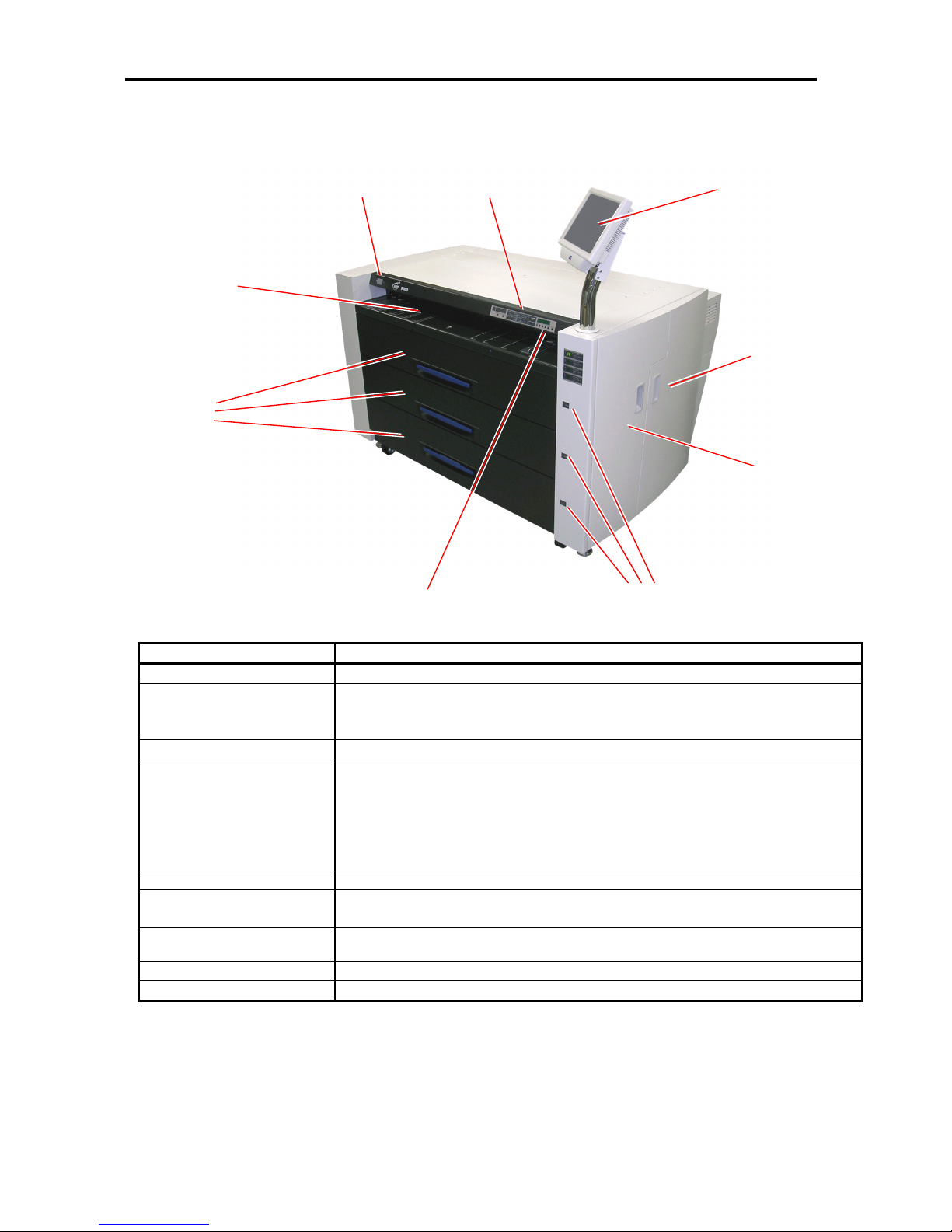

1.5.1 Front view 1- 6
1.5.2 Right side view 1- 7
1.5.3 Rear view 1- 8
1.5.4 Operation Panel 1-11
1.5.5 Media Indicators 1-12
1.5.6 “in use” Indicators 1-13

Chapter 1 Before Use1-1
1. 1 Installation Requirements
The following conditions are required for installation of the equipment.
(1) Power source should be as follows (according to your region).
U.S.A. / Europe 220 - 240V (+6% / -10%), 16A, 50/60Hz
For use in Europe: Plug of power cord must meet the standard of each country.
For PERMANENT CONNECTION, a readily accessible disconnect device shall be incorporated
in the building installation wiring.
(2) The equipment must be on an exclusive circuit.
The outlet must be near the equipment and easy accessible.
(3) Make sure to connect this equipment to a grounded outlet.
(4) The site temperature range = 10 - 32.5 degrees centigrade, with the humidity between 20% -
80% RH (NON CONDENSING).
Keep the equipment away from water sources, boilers, humidifiers or refrigerators.
(5) The installation site must not have open flames, dust or ammonia gases.
(6) The equipment should not be exposed to the direct sunlight.
Please draw curtains to block any sunlight.
(7) Ozone will be generated while this equipment is in use, although the quantity generated is within
safe levels. (see certifications)
Ventilate the room, if required.
(8) Levelling Bolts on the bottom of the KIP 9900 should touch the floor correctly.
And the equipment must be levelled.
Floor strength must be ample to sustain the weight of the equipment.

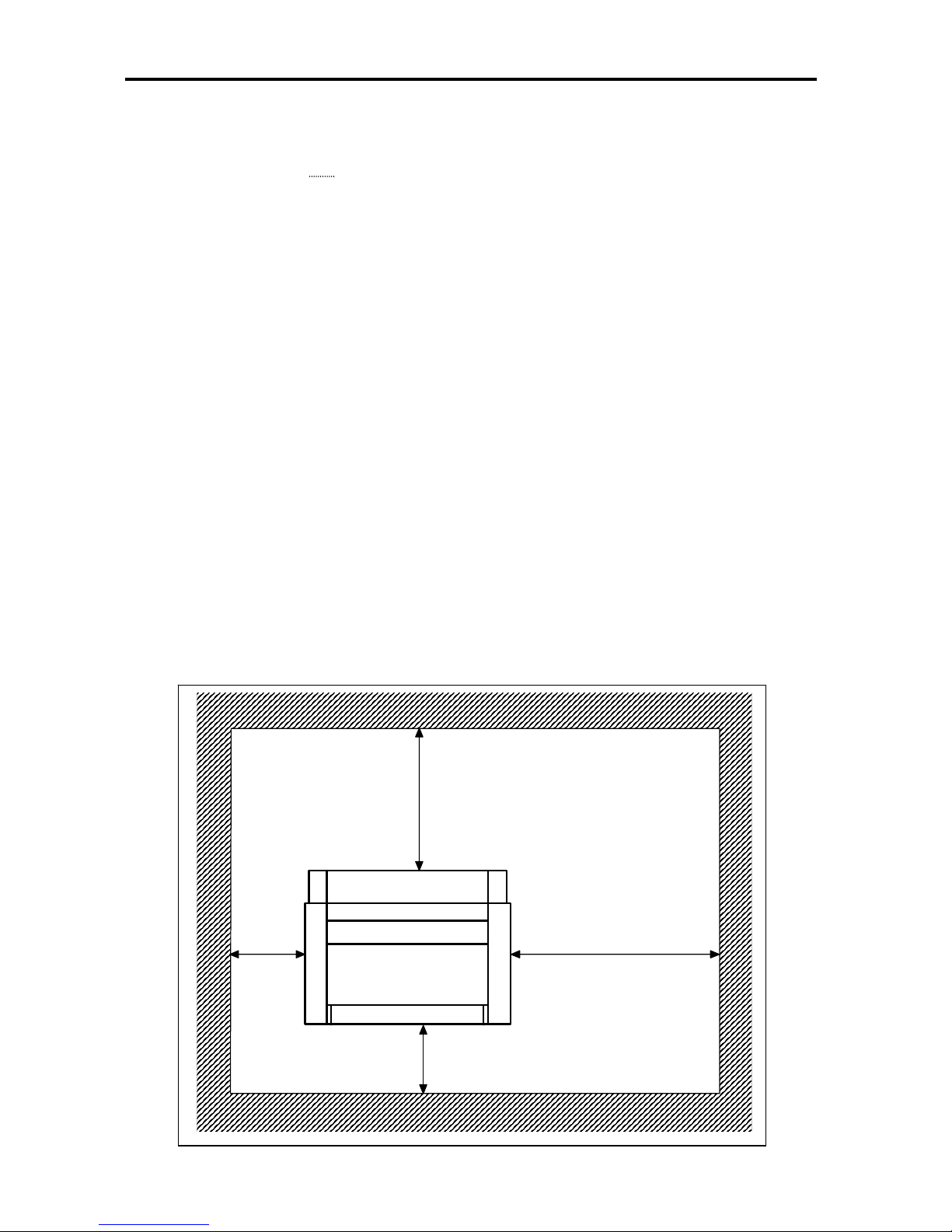

(9) Keep ample room around the equipment to ensure comfortable operation.
Required space is noted.
195cm (76.7 inch) or wider
120cm (47.2 inch) or wider
100cm (39.4 inch) or wider
50cm
(19.7 inch)
or wider
Rear
Front

Chapter 1 Before Use1-2
1. 2 Originals Prohibited from Duplication
It may be illegal to duplicate or copy certain types of originals and you may be punished by local or
regional laws, if copies are made of these types of originals.
Please be aware of your local or regional laws and which originals they forbid you to duplicate.
Some Examples:
[Originals prohibited from copying by the law(s)]
1. Do not copy Currency (Bill, Money, Bank Note, etc.), Government issued Negotiable
Instruments (National Bonds, Security, Local Debt Bonds, etc.).
2. Do not copy Foreign Currency or Foreign Negotiable Instruments.
3. Do not copy unused postal stamps or government postcards without permission to
make replica from said Governments.
4. Do not copy Government issued revenue stamps, certificate stamps that are
prescribed by Liquor Tax Act or the Commodity Tax Act.
[Special items which require your attention]
1. The government issues warnings if you are to copy private issued securities (stock certificate, draft,
check, goods ticket, etc.), commutation ticket or book of tickets, excluding that some specific
company copies such originals as many as it requires for its own business.
2. We recommend you not copy originals as government issued passports, public or
private issued licenses, automobile inspection certification, ID and tickets passes or meals.
[Originals protected by the copyright]
It is prohibited to copy originals such as books, music, paintings, printed copies, maps, drawings,
movie posters and pictures which are protected by the copyright laws.
Please see your local or regional laws.

Chapter 1 Before Use1-3
1. 3 Features
(1) New Contact Development Technology with non-magnetic mono-component toner
Benefits you will obtain are:
Superior image quality High definition line, distinctive greyscale and consistent solid
black can be produced.
100% toner efficiency No toner is wasted. Neither cleaning mechanism nor waste
toner receptacle is needed. It is environmentally friendly and
also can reduce the running cost.
(2) Superior printing productivity
KIP 9900’s fast print speed (240mm/sec) enables to process large volume of prints/copies
(11sheets of A0 or E per minute).
(3) Long parts life and low frequency of service maintenance
Service parts are durable for very long use and self-cleaning functions of KIP 9900
enables the operator to enjoy quality images for a long term without maintenance.
(4) Pre-calibrated LED Head
All LED pixels are individually calibrated for the best image quality.
(5) Image Enhancement Technology
Dependent on the image, the best level of Image Enhancement is
automatically calculated.
(6) Installation of roll media and Toner Cartridge while printing
It is possible to install new roll media or add more toner without interrupting printing
operation.
(7) Long print
The maximum print length guaranteed is 6 meters (with plain paper).
The maximum possible length is 24 meters. (Quality of print is not guaranteed.)

Chapter 1 Before Use1-4
1. 4 Specifications
Subject Specification
Model KIP 9900
Type Console
Printing method LED Array Electro Photography
Photoconductor Organic Photoconductive Drum
Print speed 240mm / second (11 A0 prints / minute)
Exposure method LED Print Head
Resolution 600 x 1800dpi
Print width Maximum : 914mm (36 inches)
Minimum : 297mm (11 inches)
Print length Maximum : Plain paper 6000mm for A0/36” wide
or “5 x standard length”
Tracing paper A0 / 36 inch
Film A0 / 36 inch
Minimum : 210mm
NOTE : Longer print than the above specified maximum lengths
is available. However, KIP does not guarantee any result
including image quality and media feeding if the print is
longer than the above specified lengths.
Warm up time Shorter than 6 minutes
(At 23 degrees centigrade, 60% RH and 230V)
First print time Shorter than 18 seconds (A0)
Fusing method Heat roller fusing
Development Contact type mono component non-magnetic development system
(Initial toner is unnecessary. One toner cartridge contains 500g.)
Charging method Corona
Media feeding method Automatic (4 Roll Decks) and manual (50 cut sheets capacity)
NOTE : Multiple cut sheet feeding (50 sheets max) is available
when the size is narrower than A2 (594mm) or 24”.
Transfer method Corona
Separation method Corona and LED
Input power 220 - 240V (+6% / -10%), 16A and 50/60Hz in U.S.A. and Europe
Interface KIP Interface 8 (LVDS)
Maximum power
consumption
When 230V, 50/60Hz and Dehumidify Heater is ON
Stand by 0.9 Kwh
Printing 3.0 Kwh
Warm up 3.5 Kwh
Acoustic noise Less than 70db (Printing)
NOTE : Impact noise such as cutting sound is excluded.
Less than 60db (Stand by)
Ozone Less than 0.05ppm (Average of 8 hours)
Dimensions 1360mm (Width) x 980mm (Depth) x 1265mm (Height)
Weight About 400kg
Media Specified media
Plain paper SHN
Tracing paper KMS-75
Film FA-75
(Available types)
Plain paper 70 - 90g/m2
Tracing paper 70 - 90g/m2
Film 100 micrometer or less in thickness

Chapter 1 Before Use1-5
Subject Specification
Environmental condition Temperature 10 - 32.5 degrees centigrade
Humidity 20 - 80% RH
Storage condition of
consumables
Print media Wrap the media surely to shut out the humidity.
Toner Keep the toner cartridge away from the direct
sunlight, and store it in the condition of 0 - 35 oC
and 10 - 85% RH.
NOTE
These specifications is subject to change without notice.

Chapter 1 Before Use1-6
1. 5 Appearance
1.5.1 Front view
Power Switch Operation Panel User Interface
Bypass Feeder
Right Side Door
Roll Decks
Toner Cover
Media Indicator “in use” Indicators
Name of part Function
Power Switch Turns on/off the KIP 9900.
Bypass Feeder Cut sheet media can be set here and fed into.
Multiple cut sheet feeding (50 sheets max) is available when the size is
narrower than A2 (594mm) or 24”.
Operation Panel Indicates the status of KIP 9900, error, mis-feed location and so on.
Roll Decks There are 4 Roll Decks (The bottom drawer has two decks).
Each Roll Deck holds one roll of media.
Roll Deck 1 : (Top drawer)
Roll Deck 2 : (Middle drawer)
Roll Deck 3 : (Front side of bottom drawer)
Roll Deck 4 : (Rear side of bottom drawer)
Media Indicator Informs the size and the type of roll media loaded on each Roll Deck.
Toner Cover Can access to the Toner Supplying Mechanism and replace the Toner
Cartridge.
Right Side Door Can access the internal of KIP 9900 for removing the mis-fed media.
Use Interface Touch Screen offers many kinds of user operation.
“in use” Indicators Shows the Roll Deck that must not be opened.

Chapter 1 Before Use1-7
1.5.2 Right side view
Toner Cartridge Fuser Handle
Cutter Handle
Counter A
Counter B
Internal Transportation Unit Lever
Name of part Function
Cutter Handle Can cut the roll media manually if it has not been cut yet after it was
mis-fed.
Counter A Counts the linear meter / feet of total prints.
Counter B Counts the square meter / feet of total prints.
Internal Transportation
Unit Lever
Can unlock and open the Internal Transportation Unit for removing the
mis-fed media.
Fuser Handle Can eject the mis-fed media manually from the Fuser Unit.
Toner Cartridge Includes 500 grams of toner.

Chapter 1 Before Use1-8
1.5.3 Rear view
Dehumidify Heater Switch
Top Rear Cover
Exit Cover
PowerCord
Folder Port
USB PortS. Down Port Diag Port Outlet for
Controller PC
VGA Port Interface Connector
for Controller PC

Chapter 1 Before Use1-9
Name of part Function
Exit Cover Can remove the mis-fed media around Fuser section.
Interface Connector for
Controller PC (CH-B)
Connect the cable here, which comes from a controller PC.
D-Sub Connector 36 pins, 3.3Vdc maximum (large)
Cable KATSURAGAWA ELECTRIC P/N: Z156400090
Folder Port Connect this port and a finishing device (Folder, etc) with a cable.
12Vdc maximum See the document of the folder/controller for
communication with the folder.
S. DOWN Port Connect the Shutdown Signal Cable here.
KIP 9900 will send a shutdown signal to the controller through this
cable. 12Vdc maximum
Cable KATSURAGAWA ELECTRIC P/N :Z156400380
Diag Port (USB) For Service personnel only
Connector Type B, 5Vdc maximum
VGA Port Connect the VGA cable here, which comes from a controller VGA port
by UL-Listed cable for Touch screen LCD. 5Vdc maximum
USB Port Connect the USB cable here, which comes from a controller USB Key
Connector Type B for Touch screen LCD. 5Vdc maximum
Cable KATSURAGAWA ELECTRIC P/N : Z156460020
Top Rear Cover Can access the Dehumidify Heater Switch.
Outlet for Controller PC In case you place a controller unit outside of the KIP 9900, it is possible
to supply AC power from the KIP 9900 to the controller unit if you
connect the power cord to this outlet. (220 - 240V, 3A maximum)
Dehumidify Heater
Switch
Turn on the Dehumidify Heater pressing “H” side of this switch to
dehumidify the printing media.
Press “L” side to turn it off.
(continued on the next page)
NOTE
Specification for Power Cord used in North America
Use the following type of Power Cord for a controller PC.
1) Rating minimum 250VAC 7A
2) Plug Type IEC60320: C13
3) Socket Type IEC60320: C14
4) Cord H05VV-F 3G-0.75mm, SVT3x18AWG
5) UL-Listed
NOTE
The above specifications are subject to change without notice.

Chapter 1 Before Use1-10
Power Cord Connect to the wall outlet alone.
WARNING
Plug Specification for Europe / Asia
The power cord plug must meet the followings.
(1) Select a plug which meets the following criteria.
•The plug has a voltage and current rating appropriate for the product’s rating marked on
its name plate.
•The plug meets regulatory requirements for the area.
•The plug is provided with a grounding terminal.
(2) If the appropriate plug does not fit the wall outlet in the installation place, an appropriate
outlet must be prepared.
(3) The wires in the power cord must be connected to the terminals of the plug in accordance
with the following.
Wire Color Plug Terminal
BROWN / BLACK Marked with “L” / “A” / “W”, or colored RED
LIGHT BLUE / WHITE Marked with “N”, or colored BLACK
GREEN-AND-
YELLOW
lMarked with “E” / “PE” / “ ”
lor colored GREEN / GREEN-AND-YELLOW
NOTE
The above specifications are subject to change without notice.

Chapter 1 Before Use1-11
1.5.4 Operation Panel
There is an Operation Panel on the upper right of front face.
Names and functions of key and indication LED are as follows.
1 2 3 4 5 8 12 15
6 7 9 10 11 13 14 16
No. Name of part Function
1 Ready Indicator Flashes green when KIP 9900 is warming up, and lights green when
it is ready.
2 Open Indicator Lights orange when any door or unit is open or unlocked.
3 Toner Empty
Indicator
Flashes red when the toner is near empty.
(Toner Cartridge has no Toner)
Lights red when the toner is completely empty.
(Developer Unit has no toner. No more print is available)
4 Roll Empty Indicator Lights red if the roll media in use is empty.
5 Mis-feed Indicator Lights red when the print media is mis-fed.
6 WIRE-CLEAN Key Starts cleaning for the Image Corona Wire.
7 EXP-CLEAN Key Starts cleaning for the LED Head.
8 Roll Deck Indicator Shows the present selection of roll to perform initial cut.
9 SELECT Key Selects a roll to perform initial cut.
10 CUT Key Performs initial cut for the selected roll.
11 Mis-feed Location
Indicator
Shows the location of mis-fed media by lighting the concerning LED.
12 Density Indicator Shows the present selection of density level.
13 COPY DENSITY
Key
Changes the density level for making the print density darker or
lighter.
14 MENU Key
Key
Key
* Key
ENTER Key
[MENU], [ ], [ ] and [ENTER] Keys are used in User Modes.
(The service personnel may use them also in the field service)
[ * ] Key is used to stop the alarm sound.
15 Status Display It indicates kinds of information as error codes or mis-feed codes.
16 ONLINE Key &
Indicator
The ONLINE Indicator lights green when the KIP 9900 is online, and
it is put out when offline.
ONLINE Key switches between online and offline, and also cancels
the User Mode.
COPY DENSITY MENU ENTER ONLINE
MF
D1
D2
D3
EXIT
PAPER DECK
1234
SELECT CUT
WIRE CLEAN EXP- CLEAN
D4
PF

Chapter 1 Before Use1-12
1.5.5 Media Indicators
There is a Media Indicator on the right of front face.
It informs you of the size (width) and the material of roll media loaded in each Roll Deck.
Example 1 : Metric mode Example 2 : Inch mode
Roll Deck 1 : A0 plain paper Roll Deck 1 : 36” vellum
Roll Deck 2 : A1 tracing paper Roll Deck 2 : 30” plain paper
Roll Deck 3 : A3 film Roll Deck 3 : 24” film
Roll Deck 4 : A4 plain paper Roll Deck 4 : 12” plain paper
plain paper
vellum / tracing
film
1
plain paper
vellum / tracing
film
2
plain paper
vellum / tracing
film
3
plain paper
vellum / tracing
film
4
plain paper
vellum / tracing
film
1
plain paper
vellum / tracing
film
2
plain paper
vellum / tracing
film
3
plain paper
vellum / tracing
film
4
plain paper
vellum / tracing
film
1
plain paper
vellum / tracing
film
2
plain paper
vellum / tracing
film
3
plain paper
vellum / tracing
film
4
