magicolor 2350
Installation Guide
®
1800717-001A

English
Thank You
Thank you for purchasing a magicolor 2350. You have made an excellent choice. Your
magicolor 2350 is specially designed for optimal performance in Windows, Macintosh,
UNIX and other environments.
Trademarks
KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered
trademarks of KONICA MINOLTA HOLDINGS, INC.
QCOLOR and magicolor are trademarks or registered trademarks of KONICA
MINOLTA PRINTING SOLUTIONS U.S.A., INC.
This product uses Software Developer Kit of Peerless Systems Corporation.
Copyright © 2001 Peerless Systems Corporation. All Rights Reserved.
This product uses NEST Office SDK of Novell, Inc. Copyright © 1999 Novell, Inc.
NEST is a trademark of Novell, Inc. in the United States and other countries.
Proprietary Statement
The digitally encoded software included with your printer is Copyright © 2003
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. All Rights Reserved. This
software may not be reproduced, modified, displayed, transferred, or copied in any
form or in any manner or on any media, in whole or in part, without the express
written permission of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
Copyright Notice
Copyright © 2003 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., Marunouchi
Center Building, 1-6-1 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, Japan. All Rights
Reserved. This document may not be copied, in whole or part, nor transferred to any
other media or language, without written permission of KONICA MINOLTA BUSINESS
TECHNOLOGIES, INC.
Manual Notice
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. reserves the right to make
changes to this manual and to the equipment described herein without notice.
Considerable effort has been made to ensure that this manual is free of inaccuracies
and omissions. However, KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
makes no warranty of any kind including, but not limited to, any implied warranties of
merchantability and fitness for a particular purpose with regard to this manual.
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. assumes no responsibility for,
or liability for, errors contained in this manual or for incidental, special, or
consequential damages arising out of the furnishing of this manual, or the use of this
manual in operating the equipment, or in connection with the performance of the
equipment when so operated.
Registering the Printer
Mail (Americas only)—Fill out and send in the registration card enclosed in your
shipment.
Internet—Go to printer.konicaminolta.net/register and follow the instructions given there.
CD-ROM—Follow the instructions on the Software Utilities CD-ROM.

Contents
English
Getting Acquainted with Your Printer 5
Documentation Set 5
Space Requirements 6
Locate Your Printer... 7
Printer Parts 8
Setting up Your Printer 10
Shipment Contents 10
Unpacking the Printer 10
Installing the Tray 1 Media Support 13
Loading Tray 1 (Multipurpose Tray) 13
Installing Accessories 15
Plugging in/Turning on the Printer 15
About the Interface Panel 16
What’s Next? 17

Contentsiv
English
Configuration Menu Overview 18
About the Control Panel 19
Control Panel Indicators and Keys 19
Selecting a Message Window Language 20
Manually Selecting an Ethernet IP Address 21
Troubleshooting 23
Accessories and Consumables 24
Regulatory Compliance 25
Safety Information 27
Warranty Considerations 29

Getting Acquainted with Your Printer 5
English
Getting Acquainted with Your Printer
Documentation Set
If you’re using the Acrobat PDF version of this guide, click this icon to play a
QuickTime video clip of the procedure described in the text. Acrobat Reader
and a download link to QuickTime are provided on the Documentation
CD-ROM.
Features Details
Print speed for letter/A4 media
in pages per minute
16-18 ppm monochrome black
4 color ppm
Resolution in dots per inch 600 x 600 dpi
1200 x 1200 dpi (PCL)
9600 x 600 dpi class (PostScript)
SDRAM 128 MB
200-sheet Tray 1 Standard
200-sheet face-down output tray Standard
500-sheet lower feeder unit with Tray 2 Optional (only one feeder allowed)
Duplex option Optional
IEEE-1284 parallel interface Standard
Ethernet interface
(10BaseT/100BaseTX)
Standard
USB interface Standard
Hard disk kit with time-of-day clock Optional
Manual Description Location
Installation
Guide
You’re looking at this document right now. This
guide provides information about printer
installation, the interface panel, and the
control panel.
Hard copy and
Documentation
CD-ROM
User’s
Guide
Software Installation: This chapter guides
you through software, driver, and status
display installation.
Day-to-day Operation of Your Printer:
These chapters guide you through printing
files, refilling media, and replacing toner. They
also include information on accessories,
maintaining your printer, improving print
quality, troubleshooting, technical
specifications, and safety.
Documentation
CD-ROM

Getting Acquainted with Your Printer6
English

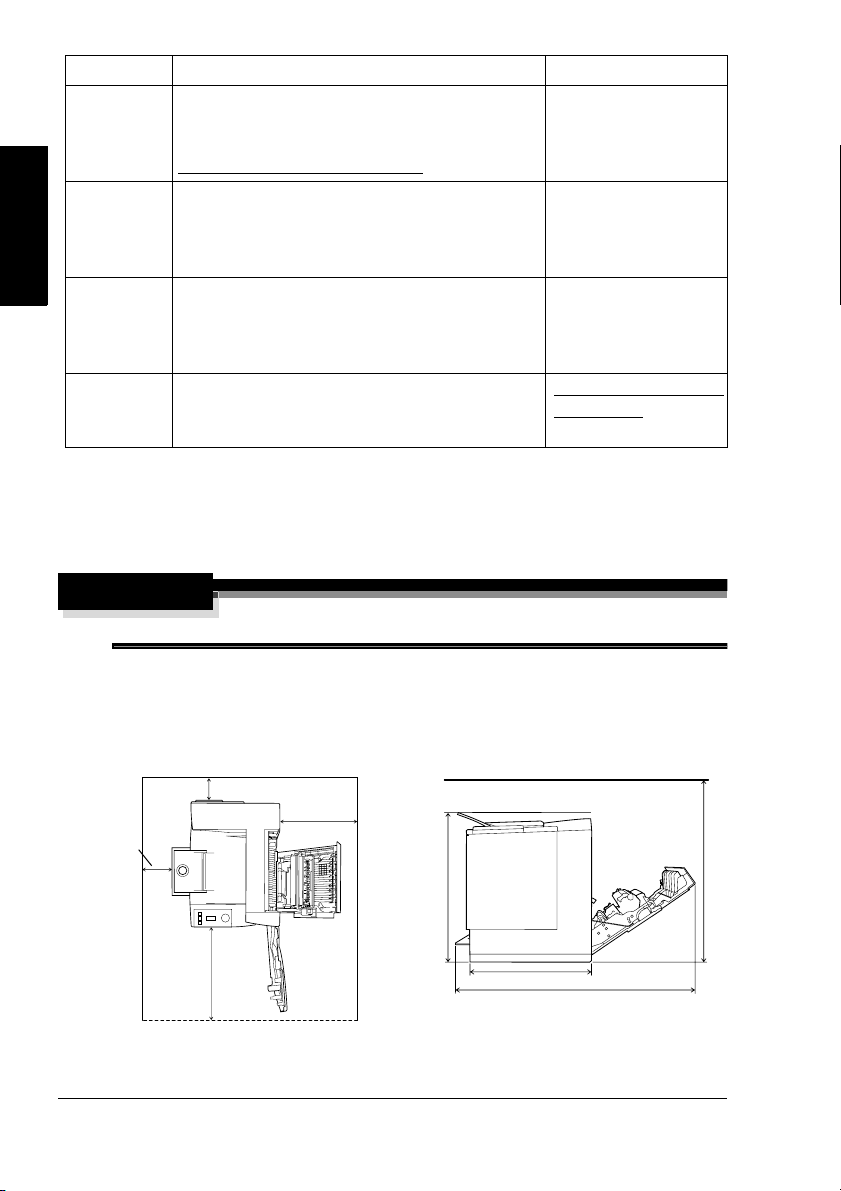

Space Requirements
The space requirements illustrated below are designed to allow access to
printer parts and to provide adequate ventilation for the printer.
WARNING!
Obstructing the ventilation grilles could present a fire hazard.
The printer has ventilation grilles on several sides and on top. It is also
important not to set anything on or lean anything against the ventilation
grilles.
Service &
Support
Guide
This lists sources of service and support for
many areas of the world. The most current
information can be found at
www.konicaminolta.net/printer/.
Documentation
CD-ROM
Reference
Guide
Designed for system administrators, this book
presents detailed information about
networking, utility administration, and other
issues that control overall printer settings.
Documentation
CD-ROM
PJL
Reference
Guide
The manual presents PJL (Printer Job
Description Language) codes used to
configure individual print jobs and to manage
printer configuration, status, and settings.
Documentation
CD-ROM
Repacking
Guide
(Americas only) This guide provides
information to help you repack, move, and
store your printer.
printer.konicaminolta.
net/support
Manual Description Location
Top View Side View
16.7" (424 mm)
13.4" (340 mm)
27.8" (705 mm)
23.2" (590 mm)
27.6" (700 mm)
5.9" (150 mm)
19.7"
(500 mm)
11.8"
(300 mm)

Getting Acquainted with Your Printer 7
English
Locate Your Printer...
Attention
For products installed outside North America, do not connect the
groundwire to gas or water pipes or grounding for telephones.
For further details, refer to the User’s Guide on the Documentation CD-ROM.
In a space with these characteristics...
On a hard, flat, stable, level (±1° or less slant at any point around the machine) surface.
Close to an easily accessible grounded power supply (on an exclusively dedicated power out-
let) that meets printer specifications. Near your computer: 6.5' (2m) or less for an IEEE 1284
bidirectional parallel connection.
With enough space to allow adequate ventilation and easy servicing.
With an ambient temperature range of 50°–95° F (10°–35° C) and temperature gradient of
50° F (10° C) or less.
With relative humidity range of 15%–85% (noncondensing) and humidity gradient of 20% per
hour or less.
At an altitude of 0–8,202 ' (0–2,500 m).
But away from...
Direct sunlight, heating and cooling sources, wind, and dust.
A connection to the same electrical circuit as high-current machines. Noise-generating equip-
ment, such as an air conditioner or copier, and strong magnetic or electromagnetic fields, such
as a refrigerator.
Small, loose metal parts, such as paper clips and staples.
Water, water pipes, liquid (drink) containers, and corrosive chemicals or vapors, such as
ammonia.
Excessive vibration.
Open flames or items that can easily burn.
View with Accessories
21.5" (546 mm)
14.1" (357 mm)
27.8"
(
705 mm
)
28.0" (712 mm)

Getting Acquainted with Your Printer8
English

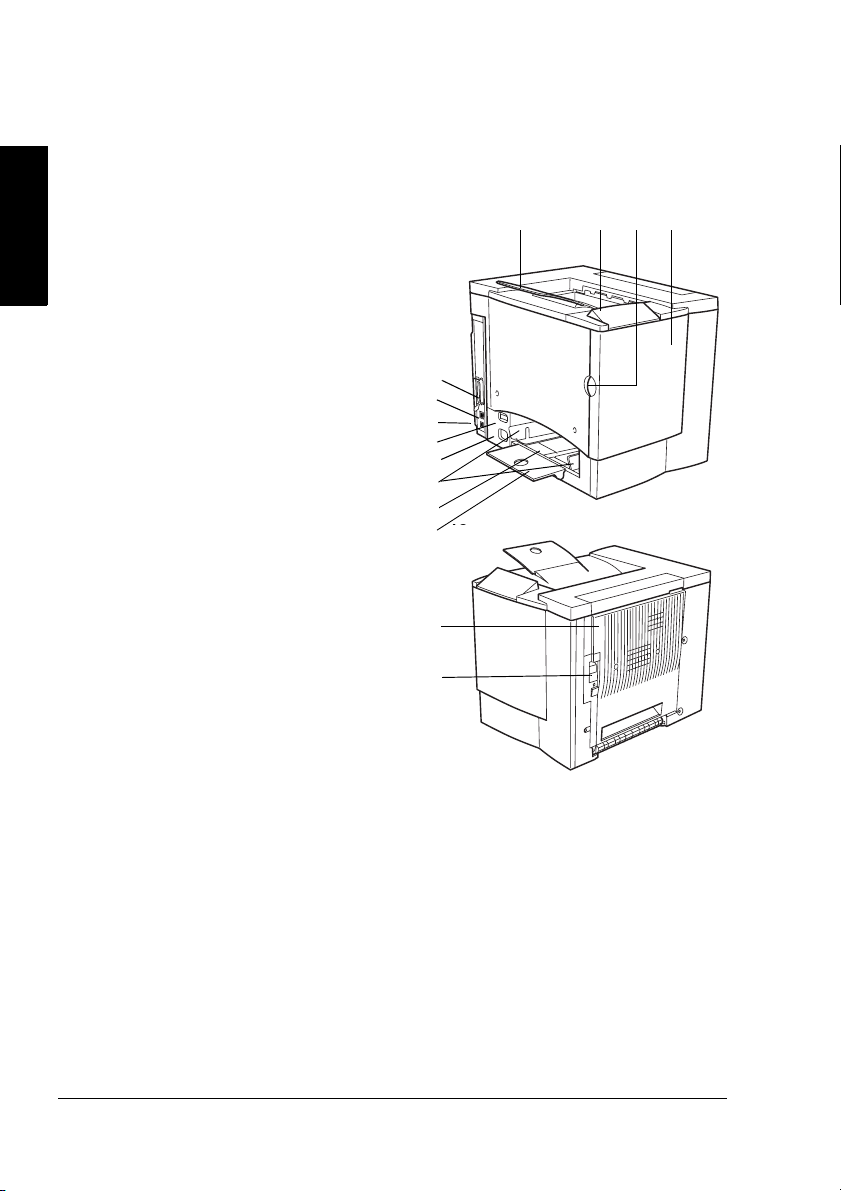

Printer Parts
The following illustrates the parts of your printer that are mentioned
throughout this guide, so please take time to become familiar with them.
Front View/Right Side View
1Output tray with output tray
support
2Control panel and message
window
3Front door latch
4Front door
5Parallel interface connector
6Ethernet network interface con-
nector
7USB interface connector
8Power switch
9Power cord socket
10 Media size guides
11 Tray 1 (multipurpose tray) (all
supported media sizes)
12 Tray 1 media support
13 Right-side door
14 Right-side door release
1 2 34
8
9
12
13
14
7
6
5
11
10
12

Getting Acquainted with Your Printer 9
English
Front Inside View
15 Transfer belt
release
lever
16 Transfer belt
17 OPC drum
cartridge
18 Waste toner
bottle
19 Toner
cartridges
(cyan/
magenta/
yellow/
black)
Right Inside View
20 Fuser unit
21 Misfeed-clearing dial
(manual paper feed dial)
22 Transfer roller
View with Accessories
23 Duplex option
24 Duplex option cover
25 Optional lower feeder unit
26 Tray 2 media tray (letter
or A4 only)
15
19 18
16
17
20
21
22
26
23
24
25

Setting up Your Printer10
English
Setting up Your Printer
WARNING!
Your printer weighs approximately 62 lbs (28 kg) with consumables. Be
sure to have help when lifting and moving it.
Do not plug in the printer until told to do so.
Shipment Contents
Printer (with four toner cartridges and an OPC drum cartridge
installed)
Waste toner bottle
Media support for Tray 1
Power cable
Software Utilities and Documentation CD-ROMs
Interface cables are not included in the shipment. If you need cables,
contact your local vendor or computer store.
Unpacking the Printer
 We strongly suggest that you save the
packaging materials in case you ever
need to move or ship the printer.
Use the following instructions to unpack your
printer.
1Remove the protective plastic cover.
2With another person’s help, lift the printer
from the carton. Do not tilt it more than ±1°in
any direction at any time.
For best output quality and longest
consumables life, place the printer on a hard, flat, level, stable surface
capable of supporting about 62 lbs (28 kg).
3Remove the tape from the
outside of the printer.

Setting up Your Printer 11
English
4Remove the cardboard from the
multipurpose tray.
5Pull the right-side door
release , and then open
the right-side door .
6Open the two green levers at the
top of the fuser unit .
7Slide the two fuser separators
up and out from under the
green levers.
 Be sure to keep the fuser
separators in case you
need to ship the printer at
a later date.

























Setting up Your Printer12
English
8Remove the
separators and the
attached label .
9Close the two
green levers .
10 Close the right-side
door.
11 Grasp the front door latch and
carefully open the front door .
12 Remove the tape from the inside of the
printer.















Setting up Your Printer 13
English

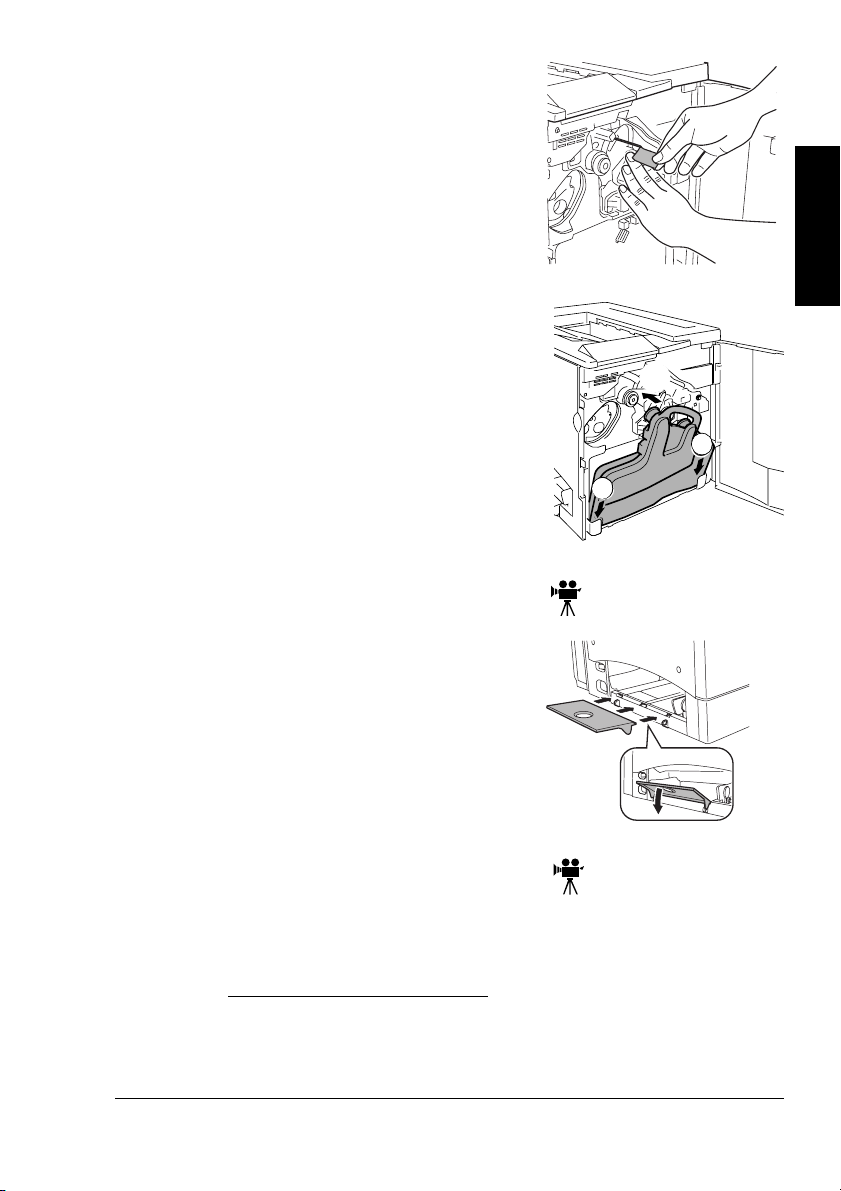

13 Pressing on the transfer belt unit with
one hand, take the tag attached to the
transfer belt unit fixture with your other
hand, and pull the fixture straight
toward you.
This fixture protects the transfer belt
during initial transportation.
 Dispose of the fixture according to
your local regulations.
14 Insert the waste toner bottle.
aInsert the bottom of the waste toner
bottle into the printer.
bPush the top of the waste toner bottle
into position so it is firmly seated.
If the waste toner bottle is not correctly
installed or the transfer belt release lever is
at its top position (11 o’clock), the front
door cannot be closed.
12 Close the front door.
Installing the Tray 1 Media Support
Remove the media support from its
plastic shipping bag, and then attach
it to Tray 1.
Insert the three tabs on the media
support into the three holes in Tray 1, and
then lower the two tabs into their
corresponding holes below Tray 1.

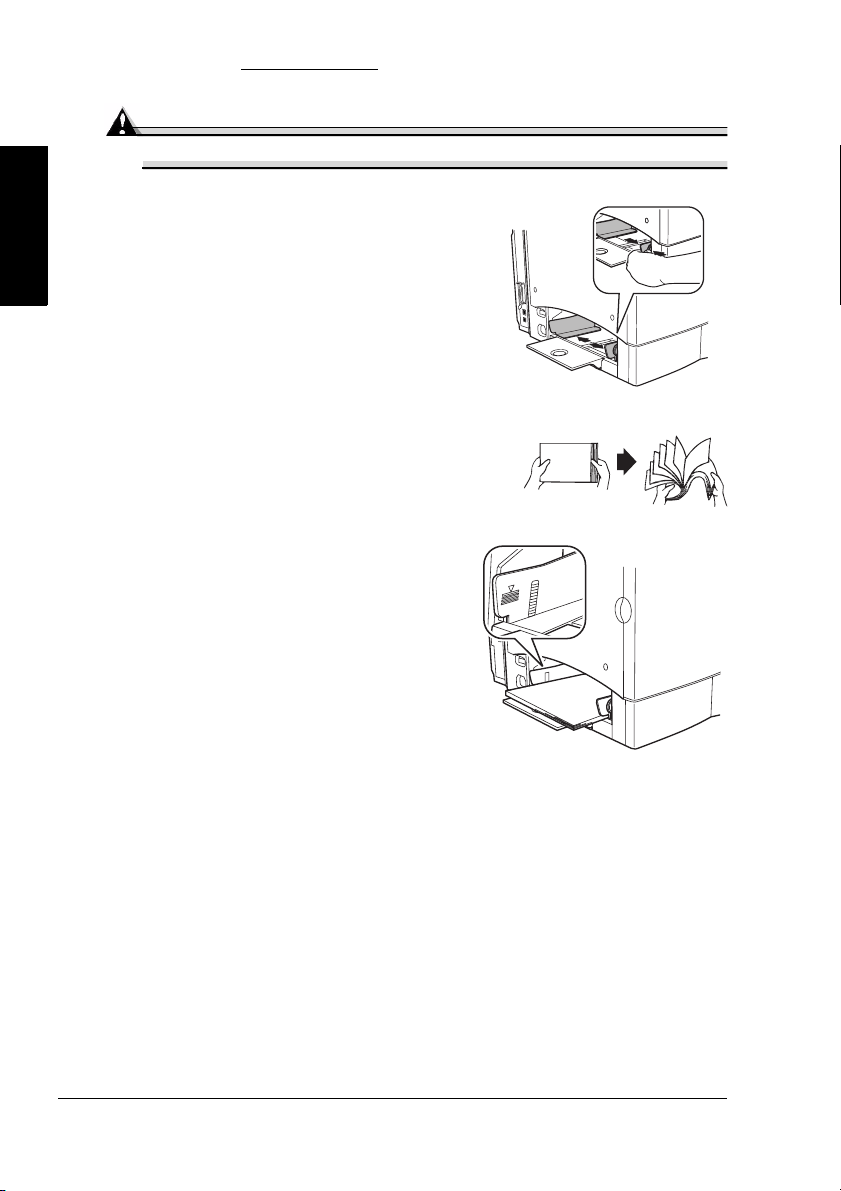

Loading Tray 1 (Multipurpose Tray)
The multipurpose tray is used for all supported media types, including
envelopes, labels, Japanese-sized postcards, thick stock, and
transparencies.
Check printer.konicaminolta.net/support (click on Answer Base) for
currently approved media. To order approved media, see your local



















Setting up Your Printer14
English
retailer or go to www.q-shop.com. For information about loading
different types of media, refer to “Using Media”in the User’s Guide.
Attention
Do not mix media types/sizes in the media trays.
1Adjust the media guides to fit the size of
media that you are loading.
Squeeze the front media guide and open
the media guides.
2Fan a stack of approximately 200 sheets
of paper.
3Load the media face up, short edge first.
Often, an arrow on the paper package
label indicates the face-up (printing) side
of the paper.
 A fill limit mark is provided on
the inside of the media guides
on the multipurpose tray. Tray 1
holds 200 sheets of 22 lb bond
(80 g/m²) paper.

Installing Accessories 15
English
4Adjust the media guides to fit the media.
Attention
Always adjust the media guides after inserting the media. Guides
that are not properly adjusted can cause poor print quality, media
jams, or printer damage.
Installing Accessories
Attention
Installing accessories always requires that the printer be turned off and
unplugged.
If you purchased any additional printer accessories (such as a duplex option
or additional memory), then install them now. If installation instructions are
included with the accessory, follow them. If not, instructions are included in
the User’s Guide (in PDF on the Documentation CD-ROM).
Plugging in/Turning on the Printer
1Make sure the printer is turned off.
2Plug the printer power cord into the printer
and into a dedicated, grounded,
surge-protected electrical outlet.
 In compliance with UL guidelines,
“The appliance inlet is considered to
be the main disconnect device.”

About the Interface Panel16
English
3Turn on the printer.
After approximately 180 seconds, the printer
prints a startup page and then displays
MAGICOLOR 2350/IDLE in the message
window. If MAGICOLOR 2350/IDLE does
not display in the message window, recheck
the setup.
The printer automatically switches to power-saving (Energy Saver) mode
after 30 minutes of inactivity. You can change the number of minutes in
the System Default/Energy Saver menu.
Attention
Never turn off or unplug the printer while it is receiving data or printing.
About the Interface Panel


Parallel Port
Use a Centronics IEEE 1284 bidirectional parallel cable when connecting the
parallel port on the printer to the parallel port on your computer.


Ethernet Port
Use a twisted-pair (RJ45) Ethernet cable when connecting the Ethernet port
on the printer to a 10BaseT/100BaseTX network connection.


USB Port
Use a USB cable (Type B) when connecting the USB port on the printer to the
USB port on your computer.

What’s Next? 17
English
What’s Next?
You have now completed the hardware setup of you printer. There are three
more important steps:
1If your language is other than English, refer to “Selecting a Message
Window Language”on page 20. Select the message window language
you prefer.
2If you are connecting via parallel or USB, skip to Step 3. If you are
connecting via Ethernet, set your IP (Internet Protocol) address.
With DHCP—If your network supports DHCP (Dynamic Host
Configuration Protocol), your IP address will be automatically assigned by
the DHCP server when you turn on your printer. (Refer to the Reference
Guide, in PDF format on the Documentation CD-ROM.)
Without DHCP—If you are not using DHCP, you may set the IP address
in one of two ways:
Use the KONICA MINOLTA installation software. Refer to the
Documentation CD-ROM.
Set the printer’s IP address manually. Refer to “Manually Selecting an
Ethernet IP Address”on page 21.
3Connect the printer to your computer or a network.
4Insert the Software Utilities CD-ROM and follow the instructions on the
screen to install a printer driver and printer utilities. There are several
installation options, depending on your host environment.
Windows—Use the AutoInstaller for the easiest installation. If you
prefer to install a printer driver and utilities manually, refer to "Software
Installation" in the User’s Guide, in PDF format on the Documentation
CD-ROM.
Macintosh—Use the Macintosh installer to install PPDs. To complete
the connection, refer to "Software Installation" in the User’s Guide, in
PDF format on the Documentation CD-ROM.
UNIX and Linux—Refer to "Software Installation" in the User’s Guide,
in PDF format on the Documentation CD-ROM.

Configuration Menu Overview18
English
Configuration Menu Overview
The configuration menus allow you to use the printer’s control panel to set
many printing features, such as media sizes and types, default settings, and
interface options. Additional information about the Configuration Menu is
included in the User’s Guide and the Reference Guide, in PDF format on the
Documentation CD-ROM.
MAGICOLOR 2350
IDLE
PROOF/
PRINT
MENU (1)
PRINT
MENU
PAPER
MENU
QUALITY
MENU
INTERFACE
MENU
SYSTEM
DEFAULT
SERVICE
MENU (5)
USER NAME MENU MAP INPUT TRAY TONER ETHERNET LANGUAGE SERVICE
PASSWORD
CONFIGU-
RATION
DUPLEX (2) TONER
ACTION
USB EMULATION
STATISTICS COPIES AIDC PARALLEL STARTUP
OPTIONS
FONT LIST ORIENTA-
TION
DUPLEX
DENSITY (2)
COLOR
SEPARATION
DEMO PAGE
RECOVERY
REGISTRA-
TION PG
DATE & TIME
(3)
DIRECTORY
LIST
COLLATE (4) TEST PAGE
1
ENERGY
SAVER
TEST PAGE
2
AUTO
CONTINUE
OPC ACTION SECURITY
CAPTURE
PRT JOB (4)
FORMAT
RESTORE/
SAVE
ENERGY
SAVER MGT
Notes: (1) The Proof/Print Menu appears only when an optional hard disk is
installed and a print job has been sent using proof/print options.
(2) Duplex and Duplex Density appear only when an optional hard
disk is installed.
(3) Date & Time appear only when an optional hard disk and
daughterboard with time-of-day clock are installed.
(4) Collate appears only when an optional hard disk is installed.
(5) The Service Menu is password protected. It allows a service
technician to handle maintenance and service procedures.

About the Control Panel 19
English

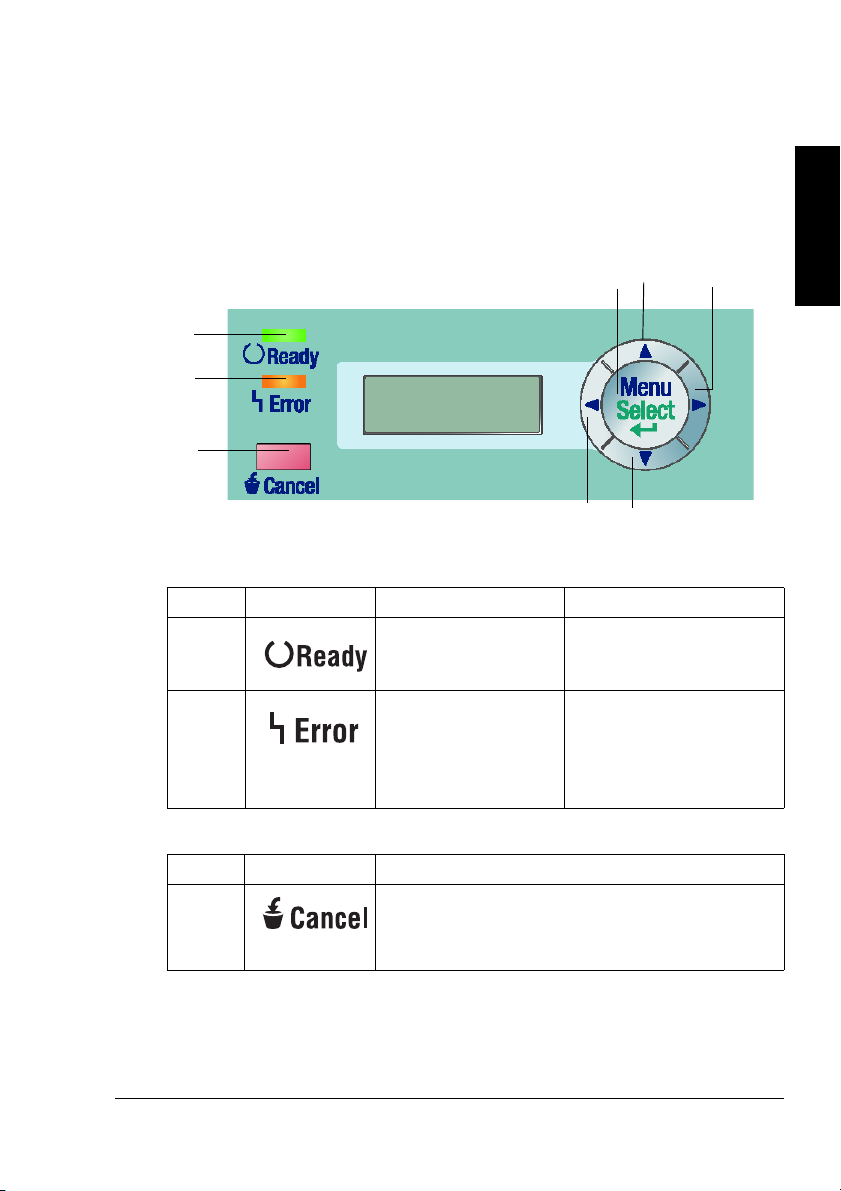

About the Control Panel
The control panel, located on the top of the printer, allows you to direct the
printer’s operation. In addition, it displays the current status of the printer,
including any condition that needs your attention.
Two indicators (LEDs) to provide printer status information.
A message window displays status and configuration information.
Six keys allow you to control the printer configuration through access to
frequently used printer functions.
Control Panel Indicators and Keys
Number LED Indicator Off On
1 The printer is not
ready to accept data.
The printer is ready to
accept data.
2 No problem. The printer requires opera-
tor attention (usually
accompanied by a status
message in the message
window.)

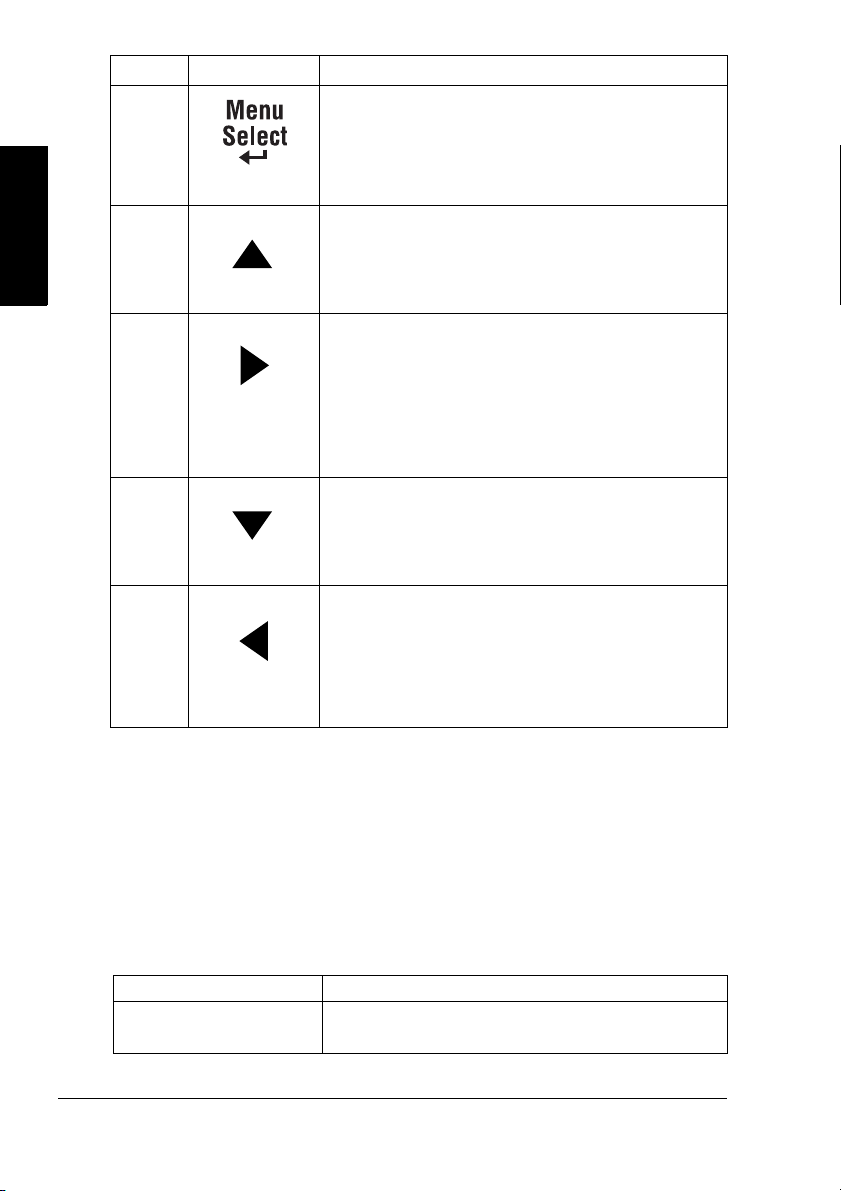

Number Key Function
3Allows you to cancel one or all print jobs
Cancels the menu choice or selection if you are
in the menu structure at the time
1
2
3
45
7
6
8
MESSAGE
WINDOW

About the Control Panel20
English
Selecting a Message Window Language
When you receive your printer, the message window language is set to
English. However, status messages and configuration menus can be
displayed in the message window in English, French, Spanish, German,
Italian, Czech, or Portuguese.
Selecting a language in the control panel also localizes default media size
selections.
If you want to change the message window language, use the following
control panel sequence:
4 Initially enters the menu system
Moves down in the menu structure
Selects the displayed menu choice (no matter
what position the cursor is in)
5 Moves up in the menu structure
In menu choices with character-by-character
selections, scrolls upward through the available
characters
6 Moves right in the menu structure
Moves right through the scrollable menu choice
selections when selections are whole words,
not characters
Starts the toner replacement sequence, if toner
is out
7 Moves down in the menu structure
In menu choices with character-by-character
selections, scrolls downward through the
available characters
8 Moves left in the menu structure
Moves left through the scrollable menu choice
selections when selections are whole words,
not characters
Scrolls through messages
Press Key (Until) Display Reads
MAGICOLOR 2350
IDLE
Number Key Function
