magicolor 3300
Installation Guide
®
1800737-002A

Thank You
Thank you for purchasing a magicolor 3300. You have made an excellent choice. Your
magicolor 3300 is specially designed for optimal performance in Windows, Macintosh,
UNIX and other environments.
Trademarks
KONICA MINOLTA and the KONICA MINOLTA logo are trademarks or registered
trademarks of KONICA MINOLTA HOLDINGS, INC.
magicolor is a trademark or registered trademark of KONICA MINOLTA PRINTING
SOLUTIONS U.S.A., INC.
Proprietary Statement
The digitally encoded software included with your printer is Copyright © 2003
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. All Rights Reserved. This
software may not be reproduced, modified, displayed, transferred, or copied in any
form or in any manner or on any media, in whole or in part, without the express
written permission of KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
Copyright Notice
Copyright ©2003 KONICA MINOLTA BUSINESS TECHNOLOGIES, INC., Marunouchi
Center Building, 1-6-1 Marunouchi, Chiyoda-ku, Tokyo, 100-0005, Japan. All Rights
Reserved. This document may not be copied, in whole or part, nor transferred to any
other media or language, without written permission of KONICA MINOLTA BUSINESS
TECHNOLOGIES, INC.
Manual Notice
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. reserves the right to make
changes to this manual and to the equipment described herein without notice.
Considerable effort has been made to ensure that this manual is free of inaccuracies
and omissions. However, KONICA MINOLTA BUSINESS TECHNOLOGIES, INC.
makes no warranty of any kind including, but not limited to, any implied warranties of
merchantability and fitness for a particular purpose with regard to this manual.
KONICA MINOLTA BUSINESS TECHNOLOGIES, INC. assumes no responsibility for,
or liability for, errors contained in this manual or for incidental, special, or
consequential damages arising out of the furnishing of this manual, or the use of this
manual in operating the equipment, or in connection with the performance of the
equipment when so operated.
Registering the Printer
Internet—Go to Go to www.euro.konicaminolta.net/register and follow the instructions
given there.
CD-ROM—Follow the instructions on the Software Utilities CD-ROM.

Contents
Getting Acquainted with Your Printer .........................................................5
Printer Features .......................................................................................5
Space Requirements ................................................................................6
Location Requirements ............................................................................7
Printer Parts .............................................................................................8
Documentation Set .......................................................................................9
Setting up Your Printer ...............................................................................10
Shipment Contents ................................................................................. 10
Unpacking the Printer .............................................................................11
Installing the Imaging Unit ......................................................................12
Preparing the Toner Cartridges ..............................................................14
Loading the Upper Media Tray ..............................................................16
Loading the Multipurpose Tray ...............................................................18
Installing Accessories ................................................................................19
Plugging in/Turning on the Printer ............................................................20
About the Interface Panel ...........................................................................21
What’s Next? ...............................................................................................21
Configuration Menu Overview ................................................................23
About the Control Panel .............................................................................24
Selecting a Message Window Language ...............................................24

Contentsiv
Control Panel Indicators ........................................................................ 25
Control Panel Keys ................................................................................ 26
Menu, Select, Previous, and Next Keys ................................................ 26
Manually Selecting an Ethernet IP Address .......................................... 27
Troubleshooting ......................................................................................... 28
Additional Assistance ............................................................................. 30
Color Registration .................................................................................. 31
Accessories and Consumables ................................................................ 34
Accessories ........................................................................................... 34
Consumables ......................................................................................... 35
Safety Information ...................................................................................... 36
Regulatory Compliance ......................................................................... 36
FCC Compliance Statement ................................................................. 36
Canadian Users Notice ......................................................................... 37
CE Marking (Declaration of Conformity) ................................................ 37
Laser Safety ........................................................................................... 38
International Notices .............................................................................. 38
Warranty Considerations ........................................................................... 39

Getting Acquainted with Your Printer 5
Getting Acquainted with Your Printer
Printer Features
Feature Details
Print speed (color and
monochrome black) Media size Print quality (dots per inch/dpi) Print speed (pages per
minute/ppm)
Letter Standard—600x600 Up to 26
Quality—1200x1200
full speed
Fine—1200x1200
half speed Up to 13
A4 Standard—600x600 Up to 24
Quality—1200x1200
full speed
Fine—1200x1200
half speed Up to 12
SDRAM 256 MB (expandable to 512 MB)
500-sheet upper media tray Standard
100-sheet multipurpose
media tray Standard
500-sheet (1x500) high-
capacity input feeder (HCIF)* Optional
1,000-sheet (2x500) high-
capacity input feeder (HCIF)* Optional
IEEE-1284 parallel Standard
Ethernet Standard
USB 1.1 Standard
Internal IDE Hard Disk Optional
Time-of-Day Clock magicolor 3300 DN (110 Volt)—Standard
magicolor 3300 DN (220 Volt)—Optional
magicolor 3300 EN—Optional
Autoduplex Printing magicolor 3300 DN—Standard
magicolor 3300 EN—Optional
* Only one high-capacity input feeder may be installed at a time.

Getting Acquainted with Your Printer6

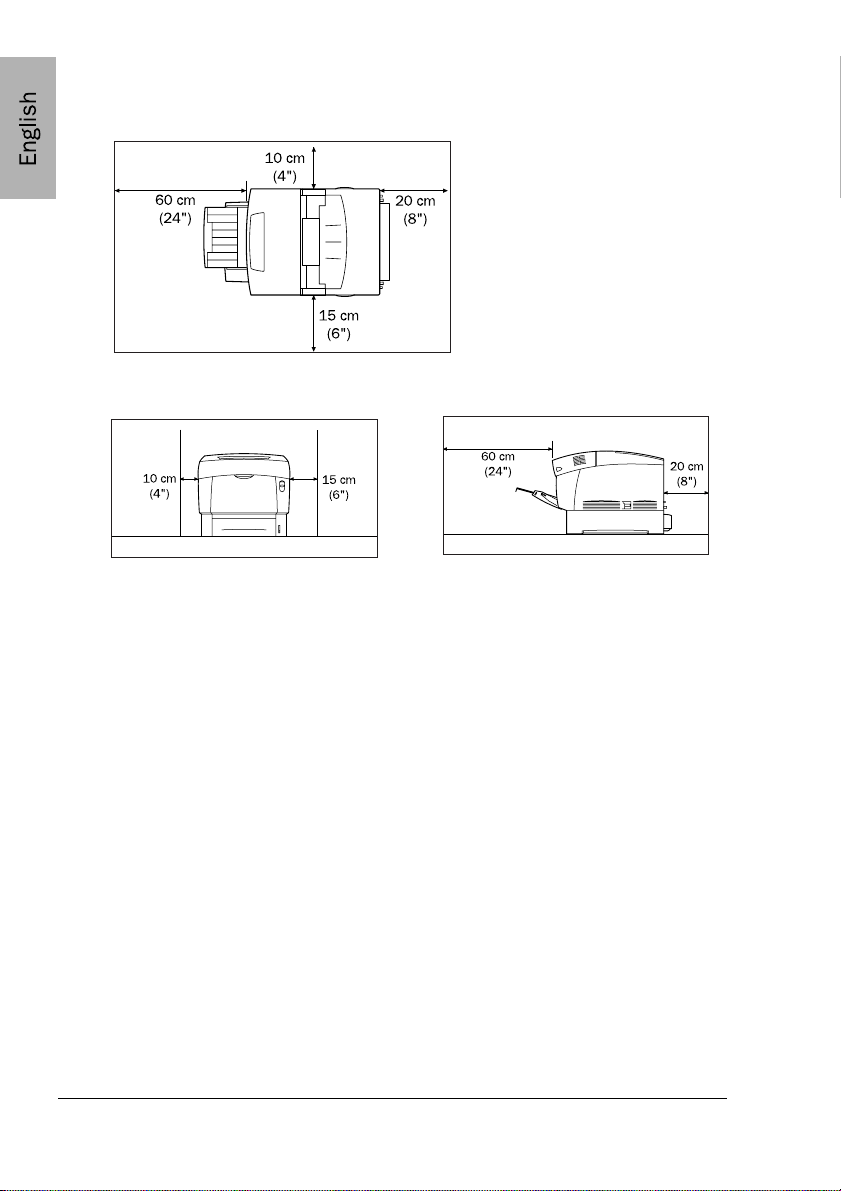

Space Requirements
Top View
Front View Side View

Getting Acquainted with Your Printer 7

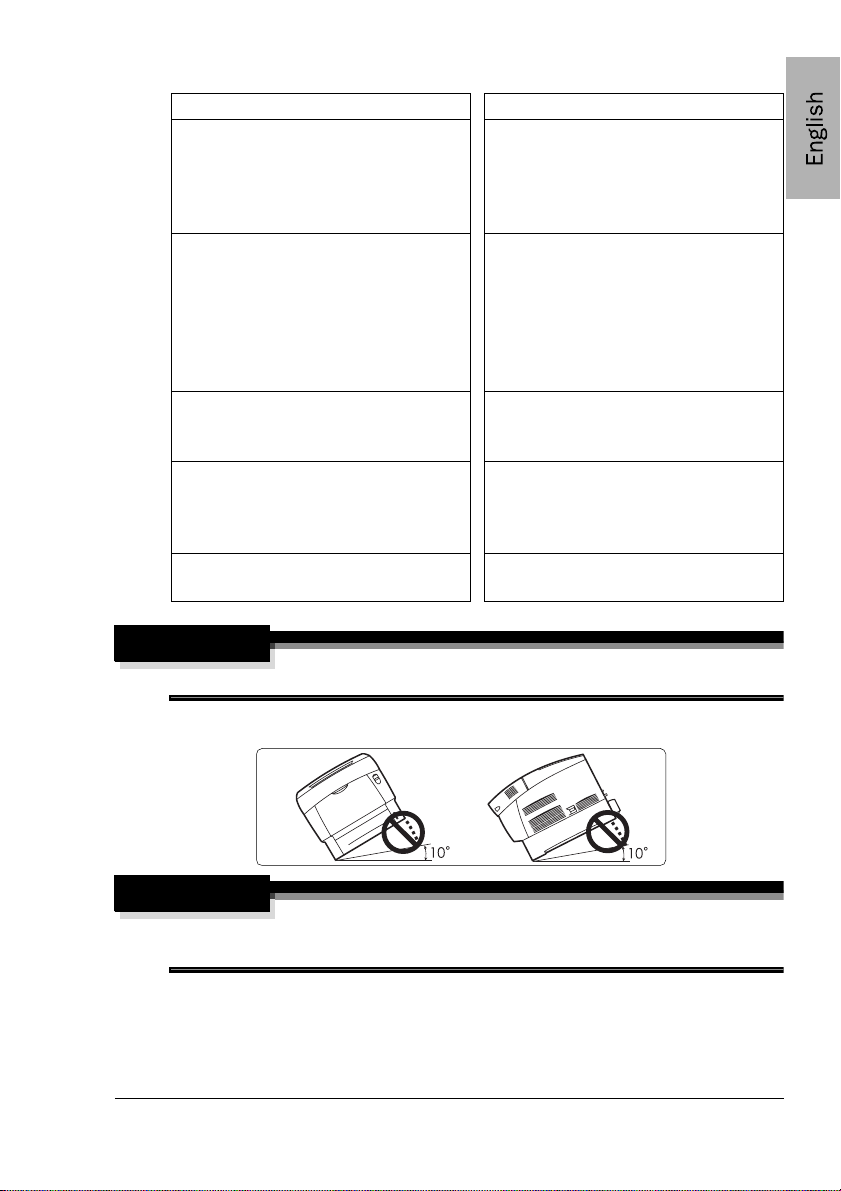

Location Requirements
WARNING!
Obstructing the ventillation grilles could present a fire hazard.
Do not tilt the printer more than 10° when moving it.
WARNING!
Do not connect the groundwire to gas or water pipes or grounding for
telephones.
For further details, refer to the User’s Guide on the Documentation CD-ROM.
With these characteristics... But away from...
On a hard, flat, stable, level (±5° or
less slant at any point around the
machine) surface.
Direct sunlight. Heating and cooling
sources, extreme temperature or
humidity changes, wind, and dust.
Open flames or items that can easily
burn.
Close to an easily accessible
grounded power supply (on an
exclusively dedicated power outlet)
that meets printer specifications.
Near your computer. At the length 2
m (6.5') or less for an IEEE 1284
bidirectional parallel connection.
A connection to the same electrical
circuit as high-current machines.
Noise-generating equipment, such
as a copier or air conditioner, and
strong magnetic or electromagnetic
fields, such as a refrigerator.
With enough space to allow
adequate ventillation and easy
servicing.
Water, water pipes, liquid (drink)
containers, and corrosive chemicals
or vapors, such as ammonia.
With an ambient temperature range
of 10°–32° C (50°–90° F) and rela-
tive humidity range of 15%–85%
(noncondensating).
Small, loose metal parts, such as
paper clips and staples.
At an altitude of 0–3,100m (0–
10,170'). Excessive vibration.

Getting Acquainted with Your Printer8

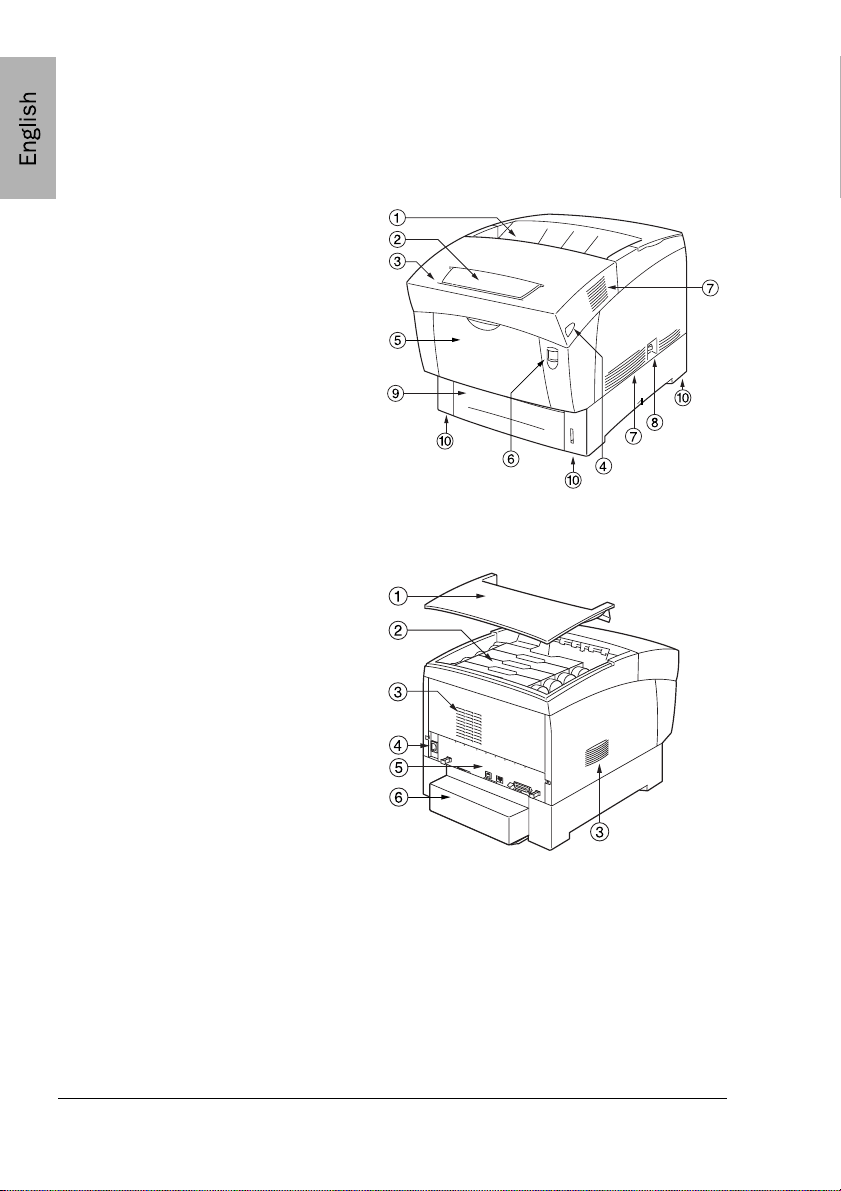

Printer Parts
The following drawings illustrate the parts of your printer referred to through-
out this guide, so please take some time to become familiar with them.
Front View
Rear View
1—Top cover/face-down output
tray
2—Control panel and message
window
3—Front cover
4—Cover Button B
5—Multipurpose tray (shown
closed)
6—Cover Button A
7—Ventillation grilles
8—Power switch
9—Standard upper
media tray
10—Media level guide
11—Carrying grips (both sides)
1—Top cover
2—Toner cartridges
3—Ventillation grilles
4—AC power connection
5—Interface panel
6—Media tray cover

Documentation Set 9
Top Internal View
Documentation Set
If you’re using the Acrobat PDF version of this guide, click this icon to
play a QuickTime video clip of the procedure described in the text.
Acrobat Reader and a download link to QuickTime are provided on the
Documentation CD-ROM.
Manual Description Location
Installation
Guide You’re looking at this document right now. This guide provides information about
printer installation, the interface panel and
the control panel.
Hardcopy and
Documentation
CD-ROM
Quick Setup
Guide This document provides illustrations to help you quickly and easily setting up your
printer.
Documentation
CD-ROM
User’s Guide This guides you through the day-to-day
operation of your printer, including infor-
mation on printing files, refilling print
media, and replacing toner. It also
includes information on additional acces-
sories; cleaning, and maintaining your
printer; improving print quality; and trou-
bleshooting printer problems.
Documentation
CD-ROM
Pressing Button A (see Front View)
1—Transfer unit
2—Registration rollers
3—Imaging unit
4—Imaging unit cover
Pressing Button B (see Front View)
5—Duplexer rotator
6—Fuser unit
7—Imaging unit cover

Setting up Your Printer10
SettingupYourPrinter
WARNING!
Your printer weighs approximately 29.5 kg (65 lbs) without
consumables and accessories. Be sure to have help when lifting and
moving it.
Shipment Contents
 Printer (with 500-sheet upper media tray, 100-sheet multipurpose tray)
 Consumables
aImaging unit
bFour toner cartridges (already installed)
 Power cord
 Two CD-ROMs (Software Utilities and Documentation)
 Installation Guide
Interface cables aren’t included in the shipment. If you need cables, contact
your local vendor or computer store.
CrownBooks
1and2 These manuals provide detailed information about Crown architecture,
color printing, menu configuration, and
advanced computer/network connection
and configuration.
Documentation
CD-ROM
Service &
Support
Guide
This lists global sources of service and
support for your printer. The most
up-to-date information can also be found
at www.euro.konicaminolta.net.
Documentation
CD-ROM
Manual Description Location
b
a

Setting up Your Printer 11
Unpacking the Printer
WARNING!
Do not plug in the power cord until told to do so.
 We strongly suggest that you save the packing materials in case you
ever have to relocate your printer or for future storage.
After removing the consumables and carton, use the following instructions to
unpack your printer.
1Remove the protective plastic cover.
WARNING!
Lift the printeronly from the front and back. Lifting it from the sides may
cause it to tip over.
2With another person’s help, lift
the printer from the carton.
Do not tilt it more than 10° in
any direction at any time.
For best output quality and
longest consumables life,
place the printer on a hard, flat,
level, stable surface capable of
supporting about 35 kg (77 lbs).
3Remove the tape from the outside of the printer.
FRONT
hand grips

Setting up Your Printer12
Installing the Imaging Unit
Attention
The OPCs are extremely sensitive to bright light, direct sunlight, and
touch. Always leave the imaging unit in its protective package until
you’re ready to install it. Any exposure to light should be limited to less
than two minutes, or permanent damage could result.
1Open the front cover (press button A), and remove any tape.
2Open the imaging unit cover.
3Remove the imaging unit from its
protective bag.
4Holding the imaging unit horizontally, pull the tabs straight out and com-
pletely away from the unit.
The imaging unit contains four OPCs (Organic
Photo Conductors) and developers and animaging
unit transfer roller, that form the image that is
developed and transferred to the media.

Setting up Your Printer 13

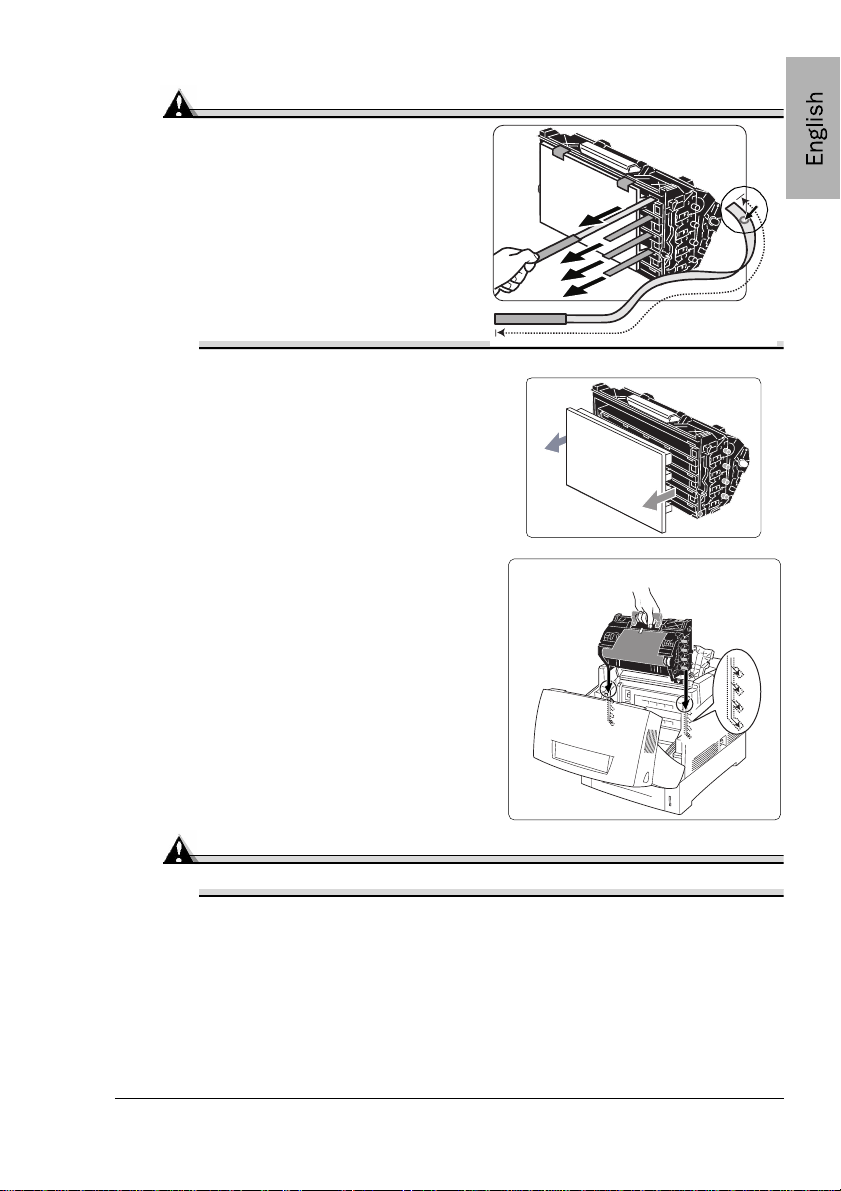

Attention
Do not twist the tab as you are
pulling it. If any tab doesn’t
pull completely out (you must
be able to see the circle
imprinted on the end), the
imaging unit must be replaced.
5Carefully remove the protective
cover.
6Gently guide the imaging unit
straight into the printer, following
the arrows on the printer to seat all
four pins.
Attention
You can damage the imaging unit if it is not aligned correctly.
2
6
"
/
6
6
0m
m

Setting up Your Printer14
7Removetheprotectivesheet.
 Disposeof it according to your
local regulations. Do not dis-
pose of it by burning.
Attention
Do not touch the black transfer roller or allow anything to come in
contact with the OPC. It is extremely sensitive to hand oils and
scratches, both of which reduce print quality. This type of damage is
not covered by your warranty.
8Close the imaging unit cover  .
9Close the front cover  .
Preparing the Toner Cartridges
The toner is nontoxic. If you get toner on your hands, wash them in cool water
and mild neutral detergent. If you get toner on your clothes, lightly dust them
off as much as possible. If some toner remains on your clothes, use cool, not
hot water, to rinse the toner off.
Your printer uses four toner cartridges: black, yellow,
magenta and cyan. They are already installed in the
printer, but you must prepare them for use.
For a list of toner life expectancies and toner replace-
ment instructions, refer to ‘Replacing Consumables’ in
the User’s Guide (on the Documentation CD-ROM).

Setting up Your Printer 15
WARNING!
If you get toner in your eyes, wash it out immediately with cool water
and consult a doctor. Material Safety Data Sheets (MSDS) information
can be found at www.konicaminolta.net/printer/ (click on Online Help &
Drivers).
1Remove the printer’s top cover.
2Pull the toner seal of the black toner
cartridge straight up.
WARNING!
Pulling the seal to the front or side may damage the cartridge.
3Repeat step 2 to remove the toner seals from the other three toner car-
tridges.
4Replace the top cover.
K
C
M
Y

Setting up Your Printer16
Loading the Upper Media Tray
1Slide out the media tray and remove
the shipping spacers.
 The illustration shows an
upper media tray; however,
instructions are the same for
the optional high-capacity
input feeder (HCIF) tray.
2Using both hands, lift the media tray
slightly to remove it from the printer
and place it on a flat surface.
3Adjust the two side media guides.
4Gently lift the end media guide and
position it in the proper media size
hole.
 The illustration of the tray shown
here is in reverse of the illustratu-
ioninstep3.
Attention
If the end media guide is not in the proper hole, automatic media size
detection will not work.
The upper media tray holds 500 sheets of 75 g/m2paper
(20 lb bond).
For more information about loading and using other
types of media, refer to “Using Media,” in the User’s
Guide on the Documentation CD-ROM.

Setting up Your Printer 17
5Fan a stack of approximately 500
sheets of A4/letter media.
A fill limit mark is provided on the
inside right side of the tray.
Attention
Do not overfill the tray. The media should fit easily between the
guides. Improperly adjusted guides may cause poor print quality,
media jams, or printer damage.
6Align the four edges of the media and
then load it with the printing side up.
Often, an arrow on the media package
label indicates the printing-side of the
media.
7Make sure the media corners are not
bent and they are under the media-
separating tabs.
8Readjust the side media guides
after inserting the media
Attention
Improperly adjusted guides may
cause poor print quality, media jams, or printer damage.

Setting up Your Printer18

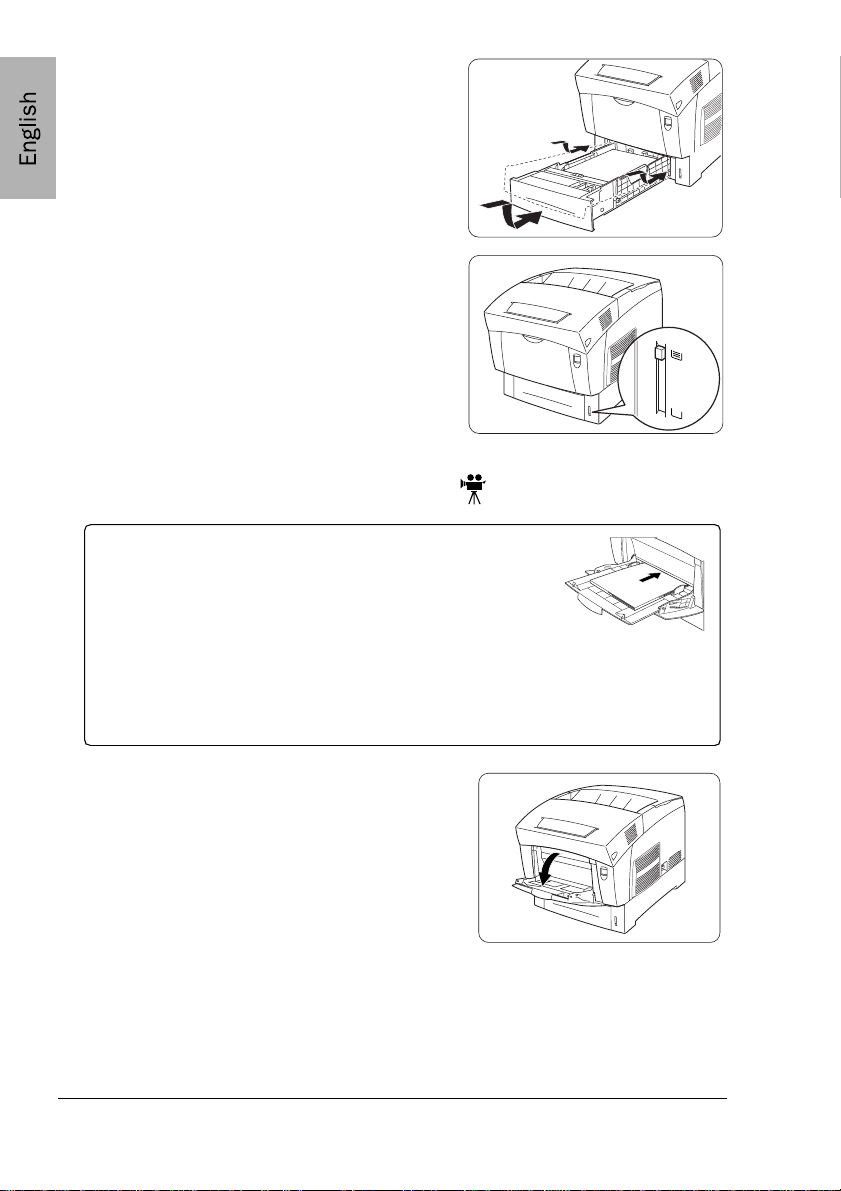

9Slide the media tray back in.
For information about loading and
using A5 and other types of media,
refer to “Using Media,” in the User’s
Guide on the Documentation
CD-ROM.
10 Check the media gauge to make sure
the tray is registering the loaded
media.
Use this gauge to determine when the
tray needs to be refilled.
Loading the Multipurpose Tray
1Open the multipurpose tray.
The multipurpose tray holds 100 sheets of 75 g/m2
paper (or 20 lb bond).
For information about loading and using other types of
media, refer to ‘Using Media’ in the User’s Guide on the
Documentation CD-ROM.
Do not place heavy objects on the multipurpose tray or try to force it open.
The multipurpose tray is used for all media types, especially envelopes,
labels, Japanese-sized postcards, and Thick 3 Stock.

Installing Accessories 19
2Adjust the media guides to fit the media
size you’re loading.
The tray extender supports long media.
3Fan a stack of approximately 100
sheets of media.
A fill limit mark is provided on the inside
of the tray.
Attention
Do not overfill the tray. The media should fit easily between the
guides. Improperly adjusted guides may cause poor print quality,
media jams, or printer damage.
4Align the edges of the media and then
load it with its printing side up and short
edge toward the printer.
Often, an arrow on the media package
label indicates the printing-side of
the media.
5Make sure the media fits properly in
the tray.
Installing Accessories
Attention
Installing accessories always requires that the printer and accessories
are turned off and unplugged during installation.
If you purchased any additional printer accessories, then install them now.
If installation instructions are included with the accessory, follow them. If not,
instructions are included in the User’s Guide on the Documentation CD-ROM.

Plugging in/Turning on the Printer20

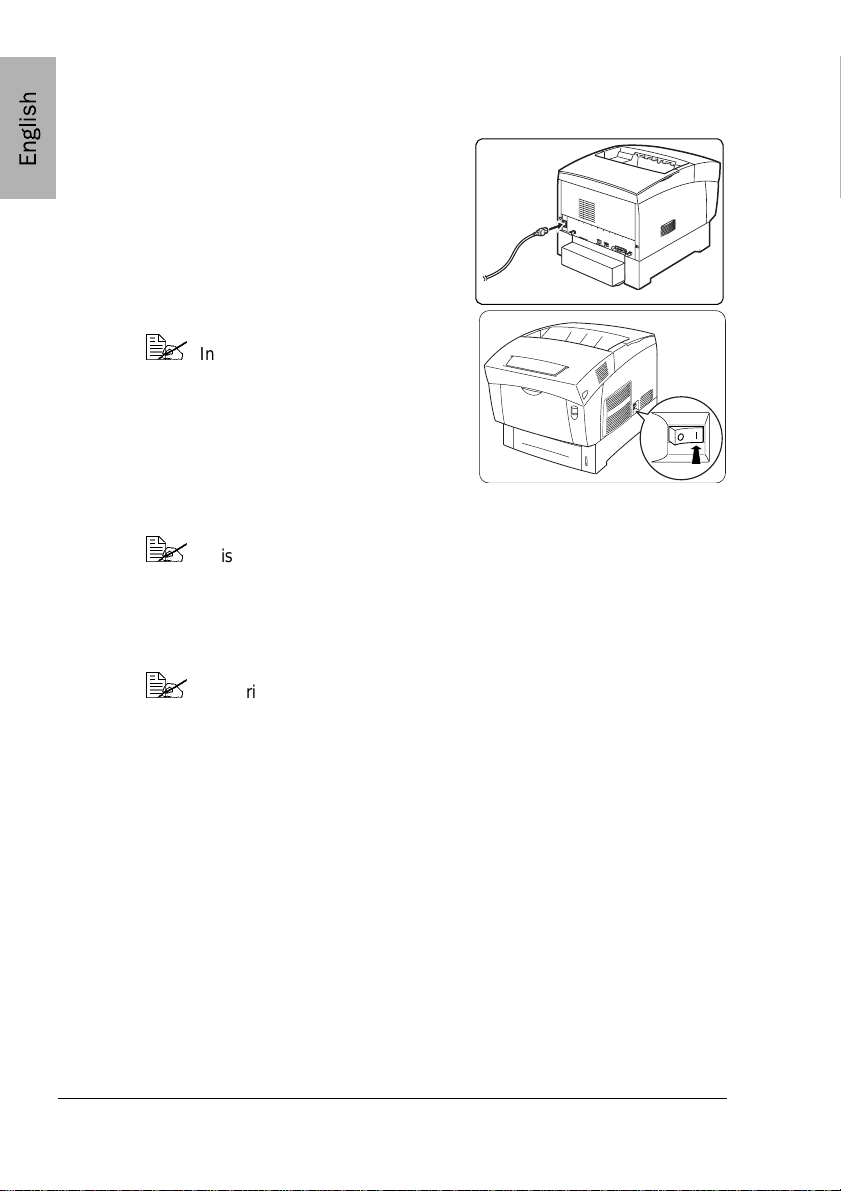

Plugging in/Turning on the Printer
1Make sure the printer is turned off.
2Plug the printer power cord into the
printer and into a dedicated, grounded,
surge-protected electrical outlet.
3Turn on the printer.
 In compliance with UL guide-
lines, “The appliance inlet is
considered to be the main dis-
connect device.”
After approximately a 6-minute
warmup (assuming normal
temperature and humidity) , your
printer prints a startup page and displays IDLE on the message window.
 This 6-minute warmup happens only when a new imaging unit has
been installed. Normal warmup time is approximately 90 seconds.
If IDLE is not displayed in the message window after the printer is turned
on, recheck the setup. If the startup page doesn’t print or the print quality
is not good, skip ahead to “Troubleshooting” on page 28.
 The printer automatically switches to power-saving (energy-
saving) mode after1 hour of inactivity. You can change the number
of minutes before the printerswitches to power-savingmode in the
Administration/Engine/Energy Saver menu.
