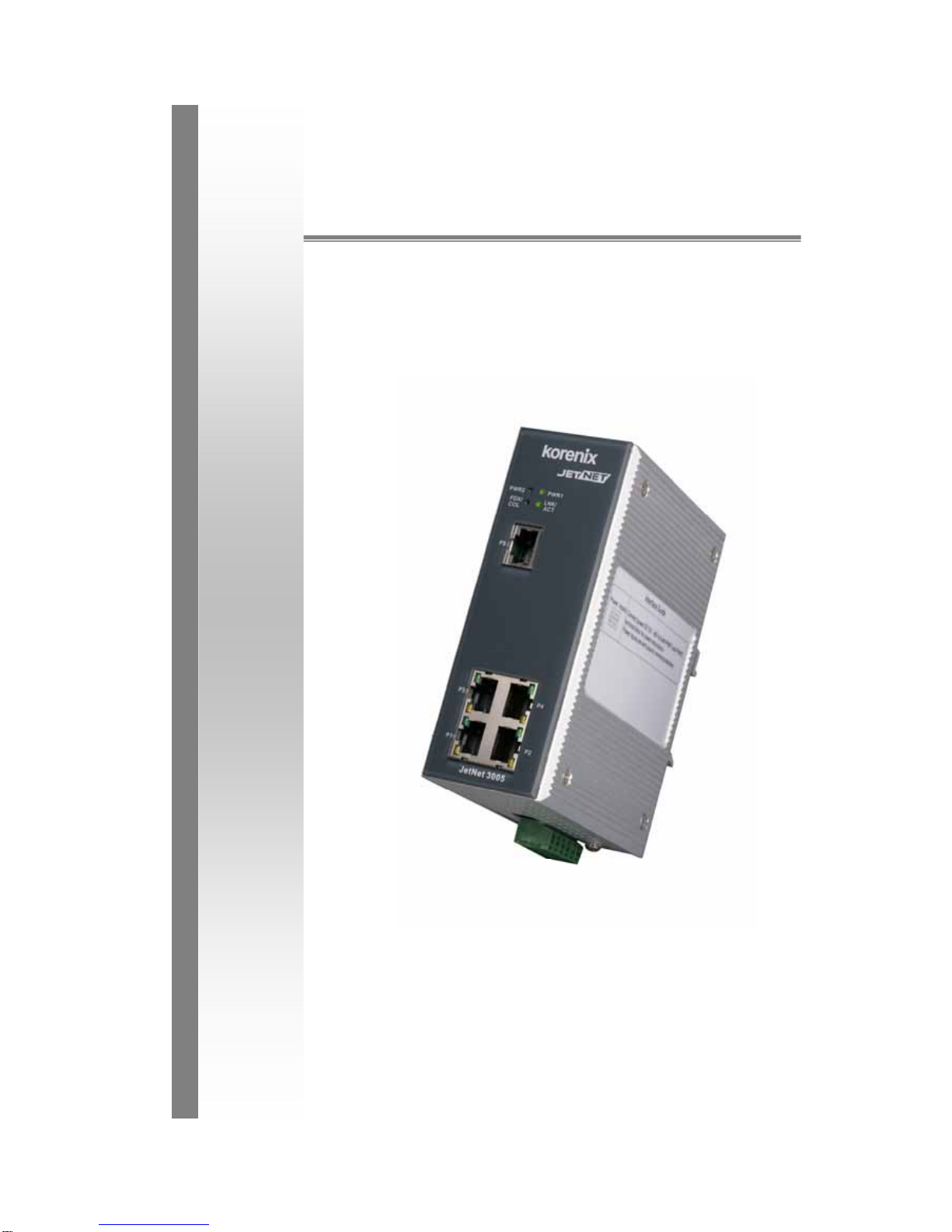

Korenix JetNet 3005 User manual

JetNet 3005/3008
Industrial Entry Level 5-port/8-port Ethernet
Rail Switch
User’s Manual
Rev.1.1
20-Jan-2005

Content
Introduction.........................................................1
Features...................................................................1
Package Checklist....................................................2
Hardware Description.........................................3
Dimensions ..............................................................3
Front Panel...............................................................3
Bottom View.............................................................5
Wiring the DC Power Inputs.....................................5
LED Indicators..........................................................6
Ports.........................................................................8
Cabling.....................................................................9
DIN-Rail Mounting.................................................. 10
Wall Mounting ........................................................12
Hardware Installation........................................13
Installation and Testing..........................................13

Introduction
Industrial environments are usually more demanding than office environments.
Harsh temperature conditions, vibration, dust, etc. all put a test on the quality and
reliability of your switches. To survive harsh industrial environments, Korenix
provides you with JetNet 3005/3008 Series, an Industrial 5-port/8-port Entry Level
Ethernet Rail Switch. JetNet 3005/3008 Industrial Entry Level 5-port/8-port
Ethernet Rail Switch is a cost-effective solution ideal for your industrial
applications in harsh environments. JetNet 3005/3008 not only gives you high
speed data transmission over an Ethernet network, but also provides redundant
power inputs and reverse polarity protection. In addition, JetNet 3005/3008 uses a
IP30 aluminum case, and has passed several safety certifications, ensuring
customers a cost-effective, safe, and reliable industrial applications.
Features
5-port /8-port 10/100T(X) industrial switch
Supports store-and-Forward switching architecture
Supports IEEE 802.3 10Base-T, 802.3u 100Base-TX standard
Supports auto MDI/MDI-X function
JetNet 3005: 512 KB/JetNet 3008:1024KB embedded memory
Supports IEEE 802.3x flow control
¾Flow control for full-duplex mode
¾Back pressure for half-duplex mode
Provides redundant dual power inputs
Aluminum case with IP30 protection
JetNet 3005:1K /JetNet 3008:2K MAC address table
DIN-Rail and wall mountable design
1

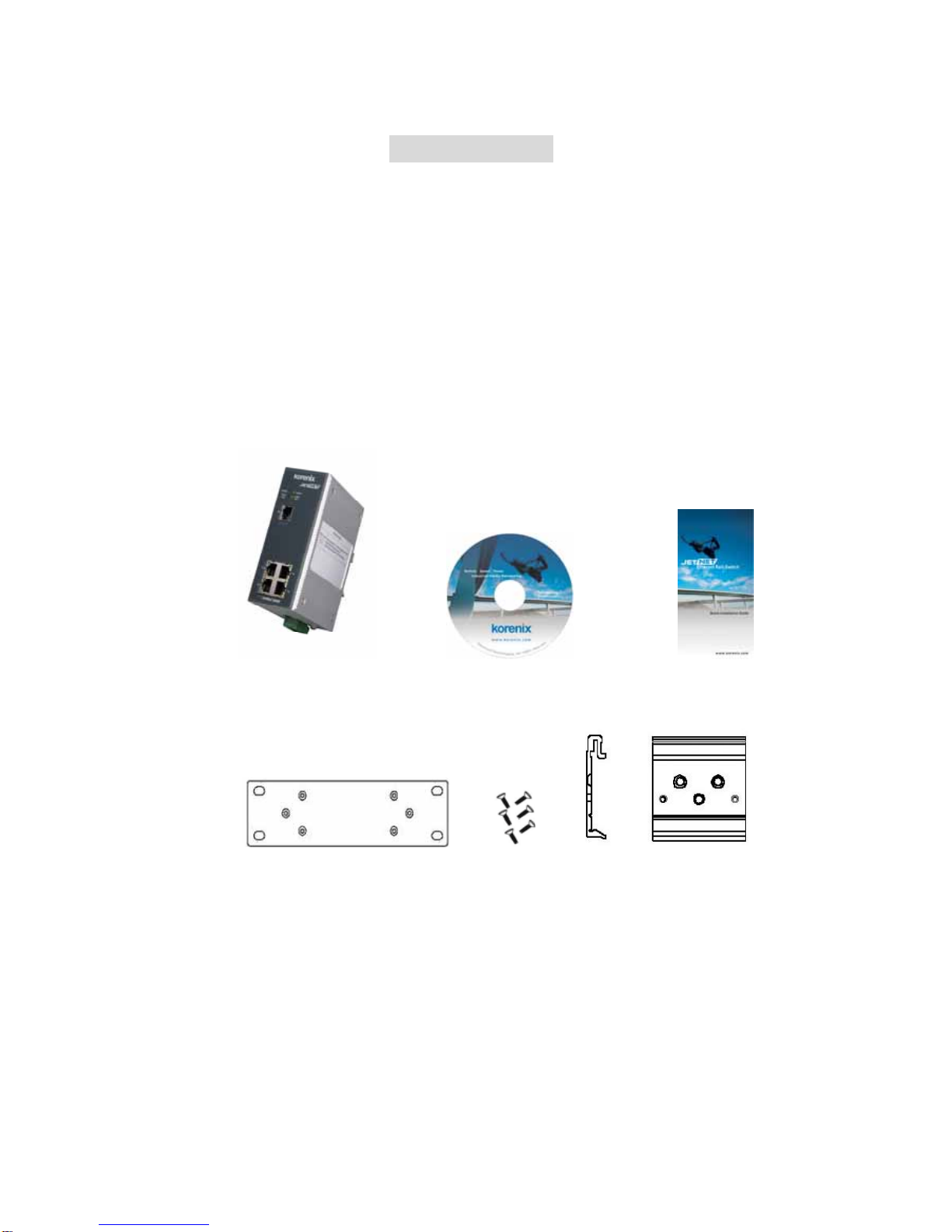

Package Checklist
JetNet 3005/3008 Industrial 5-port/8-port Entry Level Ethernet Rail Switches are
packaged with the following items:
JetNet 3005/3008 Industrial Entry Level 5-port/8-port Ethernet Rail Switch
One DIN-Rail clip (attached with the JetNet 3005/3008)
One wall mounting plate and six screws
User’s manual CD-ROM
Quick Installation Guide
JetNet 3005/3008 Industrial Entry Level User’s Manual CD-ROM Quick Installation Guide
5-port/8-portEthernetRailSwitch
WallMountingPlate Screws DIN-RailClip
Contact your sales representative if any item is missing or damaged.
2

Hardware Description
Dimensions
JetNet 3005/3008 Industrial Entry Level 5-port/8-port Ethernet Rail Switch
dimensions (W x H x D) are 54mm x 135mm x 105mm
FrontPanel
The Front Panel of the JetNet 3005 Industrial Entry Level 5-port Ethernet Rail
Switch is shown in Figure A.
LED Indicators
UTP Port
Figure A. Front Panel of the JetNet3005 Industrial Entry Level 5-port Ethernet Rail Switch
3

The Front Panel of the JetNet 3008 Industrial Entry Level 8-port Ethernet Rail
Switch is shown in Figure A.
LED Indicators
UTP Port
Figure A. Front Panel of the JetNet3008 Industrial Entry Level 8-port Ethernet Rail Switch
4

Bottom View
The bottom view of the JetNet 3005/3008 Industrial Entry Level 5-port/8-port
Ethernet Rail Switch consists of one terminal block connector with two DC power
inputs and one DC IN power jack for an additional AC/DC power adapter.
Figure B. Bottom view of the JetNet 3005/3008 Industrial Entry Level 5-port/8-port Ethernet Rail Switch
Wiring the DC Power Inputs
Follow the steps below to wire JetNet3005/3008’s dual DC power inputs.
[Note] The suitable electric wire ranges from 12 to 24 AWG.
V- V+V- V+
1. Insert the positive and negative wires into the V+ and V-
contacts respectively of the terminal block connector
2. Tighten the wire-clamp screws to prevent the DC wires
from being loosened.
5
[Note] The additional power jack is designed for office use.

LEDIndicators
There are 5 diagnostic LEDs and 8 Port LEDs located on the Front panel of JetNet
3005 Industrial Ethernet Rail Switch. These LED indicators provide administrators
with real-time system status. Table 1 gives descriptions of the function of each
LED indicator.
LED Status Description
Green Power is on.
PWR Off No power is being supplied.
Green Power is on.
PWR 1 Off No power is being supplied.
Green Power is on.
PWR 2
Off No power is being supplied.
Green A network device is detected.
Blinks The port is transmitting or receiving
packets from the TX device.
LNK/ACT of Port5
Off No device is attached.
Orange The port is operating in full-duplex
mode.
Blinks Collision of packets occurs.
FDX/COL of Port5
Off The port is in half-duplex mode or
no device is attached.
6

Port LED Status Description
Orange The port is operating in full-duplex
mode.
Blinking
orange Collision of Packets occurs.
Off The port is in half-duplex mode or
no device is attached.
Green A network device is detected.
Blinking
green
The port is transmitting or receiving
packets from the TX device.
Port Status (Port 1
to Port 4)
Off No device is attached.
Table 1
There are 7 diagnostic LEDs and 12 Port LEDs located on the Front panel of
JetNet 3008 Industrial Ethernet Rail Switch. These LED indicators provide
administrators with real-time system status. Table 2 gives descriptions of the
function of each LED indicator.
LED Status Description
Green Power is on.
PWR Off No power is being supplied.
Green Power is on.
PWR 1 Off No power is being supplied.
Green Power is on.
PWR 2
Off No power is being supplied.
LNK/ACT of Port Green A network device is detected.
7

Blinks The port is transmitting or receiving
packets from the TX device.
7/port8
Off No device is attached.
Orange The port is operating in full-duplex
mode.
Blinks Collision of packets occurs.
FDX/COL of Port
Port 7/8
Off The port is in half-duplex mode or
no device is attached.
Port LED Status Description
Orange The port is operating in full-duplex
mode.
Blinking
orange Collision of Packets occurs.
Off The port is in half-duplex mode or
no device is attached.
Green A network device is detected.
Blinking
green
The port is transmitting or receiving
packets from the TX device.
Port Status (Port 1
to Port 6)
Off No device is attached.
Table 2
Ports
RJ-45 ports (Auto MDI/MDIX): JetNet 3005/3008 has five 10/100 Mbps
auto-sensing ports for 10Base-T or 100Base-TX device connection. The UTP
ports will auto-detect 10Base-T and 100Base-TX connections. Auto MDI/MDIX
allows users to connect another switch or workstation without changing straight
through or crossover cabling. See Figure C and C-1 for the schematic diagram of
straight through and crossover cabling.
8

Fig C Straight Through Cabling Schematic Fig C-1 Cross Over Cabling Schematic
All ports of JetNet 3005/3008 support auto-MDI/MDI-X function. When you use an
Ethernet cable to connect other devices, such as computers, switches or hubs, pin
1, 2, 3, and 6 of the 8-pin RJ45 connector are used to communicate with the
connected devices. Pin1, 2, 3, and 6’s signals are converted by the MDI-X function,
as shown in Table 2.
Pin MDI-X Signals MDI Signals
1 RD+ TD+
2 RD- TD-
3 TD+ RD+
6 TD- RD-
Table 2
Cabling
The cable connection between the JetNet 3005/3008 and the attached devices
(switches, hubs, workstations, etc.) must be less than 100 meters (328 ft.) long.
9

Mounting Installation
DIN-Rail Mounting
The DIN-Rail clip is already attached to the JetNet 3005/3008 when packaged. If
the DIN-Rail clip is not screwed on the JetNet 3005/3008, follow the instructions
and the figure below to attach the DIN-Rail clip to the JetNet 3005/3008.
Rear Panel of the
JetNet 3005/3008
DIN-Rail Clip
1. Use the screws to attach the DIN-Rail clip to the rear
panel of the JetNet 3005/3008.
2. To remove the DIN-Rail clip, reverse step 1.
10

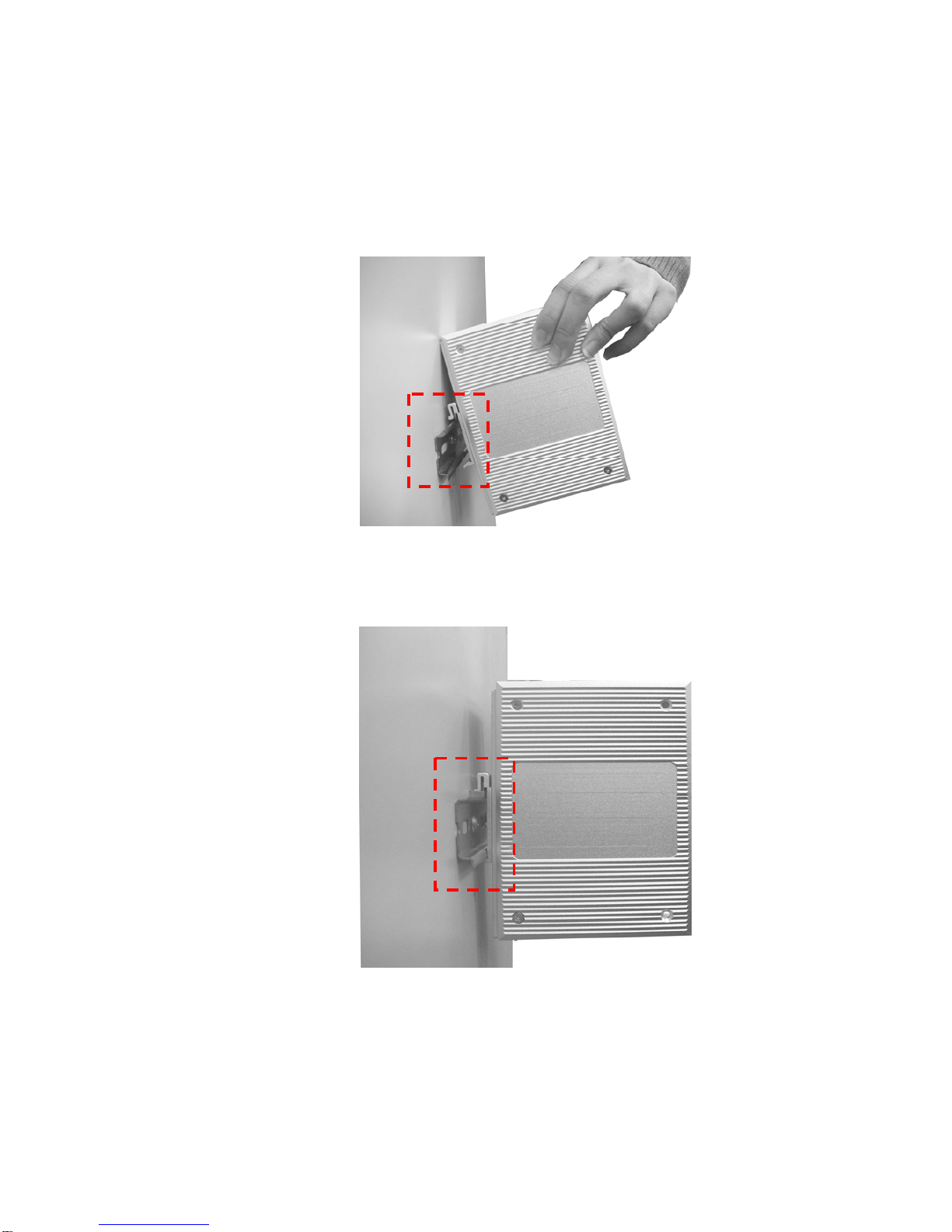

Follow the steps below to mount the JetNet 3005/3008 to the DIN-Rail track:
1. First, insert the upper end of the DIN-Rail clip into the back of the DIN-Rail
track from its upper side.
2. Lightly push the bottom of the DIN-Rail clip into the track.
3. Check if the DIN-Rail clip is tightly attached on the track.
4. To remove the JetNet 3005/3008 from the track, reverse the steps above.
11

Wall Mounting
Follow the steps below to install the JetNet 3005/3008 with the wall mounting
plate.
1. To remove the DIN-Rail clip from the JetNet 3005/3008, loosen the screws
from the DIN-Rail clip.
2. Place the wall mounting plate on the rear panel of the JetNet 3005/3008.
3. Use the screws to tighten the wall mounting plate onto the JetNet 3005/3008.
4. Use the hook holes at the corners of the wall mounting plate to hang the JetNet
3005/3008 onto the wall.
5. To remove the wall mounting plate, reverse the steps above.
12

Hardware Installation

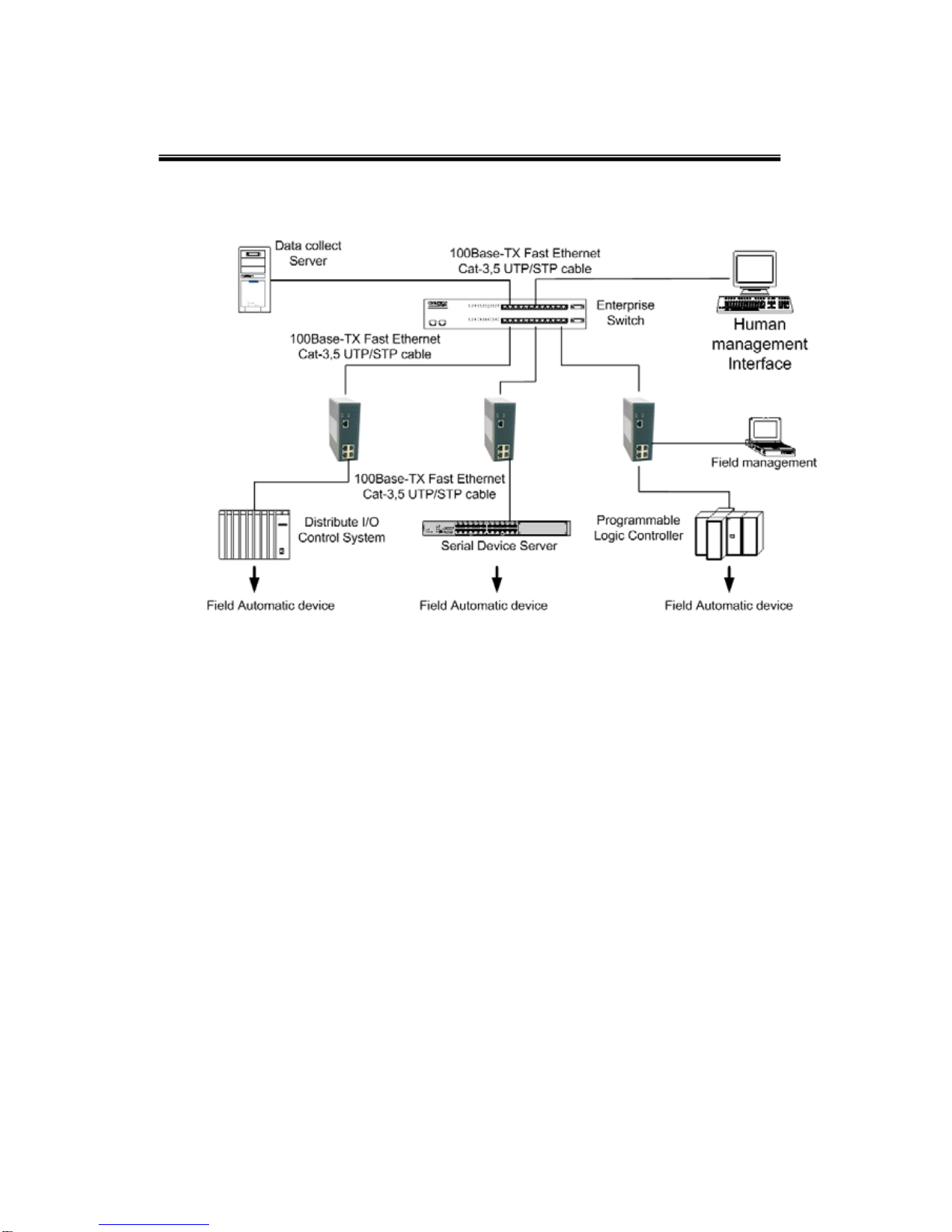

The following figure illustrates a typical application of JetNet 3005/3008 Industrial
5-port/8-port Entry Level Ethernet Rail Switch.
Installation and Testing
1. Take your JetNet 3005/3008 Industrial 5-port/8-port Entry Level Rail Switch out
of the package box.
2. Check if the DIN-Rail clip is attached to the JetNet 3005/3008. If the DIN-Rail
clip is not attached to the JetNet3005, refer to DIN-Rail Mounting section for
DIN-Rail installation. If you want to wall-mount the JetNet 3005/3008, refer to
Wall Mounting section for wall mounting installation.
3. To place the JetNet 3005/3008 on the DIN-Rail track or wall, refer to the
Mounting Installation section.
13

4. Pull the terminal block off the JetNet 3005/3008 and wire the power lines. Refer
to the Wiring the DC Power Inputs section for how to wire the power inputs.
5. PWR1 and PWR2 dual power inputs can be connected to power sources
simultaneously. When the primary power source fails (the default setting is
PWR1), the system will automatically switch to the secondary power source
(PWR2), preventing any power interruption.
6. Check the LED for PWR1 and PWR2 to make sure that your JetNet 3005/3008
is operating normally.
[Note] If you are using DC IN power jack to supply power to the
JetNet 3005/3008, please check the PWR LED
7. Use Category 5 straight through Ethernet cables with RJ45 connectors to
connect network devices.
8. Connect one side of an Ethernet cable with a RJ45 connector to the
JetNet3005/3008’s Ethernet port (RJ-45 port), and the other side of the
Ethernet cable to the network device’s Ethernet port (RJ-45 port).
[Note] Make sure that the connected network switches support
MDI/MDI-X function. If they do not support this function, use
a crossover Ethernet cable.
9. Check the port status LED indicator (blinking green) on the JetNet 3005/3008
to see if the network connection is successfully established.
14

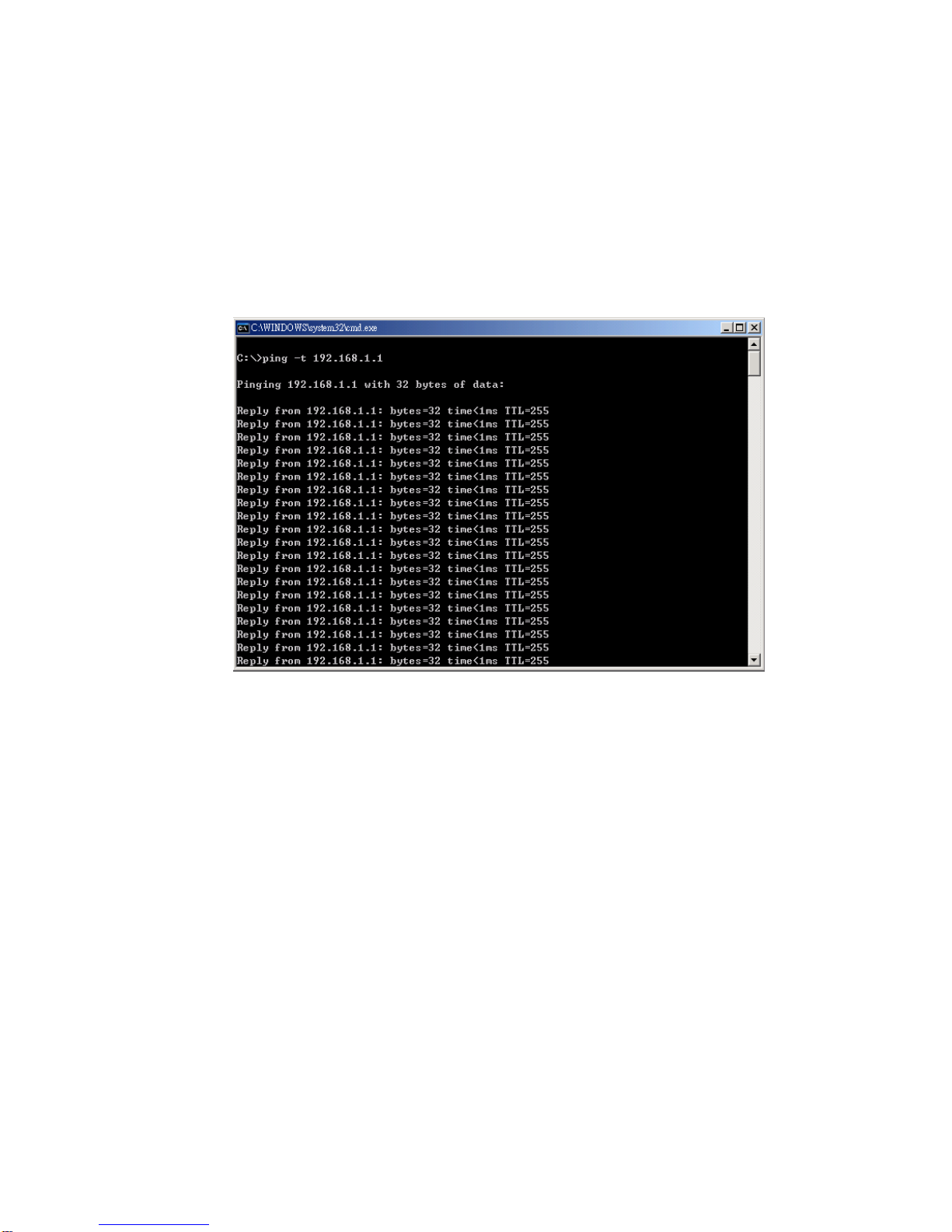

10.Power on the host, activate the Command Line mode, and ping the connected
Ethernet device to see if it will respond.
10.1 To enable the “Command Line mode”, click on Run in the Start menu,
type Command, and click on OK to continue.
10.2 Type ping 192.168.1.1 command to check the connection. Here we use
IP address 192.168.1.1 as an example.
11.Repeat step 10 to make sure that the connection of each device connected to
the JetNet 3005/3008 is successfully established.
15

12.Power on the host, activate the Command Line mode, and ping the connected
Ethernet device by typing “ping –t 192.168.1.1” command to see if it will
respond.
13.The parameter ”t” allows you to continue to ping the network device, as shown
in the figure below.
Before you continue, make sure that both PWR1 and PWR2 are successfully
connected to power sources. When PWR1 fails, the LED for PWR1 will go out. At
that moment, if the ping command is still being replied to, then it proves that the
redundant power input function works normally.
14.Exit the Command Line mode, and connect PWR1 power input. At this stage,
your JetNet 3005/3008 has been tested and the installation is complete.
15. To set up your industrial network by JetNet 3005
15.1 See the figure below as an example. Computer A needs to connect
several modems simultaneously in order to let a great number of users to access
this industrial network. However, Computer A does not have additional COM ports
to connect all of the modems. For this reason, we use a network solution.
16

15.2 We network enable the modems via serial-to-Ethernet converters, and
use Ethernet cables to connect Computer A and converters to the JetNet
3005. Enter Command Line mode in Computer A, and use ping command
to see if the connections between Computer A and the converters are
working properly, as described in step 10 and 11.
15.3 Enter Telnet program in Computer A, type in the IP address of one of the
converters, and configure the serial port’s communication parameters.
Follow this procedure to set up the other converters.
15.4 Install the virtual com port driver, and enter converters’ IP addresses.
15.5 Click on Computer A’s Control PanelÆDevice Manager, and make sure
the system each converter’s IP address is mapped to the corresponding
com port.
15.6 Click on Computer A’s Dialer, and install modem driver. Configure the
modem’s corresponding com port as a virtual com port, enter a set of
telephone number, and start dialing. Verify that the modem did dial up, and
the serial port’s communication parameters are correct. Follow this
procedure to verify each converter’s parameters are correct.
15.7 Click on Computer A’s dial out manager, and change the modem’s
setting from dial up to dial in. Follow this procedure to finish each modem’s
setting.
The industrial network is now established successfully. Computer A is able to
connect several converters using over the Ethernet via JetNet 3005 Industrial 5-port
Entry Level Ethernet Rail Converter, providing a reliable network environment.
17

18
