Korg CONCERT C-3200 User manual

Table of contents
6. Changing the key (Transposing) ..................... 15
7. Making fine adjustments to the pitch............. 15

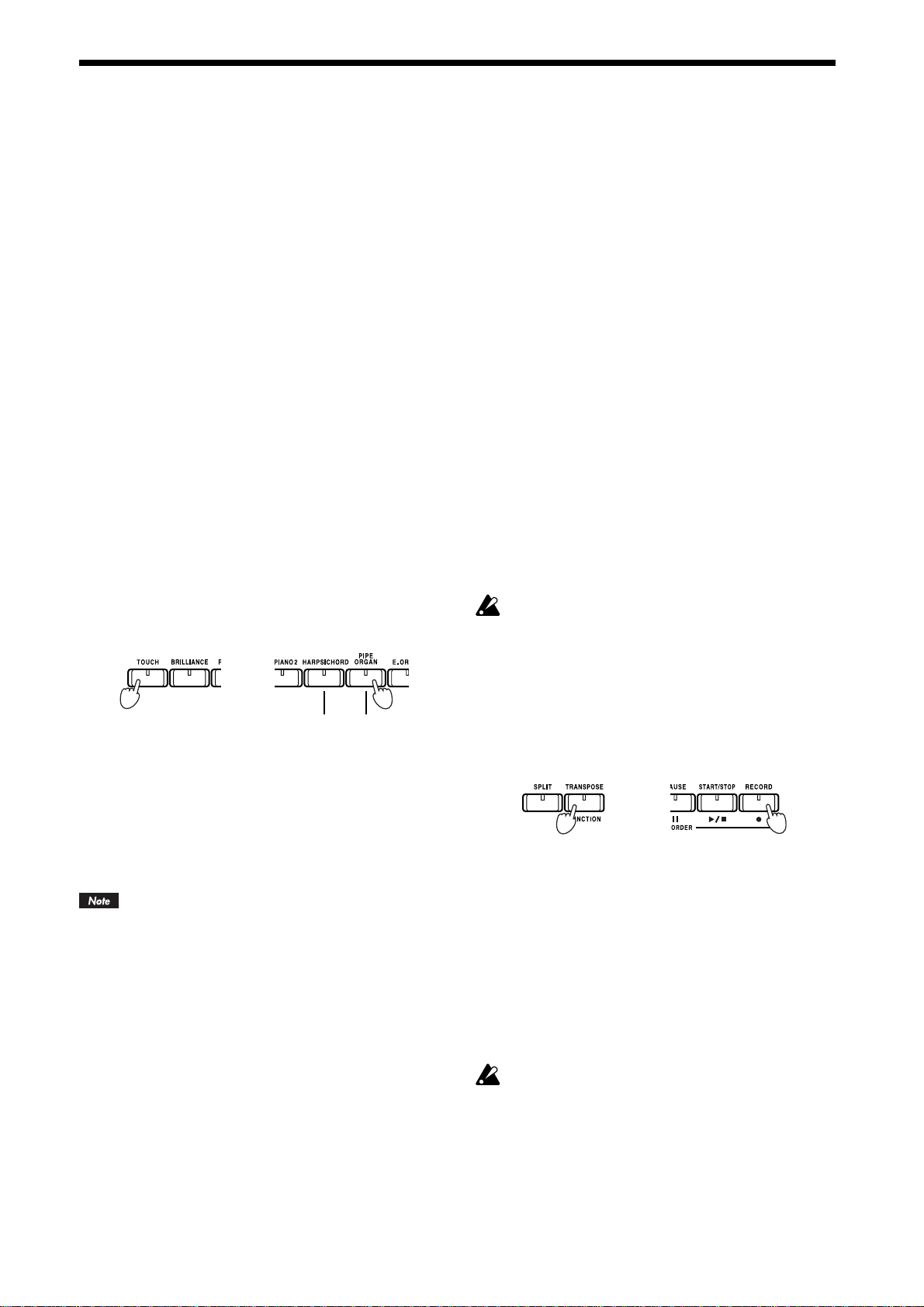

8. Selecting a temperament .................................. 16
9. Storing your settings ......................................... 16
10. Restoring the factory settings ........................ 16

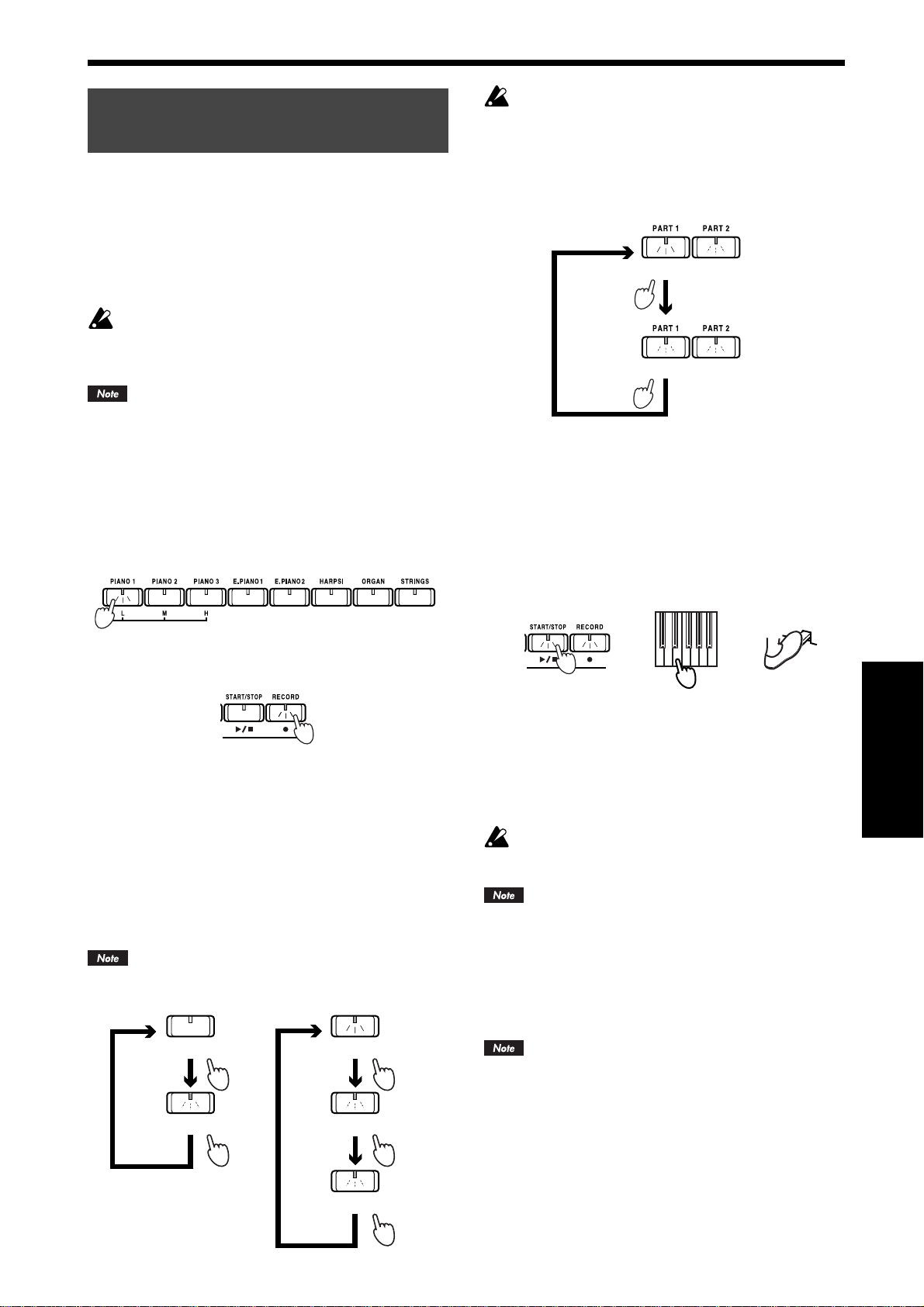

Recording and playing-back your performance .... 17
1. Recording your performance........................... 17
2. Listening to a song you recorded .................... 18
3. Erasing parts ....................................................... 18
Connecting to other devices ...................................... 19
1. Connections with a synthesizer, or audio
system ...................................................................... 19
2. Connections with MIDI devices ...................... 19
Troubleshooting ........................................................... 23
Specifications................................................................ 23
Assembling the stand (STD-3200) ............................ 24
Cautions for assembly........................................... 24
Assembly procedure ............................................. 24
Other cautions ........................................................ 26
MIDI Implementation Chart...................................... 27
Main features ................................................................. 4
Parts of the C-3200 and their function ....................... 4

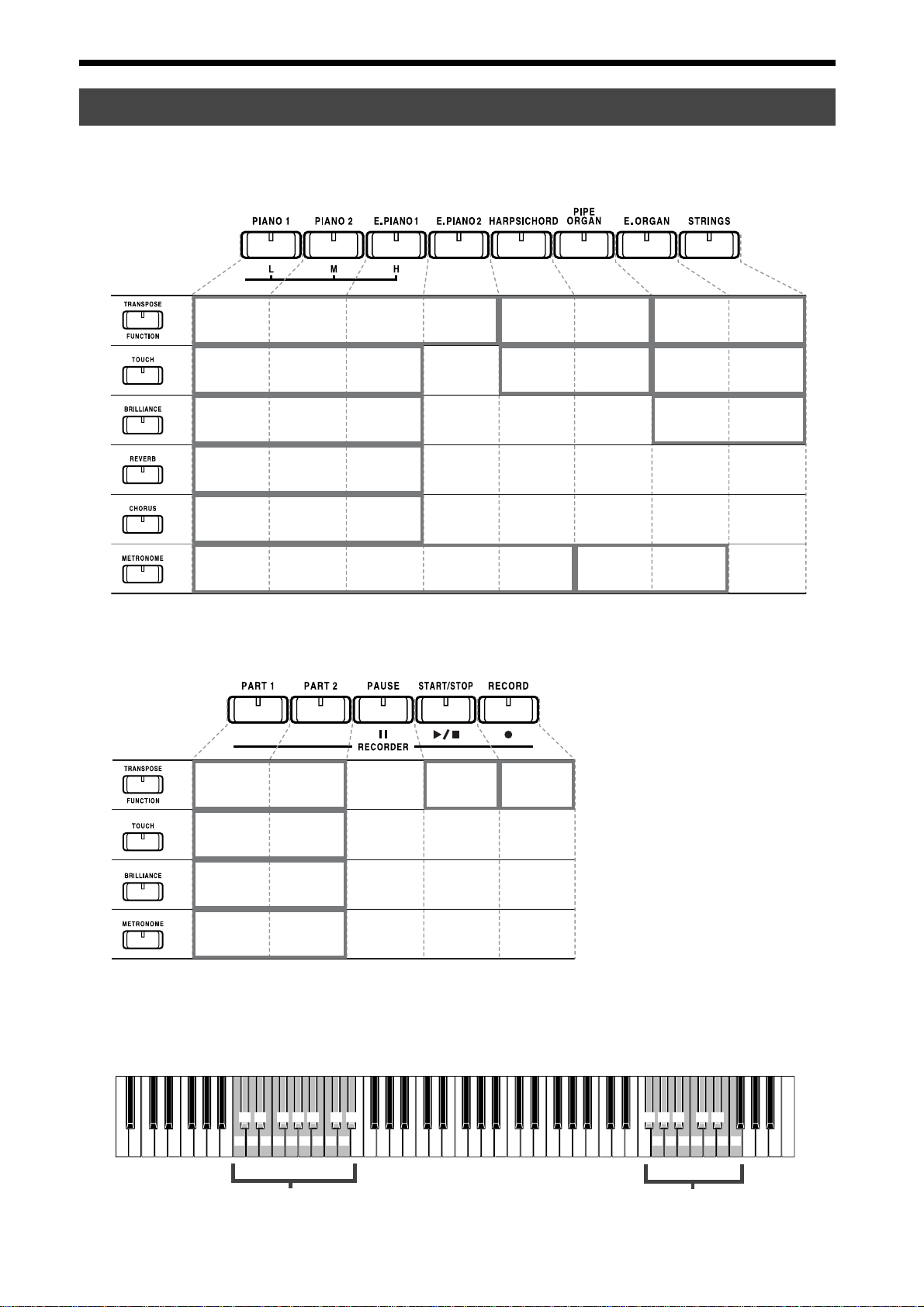

Switch and key functions ............................................. 6
1. Sound selector switches ...................................... 6
2. Recorder section ................................................... 6
3. Keyboard ............................................................... 6
Getting ready to play .................................................... 7
1. Before you start playing ..................................... 7
2. Using headphones with the C-3200 .................. 7
3. Using the music stand......................................... 7
Listening to the demo songs ........................................ 8
1. To listen to all the demo songs .......................... 8
2. To listen to an individual demo song ............... 8
3. To pause the Demo playback ............................. 9
4. Practicing along with a demo song .................. 9
5. Adjusting the tempo of the demo playback .... 9
Playing the C-3200....................................................... 10
1. Selecting sounds ................................................ 10
2. Adding effects to the sound ............................. 12
3. Using the pedals ................................................ 12

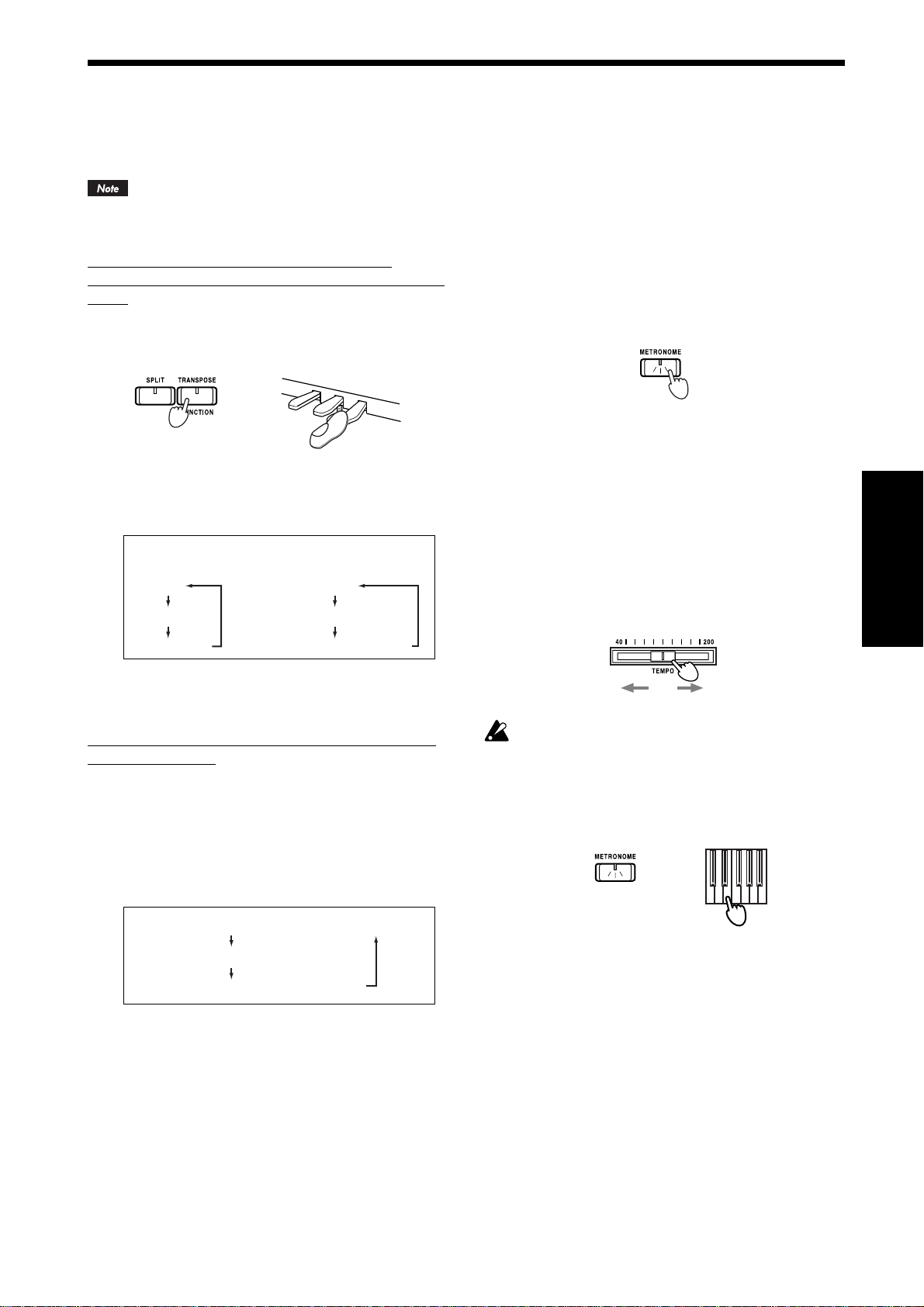

4. Playing along with the metronome ................ 13

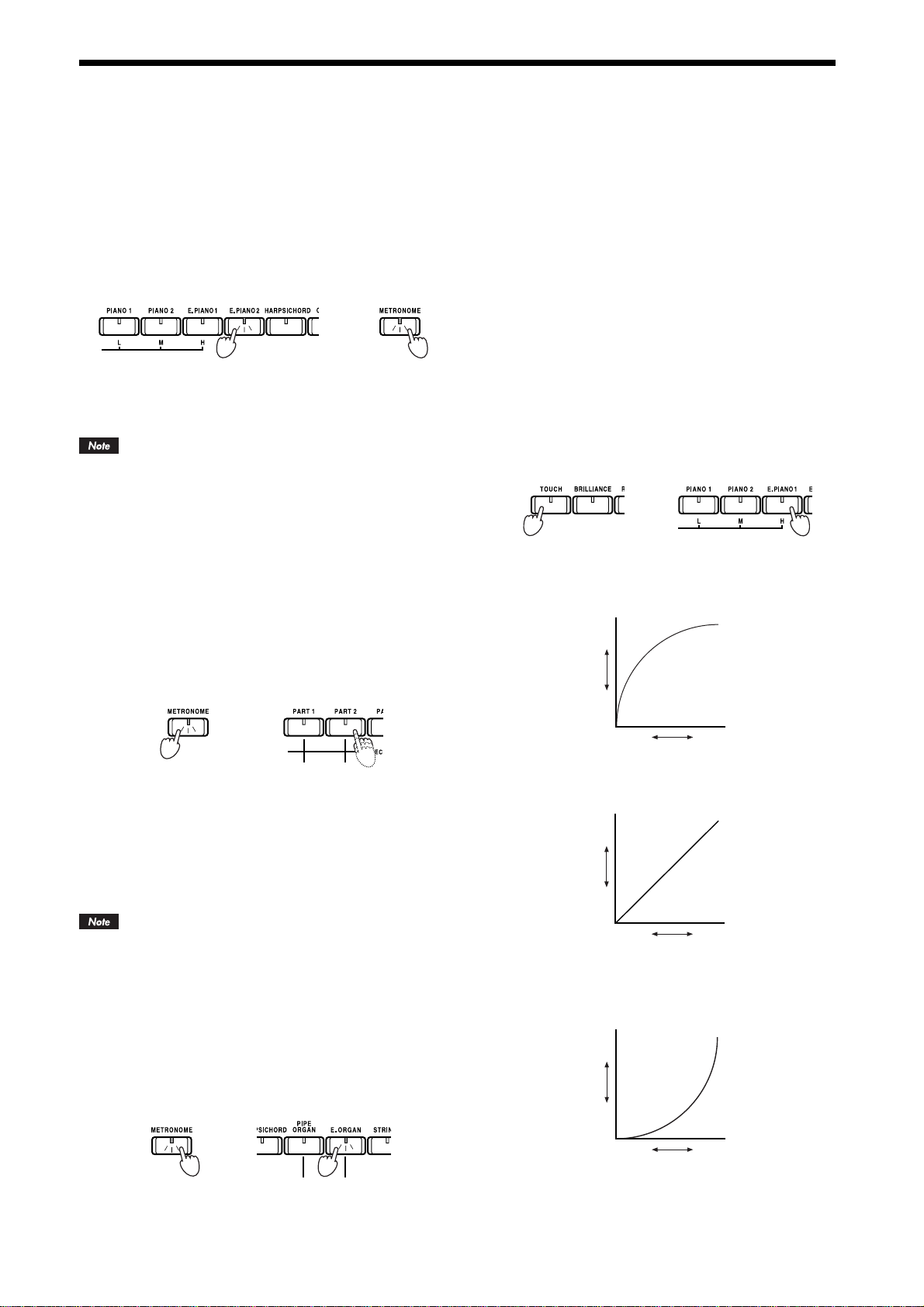

5. Selecting the Touch Response Curve .............. 14
Owner’s Manual
Thank you for purchasing the Korg Digital
Piano Concert C-3200. To ensure long, trouble-
free operation, please read this manual
carefully.
E 1

2
IMPORTANT SAFETY INSTRUCTIONS
•Read these instructions.
•Keep these instructions.
•Heed all warnings.
•Follow all instructions.
•Do not use this apparatus near water.
•No objects filled with liquids, such as vases, shall be placed on
the apparatus.
•Clean only with dry cloth.
•Do not block any ventilation openings, install in accordance with
the manufacturer’s instructions.
•Do not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
•Do not defeat the safety purpose of the polarized or grounding-
type plug. Apolarized plug has two blades with one wider than
the other.Agrounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not fit into your outlet,
consult an electrician for replacement of the obsolete outlet. (for
U.S.A. and Canada)
•Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the point
where they exit from the apparatus.
•Only use attachments/accessories specified by the manufacturer.
•Unplug this apparatus during lightning storms or when unused
for long periods of time.
•Turning of the power switch does not completely isolate this
product from the power line so remove the plug from the socket if
not using it for extended periods of time.
•Refer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way,
such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally,
or has been dropped.
•Do not install this equipment on the far position from wall outlet
and/or convenience receptacle.
•Do not install this equipment in a confined space such as a box
for the conveyance or similar unit.
•Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with this apparatus. When a cart is
used, use caution when moving the cart/apparatus combination
to avoid injury from tip-over.
The lightning flash with arrowhead symbol
within an equilateral triangle, is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product's
enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
THE FCC REGULATION WARNING (for U.S.A.)
This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference in a residential installation. This equipment
generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause
harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the equipment and receiver.
•Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
•Consult the dealer or an experienced radio/TV technician for
help.
Unauthorized changes or modification to this system can void the
user’s authority to operate this equipment.
CE mark for European Harmonized Standards
CE mark which is attached to our company's products ofAC mains
operated apparatus until December 31, 1996 means it conforms to
EMC Directive (89/336/EEC) and CE mark Directive (93/68/EEC).
And, CE mark which is attached after January 1, 1997 means it
conforms to EMC Directive (89/336/EEC), CE mark Directive (93/
68/EEC) and Low Voltage Directive (73/23/EEC).
Also, CE mark which is attached to our company's products of
Battery operated apparatus means it conforms to EMC Directive
(89/336/EEC) and CE mark Directive (93/68/EEC).
·Other product names and company names are registered
trademarks and trademarks of their respective owners.

3
About Recorder data
Since it is possible for the contents of memory to be
accidentally lost, you should save important data on an
external data filer (storage device) etc.
Korg will accept no responsibility for any damages that
may result from loss of data.
Conventions in this manual
This symbol indicates a caution.
(☞p.**) This indicates a reference page.
This indicates an explanation concerning a
setting.

4
Main features
Weighted Hammer Action
The C-3200 features the RH2 (Real Weighted Hammer
Action 2) keyboard, which varies the resistance of the
keyboard in four stages, just as on a grand piano.
Rich array of sounds (☞p.10)
Choose from eight high-quality sounds developed by
Korg, including a superb concert grand piano. There is
also an additional Bass sound. You can use the Layer or
Split functions to play two sounds at the same time. The
stereo sampling tone generator provides a concert grand
piano that not only sounds rich, but also reproduces a
spacious ambience.
Effects (☞p.12)
The built-in digital effects provide both Reverb, which can
recreate the ambience of a concert hall, and Chorus to add
fullness and enhance the stereo imaging of the sound.
Pedal effects (☞p.12)
The C-3200 provides the same three pedals as a grand
piano, controlling the soft, sostenuto, and damper func-
tions respectively. The damper pedal simulates the natural
string resonances of an acoustic piano. Both the damper
pedal and the soft pedal let you vary the amount of the
effect by how far you press down on the pedal (“half-
pedal” function).
Metronome (☞p.13)
The built-in metronome provides a steady beat for
practice. You can set the time signature, tempo, and
volume, and can even select a different sound for the
downbeat.
Recorder (☞p.17)
You can record, overdub and play back your own perfor-
mance using the built-in recorder. The functions are easier
trP]se than a traditional tape recorder.
Touch control (☞p.14)
Three touch curves allow you to tailor the keyboard
response to your own playing style.
Temperaments (☞p.16)
In addition to the traditional equal temperament, you can
also select one of the two classical temperaments
(Kirnberger or Werckmeister) for historically authentic
performances.
Adjustable pitch (☞p.15)
You can use Transpose to transpose the pitch in semitone
steps, and Pitch Control to make fine adjustments to the
pitch.
MIDI (☞p.19)
“MIDI” is a world-wide standard that allows performance
data to be transferred between electronic musical instru-
ments and computers. Via the C-3200’s MIDI connectors,
it can control (or be controlled by) another MIDI device,
and can even be used as a 16-part multi-timbral tone
generator.
Parts of the C-3200 and their function

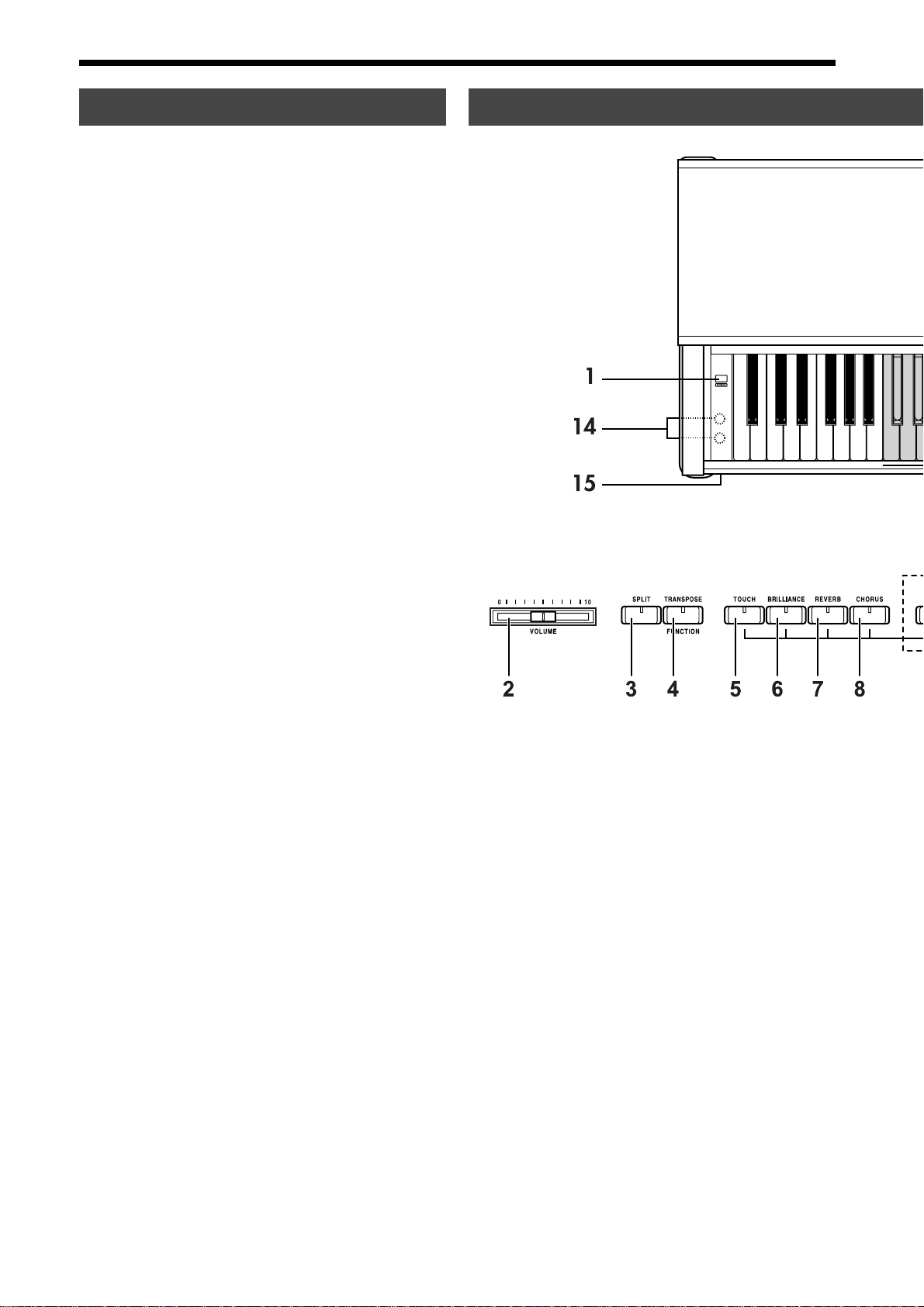

1. Power switch
This switch turns the power on and off (☞p.7).
2. Volume slider
This slider controls the volume level of the speakers,
headphone jacks, and output jacks (☞p.7).
3. Split switch
This switch splits the keyboard into two areas (Upper
and Lower) and allows a separate sound to be as-
signed to each one. By default, the Bass sound is
assigned to the Lower area, but any sound can be
selected. (☞p.11).
4. Transpose/Function switch
Holding down this switch while pressing other
switches or keys will allow you to access the Trans-
pose feature (☞p.15) , make MIDI-related settings
(☞p.19) and various other settings.
5. Touch switch
This switch selects the touch response curve of the
keyboard (☞p.14).
6. Brilliance switch
This controls the the overall brightness of the tone
(☞p.12).
C1 C2

5
7. Reverb switch
This switch turns the reverb effect on and off (☞p.12).
8. Chorus switch
This switch turns the chorus effect on and off (☞p.12).
9. Sound selector switches
Use these switches to select a sound (☞p.10).
You can choose any of the eight sounds: Piano 1, Piano
2, E.Piano 1, E.Piano 2, Harpsichord, Pipe Organ,
E.Organ, and Strings.
You can also select two sounds and they will play
together (Layer function).
10. Tempo slider
This slider adjusts the tempo of both the metronome
and the recorder (☞p.13)
11. Metronome switch
This switch starts and stops the metronome (☞p.13).
12. Recorder section
These controls are used to record and play back your
performance (☞p.17).
13. Demo switch
This switch is used to enter and exit the Demo mode,
where the demo songs may be played(☞p.8).
14. Headphone jacks (on the bottom panel)
Stereo headphones can be connected to these jacks
(☞p.7).
15. Power indicator
16. MIDI channel keys
While holding down the Transpose/Function switch,
these keys can be used to select the MIDI channel
(☞p.19).
17. Transpose keys
While holding down the Transpose/Function switch,
these keys can be used to transpose the C-3200 into
another key (☞p.15).
18. Music stand (☞p.7)
C3 C4 C5 C6 C7 C8
