Krabat Pilot User manual

1
Krabat Pilot
User Manual

2
Safety
All Krabat products are CE marked according to MDR 2017/745 and 93/42 / EØF, Class 1 of 14 June
1993 - Medical Device Directive. This certifies that it meets all relevant European safety
requirements. This manual is approved according to these standards. The shelf life of the product
corresponds to a lifespan of about 5 years under normal use. After about 5 years the product should
be renovated by Krabat AS or an approved partner to extend the product’s service life. All service
must be performed by Krabat or an authorized partner.
Products with electrical components must be submitted to Krabat for a technical review / overhaul
before it is sent out to use again.
The CE-label is to be removed if the product is modified, or non-original parts are used!
Adjustments not described in Krabat user manuals shall only be carried out by Krabat, or by
personnel approved by Krabat.
Krabat products are not toys! Improper use may cause damage to both user and/ or the product.
Warranty
Krabat provide a guarantee of 2 years for all products. This guarantee is aimed at defects in
workmanship or materials. The guarantee may be reduced or waive if service or daily maintenance
are not observed. It is the customer’s responsibility to ensure that maintenance is carried out.
The warranty does not cover accidental damage, including damage caused by improper use or lack of
maintenance. The warranty does not cover normal wear or wear parts.
The warranty is void if non-original parts are used, or if the product is repaired or modified by
personnel not approved by Krabat.

3
The information in this manual was correct at the time of publication. The information can
be changed by the manufacturer without notice, therefore go to www.krabat.no for
updated instructions for use and updated technical information about the product at all
times.
Revision history:
Revision:
Date:
Author:
Notes:
1.0
10.10.2016
A.L. Sørensen
Etablished
2.0
03.05.2021
A.Simensen
Lagt til revisjonstabell og advarsler

4
Krabat Pilot
General....................................................................................... s. 05
Main components.............................................................. s. 07
Use................................................................................................. s. 08
Individual adjustments….............................................. s. 08
Optional equipment........................................................ s. 09
Maintenance......................................................................... s. 10
Technical data………………………………………………..………………..s. 11
Warnings and definitions........................................... s. 12
Warranty.................................................................................. s. 15

5
01 –General
Krabat Pilot is an innovative and different transfer aid for the younges users. Traditional
crawlingaids gives minimal active help to the child to lift the hips, but so does Krabat Pilot.
When the child is helped to lift the hips, it is easier to get the knees under the child and this
makes it easier to move. The lifting movement that Krabat Pilot gives is dynamic, and
changes all the time when the child moves. By using the crawling and positioning
equipment Co-Pilot, the child gets the friction needed against the ground and adjustable
elastics that can alternate leg movement, correct the child back in 4-foot standing and
prevent hip abduction.
Krabat Pilot requires individual testing and customization.

6

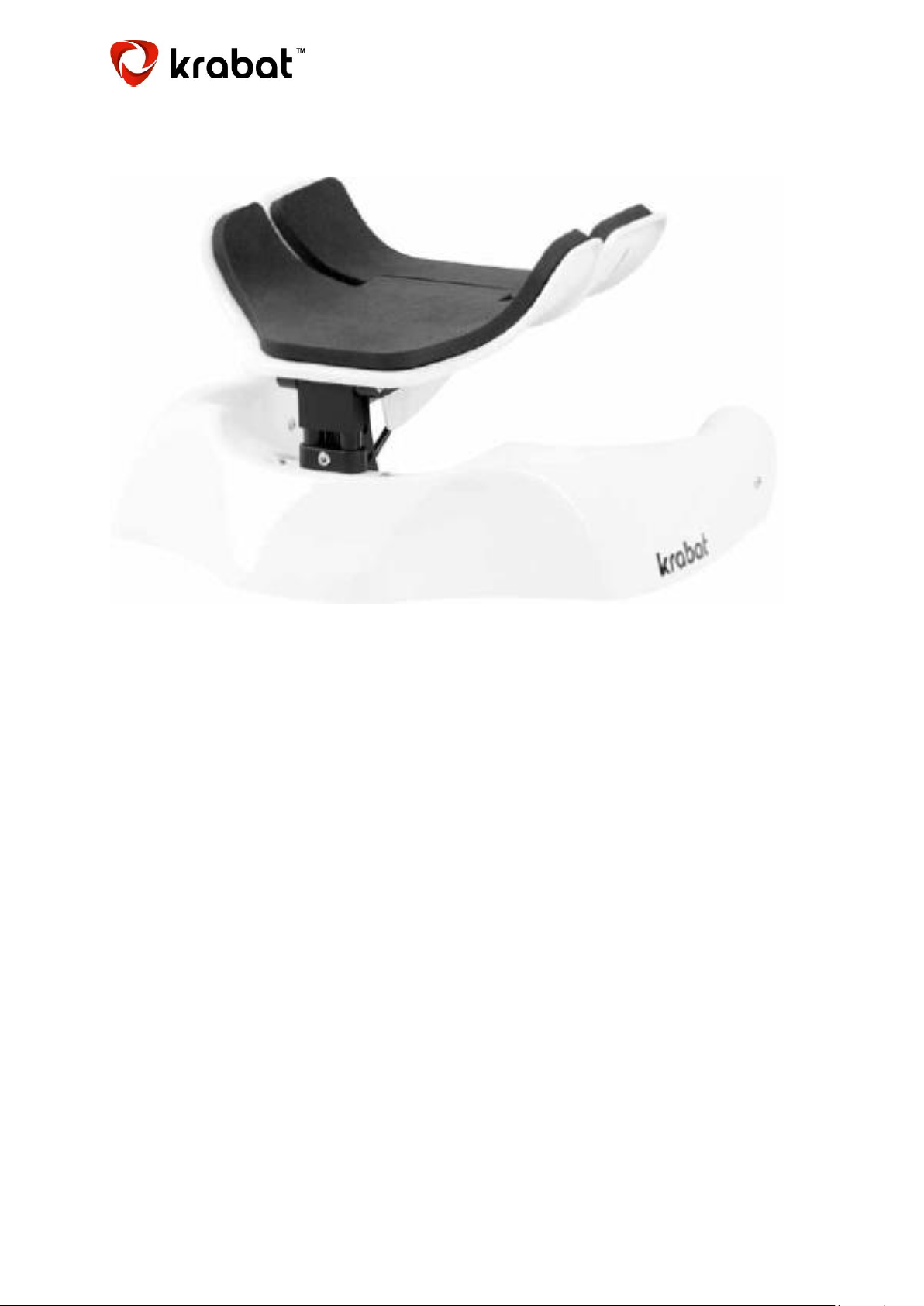

Krabat Pilot is an aid for positioning in 4-
footer, pre-stages for crawling and
transfer. The pilot provides a starting
position that stimulates play and
participation by the child coming up
from the floor. Weight bearing on the
hip and shoulder joints is very important
for the child's motor development.
It is beneficial to start with Krabat Pilot
early while the child is motivated to
work with 4-foot standing and crawling.
The aid provides a dynamic lift of the
child's hips, which can be changed
according to the child's weight and
activity level. The height can also be
changed so that Krabat Pilot is suitable
for children of different sizes, where the
main group is between 1 and 5 years
old.
Krabat Pilot has stepless height adjustment and adjustable length of the board. The strength of the
gas spring that adjusts the lift on the hips can be easily adapted to the individual user. The optimal
configuration for each child with the correct height, length of the board and strength of the gas
spring that lifts the hips is determined by a test.
It is easy to take the child in and out of the aid. The child is also not restrained (other than with a
strap under the buttocks), and can move relatively freely. This is important both for well-being and
for the crab movement.
Krabat Pilot is designed so that there is a minimal risk of fingers getting caught under the wheels
during use. The surface facing the child is soft and easy to keep clean.
Krabat Pilot has a modern and thoughtful design, and is compact and easy to take with you.
Movement

7
02 –Main components –Krabat Pilot
Krabat Pilot with manuel height adjustment has the main components:
01 Adjustable cradle to place the child safely in during use.
02 Lower main structure that controls the direction of the crab aid
03 Adjustable seat strap that keeps the child in the correct position
04 Directional wheels
05 Height adjustment
06 Mount for Krabat Co-Pilot (optional)
01
03
02
04
05
06

8
03 –Use
Good and correct friction on the knees is important for crawling. Krabat Co-Pilot are knee pads
specially developed to provide good friction against surfaces such as parquet and floor coverings
when the child uses Krabat Pilot.
Krabat Co-Pilot is delivered with elastic that is attached between the child and the aid, and / or
between the child's knees. The result of this solution is that the child can get help of himself to move
his knees forward during crawling. The elastic reduces hip abduction and leads the child back to the
crab position in case of spasm.
04 –Adjustment
Adjustment of height
Stepless adjustment, lowest possibility
Stepless adjustment, highest possibility
Krabat Co-Pilot
Backstrap
Butterfly harness

9
05 –Accessories
There are some accessories available, eg Co-pilot, new pillows, vests and straps.
See www.krabat.com for an updated list of accessories.
Most of the accessories are delivered with their own user and installation instructions.
If you need accessories or other custom equipment for Krabat Pilot, contact a Krabat representative
or a Krabat-approved therapist for installation and adjustment.
Adjusting of the cradle
Adjusting of the gas spring
Gas spring in position with most lift
Gas spring in position with medium lift
Gas spring in position with less lift

10
06 - Maintenance
All metal and plastic parts can be cleaned with mild soapy water. The cot is covered with foam
material, and can be cleaned with either a cloth and soapy water or machine washed at 40 degrees.
If necessary, new ones can be bought, which are easily replaced and can be done on your own.
This is a personal product, individually tailored according to the medical requirements and
requirements of each user. No regular maintenance is required.
Wash product components if necessary. Follow regular hygiene advice and keep the product clean at
all times.
The pillows are attached to the product with Velcro. Advice on removing stains can be found at
www.krabat.no.
Ball bearings and other moving parts are maintenance-free and should not be lubricated.
To avoid damage, no part of the product should be repaired or maintained while in use.
NOTE: If any part breaks, breaks, or is obviously damaged, stop using the product and contact
authorized personnel for service or appropriate corrective action.
07 - Individual adjustment
If the product needs to be adjusted for any reason, please contact a physiotherapist or occupational
therapist. Adjustments to the unit must be made by qualified personnel or Krabat AS.
Under no circumstances may the user make changes to the product.

11
08 - Technical data
Description
Sizes
A
Internal width
30 cm
B
Width of board
25 cm
C
Length of board
21 - 28 cm
D
Total width
39 cm
E
Height
15 –21 cm
F
Total length
31 cm
Weight
1,9 kg
Age
From about 9 months
Max user weight
25 kg

12
09 –Warnings and definitions
General warnings:
Suffocation/ strangulation:
During normal use, when the user is in the product and possibly secured, there is no danger of
suffocation. To avoid the potential for suffocation, never allow a child to use Krabat Pilot without
the supervision of an adult.
Entrapment/ pinching:
When the child is in the product when it is in use, the possibility of squeezing is present. To reduce
the possibility of crushing events, make sure that no one is near the lifting mechanism when the
product is in use. To further prevent the possibility of dangerous events, the child and the product
must never be left unattended.
Danger of tipping:
There is always a real danger that a product may tip, if you do not comply with restrictions set by a
therapist with training from Krabat, information that accompanied the product or information
available on Krabat.no. A general rule is that any movement outside the "footprint" of the product
towards the surface can pose a risk of tipping. The higher the user, will also affect the possibility of
tipping. The same applies to additional components fitted. To prevent the possibility of such
incidents, one should avoid this, as well as never leave the child in the product without supervision.
Definition of parts used:
The definition of parts used are parts of the product that meet the USER during normal use / to
perform its function.
Definition of parts used are: crawling unit including board, pillows, straps and textile.

13
Transport and storage
During transport and / or storage, Krabat Pilot should remain operational in normal use within
its specifications after transport or storage in the following temperature ranges:
•-25 ° C to +5 ° C, and
•+ 5 ° C to +35 ° C at relative humidity up to 90%, non-condensing;
•35 ° C to 70 ° C at water vapor pressures up to 5o hPa
after the product has been removed from packaging and then between uses.
Note: Krabat Pilot should be kept indoors.
Environmental impacts during use
When the Krabat Pilot is to be used, it must be used under the following environmental
conditions:
•In temperatures between + 5 ° C to + 40 ° C;
•At relative humidity of 15% to 93%, non-condensing
•At an atmospheric pressure between 700 hPa to 1,060 hPa
This product is classified for non-continuous operation.
Normal operating cycle for use - 10% or 2 minutes of operation followed by 18 minutes of
standstill.
Use after storage:
If Krabat Pilot is stored cold (below 0 degrees Celsius), wait 20 minutes before using the
product.
If the Krabat Pilot is stored in a warm place (above 50 degrees Celsius), all surfaces must be
allowed to cool to ambient temperature before placing the child in the product. Wait 20
minutes before using the product.
Avoid burns scalding:
If the Krabat Pilot is left in direct sunlight, move the product away from direct sunlight and
check that all surfaces of the product have reached an acceptable temperature before placing
the child in the product.
Recycle components and materials in accordance with local, state, and national regulations.

14
Explanations of symbols
Explanation of the various symbols used on the product and in this manual:
Symbol
Importance
Importance
Expanations
Symbol for use worth marking medical
equipment.
Producer
Indicates the manufacturer of medical
devices
Medical electrical equipment - Part 1: General
requirements for basic safety and essential
performance
See instructions
for use
Indicates the need for the user to see the
user manual
Medical electrical equipment - Part 1: General
requirements for basic safety and essential
performance
See instructions
for use
See instructions for use
General warning sign
Warning: read all
warnings and
safety rules in the
operating
instructions
When a user is sitting in the product and the
product is to be moved, e.g. from room to
room, it is NOT recommended to do this with
the unit in the highest position.
To prevent accidental tipping, never move the
product when it`s in the highest position.
Medical electrical equipment
Type BF applied
part
Identification of type BF applied part
according to IEC 60601-1.
Medical electrical equipment - Part 1: General
requirements for basic safety and essential
performance
Degree of water
and dust
penetration
Manufacturer-determined degree of particle
and water ingress protection.
Symbol for use In marking electrical appliances
Kun til innendørs
bruk
To identify electrical equipment designed
primarily for indoor use.
Symbols for use in the labelling of electrical
devices.
Risk class 2
To identify electrical equipment designed
primarily for indoor use
The requirements for accreditation and market
surveillance relating to the marketing of products;
Medical Device Directive
CE marking
Signifies European technical conformity.
Symbol for use in the labelling of electrical
devices.
Do not throw in
general waste
Highlights that you should not place the
electrical item in the general waste (it should
be taken to a local recycling centre)
Symbol from the certified body that performed
tests
Certification mark
Certification mark that signifies that this
product is certified to meet requirements of
US and Canadian electrical safety standards.
Safety sign to prohibit sitting on a surface.
No sitting on
surface
To identify surfaces/ parts that are unsuitable
to sit on.
Safety sign to prohibit stepping onto a surface.
No stepping on
surface
To identify surfaces/ parts that are unsuitable
to step on.

15
Warranty
Manufacturer of KRABAT products, Hepro AS avd KRABAT - hereinafter referred to as KRABAT - which
has its place of business in Ravnsborgveien 56, 1395 Hvalstad, Asker, Norway - gives the buyer of a
KRABAT - product the following product guarantee, hereinafter referred to as «WARRANTY»:
1. This WARRANTY is given under the strict condition that the buyer and any person who buys
gives access to the KRABAT product complies with the following SAFETY PRECAUTIONS:
I. Always read and understand the accompanying operating instructions for the product
before using the product.
II. The KRABAT product is only intended to be used for its intended purpose in
accordance with the KRABAT instructions for use for the relevant KRABAT product.
III. Children or other users of KRABAT product must always be supervised by adults.
IV. Make sure that the hip belt (seat belts) are properly fastened and work properly.
Periodically check that the hip belt is securely fastened to the KRABAT product.
V. Always use KRABAT products in consultation with a local physiotherapist or
occupational therapist.
VI. The KRABAT product is not a toy. Do not allow children or others to play with the
KRABAT product as it may cause injury to persons and / or product
VII. When the KRABAT product is not in use, store it so that it can not be misused or cause
harm to others, to the KRABAT product and its functions.
2. Subject to compliance with the terms of the WARRANTY, KRABAT warrants that the KRABAT
product for a period of one (1) year (the warranty period) from the time of purchase of the
KRABAT product, that the KRABAT product shall function in accordance with the intended
purpose as stated in the KRABAT instructions for use after purchasing the KRABAT product.
3. Should any damage or defect occur in the product during the said warranty period, KRABAT
will offer assistance within a reasonable time. The defect is corrected by either KRABAT or a
third party approved by KRABAT either by taking the product for inspection / repair or
forwarding spare parts for replacement provided that the buyer of KRABAT product without
undue delay after becoming aware of defects, has notified KRABAT in writing or a
representative authorized by KRABAT about defects / deficiencies that are discovered.
KRABAT reserves the right, at its discretion, to forward a new product instead of carrying out
repair work if the product has defects / errors. When forwarding spare parts, parts that need
to be replaced or a new product (unit?). When sending spare parts, parts to be replaced or a
new product, KRABAT or authorized representatives are considered to have fulfilled their
obligations when the relevant parts or product have been made available for collection at
the place where the original KRABAT product was sold.

16
4. In the event that a defect is not remedied,
I. Buyer is entitled to a reduction of the purchase price in relation to the reduced value of the
KRABAT product, provided that the reduction of the purchase price, under no circumstances,
exceeds fifteen (15%) percent of the purchase price for said KRABAT product, or
II. Where the defect is so significant that it deprives the buyer of a significant advantage of the
purpose of the purchase, the buyer may cancel the purchase on the basis of the defective
KRABAT product. If the buyer has suffered a loss, the buyer may be entitled to a refund of a
maximum of fifteen (15%) of the purchase price for the said KRABAT product.
5. THIS WARRANTY MAKES NO WARRANTIES OTHER THAN THE WARRANTIES GIVEN UNDER THIS
WARRANTY.
6. For the avoidance of doubt. This WARRANTY does not cover any liability by KRABAT or KRABAT's
authorized representatives for indirect losses or consequential damages incurred by the buyer or
person who gave access to the product by the buyer, knowingly or unknowingly.
7. This WARRANTY does not apply when the KRABAT product is supplemented with or has been
supplied with parts that have not been produced by KRABAT or parts produced or delivered by others
where the use is not authorized in writing by KRABAT.
8. KRABAT is only responsible for errors that occur under operating or operating conditions that are
stipulated in the operating instructions for the relevant KRABAT product.
9. KRABAT shall not be held liable for defects caused by incorrect maintenance, incorrect adjustments
or repairs performed by anyone other than KRABAT or a representative authorized by KRABAT or for
changes to the KRABAT product that have been made without the written consent of KRABAT.
10. This WARRANTY does not cover normal wear and tear
11. KRABAT is under no circumstances responsible for defects or damage to parts of the KRABAT
product for more than two (2) years after delivery.
12. Except as provided in this WARRANTY, KRABAT, as well as KRABAT's authorized representatives,
shall not be held liable for defects in any KRABAT product. This applies to any loss including production
loss, loss of profit or other indirect loss.
Hepro AS, avd. Krabat
Ravnsborgveien 56
1395 Hvalstad
Norway
www.krabat.no
