USER MANUAL
Models:
VP-72
Multiformat 1:2 Distribution Amplifier

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
3 Overview 1
4 Your VP-72 Multiformat 1:2 Distribution Amplifier 2
4.1 VP-72 Multiformat 1:2 Distribution Amplifier Front Panel 2
4.2 VP-72 Multiformat 1:2 Distribution Amplifier Rear Panel 3
4.3 VP-72 Multiformat 1:2 Distribution Amplifier Underside 4
5 Connecting the VP-72 Multiformat 1:2 Distribution Amplifier 6
6 Technical Specifications 8
Figures
Figure 1: Front Panel VP-72 Multiformat 1:2 Distribution Amplifier 2
Figure 2: Enlarged Rear Panel VP-72 Multiformat 1:2 Distribution Amplifier 3
Figure 3: Underside VP-72 Multiformat 1:2 Distribution Amplifier 5
Figure 4: Connecting the VP-72 Multiformat 1:2 Distribution Amplifier 7
Tables
Table 1: Front Panel VP-72 Multiformat 1:2 Distribution Amplifier Features 2
Table 2: Rear Panel VP-72 Multiformat 1:2 Distribution Amplifier Features 4
Table 3: Underside VP-72 Multiformat 1:2 Distribution Amplifier Features 5
Table 4: Technical Specifications of the VP-72 Multiformat 1:2 Distribution Amplifier 8

Introduction
1
1 Introduction
Welcome to Kramer Electronics (since 1981): a world of unique, creative and
affordable solutions to the infinite range of problems that confront the video,
audio and presentation professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
350-plus different models now appear in 8 Groups
1
, which are clearly defined
by function.
Congratulations on purchasing your VP-72 Multiformat 1:2 Distribution
Amplifier, which is ideal for:
 Presentation applications that require a preview option
 Stage, PA and educational applications
 Video/graphics studios that need Multiformat signal distribution
The package includes the following items:
 VP-72 Multiformat 1:2 Distribution Amplifier
 Power cord
 This user manual
2
2 Getting Started
We recommend that you:
 Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
 Review the contents of this user manual
 Use Kramer high performance high resolution cables
3
3 Overview
The Kramer VP-72 Multiformat 1:2 Distribution Amplifier is designed as a
companion unit to the ProScale™ series of Digital Scaler/Switchers. When
placed between two ProScale™ Digital Scaler/Switchers, the VP-72 allows
one ProScale™ to be used as a preview device and the other as the program
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from the Internet at: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-72 Multiformat 1:2 Distribution Amplifier
2
device, simultaneously. The VP-72 can be used as a 7 input 1:2 DA for all
distribution applications. In particular, the VP-72:
 Includes two 1:2 composite video distribution amplifiers on BNC
connectors, two 1:2 Y/C distribution amplifiers on 4p connectors, two 1:2
VGA distribution amplifiers on HD15 connectors, and one 1:2 YUV
distribution amplifier on BNC connectors
 Includes Gain
1
and EQ., control, as well as ID Bit control
 Has video bandwidth exceeding 400MHz, ensuring that it remains
transparent in almost any application
 Is housed in a 19-inch rack mountable enclosure requiring one vertical
rack space and is fed from any 100-240VAC, 50/60Hz mains supply
Achieving the best performance means:
 Connecting only good quality connection cables, thus avoiding
interference, deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables)
 Avoiding interference from neighboring electrical appliances that may
adversely influence signal quality and positioning your VP-72 unit in a
location free from moisture and away from excessive sunlight and dust
4 Your VP-72 Multiformat 1:2 Distribution Amplifier
This section defines the front panel (see section 4.1), the rear panel (see
section 4.2), and the underside (see section 4.3).
4.1 VP-72 Multiformat 1:2 Distribution Amplifier Front Panel
Figure 1 and Table 1 define the VP-72 front panel:
Figure 1: Front Panel VP-72 Multiformat 1:2 Distribution Amplifier
Table 1: Front Panel VP-72 Multiformat 1:2 Distribution Amplifier Features
# Feature Function
1 POWER Switch Illuminated switch for turning the unit ON or OFF
1 s-Video controls include separate Y (Luma), C (Chroma) and EQ., control

Your VP-72 Multiformat 1:2 Distribution Amplifier
3
4.2 VP-72 Multiformat 1:2 Distribution Amplifier Rear Panel
Figure 2 and Table 2 define the VP-72 rear panel:

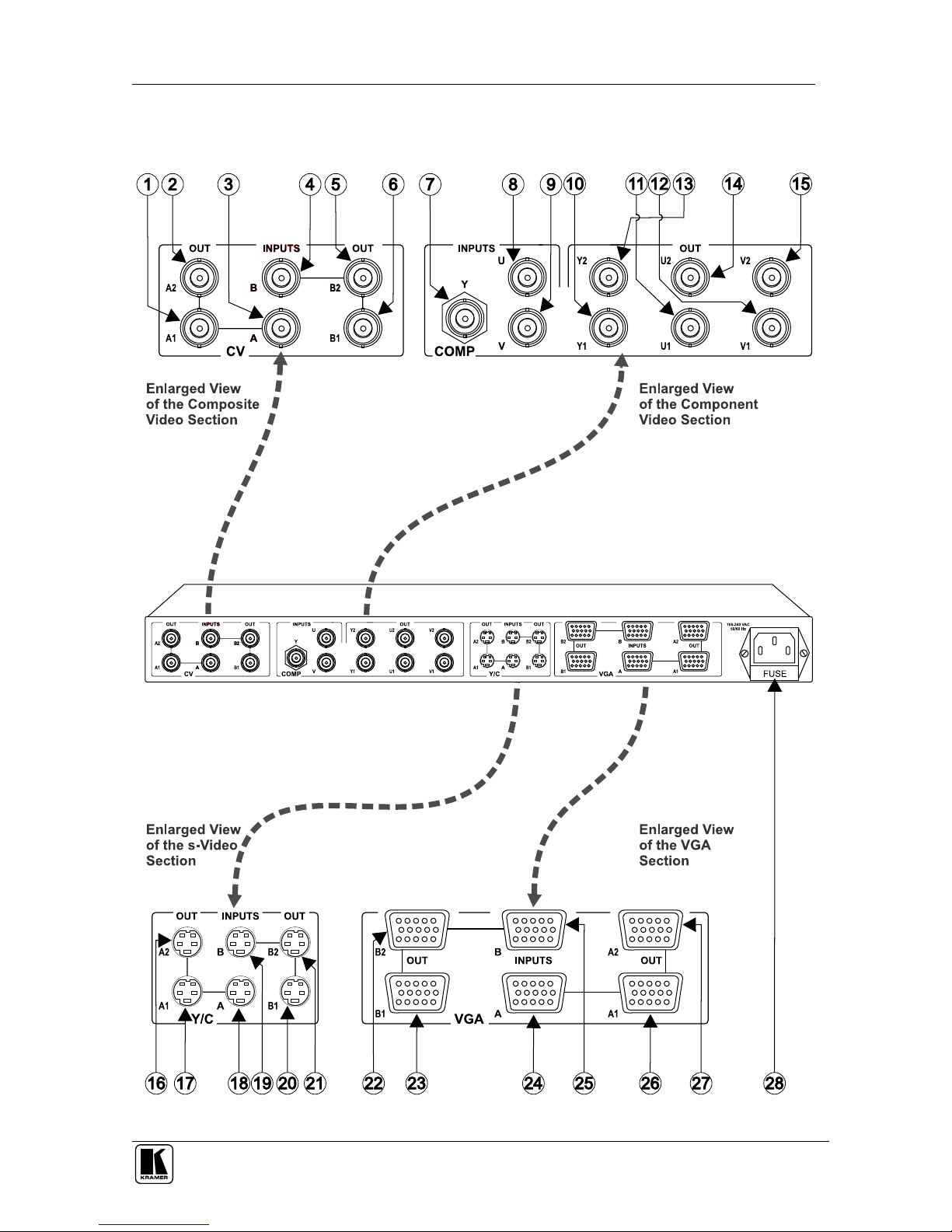

Figure 2: Enlarged Rear Panel VP-72 Multiformat 1:2 Distribution Amplifier

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-72 Multiformat 1:2 Distribution Amplifier
4
Table 2: Rear Panel VP-72 Multiformat 1:2 Distribution Amplifier Features
# Feature Function
1 A1 OUT BNC Connector Connects to the composite video acceptor A1
2 A2 OUT BNC Connector Connects to the composite video acceptor A2
3 A INPUTS BNC Connector Connects to the composite video source A
4 B INPUTS BNC Connector Connects to the composite video source B
5 B2 OUT BNC Connector Connects to the composite video acceptor B2
6
CV Section
B1 OUT BNC Connector Connects to the composite video acceptor B1
7 Y INPUTS BNC Connector
8 U INPUTS BNC Connector
9 V INPUTS BNC Connector
Connect to the component
1
video source
10 Y1 OUT BNC Connector
11 U1 OUT BNC Connector
12 V1 OUT BNC Connector
Connects to the component
1
video acceptor YUV1
13 Y2 OUT BNC Connector
14 U2 OUT BNC Connector
15
COMP Section
V2 OUT BNC Connector
Connects to the component
1
video acceptor YUV2
16 A2 OUT 4p Connector Connects to the s-Video acceptor A2
17 A1 OUT 4p Connector Connects to the s-Video acceptor A1
18 A INPUTS 4p Connector Connects to the s-Video source A
19 B INPUTS 4p Connector Connects to the s-Video source B
20 B1 OUT 4p Connector Connects to the s-Video acceptor B1
21
Y/C Section
B2 OUT 4p Connector Connects to the s-Video acceptor B2
22 B2 OUT HD15 Connector Connects to the VGA acceptor B2
23 B1 OUT HD15 Connector Connects to the VGA acceptor B1
24 A INPUTS HD15 Connector
Connects to the VGA source A
25 B INPUTS HD15 Connector
Connects to the VGA source B
26 A1 OUT HD15 Connector Connects to the VGA acceptor A1
27
VGA Section
A2 OUT HD15 Connector Connects to the VGA acceptor A2
28 Power Connector with FUSE AC connector enabling power supply to the unit
4.3 VP-72 Multiformat 1:2 Distribution Amplifier Underside
Figure 3 and Table 3 define the underside of the VP-72:
1 For component video, connect all three connectors: Y, U, and V (also known as: Y, B-Y, and R-Y, and sometimes called Y,
Pb, and Pr)

Your VP-72 Multiformat 1:2 Distribution Amplifier
5
Figure 3: Underside VP-72 Multiformat 1:2 Distribution Amplifier
Table 3: Underside VP-72 Multiformat 1:2 Distribution Amplifier Features
# Feature Function
1 EQ. Trimmer Adjusts
1
the equalization compensation level for the composite video outputs
2
2 Level Trimmer Adjusts
1
the signal level for the composite video outputs
2
3 ID BIT Switch Set to ON position
3
to select the ID BIT
2
4 EQ. Trimmer Adjusts
1
the EQ. (equalization) compensation level for the component video
outputs (for channels Y, U, and V)
5 Level Trimmer Adjusts
1
the signal level for the component video outputs (for channels Y, U, and V)
6 C Level Trimmer Adjusts
1
the chrominance output signal level for each s-Video output
2
7 Y Level Trimmer Adjusts
1
the luminance output signal level for each s-Video output
2
8 Y EQ. Trimmer Adjusts
1
the equalization compensation level for each s-Video output
2
1 Insert a screwdriver into the small hole and carefully rotate it, trimming the level
2 For channels A and B
3 Sometimes notebook computers refuse to output a VGA signal to an external VGA monitor if they do not detect the ID BIT
as ON. Set the ID BIT to ON using this switch so that the notebook will output to an external VGA monitor

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-72 Multiformat 1:2 Distribution Amplifier
6
5 Connecting the VP-72 Multiformat 1:2 Distribution Amplifier
To connect the VP-72 to two VP-724xl units—the first a preview device, and
the second a program device—as the example in Figure 4 illustrates, do the
following
1
:
1. Connect the composite video sources and acceptors, as follows:
 Connect the composite video source
2
to the CV A INPUT BNC connector
 Connect the CV A1 OUT BNC connector of the VP-72 to the composite
video AV1 INPUT connector of the second VP-724xl unit
 Connect the CV A2 OUT BNC connector of the VP-72 to the composite
video AV1 INPUT connector of the first VP-724xl unit
2. Connect the component video source and acceptors as follows:
 Connect the Y, U, and V outputs of a component video source (for
example, a BETACAM video player) to the Y, U, and V COMP INPUT BNC
connectors
 Connect the component video Y1, U1, and V1 OUT BNC connectors to
the component video Y, PB/CB, and PR/CR COMPONENT INPUT connectors
of the second VP-724xl unit
 Connect the component video Y2, U2, and V2 OUT BNC connectors to
the component video Y, PB/CB, and PR/CR COMPONENT INPUT connectors
of the first VP-724xl unit
3. Connect the s-Video sources and acceptors, as follows:
 Connect the s-Video source
2
to the Y/C A INPUT 4p connector
 Connect the Y/C A1 OUT 4p connector to the s-Video YC1 INPUT 4p
connector of the second VP-724xl unit
 Connect the Y/C A2 OUT 4p connector to the s-Video YC1 INPUT 4p
connector of the first VP-724xl unit
4. Connect the VGA sources and acceptors, as follows:
 Connect the VGA source (for example, a graphics card from a PC) to the
VGA A INPUT HD15 connector
 Connect the VGA A1 OUT HD15F connector to the VGA 1 HD15F
INPUT connector of the second VP-724xl unit
 Connect the VGA A2 OUT HD15F connector to the VGA 1 HD15F
INPUT connector of the first VP-724xl unit
5. Connect the power connector (not shown in Figure 4), and adjust the Gain
and EQ., controls, if required (see section 4.3).
1 Not all inputs and outputs need to be connected. Any unused input or output should simply be left unconnected
2 For example, a video player

Connecting the VP-72 Multiformat 1:2 Distribution Amplifier
7
Figure 4: Connecting the VP-72 Multiformat 1:2 Distribution Amplifier

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
8
6 Technical Specifications
Table 4 includes the technical specifications:
Table 4: Technical Specifications
1
of the VP-72 Multiformat 1:2 Distribution Amplifier
CV COMP (YUV) Y/C VGA
INPUTS: 2 composite video
1Vpp/75on BNC
connectors
1 component
video (Y, B-Y,
and R-Y) on BNC
connectors
2 s-Video 1Vpp
(Y), 0.3Vpp (C) /
75on 4p
connectors
2 analog red,
green, blue signals
0.7Vpp / 75, H &
V sync, TTL level,
on HD15F
connectors
OUTPUTS: 2 per channel (4
total) composite
video 1Vpp/75
on BNC
connectors
2 component
video (Y, B-Y,
and R-Y) on BNC
connectors
2 per channel (4
total) s-Video
1Vpp (Y), 0.3Vpp
(C) / 75on 4p
connectors
2 per channel (4
total) analog red,
green, blue signals
0.7Vpp / 75, H &
V sync, TTL level,
on HD15F
connectors
MAX. OUTPUT LEVEL: 1.8Vpp 2.3Vpp 2.5Vpp 2.5Vpp
BANDWIDTH (-3dB): 470MHz 473MHz 513MHz 569MHz
DIFF. GAIN: 0.03% 0.03% 0.02% 0.04%
DIFF. PHASE: 0.05 Deg. 0.05 Deg. 0.02 Deg. 0.02 Deg.
K-FACTOR: <0.05% <0.05% <0.05% <0.05%
S/N RATIO: 76.7dB 75.6dB 83.2dB 75dB
CROSSTALK (all hostile):
–69.1dB –65.8dB –61dB –63.2dB
CONTROLS: Level: –0.7dB to
+6.4dB;
EQ.: 0dB to
+7.2dB
Level: –1.1dB to
+6.4dB;
EQ.: 0dB to
+7.2dB
C Level: –1.3dB
to +6dB;
Y Level: –0.9dB
to +6.3dB;
Y EQ.: 0dB to
+8dB
—
COUPLING: DC
POWER SOURCE: 100-230 VAC, 50/60 Hz, 3.5VA max.
DIMENSIONS: 19-inch (W), 7-inch (D) 1U (H) rack-mountable
WEIGHT: 2.7 kg. (6 lbs.) approx.
ACCESSORIES: Power cord
1 Specifications are subject to change without notice

9
LIMITED WARRANTY
Kramer Electronics (hereafter Kramer) warrants this product free from defects in material and workmanship under the
following terms.
HOW LONG IS THE WARRANTY
Labor and parts are warranted for three years from the date of the first customer purchase.
WHO IS PROTECTED?
Only the first purchase customer may enforce this warranty.
WHAT IS COVERED AND WHAT IS NOT COVERED
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by
the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
WHAT WE WILL PAY FOR AND WHAT WE WILL NOT PAY FOR
We will pay labor and material expenses for covered items. We will not pay for the following:
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
HOW YOU CAN GET WARRANTY SERVICE
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty coverage,
and should be included in any shipment of the product. Please also include in any mailing a contact name, company, address, and
a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
LIMITATION OF IMPLIED WARRANTIES
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to the
length of this warranty.
EXCLUSION OF DAMAGES
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer
shall not be liable for:
1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Part 1: Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercial and light industry environment".
CFR-47: FCC Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B – Unintentional radiators”
CAUTION!
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or modifications to
the unit without the expressed approval of the manufacturer will void user authority to operate the equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [email protected]
P/N: 2900-000072 REV 2
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
