Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1that are clearly
defined by function.
Thank you for purchasing the Kramer VS-106 16 Output Audio
Selector/Amplifier, which is ideal for:
•Audio broadcast and production studios
•Hi-fi retail stores
Each package includes the following items:
•The VS-106 16 Output Audio Selector/Amplifier
•Power supply (12V DC) and rack “ears”
•This user manual2
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and
packaging materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high-performance high-resolution cables3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems;
GROUP 4: Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products;
GROUP 7: Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity;
GROUP 10: Accessories and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

Overview
3
3 Overview
The VS-106 is a switcher/amplifier for unbalanced analog audio stereo
signals. The unit mechanically switches the single line input to one output,
either one of ten unpowered unbalanced audio stereo line outputs, or one of
six amplified speaker outputs. The unit does not switch to line and speaker
outputs simultaneously.
More specifically, the VS-106 features:
•Unpowered 1x10 mechanical line to line switching
•Amplified 1x6 line to speaker switching
•A loudspeaker volume knob
•A power ON indication LED
•A 12V DC power supply
•Standard 19” 1 U rack mount size
To achieve the best performance:
•Use only good quality connection cables1to avoid interference,
deterioration in signal quality due to poor matching, and elevated
noise levels (often associated with low quality cables).
•Avoid interference from neighboring electrical appliances that
may adversely influence signal quality and position your Kramer
VS-106 away from moisture, excessive sunlight and dust
4 Your VS-106 16 Output Audio Selector/Amplifier
Figure 1 and Table 1 define the unit.
1 Available from Kramer Electronics on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VS-106 16 Output Audio Selector/Amplifier
4
Figure 1: VS-106 16 Output Audio Selector/Amplifier

Installing the VS-106 in a Rack
5
Table 1: VS-106 16 Output Audio Selector/Amplifier Functions
# Feature Function
1 ON LED Illuminates green when receiving power
2 LINE OUT SELECTOR Buttons Press to choose the output line (1 to 10)
3 LOUDSPEAKER OUT SELECTOR Buttons Press to choose the output speaker pair (11 to 16)
4 LOUDSPEAKER VOLUME Knob Turn to adjust the volume level of the selected speakers
5 OUT (SPKR) (L+, L-, R+, R-) Terminal Blocks Connect to the stereo speaker pairs (11 to 16)
6 LINE INPUT (L, R) RCA Connectors Connect to the unbalanced audio stereo line source
7 LINE OUTPUT (L, R) RCA Connectors Connect to the unbalanced audio stereo acceptors (1 to 10)
8 12V DC Connector +12V DC for powering the unit
5 Installing the VS-106 in a Rack
This section describes how to install the VS-106 in a rack.
Before Installing in a rack How to Rack Mount
Before installing in a rack, be sure that the environment is
within the recommended range:
To rack-mount a machine:
1. Attach both ear brackets to the
machine. To do so, remove the
screws from each side of the
machine (3 on each side), and
replace those screws through the
ear brackets.
2. Place the ears of the machine
against the rack rails, and insert the
proper screws (not provided)
through each of the four holes in the
rack ears.
Note that:
•In some models, the front panel
may feature built-in rack ears
•Detachable rack ears can be
removed for desktop use
•Always mount the machine in the
rack before you attach any cables
or connect the machine to the
power
•If you are using a Kramer rack
adapter kit (for a machine that is not
19"), see the Rack Adapters user
manual for installation instructions
(you can download it at:
http://www.kramerelectronics.com)
Operating temperature range +5°to +45°C (41°to 113°F)
Operating humidity range 10 to 90% RHL, non-condensing
Storage temperature range -20°to +70°C (-4°to 158°F)
Storage humidity range 5 to 95% RHL, non-condensing
CAUTION!!
When installing on a 19" rack, avoid hazards by taking
care that:
1. It is located within the recommended environmental
conditions, as the operating ambient temperature of a
closed or multi unit rack assembly may exceed the
room ambient temperature.
2. Once rack mounted, enough air will still flow around
the machine.
3. The machine is placed straight in the correct
horizontal position.
4. You do not overload the circuit(s). When connecting
the machine to the supply circuit, overloading the
circuits might have a detrimental effect on overcurrent
protection and supply wiring. Refer to the appropriate
nameplate ratings for information. For example, for
fuse replacement, see the value printed on the
product label.
5. The machine is earthed (grounded) in a reliable way
and is connected only to an electricity socket with
grounding. Pay particular attention to situations where
electricity is supplied indirectly (when the power cord
is not plugged directly into the socket in the wall), for
example, when using an extension cable or a power
strip, and that you use only the power cord that is
supplied with the machine.
!

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting and Operating the VS-106
66
6 Connecting and Operating the VS-106
To connect the VS-106, as shown in Figure 2, do the following1:
1. Connect an unbalanced stereo audio source (for example, a stereo audio
player) to the LINE INPUT L and R RCA connectors.
2. Connect the LINE OUTPUT RCA connectors to up to 10 unbalanced stereo
audio acceptors (for example, stereo audio recorders).
3. Connect the OUT (SPKR) connectors to up to 6 speaker pairs (use only
passive, unpowered speakers).
4. Connect the 12V DC power supply.
To operate the VS-106:
1. Press the appropriate button on the LINE OUT SELECTOR (from 1 to 10)
or the LOUDSPEAKER OUT SELECTOR (from 11 to 16).
The line input switches to the selected line output or speaker.
2. Adjust the speaker volume by turning the LOUDSPEAKER VOLUME
knob.
Note: The power supply is only needed when operating loudspeakers.
No power is needed for line switching.
1 Switch OFF the power on each device before connecting it to your VS-106. After connecting your VS-106, connect its
power and then switch on the power on each device

Connecting and Operating the VS-106
7

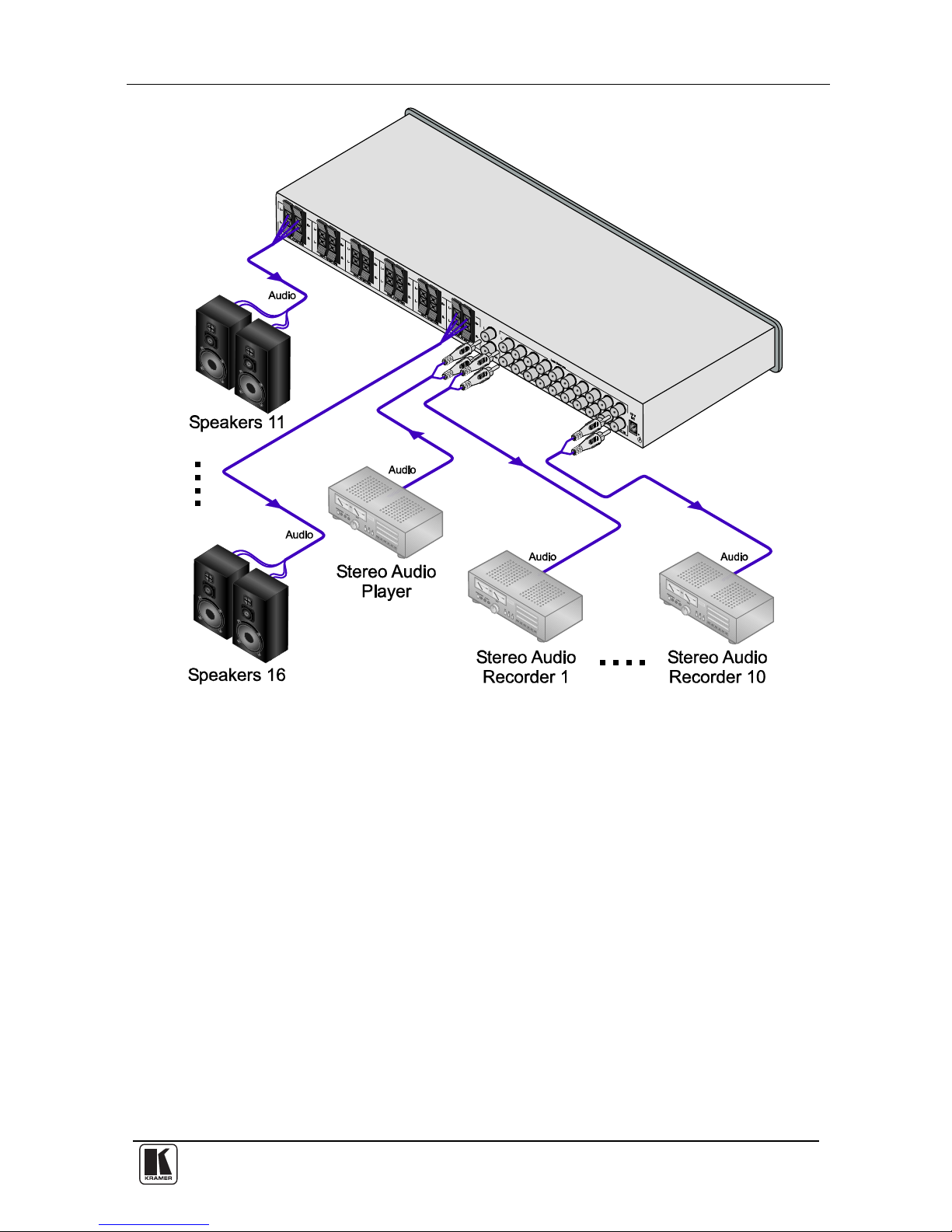

Figure 2: Connecting the VS-106 16 Output Audio Selector/Amplifier

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting and Operating the VS-106
88
6.1 Optional Gain Adjustment
You can set the overall gain of the loudspeakers by adjusting the gain
DIP-switches located on the circuit board inside the VS-106. Settings
available are 19dB, 25dB (factory setting), 31dB and 37dB.
To set the gain DIP-switches:
1. Remove the screws from the top and sides that hold the top cover.
2. Remove the top cover to access the circuit board.
3. Using a small screwdriver or pointed object, slide the DIP-switches to set
the desired gain (see Figure 3).
4. Replace the top cover and secure with the screws removed as per Step 1
above.
Figure 3: Adjusting the Gain DIP-Switches

Technical Specifications
9
7 Technical Specifications
The VS-106 technical specifications are shown in Table 2:
Table 2: VS-106 Technical Specifications1
INPUTS: 1 unbalanced stereo audio on RCA connectors
OUTPUTS: 6 powered speakers on 4-pin terminal blocks;
10 line level unbalanced audio stereo on RCA connectors
INPUT SENSITIVITY: 230mVpp @37dB gain program max. level
OUTPUT POWER: 8W RMS per channel into 4Ω
MAX. VOLTAGE GAIN: +37dB (70.8x)
BANDWIDTH (-3dB): >20kHz
S/N RATIO: Power amplifier: 76dB; line level 92dB@1kHz
CONTROLS: Volume control knob
COUPLING: Speakers: input – AC, output – DC
Line: input – DC, output – DC
AUDIO THD + NOISE: Power amplifier: 3.5%; line level 0 (no active parts to distort)
AUDIO 2nd HARMONIC: 1.2% @1kHz, power outputs
AMPLIFIER TYPE: Class D
POWER SOURCE: 12V DC, 2A
DIMENSIONS: 19” x 4.0” x 1U
WEIGHT: 1kg (2.2lbs)
ACCESSORIES: Power supply, rack “ears”
1 Specifications are subject to change without notice

KRAMER: SIMPLE CREATIVE TECHNOLOGY
1010
LIMITED WARRANTY
WHOISPROTECTED?
WHATISCOVEREDANDWHATISNOTCOVERED
WHATWEWILLPAYFORANDWHATWEWILLNOTPAYFOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATIONOFIMPLIEDWARRANTIES
EXCLUSIONOFDAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
followingterms.
Kramer
HOWLONGISTHE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
Wewillpaylaborandmaterialexpensesforcovereditems.Wewillnotpayforthefollowing:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
notbeliablefor:
Thiswarrantygivesyouspecificlegalrights,andyoumayalsohaveotherrights,whichvaryfromplacetoplace.
AllproductsreturnedtoKramerforservicemusthavepriorapproval.Thismaybe obtainedfromyourdealer.
Thisequipmenthasbeentestedtodeterminecompliancewiththerequirementsof:
EN-50081: "Electromagneticcompatibility(EMC);
genericemissionstandard.
Residential,commercialandlightindustry"
EN-50082: "Electromagneticcompatibility(EMC)genericimmunitystandard.
Part1:Residential,commercialandlightindustryenvironment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by thewarranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTYVOID
TAMPERED sticker has been torn,
3. Damage,deteriorationormalfunctionresultingfrom:
i) Accident,misuse,abuse,neglect,fire, water, lightningorotheractsofnature
ii) Productmodification,orfailuretofollowinstructionssuppliedwiththeproduct
iii) RepairorattemptedrepairbyanyonenotauthorizedbyKramer
iv) Anyshipmentoftheproduct(claimsmustbepresentedtothecarrier)
v) Removalorinstallationoftheproduct
vi) Anyothercause,whichdoesnotrelatetoaproductdefect
vii) Cartons,equipment enclosures,cablesoraccessoriesusedinconjunctionwiththeproduct
1. Removalorinstallationscharges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibilityoftheKramerdealerfromwhomtheproductwaspurchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damagetootherpropertycausedbydefectsinthisproduct,damagesbaseduponinconvenience,lossofuseoftheproduct,loss
oftime,commercialloss;or:
2. Any other damages, whether incidental,consequential or otherwise.Somecountriesmay notallow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitationsandexclusionsmaynotapplytoyou.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
UsethesuppliedDCpowersupplytofeedpowertothemachine.
Pleaseuserecommendedinterconnectioncablestoconnectthemachinetoothercomponents.
IF reattached, removed or otherwise interfered with.
*FCCandCEapprovedusingSTPcable(fortwistedpairproducts)
NOTE:
Part1:

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
P/N: 2900-000647 REV 1
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
Table of contents
Other Kramer Amplifier manuals

Kramer
Kramer 104LN User manual

Kramer
Kramer VP-108 User manual

Kramer
Kramer 123Vx1 User manual

Kramer
Kramer PA-50HZ User manual

Kramer
Kramer VM-92 User manual

Kramer
Kramer VP-450 User manual

Kramer
Kramer VM-5YC User manual

Kramer
Kramer PT-102A User manual

Kramer
Kramer VP-300 User manual

Kramer
Kramer VM-212DT User manual

Kramer
Kramer 907xl User manual

Kramer
Kramer VM-5DS User manual

Kramer
Kramer 902 User manual

Kramer
Kramer VM-2DT User manual

Kramer
Kramer VM-4UX User manual

Kramer
Kramer Pico TOOLS VM-2HD User manual

Kramer
Kramer VM-80A User manual

Kramer
Kramer VM-10HDxl User manual

Kramer
Kramer VP-200N-5 User manual

Kramer
Kramer VM-10HD I Series User manual
