VM-1610 Quick Start
P/N:
2900- 301268QS
Rev:
2
Scan for full manual
VM-1610 Quick Start Guide
This guide helps you install and use your VM-1610 for the first time.
Go to www.kramerav.com/downloads/VM-1610 to download the latest user manualand check if firmware
upgrades are available.
Step 1: Check what’s in the box
VM-1610 Balanced Audio-Stereo Distributor
4 Rubber feet
1 Power cord
1 Quick start guide

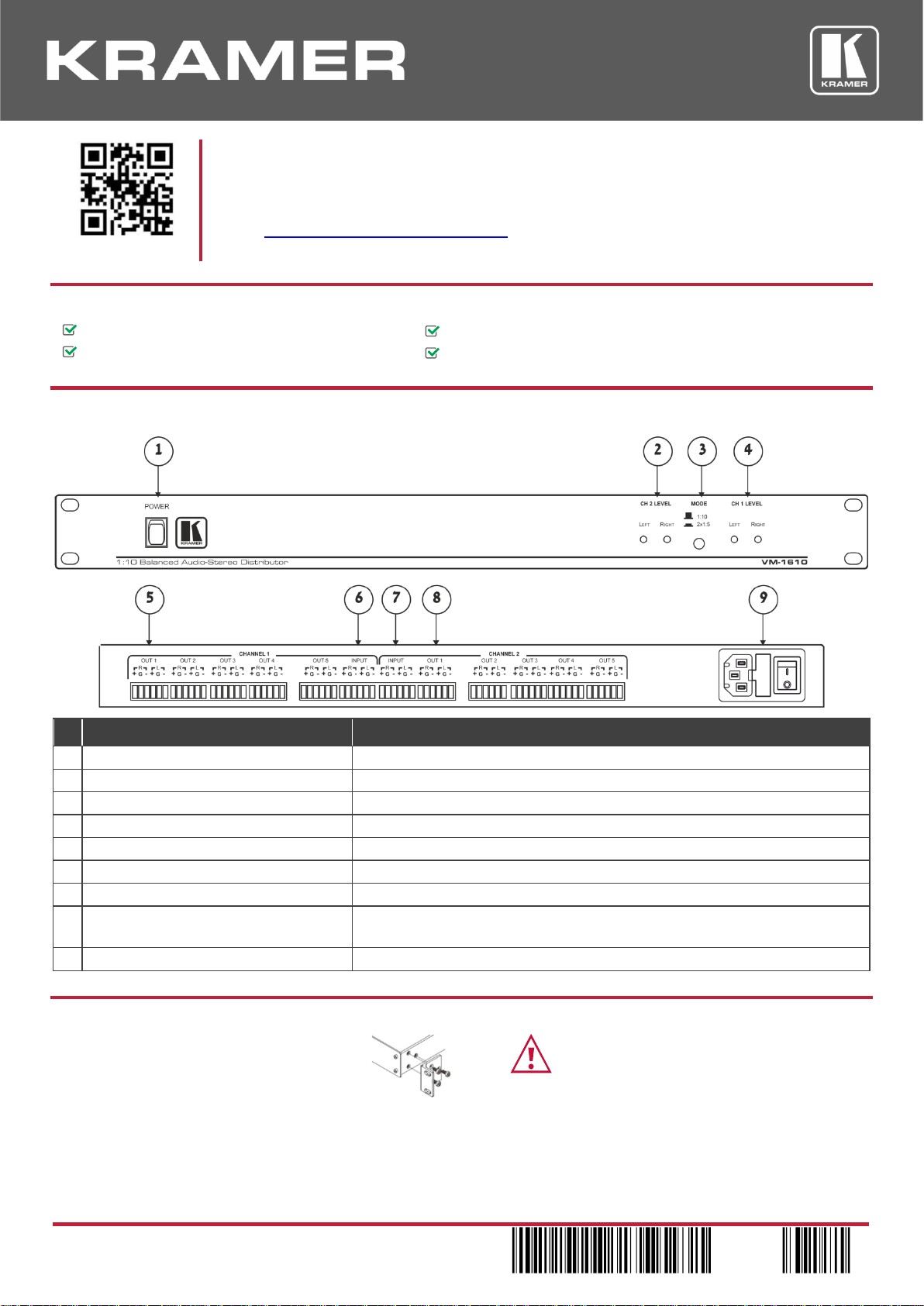

Step 2: Get to know your VM-1610
#
Feature
Function
1
POWER Switch
Illuminated power switch to turn the unit on and off.
2
CH 2 LEVEL (LEFT, RIGHT) Trimmers
Turn to adjust the left and right audio gains of channel 2.
3
MODE (1:10, 2x1:5) Button
Press to select 2x1:5 output, release to select 1:10 output.
4
CH 1 LEVEL (LEFT, RIGHT) Trimmers
Turn to adjust the left and right audio gains of channel 1.
5
CHANNEL 1 OUT Terminal Blocks
Connect to the channel 1 balanced stereo acceptors (1 to 5).
6
CHANNEL 1 INPUT Terminal Block
Connect to balanced stereo source 1.
7
CHANNEL 2 INPUT Terminal Block
Connect to balanced stereo source 2.
8
CHANNEL 2 OUT Terminal Blocks
Connect to the channel 1 balanced stereo acceptors (6 to 10) or connect to the
channel 2 balanced stereo acceptors (1 to 5).
9
Power Connector with Fuse
AC connector enabling power supply to the unit.
Step 3: Mount VM-1610
To rack mount the machine, attach both rack ears
(by removing the screws from each side of the
machine and replacing those screws through the
rack ears) or place the machine on a table.
•Ensure that the environment (e.g., maximum ambient temperature &
air flow) is compatible for the device.
•Avoid uneven mechanical loading.
•Appropriate consideration of equipment nameplate ratings should be
used for avoiding overloading of the circuits.
•Reliable earthing of rack-mounted equipment should be maintained.

Step 4: Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your VM-1610.
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/VM-1610.
Using third-party cables may cause damage!
Step 5: Connect power
Connect the power cord to VM-1610 and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
•For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the
terminal or in the User Manual.
•There are no operator serviceable parts inside the unit.
Warning:
•Use only the power cord that is supplied with the unit.
•Disconnect the power and unplug the unit from the wall before installing.
•Do not open the unit. High voltages can cause electrical shock! Servicing by qualified personnel only.
•To ensure continuous risk protection, replace fuses only according to the rating specified on the product label which located on the
bottom of the unit.
Step 6: Operate VM-1610
1. Set the MODE (1:10, 2x1:5) button to the required connection mode.
2. If required, adjust the level trimmers with a small screwdriver.
