USER MANUAL
Model:
VP-409
Video To WUXGA Scaler

Contents
i
Contents
1Introduction 1
2Getting Started 1
2.1 Quick Start 2
3Overview 3
4Your VP-409 Video To WUXGA Scaler 4
4.1 Sync Enable/Disable Output Function 5
4.2 OSD Information Enable/Disable Function 5
5Connecting the VP-409 6
6Technical Specifications 7
Figures
Figure 1: VP-409 Video To WUXGA Scaler 4
Figure 2: Connecting the VP-409 6
Tables
Table 1: VP-409 Video To WUXGA Scaler Features 4
Table 2: Technical Specifications of the VP-409 7

Introduction
1
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast
range of problems that confront the video, audio, presentation, and
broadcasting professional on a daily basis. In recent years, we have
redesigned and upgraded most of our line, making the best even better! Our
1,000-plus different models now appear in 11 groups1
Congratulations on purchasing your Kramer TOOLS VP-409 Video To
WUXGA Scaler, which is ideal for the following typical applications:
that are clearly defined
by function.
•Multimedia and presentation applications for projecting a composite video
or s-Video source using a data projector, plasma, or TFT flat-screen
•Presentation and conference room systems, boardrooms and auditoriums
•Conversion of composite/YC video to VGA format to use in RGBHV
systems
•Rental and Staging
The package includes the following items:
•VP-409 Video To WUXGA Scaler
•Power adapter: 5V DC Input
•This user manual2
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
•Review the contents of this user manual
•Use Kramer high performance high resolution cables3
1 GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Matrix Switchers; GROUP 3: Control Systems; GROUP 4:
Format/Standards Converters; GROUP 5: Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9: Room Connectivity; GROUP 10: Accessories
and Rack Adapters; GROUP 11: Sierra Products
2 Download up-to-date Kramer user manuals from our Web site at http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Getting Started
2
2.1 Quick Start
This quick start chart summarizes the basic setup and operation steps.

Overview
3
3
3 Overview
The Kramer VP-409 is a high quality low cost converter for up-scaling
composite video and s-Video to up to WUXGA. It accepts PAL-B/D/G/H/I,
NTSC 3.58, and NTSC 4.43 video formats. This compact, multi-standard unit
has a built-in 3D de-interlacer and a 3D comb-filter that ensures superb
quality.
The VP-409 features:
•An external DC source, making it suitable for field operation
•Side-panel buttons for selecting the input source and the output resolution
−indicated by LEDs
•Non-volatile memory that retains the last setting, after switching the power off
To achieve the best performance:
•Connect only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise-
levels (often associated with low quality cables)
•Avoid interference from neighboring electrical appliances and position
your Kramer VP-409 away from moisture, excessive sunlight and dust

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your VP-409 Video To WUXGA Scaler
4
4 Your VP-409 Video To WUXGA Scaler
Figure 1 and Table 1 define the VP-409 Video To WUXGA Scaler:
Figure 1: VP-409 Video To WUXGA Scaler
Table 1: VP-409 Video To WUXGA Scaler Features
#
Feature
Function
1 5V DC +5V DC connector for powering the unit
2 CV IN RCA Connector Connects to a composite video source
3 Y/C IN 4-pin Connector Connects to an s-Video source
4 OUTPUT 15-pin HD Connector Connects to the VGA-WUXGA acceptor
5 INPUT SELECT Button Press to select between inputs
6 CV LED Illuminates when the CV input is selected
7 Y/C LED Illuminates when the Y/C input is selected
8 OUTPUT RES. Button Press to select the desired output resolution
9 VGA LED Illuminates when the VGA (640x480) resolution is selected
10 SVGA LED Illuminates when the SVGA (800x600) resolution is selected
11 XGA LED Illuminates when the XGA (1024x768) resolution is selected
12 1280x800 LED Illuminates when the 1280x800 (Wide XGA) resolution is selected
13 1366x768 LED Illuminates when the 1366x768 (WXGA) resolution is selected
14 WSXGA LED Illuminates when the WSXGA (1440x900) resolution is selected
15 SXGA LED Illuminates when the SXGA (1280x1024) resolution is selected
16 1400x1050 LED Illuminates when the 1400x1050 (SXGA+) resolution is selected
17 1680x1050 LED Illuminates when the 1680x1050 (WSXGA+) resolution is selected
18 UXGA LED Illuminates when the UXGA (1600x1200) resolution is selected
19 1920x1080 LED Illuminates when the 1920x1080 (1080p RGB) resolution is selected
20 WUXGA LED Illuminates when the WUXGA (1920x1200) resolution is selected

Your VP-409 Video To WUXGA Scaler
5
5
4.1 Sync Enable/Disable Output Function
You can setup the unit to automatically disable its sync output signals1
To toggle between the sync output enable/disable state while no input is
connected, do the following:
when
no source is connected, so that the display/projector can enter “sleep” mode
(that is, turn OFF when no sync is detected).
1. Press and hold the input selection button and connect the power supply
cable.
2. Hold the button until one of the input LEDs flashes for a short time (this
takes about 12 seconds).
To identify the current status of the unit, disconnect and reconnect the power
cable to start up the unit:
•If both INPUT LEDs flash for a short time, the sync output signals are
disabled
•If both INPUT LEDs remain ON during unit startup, the sync output
signals are enabled
4.2 OSD Information Enable/Disable Function
To toggle between enabling/disabling the OSD information:
1. Press and hold the OUTPUT RES. selection button and connect the
power supply cable.
2. Hold the button until all the resolution LEDs flash for a short time. (This
takes about 12 seconds).
1 The syncs are disabled after no video is detected for a period of about 2 minutes

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Connecting the VP-409
6
5 Connecting the VP-409
To connect the VP-409, as illustrated in the example in Figure 2, do the
following1
1. Connect a composite video source to the CV IN RCA connector (for
example, a composite video player) and/or an s-Video source (for
example, an s-Video player) to the Y/C 4-pin input connector.
:
2. Connect the OUTPUT 15-pin HD computer graphics video connector to
an acceptor (for example, a plasma display).
3. Connect the 5V DC power adapter to the power socket and connect the
adapter to the mains electricity (not shown in Figure 2).
4. Use the:
INPUT SELECT button to select the desired input
OUTPUT RES. button to select the desired resolution
Figure 2: Connecting the VP-409
1 Switch OFF the power on each device before connecting it to your VP-409. After connecting your VP-409, switch on its
power and then switch on the power on each device

Technical Specifications
7
7
6 Technical Specifications
Table 2 includes the technical specifications1
Table 2: Technical Specifications of the VP-409
:
INPUTS: 1 CV 1Vpp/75Ωon an RCA connector
1 Y/C 1Vpp (Y); 0.3Vpp (C)/75Ωon a 4-pin connector
OUTPUT: 1 VGA (VGA through WUXGA) on a 15-pin HD computer graphics video
connector
OUTPUT RESOLUTIONS: VGA, SVGA, XGA, 1280x800, 1366x768, WSXGA, SXGA, 1400x1050,
1680x1050, UXGA, 1920x1080, and WUXGA
OUTPUT REFRESH RATE: 60Hz
CONTROLS: Pushbuttons and LEDs for selection of Input Source and Output Resolution
POWER SOURCE: 5V DC, 450mA
DIMENSIONS: 12cm x 7.5cm x 2.5cm (4.7" x 2.95" x 0.98", W, D, H)
WEIGHT: 0.3kg (0.67lbs) approx.
ACCESSORIES: Power supply (5V)
OPTIONS: RK-3T 19” rack adapter
1 Specifications are subject to change without notice

KRAMER: SIMPLE CREATIVE TECHNOLOGY
8
LIMITED WARRANTY
WHO IS PROTECTED?
WHAT IS COVERED ANDWHAT IS NOT COVERED
WHAT WE WILLPAY FOR AND WHAT WE WILLNOT PAYFOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OFIMPLIED WARRANTIES
EXCLUSION OF DAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
Kramer
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items. We will not pay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
This warranty gives you specific legalrights, andyou may also have other rights, which varyfrom place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
Thisequipment has been testedto determine compliancewith therequirements of:
EN-50081: "Electromagnetic compatibility(EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility(EMC) generic immunity standard.
Part 1: Residential, commercialand lightindustryenvironment".
CFR-47: FCC* Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product, on which the serial number has been defaced, modified or removed, or on which the WARRANTY VOID
TAMPERED sticker has been torn,
3. Damage, deterioration or malfunction resultingfrom:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attemptedrepair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presentedto the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used inconjunction with the product
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to other property caused by defects in this product, damages basedupon inconvenience, loss of useof the product, loss
of time, commercialloss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations andexclusions maynot apply toyou.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
IF reattached, removed or otherwise interfered with.
* FCC and CE approved using STPcable (for twisted pair products)
NOTE:
Part 1:

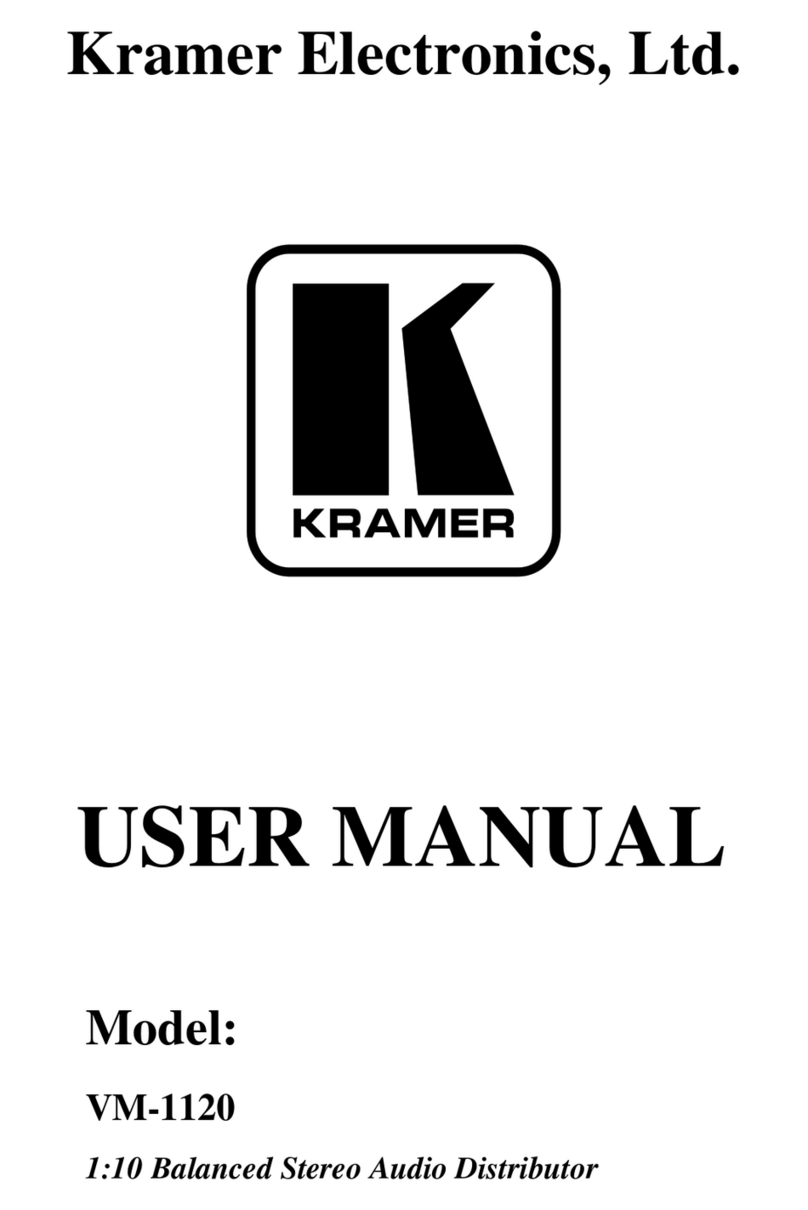

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: inf[email protected]
P/N: 2900-000619 REV 2
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
PN:
2900- 000619
Rev:
2
