Kramer WP-120 User manual

Kramer Electronics, Ltd.
USER MANUAL



Model:
WP-120
XGA Line Receiver

Contents
i
Contents
1 Introduction 1
2 Getting Started 1
3 Overview 1
3.1 About the Power Connect Feature 2
3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) 2
3.3 Recommendations for Achieving the Best Performance 2
4 Your WP-120 XGA Line Receiver 3
4.1 Your WP-120 XGA Line Receiver (Front Panel) 3
4.2 Your WP-120 XGA Line Receiver (Rear Side) 4
4.3 Installing the WP-120 XGA Line Transmitter 5
4.4 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors 5
5 Technical Specifications 6
Figures
Figure 1: WP-120 XGA Line Receiver 3
Figure 2: WP-120 XGA Line Receiver (Rear Side) 4
Figure 3: CAT 5 PINOUT 5
Tables
Table 1: WP-120 XGA Line Receiver Features 3
Table 2: WP-120 XGA Line Receiver (Rear Side) Features 4
Table 3: CAT 5 PINOUT 5
Table 4: Technical Specifications of the WP-120 6

Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range
of problems that confront the video, audio, presentation, and broadcasting
professional on a daily basis. In recent years, we have redesigned and upgraded
most of our line, making the best even better! Our 500-plus different models
now appear in eight groups
1
that are clearly defined by function.
Congratulations on purchasing your Kramer Wall Plate WP-120 XGA Line
Receiver, which is ideal for:
Presentation and multimedia applications
Long range graphics distribution for schools, hospitals, security, and stores
The package includes the following items:
WP-120 XGA Line Receiver
Power supply and this user manual
2
2 Getting Started
We recommend that you:
Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
Review the contents of this user manual
Use Kramer high performance high resolution cables
3
3 Overview
The Kramer WP-120 wall plate is an XGA line receiver that receives an
encoded CAT5 signal transmitted by a transmitter
4
, decodes it and converts it to
an XGA output. In particular, the WP-120:
Includes EQ. and level controls
Has the power connect feature
5
Is 12VDC fed
1 GROUP 1: Distribution Amplifiers; GROUP 2: Video and Audio Switchers, Matrix Switchers and Controllers; GROUP 3:
Video, Audio, VGA/XGA Processors; GROUP 4: Interfaces and Sync Processors; GROUP 5: Twisted Pair Interfaces;
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors
2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com
3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com
4 For example, the Kramer WP-110 or PT-110
5PoweringviatheCAT5cablefromeitherthereceiverorthetransmitterisgood for50meters.Aboveit,bothsidesshould
be fed with power

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Overview
2
3.1 About the Power Connect Feature
The Power Connect feature applies as long as the cable can carry power. The
distance does not exceed 50 meters on standard CAT5 cable. For longer
distances, heavy gauge cable should be used
1
.
For a CAT5 cable exceeding a distance of 50 meters, separate power supplies
should be connected to the transmitter and to the receiver simultaneously.
3.2 Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP)
The decision whether to use shielded twisted pair (STP) cable or unshielded
twisted pair (UTP) cable depends on the nature of the application.
It is recommended that in applications with high interference, shielded twisted
pair (STP) cable is used. However, the shield itself does create a capacitance
that degrades the frequency response of the machines. For shorter distances, of
50m or so, shielded twisted pair (STP) cable is preferred because it provides
protection from interference (degradation is not apparent).
For long range applications, unshielded twisted pair (UTP) cable is preferred.
However, the unshielded twisted pair (UTP) cable should be installed far away
from electric cables, motors and so on, which are prone to create electrical
interference.
3.3 Recommendations for Achieving the Best Performance
Achieving the best performance means:
Connecting only good quality connection cables, thus avoiding interference,
deterioration in signal quality due to poor matching, and elevated noise
levels (often associated with low quality cables)
Avoiding interference from neighboring electrical appliances and
positioning your WP-120 away from moisture, excessive sunlight and dust
Caution – No operator-serviceable parts inside unit.
Warning – Use only the Kramer Electronics input power
wall adapter that is provided with this unit
2
.
Warning – Disconnect power and unplug unit from wall
before installing or removing device or servicing unit.
1 CAT5 cable is still suitable for the video/audio transmission, but not for feeding the power at these distances
2 For example: model number AD2512C, part number 2535-000251

Your WP-120 XGA Line Receiver
3
4 Your WP-120 XGA Line Receiver
ThissectiondescribestheWP-120 XGALineReceiver
Front panel (see section 4.1)
Rear side (see section 4.2)
4.1 Your WP-120 XGA Line Receiver (Front Panel)

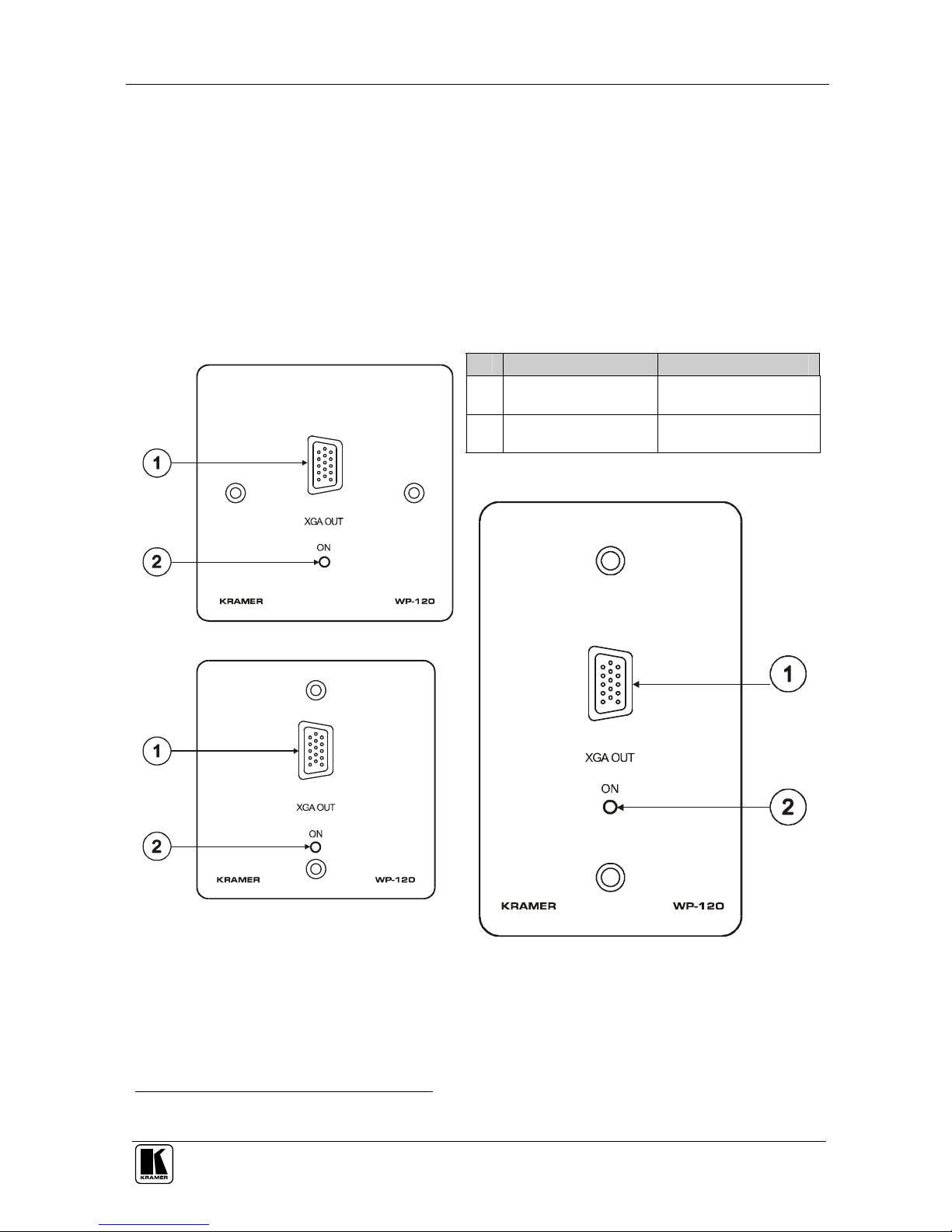

Figure 1 and Table 1 define the front panel of the WP-120 XGA Line Receiver:
1
Table 1: WP-120 XGA Line Receiver
Features
# Feature Function
1 XGA OUT HD15F
Connector
Connect to the XGA
acceptor
2 ON LED Illuminates when
receiving power
Version for the UK and Europe
1
Version for Belgium and Germany
Version for the United States
Figure 1: WP-120 XGA Line Receiver
1 Excluding Belgium and Germany

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Your WP-120 XGA Line Receiver
4
4.2 Your WP-120 XGA Line Receiver (Rear Side)
Figure 2 and Table 2 define the rear panel of the WP-120:
Left Panel
Rear Panel
Right Panel
Figure 2: WP-120 XGA Line Receiver (Rear Side)
Table 2: WP-120 XGA Line Receiver (Rear Side) Features
# Feature Function
1 HS
1
Switch Slide the switch down
2
to invert the HS polarity
3
Slide the switch up (to NORMAL) to retain the polarity
2 VS
1
Switch Slide the switch down
2
to invert the VS polarity
3
Slide the switch up (to NORMAL) to retain the polarity
3 +12V PIN Connect (+) to the connector for powering the unit POWER
GND PIN Connect (-) to the Ground
4 EQ.
4
Trimmer Adjust
5
the cable compensation equalization level
5 Level Trimmer Adjust
5
the output signal level
6 Line IN RJ-45
Connector
Connect
6
to the LINE OUT RJ-45 connector from a receiver
7
1 SYNC
2 By default, both switches are set to NORMAL
3 Downgoing syncs
4 Degradation and VGA/XGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a
total loss of sharpness in high-resolution signals
5 Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level
6 Using a UTP cable with CAT 5 connectors at both ends (the PINOUT is defined in Table 3 and Figure 3)
7 For example, the PT-110 or WP-110

Your WP-120 XGA Line Receiver
5
4.3 Installing the WP-120 XGA Line Transmitter
To install your WP-120 XGA Line Transmitter:
1. Connect the line out RJ-45 connector of the transmitter to the pre-installed
UTP wiring in the wall box opening that connects via UTP cabling to the
LINE IN RJ-45 connector of the WP-120.
2. Connect your 12V DC power supply to the POWER SUPPLY pins
1
,
taking care that polarity is correct.
3. Insert the WP-120 directly into the wall box opening, and then mount the
front panel securely using the screws.
4. Connect the XGA acceptor to the XGA OUT HD15F connector.
4.4 Wiring the CAT 5 LINE IN / LINE OUT RJ-45 Connectors

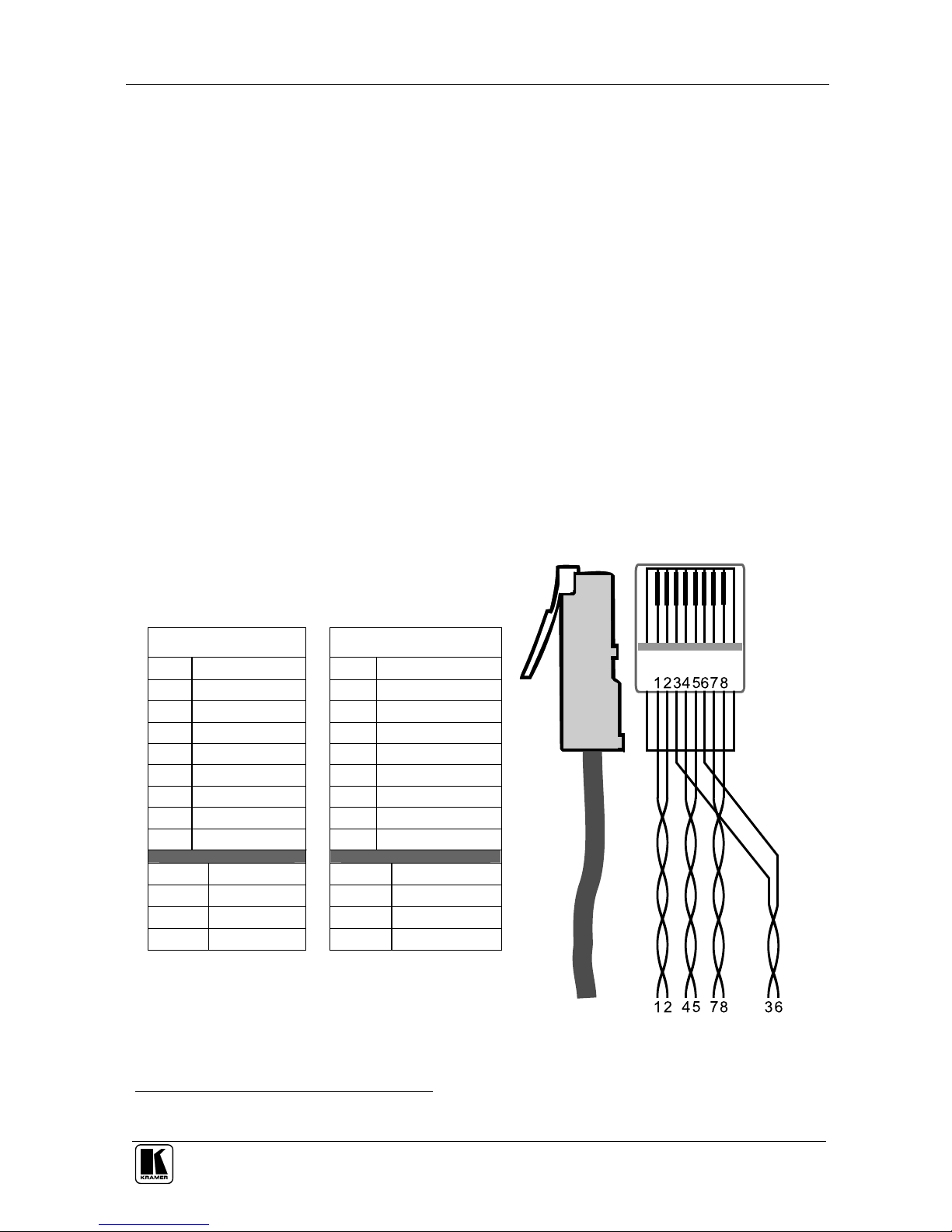

Table 3 and Figure 3 define the CAT 5 PINOUT, using a straight pin to pin
cable with RJ-45 connectors:
Table 3: CAT 5 PINOUT
EIA /TIA 568A EIA /TIA 568B
PIN Wire Color PIN Wire Color
1 Green / White 1 Orange / White
2 Green 2 Orange
3 Orange / White 3 Green / White
4 Blue 4 Blue
5 Blue / White 5 Blue / White
6 Orange 6 Green
7 Brown / White 7 Brown / White
8 Brown 8 Brown
Pair 1 4 and 5 Pair 1 4 and 5
Pair 2 3 and 6 Pair 2 1 and 2
Pair 3 1 and 2 Pair 3 3 and 6
Pair 4 7 and 8 Pair 4 7 and 8
Figure 3: CAT 5 PINOUT
1 Connect the wire labeled “+” to the +12V pin, and the wire labeled “–” to the GND pin

KRAMER: SIMPLE CREATIVE TECHNOLOGY
Technical Specifications
6
5 Technical Specifications
Table 4 includes the technical specifications:
Table 4: Technical Specifications
1
of the WP-120
INPUTS: 1 RJ-45 LINE IN connector
OUTPUTS: 1 XGA on an HD15F connector
MAX. OUTPUT LEVEL: 1.5Vpp
RESOLUTION: Up to UXGA
DIFF. GAIN
2
: 2.7%
DIFF. PHASE
2
0.22 Deg
K-FACTOR
2
: <0.1%
S/N RATIO
2
: 61dB
CONTROLS: Level: -9.4dB to +2.2dB; EQ.: 0dB to +30.9dB
COUPLING: DC
POWER SOURCE: 12 VDC 190mA
DIMENSIONS: USA: 6.9cm x 3.8cm x 11.4cm (2.72" x 1.5" x 4.5", W, D, H)
Belgium and Germany: 8cm x 3.8cm x 8cm (3.15" x 1.5" x 3.15", W, D, H)
UK and most of Europe
3
: 8.6cm x 3.8cm x 8.6cm (3.39" x 1.5" x 3.39", W, D, H)
WEIGHT: 0.14kg. (0.31lbs.) approx.
ACCESSORIES: Power supply
1 Specifications are subject to change without notice
2 For the Transmitter/Receiver pair
3 Excluding Belgium and Germany

7
LIMITED WARRANTY
WHO IS PROTECTED?
WHAT IS COVERED AND WHAT IS NOT COVERED
WHAT WE WILL PAY FOR AND WHAT WE WILLNOT PAY FOR
HOW YOU CAN GET WARRANTY SERVICE
LIMITATION OF IMPLIED WARRAN TIES
EXCLUSION OF DAMAGES
CAUTION!
Kramer Electronics (hereafter ) warrants this product free from defects in material and workmanship under the
following terms.
Kramer
HOW LONG IS THE WARRANTY
Labor and parts are warranted for seven years from the date of the first customer purchase.
Only the first purchase customer may enforce this warranty.
We will pay labor and material expenses for covered items.We will not pay for the following:
The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall
not be liable for:
This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place.
All products returned to Kramer for service must have prior approval. This may be obtained from your dealer.
This equipment has been tested to determine compliance with the requirements of:
EN-50081: "Electromagnetic compatibility (EMC);
generic emission standard.
Residential, commercial and light industry"
EN-50082: "Electromagnetic compatibility (EMC) generic immunity standard.
Part 1: Residential, commercialand light industryenvironment".
CFR-47: FCC Rules and Regulations:
Part 15: “Radio frequency devices
Subpart B Unintentional radiators”
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered
by the warranty:
1. Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are
uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site
www.kramerelectronics.com.
2. Any product,on which the serial number has been defaced, modified or removed.
3. Damage, deterioration or malfunction resulting from:
i) Accident, misuse, abuse, neglect, fire, water, lightning or other acts of nature
ii) Product modification, or failure to follow instructions supplied with the product
iii) Repair or attempted repair by anyone not authorized by Kramer
iv) Any shipment of the product (claims must be presented to the carrier)
v) Removal or installation of the product
vi) Any other cause, which does not relate to a product defect
vii) Cartons, equipment enclosures, cables or accessories used in conjunction with the product
1. Removal or installations charges.
2. Costs of initial technical adjustments (set-up), including adjustment of user controls or programming. These costs are the
responsibility of the Kramer dealer from whom the product was purchased.
3. Shipping charges.
1. To obtain service on you product, you must take or ship it prepaid to any authorized Kramer service center.
2. Whenever warranty service is required, the original dated invoice (or a copy) must be presented as proof of warranty
coverage, and should be included in any shipment of the product. Please also include in any mailing a contact name,
company, address, and a description of the problem(s).
3. For the name of the nearest Kramer authorized service center, consult your authorized dealer.
All implied warranties, including warranties of merchantability and fitness for a particular purpose, are limited in duration to
the length of this warranty.
1. Damage to other property caused by defects inthis product, damages basedupon inconvenience, loss of use of the product, loss
of time, commercial loss; or:
2. Any other damages, whether incidental, consequential or otherwise. Some countries may not allow limitations on how long an
implied warranty lasts and/or do not allow the exclusion or limitation of incidental or consequential damages, so the above
limitations and exclusions may not apply to you.
Servicing the machines can only be done by an authorized Kramer technician. Any user who makes changes or
modifications to the unit without the expressed approval of the manufacturer will void user authority to operate the
equipment.
Use the supplied DC power supply to feed power to the machine.
Please use recommended interconnection cables to connect the machine to other components.
NOTE:
Part 1:

Kramer Electronics, Ltd.
Web site: www.kramerelectronics.com
E-mail: [email protected]
P/N: 2900-000335 REV 1
For the latest information on our products and a list of Kramer
distributors, visit our Web site: www.kramerelectronics.com,
where updates to this user manual may be found.
We welcome your questions, comments and feedback.
Caution
Safety Warning:
Disconnect the unit from the power supply before
opening/servicing.
