USER MANUAL
MODELS:
KW-14T-IL
Wireless HD Transmitter
KW-14R-IL
Wireless HD Receiver
P/N: 2900-300595 Rev 3 www.kramerAV.com

KW-14T-IL/KW-14R-IL – Contents
i

ii
KW-14T-IL - Contents

KW-14T-IL/KW-14R-IL – Contents
iii
Contents
1Introduction 1
2Getting Started 2
2.1 Achieving the Best Performance 2
2.2 Safety Instructions 2
2.3 Recycling Kramer Products 3
3Overview 4
4Defining the KW-14T-IL Wireless HD Transmitter and Receiver 6
4.1 Defining the KW-14T-IL Wireless HD Transmitter 6
4.2 Defining the KW-14R-IL Wireless HD Receiver 8
5Connecting the KW-14T-IL and KW-14R-IL 10
5.1 Connecting the KW-14T-IL and KW-14R-IL 10
5.2 Registering a Transmitter and Receiver 11
5.3 Standby Mode 13
6Using IR Remote Control and OSD Menu 14
6.1 Using the Setup Menu 15
7Mounting the KW-14T-IL and the KW-14R-IL 18
7.1 Mounting Locations Best Practices 18
7.2 Mounting the Transmitter and Receiver 18
8Frequently Asked Questions 21
9Technical Specifications 25
9.1 Country Certification 26
9.2 Supported Video Resolutions and Rates 27
9.3 KW-14T-IL Mini USB Pinout 27
9.4 Operating Frequencies 28
10 FCC Radio Frequency Interference Statement 29
Figures
Figure 1: KW-14T-IL Wireless HD Transmitter Top Panel 6
Figure 2: KW-14T-IL Wireless HD Transmitter Side and Front Panels 7
Figure 3: KW-14R-IL Wireless HD Receiver Top Panel 8
Figure 4: KW-14R-IL Wireless HD Receiver Rear and Side Panels 9
Figure 5: Connecting the KW-14T-IL and KW-14R-IL 10
Figure 6: The IR Remote Control Buttons 14
Figure 7: Select Video Source Menu 15
Figure 8: Setup Menu 15
Figure 9: Choose Source to Remove Menu 16
Figure 10: Drilling Pilot Holes in the Center of the Mounting Holes. Not to scale 19
Figure 11: KW-14T-IL Mini USB Pinout 27

KW-14T-IL/KW-14R-IL - Introduction
1
1 Introduction
Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been
providing a world of unique, creative, and affordable solutions to the vast range of
problems that confront video, audio, presentation, and broadcasting professionals
on a daily basis. In recent years, we have redesigned and upgraded most of our
line, making the best even better!
Our 1,000-plus different models now appear in 14 groups that are clearly defined by
function: GROUP 1: Distribution Amplifiers; GROUP 2: Switchers and Routers;
GROUP 3: Control Systems; GROUP 4: Format/Standards Converters; GROUP 5:
Range Extenders and Repeaters; GROUP 6: Specialty AV Products; GROUP 7:
Scan Converters and Scalers; GROUP 8: Cables and Connectors; GROUP 9:
Room Connectivity; GROUP 10: Accessories and Rack Adapters; GROUP 11:
Sierra Video Products; GROUP 12: Digital Signage; GROUP 13: Audio; and
GROUP 14: Collaboration.
Thank you for purchasing the Kramer KW-14T-IL Wireless HD Transmitter and
KW-14R-IL Wireless HD Receiver which are ideal for:
•Meeting rooms
•Presentation and multimedia applications
•Short range video and audio distribution

2
KW-14T-IL/KW-14R-IL - Getting Started
2 Getting Started
We recommend that you:
•Unpack the equipment carefully and save the original box and packaging
materials for possible future shipment
•Review the contents of this user manual
Go to www.kramerav.com/downloads/KW-14 to check for up-to-date user
manuals, application programs, and to check if firmware upgrades are
available (where appropriate).
2.1 Achieving the Best Performance
To achieve the best performance:
•Use only good quality connection cables (we recommend Kramer high-
performance, high-resolution cables) to avoid interference, deterioration in
signal quality due to poor matching, and elevated noise levels (often
associated with low quality cables)
•Do not secure the cables in tight bundles or roll the slack into tight coils
•Avoid interference from neighbouring electrical appliances that may
adversely influence signal quality
•Position your KW-14T-IL and KW-14R-IL away from moisture, excessive
sunlight and dust
This equipment is to be used only inside a building. It may only be
connected to other equipment that is installed inside a building.
2.2 Safety Instructions
Caution:
There are no operator serviceable parts inside the unit
Warning:
Use only the Kramer Electronics power supplies that are
provided with the units
Warning:
Disconnect the power and unplug the unit from the wall
before installing

KW-14T-IL/KW-14R-IL - Getting Started
3
2.3 Recycling Kramer Products
The Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC aims
to reduce the amount of WEEE sent for disposal to landfill or incineration by
requiring it to be collected and recycled. To comply with the WEEE Directive,
Kramer Electronics has made arrangements with the European Advanced
Recycling Network (EARN) and will cover any costs of treatment, recycling and
recovery of waste Kramer Electronics branded equipment on arrival at the EARN
facility. For details of Kramer’s recycling arrangements in your particular country go
to our recycling pages at www.kramerav.com/support/recycling.

4
KW-14T-IL/KW-14R-IL - Overview
3 Overview
The KW-14T-IL and KW-14R-IL are a high-definition, wireless HDMI transmitter
and receiver for use indoors over short ranges.
The KW-14T-IL converts an HDMI signal into a wireless signal. The KW-14R-IL
converts the wireless signal back into HDMI.
The transmitter and receiver use MIMO (Multi-Input and Multi-Output) wireless
communication technology to transfer HDMI, multi-channel embedded audio, and
IR signals. AES-128 encryption provides a secure link. Multiple receivers can be
associated with a single transmitter.
The KW-14T-IL and KW-14R-IL support:
•Uncompressed video resolutions up to 1080p @60Hz
•Embedded audio
•Zero latency
•Automatic sleep mode triggered when there with no input or link for three
minutes
•EDID
•HDCP
Note: HDCP sources are supported only when all connected displays
support HDCP
•OSD (On Screen Display) for simplified setup and configuration
•IR remote control which enables the OSD menu to be displayed on the
output display
•Up to four receivers associated with one transmitter
•Up to three transmitters can be associated with one receiver
•Transmission through walls and furniture
•A secure link using AES-128 bit encryption
•A data rate of 6.75Gbps, Deep Color up to 12 bit

KW-14T-IL/KW-14R-IL - Overview
5
•A transmission range of up to 30m (100ft)
•Automatic frequency selection which selects the most suitable frequencies
and prevents RF interference

6
KW-14T-IL/KW-14R-IL - Defining the KW-14T-IL Wireless HD Transmitter and Receiver
4 Defining the KW-14T-IL Wireless HD
Transmitter and Receiver
4.1 Defining the KW-14T-IL Wireless HD Transmitter
Figure 1 defines the top panel of the KW-14T-IL.
Figure 1: KW-14T-IL Wireless HD Transmitter Top Panel
#
Feature
Function
1
LINK LED
Flashes blue while the receiver is searching for a link to register with
the transmitter. Lights green when the link to the receiver is
established
2
VIDEO LED
Lights blue when a valid video signal is present and transmitted, (only
when a link is established)
3
ON LED
Lights green when the device is powered on
4
REGISTER
Button
Hold this button after starting the registration process on the receiver
5
RESET Button
Press to reset the device

KW-14T-IL/KW-14R-IL - Defining the KW-14T-IL Wireless HD Transmitter and Receiver
7

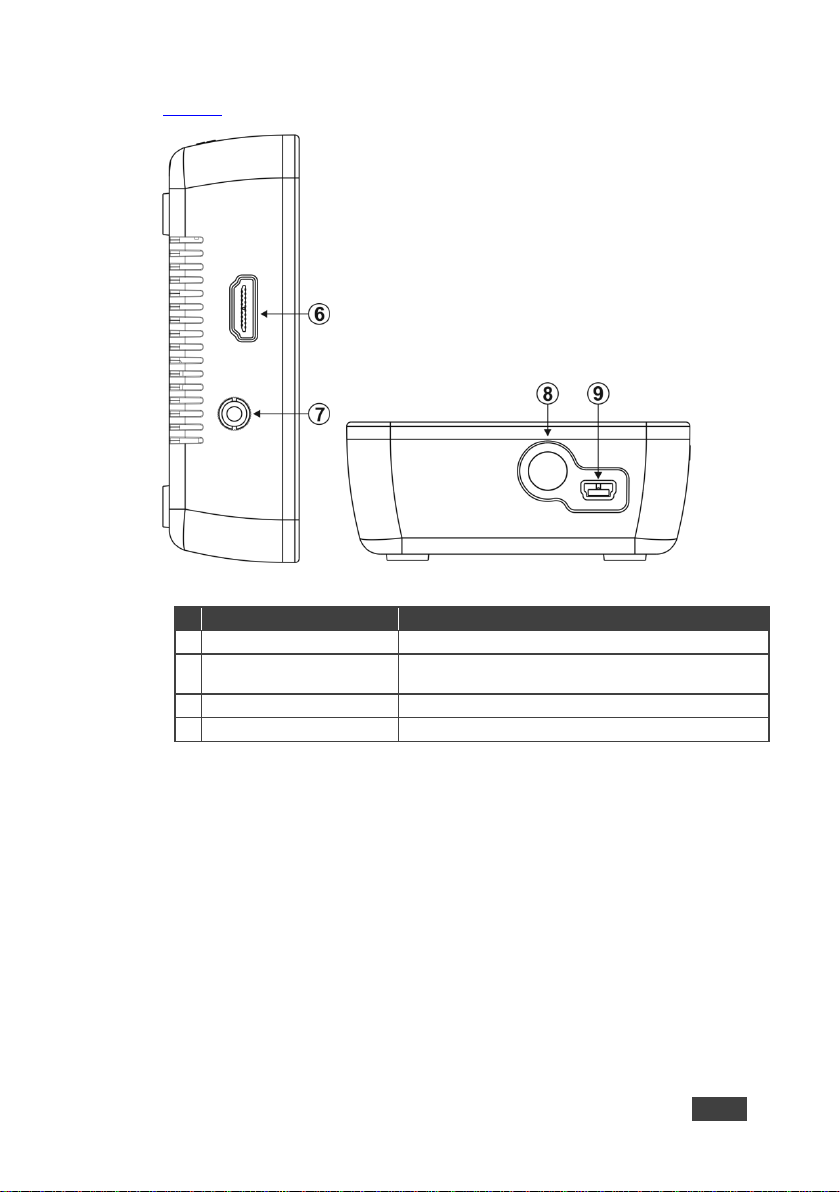

Figure 2 defines the side and front panels of the KW-14T-IL.
Figure 2: KW-14T-IL Wireless HD Transmitter Side and Front Panels
#
Feature
Function
6
HDMI IN Connector
Connect the HDMI source
7
3.5mm Mini Jack IR Output
Connector
Connect to the IR emitter
8
POWER Connector
Connect to the power supply provided with the device
9
Mini USB Connector
For the use of Kramer service personnel only

8
KW-14T-IL/KW-14R-IL - Defining the KW-14T-IL Wireless HD Transmitter and Receiver
4.2 Defining the KW-14R-IL Wireless HD Receiver

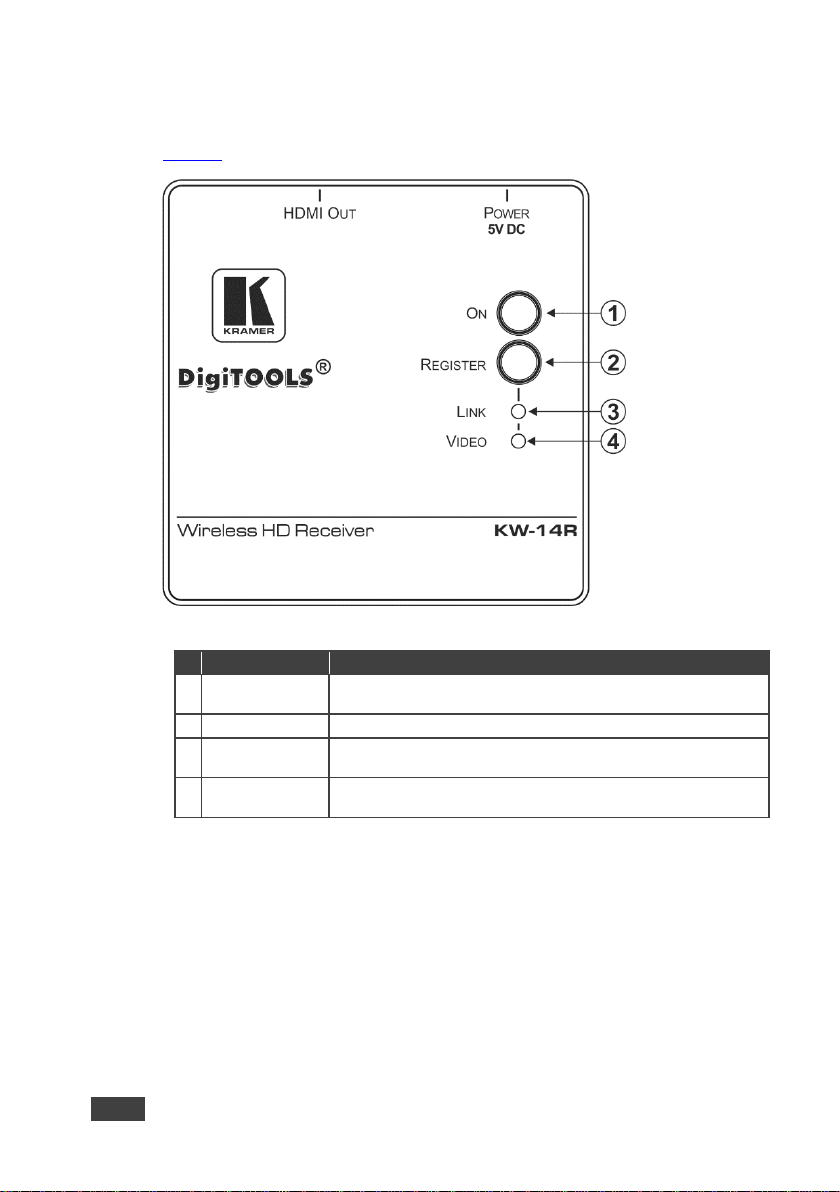

Figure 3 defines the top panel of the KW-14R-IL.
Figure 3: KW-14R-IL Wireless HD Receiver Top Panel
#
Feature
Function
1
ON Button
Press to turn on the device. Lights blue when the device is turned
on.
2
SOURCE Button
Press to initiate the registration process with a transmitter
3
LINK LED
Flashes blue while the receiver is searching for a transmitter. Lights
blue when a link is established
4
VIDEO LED
Lights blue when a valid video signal is present and transmitted,
(only when a link is established)

KW-14T-IL/KW-14R-IL - Defining the KW-14T-IL Wireless HD Transmitter and Receiver
9
Figure 4 defines the rear and side panels of the KW-14R-IL.
Figure 4: KW-14R-IL Wireless HD Receiver Rear and Side Panels
#
Feature
Function
3
Mini USB Power Connector
Connect to the USB power supply provided
4
HDMI OUT Connector
Connect the HDMI acceptor
5
IR Window
Sensor for receiving IR commands from the IR remote
control

10
KW-14T-IL/KW-14R-IL - Connecting the KW-14T-IL and KW-14R-IL

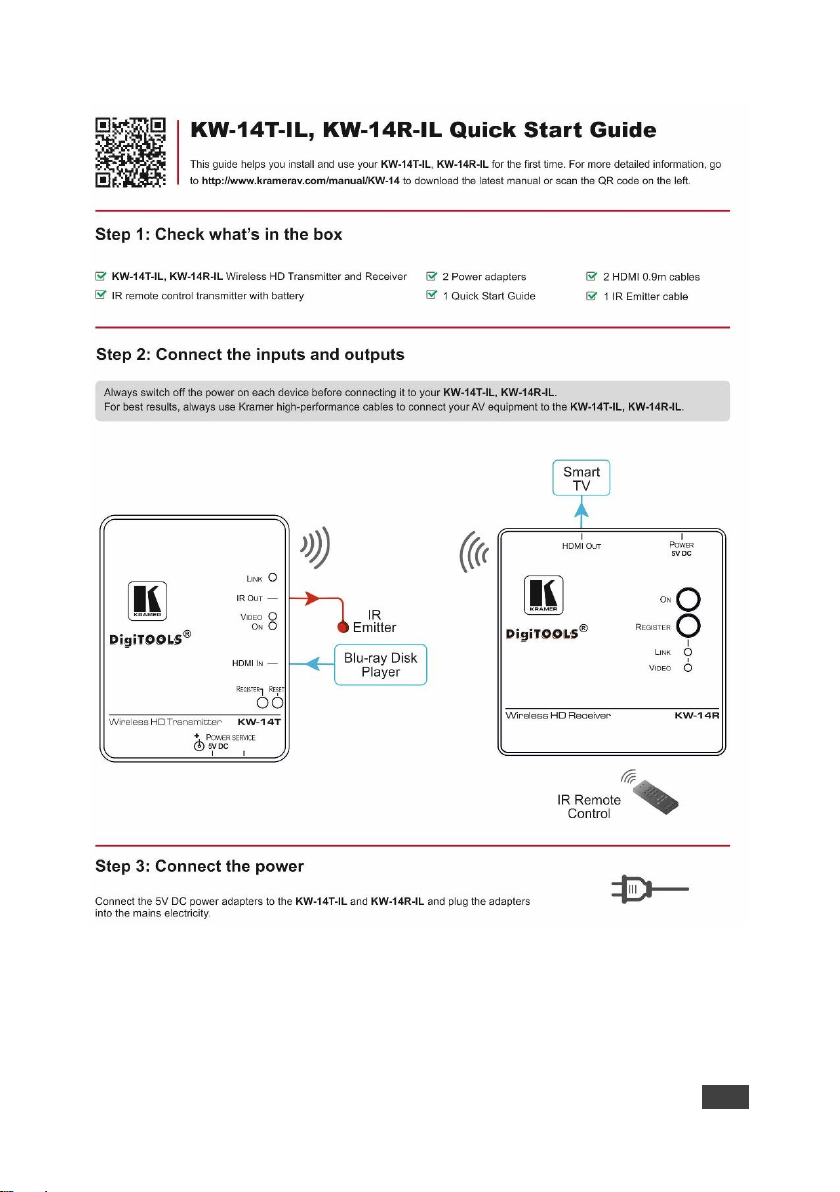

5 Connecting the KW-14T-IL and KW-14R-IL
Always switch off the power to all devices before connecting your
KW-14T-IL and KW-14T-IL.
5.1 Connecting the KW-14T-IL and KW-14R-IL
Figure 5: Connecting the KW-14T-IL and KW-14R-IL
Note: The HDCP status of the KW-14R-IL follows the combination of all outputs.
To connect the KW-14T-IL and the KW-14R-IL as illustrated in the example in
Figure 5:
1. On the KW-14T-IL connect the HDMI source, (for example, a VP-553) to the
HDMI connector.
2. On the KW-14R-IL connect the HDMI Out connector to the HDMI acceptor,
(for example, a smart TV).

KW-14T-IL/KW-14R-IL - Connecting the KW-14T-IL and KW-14R-IL
11
5.2 Registering a Transmitter and Receiver
A transmitter can be registered with either one or multiple, (up to four) receivers. A
receiver can be associated with up to three transmitters. Registration of one or
more receivers to a transmitter is performed using either the buttons on the devices
or the remote IR control in conjunction with the OSD. Registration of more than one
transmitter to a receiver can only be done using the IR remote control and the OSD.
When purchased as a pair, the KW-14T-IL and the KW-14R-IL are delivered
pre-registered. Registration needs to be performed only when:
•The transmitter or receiver is replaced
—OR—
•Adding additional receivers to a transmitter or additional transmitters to a
receiver
Note: Registration is not lost when the devices are powered off.
When registering multiple receivers separate them by at least 2m (6.5ft). When
employing multiple transmitters at the same site, separate them by at least 2m
(6.5ft).
Note: The video link must be off when registering additional transmitters.
5.2.1 Registering by Using the Buttons on the Devices
To register a transmitter with a receiver by using the panel buttons:
1. Connect and apply power to the transmitter, input source, receiver, and
output acceptor.
2. Press and hold the Register button on the receiver until the following
message is displayed on the OSD:
“Please activate registration on Transmitter unit”.
3. Press and hold the Register button on the transmitter until the following
message is displayed on the OSD:
“Adding <transmitter name>. Press OK to continue or EXIT to cancel”.

12
KW-14T-IL/KW-14R-IL - Connecting the KW-14T-IL and KW-14R-IL
4. Press the Register button on the receiver to confirm.
The message “Adding <transmitter name>… and a progress bar is displayed
on the OSD while the registration process completes.
Note: The registration process can take up to 60 seconds to complete. If the
process takes longer than this, power cycle both devices and then start the
registration process from the beginning.
When the registration process is complete, the message and progress bar
disappear from the display. The Link and Video LEDs light solid.
5. Repeat steps 1 to 4 to register up to three transmitters to a receiver.
5.2.2 Registering Using the IR Remote Control
Note: The IR remote control must be pointed at the front panel of the receiver from
a distance of no more than 9m (30ft) and no more than 40° from center.
Note: The OSD is best displayed when the resolution is set to 1080p.
To register a transmitter with a receiver with the IR remote control:
1. Connect and apply power to the transmitter, input source, receiver, and
output acceptor.
2. Press the Add button on the IR remote control. The following message is
displayed on the OSD:
“Please activate registration on Transmitter unit”.
3. Press and hold the Register button on the transmitter until the following
message is displayed on the OSD:
“Adding <transmitter name>. Press OK to continue or EXIT to cancel”.
4. Press the OK button on the IR remote control to confirm.
The message “Adding <transmitter name>… and a progress bar is displayed
on the OSD while the registration process is in progress.
Note: The registration process can take up to 60 seconds to complete. If the
process takes longer than this, power cycle both devices and then start the
registration process from the beginning.

KW-14T-IL/KW-14R-IL - Connecting the KW-14T-IL and KW-14R-IL
13
When the registration process is complete, the message and progress bar
disappear from the display. The Link and Video LEDs light solid.
5. Repeat steps 1 to 4 to register up to three transmitters to a receiver.
5.2.3 Registering Multiple Receivers
Note: Registration cannot be performed if the transmitter is currently broadcasting a
signal.
To register an additional receiver with a transmitter:
1. Power down all receivers except the one you want to register.
2. Perform steps 2 through 4 of the registration procedures, (see Section 5.2.1
or Section 5.2.2) depending on the method of registration).
3. When registration is complete, power-on the other receivers.
5.3 Standby Mode
The KW-14R-IL automatically enters a sleep mode when any of the following
occurs:
•No input is connected
•No valid input (resolution) is connected
•When the link is lost or not established
When entering sleep mode, the OSD is displayed for three minutes and the video
output is muted. When the valid video link is restored the signal is automatically
transmitted.

14
KW-14T-IL/KW-14R-IL - Using IR Remote Control and OSD Menu
6 Using IR Remote Control and OSD Menu
Note: The OSD is best displayed when the resolution is set to 1080p.
Note: You can only send IR commands to one receiver at a time.
Figure 6: The IR Remote Control Buttons
#
Feature
Function
1
Source
Displays the Select Video Source menu, which lists the transmitter that is
registered to the receiver, (see Figure 7)
2
Exit
Returns to the previous menu. If the Setup menu is displayed, pressing
this button closes the OSD
3
Menu
Displays the OSD menu
4
Arrows
The up and down arrow buttons scroll through the menu items. The right
and left arrow buttons select characters when changing a video source
name.
Note: In the OSD screen, the yellow arrows on the right indicate that there
are additional items to scroll through
5
OK
Selects the currently selected menu item
6
Guest
Not used
7
Add
Begins the registration process
8
Delete
Displays the Choose Source to Remove submenu. This menu may also
be accessed from the Setup menu by selecting Remove Video Source.
9
Input
Devices
Press to select the required transmitter if more than one transmitter is
registered with the receiver

KW-14T-IL/KW-14R-IL - Using IR Remote Control and OSD Menu
15
Figure 7: Select Video Source Menu
6.1 Using the Setup Menu
Figure 8: Setup Menu
The Setup menu enables you to set up the KW-14T-IL and the KW-14R-IL and
includes the following options:
•Add new Video Source—Select this option to register a transmitter with a
receiver. The message “Please Activate Registration on Transmitter Unit”
appears
•Remove Video Source—Select this option to unregister a transmitter
•Modify Video Source Name—Select this option to edit the name of an
existing video source

16
KW-14T-IL/KW-14R-IL - Using IR Remote Control and OSD Menu
•Disconnect Wireless Link—This appears on the menu only if the source is
displayed. Select this option to remove the connection between the source
and the display
6.1.1 Unregistering a Transmitter
To unregister a transmitter from a receiver:
1. Power the receiver on.
2. From the Setup menu, select Remove Video Source.
This displays the Choose Source to Remove menu. Alternatively, press
Delete on the IR remote control to access this menu.
3. From the Choose Source to Remove menu, select the name of the source to
be unregistered.
The message “Removing transmitter name. Press OK to continue or EXIT to
Cancel” is displayed.
Figure 9: Choose Source to Remove Menu
Press OK again to delete the source.
While the transmitter is being unregistered, the message “Removing
<transmitter name>… is displayed. After approximately 30 seconds, the
OSD closes, indicating that the source has been removed and the
transmitter unregistered.
