Components checklist
You will find all the pictured components inside this box.
Sprinta Plus
Smart-Skim
Smart-Skim adaptors
Flexible Hose Connector
Male-to-male hose length
Male-to-female hose lengths
Hose weights
90 degree connector (optional)
x1
x9
x3
1
Congratulations
Your new Sprinta Plus is designed to give you years of reliable
performance. Assembly is simple and we’ll walk you through it,
step-by-step.
This booklet should answer all your questions. However if you
need a little extra help, feel free to call our Customer Service
Department, Mon-Fri 9-5 in your local area, or go to the
website for up-to-date information.
1800 777 255
www.kreepykrauly.com.au

Prepare your pool
If your pool is clean, balanced and algae-free, you’re ready to get started.
a. First, clean the skimmer and pump basket.
b. Check the water level.
c. Brush down the sides of your pool.
d. Next, make sure the return jets are facing downwards.
e. Then, backwash or clean your cartridge filter.
f. Now turn off the pump.
Assemble the connectors
STEP 1
STEP 2
32
TIP: Before installing your Sprinta Plus, check the following:
Vinyl-lined pool – Check for signs of deterioration or damage
to the liner. Remediate before installation.
Tiled pool – Check and repair any loose tiles.
used with most
vacuum plates
used with Polyplastics
190 & 210 standard
used with Polyplastics
SK1000 (rectangular)
TIP: For Poolrite plates use the first fitting,
threading from the bottom (tapered side up) until
it sits flush with base of the plate. This will ensure
your valve opens freely.
NOTE: To remove, ensure the pump is off and
grasp from the bottom of the Smart-Skim, pulling up. (Note: Not from
the hose or spring).
• Attach the Flexible Hose Connector
(the incredibly bendy small hose) to
the top opening of your Sprinta Plus.
This should fit snuggly, if not rotate
180°.

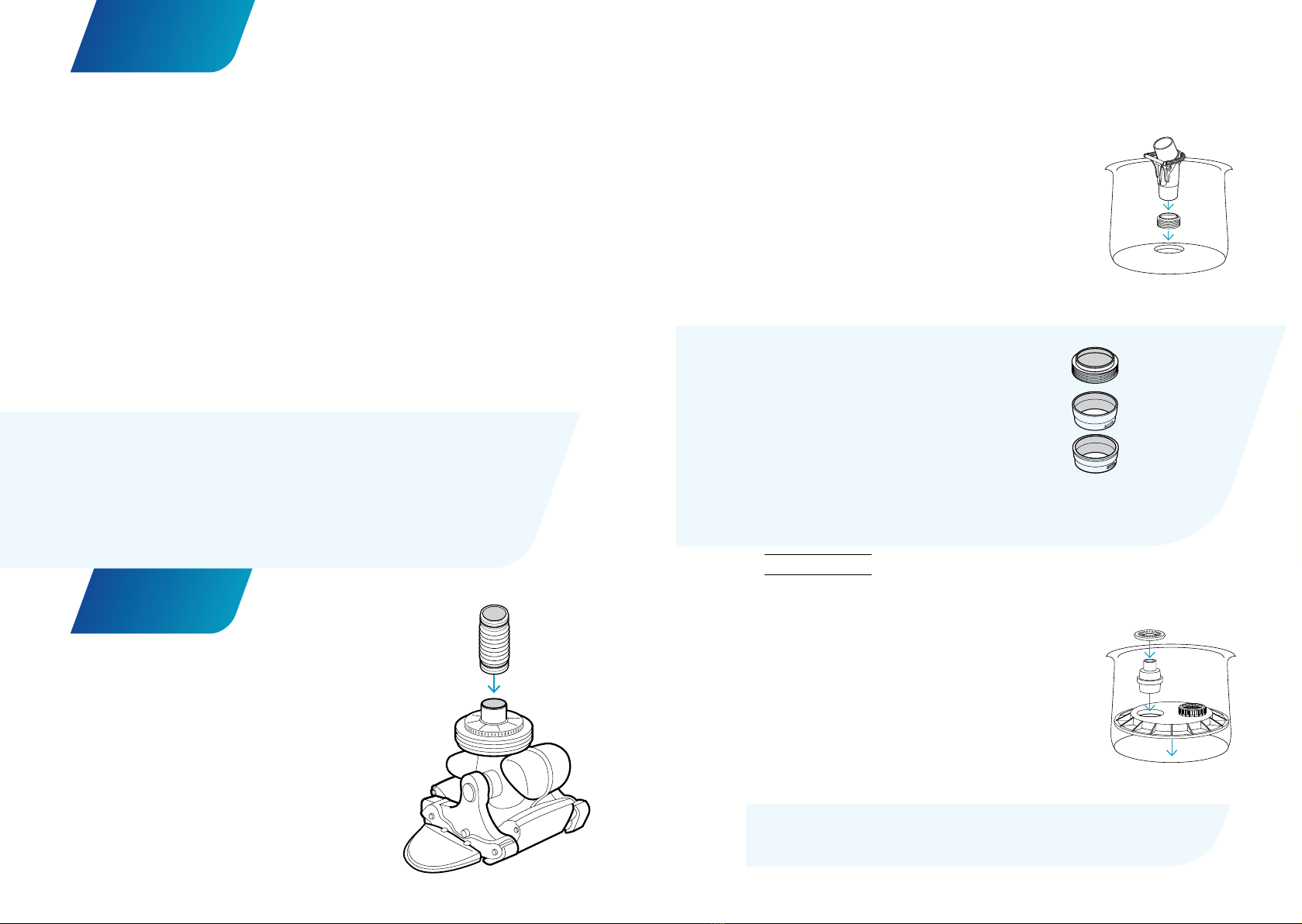

Fit the Vacuum Control Valve (2 options)
a. Smart-Skim (comes standard)
Insert the Smart-Skim into an adaptor fitting,
then attach to your vacuum plate. Depending
on the Vacuum Plate your pool uses, you may
have to use a different
skim adaptor – we’ve
included three for you to choose from.
You know you’re using the right
one when there
is a tight fit. See our website if you need help.
b.
Combined Vacuum Plate and Auto Skim valve (optional upgrade)
Your pool shop would have already assisted
you in selecting the correct replacement
for your pool’s existing vacuum plate.
To
assemble, place the Auto Skim Valve into
the opening in the new
Vacuum Plate. Attach
the
Anti-Vortex Washer over the valve inlet.
Placethe entire unit in the skimmer box.
NOTE: A Vacuum Plate Clamp can stop your vacuum plate moving.
TIP: The Anti-Vortex Washer stops the slurping sound.
OR

Connect the hose to Sprinta Plus
• Submerge the Sprinta Plus
in your pool to expel all air
either rotate to help remove
trapped air or release air
from front ballast by gently
separating the front from the
main body seal until no air
bubbles appear (ensure front
ballast fits back into seal).
Then connect the submerged
and air-free male-male hose
end to the Flexible Hose
Connector on your Sprinta
Plus.
• Connect the other end
of the hose to the Smart-Skim
(or Auto Skim upgrade)
ensuring the end of the hose
is submerged and free of air.
•
If the angle of the Smart-Skim
is insufficient and makes
connecting the hose dicult,
use the 90 degree connector
between the end of the hose
and the Smart-Skim valve.
STEP 3 STEP 4
TIP: Wetting the hose ends in your pool will
make them easier to fully connect to each other.
Build the Ultra Flex hose
• Start with the male-male hose and twist on a female-male length.
Keep going until the hose is long enough to reach from your
skimmer box to the far corner of your pool. Now add one extra
length – this will optimise the coverage of your Sprinta Plus.
• Attach your 3 hose weights. Position the first weight at 2m from
the first male end, then every 1.5m after that.
• Submerge the assembled hose in your pool. To expel all the air
push downwards feeding the hose into the pool.
male male female
54
TIP: When removing or storing hose sections,
store flat and not coiled to ensure extended life
of the hose and prevent coverage issues.
Main Body Seal
Front Ballast

Let’s get cleaning
• Your Sprinta Plus is good to go – simply turn the pump on.
There’s no need to make any manual adjustment to the
vacuum pressure; any excess vacuum will be used by the
Smart-Skim to provide surface skimming.
• All you need to do from here on in is remember to empty the
skimmer basket regularly. Too easy!
Troubleshooting
If your Sprinta Plus isn’t moving
• Check if the pump or filter basket needs cleaning, or if your filter
needs backwashing or cleaning.
• Check there are no leaks in the hose or flexible hose connector. If
there are, replace any damaged sections.
• Check the main drain and all suction lines are closed. The only
one that should be open is the suction line that is attached to
your Sprinta Plus.
• Check that your pool is balanced. Alkaline pools and algae can
make the machine slip.
• Check that the Smart-Skim is opening and closing, and that the
spring is still attached.
• Your pool pump and filter system may be too small to eectively
run your Sprinta Plus. Ask your pool professional to advise.
• There may be air in your Sprinta Plus. Turn the pump o and
rotate your Sprinta Plus while holding it underwater.
•
There may be a blockage in your Sprinta Plus. Turn o the pump
and remove the steering system. Check for obstructions,
then replace the steering system (see instructions on pages 9-10).
If your Sprinta Plus is floating or hovering in your pool
• Check if your cleaner has air trapped in it.
• To remove trapped air, remove cleaner from the hose and rotate
underwater to expel trapped air and reconnect to the hose; or
• To release trapped air from front ballast, gently separate the
front ballast from the seal until no air bubbles appear whilst
keeping the cleaner underwater (ensure ballast fits back in
seal) see page 5 for more details.
STEP 5
76
TIP: Please be suction aware when working on your pool. Before
undertaking any maintenance
or troubleshooting, ensure your
pump is off before handling your Sprinta Plus system.
WARNING :
Do not use non-genuine parts as the performance of
your Sprinta Plus may be affected.
Thank you for choosing a genuine Kreepy Krauly
automatic pool cleaner.

steering system
flow washer (white)
NOTE: Don’t misplace this
washer
98
Sprinta Plus is only cleaning one end or restricted in its coverage
• Check that the hose is not coiled or kinked.
To uncoil the hose:
• Simply rotate a few of the 1m hose length connectors
180degrees until it is straight again.
• In hot weather (above 28ºC), remove the cleaner and hose
from the pool and lay the hose only flat for a day. The heat will
make the hose relax and uncoil.
• In cooler weather, remove the hose from the pool. Prop both
ends of the hose around 20cm o the ground. Pour a bucket
of warm water (50-60º) into the hose until it spills out of the
other end. Carefully roll the hose side to side to ensure even
warming. After 5 minutes, fill the hose with cold water – either
with a bucket, or by placing the hose end onto the pool outlet.
• Check that the return line water flow is directed downwards or
sideways. Redirect it as necessary with a return line diverter. If that
still doesn’t work, you my need to
purchase an Eyeball Diverter from
your local Kreepy Krauly retailer.
• Check that the hose weights are fitted as described on page 4.
• Remove the steering system to check for obstructions in
the turbine and that the steering system freely rotates clockwise
and anticlockwise
(see instructions on pages 9-10).
Sprinta Plus is climbing out of the pool
• Check if the feet are worn and the front and rear bumpers are
moving freely. Replace parts as required.
• You may have too much vacuum going to the cleaner, check your
Smart-Skim or Auto Skim is installed and moving freely and isn’t
jammed or blocked.
Removing the Steering System
1. Press in the two tabs located
onopposite sides on the
under-side of the steering unit.
Turn anticlockwise and lift o.
2. You should now have three
separate components as shown.
Clear any obstruction in the turbine.
1
2
NOTE: For more detailed troubleshooting advice please contact
your helpful local dealer, or check our online resources for hints,
tips and other information at www.kreepykrauly.com.au

1110
What should I expect
from my Sprinta Plus?
How it moves
The powerful turbine harnesses the
pool’s suction to oscillate your Sprinta
Plus’ legs, propelling it in a forward
motion. Its minimal contact with
the pool surface contributes to its fast
speed and ecient cleaning.
The light-weight and compact design
allows it to move all over your pool
floor, navigating itself into
the tightest of corners and moving
freely around any obstacles, making
it ‘unstickable’.
How it Steers
The Intelligent Steering Module
navigates the Sprinta Plus in a
looping pattern that alternates in
direction, ensuring ecient cleaning.
Its ‘unstickable’ reputation is due
to its steering system as it will
automatically turn and release itself
immediately, or after a short delay,
depending on your pool shape.
In combination with the Ultra Flex
hose, this ensures your cleaner is not
restricted or directed by the hose.
How it Cleans
Sprinta Plus cleans your pool daily
with your normal filter cycle by gently
Vortex Vacuuming your pool surface.
Leaves are picked up by the large front
and side scoops and pulled through
the straight-through turbine to the
skimmer box. The Vortex Vacuum aids
in the pick up of heavier debris such
as sand and grit, that can be left by
other cleaners. The Smart-Skim or
Auto Skim uses the excess vacuum to
draw water into your skimmer box to
help reduce floating debris.
The Ultra Flex Hose
The unique Ultra Flex hose rests
just below the water surface due
to its natural buoyancy and hose
weights. The Ultra Flex design
means the hose can flex and bend
easily so that it doesn’t restrict
the movement of your Sprinta Plus.
This increases coverage in your pool.
Re-fitting the Steering System
1. Re-fit the flow washer to the
underside of the steering system
(there is a cut-out to assist
in locating the correct position).
2. Align the inlets.
3. Turn over the steering unit (with
flow washer inserted) and place
on top of the Sprinta Plus. The
inlets will initially be slightly
misaligned.
Rotate the steering unit clockwise
until the steering unit locks
into place. The inlets will now
be aligned and the flow washer
won’t be visible.

1312
Your Warranty
Your Sprinta Plus is engineered to last. This is reflected in the 2-year FullSystem
Warranty and 10-year Flow Turbine Warranty.
Protecting Your Warranty
All Kreepy Krauly pool cleaning systems are made in Australia to withstand harsh
Australian conditions. They are manufactured from top quality materials that are
UV, salt and chemical resistant. Being an Australian company, we oer local after
sales service, maintenance and parts. For any troubleshooting with your Sprinta
Plus, simply contact your local pool shop for assistance. You will extend the life of
your Sprinta Plus by using genuine Sprinta Plus parts and chlorinating your pool
correctly. The use of non-genuine parts and over-chlorinating your pool may void
your warranty, impair your Sprinta Plus’ performance or result in colour fade.
Activating Your Sprinta Plus Warranty
To activate your 2-year Full System Warranty and 10-year Flow Turbine Warranty,
please fill in your Sprinta Plus’ serial number and return the self-addressed
warranty registration card to us as soon as possible. Alternatively, you can activate
your 2-year Full System Warranty and 10-year Flow Turbine Warranty online at
www.kreepykrauly.com.au/warranty.
Record Serial Number Here:
Looking after your Sprinta Plus
• Clean out the skimmer basket regularly.
• To safely remove the Smart-Skim or Auto Skim from the skimmer
box, please switch o your pump first. Then take the hose o before
gripping the Smart-Skim or Auto Skim at the base and gently pull
upwards.
• Manually open and close the Smart-Skim or Auto Skim occasionally
to flush away accumulated dirt and debris.
• Monitor your Sprinta Plus feet occasionally for wear and tear.
Beware of the pool blanket effect
Pool blankets prevent chlorine evaporating. If you’re using one,
carefully monitor your chlorine or salt water setting to avoid
over chlorinating your pool, which can harm your Sprinta Plus
and void your warranty. If you have any questions please
call our Customer Service department on 1800 777 255 or talk
to your pool shop pro.
TIP: Your Serial Number can be found on the packaging or on a
waterproof sticker on the underside of your Sprinta Plus.
NOTE: For fullwarranty conditions, please refer to your warranty
card or go online to www.kreepykrauly.com.au/warranty

Further Information
This booklet should have answered all your questions.
However if you need a little extra help or up-to-date
information, go to www.kreepykrauly.com.au, or call our
Customer Service Department on 1800 777255, Monday
to Friday 9am-5pm in your local area. Alternatively,
contact your local pool shop professional.
www.kreepykrauly.com.au
We reserve the right to revise, change, or modify Sprinta Plus without
incurring any obligations to make like changes on Sprintas previously sold.
This publication remains the sole copyright of ITC Manufacturing Pty. Ltd
