KRESS KU110K User manual

KU110K KU110K.1
Hand Drill EN
AR
باقثم

5
24
3
1

4
A
2
3
C
B

5
EN
PRODUCT SAFETY
GENERAL POWER TOOL
SAFETY WARNINGS
WARNING Read all safety warnings,
instructions, illustrations and
specifications provided with this power tool.
Failure to follow all instructions listed below may result
in electric shock, fire and/or serious injury.
Save all warnings and instructions for future
reference.
The term “power tool” in the warnings refers to your
mains-operated (corded) power tool or battery-
operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered
or dark areas invite accidents.
b) Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet.
Never modify the plug in any way. Do
not use any adapter plugs with earthed
(grounded) power tools. Unmodified plugs and
matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or
grounded surfaces, such as pipes,
radiators, ranges and refrigerators. There is
an increased risk of electric shock if your body is
earthed or grounded.
c) Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord
for carrying, pulling or unplugging the
power tool. Keep cord away from heat, oil,
sharp edges or moving parts. Damaged or
entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use
an extension cord suitable for outdoor use.
Use of a cord suitable for outdoor use reduces the
risk of electric shock.
f) If operating a power tool in a damp location
is unavoidable, use a residual current
device (RCD) protected supply. Use of an RCD
reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and
use common sense when operating a
power tool. Do not use a power tool while
you are tired or under the influence of
drugs, alcohol or medication. A moment of
inattention while operating power tools may result
in serious personal injury.
b) Use personal protective equipment. Always
wear eye protection. Protective equipment
such as dust mask, non-skid safety shoes, hard
hat, or hearing protection used for appropriate
conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure
the switch is in the off-position before
connecting to power source and/or battery
pack, picking up or carrying the tool.
Carrying power tools with your finger on the switch
or energising power tools that have the switch on
invites accidents.
d) Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key
left attached to a rotating part of the power tool
may result in personal injury.
e) Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing
or jewellery. Keep your hair and clothing
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
g) If devices are provided for the connection
of dust extraction and collection facilities,
ensure these are connected and properly
used. Use of dust collection can reduce dust-
related hazards.
h) Do not let familiarity gained from
frequent use of tools allow you to become
complacent and ignore tool safety
principles. A careless action can cause severe
injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the
correct power tool for your application. The
correct power tool will do the job better and safer
at the rate for which it was designed.
b) Do not use the power tool if the switch
does not turn it on and off. Any power
tool that cannot be controlled with the switch is
dangerous and must be repaired.
c) Disconnect the plug from the power
source and/or remove the battery pack,
if detachable, from the power tool before
making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
d) Store idle power tools out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands of
untrained users.
e) Maintain power tools and accessories.
Check for misalignment or binding of
moving parts, breakage of parts and any
other condition that may affect the power
tool’s operation. If damaged, have the power
tool repaired before use. Many accidents are
caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
g) Use the power tool, accessories and
tool bits etc. in accordance with these
instructions, taking into account the

6
EN
working conditions and the work to be
performed. Use of the power tool for operations
different from those intended could result in a
hazardous situation.
h) Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
5) Service
a) Have your power tool serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the power tool is maintained.
DRILL SAFETY WARNINGS
1) Safety instructions for all operations
a) Hold the power tool by insulated gripping
surfaces, when performing an operation
where the cutting accessory or fasteners
may contact hidden wiring or its own cord.
Cutting accessory or fasteners contacting a “live”
wire may make exposed metal parts of the power
tool “live” and could give the operator an electric
shock.
2) Safety instructions when using long drill
bits
a) Never operate at higher speed than the
maximum speed rating of the drill bit. At
higher speeds, the bit is likely to bend if allowed
to rotate freely without contacting the workpiece,
resulting in personal injury.
b) Always start drilling at low speed and with
the bit tip in contact with the workpiece.
At higher speeds, the bit is likely to bend if allowed
to rotate freely without contacting the workpiece,
resulting in personal injury.
c) Apply pressure only in direct line with the
bit and do not apply excessive pressure.
Bits can bend causing breakage or loss of control,
resulting in personal injury.
SYMBOL
To reduce the risk of injury, user must
read instruction manual
Wear ear protection
Wear eye protection
Wear dust mask
Double insulation

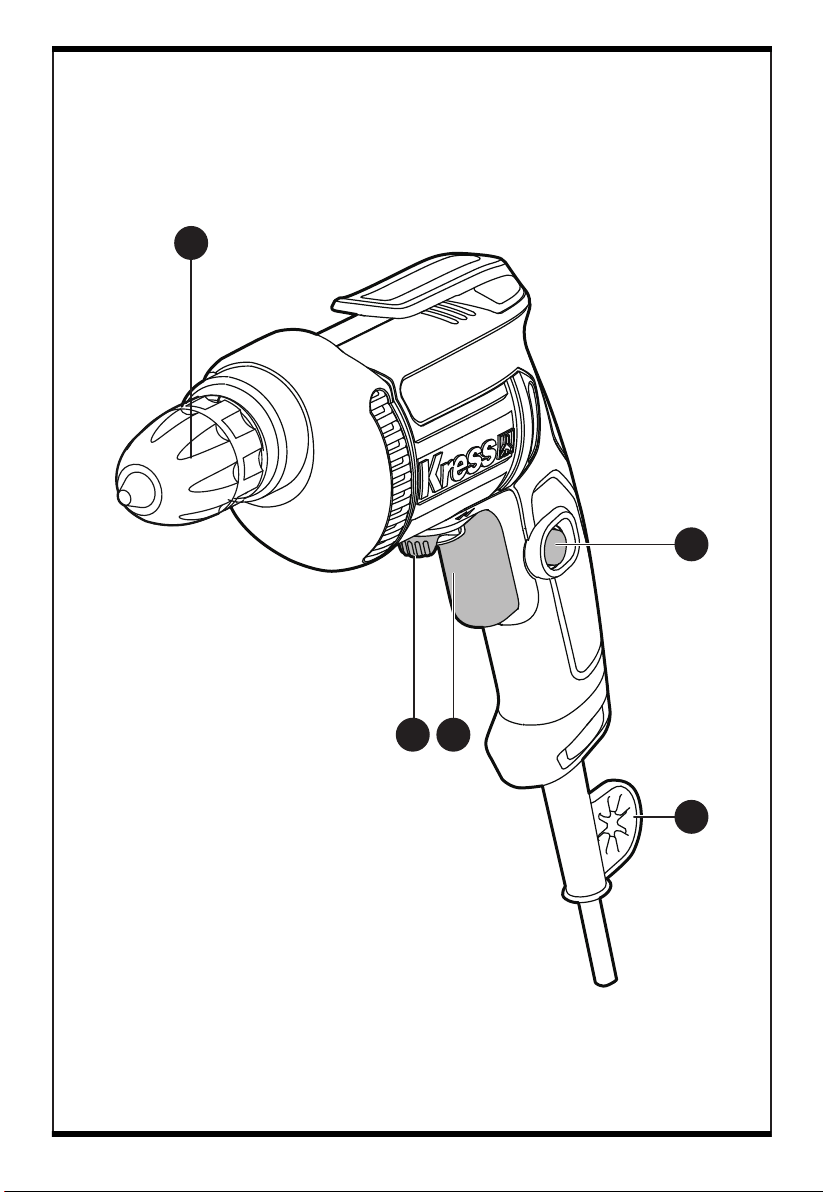

COMPONENT LIST
1. KEY STORAGE TAB
2. ON/OFF SWITCH
3. LOCK ON BUTTON
4.
FORWARD/REVERSE ROTATION CON-
TROL
5. KEYLESS CHUCK
Not all the accessories illustrated or described are
included in standard delivery.
TECHNICAL DATA
KU110K KU110K.1
Voltage 220-240V~50/60Hz
Power input 500W
No load speed 0~2800/min
Chuck capacity 10mm keyless chuck
Max.
drilling
capac-
ity
Wood 20mm
Steel 10mm
Aluminum 10mm
Machine weight 1.2kg
Protection class /II
ACCESSORIES
KU110K KU110K.1
Drill bit / 1
We recommend that you purchase your accessories
from the same store that sold you the tool. Refer to the
accessory packaging for further details. Store personnel
can assist you and offer advice.
OPERATING
INSTRUCTIONS
NOTE: Before using the tool, read the
instruction book carefully.

7
EN
INSERTING A TOOL INTO CHUCK
KEYLESS CHUCK
Grip rear collar of keyless chuck and rotate front collar
until chuck is open sufcient for tool to be inserted.
Insert the tool into the chuck. Grip rear collar and
manually rotate front collar until tight. The locking
mechanism is automatically released when the front
collar is rotate in the opposite direction in order to
remove the tool. (See Fig. A)
OPERATION
1. ON/OFF SWITCH (SEE FIG. B)
Depress to start and release to stop your tool.
2. SWITCH LOCK-ON BUTTON (SEE FIG. B)
Switch on: Depress on/off switch then lock on button,
your switch is now locked on for continuous use.
Switch off: To switch off your tool just depress and
release the on/off switch.
3. FORWARD AND REVERSE ROTATION
CONTROL (SEE FIG. C)
For drilling use forward rotation marked “ ” (lever
is moved to the left).
Only use reverse rotation marked “ ” (lever is
moved to the right) to bound drill bits.
Never change the direction of rotation when the tool is
rotating, wait until it has stopped.
4. VARIABLE SPEED CONTROL
Depress on/off switch to increase or decrease the
speed according to the material and accessory to be
used (also possible during no load operation). Higher
speed will produce a lower torque while a lower speed
will produce a higher torque.
WORKING HINTS FOR
YOUR DRILL
If your power tool becomes too hot set the speed to
maximum and run no load for 2-3 minutes to cool the
motor.
When drilling in metal, only use HSS drill bits in good
condition.
Always use a magnetic bit holder when using short
screwdriver bits.
Where possible use a pilot hole before drilling a large
diameter hole in the metal material.
MAINTENANCE
Remove the plug from the socket before
carrying out any adjustment, servicing or
maintenance.
Your power tool requires no additional lubrication or
maintenance. There are no user serviceable parts in
your power tool.
1. Wipe clean with a dry cloth after use. Note: Never
use water or chemical cleaners to clean your power
tool.
2. Keep the motor ventilation slots clean. Keep all
working controls free of dust.
Note: Do not use it in a dusty environment.
If the supply cord is damaged, it must be replaced by
the manufacturer, its service agent or similarly qualied
persons in order to avoid a hazard.
ENVIRONMENTAL
PROTECTION
Disposal
The machine, its accessories and packaging
materials should be sorted for environmentally
friendly recycling. The plastic components are labeled
for categorized recycling.

3
AR
AR
2-3
HSS     
  
 





    


 















2
AR
AR









  








 1
 2
 3
 4
 5



KU110K.1 KU110K
50/ 60240220 
500W 
2800~0 
10 
20 

10 
10 
1.2 
回 /II 

KU110K.1 KU110K
1 / 

 



      



    






 2.





 

    





  

 


           

1
AR
AR











      1


             
        

     


 2

  



    





       
             


  



RCD             


       3
     



      



  
      
 


 


           
     

    



     


      



 4
       


         


  



    
      
   


    
   



 
  

      
          


       
   

5
   



1

       


 

         2



Copyright © 2021, Positec. All Rights Reserved.
