Kriss Sport Boxer User manual

BOXER
User manual

BOXER
Contents
General information - Introduction
Page 3
General information - Safety
Page 3
Warranty terms
Page 4
Machine description
Pages 5
Main Board description
Pages 6-9
MP3 installation
Page 8
Menu setting
Pages 9-17
How to play the game?
Page 19

BOXER
Contents
INTRODUCTION
Boxer is a fully computerized coin-operated strength-testing machine used for amusement
and entertainment. Boxer may be used in bars, pubs, amusement parks and other places
of entertainment.
Kriss-Sport made sure all the components used for production as well as the machine
itself are made of best quality components and are safe for both in-and outdoor use.
!
SAFETY
READ THIS INSTRUCTION CAREFULLY BEFORE YOU USE THE MACHINE.
!
WARNING
Safety precautions that must be taken to avoid a potential risk of injury:
-Players should not play after drinking alcohol.
-Players should be informed that they play at their own risk.
-Switch off and disconnect the electrical power supply before opening doors or working on
the machine.
-To prevent electrical shock, the game must be connected to a grounded electrical
outlet.
CAUTION!
Precautions that must be taken to avoid damage to equipment. The following
Warnings and Cautions should be heeded when operating Boxer:
-Maintenance and repair operations should be carried out only by suitably skilled and
qualified persons.
-To maintain the safety of the machine, and the warranty, use only approved parts. The
use of other parts or non-approved modifications to the machine could be hazardous, and
might void your warranty.
Page 3

BOXER
Warranty terms
Page 4
Kriss-Sport warrants that the Kriss-Sport Boxer will be free from defects in electronics
(mainboard, power supply, coin acceptor and bill acceptor) and ball-release mechanism
(in autoball spec.) for a period of two years from the date of shipment. Warranty terms
do not cover parts not included above.
Definition of defect:
Regarding mechanism: it will be considered as defective if un welding or breaking takes
place during the warranty period. It does not include scratching or rubbing out of any
metal part which results from heavy usage of a mechanism.!
Regarding electronics: it will be considered as defective if any connection between
subcomponents on a particular board fails or any of them stops working itself. It does not
include damages which occurred due to misuse, unauthorized connection or
modifications.
Should the product prove defective during the warranty period, Kriss-Sport, at its
option, shall:
- Repair the defective part by means of telephone support or depot service at no charge
for parts of labor.
- Replace the defective part with a comparable product which may be new or refurbished.
Provided that:
- Kriss-Sport is informed of the defect immediately after it occurred. The faulty part
should she dispatched to Kriss-Sport as soon as possible.
- Kriss-Sport diagnoses the defects were not caused by improper use, neglect,
unauthorized modifications, repair, setup or testing.
- Only parts recommended and approved by Kriss-Sport are covered by Kriss-Sport Terms
of Warranty.
UNDER NO CIRCUMSTANCES SHALL KRISS-SPORT BE HELD RESPONSIBLE FOR LOSES IN
PROFIT, USAGE OR ACCIDENTAL SERIOUS DAMAGE TO THE MACHINE!

BOXER
Machine description
Page 5
Displays
Start Button
Coin Acceptor
Ball
‘Your Score’ Display
‘Highest Score’ Display
‘Credit’ Display

BOXER

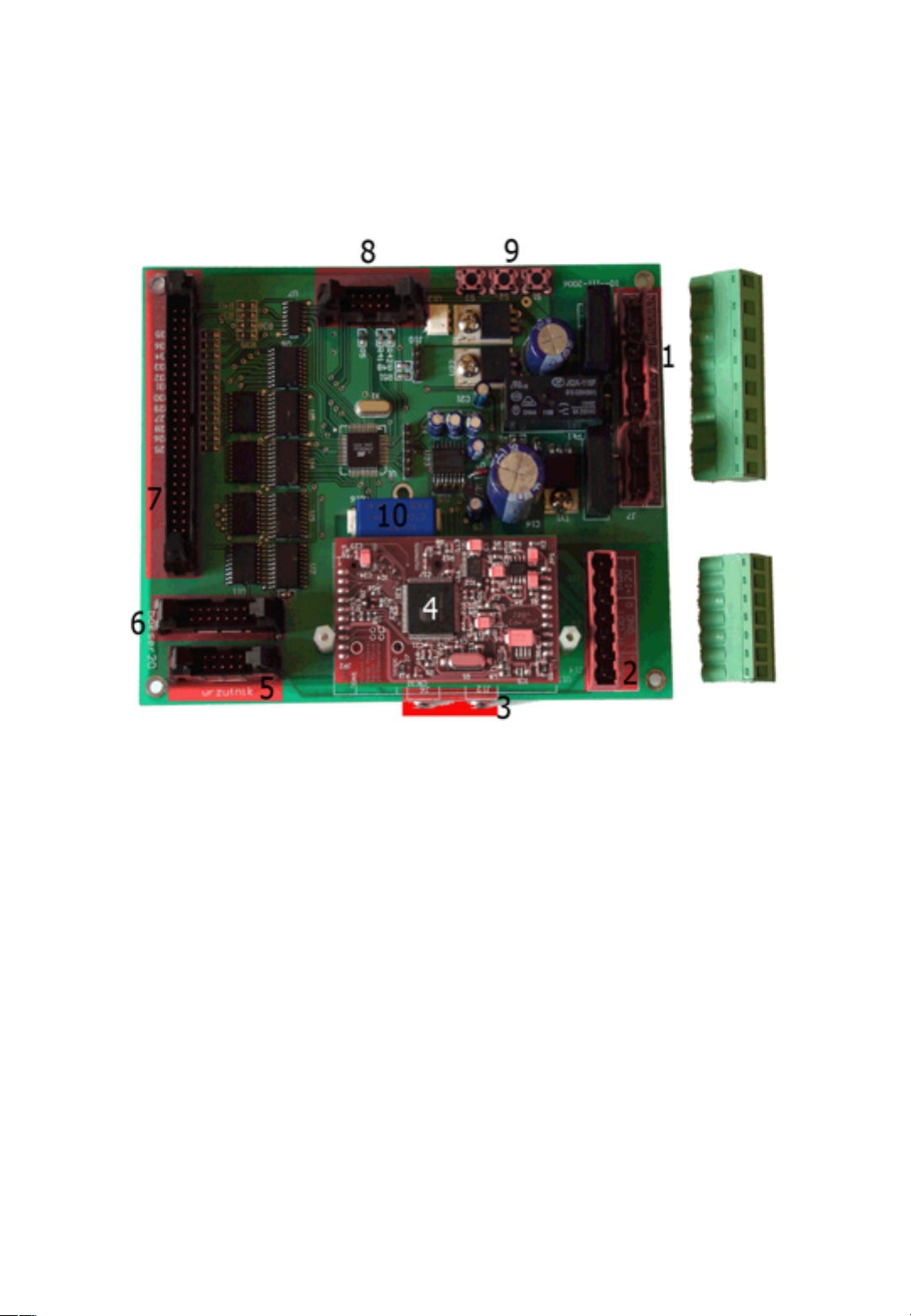

Main Board description
Page 6
1. First plug (more on page 7)
2. Second Plug (more on page 7)
3. Sensor outlet
4. MP3 Player
5. Bill-acceptor plug
6. Not used
7. Displays plug
8. Start button plug
9. Control buttons
10. Memory card

BOXER
Main Board description
Page 7
2a. Mechanical counter
2b.Audio out
2c. 12V DC power out (for amplifier)
1a. 12V AC main power in
1b. Electromagnet
1c. 12V AC power in
1d. Halogen lighting

BOXER
Main Board description
Page 8

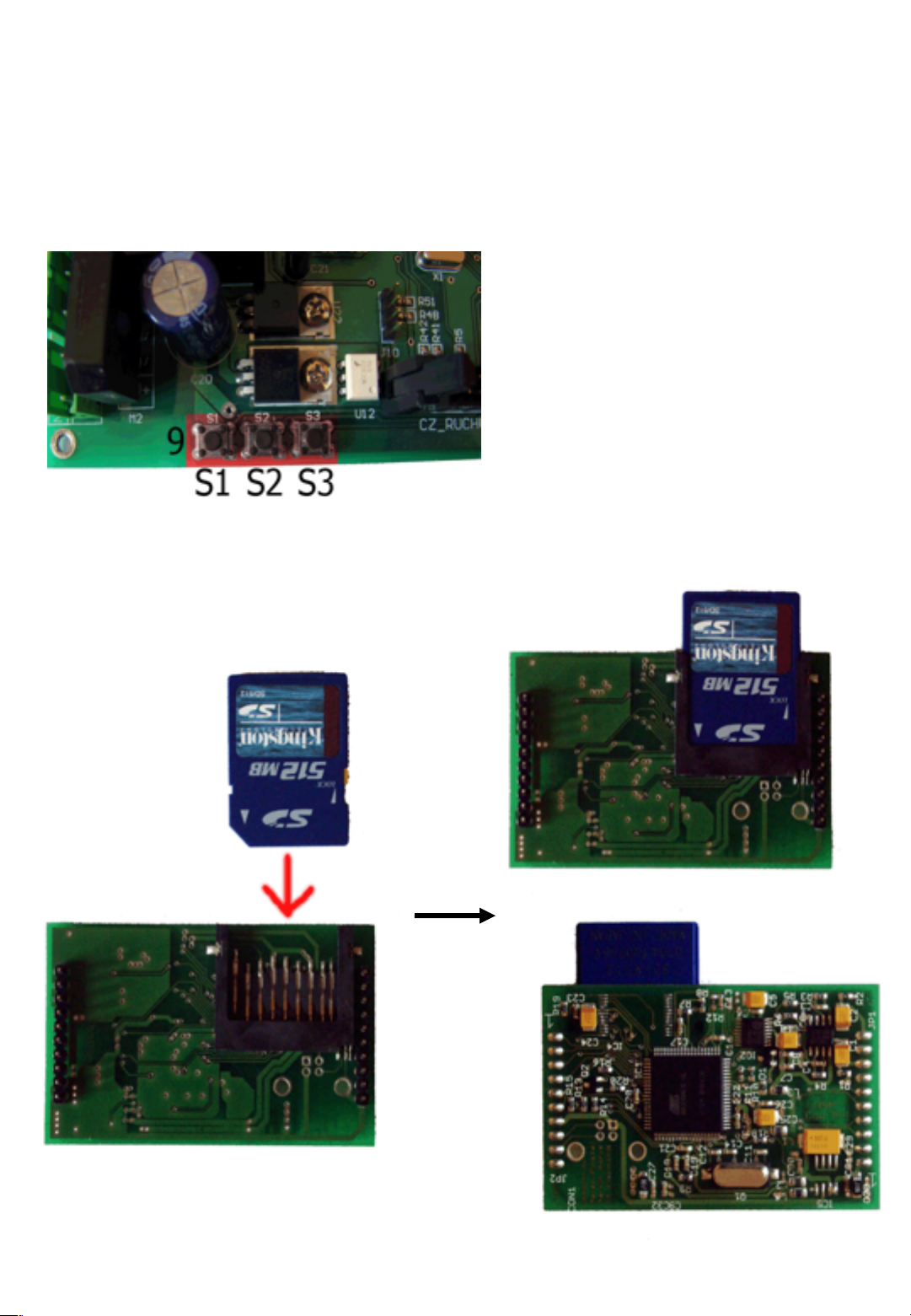

S1 = Enter and next functions by the
menu numbers
S2 = - (previous)
S3 = + (next)
Memory card installation

BOXER
Menu Setting
Page 9

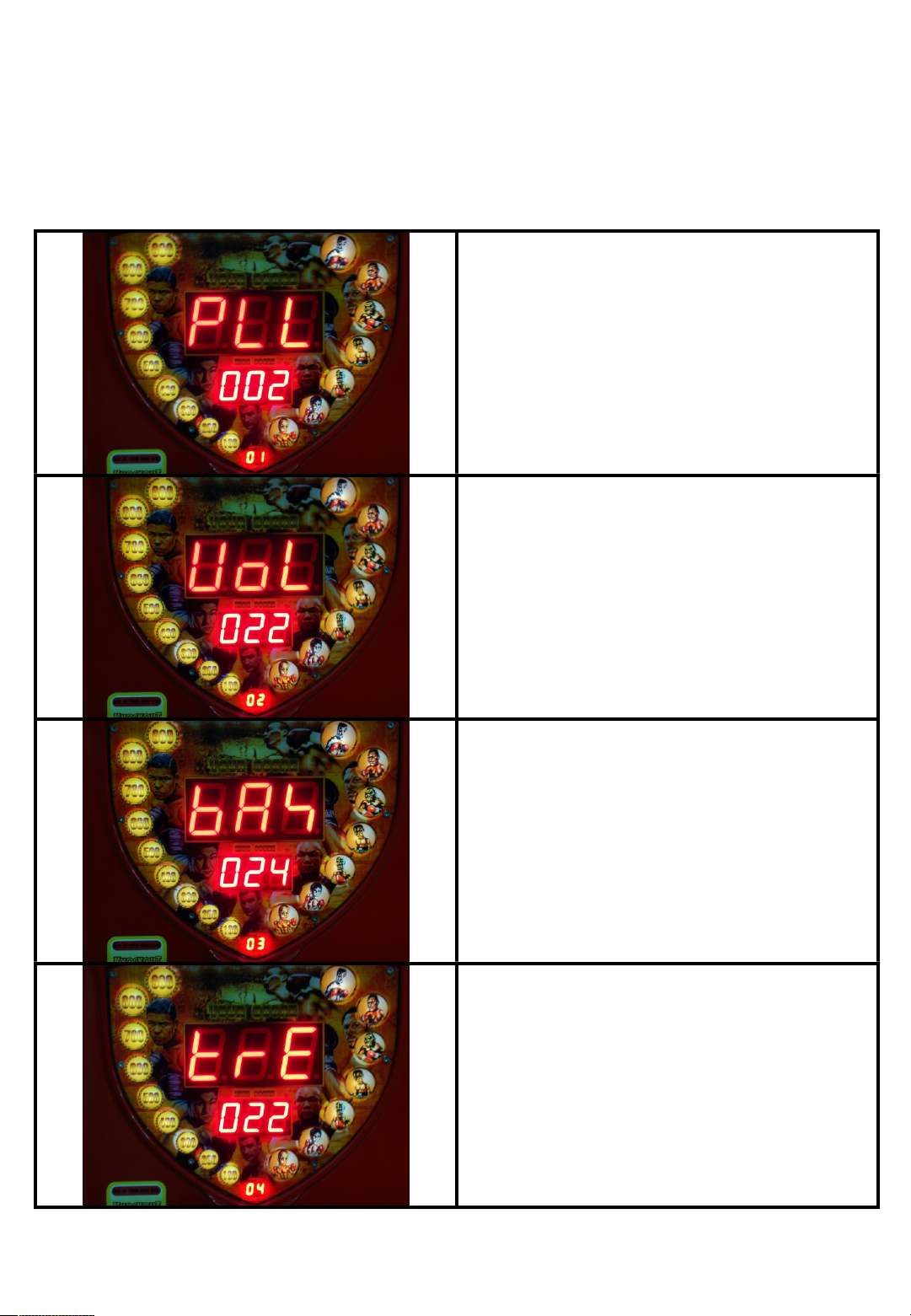

Difficulty Level.
With this function you can quick and easy
change difficulty level.
(001 Easy, 002 Medium, 003 Hard)
Default: 002
Game Volume Level Adjusting.
(001- 031)
Default: 022
Low Tones Adjusting.
(001- 031)
Default: 024
High Tones Adjusting.
(001- 031)
Default: 022

BOXER
Menu Setting
Page 10
Free Play Mode.
While Free Play mode is on machine will
not wait for credits.
(ON/0FF)
Default: OFF
Maximum Score Limit.
With this feature you can set maximum
score that can not be broken.
(500 – 999)
Default: 999
High Score Reducer.
This function is reducing High Score in
time. Select number of hours of machine
work.
(001-120)
For reducing record to 000 press S2 and S3
and hold for 3 seconds.
Default: 004
Demo Sequence Delay.
Whit this function you can change delays
between Demo Sequences.
(001 – 099 minutes)
Default: 015

BOXER
Menu Setting
Page 11
Credit Setting for First Channel of Coin
Acceptor.
(0.10 – 100 credits)
EXAMPLE:
a) FOR 1$ GAME = 4 COINS 0,25$
SET 0.25 (CREDIT)
b) FOR 0,5 $ GAMES = 2COINS 0,25$
SET 0,5 (CREDIT)
Credit Setting for Second Channel of Coin
Acceptor.
(0.10 – 100 CREDITS)
EXAMPLE:
a) FOR 1$ GAME = 2 COINS 0,5$
SET 0,5 (CREDIT)
b) FOR 0,5$ GAMES = 1 COIN 0,5$
SET 1.00 (CREDIT)
Credit Setting for Third Channel of Coin
Acceptor.
(0.10 – 100 CREDITS)
EXAMPLE:
a) FOR 1$ GAMES = 1COIN 1$
SET 1.00 (CREDIT)
b) FOR 0,5$ GAME = 1 COIN 1$
SET 2.00 (CREDITS)
Credit Setting for First Channel of Bill
Acceptor.
(0.10 – 100 CREDITS)
EXAMPLE:
a) FOR 1$ GAME = 1 BILL 1$
SET 1.00 (CREDIT)
b) FOR 0,5$ GAME = 1 BILL 1$
SET 2.00 (CREDITS)

BOXER
Menu Setting
Page 12

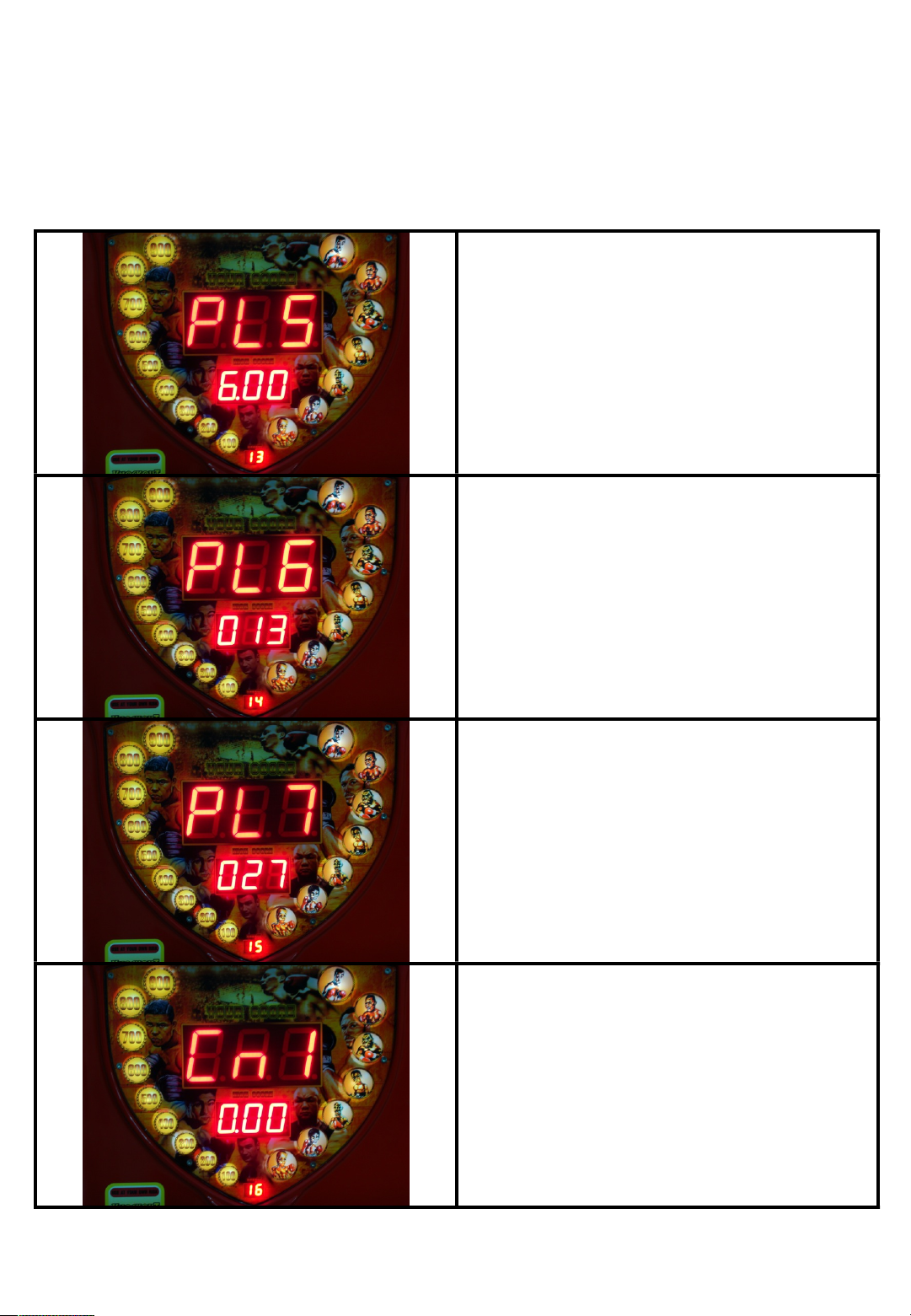

Credit Setting for Second Channel of Bill
Acceptior.
(0.10 – 100 CREDITS)
EXAMPLE:
a) FOR 1$ GAME = 1 BILL 5$
SET 5.00 (CREDITS)
b) FOR 0,5$ GAME = 1 BILL 5$
SET 010 (CREDITS)
Credit Setting for Third Channel of Bill
Acceptor.
(0.10 – 100 CREDITS)
EXAMPLE:
a) FOR 1$ GAME = 1 BILL 10$
SET 010 (CREDITS)
b) FOR 0,5$ GAME = 1 BILL 10$
SET 020 (CREDITS)
Credit Setting for Fourth Channel of Bill
Acceptor
(0.10 – 100 CREDITS)
EXAMPLE:
a) FOR 1$ GAME = 1 BILL 20$
SET 020 (CREDITS)
b) FOR 0,5$ GAME = 1 BILL 20$
SET 040 (CREDITS)
Counter Setting for First Channel of Coin
Acceptor.
SETTINGS FOR MONEY (OR PAID
CREDITS)
COUNTERS FOR FIRST CHANEL OF
COIN ACCEPTOR (0.10 – 500)
FOR 0.25$ SET 0.25

BOXER
Menu Setting
Page 13
Counter Setting for Second Channel of
Coin Acceptor.
SETTINGS FOR MONEY (OR PAID
CREDITS)
COUNTERS FOR SECOND CHANEL OF
COIN ACCEPTOR (0.10 – 500)
FOR 0.5$ SET 0.50
Counter Setting for Third Channel of Coin
Acceptor.
SETTINGS FOR MONEY (OR PAID
CREDITS)
COUNTERS FOR THIRD CHANEL OF
COIN ACCEPTOR (0.10 – 500)
FOR 1$ SET 1.00
SETTINGS FOR MONEY (OR PAID
CREDITS)
COUNTERS FOR FIRST CHANEL OF
BILL ACCEPTOR ( 0.10 – 500)
FOR 1$ SET 1.00
SETTINGS FOR MONEY (OR PAID
CREDITS)
COUNTERS FOR SECOND CHANEL OF
BILL ACCEPTOR ( 0.10 – 500)
FOR 5$ SET 5.00

BOXER
Menu Setting
Page 14
SETTINGS FOR MONEY (OR PAID
CREDITS)
COUNTERS FOR THIRD CHANEL OF
BILL ACCEPTOR ( 0.10 – 500)
FOR 10$ SET 010
SETTINGS FOR MONEY (OR PAID
CREDITS)
COUNTERS FOR Fourth CHANEL OF
BILL ACCEPTOR ( 0.10 – 500)
FOR 20$ SET 020
Power Correction for First Level of Difficulty
(PLL 001).
Default: 020
(-99 – 99)
099 - easy
050 - medium
-99 - hard
Power Correction for Second Level of
Difficulty (PLL 002).
Default: 060
(-99 – 99)
099 - easy
050 - medium
-99 - hard

BOXER
Menu Setting
Page 15
Power Correction for Third Level of
Difficulty (PLL 003).
Default: -30
(-99 – 99)
099 - easy
050 - medium
-99 - hard
Money counter erasable memory.
To reset press and hold S2 and S3 buttons
for 3 seconds.
001 on score display and 1.25 on hi-score
display = 11.25$
001 on score display and 125 on hi-score
display = 1125$
Money counter non-erasable memory.
Credit counter erasable memory.
To reset press and hold S2 and S3 buttons
for 3 seconds.

BOXER
Menu Setting
Page 16

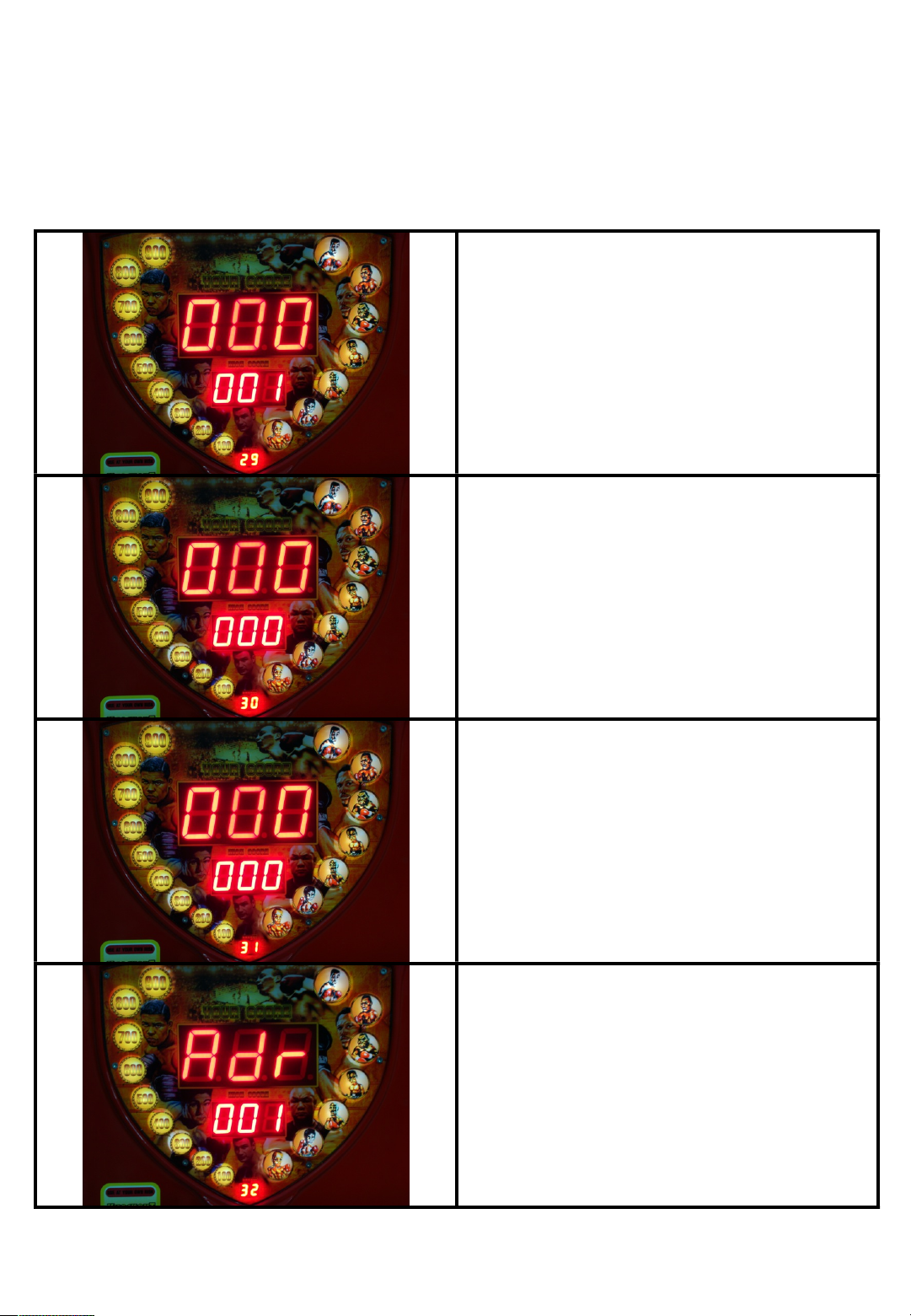

Credits counter non-erasable memory.
Bonus credits erasable memory.
To reset press and hold S2 and S3 buttons
for 3 seconds.
Bonus credits non-erasable memory.
Address of GSM module.

BOXER
Menu Setting
Page 17
Restoring factory settings.
(YES/NO)
Ready to use.
Standard game screen (Score, Record,
Credit) will appear after going through
whole menu options.

BOXER
How to play the game
Page 18
1. Insert coin/coins into the coin acceptor or note/notes into a bill acceptor.
2. Press Start Button.
3.Wait for the ball to come down
4. Hit the ball
5.WatchYour score on the display
