1.1 Installation
Install the GSD files in your system. If it is necessary to use a DD-based system to change the
device settings, install the DD files. If it is necessary to use an FDT-based system to change the
device settings, install the DTM files.
The software, files and installation instructions are given on the DVD-ROM supplied with the
device. You can download the latest version of the software from our website. For more data,
refer to the “readme.txt”files.
1.2 Scope of the document
These instructions are supplementary to the standard product documentation of the signal
converter. The details described herein, in particular the safety information, are valid and shall
be adhered to. The present supplementary instructions provide additional information for the
device when it is connected to a PROFIBUS network.
1.3 Scope of delivery
A device for PROFIBUS communication is supplied with:
Supplementary instructions for the PROFIBUS PA interface (this document)
INFORMATION!
The information in this document only contains the data applicable to the PROFIBUS module.
The technical data in the signal converter Handbook is valid in its current version, provided that it
is not rendered invalid or replaced by these supplementary instructions.

2 PROFIBUS PA
4
OPTIFLEX 2200 C/F
www.krohne.com 11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
2.1 Software history
Electronic revision
Software revision
2.2 Device description
This device is a 2-wire level transmitter that uses TDR (Time Domain Reflectometry) / Guided
Radar technology. It measures the distance of liquids, liquid gases, pastes, powders, slurries
and granular products.
The level transmitter has an MBP (Manchester-coded, bus-powered) interface to connect the
device to a PROFIBUS PA network, when equipped with the appropriate options.
The level transmitter is approved for use in potentially explosive atmospheres when equipped
with the appropriate options.
Issued Electronic
revision
Hardware Document
revision
Mth./
year
Signal converter Sensor HMI (LCD display
option)
04/14 1.00.00 PROFIBUS PA
module Ident. No.
0x4550
(4001858601d)
4000357001v 4000487601p R01R02 1
11/14 1.00.00 PROFIBUS PA
module Ident. No.
0x4550
(4001858601e)
4000357001v 4000487601p R03 1
1Supplementary Instructions: Description of PROFIBUS PA interface
Issued Firmware
revision
Document
revision
Application program System integration
Mth./
year
Hardware Software Driver Version Model
name
04/14
11/14
08/15
2.42.0.46
2.42.0.46
2.42.48
R01
R02
R03 1
Simatic
PCS7 2
HW Config
3GSD (device
specific) KR014550 .GSD OPTIFLEX 2200
GSD (profile
specific) PA139700 .GSD AI 1 (Phy MBP)
Laptop / PC PDM
(≥6.0 SP5) DD (Ident.-No.)
Pactware DTM ≥1.0.0
1Supplementary Instructions: Description of PROFIBUS PA interface
2Use this hardware or an SPS made by a different manufacturer
3Use this software or a software made by a different SPS manufacturer

PROFIBUS PA 2
5
OPTIFLEX 2200 C/F
www.krohne.com11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
2.3 Function blocks and the PROFIBUS PA Profile
The Analog Input Function Block agrees with PROFIBUS PA Profile 3.02. The Analog Input
Function Block is the data interface to a process control system (a PLC, ...). The control system
(cyclic communication services) can read data.
The device has these blocks:
The level transmitter is a modular device with 4 slots. Each Analog Input Function Block uses
one slot (as a virtual module). The user cannot change this setting. But the user can change the
measurement name and unit for each Function Block. Refer to the table that follows:
If you change device-specific parameters, we recommend that you set device and system length
units to millmetres (mm). New settings are rejected if system length units and device length
units are different.
INFORMATION!
The PROFIBUS PA Profile 3.02 has a standard set of parameters and functions available for
PROFIBUS devices used in process control. The PROFIBUS device is a function block application
in which parameters and functions are grouped into different blocks.
Block Usage
1 Physical Block (PB) contains identification and diagnosis parameters of the device
1 Transducer Block contains parameters and functions to control the level measurement
4 Analog Input Function Blocks
(AI-FB) contains parameters and functions to control the measuring output; provides the measuring value(s)
INFORMATION!
If it is necessary to change the measurement name, change the channel parameter in the acyclic
PROFIBUS services.
Slot Module
type
Measurement name
(default setting)
Unit
(default setting)
1AI-FB Level mm
2AI-FB Distance mm
3AI-FB Conversion L
4AI-FB Conversion Distance L

2 PROFIBUS PA
6
OPTIFLEX 2200 C/F
www.krohne.com 11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
2.4 Technical data
Hardware
Type PROFIBUS MBP interface. This interface agrees with IEC 61158-2 (bit rate
31.25 kbit/s);
voltage mode (MBP = Manchester-Coded, Bus-Powered)
Device power supply 9...32 V - bus powered; no additional power supply required
Polarity sensitivity No
Base current 14 mA
FDE Yes. The Fault Disconnection Electronics (FDE) operates independently.
Max. error current 20.5 mA
Start current after 10 ms Lower than base current
Software
Supported GSD KR014550.GSD
PA139700.GSD
Device profile PROFIBUS PA Profile V3.02; conformance class B, compact
Address setting Default: 126
Hardware DIP switch: 0…125
PROFIBUS service Set_Slave_Add: 0...125
Factory_Reset=2712: 126
Write protection Password
SAPs 3 × MS2 SAPs –the number of MS2 Service Access Points is usually equal to
the maximum number of master class 2 tools
Function blocks 1 Physical Block
1 Transducer Block
4 Analog Input Function Blocks

ELECTRICAL CONNECTION 3
7
OPTIFLEX 2200 C/F
www.krohne.com11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
3.1 Topology of a PROFIBUS PA network
The following diagram shows a typical network configuration with PROFIBUS PA devices in
hazardous and non-hazardous areas, as well as the connection of conventional non-PROFIBUS
devices (e.g. with 4 …20 mA signals) to a PROFIBUS network.
The PROFIBUS PA segment is connected to a segment coupler which, among other things,
provides the conversion to the PROFIBUS DP bus line. In addition it provides the power supply for
bus–powered PROFIBUS PA devices. Refer to the instruction manual of the segment coupler
concerning the DP bus parameters, e.g. the supported baud rates.
Refer also to the PROFIBUS PA User and Installation Guideline (Version 2.2, February 2003 PNO
Order No. 2.092).
Figure 3-1: PROFIBUS PA network
1 Control system (PLC); class 1 master
2 Engineering or operation control tool; class 2 master
3 PROFIBUS DP network with max. 12 Mbit/s
4 PROFIBUS PA segment coupler DP / PA
5 PROFIBUS PA network with 31.25 kbit/s
6 HART
®
device
7 More devices with 4…20 mA
8 Analogue I/O module

3 ELECTRICAL CONNECTION
8
OPTIFLEX 2200 C/F
www.krohne.com 11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
3.2 Electrical connection for signal converter
Bus cable - Shielding and grounding
The statements of the FISCO model only apply if the used bus cable meets the required
specifications.
In order to ensure optimum electromagnetic compatibility of systems it is important that the
system components, and in particular the bus cables, are shielded. Gaps in the shields must be
as small as possible.
Use the shortest possible length of shield wire to connect the electrical cable to the grounding
terminal.
INFORMATION!
The PROFIBUS PA interface of the signal converter will operate only if the power supply is
connected/available. The device terminal is not sensitive to electrical polarity.

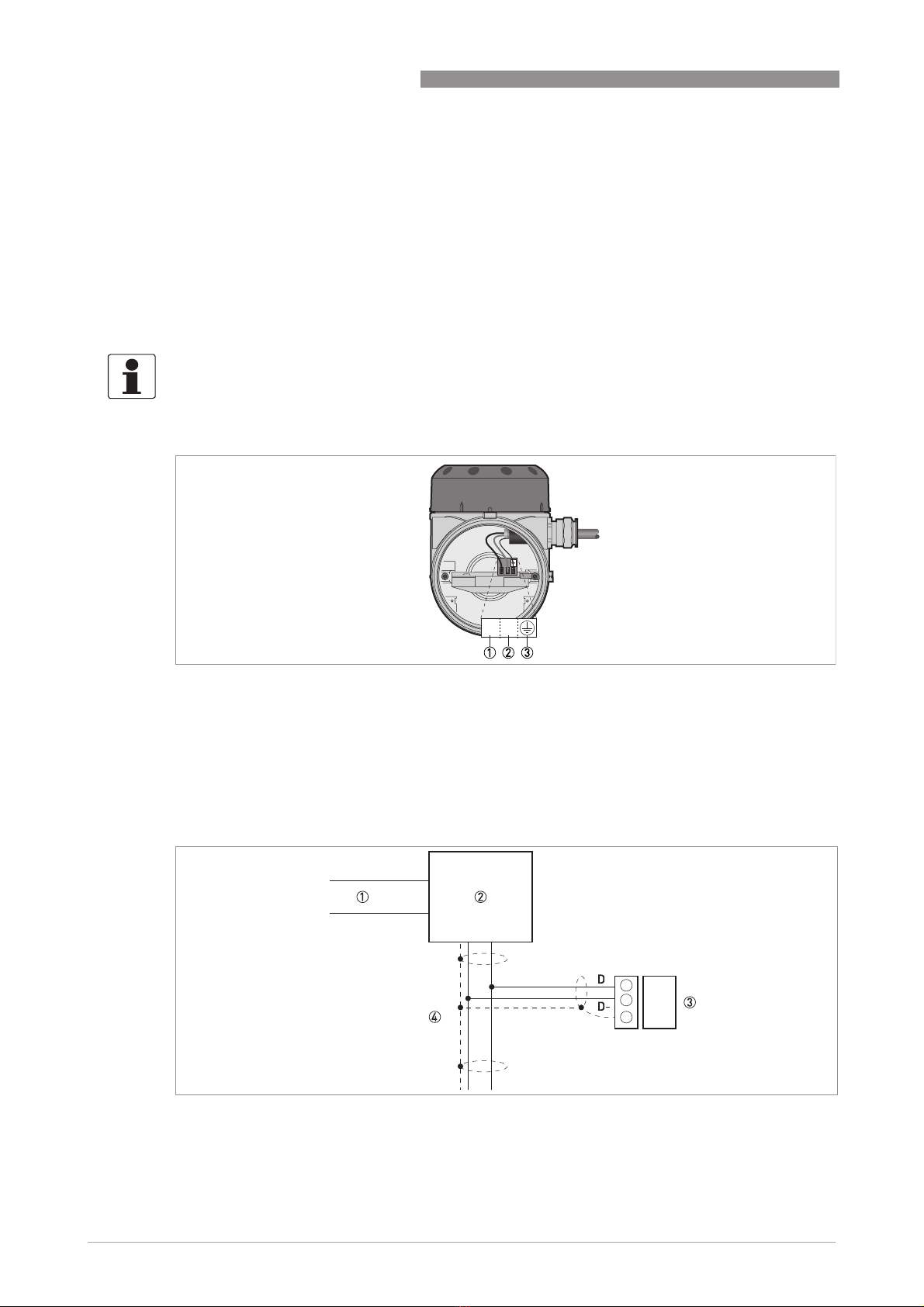

Figure 3-2: Electrical installation: terminals
1 Power supply / communication terminal
2 Power supply / communication terminal
3 Grounding terminal (converter electronics)
Figure 3-3: Shielded system components
1 PROFIBUS DP
2 Linking device / barrier
3 Bus-powered device
4 PROFIBUS PA (2-wire / shielded system)

ELECTRICAL CONNECTION 3
9
OPTIFLEX 2200 C/F
www.krohne.com11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
We recommend that you connect the two ends of the shield wire insulation (between the device
and the control system) to ground (PE), as given in the fieldbus specifications. If the ground (zero
potential) for the device and the control system are different, connect the supplied capacitor to
the grounding terminal on the device housing. For more data, refer to the procedure that
follows.
Equipment needed
•Device
•Handbook
•Capacitor (supplied in a transparent plastic bag with the device)
•T10 Torx wrench (not supplied)
•Small slotted-tip screwdriver (not supplied)
• Remove the terminal compartment cover.
• Remove the capacitor from the transparent plastic bag.
• Connect the capacitor to the grounding terminal 1. Tighten the terminal screw with a T10
Torx wrench.
• Use a small slotted-tip screwdriver to connect one end of the shield wire insulation to the
capacitor.
iEnd of the procedure.
Procedure: How to connect the shield wire insulation if zero potential (PE) for the
device and the control system are different

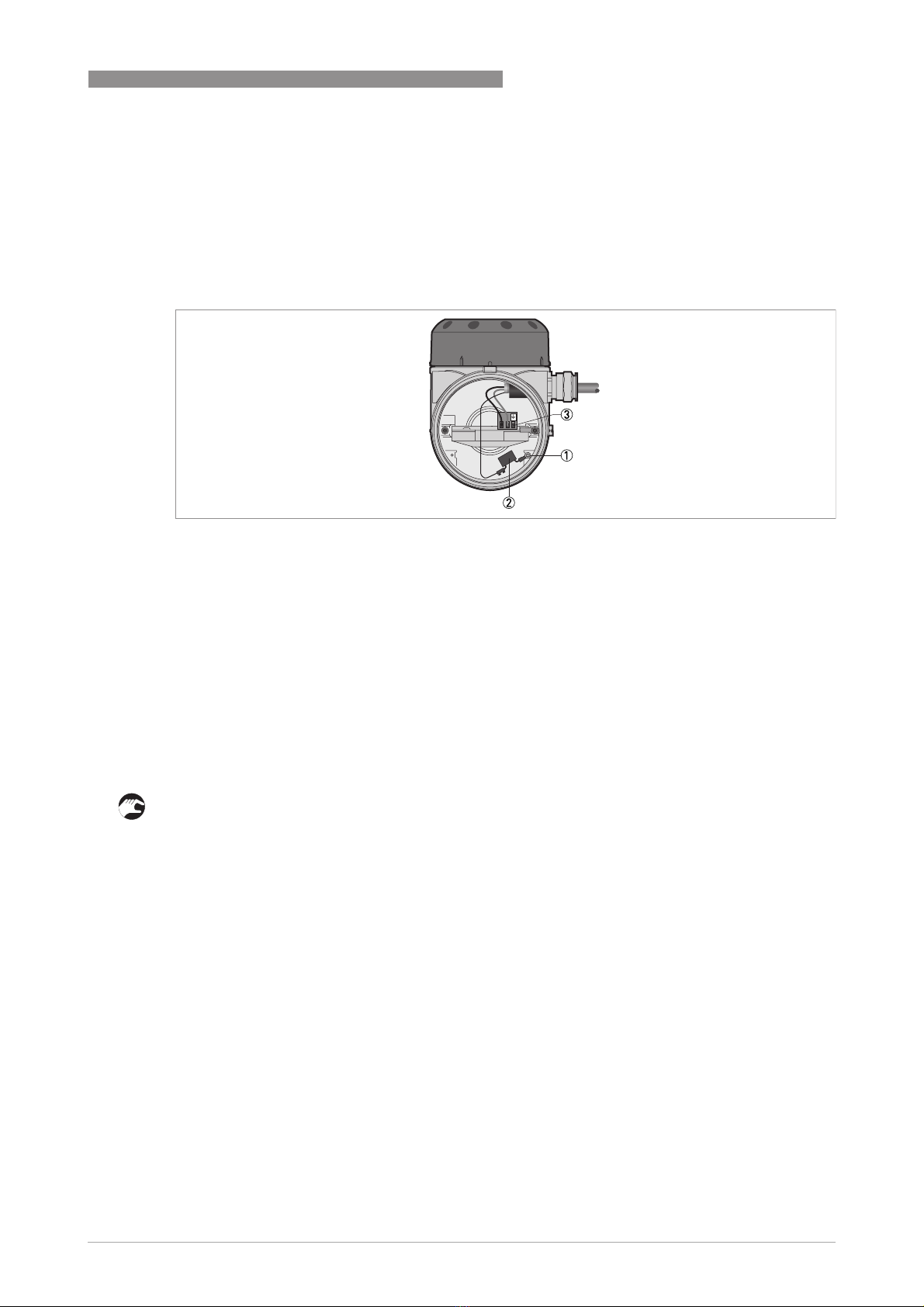

Figure 3-4: Procedure: How to connect the shield wire insulation if zero potential (PE) for the device and the control
system are different
1 Grounding terminal (housing)
2 Capacitor (supplied in a plastic transparent bag with the device)
3 Grounding terminal (converter electronics) –DO NOT USE

4 COMMISSIONING / OPERATION
10
OPTIFLEX 2200 C/F
www.krohne.com 11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
4.1 Hardware settings
There is a DIP switch block with 8 switches on the level transmitter module to set the PROFIBUS
device address and prevent changes to the station address from the network.

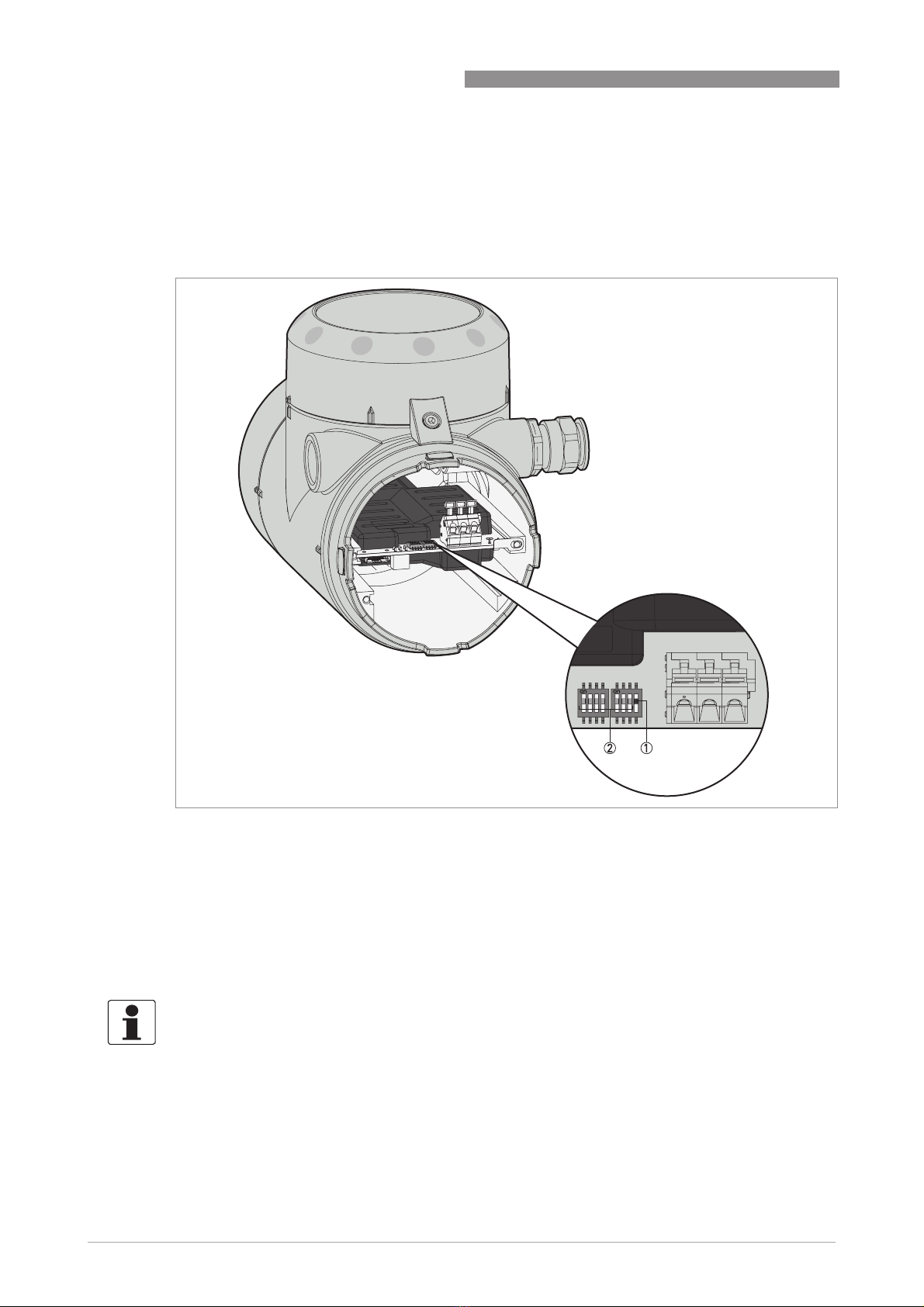

Figure 4-1: How to use the DIP switches to change the station address
1 Hardware DIP switch
OFF: The user can set the station address with the network bus
ON: The user can set the address of the device with the 7 other DIP swtiches (item 2). You cannot use the network bus
or the local display to change the station address.
2 7 "Station Address" DIP switches. Each DIP switch is a bit position (bits 0...6). Bit 0 is on the left side of the switch
block.The base 10 value of each bit is given in the table that follows. This data is used to calculate the "Station Address"
number.
OFF: binary number "0".
ON: binary number "1".
INFORMATION!
If the Hardware DIP switch is set to "ON", the hardware is locked and you cannot use the network
bus to change the station address.

COMMISSIONING / OPERATION 4
11
OPTIFLEX 2200 C/F
www.krohne.com11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
Station address: DIP switch positions
The station address is calculated by adding the "ON" values of each switch on the DIP switch
block. The default setting for each switch is “OFF”.
If you change the DIP swtich positions, start the device again to use the new settings. If you use
the "Set_Slave_Add" service or "FACTORY_RESET code 2712" (reset station address to its
default value) to change the station address, it is not necessary to start the device again to use
the new settings.
Station address
•If the "Station Address" DIP switches are set to a correct station address (≤125) and the
"Hardware" DIP switch is set to "ON", the device uses the DIP switch setting as the station
address. The Set-Slave_Add service is ignored in this mode. The Set_Slave_Add service is not
available for Automatic Ident. Number adaptation at this time. Physical block parameter
FACTORY_RESET code 2712 is rejected.
•If the "Hardware" DIP switch is set to "OFF", the device does not use the new setting. If the
"Station Address" DIP switches are set to an incorrect address (>125) and the "Hardware"
DIP switch is set to "OFF", the device does not use the new setting. The Set_Slave_Add
service or the Physical block parameter FACTORY_RESET code 2712 (reset station address to
its default value) can be used to change the station address and for Automatic Ident. Number
adaptation. The Physical block parameter FACTORY_RESET code 2712 can also be used to
change the station address.
•If the "Station Address" DIP switches are changed from an incorrect address to a correct
address and the Hardware" DIP switch is set to "ON", the device uses the "Station Address"
DIP switch setting.
•If the the "Hardware" DIP switch is set to "OFF", the device will use the last correct setting for
this mode. If the "Station Address" DIP switches are changed from a correct address to an
incorrect address and the "Hardware" DIP switch is set to "OFF", the device will use the last
correct setting for this mode. If there is no station address set at this time, the device will use
the default address 126.
Function Bit DIP switch positions
Value ("OFF") Value ("ON")
Hardware 1 7OFF ON
Station address 6+ 0 + 64
5+ 0 + 32
4+ 0 + 16
3+ 0 + 8
2+ 0 + 4
1+ 0 + 2
0+ 0 + 1
1If this DIP switch is set to "ON", you cannot use the network bus to change the station address
INFORMATION!
You can also use the local display (menu item 2.6.1 ADDRESS) to set the Station Address to a
new value. You can change the value when the Hardware DIP switch is "OFF". If the Hardware
DIP switch is "ON", you can see the Station Address on the local display screen but you cannot
change the value.

4 COMMISSIONING / OPERATION
12
OPTIFLEX 2200 C/F
www.krohne.com 11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
4.2 GSD files
The GSD file contains information that will be needed for configuration of the PROFIBUS DP
communication network. Supplementary files (e.g. ___.bmp and ___.dib) contain icons which will
represent the PROFIBUS devices in the view of the bus configuration system/master system. The
files must be loaded into the configuration program before you connect the device to the
network. Follow the instructions in the manual of the host supplier when installing GSD file and
supplementary files.
The GSD files of all KROHNE devices with PROFIBUS PA interface are available at the KROHNE
internet site for download.
4.3 Ident. Number
You can use a software-based engineering tool (DD, DTM etc.) and the parameter
IDENT_NUMBER_SELECTOR to change the Ident. Number.
Ident. Numbers identify the types of PROFIBUS slave used in a PROFIBUS network. There is one
Ident. Number for each type of PROFIBUS slave. This level transmitter can use more than one
Ident. Number. Thus, the device can have more than one configuration in the PROFIBUS
network. When the Ident. Number is changed, the cyclic data transfer rate changes. This permits
the network to change the quantity of measurement data and diagnostic data transmitted by the
device.
The level transmitter can use the settings that follow:
•Automatic adaptation mode (factory setting)
•Manufacturer specific Ident. Number (4550hex)
•Profile specific Ident. Number (9700hex)
Automatic adaptation mode (factory setting)
Automatic adaptation mode (factory setting)Automatic adaptation mode (factory setting)
Automatic adaptation mode (factory setting)
If the parameter IDENT_NUMBER_SELECTOR is set to Automatic adaptation
Automatic adaptationAutomatic adaptation
Automatic adaptation mode when the
system starts cyclic data transfer, the device will use the operation mode given in the GSD file.
The Ident. Number of the device uses of the settings described in the table that follows.
If the IDENT_NUMBER_SELECTOR is changed from a specified Ident. Number to Automatic
AutomaticAutomatic
Automatic
adaptation
adaptationadaptation
adaptation mode, the Ident. Number is not changed until the cyclic data transfer starts again.
INFORMATION!
If it is supported by the host configuration tool the device entry for the level meter will be located
within the slave family
“ PROFIBUS PA ” .
INFORMATION!
Failure of the automatic adaptation mode can occur. When this failure occurs, you must use a
software-based engineering tool and the parameter IDENT_NUMBER_SELECTOR to set the
Ident. Number to a constant value.

COMMISSIONING / OPERATION 4
13
OPTIFLEX 2200 C/F
www.krohne.com11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
Manufacturer specific Ident. Number (4550hex)
Manufacturer specific Ident. Number (4550hex)Manufacturer specific Ident. Number (4550hex)
Manufacturer specific Ident. Number (4550hex)
This setting gives a complete set of operations that can be run on the device. All Functions
Blocks (4 AI-FB) are available for cyclic data transfer. Device-specific diagnosis data is
transferred in addition to the Profile diagnosis.
Cyclic layout:
It is necessary to use GSD file KR014550.GSD in this mode. It is possible to use this file for all
types of PROFIBUS DP/PA segment couplers.
Profile specific Ident. Number (9700hex)
Profile specific Ident. Number (9700hex)Profile specific Ident. Number (9700hex)
Profile specific Ident. Number (9700hex)
The 4 AI-FB are available only for cyclic data transfer. Cyclic PROFIBUS services cannot supply
device-specific diagnosis data. This operational condition can make devices from different
suppliers operate better together. The system will only use functions that are available to all
PROFIBUS PA level transmitters. It is not necessary to change the settings of the control system
to transfer data.
Cyclic layout:
It is necessary to use GSD file PA139700.GSD in this mode. This file is supplied by PROFIBUS
International (refer to www.profibus.com). It is possible to use this file for all types of PROFIBUS
DP/PA segment couplers. If this file is used, “Condensed Status”is not available.
Slot Function Block Valid GSD Modules
1AI-FB Empty Module
AI: Out (short)
AI: Out (long)
2AI-FB Empty Module
AI: Out (short)
AI: Out (long)
3AI-FB Empty Module
AI: Out (short)
AI: Out (long)
4AI-FB Empty Module
AI: Out (short)
AI: Out (long)
INFORMATION!
If a different GSD file is used in the PROFIBUS master system, it is not possibe to transfer cyclic
data.
Slot Function Block Valid GSD Modules
1AI-FB Analog Input (AI) short
Analog Input (AI) long
INFORMATION!
If a different GSD file is used in the PROFIBUS master system, it is not possibe to transfer cyclic
data.

4 COMMISSIONING / OPERATION
14
OPTIFLEX 2200 C/F
www.krohne.com 11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
4.4 Configuration of cyclic data transfer
During network configuration the user has to select which function block input/output data shall
be transferred between the PROFIBUS master and the PROFIBUS slave. The GSD file described
above contains several types of modules for this purpose. During configuration a module has to
be assigned to each slot of the device in order to select which data has to be transferred for the
corresponding function blocks. The cyclic layout (see section Ident. Number selector) shows
which module types are valid for each slot. The order of transmission of the data always remains
the same. If an “Empty Module”is assigned to a slot no data will be sent for the corresponding
function block and all function block data following this empty module will move up one position.

COMMISSIONING / OPERATION 4
15
OPTIFLEX 2200 C/F
www.krohne.com11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
4.5 Cyclic data
In a PROFIBUS network cyclic data is described from the point of view of the master. Therefore
input data is transferred from the slave to the master while output data is transferred from the
master to the slave.
4.5.1 Input data
Input data is transferred from the level transmitter to the master for the measuring value. If
input data transfer is configured, 5 bytes are transferred for the corresponding slot:
•4 byte float value (Float Format according to IEEE Standard 754 Short Real Number)
•1 byte status value
Float value
Float valueFloat value
Float value
The example that follows shows the format of the float value according to IEEE Standard 754
Short Real Number:
Float format
Example (binary): 40 F0 00 00 (hex) = 0100 0000 1111 0000 0000 0000 0000 0000
Formula:
Formula:Formula:
Formula:
value = (-1)
VZ
* 2
(Exponent –127)
* (1 + Mantissa)
value = (-1)
0
* 2
(129 –127)
* (1 + 2
-1
+ 2
-2
+ 2
-3
)
value = 1 * 4 * (1 + 0.5 + 0.25 + 0.125)
value = 7.5
Byte n Byte n+1
Bit7 Bit6 Bit7 Bit6
VZ 2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
2
-1
2
-2
2
-3
2
-4
2
-5
2
-6
2
-7
Exponent Mantissa
Byte n+2 Byte n+3
Bit7 Bit7
2
-8
2
-9
2
-10
2
-11
2
-12
2
-13
2
-14
2
-15
2
-16
2
-17
2
-18
2
-19
2
-20
2
-21
2
-22
2
-23
Mantissa Mantissa

4 COMMISSIONING / OPERATION
16
OPTIFLEX 2200 C/F
www.krohne.com 11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
Status value
Status valueStatus value
Status value
The PROFIBUS interface of the level transmitter supports the PROFIBUS-PA Profile Version
3.02. In this Profile the Condensed Status and Diagnosis has replaced by default the Classic
Status and Diagnosis of the PROFIBUS-PA Profile Version 3.0. The Condensed Status and
Diagnosis has been created to make diagnostic events more obvious and to allow predictive and
preventive maintenance. Nevertheless Classic Status and Diagnosis is still available for the level
transmitter. It is implemented for backwards compatibility to "older" devices or PLC systems
which do not support Condensed Status and Diagnosis.
The device may be switched between "Condensed Status and Diagnosis" and "Classic Status and
Diagnosis"
•automatically during start-up of the cyclic data transfer by setting the parameter PRM_COND
within the Set_Prm service data.
•using an engineering tool (e.g. DD/DTM) to write the parameter COND_STATUS_DIAG (slot 0,
index 43).
Coding for both parameters is:
•0: Classic Status
•1: Condensed Status (factory setting)
The coding of the status value depends on the active status and diagnosis mode. It is described in
the following tables.
Condensed Status
Condensed StatusCondensed Status
Condensed Status
The Condensed Status codes have been defined to allow easier decoding of the information
provided by the PROFIBUS devices. The coding is shown in the following table:
INFORMATION!
The parameter COND_STATUS_DIAG cannot be modified directly if cyclic data transfer is active.
Nevertheless it is reset to the factory setting if a reset to default data is requested by an
engineering tool.
Quality Quality substatus Limits
Gr Gr QS QS QS QS Qu Qu
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
0 0 = bad
0 1 = uncertain
1 0 = good (Non Cascade)
1 1 = good (Cascade) - not supported

COMMISSIONING / OPERATION 4
17
OPTIFLEX 2200 C/F
www.krohne.com11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
Status = bad
Status = uncertain
Status = good (Non Cascade)
Quality Quality substatus Limits
Gr Gr QS QS QS QS Qu Qu
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
00000000= non-specific (not provided by the device)
00100011= passivated (diagnostic alerts inhibited)
001001xx= maintenance alarm, more diagnosis available
001010xx= process related, no maintenance
001111xx= function check / local override; value not usable
Quality Quality substatus Limits
Gr Gr QS QS QS QS Qu Qu
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
010010xx= substitute set
01001111= initial value
011010xx= maintenance demanded
01110011= simulated value, start
01110111= simulated value, end
011110xx= process related, no maintenance
Quality Quality substatus Limits
Gr Gr QS QS QS QS Qu Qu
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
100000xx= ok
100001xx= update event
100010xx= advisory alarm
100011xx= critical alarm
101000xx= initiate fail safe (not provided by the level
transmitter)
101001xx= maintenance required
101010xx= maintenance demanded
101111xx= function check

4 COMMISSIONING / OPERATION
18
OPTIFLEX 2200 C/F
www.krohne.com 11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
Status = Limits
Check the first two quality bits in order to get the quality information of the measurement value:
•Good (Non Cascade):
Good (Non Cascade):Good (Non Cascade):
Good (Non Cascade): function block output value is ok and can be used without restrictions
•Good (Cascade):
Good (Cascade):Good (Cascade):
Good (Cascade): will not be supported, because it is not applicable for the device
•Uncertain:
Uncertain:Uncertain:
Uncertain: function block output value can be used but the accuracy can not be guaranteed
(function block outputs value has been frozen, A/D converter is saturated or out of range, ...)
•Bad:
Bad:Bad:
Bad: function block output value is bad - do not use it for process control!
The "Quality-Substatus" and "Limit" bits will be used for further diagnostics or limit checking.
Classic Status
Classic StatusClassic Status
Classic Status
The Classic Status is implemented to provide compatibility to systems which are not configured
for Condensed Status. The coding is shown in the following table:
Quality Quality substatus Limits
Gr Gr QS QS QS QS Qu Qu
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
0 0 = ok
0 1 = low limited
1 0 = high limited
1 1 = constant
INFORMATION!
The status should be monitored because a number will be transmitted even if the status of the
measurement value is bad or uncertain. This is the only way to check the quality of the
transmitted measurement values.
Quality Quality substatus Limits
Gr Gr QS QS QS QS Qu Qu
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
0 0 = bad
0 1 = uncertain
1 0 = good (Non Cascade)
1 1 = good (Cascade) - not supported

COMMISSIONING / OPERATION 4
19
OPTIFLEX 2200 C/F
www.krohne.com11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
Status = bad
Status = uncertain
Status = good (Non Cascade)
Quality Quality substatus Limits
Gr Gr QS QS QS QS Qu Qu
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
000000 = non-specific
000001 = configuration error
000010 = not connected
000011 = device failure
000100 = sensor failure
000101 = no communication (last usable value)
000110 = no communication (no usable value)
000111 = out of service
Quality Quality substatus Limits
Gr Gr QS QS QS QS Qu Qu
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
010000 = non-specific
010001 = last usable value
010010 = substitute-set
010011 = initial value
010100 = sensor conversion not accurate
010101 = engineering unit violation (unit not in the valid set)
010110 = sub-normal
010111 = configuration error
011000 = simulated value
Quality Quality substatus Limits
Gr Gr QS QS QS QS Qu Qu
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
100000 = ok
100001 = update event
100010 = active advisory alarm
100011 = active critical alarm
100100 = unacknowledged update event
100101 = unacknowledged advisory alarm
100110 = unacknowledged critical alarm
101000 = initiate fail safe
101001 = maintenance required

4 COMMISSIONING / OPERATION
20
OPTIFLEX 2200 C/F
www.krohne.com 11/2015 - 4003066803 - MA OPTIFLEX2200C-PA-R03-en-
Status = Limits
Check the first two quality bits in order to get the quality information of the measurement value:
•Good (Non Cascade):
Good (Non Cascade):Good (Non Cascade):
Good (Non Cascade): function block output value is ok and can be used without restrictions
•Good (Cascade):
Good (Cascade):Good (Cascade):
Good (Cascade): will not be supported, because it is not applicable for the device
•Uncertain:
Uncertain:Uncertain:
Uncertain: function block output value can be used but the accuracy can not be guaranteed
(function block outputs value has been frozen, A/D converter is saturated or out of range, ...)
•Bad:
Bad:Bad:
Bad: function block output value is bad - do not use it for process control!
The "Quality-Substatus" and "Limit" bits will be used for further diagnostics or limit checking.
4.6 Diagnosis
The device does internal self-tests. The results are given as detailed diagnosis data that agrees
with PROFIBUS PA Profile 3.02. You can set device parameters to see the diagnosis data and you
can also use an engineering tool (DD, DTM etc.) to read it. Cyclic services transfer diagnosis data
to the control system (PLC etc.).
Diagnosis is bitwise coded. Thus it is possible to report more than one indication simultaneously.
The GSD file contains a text for each diagnosis bit to show a text message in the control system.
The references are specified in the UNIT_DIAG_BIT(i) entries. They show which bit is set to
indicate a special diagnosis event.
The quantity and content of diagnosis data depends on the device settings. The active Ident.
Number and the selected status and diagnosis mode will have an effect on diagnosis
propagation. The tables that follow show the diagnosis events which are reported for different
settings. The bit number is equal to the count in the GSD file. It gives the position in the device-
related diagnostic field of the Slave_Diag service.
Quality Quality substatus Limits
Gr Gr QS QS QS QS Qu Qu
2
7
2
6
2
5
2
4
2
3
2
2
2
1
2
0
0 0 = ok
0 1 = low limited
1 0 = high limited
1 1 = constant
INFORMATION!
The status should be monitored because a number will be transmitted even if the status of the
measurement value is bad or uncertain. This is the only way to check the quality of the
transmitted measurement values.
