How to use these installation and operating instructions
For easy reference these Instructions are divided into four parts.
Only Part A (page 3) is needed for installation and initial start-up.
All CORIMASS mass flowmeters of the G-Series are factory set to your order specifications.
Part A Install flowmeter in the pipeline (Sect. 1), connect up (Sect. 2) and power the
flowmeter (Sect. 3).
The system is operational
Part B Operator control and functions of the MFC 085 Signal Converter.
Part C Service and functional checks.
Part D Technical data, dimensions and measuring principle.
Product liability and warranty
The CORIMASS mass flowmeter MFM 4085 is designed for the direct measurement of mass
flow rate, product density and product temperature, and also indirectly enables measurement of
parameters such as total mass, concentration of dissolved substances and the volume flow.
For use in hazardous areas, special codes and regulations are applicable which are specified
in the special ”Ex installation and operating instructions” (supplied only with hazardous-duty
equipment).
Responsibility as to suitability andintended use of our instruments rests solely with the
purchaser.
Improper installation and operation of the flowmeters may lead to loss of warranty.
In addition, the ”general conditions of sale” forming the basis of the purchase agreement are
applicable.
If you need to return CORIMASS flowmeters to KROHNE, please complete the form on the last
page of this manual and return it with the meter to be repaired. Krohne regrets that it cannot
repair or check your flowmeter unless accompanied by this completed form.
CE / EMC Standards / Approvals
•The Corimass MFM 4085 with the MFC 085 signal converter meet the requirements of the
EU-EMC Directives and bear the CE symbol.
•The Corimass MFM 4085 K -Ex are approved as hazardous duty equipment to the
harmonised European Standards and to Factory Mutual (FM). Further details are given in the
”Ex” supplementary instructions provided only with hazardous-duty equipment.
CE
Technical data subject to change without notice

3
Contents
Part AInstallation and Start-up 5 - 24
1. Installation in the pipeline 5
1.1 General principles 5
1.2 Installation Guidelines 5
1.2.1 Mounting location 5
1.2.2 Connecting pipes 6
1.2.3 Mounting figures 8
1.2.4 Installation factor 8
1.2.5 Standard flange sizes for the flow meter 9
1.2.6 Cross talk 10
1.2.7 Recommended piping for use with the G-Meter 10
1.2.8 Inner Pipe diameters of the G-Series 10
1.3 External Heating and Insulation 11
1.3.1 Insulation 11
1.3.2 Electrical Trace Heating 13
1.3.3 Hot Fluid or Steam Heating 14
1.3.4 Heating Up from Cold 15
2. Electrical installation 17
2.1 Location and connecting cables 17
2.2 Connection to power 18
2.3 Inputs and outputs 18
2.4 Connection of Remote Meters 20
3. Start-up 21
3.1 Factory set parameters 21
3.2 Initial start-up 22
3.3 Installation factor 22
3.4 Zero point adjustment 22
3.5 Programming the converter with a bar magnet 24
Part BMFC 085 Signal Converter 25 - 75
4. Operation of the Signal Converter 25
4.1 Operating and check elements 25
4.2 Krohne Operating Concept 26
4.3 Key functions 27
4.3.1 How to enter programming mode 28
4.3.2 How to terminate programming mode 28
4.4 Table of programmable functions 31
4.5 Reset / Quit Menu - Totalizer reset and status indication acknowledgement 41
4.6 Status messages 43
4.7 Menu variations for systems with other output options 44
5 Descriptions of functions 45
5.1 Zero point adjustment 45
5.2 Low Flow cutoff 47
5.3 Time constant 47
5.4 Programming the display for measurement values 48
5.5 Programming Numeric Data 51
5.6 Setting the current output 52
5.7 Setting the frequency / pulse output 55
5.8 Setting the process alarm output (status) 59
5.9 Setting the control input (binary) 61
5.10 Setting the system control 62

4
5.11 Standby function 63
5.12 Density adjustment for maximum measuring accuracy 65
5.13 Specific gravity 69
5.14 User data 71
5.14.1 Programming the display language 71
5.14.2 Password protection of menus 71
5.14.3 Custody transfer protection code 72
5.14.4 Primary head type and tube parameters (CF1-5) 74
5.14.5 Location 75
Part CSpecial options, Functional checks, Service and Order numbers 76 - 95
6. Special options 76
6.1 Use in hazardous areas 76
6.2 Converter with non-standard output options 76
6.3 Concentration measurements 76
6.4 Converter with Smart / Hart communication option 76
6.5 Converter with RS 485 communication option 77
6.6 Custody transfer option 77
7. Functional checks 77
7.1 Test functions 77
7.1.1 Testing the display 77
7.1.2 Testing current output 78
7.1.3 Testing pulse output 78
7.1.4 Testing alarm output 80
7.1.5 Testing control input 80
7.1.6 Viewing temperature and strain 81
7.1.7 Viewing primary head signal conditions 81
8. Service and Troubleshooting 82
8.1 Threads and ”O” ring of the converter housing lid 82
8.2 Replacing the converter electronics 82
8.3 Change of operating voltage and power fuse F9 83
8.3.1 Replacement of power fuse F9 83
8.3.2 Changing the operating voltage 83
8.4 Turning the display circuit board 84
8.5 Turning the Signal Converter housing 84
8.6 Troubleshooting 85
8.7 Fault finding 88
8.8 Checking the Primary head 91
8.8.1 Compact Meter 91
8.8.2 Remote Meter 92
8.9 Status warnings 93
9. Order numbers 95
Part DTechnical Data, Measurement principle and Block diagram 96 - 104
10. Technical data 96
10.1 Measuring ranges and error limits 96
10.2 Primary head 97
10.3 MFC 085 Signal Converter 98
10.4 Block diagram of Converter MFC 085 101
10.5 Instrument data plate 102
10.6 Dimensions and weights 102
11. Measuring principle 104
12. Software History 104

5
Part A Installation and Start-up
1. Installation in the pipeline
1.1 General principles
The MFM 4085 K/F CORIMASS mass flow meter provides high accuracy and excellent
repeatability. Narrow band pass digital filtering, and the mathematically modelled internal
primary head design provides exceptional immunity to external vibratory disturbances from
nearby process equipment. The accuracy of the flow meter is not affected by velocity profile.
The straight single tube means there is a very low risk of cavitation, and no air can be trapped
inside themeter. No back pressure is required at the outlet of the meter. As with all Coriolis
massflowmeters, the CORIMASS is an active device with its own energy source. A good
installation is essential for the high measurement accuracy.
The following installation guidelines are practical to implement, particularly if planned before the
CORIMASS is first installed. For further dimensions or connections, please refer to Section D,
Technical Data.
1.2 Installation Guidelines
1.2.1 Mounting location
For the G+ no special mounting requirements are necessary. However, good general
engineering practices for the installation of flow meters should still be observed.
¾ The meter can be installed horizontally, in an upward sloping pipeline or vertically. For best
results, a vertical installation with flow in an upward direction is recommended.
Figure 1
1.2.2 Connecting pipes
Flow
Flow
Horizontal mounting
Upward sloping installation
Vertical installation (recommended)
Flow

6
¾ Avoid mounting the meter with long vertical drops after the meter. This could cause
siphoning and cause measurement errors.
Figure 2. Avoid long vertical drops
¾ Install meter at least 4 ×L downstream of pumps. (where L = length of the meter)
Figure 3
¾ Avoid mounting the meter at the highest point in the pipeline. Air or gas can accumulate
here and cause faulty measurements.
Figure 4
¾ The use of reducers at the flanges is allowed. Extreme pipe size reductions should be
avoided due to possibility of cavitation and gassing. One size up from smallest available
flange size is acceptable.
Figure 5
One size up from standard
> 4 ×L
Siphoning effect

7
¾ The use of flexible hoses is allowed. For best results the meter should be supported by two
spool pieces and the hoses connected to these spool pieces. For low flow rates (less than
10%) secondary clamps may be required.
Figure 6
Note: See table on next page for information on supports for distances, L.
¾ To enable a good zero to be done, it is recommended that a shut-off valve be installed
downstream of the flow meter.
Figure 7
Figure 7
¾ Installing in a bypass
Figure 8
L L
Flow
Valve for zeroing flow meter
The second valve is recommended if the
pump is switched off to prevent back flow

8
¾ Should it become necessary to support the pipework, the following guidelines should be
followed. Do not clamp the meter body or the process pipework closer than distance L, as
shown in the table below. Due to the weight of the 800 to 3000 G, the pipework should be
supported. Please note minimum support distances as per table.
Meter Size L (cm) L (inch)
10 G+
21 8,8
100 G+
35 13,8
300 G+
48 18,9
800 G+
48 18,9
1500 G+
48 (DN 50) 70 (DN 80) 18,9 (2”N.B.) 27,6 (3”N.B.)
3000 G+
48 (DN 80) 60 (DN 100) 18,9 (2”N.B.) 23,7 (3”N.B.)
¾ Connecting pipes may have bends between the meter and supports
Figure 9
¾ Fit valves, sensors, sight glasses, etc. outside the supports if possible.
1.2.3 Mounting fixtures
¾ The connecting pipework must be in a stress free condition.
¾ The meter should fit between the connecting pipe with perhaps 2 - 3 mm (1/8 inch) to spare.
It should not be necessary to force the pipes apart to fit meter. Flanges should be correctly
aligned.
¾ Tighten flange bolts evenly.
¾ Do not fit rigid electrical conduit to the converter housing.
¾ Do not fit supports or any fixtures to any part of the meter or connecting pipework between
meter and supports.
1.2.4 Installation factor
The installation factor feature is unique to the G-Series. This factor (found in menu 2.7.4) is a
dimensionless number between 0 and 999 which is an indication of how well the instrument is
installed and whether the product contained gas bubbles. This is a function of the amount of
energy required to excite the measuring tube to its natural resonant frequency. The auto zero
value (menu 1.1.1 or 3.1.1) should be as low as possible, typically less than 1% for normal
installations and less than 2% for extreme conditions.

9
The following values are a guideline to a good installation:
With themeter filled with water, the values should be less than the figureindicated.
Meter Size Installation factor
Non Ex •Installation factor
Ex
10 G + 20 200
100 G + 10 150
300 G + 20 400
800 G + 20 300
1500 G + 30 300
3000 G + 40 400
•The higher installation factor for Ex instruments is due to the power limiting of the Zener
barriers in the Exciter circuit, and does not mean bad installation.
•Product with higher density or entrained gas will exhibit higher installation factors.
Use the following procedure to check the installation factor. Warm up the electronics for at least
30 minutes. Flush the meter with water or product to ensure that all trapped air has been
removed.
Key Display
Line 2 Display Line 2
→Fct. (1).0 OPERATOR
↑Fct. (2).0 TEST
→Fct. 2.(1) TEST DISP:
6 ×↑Fct. 2.(7).0 TEST: TRANSD:
→Fct. 2.7.(1) SENSOR A
3 ×↑Fct. 2.7.(4) INSTAL:FACT:
→Fct. xxx
Display of installation factor LEVEL
3 ×↵Fct. 2.7.(4) INSTAL:FACT
↵Display
Note: Terms in brackets are flashing on the display.
1.2.5 Standard flange sizes
The following is a list of flanges for the meters, which are supplied as standard.
10 G+
100 G+
300 G+
800 G+
1500 G+
3000 G+
DN 10 PN 40 / ½” ANSI 150
DN 15 PN 40 / ¾” ANSI 150
DN 25 PN 40 / 1” ANSI 150
DN 40 PN 40 / 1½” ANSI 150
DN 50 PN 40 / 2” ANSI 150
DN 80 PN 40 / 3” ANSI 150

10
1.2.6 Cross talk
Multiple instruments of the same size installed in the same structure may cause a problem with
cross talk between the operating frequencies of the instruments.
If this type of installation is envisaged, please contact your nearest Krohne office or
representative for assistance.
Instruments of different sizes are normally not a problem. As a guide the following table of
frequencies are provided for information ( +/- 5 Hz ) :
10 G+ 100 G+ 300 G+ 800 G+ 1500 G+ 3000 G+
Frequency in air (Hz) 230 223 253 250 290 295
Frequency in Water (Hz) 224 203 219 194 205 210
1.2.7 Inner Pipe diameters of the G-Series
Inner Diameter 10 G+ 100 G+ 300 G+ 800 G+ 1500 G+ 3000 G+
[mm] 4.93 14.46 23.58 37.60 47.96 68
[inch] 0.19 0.57 0.93 1.48 1.89 2.68
Tube thickness [mm] 0.71 0.71 0.91 1.20 1.42 2.00
1.2.8 Sanitary Connections
The installation guidelines are the same for sanitary connections as for flanges up to the
300 G.
The 800 G, 1500 and 3000 G has a different requirement due to the weight of the meter. The
standard sanitary connectors are not capable of carrying the weight of the meter. As a safety
precaution Krohne has decided to ship the 800 G to 3000 G with extended spool pieces with the
customer-requested sanitary connectors on the ends.
The installation length is thus increased with this extra set of spool pieces. This has the
advantage of having the correct length and outside diameter of the pipe to enable secure
clamping and a vastly improved installation. Supports must be used on the extra spool piece
close to the sanitary connection.
All G+ meters with sanitary connections have stainless steel adaptor, which screw on each end
of the meter using seals between the adaptor and the meter. The standard seal material is
PTFE on 10 G+ and 100 G+, and Viton for all other sizes. Other materials are available on
request. It is important that the adaptors are properly tightened to ensure crevice free seal (see
table on the next page for correct torque tightening valves.

11
METER
SIZE SIZE & TYPE
Seal is
modelled on:
STD.
MATERIAL TYP.
TORQUE
Nm
KFTC part/drawing ALTERN.
MAT.
TYP.
TORQUE
Nm
10 G ½” Tri-clamp PTFE 18 3.85055.00.00 None
100 G ¾” Tri-clamp PTFE 16 3.85155.00.00 Nitrile+
Silicone+
EPDM+
Viton+
8
•
•
8
300 G 1” IDF/ISS Viton 8 5.85065.00.00 Nitrile
EPDM
PTFE
9
•
11.5
800 G DN40
DIN11851 Viton 27.5 5.85117.00.00 Nitrile
EPDM
Silicone
•
24
•
1500 G 2” IDF/ISS Viton 24 5.85162.00.00 Nitrile
EPDM
PTFE
26
•
39.5
Installation lengths for sanitary connections - please contact Krohne for further details as
installation lengths depend on customer requirements.
•Typical Torque on request.
1.3 External Heating and Insulation
When installing the G+ Meter in heated and insulated pipelines, it is not generally necessary or
desirable to heat or insulate the case of the meter. This is because the central measuring tube
is not thermally coupled to the case, except at the extreme ends. It is then only necessary to
insulate the flanges as shown in the attached drawings. However, it is permissible to insulate
the case of G+ Meters and special units with heating jackets are available.
The following notes will act as a guide for use of the G+ Meter with different types of heating
and insulation systems. Please note that freezing of the product within the meter cannot
damage the meter.
1.3.1 Insulation
It is recommended that the pipework and insulation material be installed as in figure 10. The
insulation can be Rubber, Foam, Glass Fibre or any other process suitable material. It should,
however, be firmly fixed with no components such as straps or covers that can vibrate.
Figure 10
Insulation Principle

12
Notes:
1. Insulation Material: Rubber, Foam, Glass Fibre, or any other process suitable material.
2. Insulation must be firmly fixed to the pipework.
If especially desired by the customer, it is permissible to insulate the meter itself. If this is
required, then the following guidelines should be followed.
The insulation must be firmly fixed to themeter with no components such as straps or covers
that can vibrate (figure 11). DO NOT insulate converter (figure 12).
Figure 11
Important Note:
When insulating Ex meters, insulation must not rise above the square plate that connects the
sensor and converter (figure 12).
Figure 12
In addition, any heat tracing used (electrical or fluid) must not exceed 130°C for titanium meters
(optional 150°C). For zirconium meters maximum temperature is 100°C. The Ex temperature
classes are also different, see table below.

13
Ex Temperature Classes for Insulated/Heated Meters
Process Temperature Temperature Class
65°C T5
100°C T4
130°C T3
Optional 150°C T3-T1
If remote meters are insulated (see figure 13), it is imperative that the insulation does not rise
above the square plate mentioned above and a thermal insulation adapter must be purchased
from Krohne and fitted as shown.
Figure 13
1.3.2 Electrical Trace Heating
The use of electrical heating tape is illustrated in figures 14,15,16 and 17. The use of self-
limiting tape is ideal, but other types of electrical heating may be used. Any thermostat should
be fitted to the adjacent pipework, if this is done it should be firmly fixed with no loose wires or
connections that could vibrate. If only pipework and flanges are insulated, two turns of heating
tape should be tightly applied to the flanges and covered in insulation as shown. All heating
tapes should be tightly fixed with no areas that could vibrate. Between the flanges the heating
tape should be secured to the converter neck, but insulated from it (figure 16) or run back to the
first clamp and then in a loop to the opposite clamp (figure 17). Krohne can supply a list of
electrical heating tape suppliers, if required. If the meter case is insulated then heating tape
may be applied tightly under the insulation. It is recommended that the heating tape be applied
axially and continuously taped down (figure 15).
Figure 14
Figure 15
Figure 16

14
The converter must not be insulated or heated. For Ex meters refer to ‘important note’ in
‘Insulation’ section above.
In all cases, the installation factor should be monitored and maintained within the normal
levels.
Figure 17
1.3.3 Hot Fluid or Steam Heating

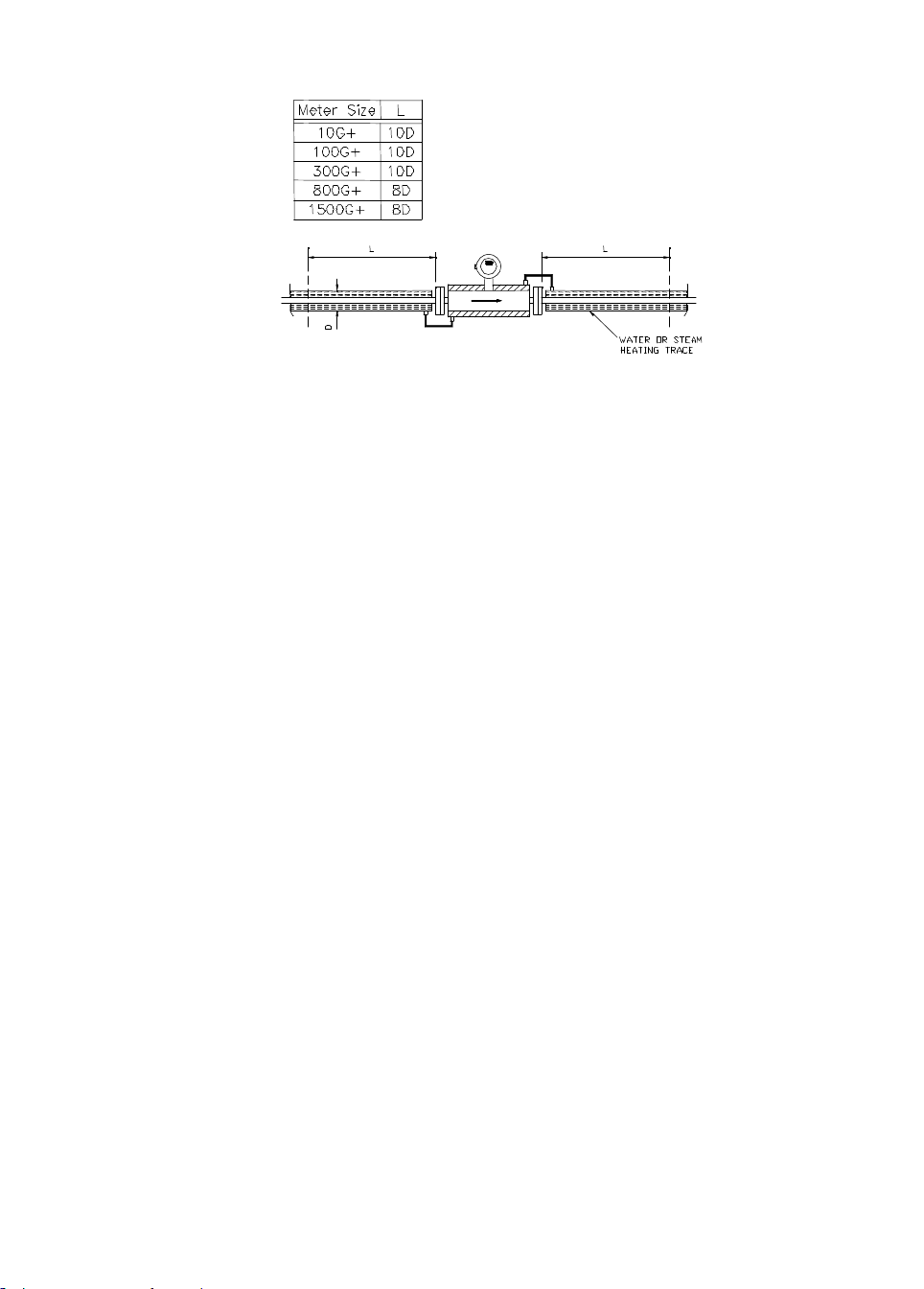

Where pipelines are jacketed with concentric pipes, carrying a hot fluid such as water or steam,
follow the following recommendations.
The jacket should be of as small a diameter as possible and the wall thickness should be as thin
as possible (figure 18).
A radial gap between the process pipe and the inside of the jacket of 5-6mm is suitable.
The minimum clamping distance is increased (figure 18). The first clamp should be moved
further away from the meter.
It is an advantage to avoid process pipework of a large diameter compared to the meter bore.
Krohne can provide further guidelines and dimensions of suitable pipes and jackets.
The jacket must be completely filled with no air pockets present.
Any clamps or supports must be applied at a distance greater than L.
Figure18

15
Also available are special jacketed meters as shown in figure 19. These are also Ex approved.
Remote jacketed meter must be fitted with an insulation adaptor shown in fig. 13.
Figure 19
In all cases, theinstallation factor should bemonitored and maintained within normal levels.
1.3.4 Heating Up From Cold
The proceeding insulation and heating instructions also apply in this case, together with the
following notes:
The low thermal coupling between the Titanium tube and the flanges means that maintaining a
G+ Meter at a desired temperature is straight forward as already described, however, heating
from cold an uninsulated meter can be a lengthy process, particularly if the customer’s product
could be damaged by high rates of heat input at the flanges. The areas at each end of the
meter can be heated from 20°C to 60°C in about 2 hours, but the centre of the meter can take 5
hours to reach this temperature particularly if the product has solidified. It is possible to speed
this up if the meter is mounted vertically and a reduction of about an hour is possible, if the case
is insulated. If the case is also heated, heating times are further cut.
The above comments assume that there is no flow through the meter. If there is flow through
the meter then the desired temperature can be reached within a few minutes.
Another important fact to note, is that it is rarely necessary to fully melt all the product which has
solidified in the meter, as it has been demonstrated that any ‘plug’ of product can be pushed
through the meter by pumping pressures of less than 1 bar. Any ‘plug’ would be rapidly melted
in the joining pipework. This fact is an important benefit of the single straight tube design and is
not true of bent tube meters, or meters with flow dividers and multiple tubes.
Temperature Note
Most work in this subject has considered product temperature up to 80°C, if higher
temperatures are required by the customer the proceeding guidelines still apply, but heat up
from cold times will be extended.
The G+ Meters have maximum operating temperatures, as follows:
Zirconium Tubes 100°C
Titanium Tubes 130°C
Titanium Tubes (to special order) 150°C

16
On Titanium tube meters, it is, however, possible to exceed 150°C up to an absolute maximum
of 200°C, for short periods. The time is limited by the initial temperature and final temperature.
To assess the time allowable, refer to figures 11,12 and 13, which cover the 10G+, 100G+ and
300G+ meters. For the 800G+ and 1500G+ refer to Krohne Ltd.
This does not apply to the 3000G+. These meters must not exceed 130°C. Zirconium tube
meters must never exceed 100°C.

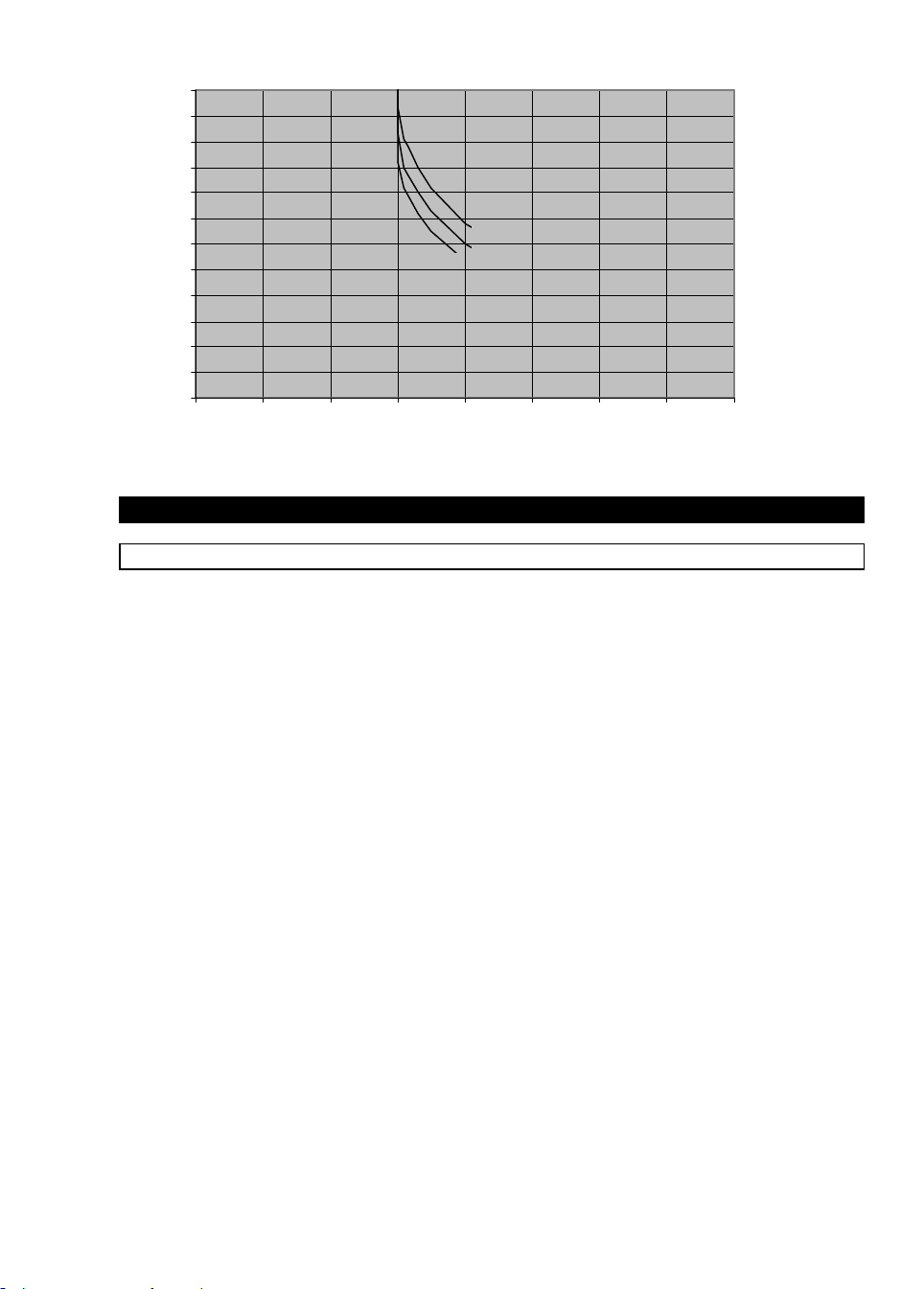

ALLOWABLE TIME AT HIGH TEMP .
10 G METER
0
10
20
30
40
50
60
70
80
90
100
110
120
130
120 130 140 150 160 170 180 190 200
TEMP. C
TIME MIN.
Initial temp 30 C
Initial temp 70 C
Initial temp 120 C
ALLOWABLE TIME AT HIGH TEMP.
100G METER
0
10
20
30
40
50
60
70
80
90
100
110
120
120 130 140 150 160 170 180 190 200
TEMP. C
TIME MIN.
Initial temp 30 C
Initial temp 70 C
Initial temp 120
C

17
ALLOWABLE TIME AT HIGH TMP.
300G/ 800G METER
0
10
20
30
40
50
60
70
80
90
100
110
120
120 130 140 150 160 170 180 190 200
TEMP. C
TIME MIN.
Initial
Initial
Initial
2. Electrical installation
2.1 Location and connecting cables
Location
Do not expose the compact flow meter to direct sunlight. Install a sunshade if necessary.
Connecting cables
To conform to protection category requirements, observe the following recommendations:
– Fit blanking plug PG 16 and apply sealant to unused cable entries.
– Do not kink cables directly at cable entries.
– Provide water drip point (U bend in cable).
– Do not connect rigid conduit to cable entries.
– If cables are a tight fit, enlarge inside diameter of cable gland by removing the appropriate
ring(s) from the seal.

18

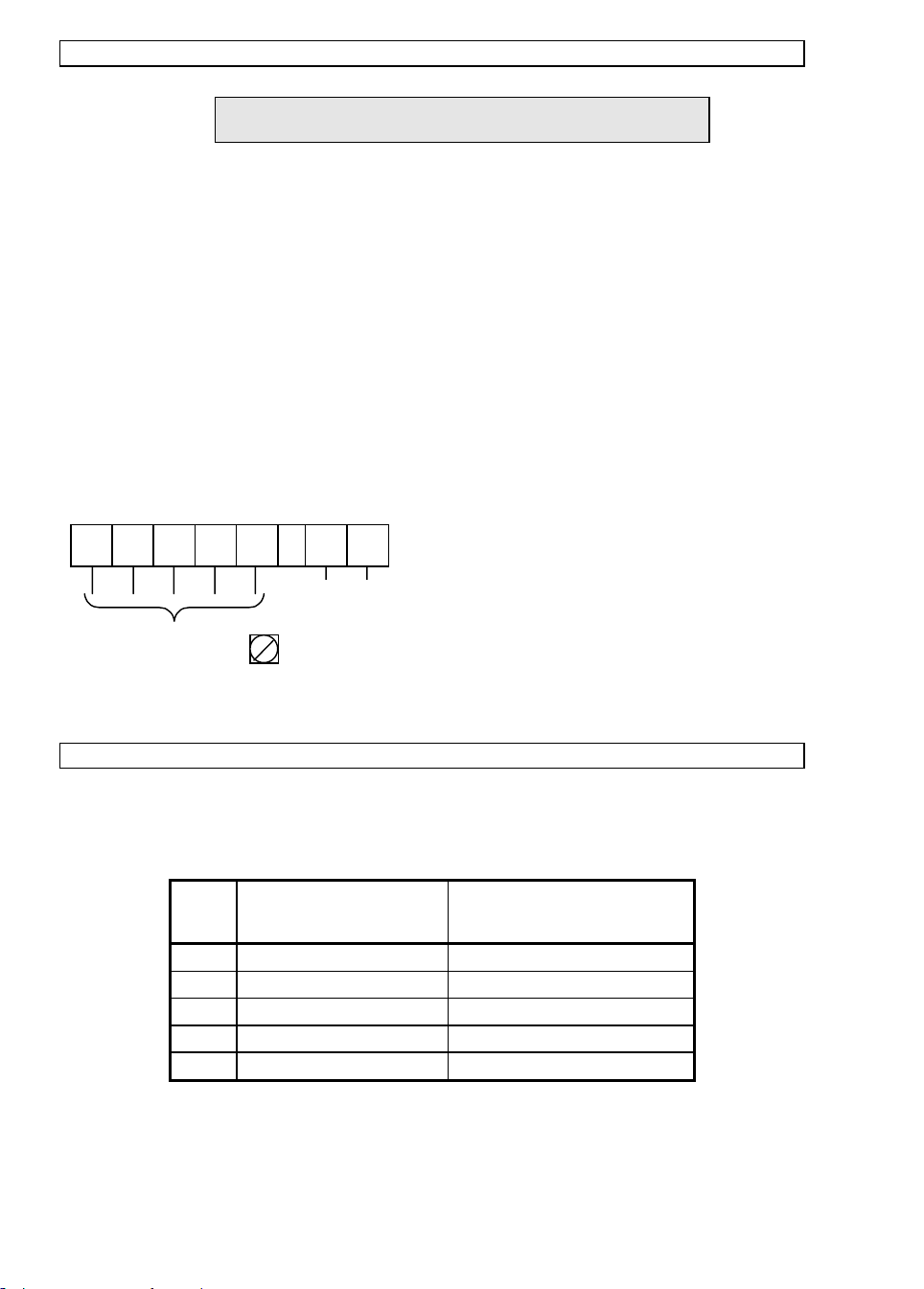

2.2 Connection to power
– Note information given on the instrument data plate (voltage, frequency)!
– Electrical connection in conformity with IEC 364 or equivalent national standard.
Special regulations apply to installation in hazardous areas. Please refer to separate "Ex"
installation instructions.
– The PE protective ground conductor must be connected to the separate U-clamp
terminal in the terminal box of the signal converter.
– Do not cross or loop the cables in the terminal box of the signal converter. Use separate
(PG or NPT) cable glands for power and output cables.
– Ensure that the screw thread of the round cover on the terminal box is well greased at all
times.
NOTE: The grease used must be non-corrosive to aluminium; typically it must be resin- and
acid-free.
– Protect sealing ring from damage.
Outputs and
connections
see Sect. 2.3
Power and signal connections for MFC 085 K
2.3 Inputs and outputs
The table below shows the input/output connection for the converter. The exact configuration
depends on which optional output modules were fitted in the factory.
Table of input/output connections
Trm.
No. Option 1
(Current, pulse, status
output and control input )
Option 2*
(2 current,NGI
status output)
5 Common (-) Common (-)
6 Current output (+) Current output 1 (+)
4 Control input Control input.
4.1 Pulse output Current output 2 (+)
4.2 Status output (active) Status output (passive)
* The inputs/outputs share a common signal ground that is galvanically isolated from ground
(PE).
Please ensure that the information about power given on the
data plate corresponds to the locally available mains voltage.
PE
5644.1 4.2 11 12
N L AC
– + DC

19

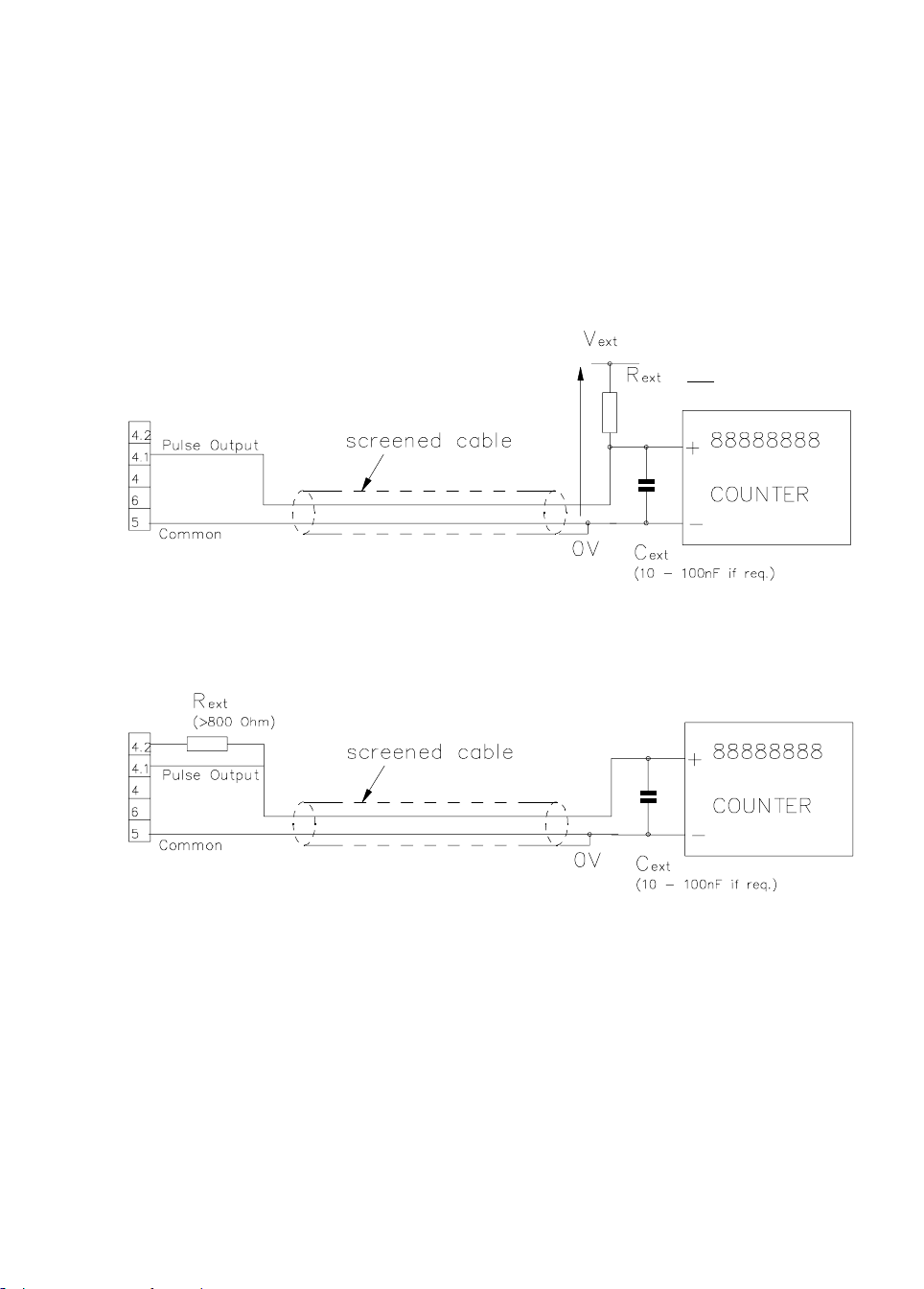

For the standard converter, the pulse output is passive and requires an external voltage
source for operation. In addition, the signal may need protection from external electrical
interference. The use of screened cables and a filter capacitor next to any counter is
recommended. (Fig. a)
It is possible to connect the pulse output without using an external voltage supply. However to
do this the function of the alarm output must be sacrificed. (Fig. b).
If the alarm output is used to power the pulse signal then the following settings must be made
in the menus.
(i) Fct. 3.5.1 ALARM FUNCTION must be set to OFF
(ii) Fct. 3.5.2 ALARM ACTIVE LEVEL must be set to ACTIVE LOW.
(Max. 24 V DC)
(Vext ≤150 mA)
Rext
Fig. a Preferred connections to an external counter with separate power supply
(Example). For correct wiring see table of Input/ output connections
Fig. b Connection without external voltage source (Example). For correct wiring see
table of Input/ output connection

20
Additional input/output options
Tr
m.
No.
Option 4*
(Current and
RS485)
Option 5*
(Current and
Modbus)
Option 6
(1 Current,
1 Dual
phase pulse
output and
control
input)
Option C
(2 current,
pulse and
control
input)
Option D
(3 current
and
pulse)
Option E
(3 current
and
control
input)
Option F
(3 current
and
status
output)
5 Common
(-) Common (-) Common (-) Common (-) Common (-) Common (-) Common (-)
6 Current
output 1 (+) Current output 1 (+) Current output 1 (+) Current output (+) Current output 1 (+) Current output 1 (+) Current output 1 (+)
4 TX/RX TX/RX Control Input Current
output 2 (+) Current output 2 (+) Current output 2 (+) Current output 2 (+)
4.1 TX/RX TX/RX Pulse
Output A Control Input Current output 3 (+) Current output 3 (+) Current output 3 (+)
4.2 +5V +5V Pulse
Output B Pulse Output Pulse output Control Input status output (passive)
The pulse out alarm outputs where selected are passive.
* Refer to separate RS 485 or Modbus manual
2.4 Connection of remote meters
The G meter can be supplied as remote meter with 5 m cable. Under no circumstances should
the cable be cut shorter or joined to increase its length. The meter is calibrated with this 5m
length. Any changes will influence the performance of the meter.

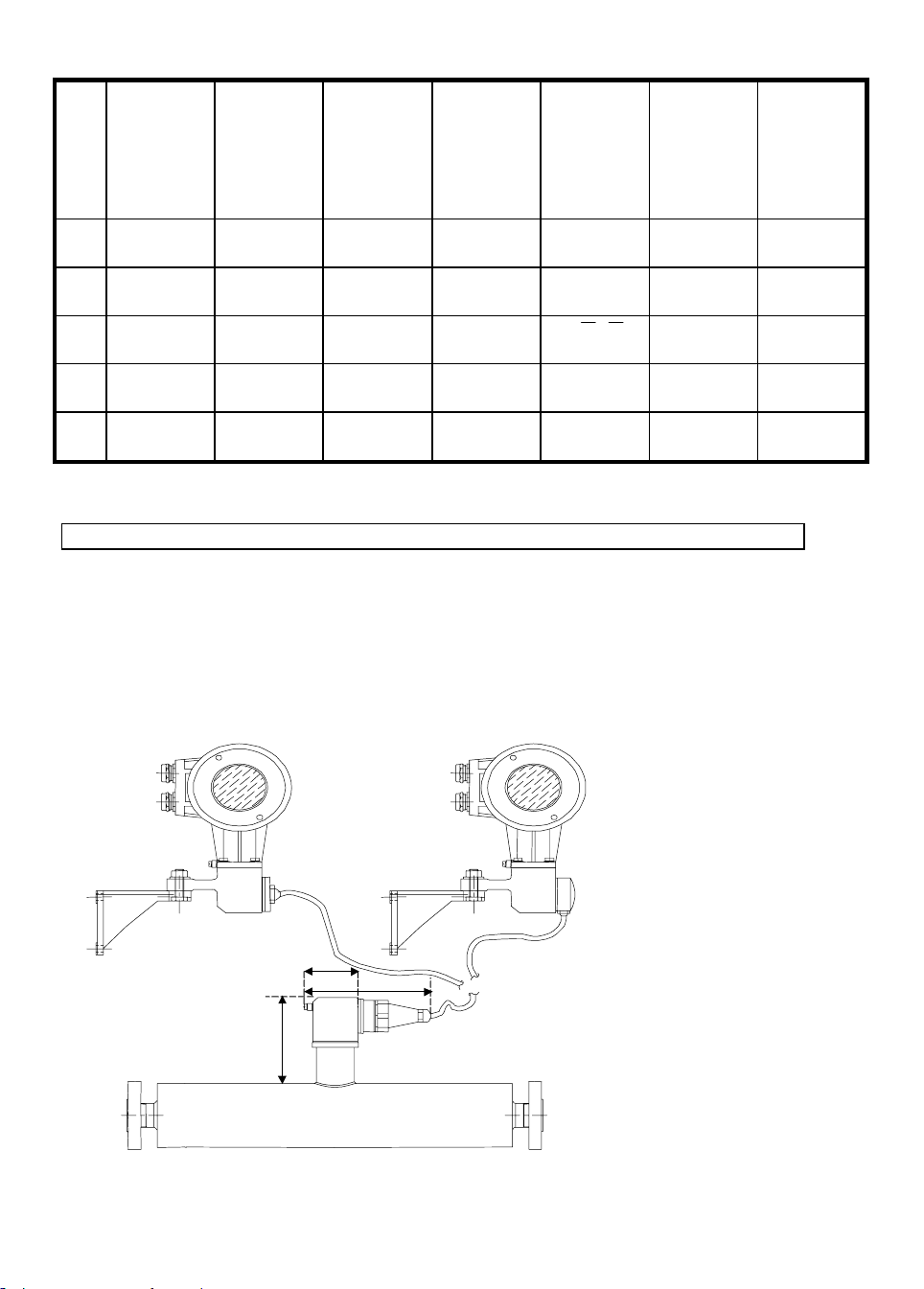

There are two different configurations of remote meter, on the first version the cable is fixed at
the converter end and the second has a terminal junction box at the converter end.
115
50 145
