KROHNE VA40 Wiring diagram

Variable area flowmeter
Equipment category II 2 G with electrical components
Ex supplementary instructions
Ex supplementary instructionsEx supplementary instructions
Ex supplementary instructions
VA40
VA40VA40
VA40 Supplementary instructions
Supplementary instructionsSupplementary instructions
Supplementary instructions
© KROHNE 10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 1 Monday, October 15, 2012 2:46 PM

CONTENTS
2 www.krohne.com 10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
VA40
1 Safety instructions 3
1.1 General notes ................................................................................................................... 3
1.2 EC conformity ................................................................................................................... 3
1.3 Security information......................................................................................................... 3
2 Device description 4
2.1 Device description ............................................................................................................ 4
2.2 Description code............................................................................................................... 4
2.3 Marking............................................................................................................................. 5
2.4 Flammable products ........................................................................................................ 7
2.5 Equipment category .........................................................................................................7
2.6 Protection types................................................................................................................ 7
2.7 Ambient temperature / temperature classes.................................................................. 8
2.8 Electrical data................................................................................................................... 9
3 Installation 10
3.1 Installation...................................................................................................................... 10
4 Electrical connections 11
4.1 General notes ................................................................................................................. 11
4.2 Grounding and equipotential bonding............................................................................ 11
5 Operation 12
5.1 Start-up........................................................................................................................... 12
5.2 Operation ........................................................................................................................ 12
5.3 Electrostatic charge .......................................................................................................12
6 Service 13
6.1 Maintenance ................................................................................................................... 13
6.2 Dismantling .................................................................................................................... 13
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 2 Monday, October 15, 2012 2:46 PM

SAFETY INSTRUCTIONS 1
3
VA40
www.krohne.com10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
Safety instructions
1.1 General notes
These additional instructions apply to explosion-protected versions of the VA40/./../..-Ex variable
area flowmeter with the designation II 2 G. They complement the Installation and Operating
Instructions for the non-explosion protected versions.
The information given in these Instructions contains only the data relevant to Category 2
explosion protection. The technical details given in the Installation and Operation Instructions for
the non-explosion protected versions apply unchanged unless excluded or superseded by these
Instructions.
1.2 EC conformity
The manufacturer declares with the EC Declaration of Conformity on his own responsibility
conformity with the protection goals of Directive 94/9/EC for use in hazardous areas with gas.
The EC Type Test Certificate of the Physikalisch Technische Bundesanstalt (PTB) forms the basis
of the EC Declaration of Conformity:
The "X" after the certificate number refers to special conditions for safe use of the device, which
have been listed in these Instructions.
The EC type test certificate may be downloaded from the manufacturer's website as needed.
1.3 Security information
Assembly, installation, start-up and maintenance may only be performed by personnel trained in
explosion protection!
PTB 05 ATEX 2026 X
PTB 05 ATEX 2026 XPTB 05 ATEX 2026 X
PTB 05 ATEX 2026 X
CAUTION!
The operator respectively his agent is responsible to follow further standards, directives or laws
if required due to operating conditions or place of installation. This applies particularly for the
use of easy detachable process connections such as SMS or Clamp when measuring flammable
mediums.
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 3 Monday, October 15, 2012 2:46 PM

2DEVICE DESCRIPTION
4
VA40
www.krohne.com 10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
Device description
2.1 Device description
Variable area flowmeters measure and display the volume flow of flammable and non-
flammable gases and liquids. Up to two separately adjustable electrical limit switches can be
mounted to the on-site display.
2.2 Description code
The safety description code * consists of the following elements:
* positions which are not needed are omitted (no blank positions)
1 Type of connection
V - Screw connection
S - Tube socket
F - Flange connection
A - Aseptic connection, conforming to food standards
2 Material of the connection
R - Stainless steel 1.4404 (316 L)
ST - Steel, electroplated and chromized
PV - Platics PVDF
3 Limit switches
K1 - one limit switch
K2 - two limit switches
Safety description code MS14:
1 Inserting limit switch
2 Version 21
Safety description code MS14:
1 Magnetic switch
2 Reed cartridge 14
3
without Limit switch with connected cable
A - Limit switch with terminal box (standard)
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 4 Monday, October 15, 2012 2:46 PM

DEVICE DESCRIPTION 2
5
VA40
www.krohne.com10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
2.3 Marking
The marking of the complete device is shown in the following nameplate. The variable-area
flowmeter is marked on the roundly housing.
1 Type of meter
2 Manufacturer
3 Website
4 Appointed ATEX body
5 Pay regard to manual
6 Ex-data
7 Serial number
8 Year of manufacture
9 PED-data
10 Design data: Temperature & pressure rating
Marking Limit switch TG21
1 Type
2 Manufacturer
3 Ex data
4 KROHNE website
5 Built-in components
6 Observe Operation and Installation manual
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 5 Monday, October 15, 2012 2:46 PM

2DEVICE DESCRIPTION
6
VA40
www.krohne.com 10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
Marking Limit switches MS14
1 Type
2 Manufacturer
3 Year made
4 PTB number
5 KROHNE website
6 Electrical connection data
7 Ex data
Marking Limit switches MS14A
1 Type
2 Manufacturer
3 PTB number
4 Year made
5 Electrical connection data
6 Ex data
7 KROHNE website
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 6 Monday, October 15, 2012 2:46 PM

DEVICE DESCRIPTION 2
7
VA40
www.krohne.com10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
2.4 Flammable products
Atmospheric conditions
An explosive atmosphere is a mixture of air and flammable gases, vapours, mists or dusts under
atmospheric conditions. The following values define it
Tatm = -20°C...+60°C / -4°F...140°F and Patm = 0.8...1.1bar.
Outside of this range, no key data are available as to ignition behaviour for most mixtures.
Operating conditions
Variable area flowmeters operate outside of atmospheric conditions, which means that
explosion protection according to Directive 94/9/EC (ATEX) –regardless of the zone assignment
–is fundamentally not applicable due to the lack of key safety data for the interior of the
measuring section.
2.5 Equipment category
The flowmeters are designed in category II 2G according to EN 60079-0 and EN 60079-11 for use
in zone 1.
2.6 Protection types
The circuits of the limit switches and of the electronic signal output are designed in Type of
protection "Intrinsic
Safety", Category ”ia“and ”ib“respectively.
CAUTION!
Operation with flammable products is only permissible if no explosive fuel/air mixture is formed
on the interior of the flowmeter under operating conditions. The user is responsible for the safe
operation of the flowmeter with regard to the temperatures and pressures of the products used.
In case of operation with flammable products the measuring units must be included in the
periodic pressure tests of the system.
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 7 Monday, October 15, 2012 2:46 PM

2DEVICE DESCRIPTION
8
VA40
www.krohne.com 10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
2.7 Ambient temperature / temperature classes
Because of the influence of the temperature of the product, no fixed temperature class is
assigned to variable area flowmeters. In fact, the temperature class of a device is a function of
the temperature of both the product and the environment. There is no distinction between
devices with one or two contacts. The classification is outlined in the following tables.
The tables take into account the following parameters:
•Ambient temperature Tamb.
•Product temperature Tm
Maximum permissible product and ambient temperatures TG21
Maximum permissible product and ambient temperatures MS14/.
The maximum medium and ambient temperature is -20°C...+85°C / -4°F...+185°F.
These values may be limited by the information contained in the installation and operating
instructions. The maximum values listed in the installation and operating instructions must be
taken into consideration.
INFORMATION!
The maximum permissible product temperatures listed in the tables are valid under
the following conditions:
• The measuring device is installed and operated in accordance with the installation
instructions in the manual.
• It must be ensured that the flowmeter is not heated by the effects of additional heat radiation
(sunshine, neighbouring system components) and thus operated above the permissible
ambient temperature range.
• Insulation must be limited to the piping.
Unobstructed ventilation of the indicator part must be ensured.
Supply Type 1 Type 2 Type 3
Temperature class T6 T5 T4...T1 T6 T5 T4...T1 T6 T5 T4...T1
Max. medium
temperature [°C] 70 85 95 60 75 95 35 50 70
Max. medium
temperature [°F] 158 185 203 140 167 203 95 122 158
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 8 Monday, October 15, 2012 2:46 PM

DEVICE DESCRIPTION 2
9
VA40
www.krohne.com10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
2.8 Electrical data
Limit switch TG21
The built-in intrinsically safe NAMUR limit switch TG21 may only be connected to isolation
switching amplifiers with separated intrinsically safe circuits to EN 60947 -5 -6 with the
following max. values:
Maximum values of the power supply units
When connecting to intrinsically safe circuits, take into consideration the following maximum
values per circuit for the energy stores.
Limit switch MS14
Built-in limit switch MS14 may only be connected to separate intrinsically safe circuits with the
following maximum values:
When connecting to intrinsically safe circuits, take into consideration the following maximum
values per circuit for the energy stores.
Supply Pi[mW] Ui[V] Ii[mA]
Type 1 34 16 25
Type 2 64 16 25
Type 3 169 16 52
Ci[nF] Li[µH]
165 150
Pi[W] Ui[V] Ii[mA]
130 100
Ci[nF] Li[µH]
0 0
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 9 Monday, October 15, 2012 2:46 PM

3INSTALLATION
10
VA40
www.krohne.com 10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
Installation
3.1 Installation
Installation and setup must be carried out according to the applicable installation installation
standards (e.g. EN 60079-14) by qualified personnel trained in explosion protection. The
information given in the Installation and Operation Instructions and the Supplementary
Installation and Operation Instructions must always be observed.
Variable area flowmeters must be installed in such a way that
•There is no danger from mechanical impact effects.
•There are no external forces affecting the indicator part.
•The device is accessible for any visual inspections that are necessary, and can be viewed from
all sides.
•The nameplate is clearly visible.
•It can be operated from a location with secure footing.
CAUTION!
The manufacturer is not liable for any damage resulting from improper use or use other than the
intended purpose. This applies in particular to hazards due to insufficient corrosion resistance
and suitability of the materials in contact with product.
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 10 Monday, October 15, 2012 2:46 PM

ELECTRICAL CONNECTIONS 4
11
VA40
www.krohne.com10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
Electrical connections
4.1 General notes
The separate intrinsically safe signal circuits of protection level "ia" or "ib" are electrically
connected in the terminal compartment of the plug housing for the limit switch type TG21 and
MS14. The limit switch MS14 ist connected to the strandes wires. The terminal housing must
have a protection class of min. IP20. Take note of the polarities given for the limit switch TG21.
Connecting cable
The connecting cables must be selected according to prevailing installation standards (e.g.
EN 60079-14).. The outer diameter of the connecting cable must be within the sealing range of
the cable entry. The connecting cables must be fixed and laid in such a way as to be sufficiently
protected against damage.
All cores that are not used must be securely connected to the ground potential of the hazardous
area or carefully insulated against each other and against ground (test voltage ≥500 Veff).
4.2 Grounding and equipotential bonding
If the device is not sufficiently electrostatically grounded via the process cables, an additional

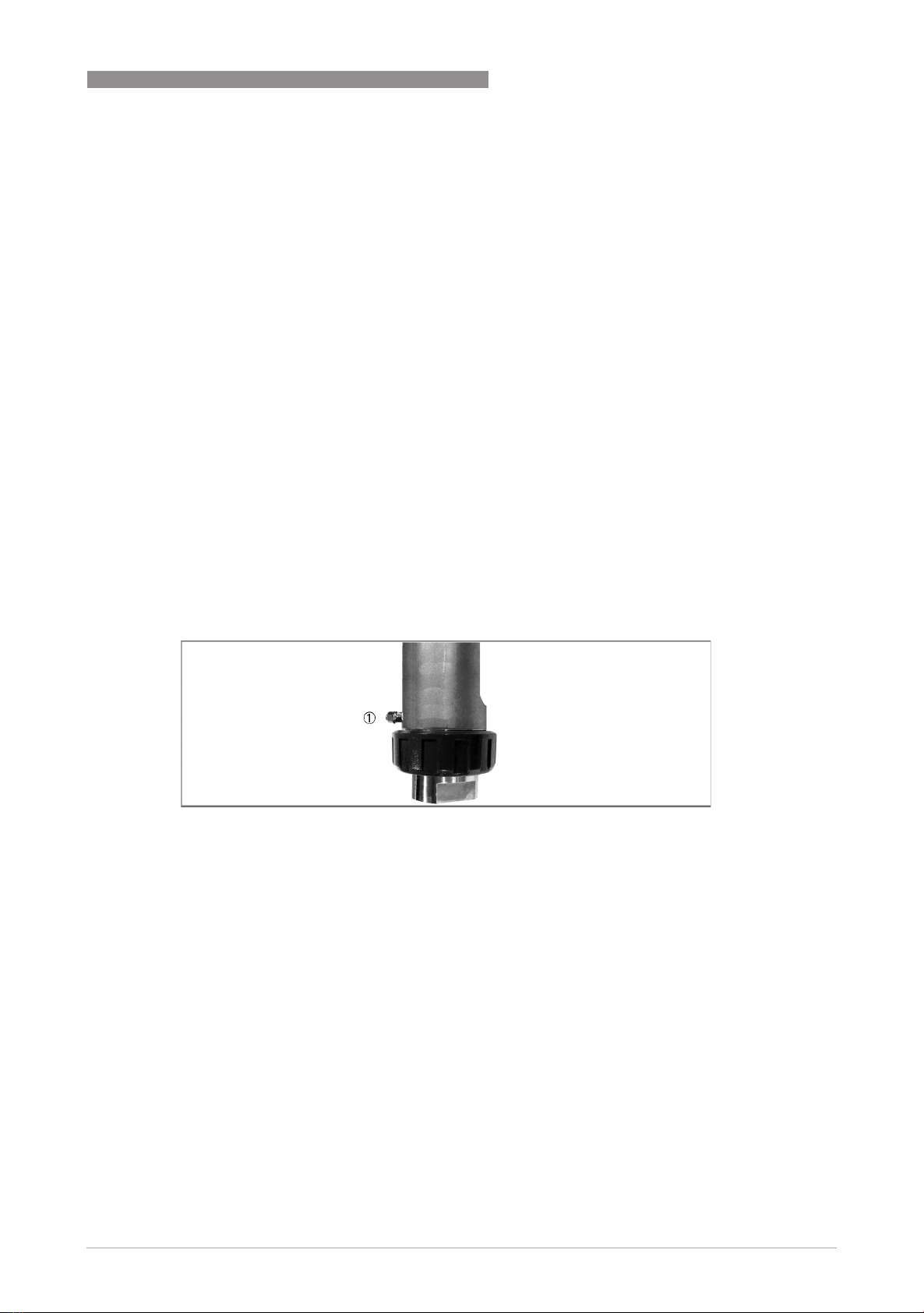

earth connection must be established using the ground terminal. The location of the ground
connection on the back rail is shown below. This connection only ensures electrostatic
grounding of the device and does not meet the requirements for equipotential bonding.
Grounding connection 1
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 11 Monday, October 15, 2012 2:46 PM

5OPERATION
12
VA40
www.krohne.com 10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
Operation
5.1 Start-up
Make the following checks before starting up the device:
•Suitability of the materials used for the measuring unit and for the gaskets for adequate
resistance to corrosion from the process product.
•Correct connection of the built-in electrical components.
•Correct setting of the limit switches.
•Electrostatic grounding of the instrument.
5.2 Operation
Setting of the limit switches may be carried out during operation. For this unscrew the mounting
equipment. After setting the limit switch unit to the switchpoint fix it with the fastening screw.
Additionally the switching behavior of the limit switch TG21 is to adjust in its terminal box. The
switching function of the MS14 is determined by the fitting position of the reed contact. A
changing of the position during operation is permitted. Close the unit immediately.
5.3 Electrostatic charge
In variable area flowmeters, it is possible under field conditions for charge separation to occur in
the measuring tube due to the transport of non-conductive fluids and/or when the flow comes
into contact with non-conductive built-ins.
In glass devices, it is basically possible for the electrostatic field generated inside the measuring
tube to "punch through" to the outside of the device. For that reason, variable area flowmeters
need to be permanently grounded by the operator by way of the process connections in order to
allow discharge of electrostatic build-up.
The operator is also responsible for extending the ground continuity of the process pipeline.
If grounding cannot be made via the process connections, e.g. top and bottom connection blocks
are made of plastic, the flowmeter should be connected to the local ground potential via the
connection to ground described in the section entitled "Grounding and equipotential bonding".
This connection only ensures electrostatic grounding of the device and does not meet the
requirements for equipotential bonding.
When dust-free gases or liquids are measured, the flow rate should not exceed 5 times the
nominal flow rate. The max. allowable working pressure PS printed on the type nameplate is to
be noted. The conductivity of the medium must be min. 1000pS/m.
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 12 Monday, October 15, 2012 2:46 PM

SERVICE 6
13
VA40
www.krohne.com10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
Service
6.1 Maintenance
Maintenance work of a safety-relevant nature within the meaning of explosion protection may
only be carried out by the manufacturer, his authorised representative or under the supervision
of authorised inspectors.
For systems in hazardous areas, regular tests are required in order to maintain the proper
condition.
The following checks are recommended:
•Checking the housing, the cable entries and the feed lines for corrosion and/or damage.
•Checking the measuring unit and the piping connections for leakage.
•Checking the measuring unit and the indicator for dust deposits.
•Including the flowmeter in the regular pressure test of the process line.
6.2 Dismantling
Exchanging the limit switches
The limit switch is to replace with an identical spare part in accordance with safety guidelines.
Exchanging the entire device
Removal and installation are the responsibility of the operator.
If at all possible, the meter should be electrically isolated before removing and replacing the
indicator. If that is not possible, the basic conditions for intrinsic safety (e.g. no grounding or
connection of different intrinsically safe circuits to one another) must be observed during
dismantling.
CAUTION!
Avoid electrostatic charges when cleaning the sight window!
CAUTION!
• Pressurized pipes have to be depressurized before removing the measuring unit.
• In the case of environmentally critical or hazardous products, appropriate safety precautions
must be taken with regard to residual liquids in the measuring unit.
• New gaskets have to be used when re-installing the device in the piping.
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 13 Monday, October 15, 2012 2:46 PM

6SERVICE
14
VA40
www.krohne.com 10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
.
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 14 Monday, October 15, 2012 2:46 PM

SERVICE 6
15
VA40
www.krohne.com10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en
.
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 15 Monday, October 15, 2012 2:46 PM

KROHNE product overview
•Electromagnetic flowmeters
•Variable area flowmeters
•Ultrasonic flowmeters
•Mass flowmeters
•Vortex flowmeters
•Flow controllers
•Level meters
•Temperature meters
•Pressure meters
•Analysis products
•Products and systems for the oil & gas industry
•Measuring systems for the marine industry
Head Office KROHNE Messtechnik GmbH
Ludwig-Krohne-Str. 5
47058 Duisburg (Germany)
Tel.:[phone]
Fax:[phone]
[email protected]
© KROHNE 10/´2012 - 4002262401 MA VA40-Ex-II2G-AD R01 en - Subject to change without notice.
The current list of all KROHNE contacts and addresses can be found at:
www.krohne.com
AD_VA40_II2G_R01_en_4002262401_PRT.book Page 16 Monday, October 15, 2012 2:46 PM
