Ksenia lares 4.0 Owner's manual

www.kseniasecurity.com
Programming Manual

All information in this document is subject to change without notice and does not represent
a commitment on the part of Ksenia Security.

lares 4.0 Programming manual
3 R30024.130en
1. INTRODUCTION ............................................................................................................. 7
Compatibility ................................................................................................................ 7
Software requirements ................................................................................................. 7
Configuration mode - logging in for the first time ........................................................ 7
Keypad programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
How to read the control panel IP address from keypad 9
How to update firmware version ................................................................................ 10
How to save the configuration ................................................................................... 10
2. CONFIGURATION FROM Ksenia SecureWeb ............................................................... 11
Access to the portal Ksenia SecureWeb ..................................................................... 11
Activating the voice licence ........................................................................................ 14
Description of HOME page of Installer program ........................................................ 15
Description of the dynamic information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
3. DESCRIPTION OF THE INSTALLER PROGRAM MENU ................................................... 19
Quick guide to navigate web pages ............................................................................ 19
How to change the data - Open session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
How to save the data - Save session and Apply session . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
How to cancel the data inserted or changed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
How to export a layout configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
How to import a layout configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
How to exit from Installer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Cross checking of data inserted . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
HOME menu ............................................................................................................... 22
Partition menu ............................................................................................................ 22
Hashtags menu .......................................................................................................... 23
Rooms / Maps menu .................................................................................................. 23
BUS peripherals menu ................................................................................................ 24
Automatic BUS peripherals acquisition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Acquiring a radius siren - Example 24
Read the status of BUS peripherals in real time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Programming BUS peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Expansion modules 27
Isolators 28
Riceivers 29
User interfaces 29
Sirens 31
domus 32

lares 4.0 Programming manual
R30024.130en 4
energia 33
Programming BUS peripherals without configuring the Serial Number . . . . . . . . . . . . . . . . . . . . . 33
Add / cancel the BUS peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Wireless peripherals ................................................................................................... 35
Acquisition of wireless peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Read the status of wireless peripherals in real time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Programming wireless peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Wireless sirens 37
Wireless repeaters 38
Wireless expansion modules 38
Wireless sensors 39
Wireless keypads 46
Programming Wireless peripherals without configuring the Serial Number . . . . . . . . . . . . . . . . . 48
Cancel wireless peripherals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
IP Devices .................................................................................................................... 49
Automatic IP Devices acquisition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Acquiring an ergo-T keypad - Example 49
Read the status of IP Devices in real time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Programming IP Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
ergo-T 52
IP Supervisors 52
IP Cameras 53
gemino IoT 54
porta 4.0 55
Programming IP peripherals without configuring the Mac Address . . . . . . . . . . . . . . . . . . . . . . . . 56
Add / cancel IP devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Layout .........................................................................................................................58
Arming modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58
Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Counters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Custom Balances . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65
Users . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73
Start enroll tags 75
Contact ID Receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
SIA IP Receivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Programmable logics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Scenarios . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Events . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
Contact lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

lares 4.0 Programming manual
5 R30024.130en
Scheduler timers ......................................................................................................... 98
Chronothermostats .................................................................................................... 98
Consumption management ........................................................................................ 99
Konnex ...................................................................................................................... 100
Settings ..................................................................................................................... 105
General options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 110
GSM/GPRS/PSTN Communicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Voice messages ......................................................................................................... 113
Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Generate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Real time ................................................................................................................... 115
Event log ................................................................................................................... 116
Installer ..................................................................................................................... 118
Floor plans ................................................................................................................ 118
Programming summary ............................................................................................ 119
4. FUNCTIONALITIES AND CONFIGURATIONS DESCRIPTION ......................................... 121
Scheduler timers ....................................................................................................... 121
Path management .................................................................................................... 121
Pre-alarms management .......................................................................................... 122

lares 4.0 Programming manual
R30024.130en 6

lares 4.0 Programming manual
7 R30024.130en
1. INTRODUCTION
This manual is intended for installers and describes the procedures for configuring the hybrid IoT platform for
Security and Home & Building Automation lares 4.0, by connecting to the Ksenia SecureWeb cloud:
•the first chapter briefly illustrates the different programming methods available to the installer (in local
connection from a browser, by APP “Ksenia pro”, remotely by connecting to the Ksenia SecureWeb pages);
•the second chapter explains how to register to the "Ksenia SecureWeb" cloud, how to enrol the platform and it
describes the "Installer" HOME page (name assigned to the programming web interface);
•the third chapter is dedicated to the description of the "Installer" programming pages, following the order of
the menu items of which it is composed.
1.1 Compatibility
This manual is updated to firmware version 1.64.17 of lares 4.0 control panel.
Compatible with all control panels of the lares 4.0 family.
1.2 Software requirements
• Recommended browser: G oo g l e C h r o m e
1.3 Configuration mode - logging in for the first time
Choose one of the following methods for configuring the lares 4.0 platform:
1. remotely from PC, through any browser by logging in to www . k s e n i a s e c u r e w e b . c o m server (how to do it is
described in the paragraph “Access to the portal Ksenia SecureWeb” page 11 );
2. remotely from mobile, downloading the dedicated
APP Kesenia PRO for Security installers for free from Android or
iOS stores
and scanning the control panel’s QR code (how to do it is described in the paragraph “Access to the portal
Ksenia SecureWeb” page 11 );
3. from PC, via web browser, simply by entering the local IP address of the lares 4.0 control panel (i.e.: https://
192.168.20.200) (how to acquire IP address is described in the paragraph “How to read the control panel IP address
from keypad” page 9 ) ;
4. from keyboard (this procedure is limited to a few functions ) ( see “Keypad programming” page 8 ).
lares 4.0

lares 4.0 Programming manual
R30024.130en 8
1.3.1 Keypad programming
Keyboard programming is limited to a few functions listed below.
Access the installer menu with a PIN code (default: 123456) . You can navigate the various items by pressing the keys once
you have entered the installer menu:
•ENTER: enter the sub-menu, confirm the values displayed or modified.
•ESC: exit the sub-menu, return to the previous menu, leave the installer menu.
•DOWN ARROW (SCROLL CLOCKWISE)/UP ARROW (SCROLL ANTICLOCKWISE): move from one item to another
within the same menu.
A list of some installer menu items:
•Sys. management: system management with the following items:
Reset alarm: all the alarms will be stopped, the tamper and alarm memories will be deleted.
Stop calls: all the communications, in progress and in queue, will be deleted (SMS, phone calls, email, etc.).
Freeze system: three possible choices:
▪No freeze: normal activity.
▪Freeze alarms: no action against the alarms will be performed.
▪Freeze actions: freeze all the actions of control panel.
•User management: assign a RF-ID key to the users configured.
•Event logger: list of events occurred with details.
•Fault list: list of faults in progress.
•Zone status: view of the status of the zones configured in the system.
•Zone test: list of zones that were never been in alarm since the TEST started, useful during the installation
process.
•Installer data: installer data management
Change PIN: change installer PIN code.
Description: installer name.
Number: installer telephone number.
•
Update : it launches the software upgrade using the file present in the SD card and previously downloaded from
www.kseniasecurity.com, reserved area
.

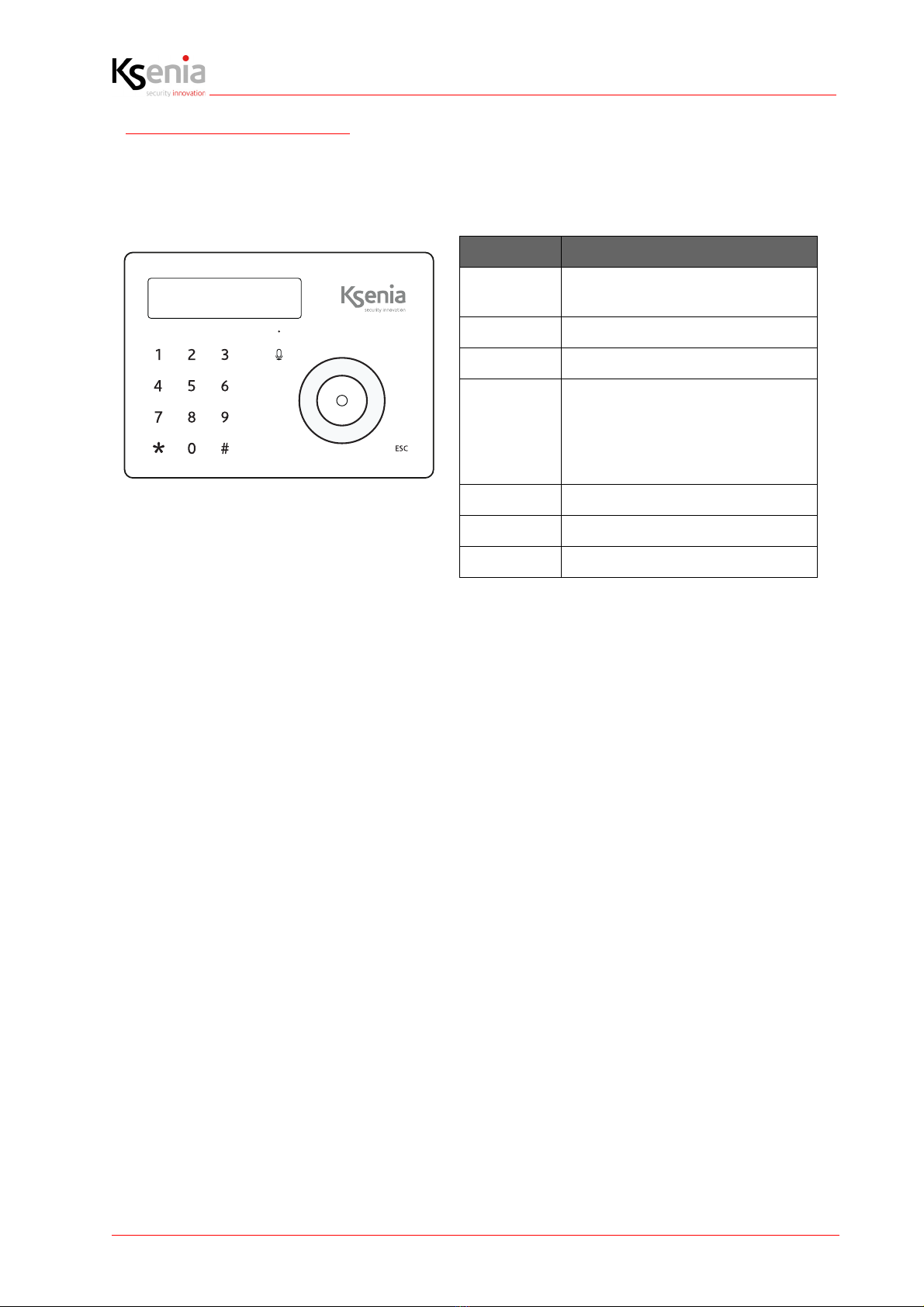

Legend Description
1. Alphanumeric keypad with keys
from
1 to 9 , * and #
2. ESC key
3. ENTER key
4. Scroll button for using:
4.1 Left arrow
4.2 Down arrow
4.3 Right arrow
4.4 Up arrow
5. Display LCD
6. RFID Area
7. Microphone
5.
6.
7.
4.4
1.
4.1 3 4.2
2.

lares 4.0 Programming manual
9 R30024.130en
• P r o g r a mm . B a c k - up :
- C r eate new : backs-up any programming by saving the file on an SD card .
- R estore : any programming data saved previously will be read from the SD card and loaded into the control panel .
• N e t w o r k i n g : network configuration menu which allows the network parameters to be read/modified
-IP Address
: the control panel IP Address
-
S ubn e t m a s k : subnet-mask
-
G a t e w ay : IP address of ga t e w a y
- D H C P s e r v e r : OFF / ON ( default ON ) . This menu item is activated to allow the DHCP to be re-enabled if the control panel
has been set to a
fixed IP address.
•
Language : select the language of the keypad form the list .
• Panel version : this allows you to view the control panel firmware version (although not the web server).
1.3.1.1 How to read the control panel IP address from keypad
If the network, where the control panel is installed, supports DHCP, to read the IP address make the following
operations:
• Step 1. make sure the control panel is connected to the network;
• Step 2. enter the installer menu by dialing the PIN code on the numeric keypad (default: 123456);
• Step 3. scroll the menu items up to "Networking" and press OK;
• Step 4. the "IP Address" is displayed, make a note and exit the menu by pressing ESC twice.

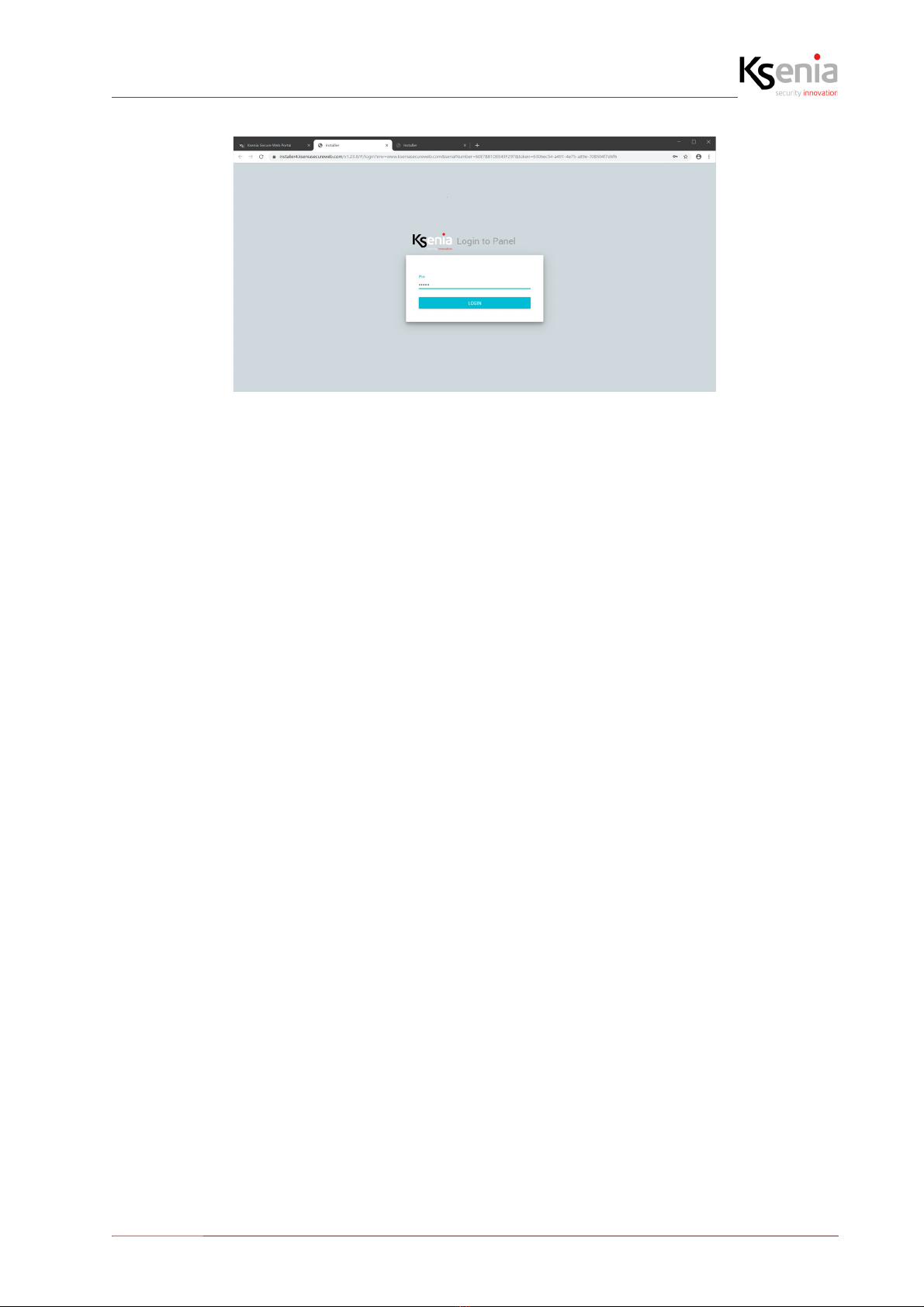

Then type the IP address in the browser address bar: <https://control-panel-IP-address>.
Note: The default address will be 192.168.2.97 in the event that the network to which the control panel is connected
does not support the DHCP,
so type <https://192.168.2.97> in the browser address bar.
NOTE 1 : When you first switch on the keypad, the English menu will be displayed. To change the language, access the
installer menu from the keypad via the webserver.
NOTE 2 : A PP K s e n i a P r o is also available for “ l a r e s W L S 96 - I P ” platform although not for “ l a r e s”.
NOTE 3 : It is not possible to set a configuration if the system is armed, even partially, or if the access with installer code has
been disabled by the user.

lares 4.0 Programming manual
R30024.130en 10
1.4 How to update firmware version
Update firmware version in local network connection :
• from PC / MAC, by clicking on the button <Load update file> in the Home Page -> Panel software section, it is
possible to load the update file.
WARNING! This function is available from version FW 1.46.20. Previous versions must use the SD card with the following
requirements: maximum capacity 32Gb, FAT 32 formatting, the file containing the FW must be present in the main root.
Update firmware version in remote network connection:
• In the Home Page-> Panel software section, click on “Update software” icon . It is displayed only when a
new version is available for download and installation.
1.5 How to save the configuration
The control panel reads both .bck files which only contain the control panel programming backup (for backwards
compatibility), and .ksa files which can always contain the configuration of the control panel and eventually, the
knx.json file which contains the configuration of the konnex device.

lares 4.0 Programming manual
11 R30024.130en
2. CONFIGURATION FROM Ksenia SecureWeb
2.1 Access to the portal Ksenia SecureWeb
Open the browser and type the name of the site www . k s e n i a s e c u r e w e b . c o m in the address bar.
The credentials required to access the SecureWeb service are the same as those used to access the reserved area of the
www.kseniasecurity.com website (e-mail address + password).
You must register free of charge by clicking on <
Register > if you do not have these credentials.
From PC :
1. After successful login, www . k s e n i a s e c u r e w e b . c o m page will open;

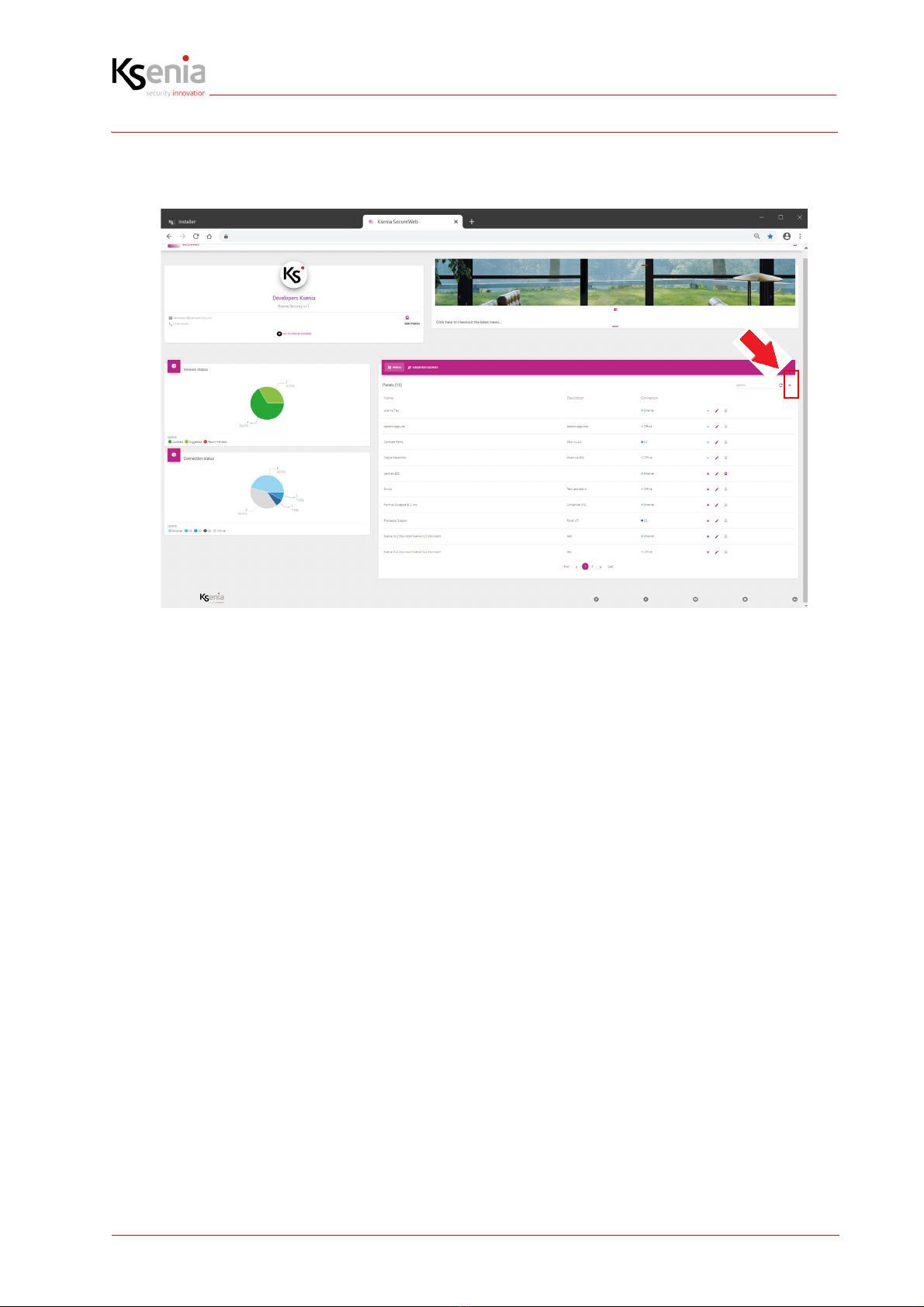

2. to add a new control panel click on <+> sign in the Panel section, see the following image;
3. type the serial number
printed on the control panel label;
4. give a name and a description to the control panel and possibly also coordinates ;
5. click on < SAVE > and the new control panel will appear in the list;

lares 4.0 Programming manual
R30024.130en 12
6. The following image displays the list of control panels from which the installer can start some operations such
as: logging in, editing, deleting, score acquisition, searching by filter, etc.
See description below:
1. open the login and the Installer configuration web pages (if the symbol is grey, the control panel will not be
reachable);
2. open a new window with the possibility to modify the name, the description and the coordinates of the
control panel selected or delete it;
3. start the score acquisition for the selected panel;
4. filtering criteria for name, description, connection;
5. reload the page list;
6. add new control panel.
7. Click on the <little triangle> symbol to access the control panel, type the installer PIN code (default 123456) to
open the HOME page.
1. 2. 3. 4. 5. 6.

lares 4.0 Programming manual
13 R30024.130en
From APP Ksenia PRO :
1. Open the A PP “ K s e n i a P R O ” and enter the credentials;
2. click on the (+) symbol in the bottom right hand corner (Android) or in the top left hand corner (IOS);
3. type the serial number or click on the camera icon to scan the QR code (this is also shown on the control panel
label);
4. make sure you do this if the message appears asking you for access to use the camera;
5. give the control panel a name and a description;
6. c l i ck on <S ave >.
The control panel is ready to be configured by using Ksenia SecureWeb and it will be present in the “devices”
list.

lares 4.0 Programming manual
R30024.130en 14
2.2 Activating the voice licence
1. After successful login, www . k s e n i a s e c u r e w e b . c o m page will open;
2. to add a new voice licence click on <+> sign in the Loquendo Licence section, see the following image;
3. insert the serial number printed on the scratch card and click on <SAVE>;
4. make the choice of the voice.

lares 4.0 Programming manual
15 R30024.130en
2.3 Description of HOME page of Installer program
See below the HOME page of a control panel already configured:
• on the left side of the page the programming menu is present, refer to chapter “DESCRIPTION OF THE
INSTALLER PROGRAM MENU” page 19 for all details;
• the space remained is divided into four sections with dynamic information regarding:
1. System: description of the lares 4.0 control panel connected, armed/disarmed, alarm/fault/sabotage sta-
tus, eth connections, temperature, GSM signal;
2. Panel Software: software version installed and updates;
3. Panel Real Time: card power supply voltage status and battery recharge voltage;
4. Recent activity: list of the 10 last events occurred in the control panel and stored in the Event log.
2.3.1 Description of the dynamic information
The table below describes the information that you can see in the HOME page, subdivided per section.
SYSTEM section Description
No failure is present.
No fault and tamper memory are present.
Fault memory has been reset from webserver
and from keyboard.
The panel is disarmed.

lares 4.0 Programming manual
R30024.130en 16
Internet connection OK (Eth) or
Internet connection OK (gemino IoT).
Connection without Internet.
This indicates that the user connected
is in “programming” session.
This indicates the GSM/GPRS
provider in use and a full signal strength.
This indicates the GSM/GPRS
provider in use and the signal strength.
There is no GSM or SIM signal.
The temperatures (internal and external)
detected by the Bus sirens are displayed.
SYSTEM FAULT IN PROGRESS
Fault conditions are present.
The panel is disarmed.
ALARM IN PROGRESS
Alarm signal in progress, zone or partition.
TAMPER IN PROGRESS
Fault or tamper system and alarm condition still
in progress (i.e. Sirens still active).
Click on the little arrow (right bottom) to open
the drop down box with the list of faults or
anomalies of the panel.

lares 4.0 Programming manual
17 R30024.130en
Tamper system in progress but alarm condition
stopped.
Click on the little arrow (right bottom) to open
the drop down box with the list of faults or
anomalies of the panel.
List of faults or anomalies of the panel.
The image shows the presence of faults/
anomalies in one or more zones.
More than one events can be displayed.
List of tampers in the system.
The image shows the presence of tampers in one
or more zones and there is an Internet
connection anomaly in memory.
TAMPER MEMORY
ALARM IN PROGRESS
The image shows a restored tamper condition
(tamper memory) but the alarm is still in progress
(red little bell).
TAMPER MEMORY
The image shows that a tamper memory is
present.
Click on the little arrow (right bottom) to open
the drop down box with the list of tampers
memory of the panel.
FAULT MEMORY
The image shows that a fault memory is present.
Click on the little arrow (right bottom) to open
the drop down box with the list of faults memory
of the panel.

lares 4.0 Programming manual
R30024.130en 18
List of tamper memory in the panel.
The image shows a zone tamper memory.
More than one evente can be displayed.
PANEL SOFTWARE Section Description
this icon indicates the presence of new
software version available.
Click on the icon to start the update and wait
until the end of the process.
icon for searching updates. For a further
search, click on it and wait until the end of the
search.
“Load update file” button (only for local network
connection): from PC/MAC, it starts the firmware
update of the control panel.
PANEL - REAL TIME Section Description
There are no voltage drops:
14.8 Main board voltage supply.
14.3 Battery voltage.
This image will appear when the battery voltage
level drops below the threshold (<11V) or if it has
been disconnected from the control panel.

lares 4.0 Programming manual
19 R30024.130en
3. DESCRIPTION OF THE INSTALLER PROGRAM MENU
Description of the "Installer" program web pages, following the order of the menu items of which it is composed.
3.1 Quick guide to navigate web pages
Clicking on a menu or sub-menu item, the correspondent window will open next to it.
The command keys positioned on the upper side of the programming windows may vary in dynamic mode,
depending on the actions required.
3.1.1 How to change the data - Open session
Open a web configuration page and click on “Open session” to enter insertion or modification mode.

lares 4.0 Programming manual
R30024.130en 20
3.1.2 How to save the data - Save session and Apply session
You can make so many partial saving as you need just by clicking on “Save session” icon, every partial saving
can be discarded by clicking on “Cancel changes” icon.
But only after you click on “Apply session” icon the control panel receives the new configuration and this
operation cannot be undone.
3.1.3 How to cancel the data inserted or changed
All the modifications can be undone just by clicking on “Cancel changes” icon, before you click on “Apply
session” icon, after that the saving is final and sent to the control panel and cannot be undone.
3.1.4 How to export a layout configuration
Click on “Save configuration on disk” icon to export the configuration file of the control panel on a disk . The
control panel reads both .bck files which only contain the control panel programming backup (for backwards
compatibility), and .ksa files which can always contain the configuration of the control panel and eventually, the
knx.json file which contains the configuration of the konnex device.
