KSolare KSY-4.2KW 1MPPT User manual

User Manual
5G PRO INVERTER
KSY:- 1KW- 4.2KW 1MPPT
Single-Phase Grid-tied Solar Inverter

CATALOGUE
1. SYMBOLS ON THE LABEL ............................................................................. 3
2. SAFETY AND WARNINGS ............................................................................. 4
3. UNPACKING ..................................................................................................... 5
3.1 Scope of Delivery
3.2 Product Overview ............................................................................................. 6
..........................................................................................
.............. 5
4. INSTALLING .....................................................................................................7
4.1 Installation Requirement ..............................................................................................7
4.2 Mounting Location .......................................................................................................8
4.3 Mounting ................................................................................................................... 9
4.4 Installing the PE cable
...............................................................................................10
4.5 Cable Specification ...................................................................................................10
5. COMMISSIONING .............................................................................................11
5.1 Safety Instructions .....................................................................................................11
5.2 AC Wire Assembly and Connection
..........................................................................11
5.3 DC Wire Assembly and Connection.............................................................................. 11
5.4 Residual Current Protection
........................................................................................... 12
6. COMMUNICATION ...........................................................................................13
6.1 System monitoring via Datalogger- RS485/Wi-Fi /GPRS (Optional)
........................13
7. START UP AND OPERATION ...........................................................................14
7.1 Safe ty Check Before Start Up .........................................................................................14
7.2 Inverter LED Indicators...................................................................................................15
8.
DISCONNECTING FROM VOLTAGE SOURCES
7.3 Trouble Shooting ..................................................................................... 17
............................................. 16
KSY- 1KW - 4.2KW USER MANUAL 2

-
KSY- 1KW - 4.2KW USER MANUAL 3
1. SYMBOLS ON THE LABEL
DANGER, WARNING AND
CAUTION
RECYCLABLE AND REUSABLE
HIGH VOLTAGE
AVOID CONTACT
AVOID DAMP AND MOISTURE
HIGH TEMPERATURE
AVOID CONTACT
SHIPMENT STACK LIMIT: 10
CE MARKS
DO NOT DISPOSE WITH
HOUSEHOLD WASTE
PROCEED OPERATIONS
AFTER 5 MINUTES
DISCHARGE
BREAKABLE ITEM
PLACE UPWARDS USER MANUAL IN PACK

KSY -1KW - 4.2KW USER MANUAL 4
2. SAFETY AND WARNINGS
1. All persons who are responsible for mounting, installation, commissioning,
maintenance, tests, and service of KSOLARE inverter products must be suitably
trained and qualified for corresponding operations. They MUST be experienced and
have knowledge of operation safety and professional methods. All installation
personnel must have knowledge of all applicable safety information, standards,
directives, and regulations.
2. When designing or constructing a PV system, all components MUST remain in their
permitted operating ranges, and their installation requirements MUST always be fulfilled.
3. Under exposure to sunlight, the PV array may generate dangerous output in DC
voltage. Contacts with the DC wires, conductors and live components in the inverter
may result in lethal shocks.
4. High voltages in inver ter could cause lethal electrical shocks. Before proceeding any
work, including maintenance and/or service, on the inverter, fully disconnect it from all DC
input, AC grid and other voltage sources. There MUST be a 5-minute waiting time after the
full disconnection.
5. The DC input voltage of the PV array MUST never exceed the maximum input
voltage of the inverter.
6. DO NOT touch parts of the inverter during operation as heat will be induced and these
parts will exceed 60°C.

111pair 111 1
KSY -1KW - 4.2KW USER MANUAL 5
3. UNPACKING
3.1 Scope of Delivery
Please inspect and check for completeness in the scope of delivery. Confirm with
purchase order.
INVERTER MOUNTING
ACCESSORIE
DCPLUGS
(SEALED)
ACCONNECTOR Warranty
Card
METER
CONNECTOR
(OPTIONAL)
COMMUNICATION
DATALOGGER
(OPTIONAL)
1) RS485/Wi-Fi/GPRS (optional)
3.2 Product Overview X:7.08 in
The total size of KSY - 1KW to 4.2KW 1MPPT is 297 (width) x223 (Height) x117 (depth)
mm.It has 1 pairs of PV input terminals & 2 communication ports.It also has a ICD
& LED (or just LED, determined by user) for Getting information & setting prameters at field
The detail describtion is shown below:

Mark Num .
Component
Description
1 LCD&L ED or LED Display and setting device at eld
2
3
PV Terminal (s) Connected with PV Panel
4
COM1: Wi- Fi/RS485/GPRS Alternative distant communication method
5
AC Terminal Connected with A C Grid
Secondary PE Terminal For Grounding Protection
KSY -1KW - 4.2Kw USER MANUAL 6

KSY -1KW - 4.2KW USER MANUAL 7
4 INSTALLING
41 Installation Requirement
1 Please install the inverters in places that can avoid inadvertent contact.
2 Installation method,location and surface must be fitting for the inverter's weight and dimensions
3. Please install the inverter in an accessible location for operation, future maintenance
and service.
4. When installing in residential or domestic environment, it is recommended to install and mount
the inverter on a solid, concrete wall surface. Mounting the inverter on composite or plaster
boards or walls with similar materials would induce noise during its operation and is therefore not
recommended.
5. DO NOT cover the inverter NOR place any objects on top of the inverter.
6. To ensure sufficient room for heat dissipation and maintenance, the dearing space between
inverter(s) and other surroundings is indicated below for reference:
7. Avoid direct exposure to sun light and rain and snow layup

Backwards
KSY -1KW - 4.2KW USER MANUAL 8
4.2 Mounting Location
1. DO NOT mount the inverter near any inflammable materials
2. DO NOT mount the inverter near any explosive materials,

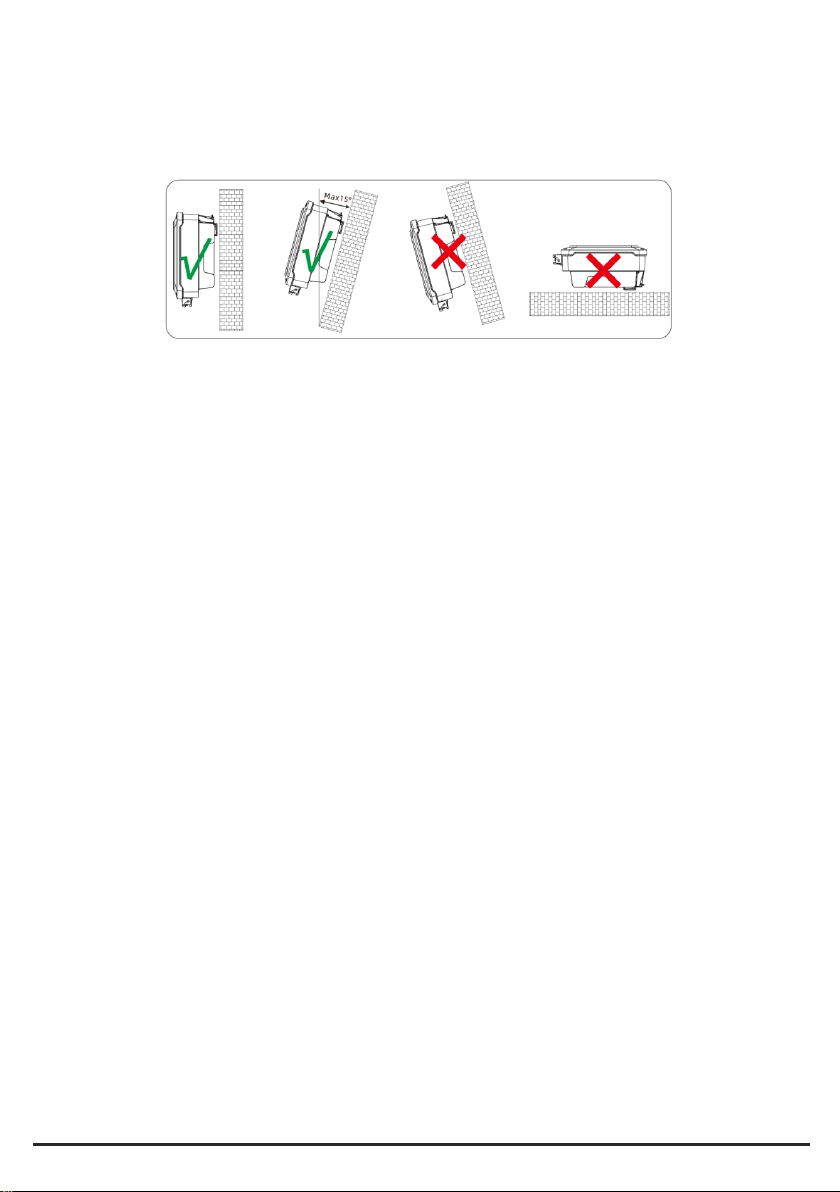

3. DO NOT mount the inverter on tilting surface over 15" backwards. Please mount the inverter
on a vertical wall surface.
4. DO NOT mount the inverter on any surfaces tilting forward or to either sides.
5. DO NOT mount the inverter on a horizontal surface.
6. For easy installation and operation, please mount the inverter on a height that the display
could match eye level.
7. The bottom side where all commissioning terminals are equipped MUST always point
downwards.

125 mm
KSY -1KW - 4.2KW USER MANUAL 9
3 Mounting
1. Use the Heatsink bracket holes as a template and mark the drill holes. Drill 2 holes using
a 10mm bit to 70mm depth.
2. Fix the Inverter with the screws and expansion bolts packed in mounting accessories
4. Check both sides of the heat sink to ensure the inverter is stably attached.
4.4 Installing the PE cable
1.Insert the grounding conductor into the suitable terminal lug and crimp the contact.
2.Thread the MS13 screw through the terminal lug.
3.Tighten it firmly into the housing (screwdriver type: T25, torque: 2.5Nm).
3
2

Information on grounding components:
Object Description
1 Housing
2 M5 terminal lug with protective conductor
3 M5×13 pan headscrew
PE Conductor cross - section: 4- 6 mm²
4.5 C able Specication
KSY -1KW - 4.2KW USER MANUAL 10
1 PE Cable Single-core outdoor copper cable
2 AC Output cable Outdoor copper cable
3 DC Intput cable Standard outdoor PV cable, PV1-F
Model recommended
4 Meter/RS485 Two-core outdoor shieded twisted
pair cable
Conductor cross-section: 4-6mm
Cross-section:2.5-4 mm
Cable outer diameter: 5.5-12.5 mm
Conductor Cross-section:2.5-6 mm
Cable outer diameter: 5-8 mm
Conductor Cross-section:0.14-1.0 mm
Cable outer diameter: appox. 6 mm
No. Item Type Specifications
2
2
2
2

5. COMMISSIONING
5.1 Safety Instructions
1. Measure the frequency and voltage of grid connection and make sure they follow the
inverter’s grid connection specications.
2. An external circuit- breaker on the AC side (or a fuse)at1.25*AC rated current is
strongly recommended.
3. Reliability of all earth connections must be tested and valid .
4. Before commissioning, disconnect the inverter and the circuit - breaker or fuse, and
prevent accidental reconnection.
5.2 AC Wire Assembly and Connection
5.2.1 AC Commissioning
5.3 DC Wire Assembly and Connection
1. PV modules of the connected strings must be of: the same time, identical alignment
and tilting angle.
2. Before commissioning and connecting the PV arrays, the DC switch MUST be open.
3. Parallel strings must have the samenumber of modules.
4. It is mandatory to use the DC connectors within package for the connection of PV
5. The polarity of the PV arrays MUST be compatible to the DC connectors of the inverter.
6. The DC input voltage AND DC input current of the PV array MUST never exceed the maximum
input allowance of the inverter
KSY -1KW - 4.2KW USER MANUAL 11

DC Commissioning
IF the DC port is MC4: Please follow the logics listed below.
IF the DC port is D4: Please follow the logics listed below.
KSY -1KW - 4.2KW USER MANUAL 12
5.4 Residual Current Protection
This product is equipped with residual current protection device internally, in accordance with
IEC60364 - 7 - 712. An external residual current protection device is not needed. If the local
regulation demands otherwise, it is recommended to install a 30mA Type B residual current
protection device.
550V
550V

6. COMMUNICATION
6.1 System monitoring via Datalogger - RS485/Wi -F i /GPRS (Optional )
6.1.1 Wi- Fi /GPR S Datalogger Installation
Unpack the Datalogger from package.
1. Unscrew the cap in COM1 port .
2. Plug the Datalogger in and tighten.
For user guidance and conguration of
Datalogger, please refer to the corresponding KSOLARE Wi - Fi Stick Guide
manual, which is available in printed form inside Documents pack, or an online
manual on KSOLARE website at .
6.1.2 RS485/Smart Meter Connection
www.ksolare.com
KSY -1KW - 4.2KW USER MANUAL 13

7. START UP AND OPERATION
7.1 Safety Check Before Start Up
Please check before switching on any v oltage resources connected to the inverter and
closing inverter’s DC switch:
1. Grid Voltage: Check the grid voltage at point of connection at the inverter complies
with permitted range of the inverter.
2. Mounting of the inverter: Check if the inverter is properly mounted.
3. DC Connectors: Check if the DC connectors are installed correctly on terminals.
4. AC Connectors and Wire Assembly: Check if wires are assembled correctly on the AC
side and if the AC connector is properly and securely installed. Check if the AC
connector is rmly plugged into AC terminal.
5. Cables: Check if all cables are reliably connected. Check if the connections are
eective, while the insulations are undamaged.
6. Groundings: Check all groundings using multimeter and if all exposed metal parts of
the inverter are properly grounded.
7. DC Voltage: Check if the largest open - circuit voltage of PV arrays complies with the
permitted range.
8. DC Polarity: Check if the wires from DC voltage resource are connected to terminals
with correct polarity.
9. Grounding Resistance: Check if the grounding resistance of PV strings >1MOhm using
a multimeter.
The inverter will start to operate when DC input voltage and grid conditions meet the
requirements of inverter startup.
KSY -1KW - 4.2KW USER MANUAL 14

7.2 Inverter LED Indicators
When the inverter operates, LED symbols on display have the following meanings:
KSY -1KW - 4.2KW USER MANUAL 17

8. DISCONNECTING FROM VOLTAGE SOURCES
Before proceeding any operations on inverter, please disconnect the inverter from all
voltage resources as described in this manual.
Following these steps in described sequence are mandatory.
1. Disconnect miniature circuit - breaker and prevent from unintentional reconnections.
2. Open the DC switch and prevent the switch from closing unintentionally.
3. Use clamps to ensure there is no electrical current in DC wires.
4. Disconnect all DC connections and resources. Unplug the DC connectors, and DO
NOT pull the cables.
5. Use multimeter to ensure the voltage on DC terminals of inverter is 0.
6. Unscrew and remove the AC connector.
Danger to life due to high voltages.
Inverter capacitors need 5 minutes to be completely de - energized.
When an error occurs, DO NOT remove the cover of the inverter onsite. Improper
operations and attempts may induce electric shock.
KSY -1KW - 4.2KW USER MANUAL 18

Poonam petrol pump, KSolare Technology Park, Sr.No. 62,
Hissa No.03, Mangdewadi, Pune, Maharashtra 411046
Enquiry Email:
[email protected]
Service Email:
[email protected]
Contact: 8530111222
Follow Us On

KSY -1KW - 4.2KW USER MANUAL 16
Log complaint on h�ps://bit.ly/3eRZba9
Contact 8530111222 / 7888009282 / 7030955507 /01
Fault code Fault Solution
Fault 9
No Grid
1. Check Ac ( grid ) Voltage In connector
2. Phase to Neutral voltages
200V – 250V
3. Phase to Phase Voltage
400V – 450V
Fault 10
The grid voltage is out
of range
1. Check Grid voltages
2. Phase to Neutral voltages
200V – 250V
3. Phase to Phase Voltage
400V – 450V
Fault 19
The voltage of N-PE is
too high
1.
Check Ac side Neutral to Ground
voltage less than 15V
Waiting
-
1. Check Connection in AC connector
2. Grid voltages ininverter
3. check version & make Online system
Fault code Fault Solution
Fault 5
PV voltage too high
1.
Check DC side voltages
2. For single phase voltage under 500V
3. For Three phase voltage under 1000V
Fault 6
Surface insulation
resistance
error
1.Check DC side Positive to Ground voltage
& Negative to Ground voltage less than 50v
Display Off
-
1.Checkstring polarity
2. Check DC voltage
For single phase 1kw -3.3kw start up
voltage 80V – 500V
For single phase 4kw -6.2kw start up
voltage 100V – 550V
For Three phase 3kw -60kw start up
voltage 200V – 1000V
For Three phase 60kw -110kw start
up voltage 250V – 1100V
3. Loose connection in string / loose
crimping
Faults & Troubleshooting
Grid (AC) Side faults
( Panel ) DC Side faults

KSY -1KW - 4.2KW USER MANUAL 15
7.3 Fault Finding
Classifications of Fault Information
Fault
Location
Fault Type Error Message
DC Side Fault
Failures caused by PV side wiring
F5 - PV voltage too high
F6 - Surface insulation resistance
error
F7 - GFCI exceeds the permissible
range
AC Side Fault
Various faults caused by abnormal
power grid or AC side wiring
F0 - 10min average voltage over
the protection range
F9 - No gird
F10 - The grid voltage is out of
range
F11 - The grid frequency exceeds
the range
F19 - The voltage of N-PE is too
high
Inverter Fault
Fault code caused by inverter itself
F1 - MCU fault
F2 - Current sensor fault
F3 - GFCI sensor fault
F4 - Relay fault
F12 - Dc component out of range
F13 - EEPROM fault
F14 - Master and slave DSP
communicationfailure
Others
It may be caused by external
installation environment, PV side
and inverter itself. Further
Diagnoses needed.
F8 - Temperature is out of range
F15 - BUS voltage is too high
F16 - BUS voltage is too low
F17 - DRM S9 fault
F18 - DRM S0 fault
