KNC-p3BR28V12IR
Varifocal IP66 IR Bullet Camera
Quick Operation Guide

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
1
1
Thank you for selecting this KT&C Omni IP Series product. For
additional information please refer to the complete User Guide for
this cameras series. End users should contact their KT&C Certified
Dealer for service. Certified Dealers can obtain support directly from
KT&C.
About This Guide
While KT&C makes every effort to insure the completeness and
accuracy of the information contained in this Guide, we are not
responsible for typographical errors or misprints. At the same time,
KT&C reserves the right to make changes to improve the performance
of our products at any time without notice, and so the specifications
and content of this document are subject to change without notice.
Every effort will be made to include updates in new versions of this
manual and/or online.
DISCLAIMER STATEMENT
“Underwriters Laboratories Inc. (“UL”) has not tested the
performance or reliability of the security or signaling aspects of this
product. UL has only tested for fire, shock or casualty hazards as
outlined in UL’s Standard(s) for Safety, UL60950-1. UL Certification
does not cover the performance or reliability of the security or
signaling aspects of this product. UL MAKES NO REPRESENTATIONS,
WARRANTIES OR CERTIFICATIONS WHATSOEVER REGARDING THE
PERFORMANCE OR RELIABILITY OF ANY SECURITY OR SIGNALING
RELATED FUNCTIONS OF THIS PRODUCT.

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
2
2
Regulatory Information
FCC Information
FCC compliance: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can
radiate radio frequency energy and, if not installed and used in
accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in
a residential area is likely to cause harmful interference in which case
the user will be required to correct the interference at his own
expense.
FCC Conditions
This device complies with part 15 of the FCC Rules. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including
interference that may cause undesired operation.
EU Conformity Statement
This product and - if applicable - the supplied
accessories too are marked with "CE" and comply
therefore with the applicable harmonized European
standards listed under the Low Voltage Directive 2006/95/EC, the
EMC Directive 2004/108/EC, the RoHS Directive 2011/65/EU.

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
3
3
2012/19/EU (WEEE directive): Products marked with
this symbol cannot be disposed of as unsorted
municipal waste in the European Union. For proper
recycling, return this product to your local supplier
upon the purchase of equivalent new equipment, or
dispose of it at designated collection points. For more information
see: www.recyclethis.info.
2006/66/EC (battery directive): This product
contains a battery that cannot be disposed of as
unsorted municipal waste in the European Union.
See the product documentation for specific battery
information. The battery is marked with this symbol,
which may include lettering to indicate cadmium (Cd), lead (Pb), or
mercury (Hg). For proper recycling, return the battery to your supplier
or to a designated collection point. For more information see:
www.recyclethis.info

KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide
4
4
Safety Instructions
These instructions are intended to ensure that the camera is installed
in a manner that avoids danger to persons or property loss.
These precautionary measures are divided into “Warnings” and
“Cautions”
Warnings: Serious injury or death may occur if any of the warnings
are neglected.
Cautions: Injury or equipment/property damage may occur if any of
the cautions are neglected.
Warnings
●In the use of the product, you must be in strict compliance with
the electrical safety regulations of the nation and region. Please
refer to technical specifications for detailed information.
●Input voltage should meet the requirements for both the SELV
(Safety Extra Low Voltage) and Limited Power Source for 12 VDC
Warnings Follow these
safeguards to prevent
serious injury or death.
Cautions Follow these
precautions to prevent
potential injury or material
damage.

KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide
5
5
according to the IEC60950-1 standard; or 802.3af PoE. Please
refer to technical specifications for detailed information.
●If connecting several devices to one power supply, to avoid any
overload that may cause over-heating or a fire hazard insure that
the power supply is adequate for the power load.
●Please make sure that all plugs are firmly connected to the
power sockets. When the product is mounted on wall or ceiling,
the device shall be firmly attached, taking into consideration any
wind, snow loading, or other factors. The mounting surface shall
be capable of supporting several times the base weight of the
camera.
●If smoke, unusual odors or noise come from the device, turn off
the power at once and unplug the power cable, and then
contact authorized service personnel.
Cautions
●Make sure the power supply voltage is correct before using the
camera.
●Do not drop the camera or subject it to physical shock.
●Do not touch lenses or sensor modules with fingers. If cleaning is
necessary, use clean cloth with a bit of ethanol and wipe gently.
If the camera will not be used for an extended period, please
protect the lens openings from damage and/or debris.
●Avoid aiming the camera at the sun or extremely bright light
sources. Blooming or smearing may occur in excessive light

KNC-p3BR_IR IP Mini Bullet Camera·Quick Operation Guide
6
6
(which is not a malfunction), and could compromise the
performance of the sensor.
●The sensor may be damaged if exposed to laser energy, so when
any laser equipment is in use, make sure that the sensor will not
be exposed to the laser beam.
●Do not place the camera in extremely hot or cold (see camera
specifications) locations. Do not exceed the rated environmental
(IP66) conditions. Do not expose the camera to high levels of
electromagnetic (RF) radiation.
●To avoid heat accumulation, good ventilation is required in the
operating environment.
●Keep the camera away from solvents while in use; exposure to
liquids should not exceed IP66 environmental conditions.
●During shipping, the camera shall be packed in its original
packing, or packing providing the equivalent protection.
●Improper use or replacement of any batteries (if so equipped)
may result in the hazard of explosion. Replace with the same or
equivalent type only. Dispose of used batteries according to the
instructions provided by the battery manufacturer.
●If the product does not function properly, Dealers please contact
KT&C; End Users please contact your KT&C Certified Dealer or an
authorized service center. Do not disassemble the camera for
repair or maintenance by yourself. (KT&C shall not assume any
responsibility for problems caused by unauthorized repair or
maintenance.)

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
7
7
Table of Contents
1 Appearance and Description .......................................................... 8
2 Installation...................................................................................... 9
2.1 SD Card Installation ......................................................... 9

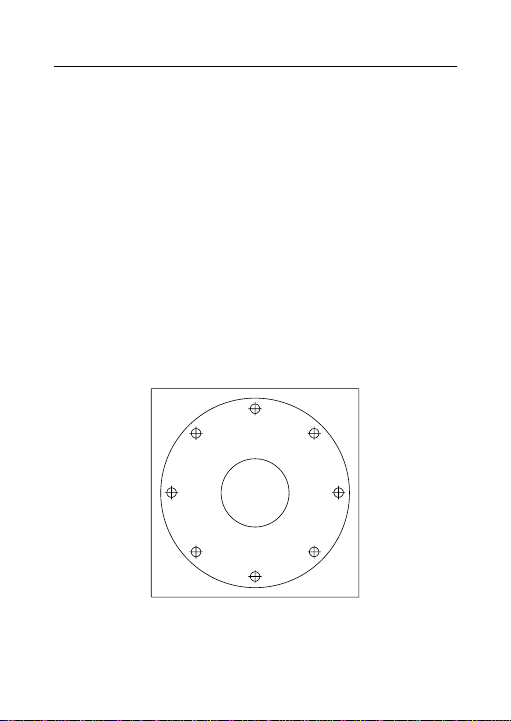

2.2 Mounting ...................................................................... 13
2.2.1 Wall/Ceiling Mounting........................................ 13
2.2.2 Wall/Ceiling Mounting with a Junction Box ........ 15

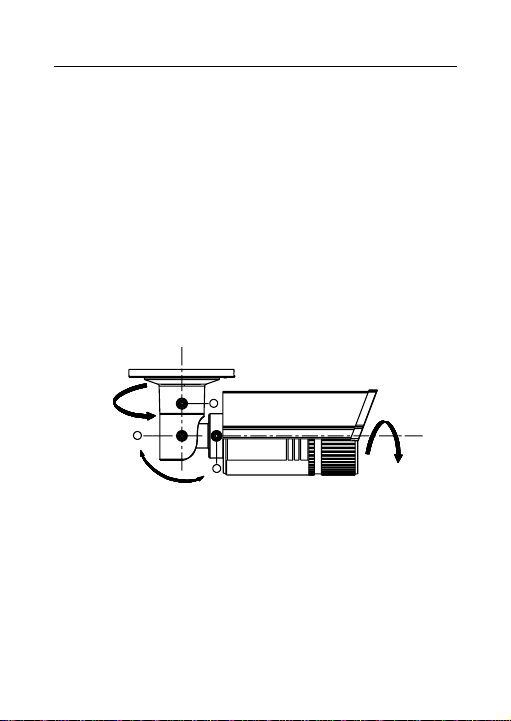

2.3 View Angle Adjustment................................................. 16
2.4 Zoom and Focus Adjustment......................................... 17
3 Setting the Network Camera over the LAN ......Error! Bookmark not
defined.
4 Accessing via Web Browser ................ Error! Bookmark not defined.

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
8
8
1Appearance and Description
The overview of the network bullet camera is shown below.
Figure 1-1 Overview
Table 1-1 Description
No.
Description
1
Sun Shield
2
Front Cover
3
Zoom and Focus Levers

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
9
9
No.
Description
4
IR LED
5
Lens
6
Weatherproof Air Vent
7
CBVS Video Test Point
8
Integrated Bracket
9
Reset Button
10
SD Card Slot
11
12VDC Power Input
12
Network/PoE Interface
Press RESET about 10s when the camera is powering on or rebooting
to restore the default settings, including the user name, password,
IP address, port number, etc.
2Installation
Before you start:
Make sure the camera is in good condition and all the accessory
parts are included.
Make sure all related equipment is powered-off during the
installation.

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
10
10
Check to insure that the specifications of the camera are correct
for the installation environment.
Make sure the power supply voltage is 12VDC or PoE compliant to
avoid damage to the camera.
If the product does not function properly, Dealers please contact
KT&C; End Users please contact your KT&C Certified Dealer or an
authorized service center. Do not disassemble the camera for
repair or maintenance by yourself.
Make sure that the mounting surface is strong enough to withstand
three times the weight of the camera.
If the IR LEDS in this camera will be active, you must observe the
following precautions to prevent IR reflection:
●Dust or grease on the lens/dome cover will cause IR reflection.
Please do not remove the cover protective film until the
installation is finished. If there is dust or grease on the
lens/dome cover, clean the lens/dome cover with clean soft
cloth and isopropyl alcohol.
●Make sure that there is no reflective surface too close to the
camera lens. The IR light from the camera may reflect back into
the lens causing haze, distortion or improper scene exposure.
●The foam ring around the lens must be seated flush against the
inner surface of the cover/bubble to isolate the lens from the IR
LEDS. Fasten the lens/dome cover to camera body so that the
foam ring and the dome cover are attached seamlessly.

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
11
11
2.1 SD Card Installation
Steps:
1. Rotate the sun shield lock screw counterclockwise to loosen it.
Slide the sun shield to the rear as shown in Figure 2-1 (left).
2. Remove the sun shield as shown in Figure 2-1 (right).
3. Remove the front cover by rotating it counterclockwise as shown in
Figure 2-1 (right).

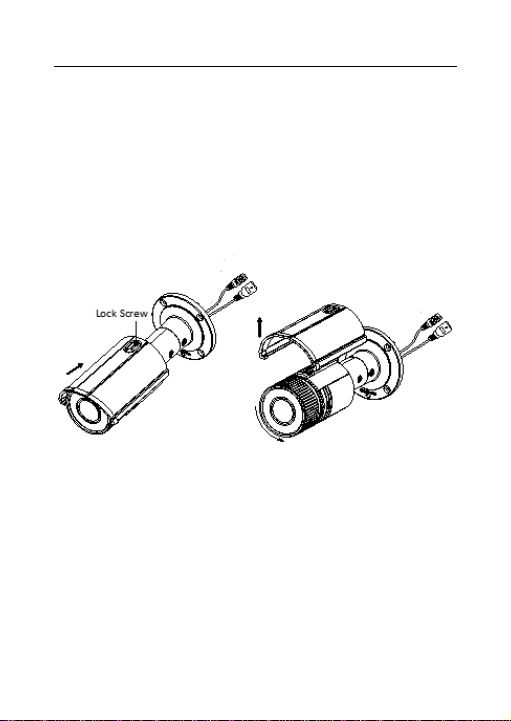

Figure 2-1 Disassemble the Camera
4. Insert the SD card to the SD card slot. See Figure 2-2 (left).
5. Rotate the front cover clockwise onto the camera and replace the
sun shield as shown in Figure 2-2(right).

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
12
12
Figure 2-2 Install the SD Card/Replace Cover and Sunshield
6. Slide the sun shield forward as shown in Figure 2-3(left).
7. Rotate the lock screw clockwise to tighten the sun shield.
Figure 2-3 Final Assembly of Camera

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
13
13
For a water-proof seal, please align the marks on the alignment label
on the front cover with that on the camera when you secure the front
cover as you rotate it clockwise. Refer to Figure 2-3(right).
2.2 Mounting
This camera base can be mounted to a wall or ceiling directly and can
also be mounted to a wall or ceiling with a junction box or a gang box.
2.2.1 Wall/Ceiling Mounting
Steps:
1. Attach the drill template (supplied) to the wall where the camera is
to be mounted.
2. Drill screw holes in the wall using the number “1” holes on the drill
template. Refer to the Figure 2-4.
Figure 2-4 Drilling Holes in the Wall
Ceiling Mounting
11
11
2
22
2
1:Screw Hole for
Bracket
2:Screw Hole for
Mounting Base

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
14
14
3. If you need to route cables through the wall (or ceiling), cut a cable
hole in the center of the drill template. Skip this step, if you want
to route the cables along the surface of the wall or ceiling.
4. Connect/route the camera cables.
5. Secure the camera to the wall (or ceiling); use with expansion
anchors if needed. Refer to the Figure 2-5. Be sure surface can
support camera plus any additional wind or snow/ice loading. The
surface should support at least three times the weight of the
camera.
Figure 2-5 Secure the Camera

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
15
15
2.2.2 Wall/Ceiling Mounting with a Junction Box
Before you start:
Junction boxes are sold separately. Consult your KT&C Sales
representative for more information.
Steps:
1. Attach the drill template (supplied) to the wall or ceiling where the
camera is to be mounted.
2. Drill holes in the wall using the number “2” holes on the drill
template. Refer to the Figure 2-4.
3. If you need to route cables through the wall (or ceiling), cut a cable
hole in the center to the drill template. Skip this step, if you want
to route the cables on the surface of the wall/ceiling.
4. Secure the junction box to the wall; use expansion anchors if
required.
6. Connect/route the camera cables.
7. Hook the camera to the junction box with the safety rope. Refer to
the Figure 2-6.
8. Secure the camera to the junction box with screws.
9. Adjust the image and focus. Please refer to the sections 2.3 and 2.4
for more detailed information.

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
16
16
Figure 2-6 Secure the Camera
2.3 View Angle Adjustment
Purpose:
3-axis (pan/tilt/rotation) adjustment allows positioning for optimum
camera placement and angle to achieve the desired field of view.
Pan Adjustment
Steps:
1. Loosen the lock screw-1 shown in Figure 2-7.
2. Adjust the pan position of the camera. The range is from 0 degrees
to 360 degrees.
3. Tighten the lock screw-1.
Tilt Adjustment

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
17
17
Steps:
1. Loosen the lock screw-2 shown in Figure 2-7.
2. Adjust the tilt position of the camera. The range is from 0 degrees
to 90 degrees.
3. Tighten the lock screw-2.
Rotation Adjustment
Steps:
1. Loosen the lock screw-3 shown in Figure 2-7.
2. Rotate the rotation so that the image is upright. The range is from
0 degrees to 360 degrees.
3. Tighten the lock screw-3.
Figure 2-7 Position Adjustment
2.4 Zoom and Focus Adjustment
Purpose:
You can use the zoom and focus levers to adjust the field of view.
Tilting
3
1
Rotation
Panning
2
Menu Button

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
18
18
Steps:
1. Disassemble the camera. Refer to section 2.1.
2. View the camera image using a test monitor, PC, or NVR
3. Loosen the zoom lever and move the lever between T(Tele) and
W(Wide) to obtain the appropriate field of view.
4. Loosen the focus lever and move the screw between F(Far) and
N(Near) to obtain the optimum focus.
5. Repeat steps 3 and 4 until the image appears as desired.
6. Tighten the zoom and focus levers.
7. Assemble the camera. Refer to section 2.1.
Figure 2-8 Zoom and Focus Adjustment

KNC-p3BR28V12IR Varifocal Bullet Camera Quick Operation Guide
0
0
3Setting the Camera Parameters over
the LAN
Purpose:
To view and configure the camera via a LAN, you need to connect the
network camera in the same subnet with your computer, and install
the OMNI Finder or OMNI CMS software to search and change the IP
of the network camera.
The following figure shows a camera and PC connected through a
switch:
Figure 3-1 Typical LAN Connection
Set the IP address of the camera for accessing via LAN.
Steps:
1. To get the IP address, you can choose either of the following
methods:
Use OMNI Finder, a software tool which can automatically detect
network camera on the LAN and list device information such as IP
address, subnet mask, port number, device serial number, device
version, etc., as shown in Figure 3.2 below.
