The CLAMPEX®clamping set is a frictionally engaged, detachable shaft - shaft connection for
cylindrical shafts without feather key.
General Hints
Please read through these mounting instructions carefully before assembling the clamping set.
Please pay special attention to the safety instructions!
The mounting instructions are part of your product. Please keep them carefully and close to the
clamping set.
The copyright for these mounting instructions remains with KTR Kupplungstechnik GmbH.
Safety and Advice Hints
STOP DANGER! Danger of injury to persons.
! CAUTION! Damages on the machine possible.
)ATTENTION! Pointing to important items.
PRECAUTION! Hintsconcerning explosion protection.
General Hints to Danger
STOP
DANGER!
With assembly and disassembly of the clamping set it has to be made sure that the
entire drive train is protected against unintentional engagement. You can be
seriously hurt by rotating parts. Please make absolutely sure to read through and
observe the following safety instructions.
•All operations on and with the clamping set have to be performed taking into account "safety first".
•Please make sure to disengage the power pack before you perform your work at the clamping set.
•Protect the power pack against unintentional engagement, e. g. by providing hints at the place of
engagement or removing the fuse for current supply.
•Do not touch the operation area of the machine as long as it is in operation.
•Please protect the rotating drive parts against unintentional touch. Please provide for the necessary
protection devices and caps.
Proper Use
You may only assemble and disassemble the clamping set if you
•have carefully read through the mounting instructions and understood them
•had technical training
•are authorized to do so by your company
The clamping set may only be used in accordance with the technical data (see table 2). Unauthorized
modifications on the clamping set are not admissible. We do not take any warranty for resulting
damages. To further develop the product we reserve the right for technical modifications.
The CLAMPEX®clamping set described in here corresponds to the technical status at the time of
printing of these mounting instructions.

KTR Kupplungstechnik
GmbH
D-48407 Rheine
CLAMPEX®KTR 620
mounting instructions
KTR-N
sheet:
edition:
40822 EN
2 of 6
3
Gezeichnet: 25.03.10 Pz/Hg Ersatz für: KTR-N vom 09.08.07Schutzvermerk
ISO 16016 beachten. Geprüft: 25.03.10 Pz Ersetzt durch:
The clamping set is generally delivered in assembled condition.
Tolerances, surfaces
A good rotating process is sufficient: Highest permissible tolerance:
Rz ≤16μm d = f7 for the hub (hollow shaft outside)
dW= h6/ H7
dW> Ø160 - g6/H7
Components of CLAMPEX®KTR 620
component quantity designation
1 1 external ring
2 1 internal ring
3 see table 2 hexalonal screws DIN EN ISO 4017 (phosphated) 1)
1) external and internal rings with QPQ coating; hexagon screws DIN EN ISO 4017 with Geomet coating
picture 1: CLAMPEX®KTR 620
)ATTENTION!
Dirty or used clamping sets must be disassembled before the installation in order to be
cleaned. Afterwards the taper surfaces and threads must be greased with Molykote MoS2
(see picture 2). In order to relubricate use multipurpose Molykote BR2.
!
CAUTION!
Hexagon screws with Geomet coating must not be lubricated with Molykote
Assembly
!
CAUTION!
Check the taper surfaces of the clamping set for the indicated lubrication.
•Check the shaft and hub position regarding the permitted tolerance.
•The contact surfaces of shaft / hollow shaft inside and shaft must be cleaned and degreased.
!
CAUTION!
Contact surfaces of shaft and hub bore
(hollow shaft inside) must neither be
greased nor be oiled (see picture 2).
picture 2

KTR Kupplungstechnik
GmbH
D-48407 Rheine
CLAMPEX®KTR 620
mounting instructions
KTR-N
sheet:
edition:
40822 EN
3 of 6
3
Gezeichnet: 25.03.10 Pz/Hg Ersatz für: KTR-N vom 09.08.07Schutzvermerk
ISO 16016 beachten. Geprüft: 25.03.10 Pz Ersetzt durch:
Assembly
Continuation:
•Loosen the clamping screws slightly and put the clamping set KTR 620 externally onto the hub/hollow shaft
(see picture 3 and 4).
)ATTENTION!
In the area of the position of the external clamping set the external surface of the hub
(outside hollow shaft) can be greased.
!
CAUTION!
Before tightening the clamping screws install the shaft.
•Slightly tighten the clamping screws manually.
•Afterwards tighten the clamping screws evenly and successively in several revolutions (see picture 5) until the
front, screw head-sided surfaces of the outer and the inner ring are flush. Thus the correct clamping of the
outer and the inner ring can be visually checked (see picture 6).
When tightening the clamping screws the max. screw tightening torque indicated (see table 1) must not be
exceeded.
)ATTENTION!
Subject to the QPQ coating the internal ring may protude by up to 0,5 mm.
picture 3: push the clamping set onto the hollow shaft picture 4: push onto the shaft
picture 5: tightening of the clamping screws picture 6: visual check
Table 1:
type of clamping set KTR 620
screw size M M6 M8 M10 M12 M14 M16
tightening torque TA[Nm] 12 30 55 100 160 250

KTR Kupplungstechnik
GmbH
D-48407 Rheine
CLAMPEX®KTR 620
mounting instructions
KTR-N
sheet:
edition:
40822 EN
4 of 6
3
Gezeichnet: 25.03.10 Pz/Hg Ersatz für: KTR-N vom 09.08.07Schutzvermerk
ISO 16016 beachten. Geprüft: 25.03.10 Pz Ersetzt durch:
Technical Data

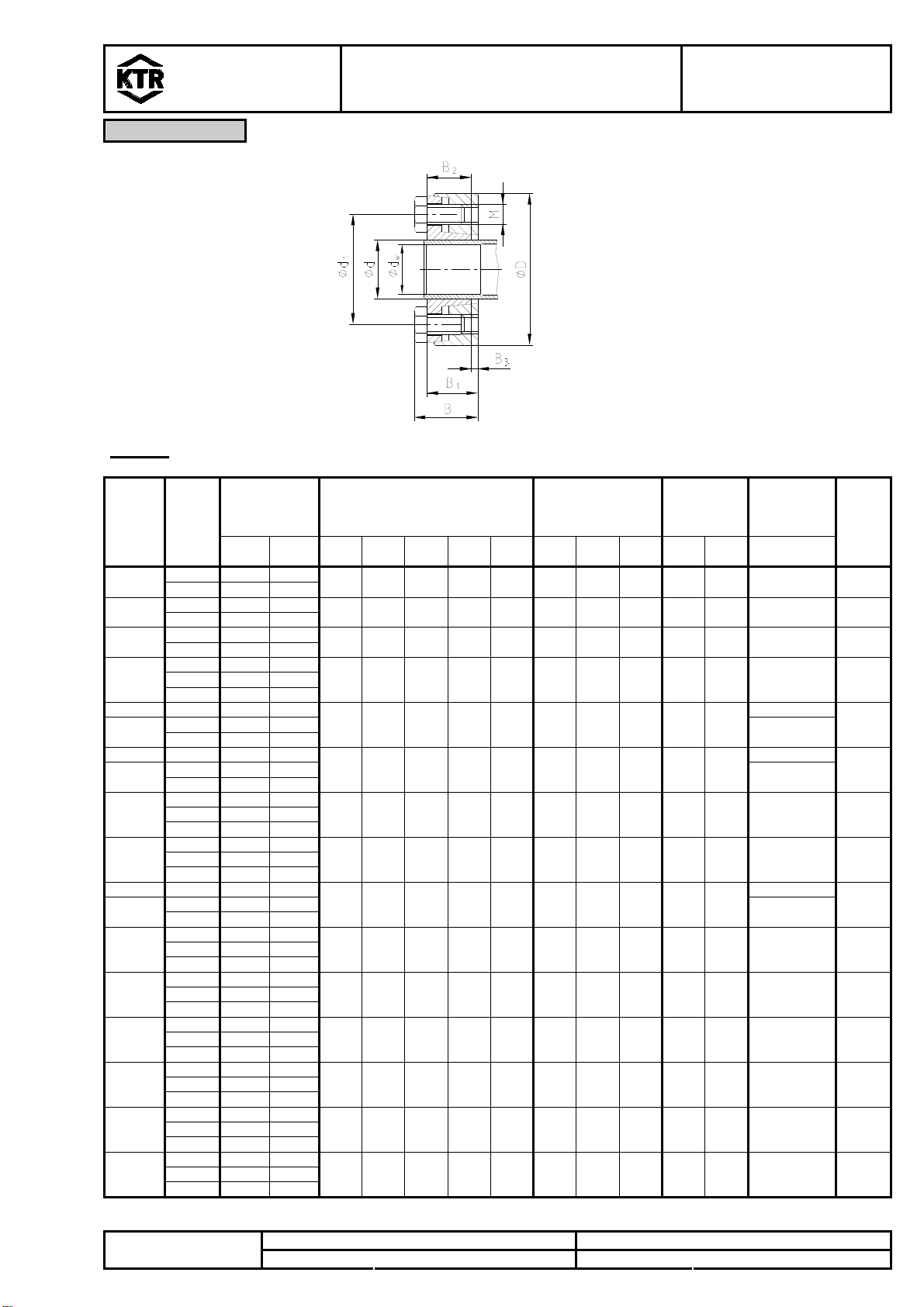

picture 7: dimensions CLAMPEX®KTR 620
Table 2:
transmittable
torque or
axial force
dimensions
[mm]
clamping screws
DIN EN ISO 4017
10.9
μges. = 0,10
forcing
thread
surface
pressure
clamping set/
hollow shaft
dxD
[mm]
shaft
dia-
meter
dw
[mm] T
[Nm] Fax
[kN] B B1B
2B 3d 1M z TA
[Nm] M1z
1PH
[n/mm2]
weight
[~kg]
13 85 13
16x41 14 105 15 19,0 15 13 2 28 M6 3 12 M6 2 281 0,15
17 155 18
20x47 18 175 19 19,0 15 13 2 32 M6 4 12 M6 2 288 0,17
20 235 24
24x50 22 305 28 22,0 18 16 2 36 M6 5 12 M6 2 266 0,25
24 390 33
25 430 34
30x60 26 480 37 24,0 20 18 2 44 M6 6 12 M6 3 256 0,30
36x72 27 510 38 256
30 690 46
38x72 33 820 50
27,5 22 20 2 54 M8 5 30 M8 2 253 0,49
40x80 34 910 54 254
35 850 49
44x80 37 980 53
29,5 24 22 2 61 M8 6 30 M8 2 231 0,61
38 1180 62
40 1320 66
50x90 42 1470 70 31,5 26 23,5 2,5 68 M8 8 30 M8 2 249 0,84
42 1400 67
45 1650 73
55x100 48 1900 79 34,5 29 26 3 72 M8 8 30 M8 2 223 1,20
60x110 48 1700 71 223
50 2050 82
62x110 52 2200 85
34,5 29 26 3 80 M8 9 30 M8 3 216 1,50
50 1900 76
55 2450 89
68x115 60 3000 100 34,5 29 26 3 86 M8 9 30 M8 3 222 1,60
55 2650 96
60 3250 108
75x138 65 3850 118 38,0 31 27 4 100 M10 10 59 M10 2 227 2,60
60 3350 112
65 3980 122
80x141 70 4620 132 38,0 31 27 4 104 M10 10 59 M10 2 224 2,80
65 5200 160
70 6000 171
90x155 75 6900 184 45 38 34 4 114 M10 11 59 M10 2 219 3,40
70 6600 189
75 76020 203
100x170 80 8600 215 50 43 39 4 124 M10 14 59 M10 3 206 4,60
80 10600 265
85 11900 280
110x185 90 13300 296 57 49 44 5 136 M12 12 100 M12 4 212 6,20

KTR Kupplungstechnik
GmbH
D-48407 Rheine
CLAMPEX®KTR 620
mounting instructions
KTR-N
sheet:
edition:
40822 EN
5 of 6
3
Gezeichnet: 25.03.10 Pz/Hg Ersatz für: KTR-N vom 09.08.07Schutzvermerk
ISO 16016 beachten. Geprüft: 25.03.10 Pz Ersetzt durch:
Technical Data
Bild 7: dimensions CLAMPEX®KTR 620
Continuation: Table 2
transmittable
torque or
axial force
dimensions
[mm]
clamping screws
DIN EN ISO 4017
10.9
μges. = 0,10
forcing
thread
surface
pressure
clamping set/
hollow shaft
dxD
[mm]
shaft
dia-
meter
dw
[mm] T
[Nm] Fax
[kN] B B1B
2B 3d 1M z TA
[Nm] M1z
1PH
[n/mm2]
weight
[~kg]
85 12700 299
90 14200 316
120x197 95 15700 331 61 53 48 5 147 M12 14 100 M12 4 205 7,40
90 14600 324
95 16000 337
125x215 100 17500 350 61 53 48 5 158 M12 14 100 M12 4 215 9,30
95 18600 392
100 20300 406
130x230 110 23600 429 67 58 52 6 165 M14 9 160 M14 4 225 11,90
100 20100 402
105 21700 413
140x230 115 25150 437 67 58 52 6 172 M14 9 160 M14 4 205 11,00
110 27400 498
115 29600 515
155x263 125 32000 533 71 62 56 6 195 M14 10 160 M14 4 212 16,00
120 41500 692
125 44300 709
165x290 135 47200 726 78 68 61 7 204 M16 12 250 M16 4 223 22,30
130 47600 732
135 50500 748
175x300 140 53500 764 78 68 61 7 214 M16 12 250 M16 4 216 23,30
140 66000 943
145 69900 964
185x320 150 73500 980 95 85 77 8 224 M16 14 250 M16 4 201 33,40

KTR Kupplungstechnik
GmbH
D-48407 Rheine
CLAMPEX®KTR 620
mounting instructions
KTR-N
sheet:
edition:
40822 EN
6 of 6
3
Gezeichnet: 25.03.10 Pz/Hg Ersatz für: KTR-N vom 09.08.07Schutzvermerk
ISO 16016 beachten. Geprüft: 25.03.10 Pz Ersetzt durch:
Disassembly
STOP
DANGER!
Loosened or falling drive parts can cause injuries to persons or damages to the machines.
Safe the drive parts before the disassembly.
•Detach all clamping screws evenly and successively in several revolutions.Do not unscrew the clamping
screws completely from the thread.
!
CAUTION!
To reduce the tension forces the clamping screws must not be unscrewed completely.
•Detach the outer taper ring by means of the pull-off threads and some clamping screws, quantity dependent
on the pull-off threads in the inner ring. The outer taper ring must be pulled as long as this is completely
detached.
•Remove shaft from the hub/hollow shaft.
•Draw the clamping set KTR 620 off the hub/hollow shaft.
!
CAUTION!
In case of non-observance of these hints or in case of non-considerance of the operating
conditions regarding the selection of the clamping set, the function of the clamping set can
be influenced.
Disposal of waste: Defective clamping sets must be cleaned and scrapped.
Remark for the use in explosive applications according to ATEX 95
For the use in explosive applications the type and size of clamping set (applying for category 3 only) has to be
selected in a way that starting from the peak torque of the machine including all operating parameters to the rated
torque of the clamping set there is a service factor of at least s = 2.
CLAMPEX®clamping sets are not part of the standard 94/9/EG, since
•this product is a torsionally rigid, backlash-free, frictionally engaged connection with one or more taper
clamping ring(s) by means of several screws.
(Clamping screws have to be secured, e. g. by means of a medium strength adhesive).
•due to the design of clamping sets a fracture/failure does not have to be expected (frictional heat is only
caused by improper assembly/tightening torques, i. e. not in case of proper use).
