Kuppersberg NRB 17761 Quick start guide

TECHNICAL PASSPORT
ПАСПОРТ ТЕХНИЧЕСКОГО ИЗДЕЛИЯ
REFRIGERATORS
ХОЛОДИЛЬНИКИ
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761
NRB 17761

2
TECHNICAL PASSPORT ENGLISH
Refrigerator NRB 17761
REQUIREMENTS -WARNINGS AND IMPORTANT RECOMMENDATIONS.. 3
DESCRIPTION OF THE APPLIANCE ............................................................................... 6
REMOVING PROTECTIVE TRANSPORTATION PARTS........................................... 7
INSTALLATION AND COMMISSIONING....................................................................... 8
INSTALLATION IN A CABINET........................................................................................... 10
ELECTRICAL CONNECTION................................................................................................ 11
USING COOLER COMPARTMEN........................................................................................ 12
USING FREEZER COMPARTMENT................................................................................... 14
CLEANING..................................................................................................................................... 18
TROUBLESHOOTING.............................................................................................................. 20
TECHNICAL SERVICE CENTER.......................................................................................... 21
CONTENTS

3
ENGLISH TECHNICAL PASSPORT
Refrigerator NRB 17761
REQUIREMENTS -
WARNINGS AND IMPORTANT
RECOMMENDATIONS
Thank you for choosing and
purchasing our product.
Please read carefully the remarks
provided below. After having read them,
you will be able to make the best use
of all functions of the appliance. The
quality of the appliance is guaranteed,
as our products pass 100% inspection
after completion of the production
process. Our products also undergo
extensive testing and various quality
control procedures. We are sure that you
will enjoy using your appliance.
This product complies with the
relevant European safety regulations
for electrical appliances. The product
underwent extensive testing and
thorough checking to assess its
safety and reliability. Before using the
appliance, read this manual, which
provides information about necessary
and forbidden operations. Use the
appliance only for its intended purpose;
otherwise it may be dangerous,
especially for children. Before
connecting the appliance to the mains,
check on the rating plate whether the
data corresponds to the parameters of
your mains supply. Packaging materials,
allowing for recycling should be passed
to an appropriate recycling facility.

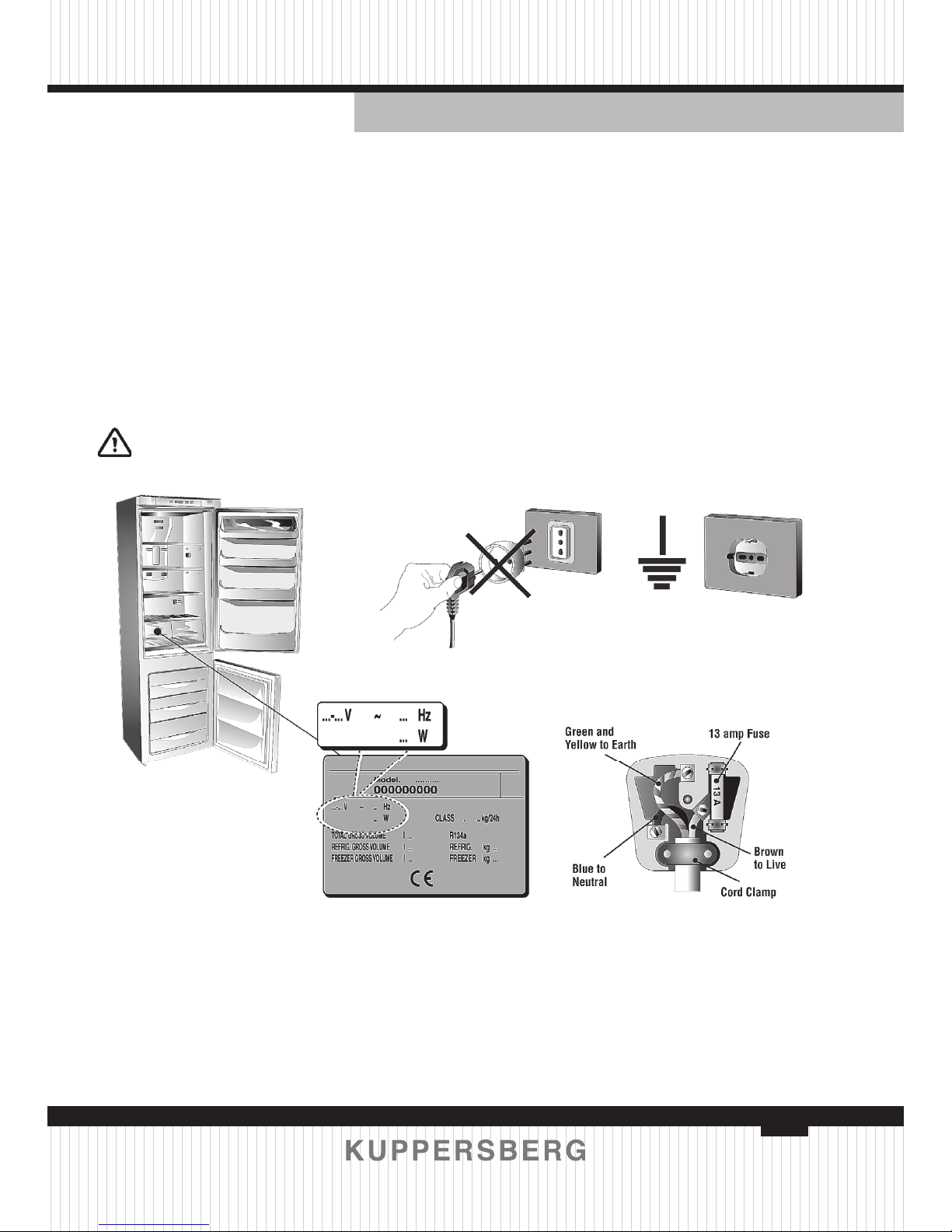

Electrical safety of this appliance
can be provided only if it is connected
to the mains using an intact earthed
socket, installed according to relevant
standards.Be sure to check this essential
condition of the safe operation.
If you have any doubt, request a
close inspection of the mains supply
by a qualifi ed professional (Act 46/9O).
When using this appliance, as well
as any other electrical device, it is
necessary to observe several basic rules:
Âdo not touch the appliance with
wet or damp hands or feet;
Âdo not pull the cord to remove it
from the socket;
Âdo not leave the appliance open
to various atmospheric factors;
Âchildren may only use the device
under adult supervision;
Âdo not remove or insert the
plug into the socket with wet hands;
before performing any cleaning or
maintenance operation, disconnect the
appliance from the mains by removing
the plug from the socket or by switching
off the mains switch;

4
TECHNICAL PASSPORT ENGLISH
Refrigerator NRB 17761

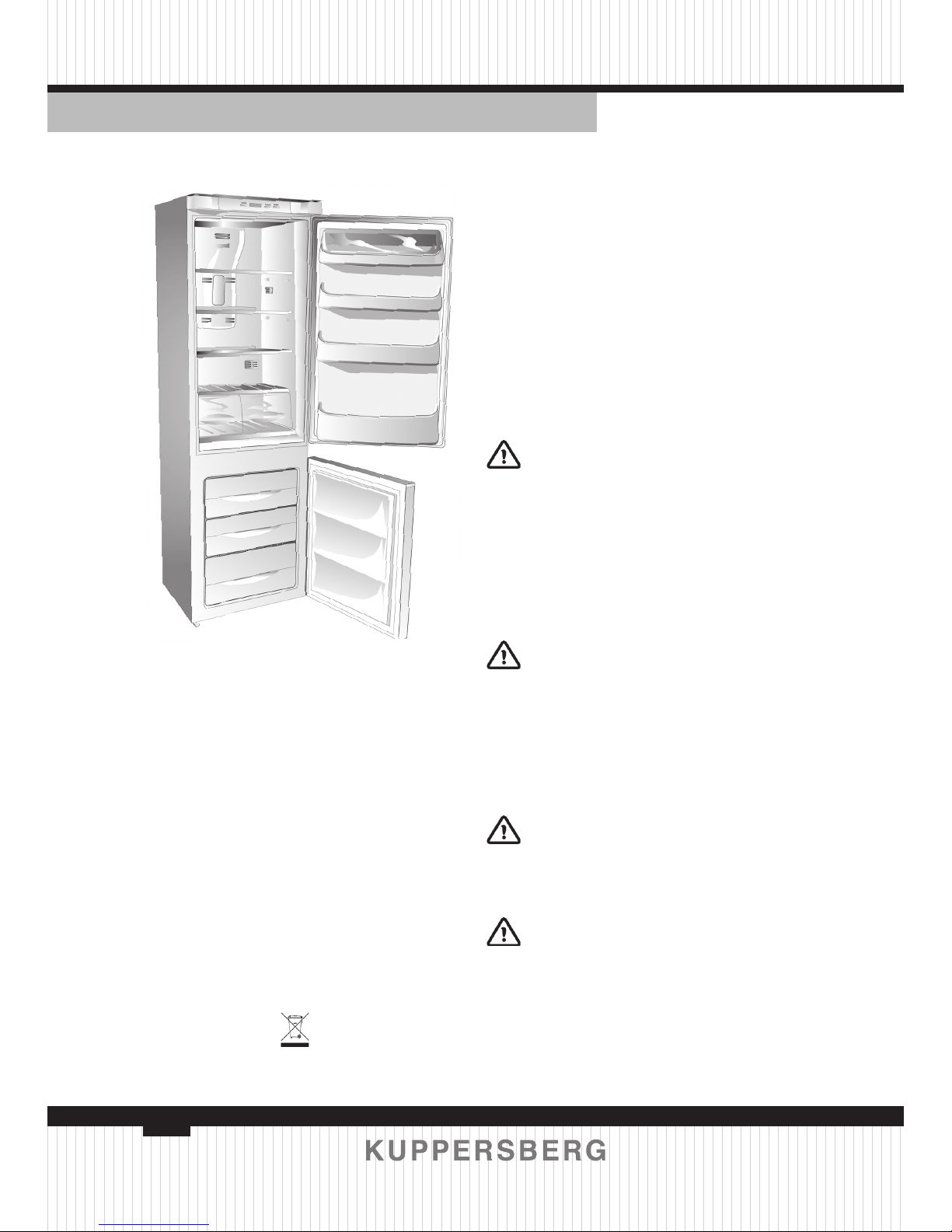

ÂIn the case of a failure or
malfunctioning the appliance should
be switched off, and its use should be
discontinued.
This appliance is marked according
to the European Directive 2002/96/
EU on waste electrical and electronic
equipment (WEEE).
By ensuring this product is disposed
of correctly, you will help prevent
potential negative consequences for
the environment and human health,
which could otherwise take place.
The symbol
which could otherwise take place.
on the product or
its accompanying documents indicates
that this product may not be treated as
household waste.The product should be
handed over to the applicable collection
points for the recycling of electrical and
electronic equipment Scrapping should
be performed in accordance with local
environmental regulations for waste
disposal. For more detailed information
about treatment, recovery and recycling
of such appliances, contact the
appropriate institution, local household
waste disposal service or the shop
where you purchased the product.
ATTENTION! Refrigerator using
R600a cooling agent (isobutane) and
insulation material made with use
of combustible gas, at the end of its
lifetime prior to scrapping, should be
brought to a safe condition. To perform
this procedure, contact your local store
or a specialized company.
ATTENTION! When you install your
appliance, it is important to consider
its climate class. To defi ne the class,
see the data plate provided here. The
appliance operates properly within the
temperature limits listed in the table, in
accordance with its climate class.
ATTENTION! Do not close the
ventilation openings. Note that built-
in installation requires suffi cient
ventilation space around the refrigerator.
ATTENTION! If you are away for a
long period of time (e.g. on vacation)
please disconnect the appliance from
the mains supply, then empty, clean
and dry the inside of it. Make sure
that the doors remained open to avoid
unpleasant odors.

5
ENGLISH TECHNICAL PASSPORT
Refrigerator NRB 17761

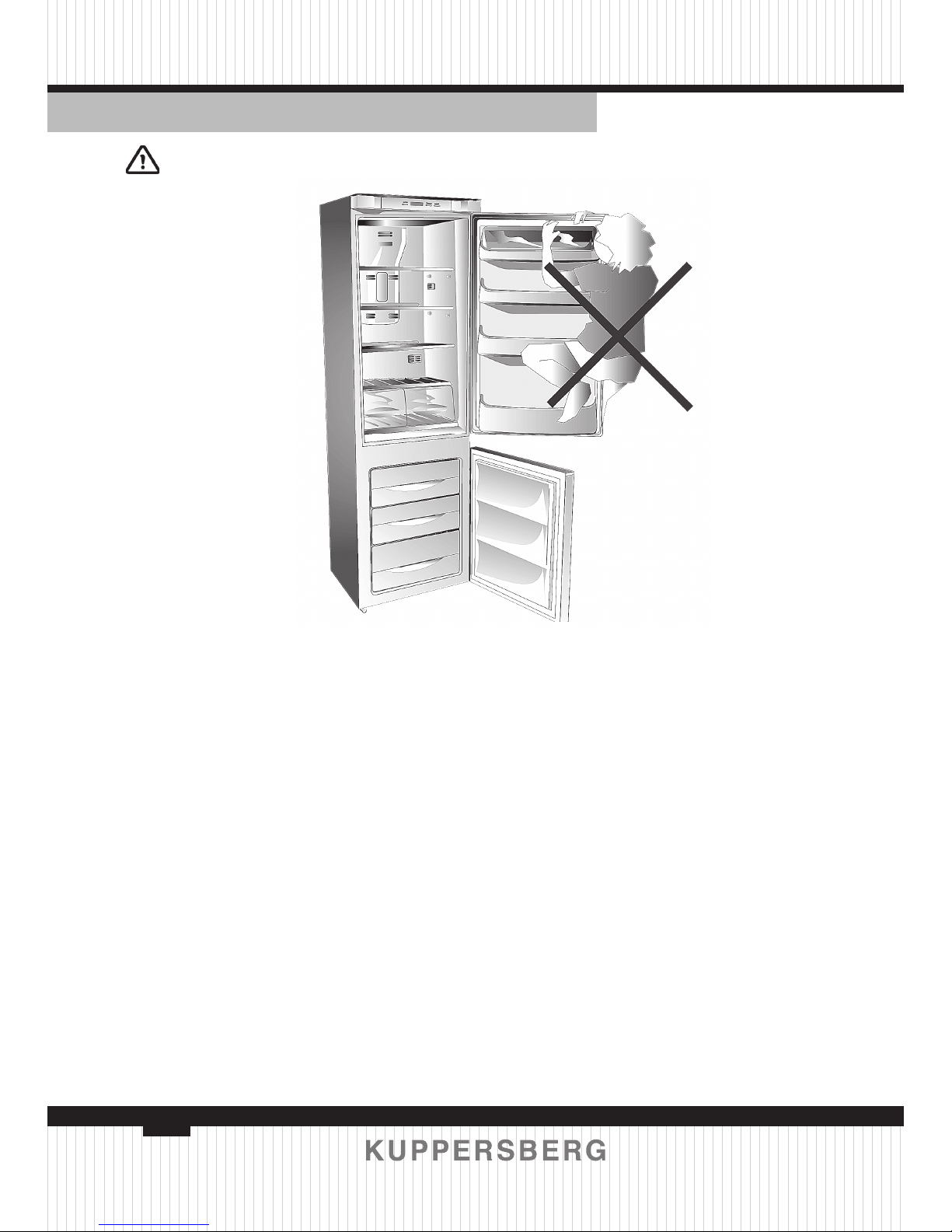

ATTENTION! Be careful not to
damage the cooling system.
When purchasing please read the
operation manual and make sure that
the warranty booklet and the purchase
receipt are properly fi lled out. The
serial number and model name of the
purchased product must be identical to
those indicated in the Warranty Booklet.
No changes or corrections should be
made to the Warranty Booklet. In the
case the Warranty Booklet is fi lled out
incorrectly or incompletely, contact
your retailer immediately. The warranty
period is 12 months from the date of
sale.To avoid possible misunderstanding,
keep the purchase receipt, operation
manual and Warranty Booklet coming
with the product, in a safe place for
the lifetime period. Make sure that the
Warranty Booklet and purchase receipt
are properly fi lled out and have the
stamps of the retailer. If the date of
purchase is not defi ned, the warranty
period is calculated from the date of
manufacturing. Warranty cover will be
void in the following cases (after the
transfer of the goods to the consumer):
Âimproper operation,
Âmechanical damages, damages
caused by exposure to chemicals,
thermal damages or improper use
of consumables (detergent or other
cleaning substances),
Âmisuse of the product, including
use for purposes other than the intended
purpose,
Âuse for commercial purposes
(restaurant, cafe, offi ce, kindergarten,
hospital, etc.),
Âdamage or abnormal operation
caused by animals or insects,
Âlock of the movable components
of the product due to the intrusion of
foreign objects, small pieces of clothing,
liquids or food residues,
Âdamages or malfunctions caused
by Force Majeure (fi re, natural disasters,
etc.),
Âmaking corrections in the
Warranty Booklet or purchase receipt,

6
TECHNICAL PASSPORT ENGLISH
Refrigerator NRB 17761
Âunauthorized maintenance, repair, disassembly or other actions not described
in the operation manual,
 damage caused by careless storage and/or transportation due to the fault of
the buyer, transport, trading or service organization. In this case, the customer should
submit a claim to the relevant organization,
Âdeviation from standards of mains supply or other network connections,
Âimproper installation or connection of the product,
 replacing lamps, fi lters or any removable parts made of glass and plastic.
DESCRIPTION OF THE APPLIANCE
Vertical type devices are home
electrical appliances of large capacity,
where you can freeze,store and refrigerate
any food products.
The FRAME of the appliance is
made of processed and electrostatically
painted metal panels, which guarantees
permanent aesthetic qualities for a long
period of time. INSULATING materials
are selected by the manufacturer taking
into account the requirements of constant
temperature inside the appliance while
maintaining the necessary internal
volume. The INTERIOR SPACE is capable
to accommodate products of any form due
to easy rearrangement of the shelves.

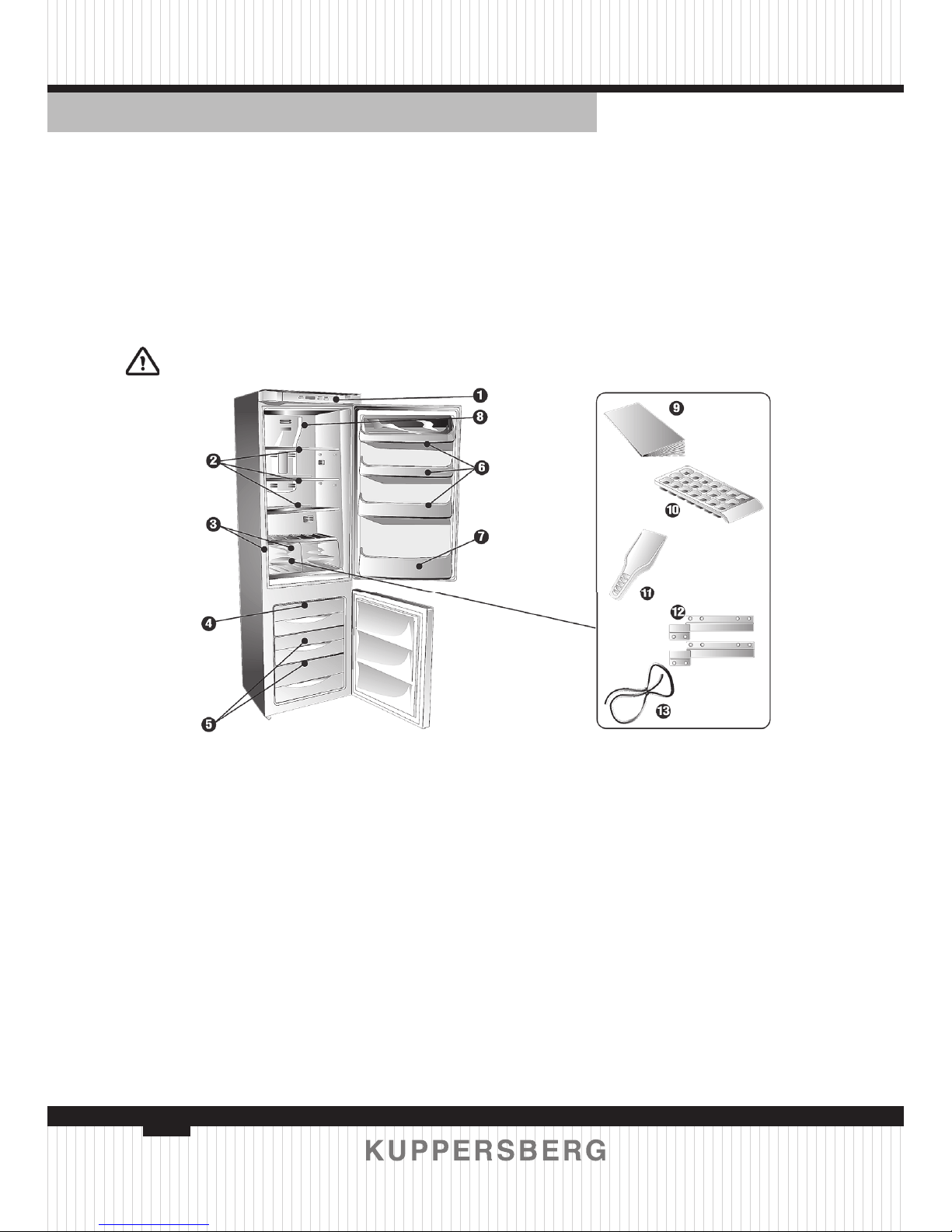

1 THERMOSTAT
2 ADJUSTABLE WIRE SHELVES
3 FRUIT AND VEGETABLE
COMPARTMENT WITH REMOVABLE SHELF
4 COMPARTMENT FOR FREEZING
FRESH FOOD — FREEZER
5 FREEZER DRAWERS
6 JARS SHELF
7 BOTTLE SHELF
8 INTERIOR LIGHT
9 OPERATION MANUAL
10 ICE TRAY
11 ICE SCOOP
12 SLIDING GUIDES
13 GASKET

7
ENGLISH TECHNICAL PASSPORT
Refrigerator NRB 17761
REMOVING PROTECTIVE TRANSPORTATION PARTS
Make sure that the appliance is not
damaged. All damages resulting from
transportation should be reported to
your dealer in 24 hours after receiving
the appliance.
1 Remove the protective fi lm from
the door gasket.
The protective fi lm must be removed
for tight closing of the refrigerator door.
Pull the end of the protective fi lm,
turning it up.
2 Remove the retainers of the glass
shelves.
These plastic parts keep the shelves
from moving during transportation. The
retainers are removed as follows:
a) take the plastic part and turn to
separate it from the shelf;
b) remove the retainers by pulling
them in the outside direction.
3 The appliance is equipped with a
special antibacterial fi lter, which allows
to signifi cantly improve the inside air
quality, thereby guaranteeing ecological
purity of internal environment, absence
of bacteria, as well as longer periods of
food storage.
ATTENTION:
THE ANTIBACTERIAL FILTER SHOULD
BE CLEANED APPROXIMATELY
EVERY 3 MONTHS (SEE CLAUSE
“CLEANING”).

8
TECHNICAL PASSPORT ENGLISH
Refrigerator NRB 17761
INSTALLATION AND COMMISSIONING
1 After unpacking the appliance,
check that the mains voltage
corresponds to that indicated on the
rating plate.

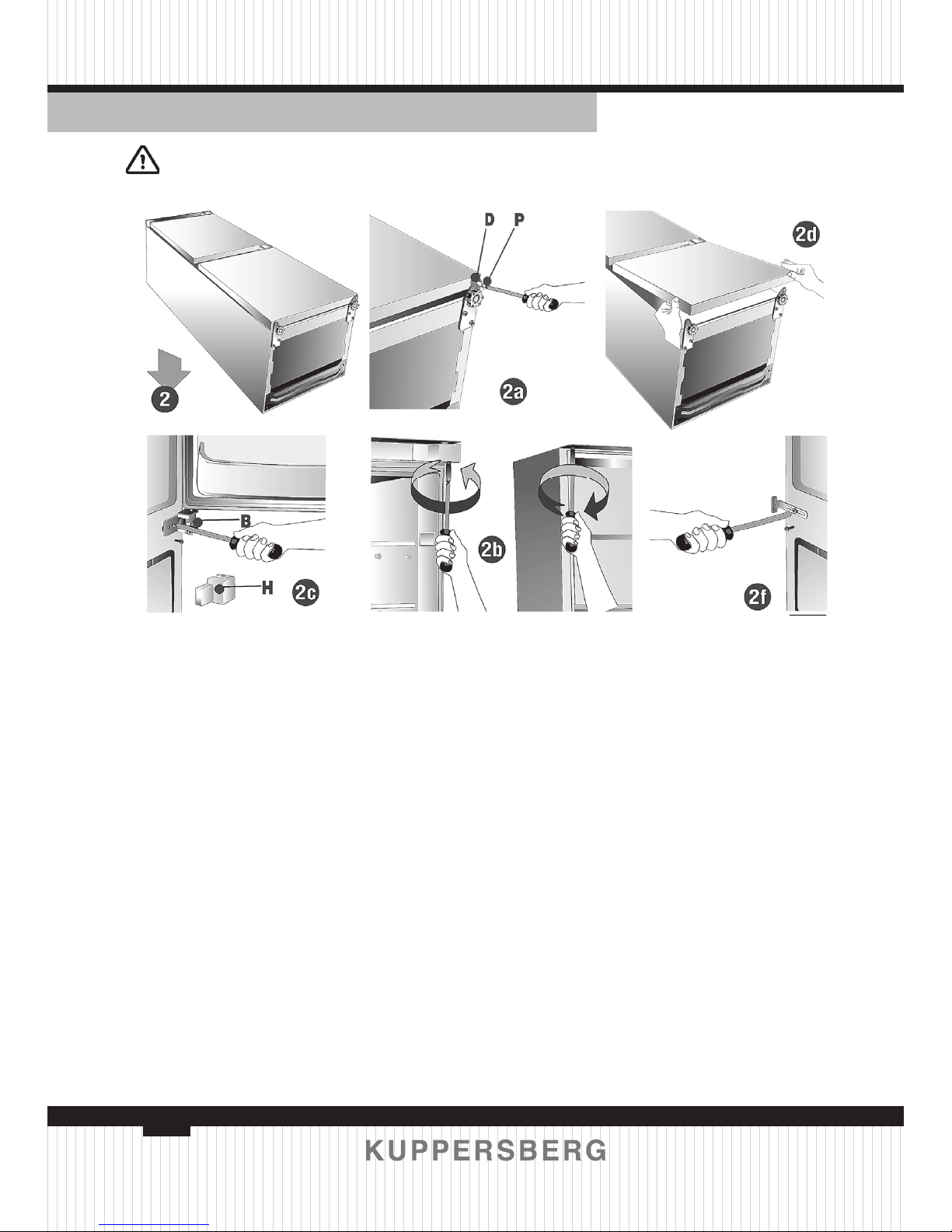

2 If you don’t wish to change the
door opening side, proceed to step. 3.
Otherwise, you should swap the hinges.
To do this, we recommend putting
carefully the appliance on the back
wall in a horizontal position using
special supports to avoid squashing the
condenser and to prevent compressor
damage.
2a Remove the lower hinge axis P
and the gasket D.
2b Release the lower door.
2c Remove the hinge cover H;
remove the middle hinge C, and then
release the upper door.
2d Remove the upper axis K and
install it on the opposite side.
2d Remove the central support L.
2f Reinstall the upper door.
2g Install the hinge C and support L
on the left side. (The cover H should be
installed at the end of the procedure).
2h Install the central support L on
the right side.
2i Install the lower door.
2l Insert axle P with the gasket D.
2m Remove sliding elements of
the doors S and install them on the
opposite side.

9
ENGLISH TECHNICAL PASSPORT
Refrigerator NRB 17761

10
TECHNICAL PASSPORT ENGLISH
Refrigerator NRB 17761
When installing the appliance,
please observe the following rules:
A Do not install the appliance
near any heat sources such as heaters,
heating radiators, stoves, etc., and also
avoid installing in a location where the
unit will be exposed to direct sunlight.
B Make sure that during automatic
defrosting water fl owing down the back
wall of the chamber, is collected in the
special drain trough.
C After the appliance is installed in
the chosen location, before connecting
it to the mains supply, you should leave
it standing for one hour, not moving it
anywhere.
D Before you put food into the
chambers, make sure that the appliance
is working properly
IMPORTANT! DO NOT PLACE
THE APPLIANCE CLOSE TO ANY
HEAT SOURCES.ENSURE THAT THE
CLEARANCE ABOVE THE APPLIANCE IS
NOT LESS THAN 5 CM.
INSTALLATION IN A CABINET
Cabinet dimensions for refrigerator
installation should be as specifi ed in
the fi gure.
 Insert the appliance into the
appropriate cabinet space, leaning it
against a wall, adjacent to the side of
the door opening. Make sure that the
side panel of the appliance is inserted
at a length of 53 mm.
3b Adjust the foot. The top plate
should not be in contact with the
cabinet.
3b Using supplied screws, fasten
the upper part of the appliance to the
perforated plate, located above the
front panel.
3d Using special clamps, fasten the
central part of the appliance to the
cabinet wall.

11
ENGLISH TECHNICAL PASSPORT
Refrigerator NRB 17761
3e Fasten two lower feet in the
corresponding holes on the base of the
cabinet.
3f Install the plastic gasket (if
provided).
3g Make sure that the door sliding
guides A are in position, opposite to the
opening side. Otherwise, remove them
and install on the opposite side.
3h Fasten the supplied guides
B in the fi rst hole on the leaf of the
refrigerator cabinet so that the guide
could rotate until catching the sliding
guide of the refrigerator door A.
3i Then faster the guide B using
other two mounting screws. This guide
must be fi xed, and the door must move
together with the leaf of the cabinet.
ELECTRICAL CONNECTION
Make sure that the voltage
indicated on the rating plate of the
appliance is the same as the voltage
of your mains supply. The rating
plate is located inside the freezer
compartment at the bottom left.
If the socket is not earthed or the
plug does not fi t into the socket, consult
an authorized service center.
To avoid fi re, do not use extension
cords or adapters to connect the
appliance to the mains supply.

12
TECHNICAL PASSPORT ENGLISH
Refrigerator NRB 17761
USING COOLER COMPARTMEN

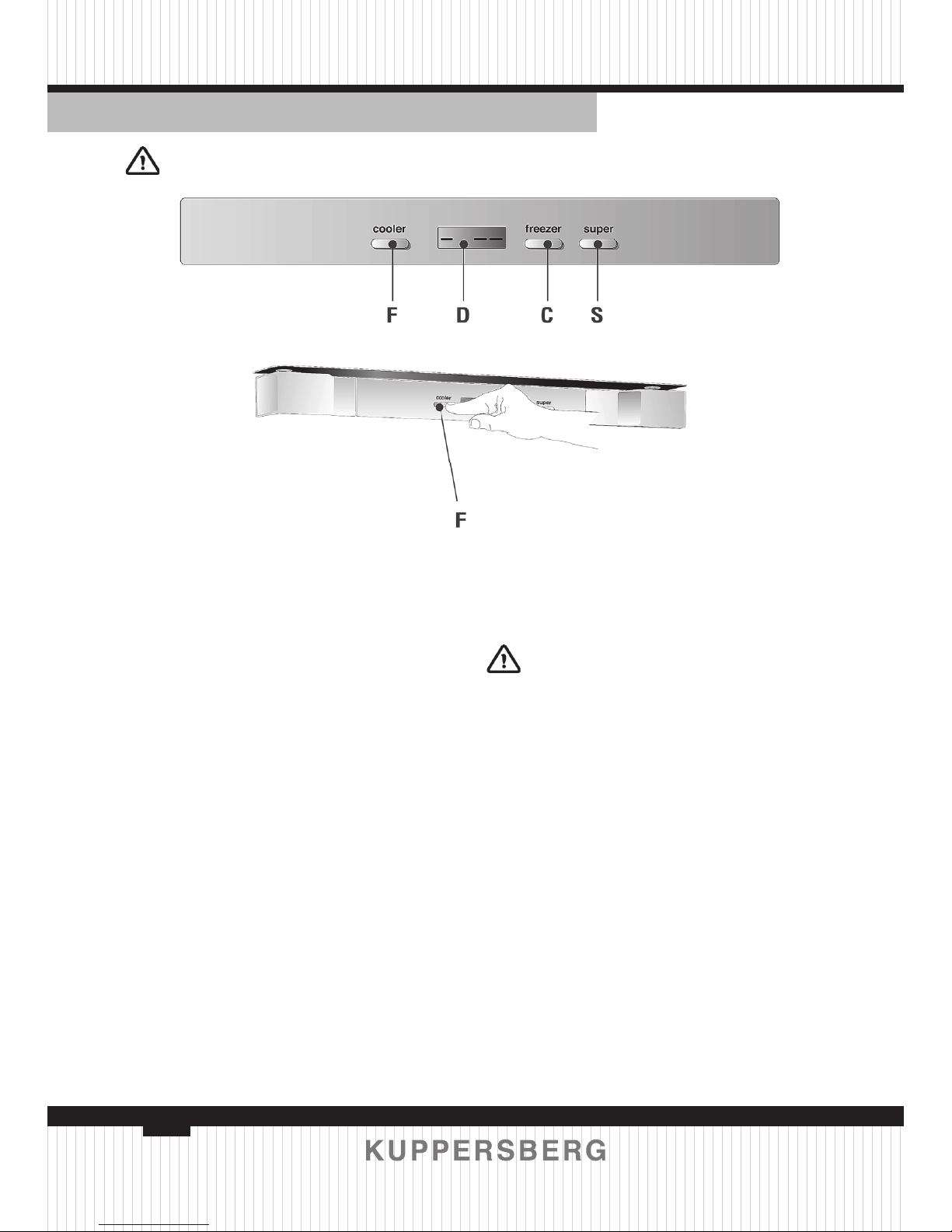

DESCRIPTION OF THE
APPLIANCE
F Cooler compartment power on/off
and setting button
D Display
C Freezer compartment power on/
off and setting button
S SUPER mode on/off button.
START-UP
ÂInsert the plug into the socket.

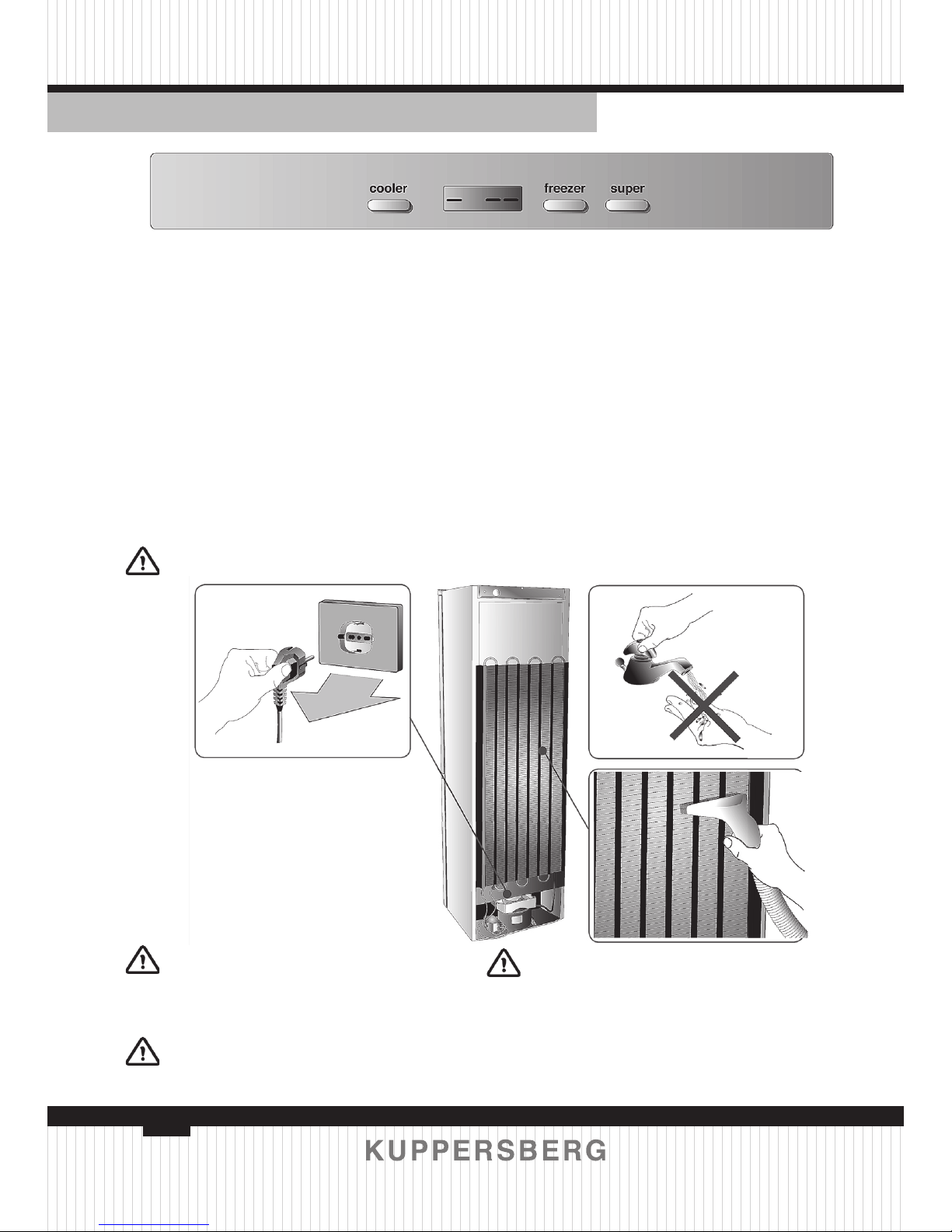

ÂSymbols on the display will be
as shown in the fi gure.
ÂPress F button to switch on both
compartments: cooler and freezer.
ÂAttention! You cannot set the
operation mode individually for the
cooler compartment.
The temperature values set for
both compartments are blinking on
the display within 6 seconds. Example:
+6 cooler, -18 freezer. After 6 seconds
actual temperature values in both
compartments are displayed. To switch
off the cooler compartment, hold F
button for 4 seconds.
ATTENTION! Press C button
for 4 seconds to switch off both
compartments.
COOLER COMPARTMENT
OPERATION.
TEMPERATURE SETTING
To set the desired temperature, press
the F button. The previous temperature
value starts blinking on display.
It will blink for 6 seconds, and within
this period, you can set the desired
temperature by pressing the F button
again. Each time you press the F button,
the temperature changes by one degree.
After setting the desired temperature
the value on the display will blink for
6 seconds. Then the actual temperature
is displayed.

13
ENGLISH TECHNICAL PASSPORT
Refrigerator NRB 17761
Temperature setting range: from
+2°C to +7°C. If the actual temperature
exceeds +9°C, the letter H is displayed.
Attention! If the refrigerator
door remains open for too
long, the interior light is
automatically turned off by
the safety system in order to
prevent bulb overheating. To
switch the light again, close
and reopen the door of the
appliance.
Note:
ÂClearance between shelves and
the back wall of the refrigerator ensures
free air circulation.
ÂMake sure that the food products
are not in contact with the back wall of
the refrigerator.
ÂDo not place hot or warm food
into the appliance.
ÂStore liquids in closed containers.
NO-FROST system maintains
constant temperature and fast cooling.
Forced circulation of dry air causes a
rapid drying of food products.Therefore
we recommend storing them in tightly
closed containers.

14
TECHNICAL PASSPORT ENGLISH
Refrigerator NRB 17761

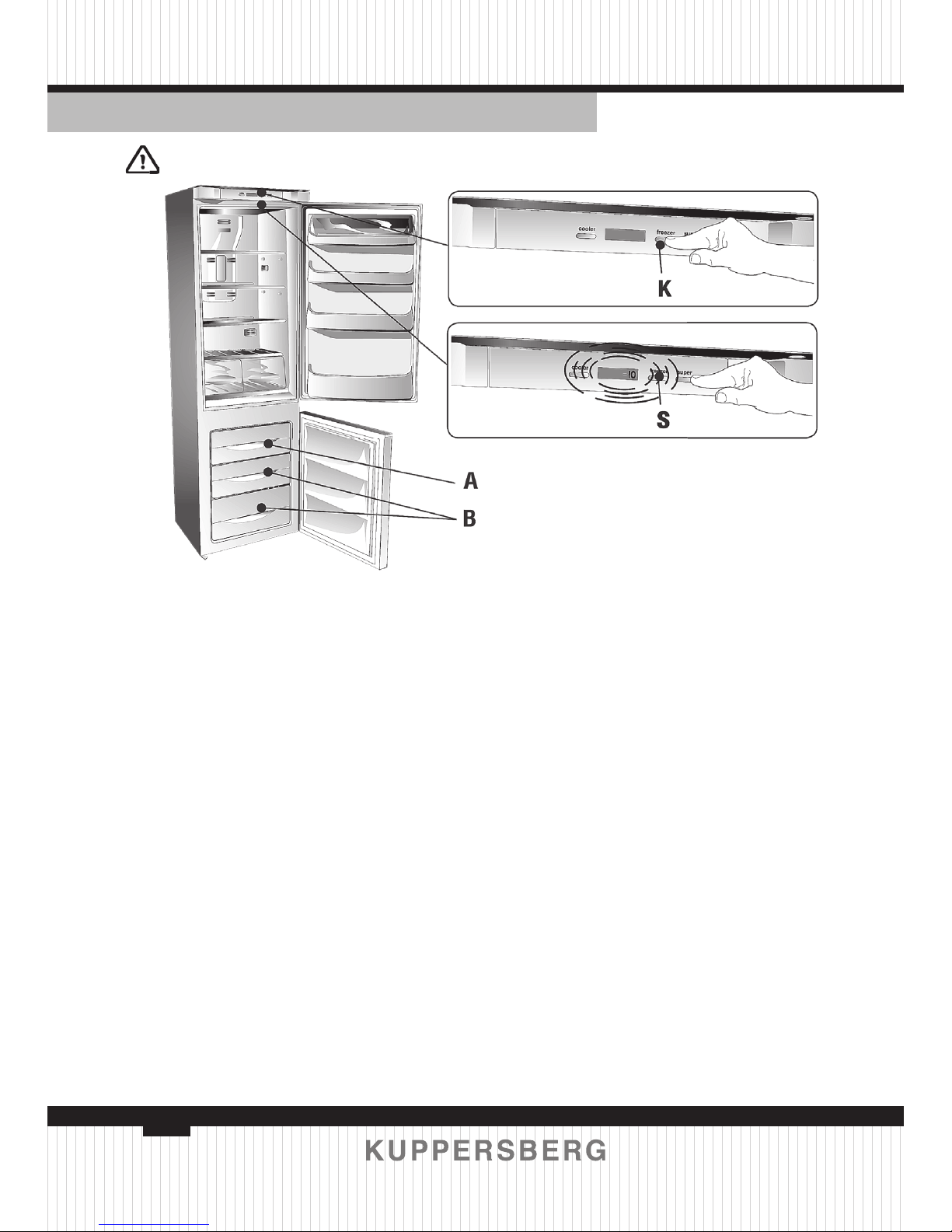

USING FREEZER COMPARTMENT
The appliance has well-separated
compartments:
ÂThe upper drawer A is designed
for freezing fresh food.
ÂLower and middle drawers B
are designed exclusively for storage of
frozen and deep-frozen food products.
Divide freezable food into small
portions (max. 1 kg ), wrap them properly
in special polyethylene fi lm and foil,
close the containers hermetically if
possible, write the date and place them
on the appropriate shelf.
 The temperature suffi cient
for storage of frozen products, will be
reached within approx. 3 hours after
switching on the freezer compartment.
TEMPERATURE SETTING
Freezer compartment can work
autonomously (independently of the
cooler). To switch on this compartment,
hold the C button for not less than
0.5 seconds; to switch off, hold the
C button for 4 seconds until «--»
symbol is displayed. To set the desired
temperature press C button; previously
set temperature value will blink on
display for 6 seconds. During this
time period, you can set the desired
temperature by pressing the C button
again. Each time you press this button,
the temperature value changes by
one degree. After setting the desired
temperature the display will blink for
6 seconds. Then the actual temperature
is displayed. The display shows the
actual temperature values in the freezer
compartment in the range from +20°
to -40°C. If the temperature exceeds
+20°C, the symbol H is displayed.

15
ENGLISH TECHNICAL PASSPORT
Refrigerator NRB 17761
FREEZER TEMPERATURE
INCREASE ALARM SYSTEM
Two types of alarm are provided:
sound and visual (blinking display,
see Fig.). Both types of alarm are
enabled simultaneously, as soon as
the temperature in the freezer exceeds
-12°C (Example: -11). To disable the
sound alarm, press the S button of
SUPER mode. Visual alarm is disabled
automatically when the temperature is
below -12°C.
ATTENTION! At start-up the sound
alarm is enabled automatically,
since the temperature in the freezer
compartment exceeds -12°C.
FREEZING FRESH FOOD
Freezer compartment with
symbol can be used for freezing fresh
food. The amount of food that can be
frozen within 24 hours is specifi ed
on the rating plate (see ELECTRICAL
CONNECTION).
Procedure
ÂWrap food products properly in
foil, special polyethylene fi lm or put
them into a special plastic package,
polyethylene containers with cover, or
containers specially designed for use in
freezers.
ÂArrange food products in
compartments to ensure suffi cient air
circulation between packages.
In the case of power failure the
   
storage is maintained in the freezer
compartment for approximately 15
hours.

16
TECHNICAL PASSPORT ENGLISH
Refrigerator NRB 17761
During the power outage do not
open the freezer door.
SUPER MODE SETTING
This mode is activated by holding the
S button for not less than 0.5 seconds;
the symbol « » is displayed. This mode
is deactivated automatically after 27
hours, or manually by holding the S
button for not less than 0.5 seconds
until the symbol « » disappears.
ATTENTION! Shelf life of frozen food
products is listed in the table on the
inner side of the freezer door.
When purchasing frozen food, please
pay attention to the following:
ÂThe bag or package should not
have traces of damage. Otherwise, the
product may be rotten.
If the package is swollen or has
damp spots, this means that storage
conditions were not observed, and the
defrosting process could have already
started.
ÂFrozen food products should be
bought in the last turn and transported
using special thermal bags.
ÂWhen you come back home,
immediately place frozen food products
in the freezer.

17
ENGLISH TECHNICAL PASSPORT
Refrigerator NRB 17761
RECOMMENDATIONS
To avoid frostbite, DO NOT put ice
cubes in the mouth or eat ice-lollies
just been taken out of the freezer.
DO NOT place clogged-up containers
with liquids, drinks, etc., in the freezer.
Hot foods or drinks should be chilled
before cooling.
STORING FROZEN FOOD
The period of the effi cient storage
of frozen foods varies depending on
the type of product. Strictly follow
guidelines for storing frozen food,
specifi ed on the package.

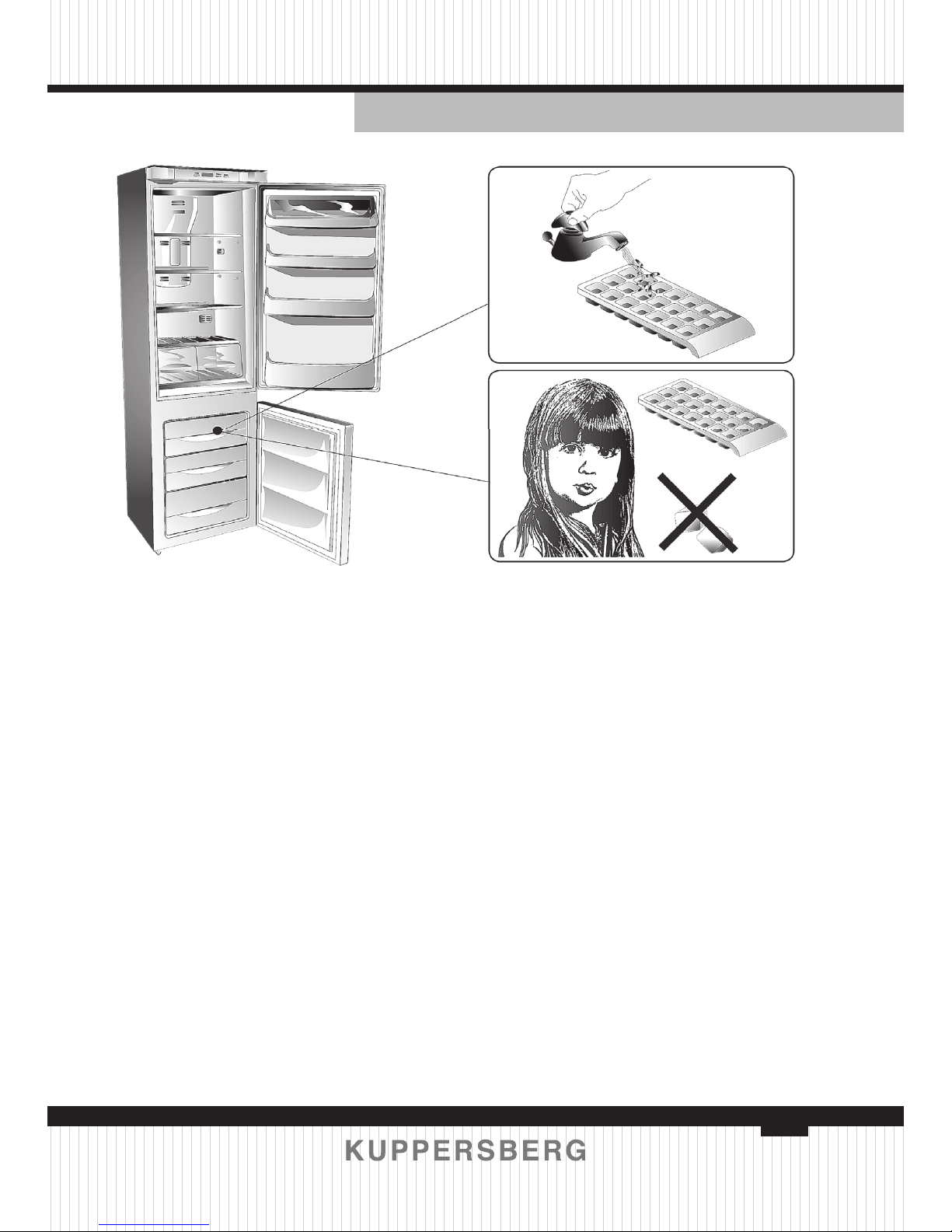

MAKING ICE CUBES
Fill the ice tray with water and place
it in the corresponding drawer of the
freezer compartment (if provided).
FROZEN FOOD STORAGE TIPS
Make sure that the packaging is not
damaged, has no wet spots, and is not
swollen. Otherwise frozen food product
could be rotten.
Do not store frozen food products for
longer than the storage period specifi ed
for each kind of product.

18
TECHNICAL PASSPORT ENGLISH
Refrigerator NRB 17761
STORING FOOD IN THE
FREEZER COMPARTMENT
ÂAvoid or try to minimize
temperature fl uctuations.
ÂObserve storage periods
specifi ed on the packaging of frozen
food products.
ÂFollow the storage instructions
given on the packaging of frozen food.
ÂThe maximum amount of food
that can be frozen simultaneously (in
kg/day), is specifi ed on the rating plate.
ÂFreezing products should not
contact with already frozen food to
avoid temperature increase of the latter.
DO NOT refreeze partially unfrozen
products; these should be consumed
within 24 hours.
DO NOT store deep-frozen food
products for period longer than
recommended.
CLEANING
WARNING: do not use any
electrical devices inside the food
storage compartment, except those
recommended by the manufacturer.
Before any cleaning operation,
disconnect the appliance from the mains.
    

personnel. Operation of the appliance
    
strictly forbidden!

19
ENGLISH TECHNICAL PASSPORT
Refrigerator NRB 17761
Cleaning inside the plastic parts
and the door gasket
Never use any abrasive compounds
and detergents.
ÂSolution of baking soda in warm
water in a ratio of 2 tablespoons to 2
liters of water may only be used.
1 Cleaning the condenser
ÂThis procedure should be
performed at least twice a year.
ÂUse a domestic vacuum cleaner
or a brush. A contaminated condenser
may negatively affect the operation of
the appliance,reducing its effectiveness.
Before you leave for a long
period of time
ÂEmpty the compartments.
ÂDisconnect the appliance from
the mains.
performed at least twice a year.
ÂWash and dry both compartments.
ÂLeave the doors open to prevent
odors and mildew.
Cleaning the drain tube
While cleaning the condenser,
make sure that the drain pipe R is not
obstructed.
ÂRemove the drain pipe R from
the bath V and clean it if necessary.

ÂPerform every 4 months.
1 Remove the cover of the fi lter
holder Fig. 1.
2 Pull out the fi lter Fig. 2.
3 Clean fi lter in warm water (or in
a dishwasher); dry at a temperature
below 100°C; to maintain the fi ltration
effi ciency, fi lter should be replaced every
2 years. Reinstall the fi lter, close the
cover Fig. 1.
Power cable
ÂRegularly check the integrity of
the power cable.
ÂIn case of damage, do not use
the appliance and do not try to repair
the cable. To replace the cable, contact
qualifi ed personnel.

20
TECHNICAL PASSPORT ENGLISH
Refrigerator NRB 17761
1) The appliance does not work
ÂPower supply is interrupted.
ÂThe plug is not properly inserted
into the mains socket.
ÂPower cable is damaged.
ÂIncorrect temperature setting.
2) The temperature in the
compartments is not too high
ÂDoors are ajar.
ÂThe appliance is too close to a
heat source.
ÂIncorrect temperature setting.
ÂContaminated condenser.
3) The temperature in the
cooler compartment is too low
ÂThe incorrect thermostat
position.
4) Too loud noise during
operation
ÂThe appliance contacts furniture
or other things.
ÂRear-wall pipes contact each
other or vibrate.
ÂThe appliance is not in a
horizontal position.
5) The indicator lamp N is on
ÂSee clause USING FREEZER
COMPARTMENT.

ÂThe tray V is not properly install
and does not contact the compressor.
ÂDrain pipe R is not properly
inserted into the tray.
TROUBLESHOOTING
