Kuppersberg Opera IS X 1HHM Installation and maintenance instructions

TECHNICAL PASSPORT
ПАСПОРТ ТЕХНИЧЕСКОГО ИЗДЕЛИЯ
EXTRACTOR HOOD
КУХОННАЯ ВЫТЯЖКА
Opera IS X 1HHM, Kaminox IS X 1HHM

2
TECHNICAL PASSPORT ENGLISH
Extractor hood
SECTION 1
SAFETY PRECAUTIONS.................................................................................................. 3
SECTION 2.
TERMS AND RULES OF USE ........................................................................................ 4
SECTION 3
SPECIFICATIONS................................................................................................................ 5
SECTION 4
CONTROL TYPE................................................................................................................... 5
SECTION 5
MOUNTING AND DIMENSIONS ................................................................................. 6
SECTION 6
CLEANING AND MAINTENANCE ............................................................................... 9
SECTION 7
TROUBLESHOOTING........................................................................................................ 10
SECTION 8
HELPFUL INFORMATION .............................................................................................. 11
CONTENTS

3
ENGLISH TECHNICAL PASSPORT
Extractor hood
DEAR CUSTOMER,
Thank you for purchasing
our equipment! We are sure that
appliances of the KUPPERSBERG
brand, which are modern, functional
and made of high quality materials
and components, will be a reliable
assistant in your kitchen.
Please read this manual carefully
before starting any installation work.
It will help you avoid premature
failure, as well as extend the life
of your appliance to the maximum
possible.
Please note that the installation
of this appliance must be carried
out by a qualifi ed technician and in
accordance with these instructions.
The manufacturer is not liable for any
consequences of failure to observe
this condition.
Caution!
The manufacturer is not responsible
for any possible errors or misprints
in this manual. The manufacturer
reserves the right to make any changes,
without prior notice, to design, outside
appearance and scope of supply of
appliance, which will be considered as
necessary and useful according to the
SECTION 1.
SAFETY PRECAUTIONS
1. Assembling and electrical
connection of the appliance must be
carried out by skilled technicians of
authorized service center.
2. The appliance is to be connected
only to an earthed power supply
system.
3. Do not cook  ammable foods
below the kitchen air cleaner.
4. Use aluminum fi lter that comes
with the appliance. The use of other
materials is prohibited!
5. Do not connect the appliance
to the power supply system, until
the assembly and installation of the
appliance is completed.
6. Do not use the appliance without
the aluminum fi lter in place.
7. Do not touch the lamps.
8. Do not remove the aluminum
fi lter while the appliance is in
operation.
9. Do not disconnect the appliance
from the power supply system directly.
If necessary, turn the appliance off
using the control panel and, only after
that, unplug it from the power supply
manufacturer’s point of view. Possible
modifi cations will not affect the basic
properties, including those that relate
to safe operation of the appliance.

4
TECHNICAL PASSPORT ENGLISH
Extractor hood
system. When switching on: fi rst
connect the appliance to the power
supply system, then switch it on using
the control panel, but not vice versa!
10. In case of any malfunctions,
contact your nearest authorized
service center.
11. If the kitchen hood is supposed
to operate in air discharge mode, then
during installation it is important to
provide a duct of the corresponding
diameter. To prevent loss of
performance caused by aerodynamic
resistance of the duct, the air duct
must not be too long, or curved. Never
restrict the duct size, or make sharp
bends. In addition, it is preferable to
use smooth PVC duct (round or  at),
rather than the  exible corrugated
one because bends of a corrugated
duct increase the noise level of the
hood.
12.The manufacturer does not bear
any responsibility for any possible
damage, in case of non-compliance
with above precautions.
SECTION 2.
TERMS AND RULES
OF USE
1. The appliance is designed
to operate on 220-240 V AC. Make
sure that the technical parameters
of your home power supply system
correspond to the data for the power
supply. If parameter values are above
or below the specifi ed range, the use
of the appliance is prohibited.
2. Do not connect the kitchen air
cleaner to the ventilation channels
that are used to remove smoke and
fumes from the equipment operating
on any other energy sources except
electric one.
3. The appliance requires regular
cleaning and maintenance work.
4. When installing the appliance,
observe the required distance
between it and the cooking surface of
your stove:
- for an electric stove: at least 65
cm
- for a gas or gas-electric stove: at
least 70 cm
5. Do not allow children to play
with packaging materials, it can be
dangerous!
6. The appliance is allowed to be
turned on only once the pots and/or
pans are placed on the stove.
7. For best air cleaning in your
kitchen, do not turn off the appliance
immediately after the cooking process
is completed: let the appliance run for
a further 15 minutes. For this purpose
you can also use the timer function
(the button «Auto Switch Off Timer»
on the control panel).
8. Ensure adequate ventilation in
the kitchen, if a gas stove is operated
simultaneously with the appliance.

5
ENGLISH TECHNICAL PASSPORT
Extractor hood

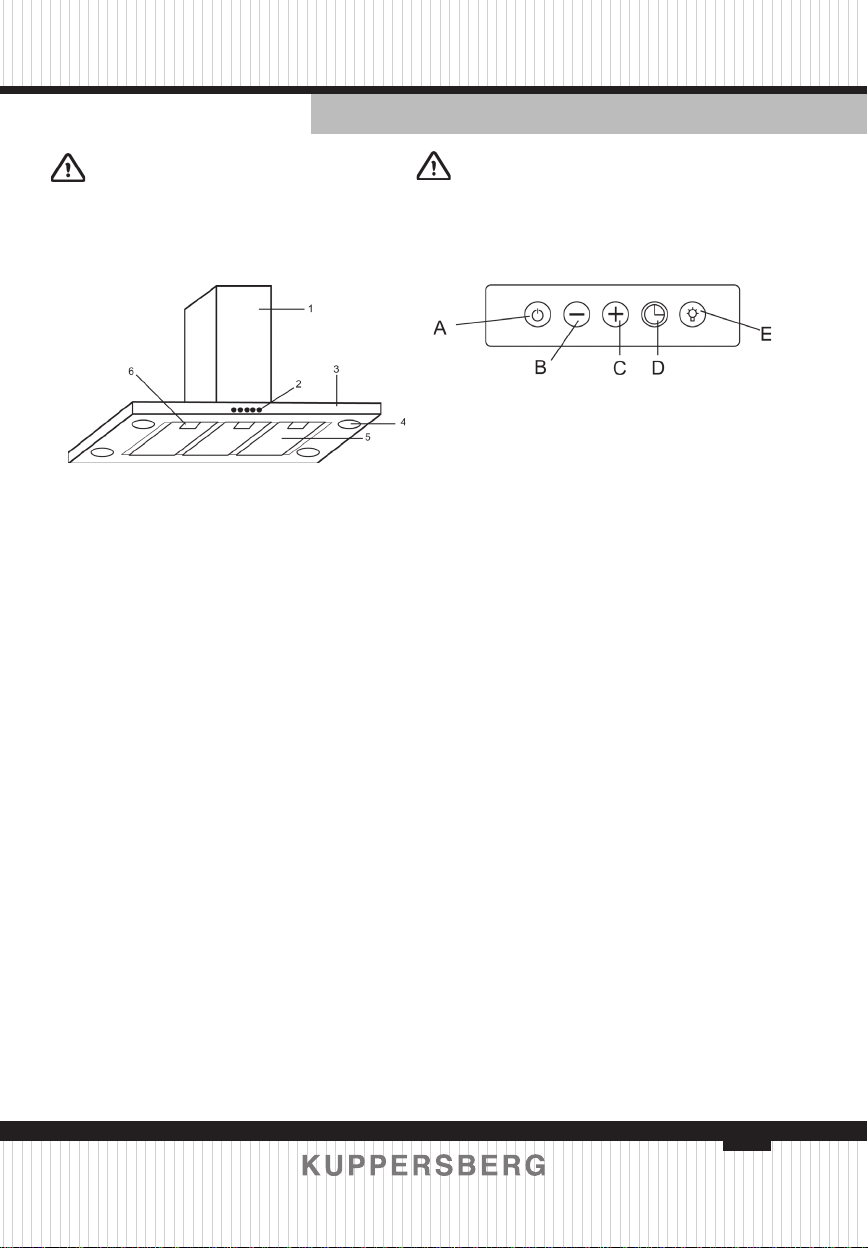

1- Decorative two-piece cover
2- Control panel
3- Air cleaner housing
4- Lamp
5- Aluminum fi lter
6- Aluminum fi lter latch
Island range hood
Width..............................900 mm
Control type .................Electronic (buttons)
Suction power.............1200 m /h
3
Lamps.............................Halogen 4х20 W
(or 2х20 W)
Diameter of the air
discharge pipe ............120-150 mm
Voltage...........................20-240 V / 50 Hz
Modes of operation...Air discharge /
Recirculation
Noise level ...................32-58 dB
SECTION 3
SPECIFICATIONS
Opera IS X 1HHM, Kaminox IS X
1HHM
SECTION 4.
CONTROL TYPE
Electronic control (buttons)
А – On/Off switch
В – «-» (minus) button
С – «+» (plus) button
D – Timer button
E – Lighting button
А – Hood motor On/Off
В – Motor rotation speed decrease
(suction power reducing)
С – Motor rotation speed increase
(suction power increasing)
D – When you press on the Timer,
the motor will automatically be shut
down after 15 minutes. To activate the
function, press and hold the Timer for
3 seconds (rotation speed level starts
to  ash on the display). To cancel, press
once on the Timer.
E – Lighting On/Off

6
TECHNICAL PASSPORT ENGLISH
Extractor hood
Mechanical control (buttons)
А – «Lighting» button
В – «0» button
С – «1» button
D – «2» button
E – «3» button
«Lighting» button – Lighting On/Off
«0» button - hood motor On/Off
«1» button - motor rotation speed 1
(initial level)
«2» button - motor rotation speed 2
«3» button - motor rotation speed 3
SECTION 5.
Mounting and dimensions
Please unpack and inspect the
appliance! Before starting installation,
make sure that the hood has no obvious
transport damages. If such defects are
detected, do not install or connect the
appliance to the mains.
1.To install the air cleaner above the
stove, draw a vertical line on the wall
from the center of the stove vertically
to the ceiling. To comply with safety
regulations, the distance between the
cooking surface and the air cleaner
should be 700 mm. Accordingly, make
a mark with a pencil on the vertical
line at a height of 700+426=1126 mm
from the surface of the stove. Draw a
horizontal line through this point on
the wall. Measure 100 mm on this line
to the right and left from the point
of intersection of the vertical and
horizontal lines and make marks with
a pencil. Using a 6-mm drill bit, drill
holes in these marks. Insert dowels in
the holes just drilled and fi x the hooks.
2. Installation of decorative cover
Draw a horizontal line on a wall, at
a distance of 75 mm from the ceiling.
Measure 50 mm on this line to the right
and left from the point of intersection
with the vertical line and make marks
with a pencil. On these marks, drill the
holes, insert the 8-mm dowels in them
and tighten 2.5-mm screws which must
protrude 2 mm from the wall.

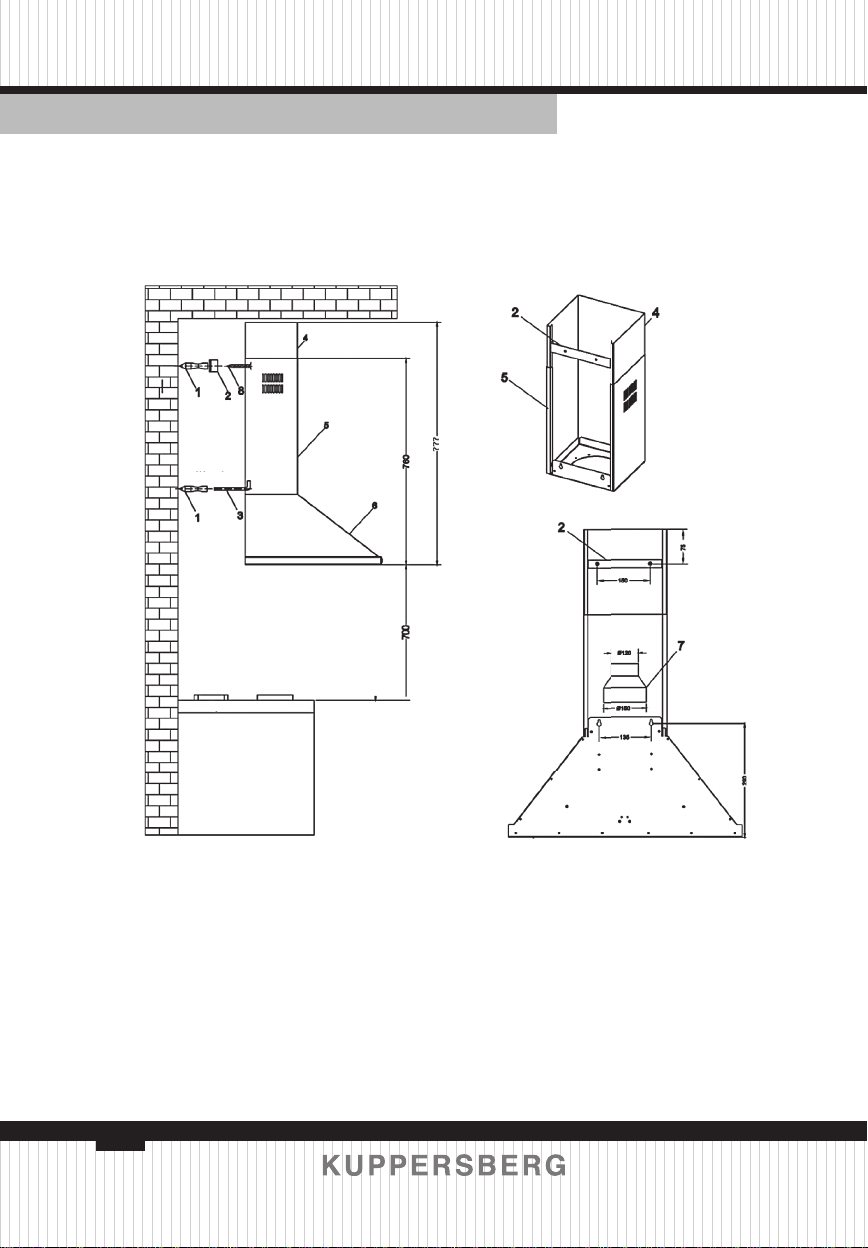

Step 1: Installation of hooks
Step 2: Installation of mounting
bracket
Step 3: Installation of housing
Step 4: Installation of external part
of decorative cover
Step 5: Installation of internal part
of decorative cover
1- Ø8 dowel
2- Mounting bracket
3- Hook
4- Internal part of decorative cover
5- External part of decorative cover
6- Air cleaner housing
7- Bushing adapter
8- Ø 2.5 screw

7
ENGLISH TECHNICAL PASSPORT
Extractor hood

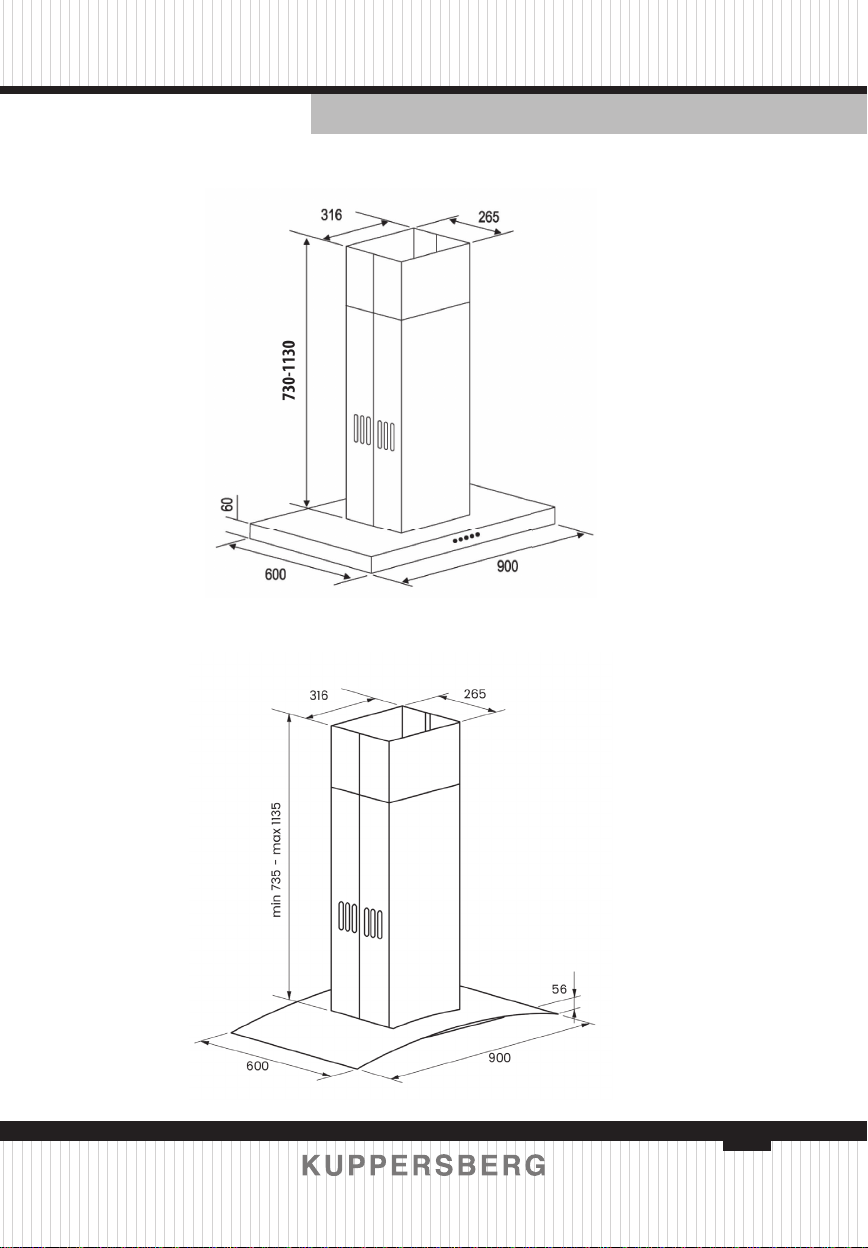

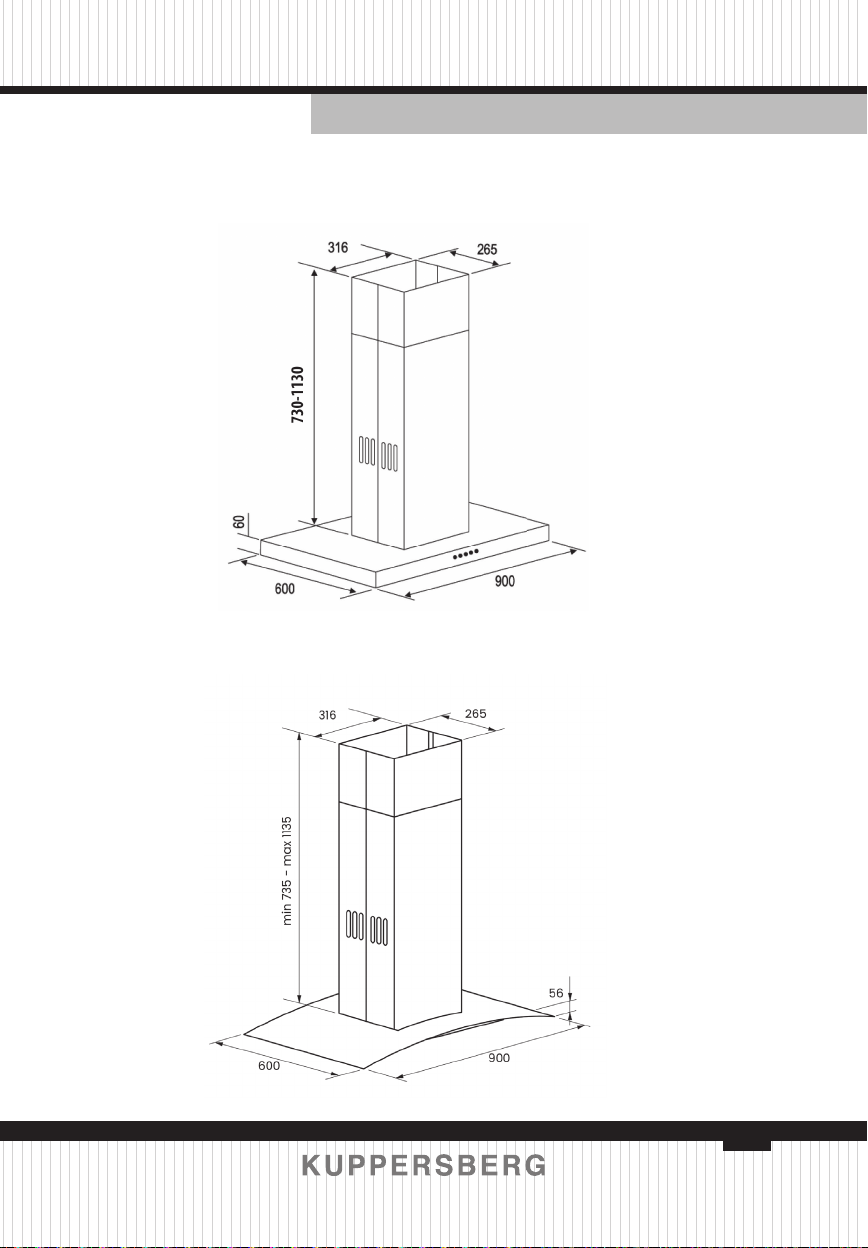

OPERA IS X 1HHM
KAMINOX IS X 1HHM

8
TECHNICAL PASSPORT ENGLISH
Extractor hood
Step 2
Step 1
Kitchen stove

9
ENGLISH TECHNICAL PASSPORT
Extractor hood
SECTION 6.
Cleaning and maintenance
Caution! Before you start cleaning
the appliance, disconnect it from the
power supply.

Aluminum fi lter is designed to trap
grease particles out of the  ow of air
running through it. For this reason,
the fi lter needs regular cleaning. The
cleaning interval depends on the
frequency of use of the air cleaner.
Generally, it is recommended to clean it
once a month.
To do this, remove the fi lters, wash
them in water with a neutral liquid
detergent, dry them, then set them back
in the air cleaner. Over time, fi lters may
change color due to a regular washing.
This is a natural process, which does not
indicate a defect, so fi lter replacement
is not required.
The aluminum fi lters can be washed
in the dishwasher.
How to remove aluminum

1. Press on the latch of the fi lter lock.
2. Pulling down a bit, remove the
fi lter.
In order to put the fi lters in place
after cleaning, follow the above
instructions in reverse order.

recirculated air mode)
Carbon fi lter is designed to trap
odors and fumes while cooking.It is used
in cases where there is no possibility
to connect the air cleaner to a special
ventilation duct for discharging air
outward. When operating the appliance
with a carbon fi lter, contaminated air is
sucked into the appliance and passes
through a carbon fi lter, and then clean
air is supplied to the kitchen.
The carbon fi lter should be replaced
at regular intervals. The interval of fi lter
replacement depends on the frequency
of use of the air cleaner, style of cooking
and frequency of the aluminum fi lter
cleaning. Generally, it is recommended
to replace the carbon fi lter once every
4 months.

1. Remove aluminum fi lters.
2. Turn the carbon fi lter to the left
and pull it.
3. Replace the old carbon fi lter with
the new one.
4. Put the fi lter back into place.
If necessary, clean the outside of the
air cleaner with a soft, damp cloth. Do
not use any abrasive cleaning agents.
For painted stainless steel surfaces: to
avoid scratching it is recommended to
wipe them with a soft, damp cloth in the
painting direction. Do not remove the
lamp cover during the surface cleaning
process.
Caution!
Do not use the steam generators for
cleaning.
Caution!
Not following the above rules for
cleaning the appliance and replacing


10
TECHNICAL PASSPORT ENGLISH
Extractor hood
Replacing lamps
Before replacing lamps, disconnect the appliance from the power supply. Then,
with a screwdriver, pry and remove the lamp cover, while supporting it from below.
Remove the burned-out lamp and replace it with a new one. Put the lamp cover into
place, press it slightly and fi x it. Caution: do not touch the halogen lamp with your
fi ngers, it signifi cantly reduces its lifetime. Use a soft, dry cloth.
Caution!

supply and proceed with disassembly. It is recommended that you transport it in the
original packaging. If this packaging is not available, package the appliance using
materials that prevent possible damage resulting from transportation.
SECTION 7.
Troubleshooting
Very often a malfunction of the appliance occur for minor reasons. So, before you
call for service center, please check whether you can troubleshoot yourself. For this
purpose please check the following possible causes of malfunctions.
Malfunction Possible cause Troubleshooting action
The appliance does not
operate
Faulty fuse
Plug is not properly
inserted into the outlet
There is no voltage in the
power supply system
1. Check the fuse of the
appliance
2. Make sure that plug is
properly inserted into the
outlet
Suction power is not
suffi cient
Incorrect speed selected
Filters are clogged
1. Increase suction speed of
hood
2. Clean or replace fi lters
The lamp is not
lighting
Faulty fuse
The lamp is burned out or
incorrectly installed
1. Check the fuse of the
appliance
2. Make sure that the lamp
is installed correctly or
replace it
