EXTRACTOR HOOD
КУХОННАЯ ВЫТЯЖКА
F630-F930, F612-F912

2
TECHNICAL PASSPORT ENGLISH
Extractor hood
SECTION 1
SAFETY PRECAUTIONS.................................................................................................. 3
SECTION 2
SPECIFICATIONS................................................................................................................ 4
SECTION 3
CONTROL................................................................................................................................ 5
SECTION 4
MOUNTING AND DIMENSIONS ................................................................................. 5
SECTION 5
CLEANING AND MAINTENANCE ............................................................................... 7
SECTION 6
TROUBLESHOOTING........................................................................................................ 8
SECTION 7
HELPFUL INFORMATION .............................................................................................. 9
CONTENTS

3
ENGLISH TECHNICAL PASSPORT
Extractor hood
DEAR CUSTOMER,
Thank you for purchasing our
equipment! We are sure that appliances
of the KUPPERSBERG brand, which are
modern, functional and made of high
quality materials and components, will
be a reliable assistant in your kitchen.
Please read this manual carefully
before starting any installation work. It
will help you avoid premature failure, as
well as extend the life of your appliance
to the maximum possible.
Please note that the installation
of this appliance must be carried
out by a qualifi ed technician and in
accordance with these instructions.
The manufacturer is not liable for any
consequences of failure to observe this
condition.
Caution!
The manufacturer reserves the right
to make any changes, without prior
notice, to design, outside appearance
and scope of supply of appliance, which
will be considered as necessary and
useful according to the manufacturer’s
point of view. Possible modifi cations
will not affect the basic properties,
including those that relate to safe
operation of the appliance.
SECTION 1.
SAFETY PRECAUTIONS
1. Assembling and electrical
connection of the appliance must be
carried out by skilled technicians of
authorized service center.
2. The appliance is designed to
operate on 220-240 V AC. Make sure
that the technical parameters of your
home power supply system correspond
to the data for the power supply. If
parameter values are above or below
the specifi ed range, the use of the
appliance is prohibited.
3. Do not connect the kitchen air
cleaner to the ventilation channels that
are used to remove smoke and fumes
from the equipment operating on any
other energy sources except electric
one.
4. The appliance is to be connected
only to an earthed power supply system.
5. Do not cook fl ammable foods
below the kitchen air cleaner.
6. Use aluminum fi lter that comes
with the appliance. The use of other
materials is prohibited!
7. Do not connect the appliance
to the power supply system, until
the assembly and installation of the
appliance is completed.
8. Do not use the appliance without
the aluminum fi lter in place.
9. Do not touch the lamps.
10. Do not remove the aluminum
fi lter while the appliance is in operation.
11. Do not disconnect the appliance
from the power supply system directly.
If necessary, turn the appliance off using
the control panel and, only after that,
unplug it from the power supply system.

4
TECHNICAL PASSPORT ENGLISH
Extractor hood
When switching on: fi rst connect the
appliance to the power supply system,
then switch it on using the control
panel, but not vice versa!
12. The appliance requires regular
cleaning and maintenance work.
13. When installing the appliance,
observe the required distance between
it and the cooking surface of your stove:
- for an electric stove: at least 65 cm
- for a gas or gas-electric stove: at
least 70 cm
14. Do not allow children to play
with packaging materials, it can be
dangerous!
15. For best air cleaning in your
kitchen, do not turn off the appliance
immediately after the cooking process
is completed: let the appliance run for
a further 15 minutes. For this purpose
you can also use the timer function (the
button «Auto Switch Off Timer» on the
control panel).
16. Ensure adequate ventilation in
the kitchen, if a gas stove is operated
simultaneously with the appliance.
17. In case of any malfunctions,
contact your nearest authorized service
center.
18. If the kitchen hood is supposed
to operate in air discharge mode, then
during installation it is important to
provide a duct of the corresponding
diameter.To prevent loss of performance
caused by aerodynamic resistance of
the duct, the air duct must not be too
long, or curved. Never restrict the duct
size, or make sharp bends. In addition,
it is preferable to use smooth PVC duct
(round or fl at), rather than the fl exible
corrugated one because bends of a
corrugated duct increase the noise level
of the hood.
19. The manufacturer does not bear
any responsibility for any possible
damage, in case of non-compliance
with above precautions.
SECTION 2.
SPECIFICATIONS
Wall hood
Width.................................... 600-900 mm
Control type ....................... Touch
Suction power................... 600м3 (F612-F912),
................................................ 850 м3 (F630-F930)
Lamps................................... LED 2x2
Diameter of the air
discharge pipe .................. 120-150 mm
Voltage................................. 220-240 V / 50 Hz
Modes of operation......... Air discharge /
Recirculation
Noise level ......................... 32- / 42-58 dB

5
ENGLISH TECHNICAL PASSPORT
Extractor hood
SECTION 3.
CONTROL TYPE

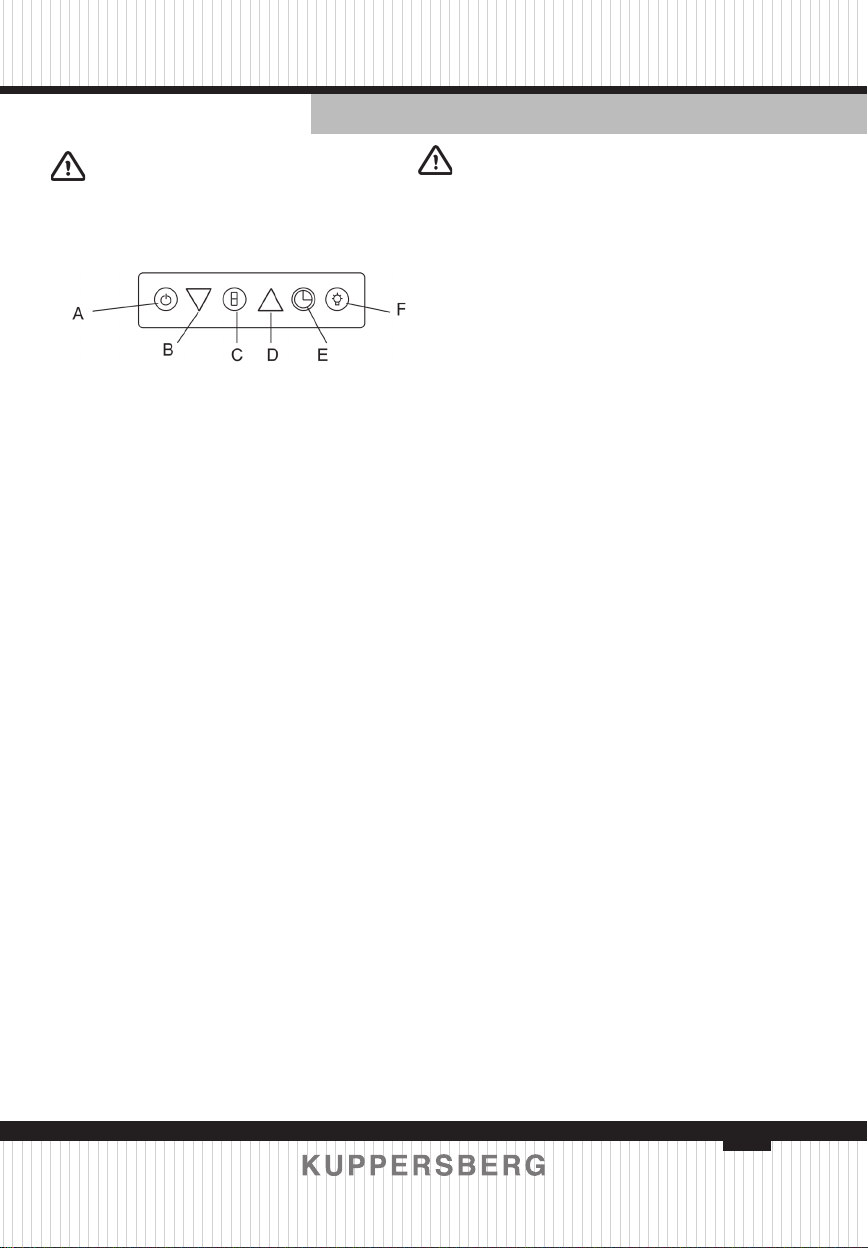

Touch control
А – On/Off switch
В – Power decrease
С – Display
D – Power increase
E – Auto Switch Off Timer
F – Lighting
А – Hood motor On/Off
В – Motor rotation speed decrease
(suction power reducing)
С – Display shows motor rotation
speed
D – Motor rotation speed increase
(suction power increasing)
E – When you press on the Timer,
the motor will automatically be shut
down after 15 minutes. To activate the
function, press and hold the Timer for
3 seconds (rotation speed level starts
to fl ash on the display). To cancel, press
once on the Timer.
F – Lighting On/Off

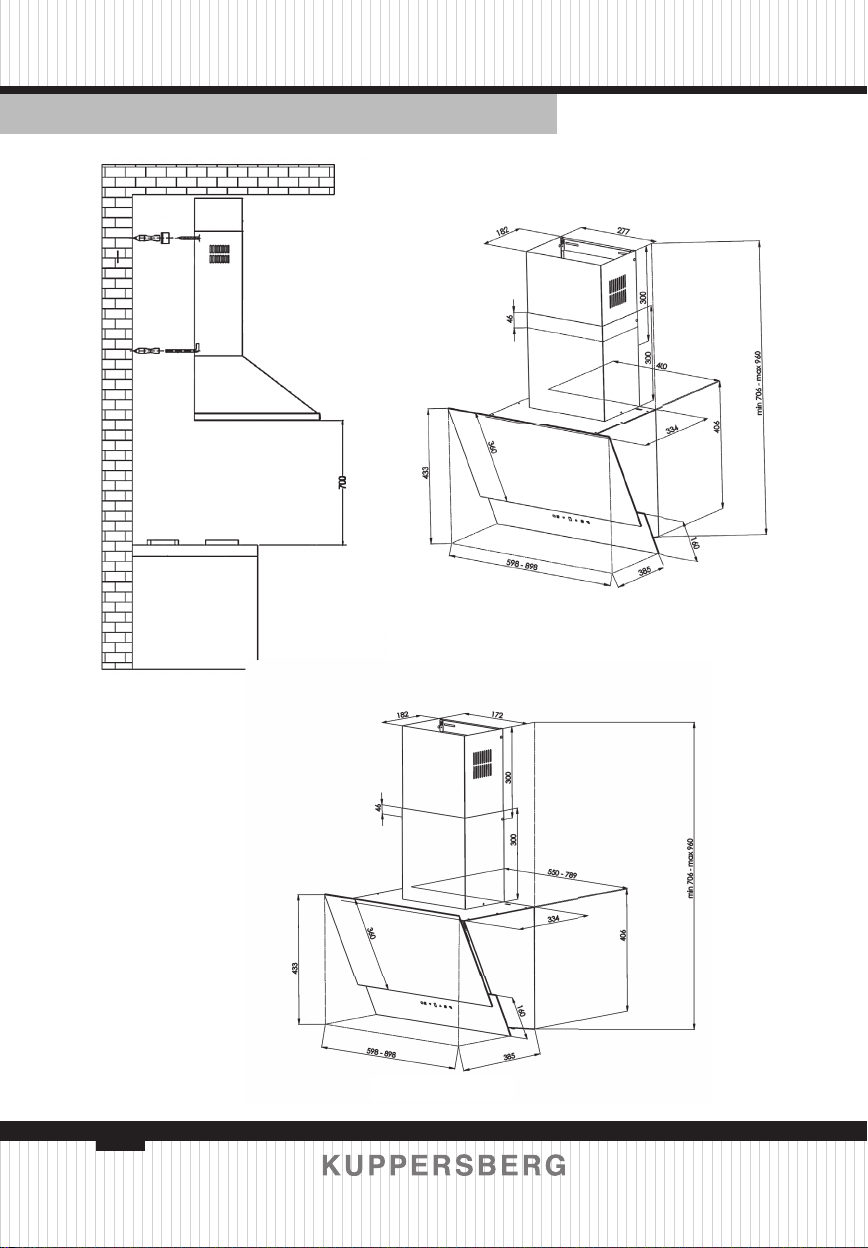

SECTION 4.
Mounting and dimensions
Please unpack and inspect the
appliance! Before starting installation,
make sure that the hood has no obvious
transport damages. If such defects are
detected, do not install or connect the
appliance to the mains.

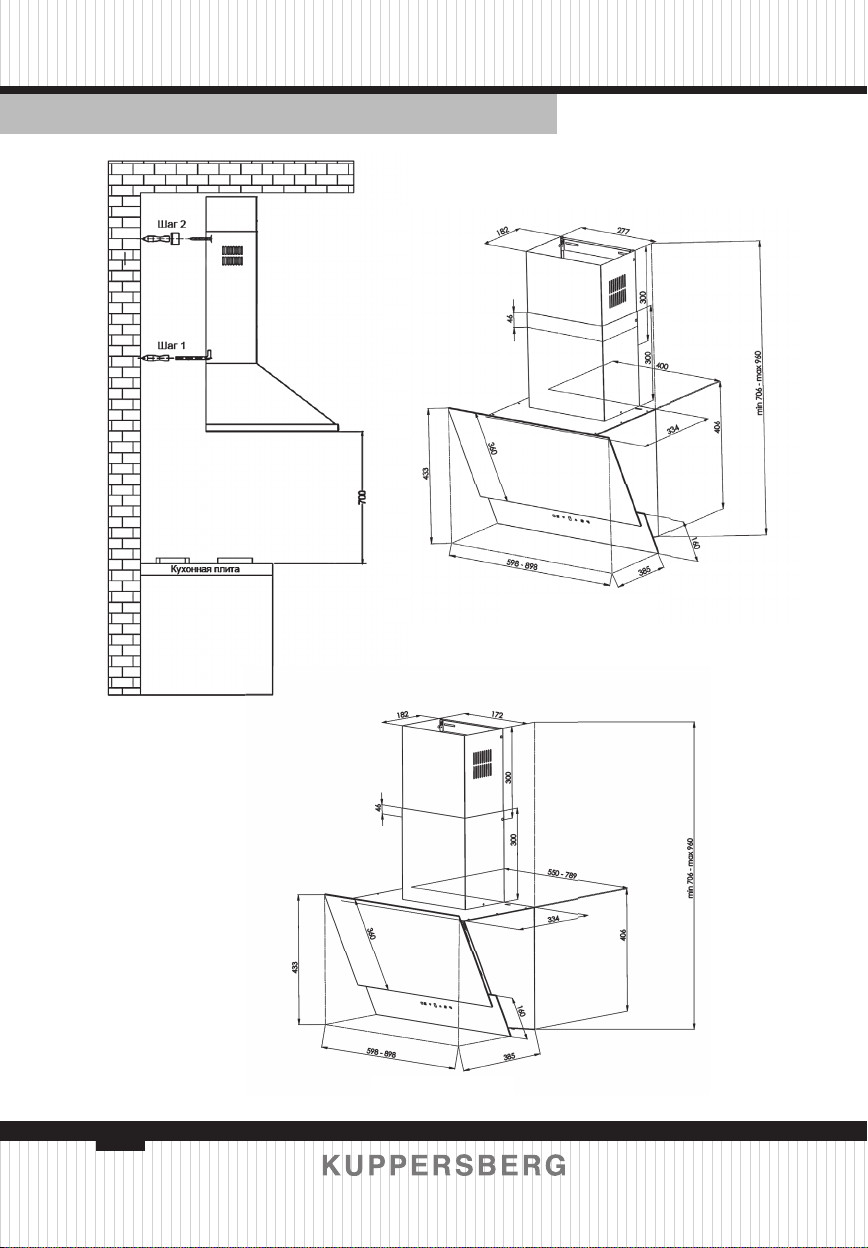

To comply with safety regulations,
the distance between the cooking
surface and the air cleaner should
be 700 mm. For convenience of
installation, each hood is provided
with installation diagram. Attach the
diagram to the wall, mark and drill
the holes. Insert the dowels, fi x the
mounting hooks. Mount the hood.
Repeat the same procedure for the
hood chmney.

6
TECHNICAL PASSPORT ENGLISH
Extractor hood
Step 2
Step 1
Kitchen stove
F612 / 912
F630 / 930

7
ENGLISH TECHNICAL PASSPORT
Extractor hood
SECTION 5.
Cleaning and maintenance
Caution! Before you start cleaning
the appliance, disconnect it from the
power supply.

Aluminum fi lter is designed to trap
grease particles out of the fl ow of air
running through it. For this reason,
the fi lter needs regular cleaning. The
cleaning interval depends on the
frequency of use of the air cleaner.
Generally, it is recommended to clean it
once a month.
To do this, remove the fi lters, wash
them in water with a neutral liquid
detergent, dry them, then set them back
in the air cleaner. Over time, fi lters may
change color due to a regular washing.
This is a natural process, which does not
indicate a defect, so fi lter replacement
is not required.
The aluminum fi lters can be washed
in the dishwasher.
How to remove aluminum

1. Press on the latch of the fi lter lock.
2. Pulling down a bit, remove the
fi lter.
In order to put the fi lters in place
after cleaning, follow the above
instructions in reverse order.

recirculated air mode)
Carbon fi lter is designed to trap
odors and fumes while cooking.It is used
in cases where there is no possibility
to connect the air cleaner to a special
ventilation duct for discharging air
outward. When operating the appliance
with a carbon fi lter, contaminated air is
sucked into the appliance and passes
through a carbon fi lter, and then clean
air is supplied to the kitchen.
The carbon fi lter should be replaced
at regular intervals. The interval of fi lter
replacement depends on the frequency
of use of the air cleaner, style of cooking
and frequency of the aluminum fi lter
cleaning. Generally, it is recommended
to replace the carbon fi lter once every
4 months.

1. Remove aluminum fi lters.
2. Turn the carbon fi lter to the left
and pull it.
3. Replace the old carbon fi lter with
the new one.
4. Put the fi lter back into place.
If necessary, clean the outside of the
air cleaner with a soft, damp cloth. Do
not use any abrasive cleaning agents.
For painted stainless steel surfaces: to
avoid scratching it is recommended to
wipe them with a soft, damp cloth in the
painting direction. Do not remove the
lamp cover during the surface cleaning
process.
Caution!
Do not use the steam generators for
cleaning.
Caution!
Not following the above rules for
cleaning the appliance and replacing


8
TECHNICAL PASSPORT ENGLISH
Extractor hood
Replacing lamps
Before replacing lamps, disconnect the appliance from the power supply. Then,
with a screwdriver, pry and remove the lamp cover, while supporting it from below.
Remove the burned-out lamp and replace it with a new one. Put the lamp cover into
place, press it slightly and fi x it. Caution: do not touch the halogen lamp with your
fi ngers, it signifi cantly reduces its lifetime. Use a soft, dry cloth.
Caution!

supply and proceed with disassembly. It is recommended that you transport it in the
original packaging. If this packaging is not available, package the appliance using
materials that prevent possible damage resulting from transportation.
SECTION 6.
Troubleshooting
Very often a malfunction of the appliance occur for minor reasons. So, before you
call for service center, please check whether you can troubleshoot yourself. For this
purpose please check the following possible causes of malfunctions.
Malfunction Possible cause Troubleshooting action
The appliance does not
operate
...Faulty fuse
...Plug is not properly
inserted into the outlet
...There is no voltage in
the power supply system
1. Check the fuse of the
appliance
2. Make sure that plug is
properly inserted into the
outlet
Suction power is not
suffi cient
...Incorrect speed
selected
...Filters are clogged
1. Increase suction speed of
hood
2. Clean or replace fi lters
The lamp is not
lighting
...Faulty fuse
...The lamp is burned out
or incorrectly installed
1. Check the fuse of the
appliance
2. Make sure that the lamp
is installed correctly or
replace it

9
ENGLISH TECHNICAL PASSPORT
Extractor hood
SECTION 7.
Helpful information
Physical characteristics of the sound volume (the sound pressure level) is
measured in decibels (dB). «Noise» is a chaotic mix of sound.
The human ear can detect sounds with sound volume of 10-15 dB and above.
When choosing a kitchen hood,it is necessary to pay special attention to technical
indicators such as the noise level. This indicator is very important, because, and
that’s beyond a shadow of a doubt, each of us spends a lot of time on the kitchen. It
is especially common for women who love to please their loved ones with delicious
cooked dishes.
According to the surveys, 40% of women do not use kitchen hoods for their
intended purpose (it refers to the process of air suction), precisely because they are
annoyed with the noise level.
Consequently, such a necessary and needed in the kitchen appliance, kitchen
air cleaner, designed to remove airborne odors, grease, soot and smoke, becomes
almost meaningless.
This allows you to make the cooking process the most comfortable and helpful.
For more complete understanding of the scale of decibels, you can compare
parameters of the following guidelines:
Intensity of typical noise sources
Approximate sound
pressure level dB Characteristics Sound source and distance
160 Shock, trauma Shot of a gun of 0.303 caliber close to your ear
150 Contusion, trauma Rise of the lunar rocket, 100 m
140 Contusion Rise of the jet plane, 25 m
120 Almost unbearable Engine room of submarine Jackhammer, 1 m
100 Extremely noisy Very noisy factory Subway car (intermittently)
90 Very noisy
Heavy diesel truck, 7 m
Road drill (without muffl er), 7 m
Railway freight wagon, 7 m
80 Very noisy Ringing alarm clock, 1 m
Motorcycle with a silencer, 1 m
75 Noisy Inside railway carriage
Shout, 1 m Loud laughter, 1 m
70 Noisy
Inside a small car, moving at a speed of 50 km/h
Home vacuum cleaner, 3 m
Loud conversation, 1 m
65 Clearly audible Typewriter Normal conversation, 1 m
40 Quite audible Institution, where there are no special sources of noise
35 Hardly audible Room of a quiet apartment
Very muffl ed conversation
25 Quiet Rural areas located far from roads
Whisper of a person, 1 m

10
TECHNICAL PASSPORT ENGLISH
Extractor hood

Year
Serial Number
Month
ES XX XX XXXX

Teka Industrial, S.A.
Ctra. Madrid km. 316 a ZARAGOZA 50012 SPAIN
ESALBA GLOBAL DIS TYC. A.S
Organize Sanayi Bolgesi , 21. Cadde No:8 Eskisehir – Turkiye

LLC «MG Rusland», 141400
Moscow region, Khimki, Butakovo, 4
LLC «Kuppersberg-Import», 125438
Moscow, Avtomotornaya, 7
Made in EU
