Kvaser Leaf User manual

Kvaser Leaf Installation Guide
Copyright 2001-2008 Kvaser AB, Mölndal, Sweden
http://www.kvaser.com
Last updated Thursday, 28 April 2011
We believe that the information contained herein was accurate in all respects at the time of printing. Kvaser AB cannot, however, assume
any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and
should not be construed as a commitment by Kvaser AB.

Kvaser Leaf Installation Guide 2(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
(This page is intentionally left blank.)

Kvaser Leaf Installation Guide 3(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
1 Table of Contents
Kvaser Leaf Installation Guide................................................................................................1
1Table of Contents..............................................................................................................3
2Introduction........................................................................................................................4
2.1 Hardware requirements................................................................................................4
2.2 Software requirements.................................................................................................4
2.3 Updating an existing installation...................................................................................4
3Driver installation..............................................................................................................6
3.1 Driver signing ............................................................................................................ 10
4Hardware installation..................................................................................................... 11
5Installation verification .................................................................................................. 13
6Support............................................................................................................................ 15
6.1 Firmware Update....................................................................................................... 15
6.2 Driver Update............................................................................................................ 15
7Disclaimer ....................................................................................................................... 16
8Document revision history............................................................................................ 17

Kvaser Leaf Installation Guide 4(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
2 Introduction
This guide describes how to install the Kvaser Leaf interface under Windows XP. The
information given here is also valid for Windows 98, Windows 2000, Windows Server 2003,
and Windows Vista, since the steps are basically the same.
This document is applicable to all types of the Kvaser Leaf.
The driver installation packages and device firmware updates are available on our web site
1
and also on the Kvaser CD, which you received together with the hardware when you
purchased it.
Since the hardware is essentially the same this guide will refer to the devices as just Kvaser
Leaf.
Please read this entire document before installing or upgrading the device or its driver
routines.
2.1 Hardware requirements
You will need
An IBM compatible PC, with Pentium processor or higher, and
A USB host controller, supported by the version of Windows you are using, with a free
port.
2.2 Software requirements
Before installing the drivers, you should install the latest service pack for the OS you
are using.
We provide separate installation packages for the following operating systems. Each package
contains the drivers for all our hardware on the OS in question; see Table 1.
Operating system
Package name
Windows 2000, Windows XP, Windows
Server 2003, Windows Vista (Note: the
same installation package is used for both
32-bit and 64-bit editions of the operating
systems)
kvaser_drivers_w2k_xp.exe
Windows 98, Windows ME
kvaser_drivers_w98.exe
Table 1: Driver installation packages
2.3 Updating an existing installation
If your driver installation has become corrupt for some reason, we recommend that you
remove the drivers completely, and then reinstall them again.
1
http://www.kvaser.com

Kvaser Leaf Installation Guide 5(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
If you are upgrading from an old version (older than CANLIB 3.4, released in May 2003), we
also recommend that you first completely remove the old drivers, and then install the new
version.
If you are upgrading from a comparably new driver (at least version 3.4), you can install the
new driver without uninstalling the old version.

Kvaser Leaf Installation Guide 6(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
3 Driver installation
Run the driver installation program (see Table 1.)
oOn Windows 2000, Windows XP and Windows Server 2003, you must have
Administrator's rights, and the installation program must be started from an
account that is a member of the local Administrators group.
oOn Windows Vista, it does not matter which account you start the installation
program from. Windows Vista will prompt you for the credentials for an
administration account, which you must be prepared to supply.

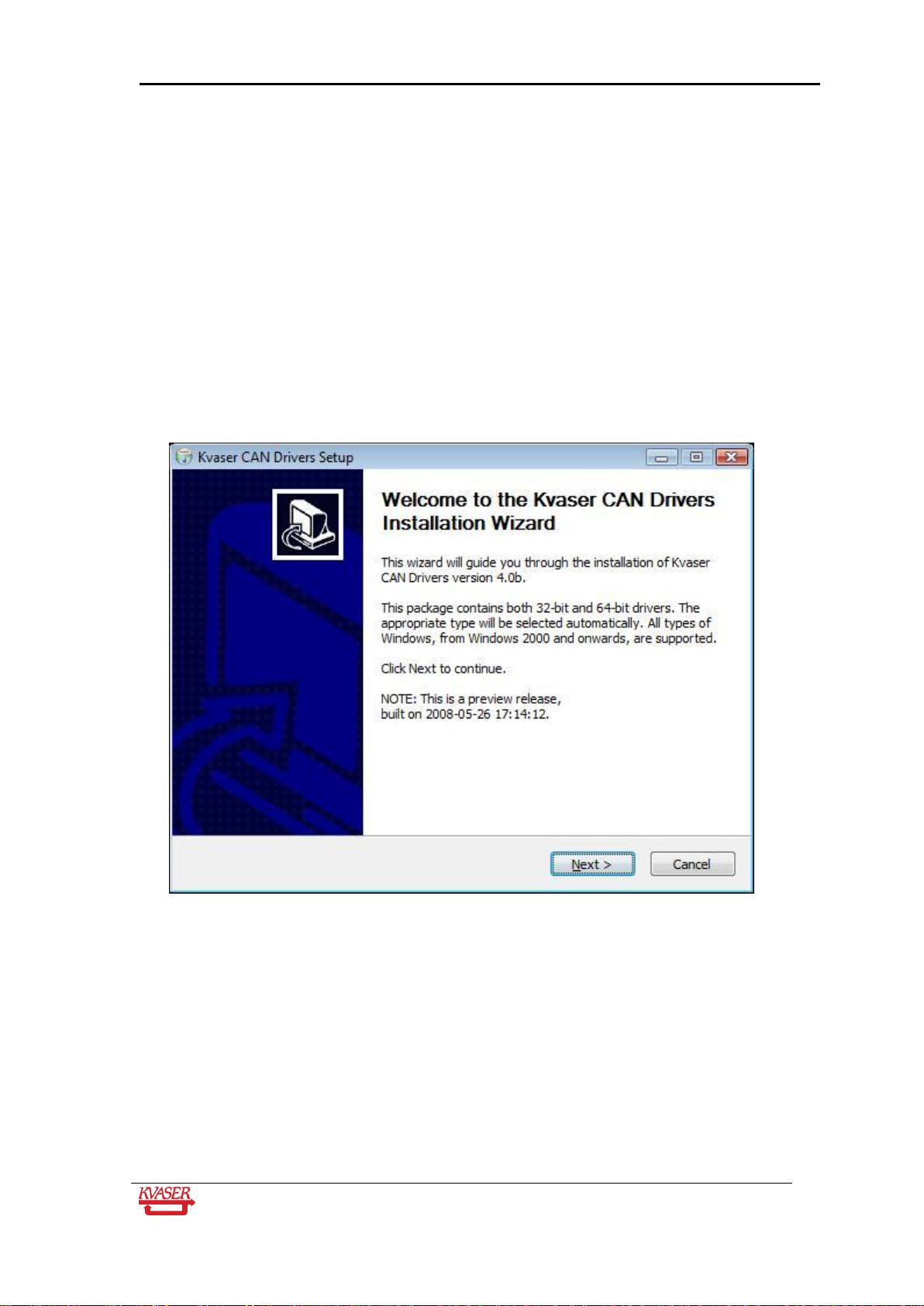

Welcome. At this point, you are ready to set up the installation on your computer.
Press the "Next" button to continue.
Figure 1: The welcome screen
View release notes? In the next screen you can choose to read the release notes for
the drivers, and/or detailed installation instructions. We recommend that you do so,
since it contains information that probably is useful for you.

Kvaser Leaf Installation Guide 7(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
Figure 2: Optionally view the release notes
Choose installation options. There aren’t many installation options to choose from,
but here you can prevent the creation of shortcuts in the start menu.
Figure 3: Installation options

Kvaser Leaf Installation Guide 8(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com

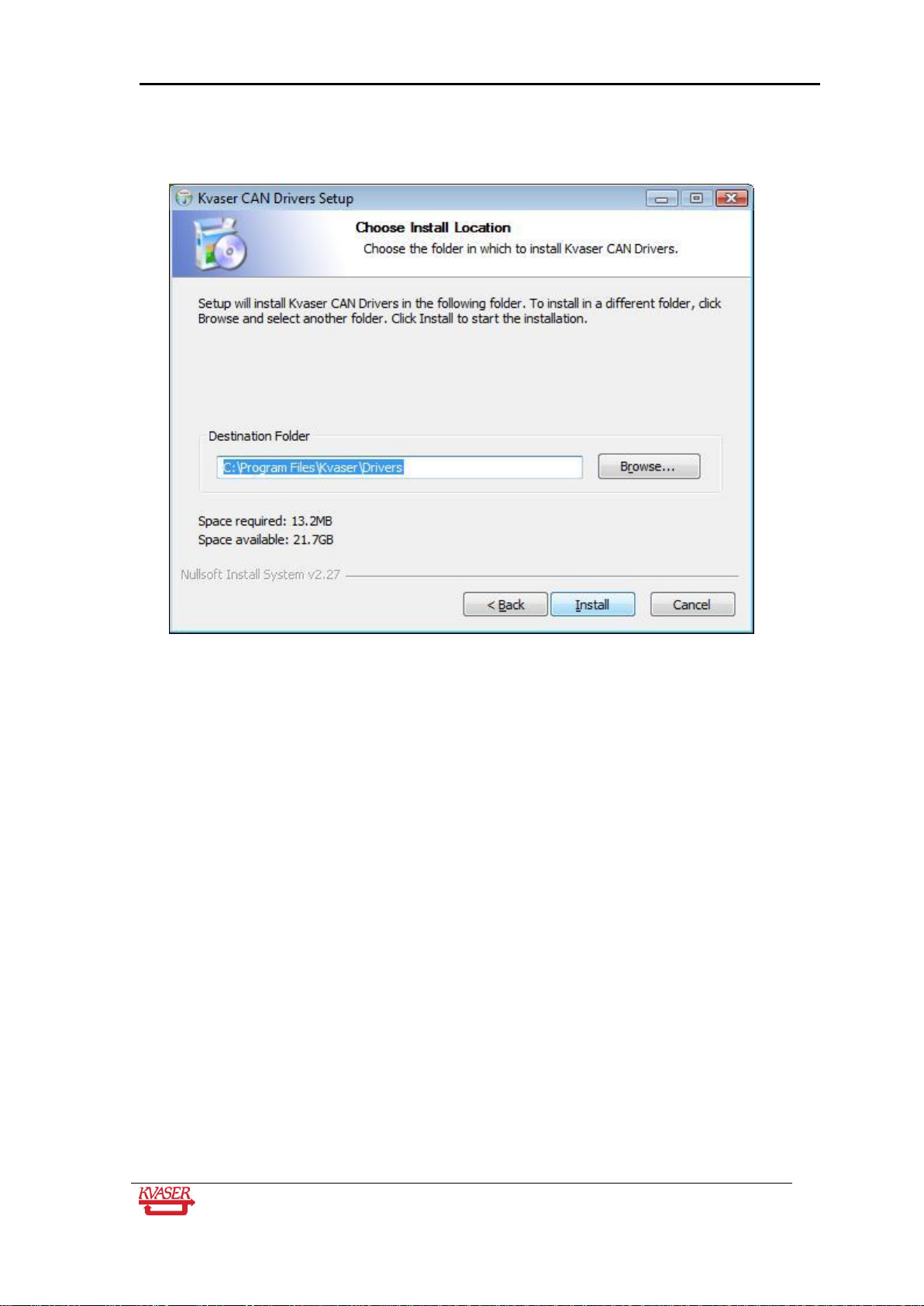

Location of installed files. We recommend that you keep the default setting unless
you have good reasons to select something else.
Figure 4: Select installation directory
Installation starts. The installation will typically take up to one minute.

Kvaser Leaf Installation Guide 9(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
Figure 5: Installation in progress
Installation completed. You may want to click the Show details button to see
messages from the installation program.
Figure 6: Installation completed

Kvaser Leaf Installation Guide 10(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
3.1 Driver signing
The driver software is digitally signed by Kvaser to assure its integrity and identity.
In Windows Vista, a window similar to the following will be displayed two times during the
installation.
When it appears, click the Install button. If you check the Always trust software from “Kvaser
AB” box first, the operating system will not ask you further questions of this type when you
install software from Kvaser.
If you are a system administrator and want to prevent this message to appear, you can install
Kvaser’s software signing certificate in the computer’s certificate store. In a Windows domain,
you can use a GPO to deploy the certificate to computers on the network.

Kvaser Leaf Installation Guide 11(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
4 Hardware installation
You need to install your Kvaser Leaf once (but only once) for each USB port you want to use
on your computer. This is a design feature of Windows.
Drivers installed? Install the Kvaser Leaf drivers if you have not already done so.
Plug in the hardware. Plug in your Kvaser Leaf into a free USB port on your PC
(the computer does not need to be turned off).
The Welcome dialog. In a few seconds the dialog in Figure 7 will pop up. You do
not need to insert the Kvaser CD although the dialog says you should. Instead, just
select "Install the software automatically", and then press the "Next" button. Note:
You must have Administrator's rights to do this, or the operation will fail. In Windows
XP, Service Pack 2 or later, you will be asked if you want to connect to Windows
Update. Here you should answer "No, not this time" and then press the "Next"
button. Connecting to Windows Update is harmless but can take a long time.
Figure 7: The Found New Hardware dialog

Kvaser Leaf Installation Guide 12(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
Installing. In the next dialog the software is being installed. Press “Next”when the
installation is complete.
Figure 8: The hardware is being installed
Finish. The installation is now complete. Press “Finish”.
Figure 9: Hardware installation completed

Kvaser Leaf Installation Guide 13(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
5 Installation verification
You can perform the steps described below to verify that your Kvaser hardware is properly
installed and communicates with its device driver.
Open the Control Panel. There you will find an icon labelled Kvaser Hardware. It looks like
this:
Figure 10: The Kvaser Hardware icon
Note for users of Windows XP, Windows Server 2003, and Windows Vista: If you have enabled the
“Category View” (which is the default) in the Control Panel, you will find the icon in the “Printers and
Other Hardware” category. As an alternative to the Category View, you may want to click on the link
“Switch to Classic View” on the left panel in the Control Panel window. In the Classic View, all icons are
visible at the same time.

Kvaser Leaf Installation Guide 14(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com

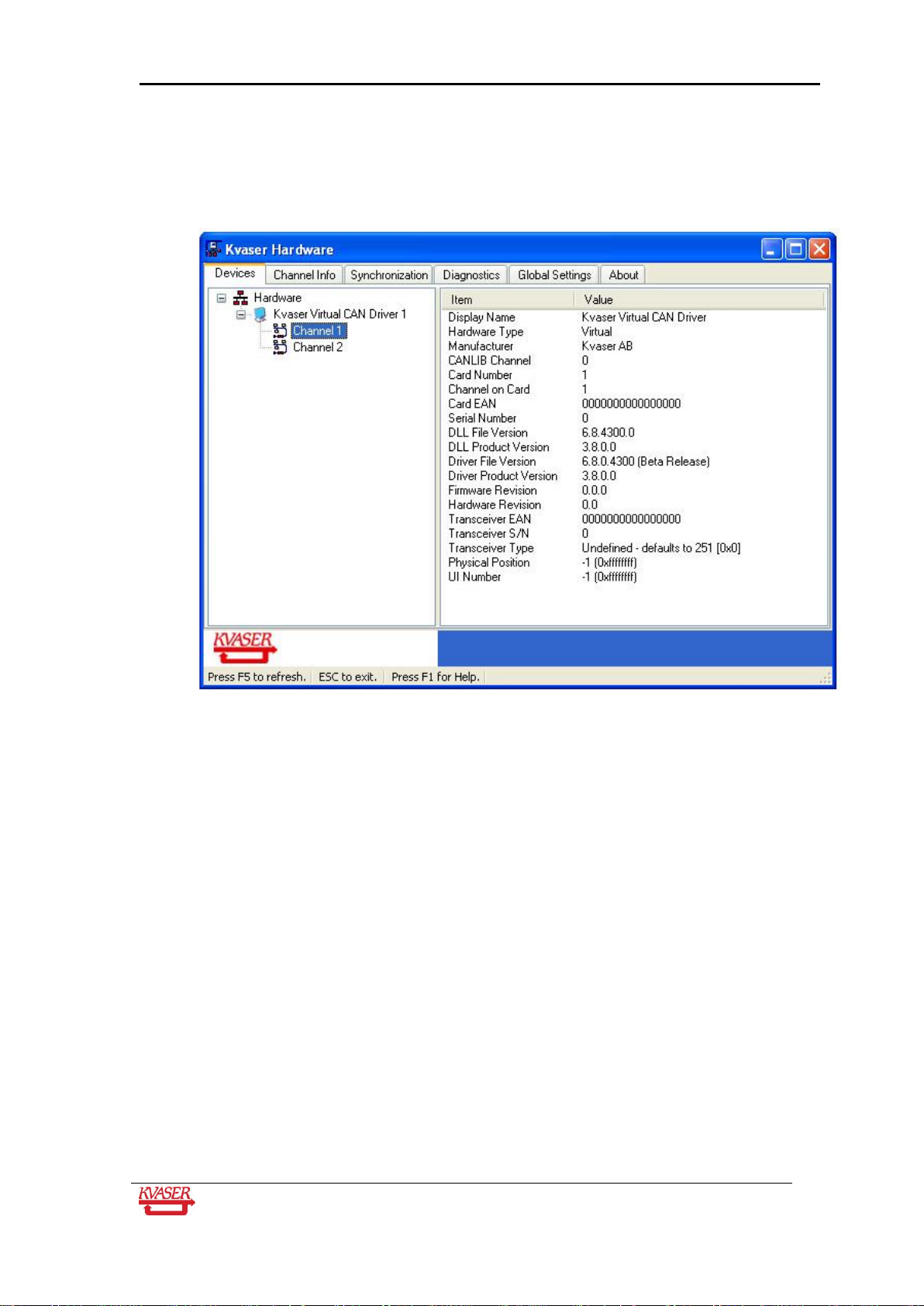

Open the Kvaser Hardware program. Double-click on the abovementioned icon. You should
see a window like the one shown below. This program handles all Kvaser Hardware that is
connected to the computer. The virtual drivers are also included. Clicking on a device
channel opens up a panel with more detailed information, for example serial number,
firmware revision, EAN number, etc.
Figure 11: The "Kvaser Hardware" program
If Kvaser Hardware displays information for a particular hardware device, it means that the
basic communication between the hardware and the device driver is OK.

Kvaser Leaf Installation Guide 15(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
6 Support
You may want to visit our homepage http://www.kvaser.com to find frequently asked
questions, troubleshooting tips, and other helpful information.
Support email:
[email protected]om
6.1 Firmware Update
Firmware updates and upgrade instructions can be found at
http://www.kvaser.com/download/. Use “Kvaser Hardware” to see the present firmware
version of your Kvaser Leaf.
6.2 Driver Update
Driver updates and upgrade instructions can be found at http://www.kvaser.com/download/.
Use “Kvaser Hardware” to see the present firmware version of your Kvaser Leaf.

Kvaser Leaf Installation Guide 16(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
7 Disclaimer
Copyright 2005-2008 Kvaser AB
This document may not be reproduced without our written permission. Infringement will
render the user liable to prosecution.
We believe that the information contained herein was accurate in all respects at the time of
printing. Kvaser AB cannot, however, assume any responsibility for errors or omissions in this
text. Please also note that the information in this document is subject to change without notice
and should not be construed as a commitment on the part of Kvaser AB.

Kvaser Leaf Installation Guide 17(17)
Kvaser AB, Mölndal, Sweden —www.kvaser.com
8 Document revision history
Revision
Date
Changes
1
2006
Older Versions
2
2006-11-13
Reviewed, new layout
3
2008-05-27
General review and update
4
2008-12-03
Reviewed, minor editorial changes
